LIGHTING SYSTEM  9B-11

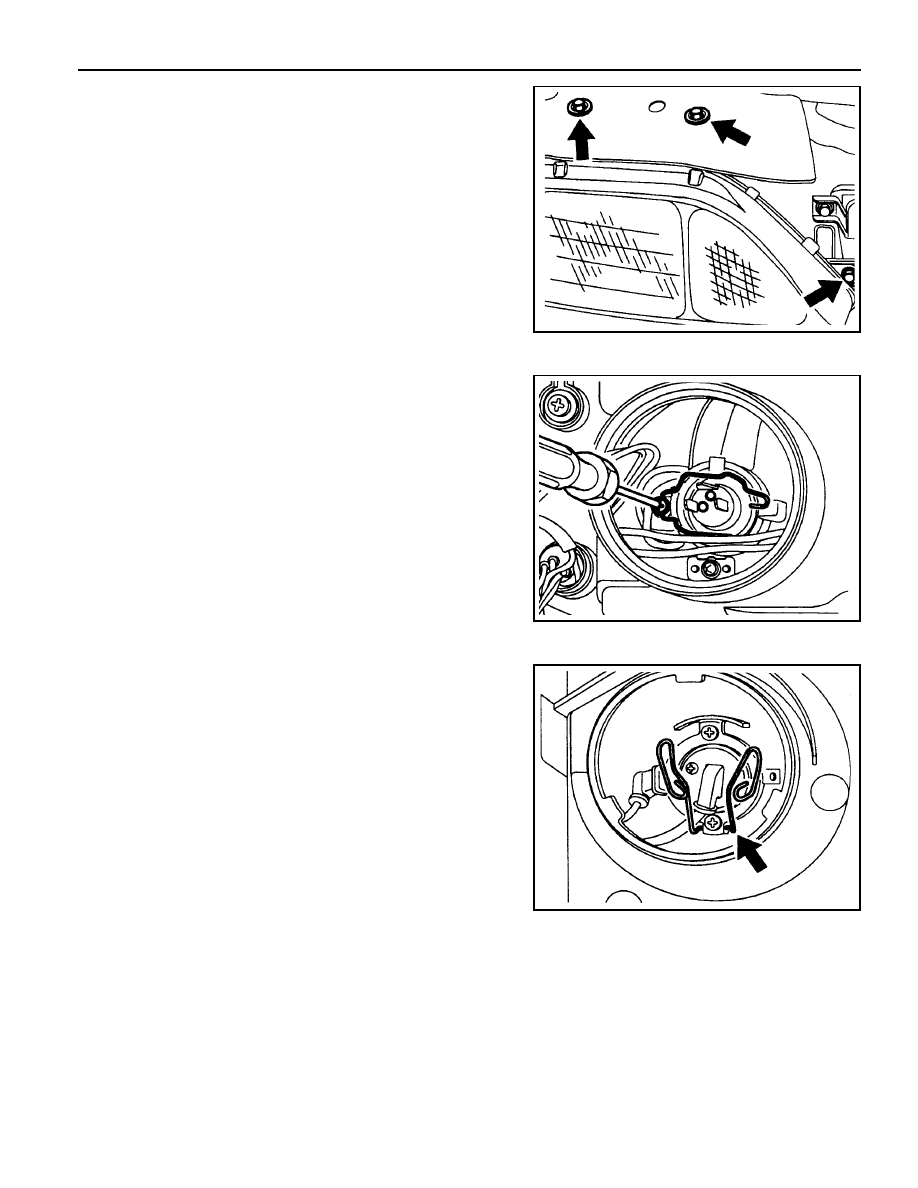

Head Lamp

Removal & Installation Procedure

1. Unscrew upper 2(10mm) bolts and lower 1(10mm) bolt of

head lamp.

2. Disconnect connector and remove the headlamp.

3. Installation should follow the removal procedure in the

reverse order.

Bulb Replacement

1. Turn the dust cap of the head lamp to the left and remove

it.

2. If it is high/low head lamp, loosen the screw and pull out the

return spring and replace the bulb.

Notice

For correct installation, check the original position of the
return spring and remove.

High/low-beam head lamp replacement

High-beam head lamp replacement

3. If it is high-beam head lamp, pull out the return spring

and replace the bulb.

Notice

Refern to lamp specifications.

9B-12  LIGHTING SYSTEM

Tail/stop and turn signal lamp

Tail/stop Lamp and backup lamp

Rear Combination Lamp

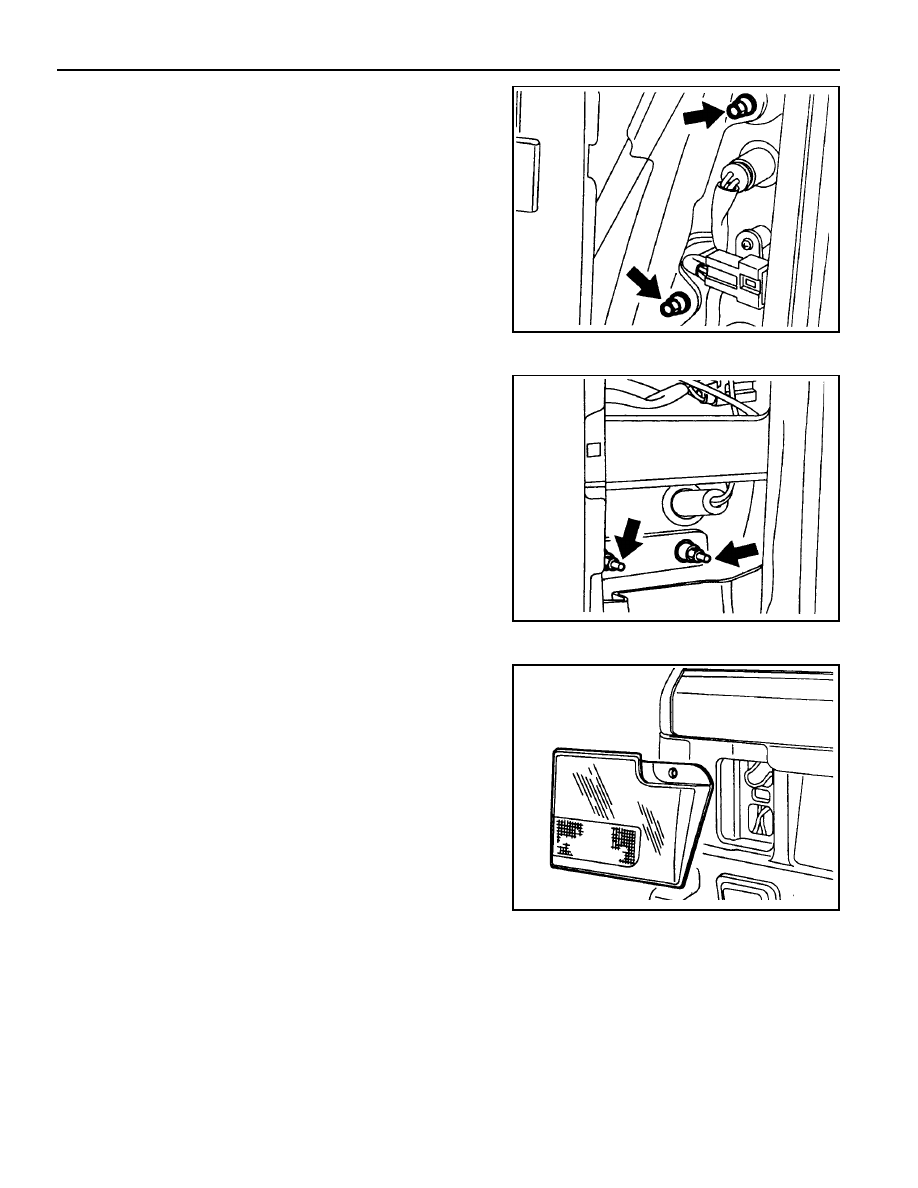

Removal & Installation Procedure

1. Open the tailgate and remove the inner cover of the rear

combination lamp.

2. Unscrew 4(8mm) nuts of tail/stop lamp and turn signal lamp

assembly.

3. Unscrew 6(8mm) nuts of tail/stop lamp and back-up

lamp assembly.

4. Disconnect each connectors and remove the rear

combination lamp. Replace with specified bulb, if
necessary.

Notice

Refer to lamp specification.

SECTION 9C

HORNS

Caution: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwise
noted.

TABLE OF CONTENTS

Schematic and Routing Diagrams . . . . . . . .  9C-2

Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  9C-2

9C-2  HORN

HORN

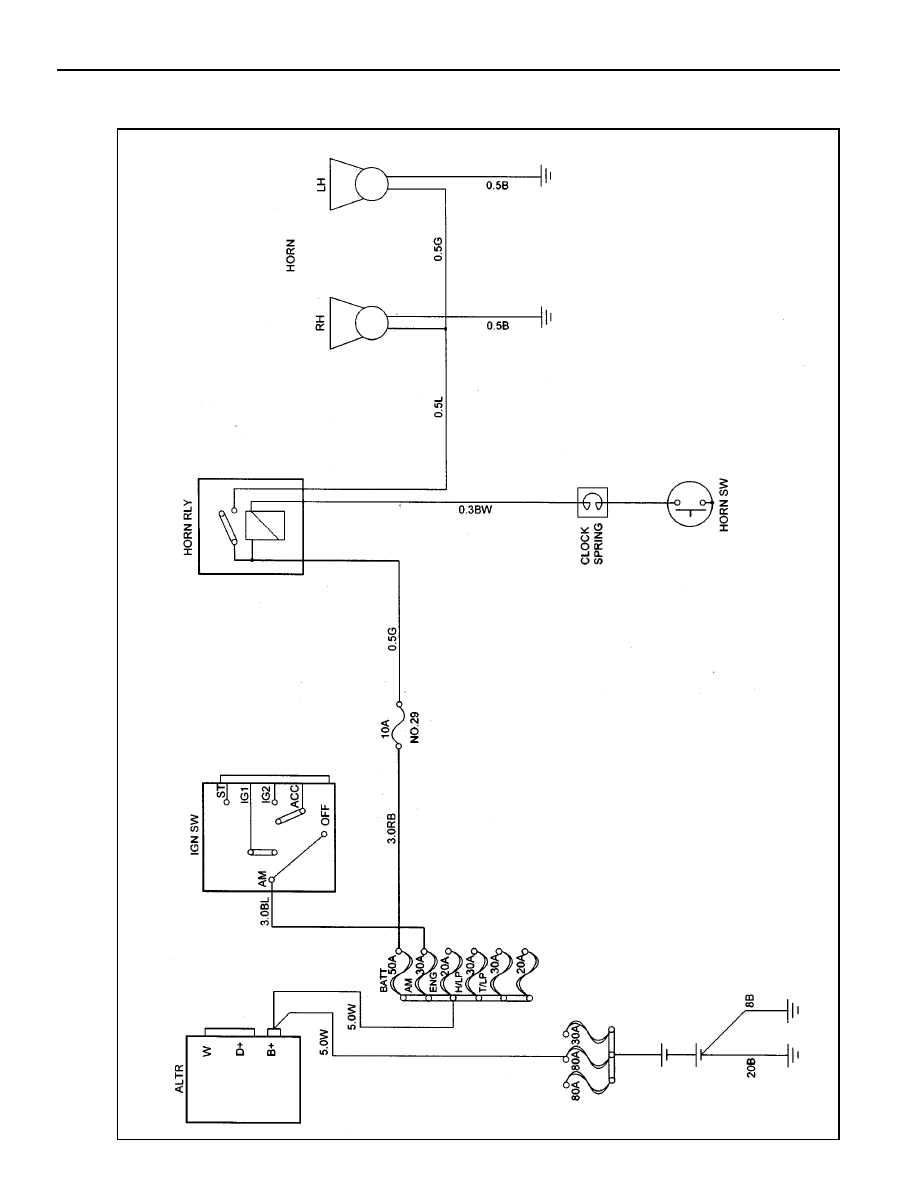

SCHEMATIC  AND ROUTING DIAGRAMS
