SsangYong Musso. Manual - part 8

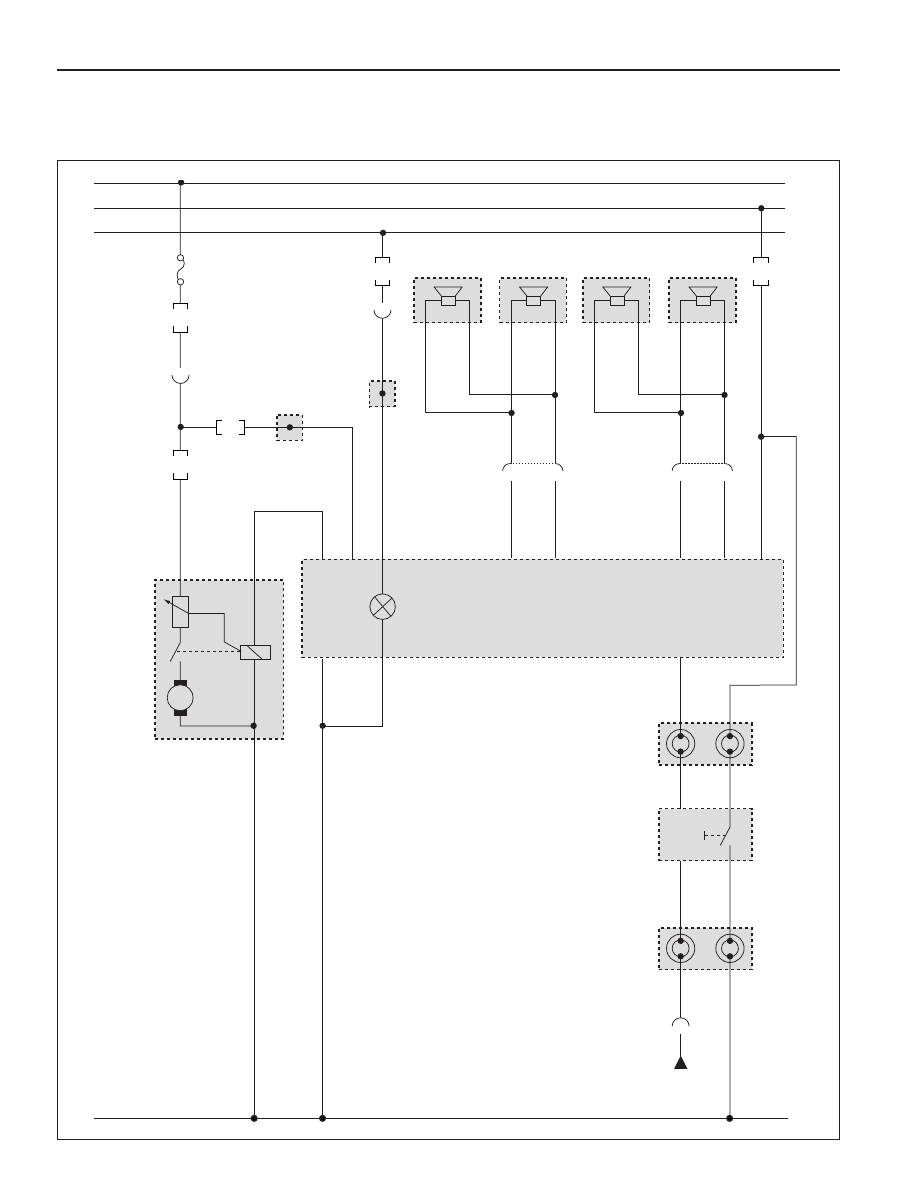

MUSSO-SPORTS 1A-29
SUPPLEMENT
C101
W/H MAIN
1 2 3 4 5
6 7 8 9 10
11 12 13 14 15 16 17 18 19 20 21
Main - Engine
Main - Engine
Engine - Main
Main - Floor
Floor - FRAME
FRAME - DECK
Main
Engine
Engine
Main
Main
Floor
C101 (21Pin, Colorless)
C103 (2Pin, White)
C108 (16Pin, Black)
C206 (Colorless)
C904 (10Pin, Black)
C905 (12Pin, Black)
S101 (Black)
G101
G102
G201
G204
G301

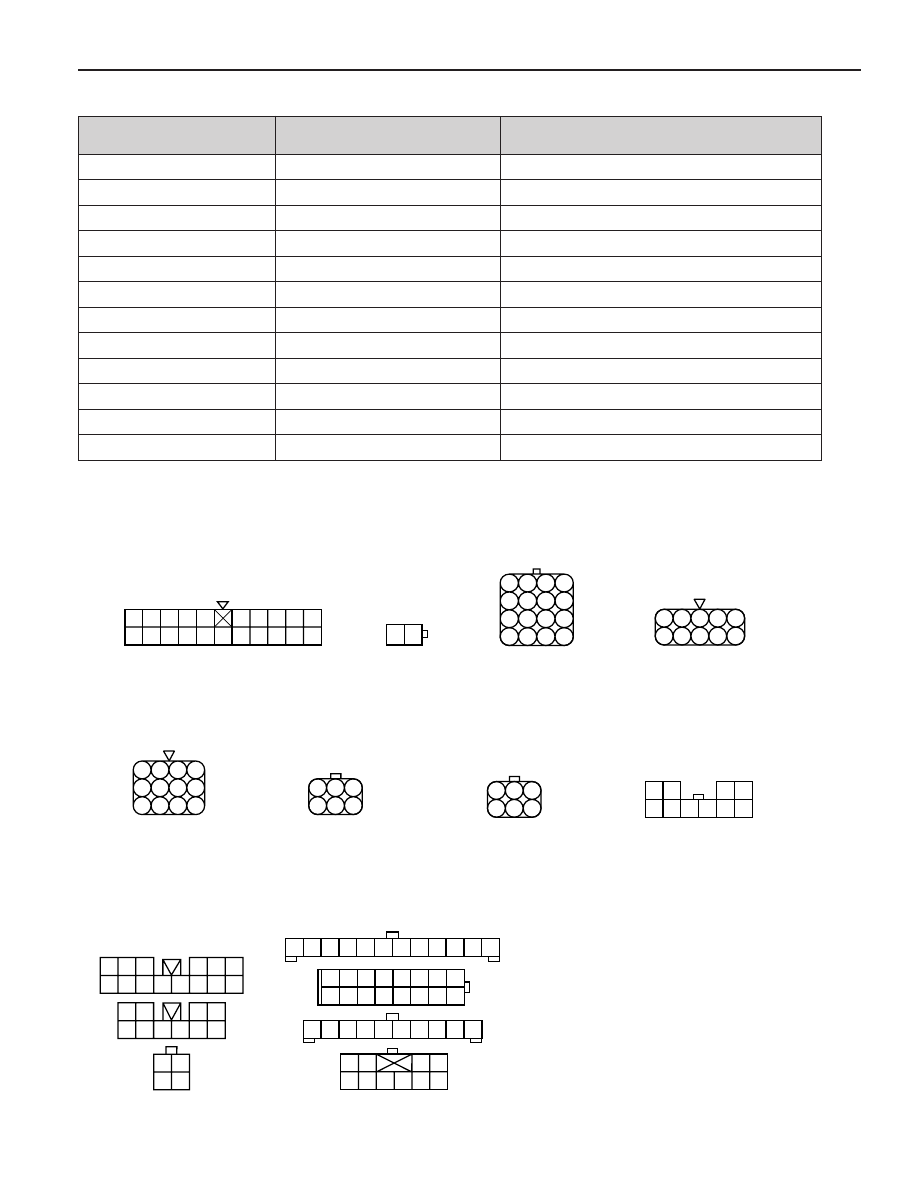

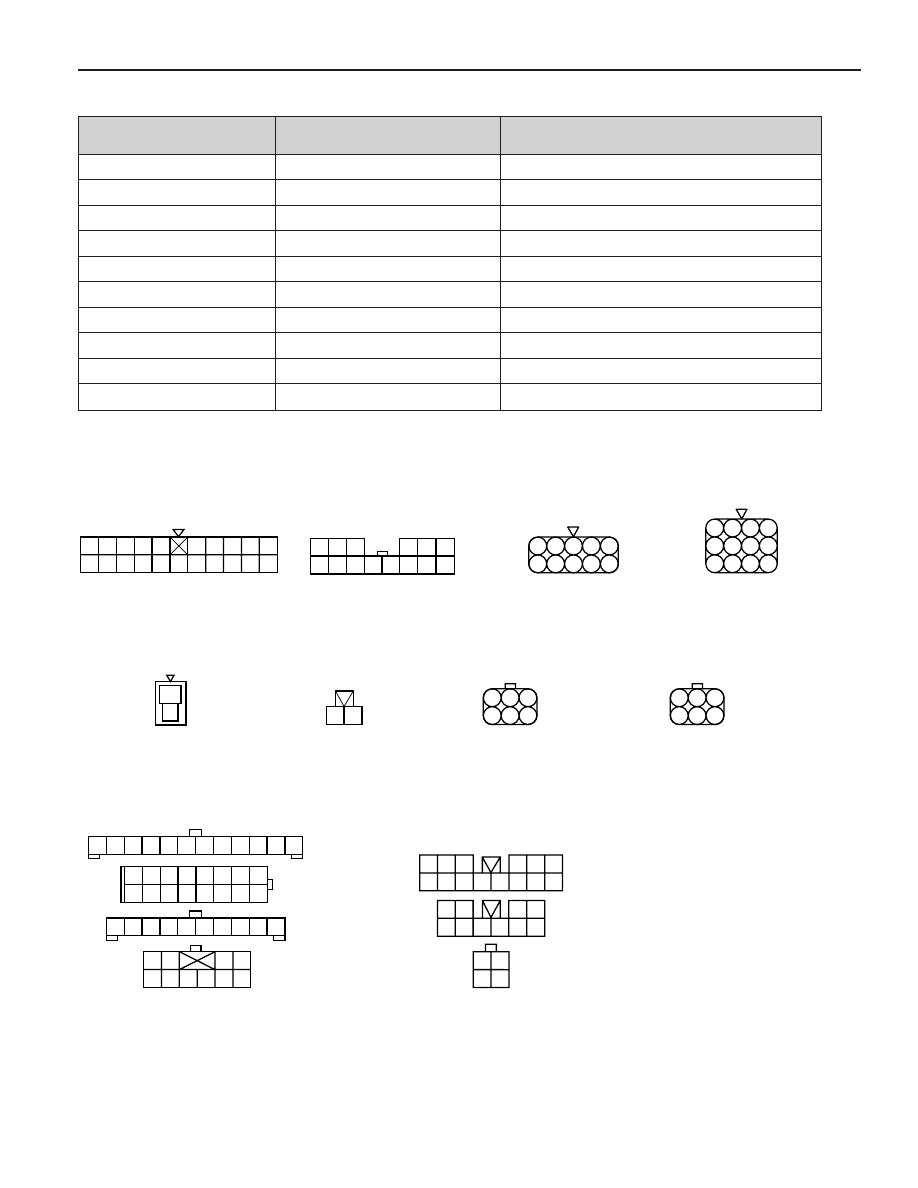

b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
a. CONNECTOR INFORMATION
CONNECTOR(NUMBER)
CONNECTING. WIRING HARNESS
CONNECTOR POSITION
Inside The Engine Room Fuse Block
Inside The Engine Room Fuse Block
Under The Coolant Reservoir Tank
Inside Co-Driver Side Cowl Panel
Behind The Left FRAME
Behind The Left FRAME
Inside The Engine Room Fuse Block
Behind The Left Lamp
Behind The Right Head Lamp
Right The I/P Fuse Block
Upper The ECM
Center The Left 'B' Pillar
1 2 3
4 5 6

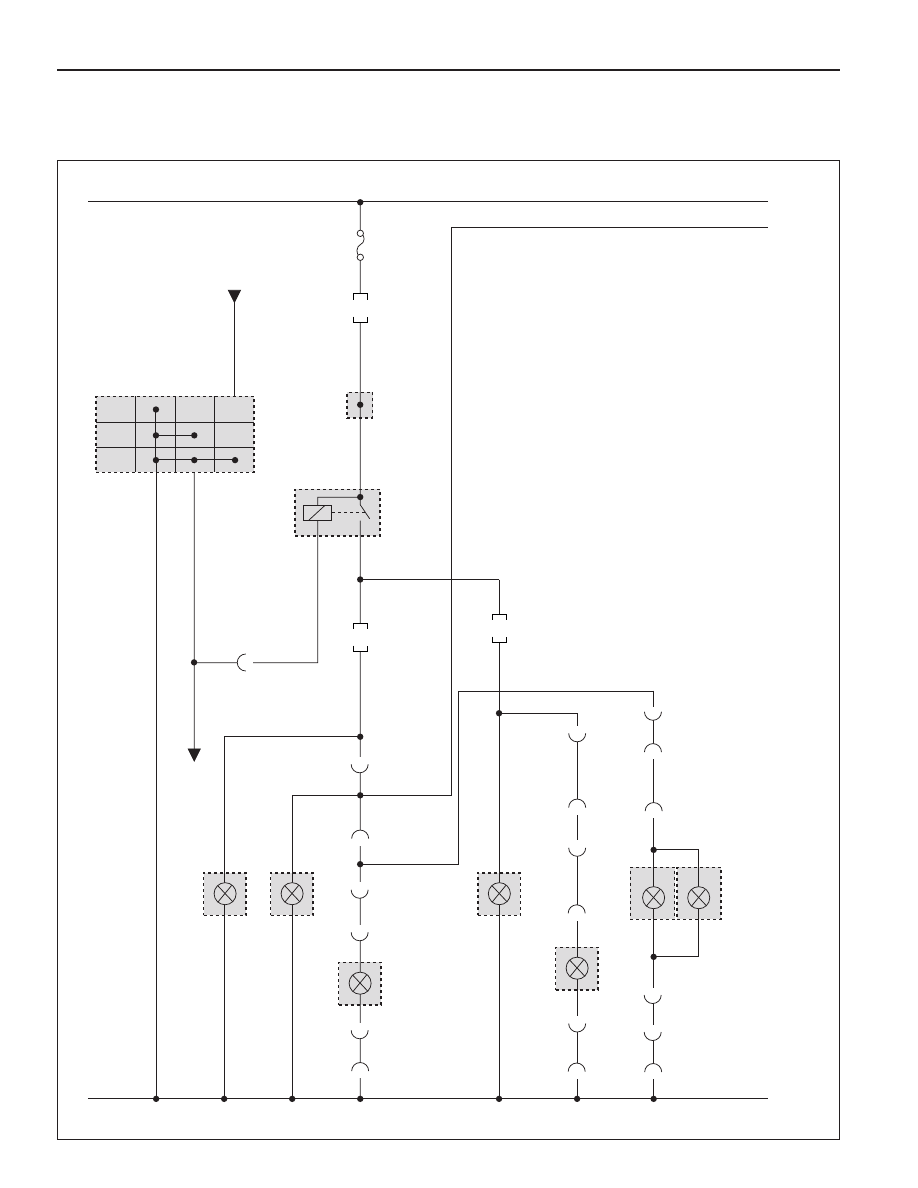

HEAD LAMP
MULTI-FUNCTION
SWITCH
C1 C2
C3 C4
B1 B2
B3 B4
B5 B6 B7 B8 B9 B10
A1 A2 A3
A4 A5 A6
A7 A8 A9 A10 A11 A12 A13 A14
1 2 3 4 5 6 7 8 9 10 11 12
29 30 31 32 33 34 35 36 37 38
28
13
27
14
26
15
25
16
24
17
23
18
22
19 20
21
39
43
40
44 45 46
41
47 48
42
CLUSTER
C108
W/H ENGINE
1 2 3 4
5 6 7 8
9 10 11 12
13 14 15 16
C103
W/H MAIN
1 2
5 6 7 8 9 10
3 4
HAZARD
SWITCH
2
1
TAIL
LAMP
1 2 3
4 5 6
1 2 3 4
5 6 7 8
9 10 11 12
C905
W/H DECK
5 4 3 2
10 9 8 7
1
6
C904
W/H FLOOR
