2   Variability

From the soft top to the open roadster

From the soft top to the open roadster

Opening the soft top

>Note!
It is better to leave the engine running
while opening and closing the soft top.
The battery otherwise will run flat if the
soft top is operated several times.

쮿

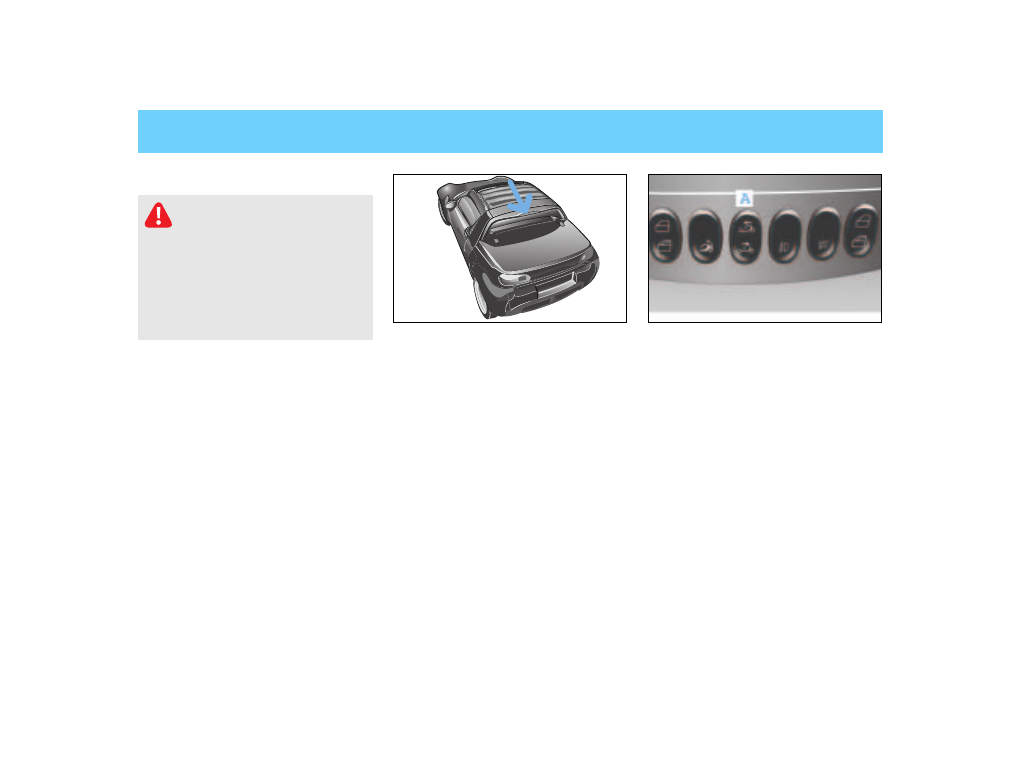

Press the rocker switch (A) in the
"Open" direction.

or

쮿

Briefly press the unlocking button on
the remote control twice in succession.
> The soft top opens.

>Note!
Pressing a button on the remote control
during the opening process will stop the
soft top in its current position.

Danger of injury!
Always carry both side rails in

the designated device in the front
luggage compartment.
If carried unsecured in the occupant
compartment, they could cause serious
injury in the event of an accident or as
a result of braking manoeuvres or
abrupt changes of direction.

Variability  5
3

From the soft top to the open roadster

Removing the side rails

쮿

Open the soft top until it has fully
retracted into the rear luggage
compartment.

>Important!
The side rails may only be removed when
the soft top has fully retracted.

쮿

Press the integrated retaining strip
on the side unlocking lever.

쮿

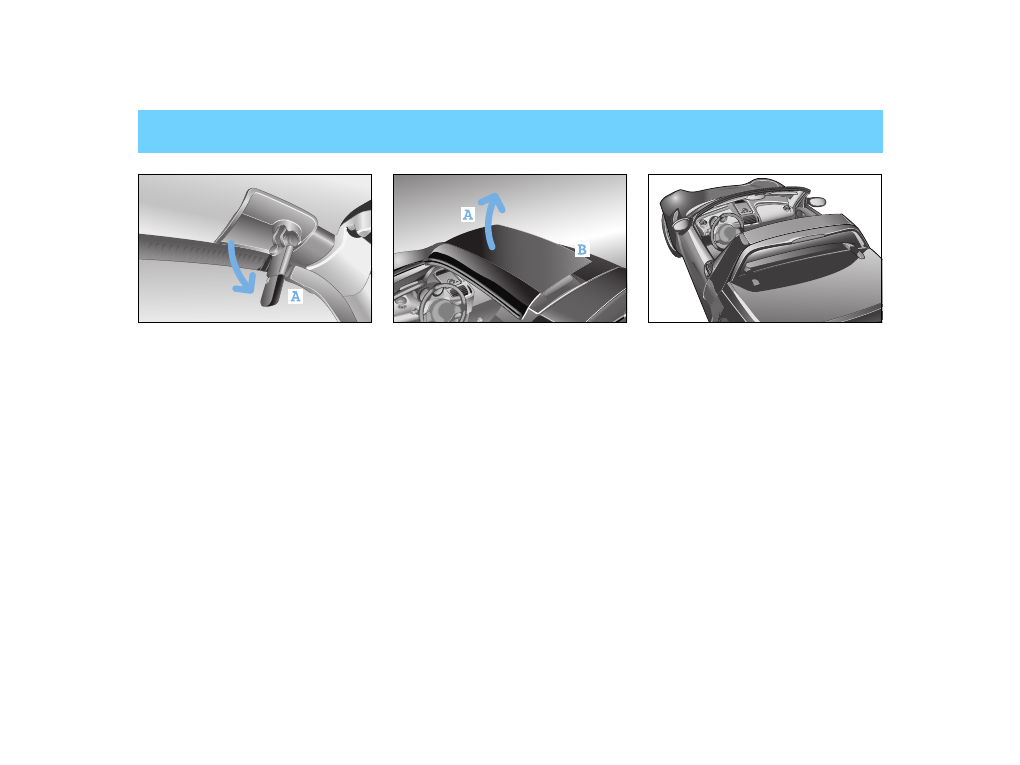

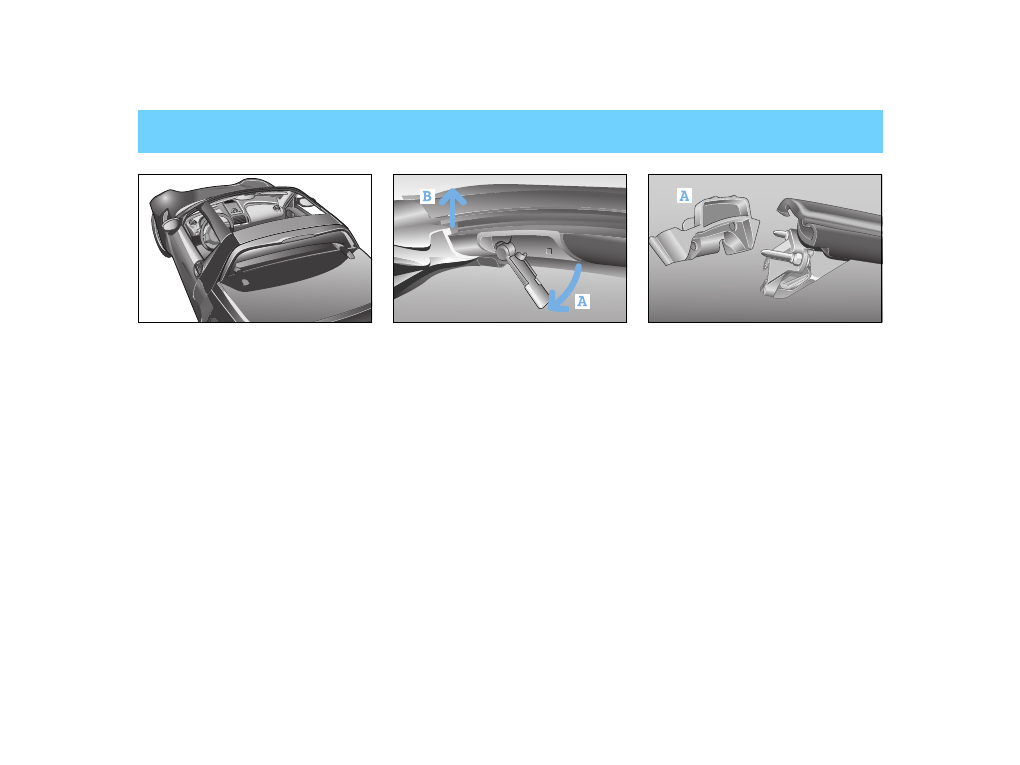

Turn the release lever on the side rail
downwards (A).
> The locking pin at the front of the

side rail must be fully retracted.

쮿

Lift the side rail from the front out of
the guide (B).

쮿

Remove the side rail.

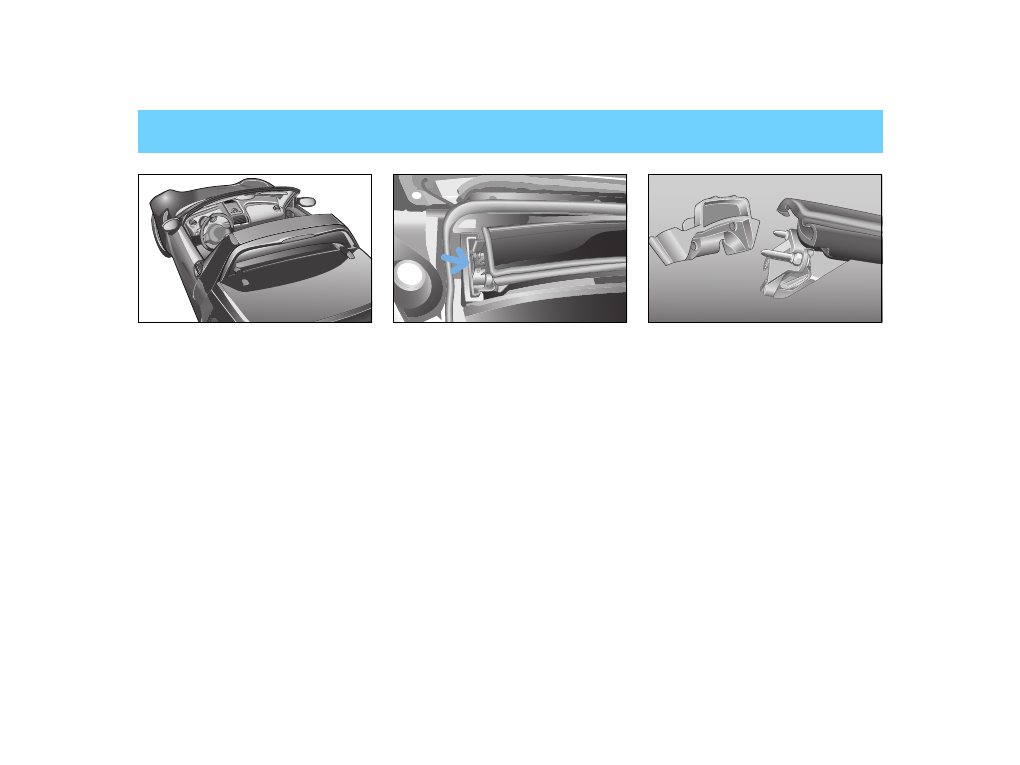

Insert rail locking device

쮿

Take the rail locking device (A) out of
the corresponding holder in the front
luggage compartment and connect it to
the side rail as shown.

5
4   Variability

From the soft top to the open roadster

Stowing the side rail

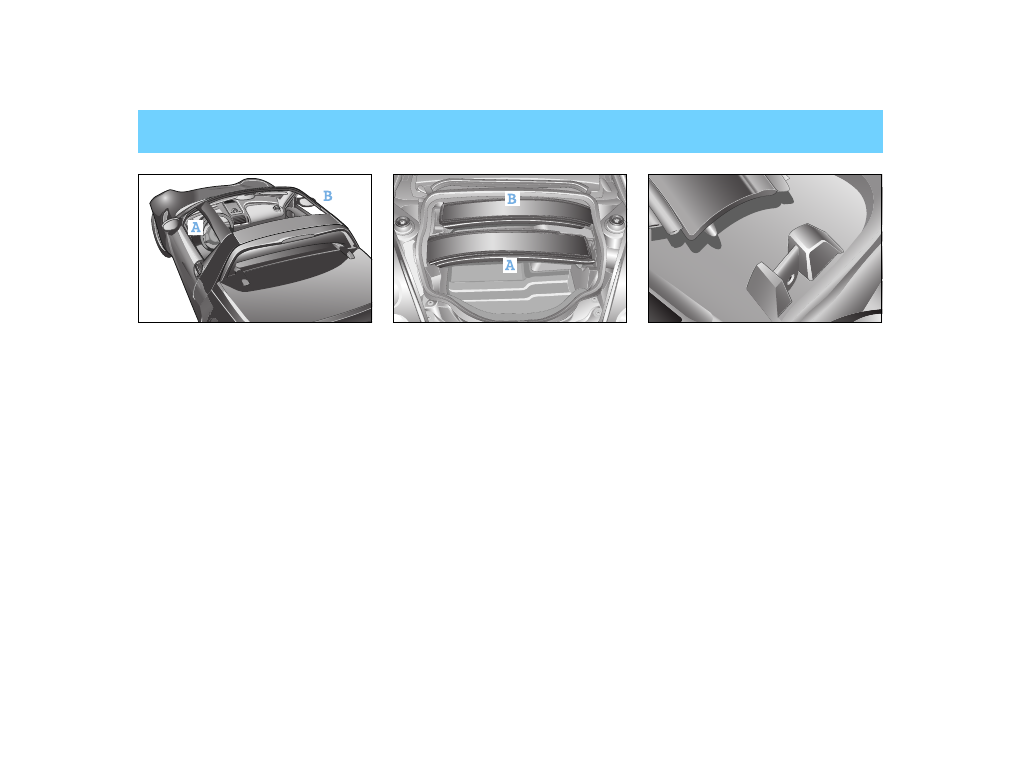

Make sure that

 the side rail on the left side of the

vehicle (A) is mounted in the front
position (A) in the front luggage
compartment.

 the side rail on the right side of the

vehicle (B) is mounted in the rear
position (B) in the front luggage
compartment.

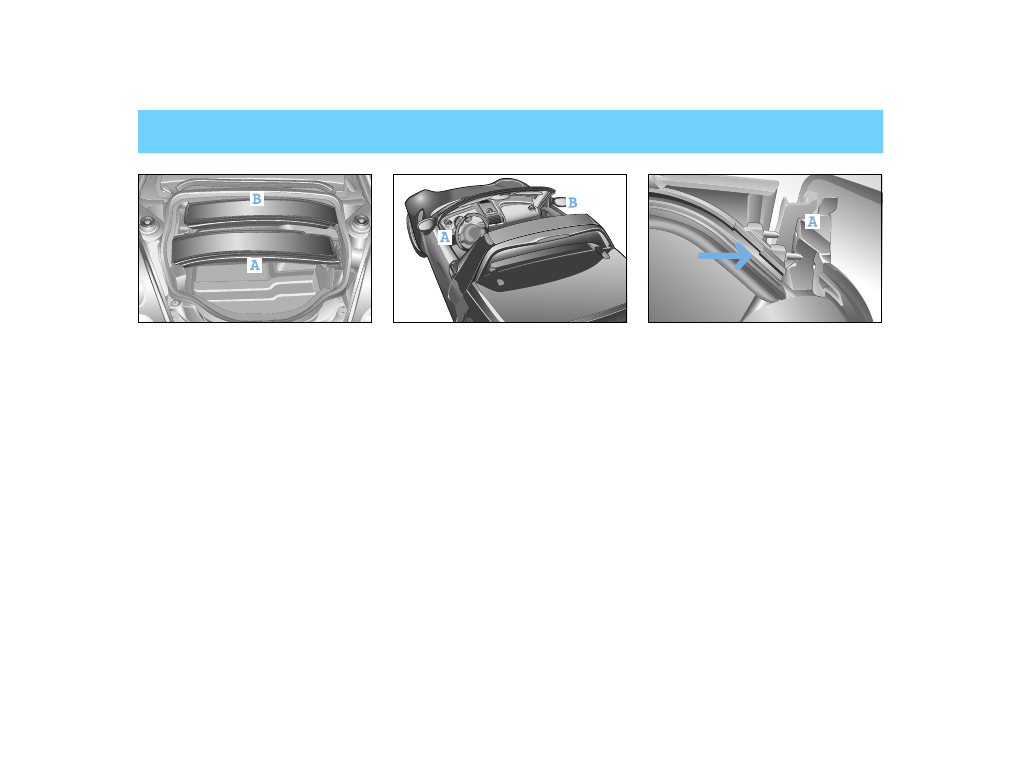

쮿

Guide the front end of the side rail
into the mounting receptacle in the
front luggage compartment.

Variability  5
5

From the soft top to the open roadster

Locking the side rail

쮿

Allow the side rail and the locking
device to engage in the designated
mounting receptacle.

쮿

Now proceed in the same way with the
second side rail.

5
6   Variability

From open roadster to soft top

From open roadster to soft top

Take the side rails out of the luggage
compartment.

쮿

Open the front luggage compartment.

쮿

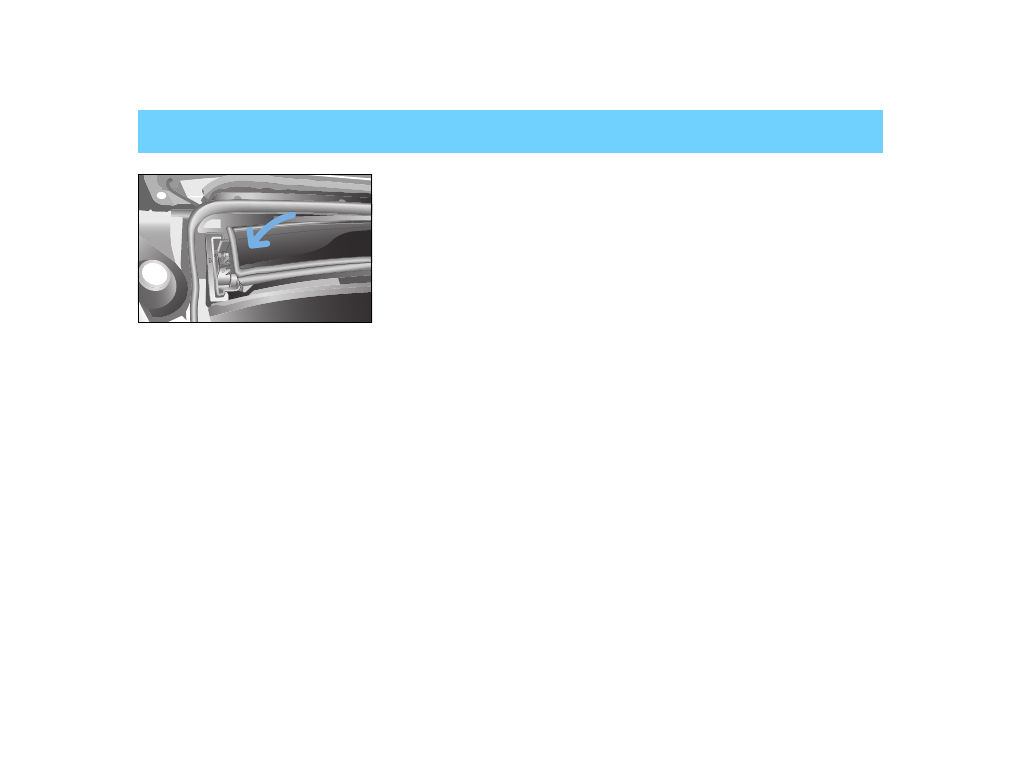

Press the rail release device at the
point shown.

쮿

Remove the side rail with the rail
locking device.

Remove rail locking device.

쮿

Remove the locking device from the
side rail and place the device back in
its catch.

Variability  5
7

From open roadster to soft top

Mounting the side rails
When mounting the side rails, ensure that

 the seals are not pressed or otherwise

deformed.

 the side rail in the front position (A)

of the luggage compartment is mounted
on the left side of the vehicle (A).

 the side rail in the rear position (B) of

the luggage compartment is mounted on
the right side of the vehicle (B).

쮿

Guide the two side rail pins into the
corresponding apertures (A).

5
8   Variability

From open roadster to soft top

Locking the side rails

쮿

Turn the release lever at the front of
the side rail in the direction of travel
such that the locking pin is fully
retracted.

쮿

Carefully lower the front of the side
rail into guide (A), then close release
lever (B).

쮿

Repeat the process on the opposite
side.

Closing the soft top
Only close the soft top when the engine is
running.

쮿

Press the rocker switch (A) in the
"Close" direction.

or

쮿

Briefly press the locking button on the
remote control twice in succession.
> The soft top closes.

>Note!
Pressing a button on the remote control
during the closing process will stop the
soft top in its current position.

Variability  5
9

From hardtop* to open roadster

From hardtop* to open roadster

>Note!
Always dismantle the half of the hardtop
on the driver's side first, then the other
half on the passenger's side.

Releasing middle unlocking lever

쮿

Press the release button (A).

쮿

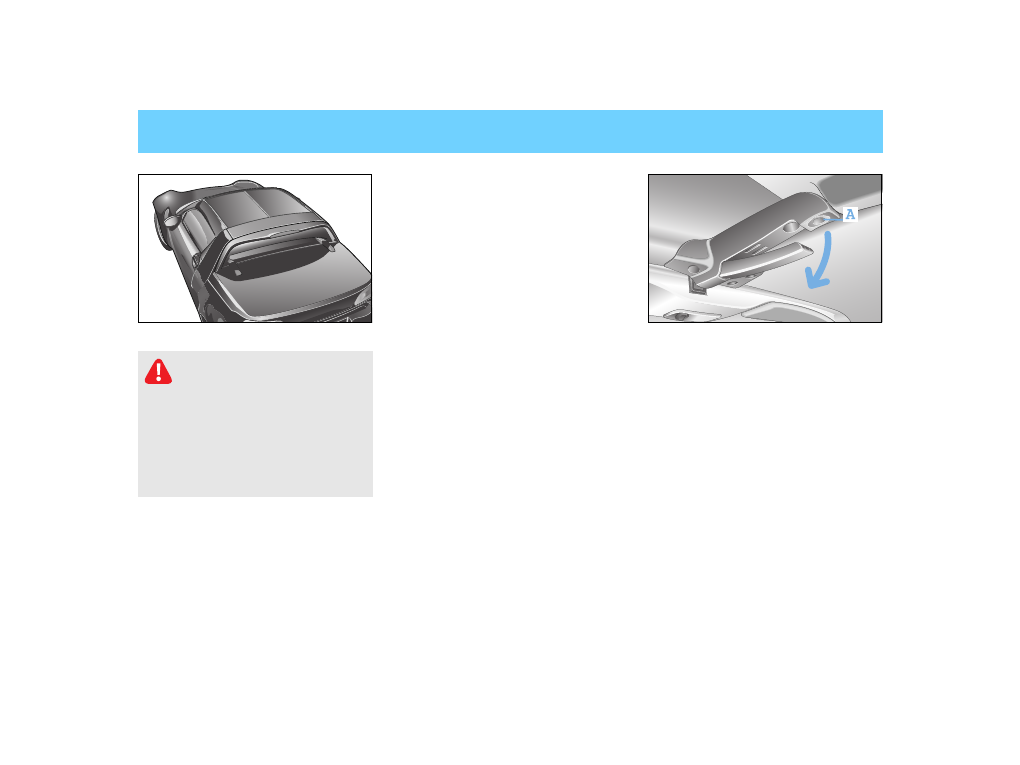

Swing the middle unlocking lever on
your hardtop right down.

Danger of injury!
Always transport both hardtop

halves in the designated device in the
rear luggage compartment.
If carried unsecured in the occupant
compartment, they could cause serious
injury in the event of an accident or as
a result of braking manoeuvres or
abrupt changes of direction.

5
10   Variability

From hardtop* to open roadster

Releasing side unlocking lever

쮿

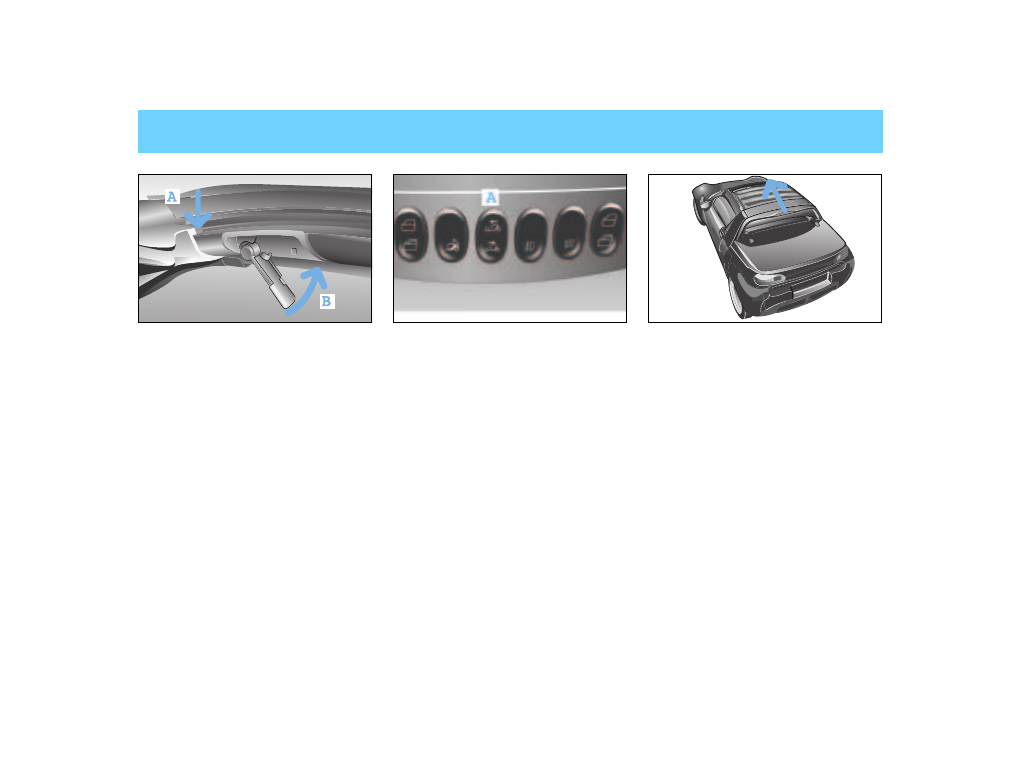

Press the integrated retaining strip
on the side unlocking lever on the
driver's side.

쮿

Swing the unlocking lever on the
driver's side all the way down.

Remove the hardtop halves

쮿

Take off the hardtop half on the
driver's side (A).

쮿

Release the side unlocking lever on the
passenger's side.

쮿

Take off the hardtop half on the
passenger's side (B).

Variability  5
11

From hardtop* to open roadster

Stowing the hardtop*

The hardtop halves either can be stowed
in the designated device in the rear
luggage compartment or external to the
vehicle in a hardtop bag.

Prior to stowing

쮿

Remove the hardtop halves as
described on page 5
9.

쮿

Clean the hardtop halves.

Stow the hardtop in the rear luggage
compartment

쮿

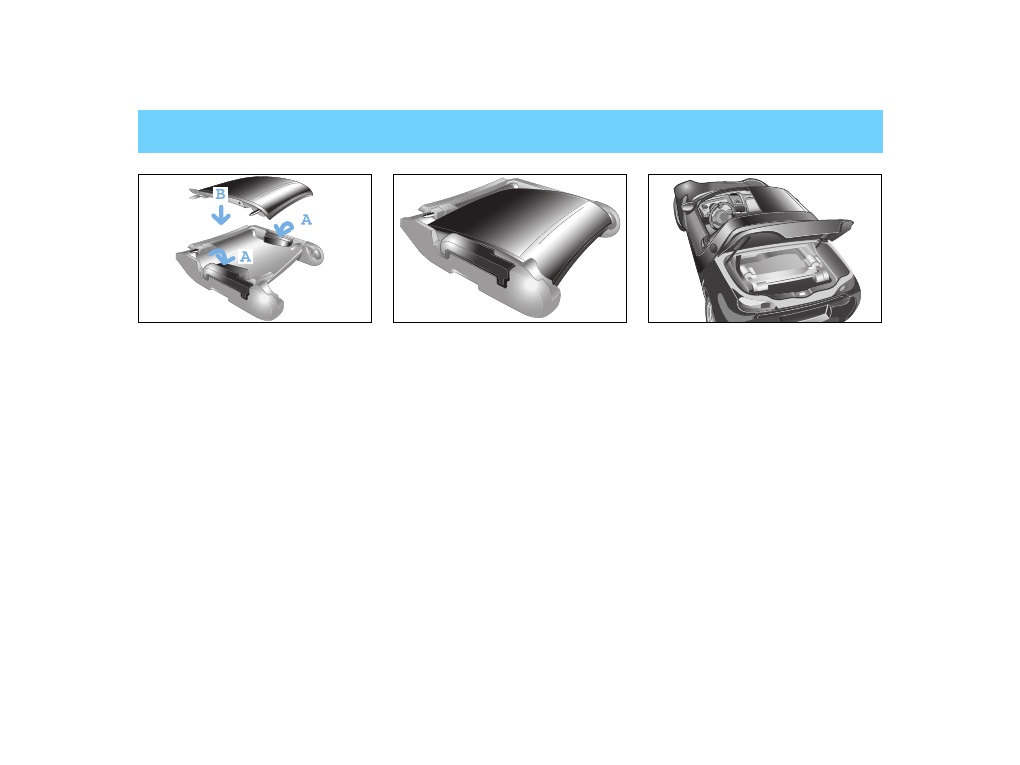

Pull apart the hardtop bracket until
the spacer band becomes fully taut.

쮿

Fold up the spacer pieces (A).

쮿

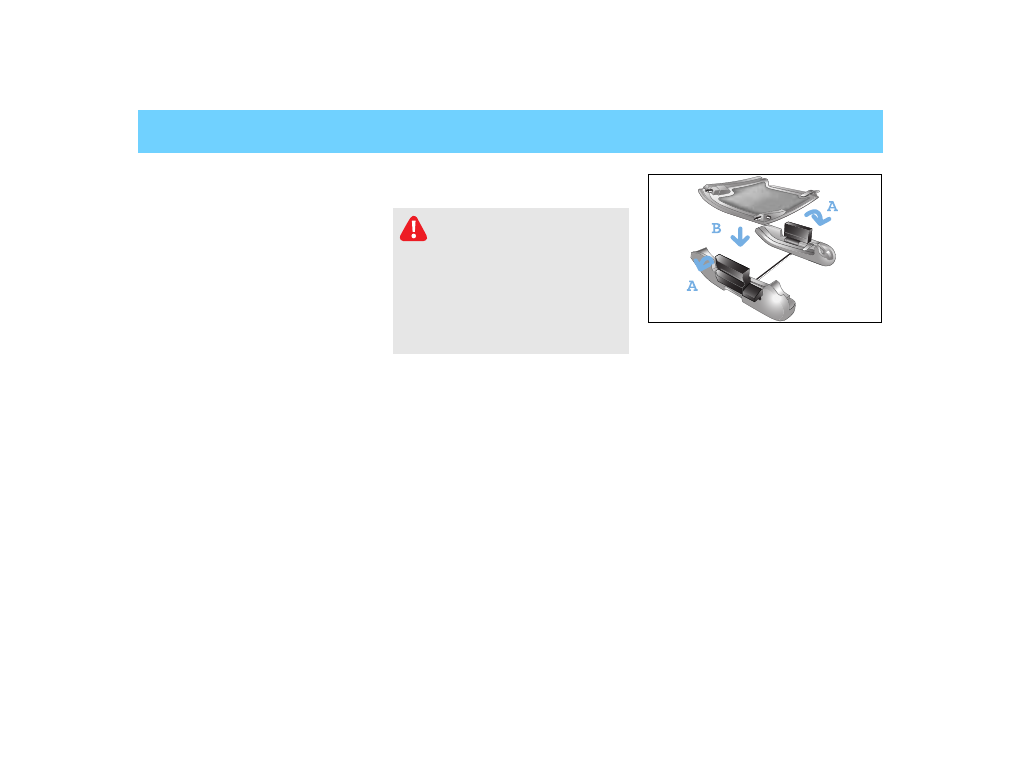

Insert the driver's side hardtop
half (B):

쮿

When doing this, ensure

 that the seals are not pressed or

otherwise deformed,

 that the pins are completely

retracted.

Danger of injury!
Always transport both hardtop

halves in the designated device in the
rear luggage compartment.
If carried unsecured in the occupant
compartment, they could cause serious
injury in the event of an accident or as
a result of braking manoeuvres or
abrupt changes of direction.

5
12   Variability

From hardtop* to open roadster

쮿

Fold the spacer pieces (A) downwards.

쮿

Place the passenger's side hardtop half
(B) in the hardtop bracket as shown.

쮿

When doing this, ensure

 that the seals are not pressed or

otherwise deformed.

 that the pins are completely

retracted.

Variability  5
13

From hardtop* to open roadster

Inserting the hardtop in the hardtop bag*
for external storage
Insert both hardtop halves in the hardtop
brackets as described starting on
page 5
11.

쮿

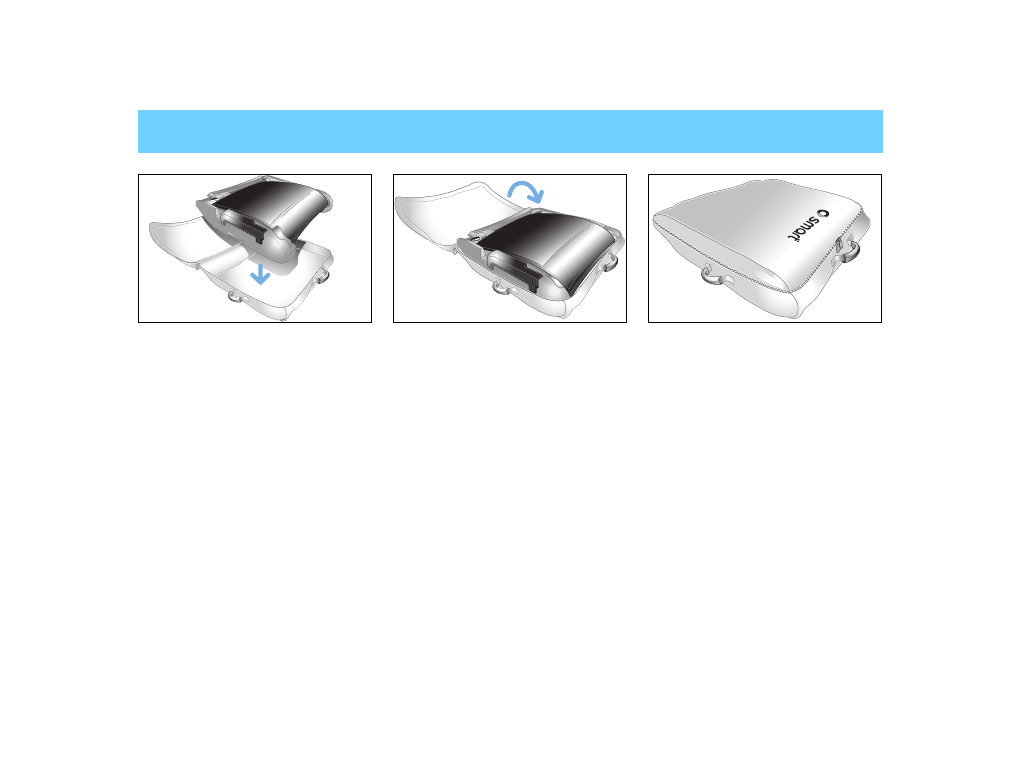

Open the hardtop bag*.

쮿

Insert the hardtop with the hardtop
brackets into the hardtop bag.

쮿

Close the zipper of the hardtop bag.

5
14   Variability

From open roadster to hardtop*

From open roadster to hardtop*

쮿

Fit the hardtop half on the passenger's
side first, then the half on the driver's
side.

쮿

Make sure that the unlocking levers in
the middle and on both sides are
properly engaged.

Danger of injury!
Make sure that both hardtop

halves are fitted properly before
setting off.

Never drive the car with

only one hardtop half fitted.
Incorrectly fitted hardtop halves could
fly off in an accident or as a result of
braking manoeuvres or abrupt changes
of direction, and cause serious injury.

Variability  5
15

Notes on the soft top system

Notes on the soft top system

To avoid damage to the soft top system,
please read the following notes.

Protecting the soft top when loading the
car
There is a spring
loaded plastic strip
for protecting the soft top fitted in the
rear luggage compartment.

 Do not place any objects in front of the

plastic strip. The soft top could jam
and become damaged.

 When the soft top is open, the vertical

position of the plastic strip prevents
loads from making contact with the soft
top.

 When the soft top is closed, the plastic

strip is folded down horizontally by
items of luggage lying on it. In this
case, the sunroof top cannot be opened.

 When transporting long objects inside

the car, make sure that they do not
press against the soft top when it is
closed.

 When loading, make sure that no sharp

objects come into contact with the soft
top.

 Do not place any pointed, sharp
edged,

hot (above 80 °C), incandescent or
burning objects on the soft top's
canvas.

Protection when performing care
measures

 Do not apply wax to the soft top fabric;

always select wax
free washing
programmes when using an automatic
car wash.

 Do not allow the surface of the soft top

to come into contact with lyes or acids.

 The soft top may not be opened or

stored when wet. Doing so may
introduce water into the interior of
the vehicle or lead to mould spots on
the fabric.

General protection of the soft top system

 Do not block the soft top system's

locking apertures.

 Only stow the side rails and hardtop

halves in the designated storage space
in the front and rear luggage
compartments.

 Ensure that the side rails are always

fully locked before you operate the soft
top.

 Pay attention that no small objects or

coarse dirt are caught in the soft top
runner tracks (clean as necessary).
