Smart fortwo coupe and smart fortwo cabriolet electric drive (2015). Manual - part 11





Problem

Possible causes/consequences and M

Solutions

þ The yellow

drive diagnos-

tics indicator

lamp comes on

while driving.

There may be a malfunction in the drive system.

X

Have the vehicle checked at an authorized electric drive

smart center immediately.

þ The red drive

diagnostics

warning lamp

comes on while

driving.

There may be a malfunction in the drive system.

X

Stop the vehicle immediately in a safe location.

X

Do not continue to drive.

X

Switch off the drive system.

X

Engage the parking brake when leaving the vehicle.

X

Contact Roadside Assistance or an authorized electric drive

smart center.

Tire Pressure Monitoring System (TPMS)*

Problem

Possible causes/consequences and M

Solutions

h The yellow com-

bination low

tire pressure/

TPMS malfunc-

tion telltale

illuminates

continuously.

The TPMS detects a loss of pressure in at least one tire.

X

Carefully bring the vehicle to a halt, avoiding abrupt steer-

ing and braking maneuvers. Observe the traffic situation

around you.

X

Check and correct tire inflation pressure as required

(

Y

page 129).

If the tire inflation pressure in the respective tire(s) has

(have) been corrected, the combination low tire pressure/TPMS

malfunction telltale goes out after a few minutes of driving.

See also “Restarting the TPMS” (

Y

page 132).

h The combina-

tion low tire

pressure/TPMS

malfunction

telltale flashes

60 seconds and

then stays illu-

minated.

There is a malfunction in the TPMS.

X

Have the TPMS checked at an authorized electric drive smart

center.

After the malfunction has been remedied the combination low

tire pressure/TPMS malfunction telltale goes out after a few

minutes of driving.

G

WARNING

Each tire should be checked monthly when cold and inflated to the inflation pressure rec-

ommended by the vehicle manufacturer on the Tire and Loading Information placard. If your

vehicle has tires of a different size than the size indicated on the Tire and Loading Infor-

mation placard, you should determine the proper tire inflation pressure for those tires.

What to do if ...

173

>>

Practical

hints

.

* optional

Z

-------------------------------------------------------------------------------------------------------------------------------------------------------------

As an added safety feature, your vehicle has been equipped with a tire pressure monitoring

system (TPMS) that illuminates a low tire pressure telltale when one or more of your tires is

significantly underinflated.
Accordingly, when the low tire pressure telltale illuminates, you should stop and check your

tires as soon as possible, and inflate them to the proper pressure. Driving on a significantly

underinflated tire causes the tire to overheat and can lead to tire failure.
Underinflation also increases energy consumption, reduces tire tread life, and may affect

the vehicle’s handling and stopping ability. Please note that the TPMS is not a substitute for

proper tire maintenance, and it is the driver’s responsibility to maintain correct tire

pressure, even if underinflation has not reached the level to trigger illumination of the

TPMS low tire pressure telltale.
Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the

system is not operating properly. The TPMS malfunction indicator is combined with the low

tire pressure telltale. When the system detects a malfunction, the telltale will flash for

approximately 1 minute and then remain continuously illuminated.
This sequence will continue upon subsequent vehicle start-ups as long as the malfunction

exists. When the malfunction indicator is illuminated, the system may not be able to detect

or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including the installation of incom-

patible replacement or alternate tires or wheels on the vehicle that prevent the TPMS from

functioning properly. Always check the TPMS malfunction telltale after replacing one or

more tires or wheels on your vehicle to ensure that the replacement or alternate tires and

wheels allow the TPMS to continue to function properly.

174

What to do if ...

>>

Practical

hints.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Warning and indicator lamps in the overhead control panel

Problem

Possible causes/consequences and M

Solutions

4 0
The passenger front

air bag off indicator

lamp illuminates and

remains illuminated

with the weight of a

typical adult or some-

one larger than a

small individual on

the passenger seat.

There is a malfunction in the system.

X

Have the system checked at an authorized electric drive

smart center.

4 0
The passenger front

air bag off indicator

lamp does not illumi-

nate or remains out

with the weight of a

typical 12‑month‑old

child in a standard

child restraint or less

on the passenger seat

There is a malfunction in the system.

X

Have the system checked at an authorized electric drive

smart center.

G

WARNING

If the 4 0 indicator lamp illuminates and remains illuminated with the weight

of a typical adult or someone larger than a small individual on the passenger seat, do not

have any passenger use the passenger seat until the system has been repaired.

G

WARNING

If the 4 0 indicator lamp does not illuminate or remains out with the weight of

a typical 12‑month‑old child in a standard child restraint or less on the passenger seat, do

not transport a child on the passenger seat until the system has been repaired.

What to do if ...

175

>>

Practical

hints

.

Z

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Loss of key

Problem

Possible causes/consequences and M

Solutions

You lose a key.

X

Have the key deactivated at an authorized electric drive

smart center.

X

Report the loss of the key to your car insurance company

immediately.

X

If necessary, have the mechanical lock replaced.

Your authorized electric drive smart center will be glad to

supply you with a replacement following an identity check.

Acoustic warning signals

Problem

Possible causes/consequences and M

Solutions

A warning signal

sounds while driving.

You are driving with the parking brake engaged.

X

Release the parking brake (

Y

page 77).

A warning signal

sounds when opening

the driver’s door.

You have opened the driver’s door while the exterior lighting

is still switched on.

X

Turn the exterior lamp switch to position $.

A warning signal

sounds.

The door is opened while a gear is engaged with the drive sys-

tem running and neither the brake nor accelerator pedals are

depressed.

X

Close the driver’s and passenger door.

X

Move the gear selector lever to park position P.

or

X

Switch off the drive system.

You open the driver’s door with the key in starter switch posi-

tion to remind you not to leave the key in the vehicle.

X

Close the driver’s door.

or

X

Remove the key from the starter switch.

A warning signal

sounds.

The seat belts are not fastened when the drive system is star-

ted. For details, see seat belt telltale (

Y

page 168).

X

Fasten your seat belts.

176

What to do if ...

>>

Practical

hints

.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Problem

Possible causes/consequences and M

Solutions

A warning signal

sounds when parking.

You have not engaged the parking brake before releasing the

brake pedal and switching off the drive system.

X

Switch on the ignition to deactivate the acoustic warning.

X

Engage the parking brake.

X

Make sure the gear selector lever is in park position P.

X

Turn the key to starter switch position 0.

X

Remove the key from the starter switch.

For safety, it is important that you perform the parking pro-

cedure as described (

Y

page 77).

You can hear a contin-

uous noise from the

front axle when brak-

ing.

The vehicle is equipped with a mechanical/acoustic brake pad

indicator.

X

Have the brake pads checked at an authorized electric drive

smart center.

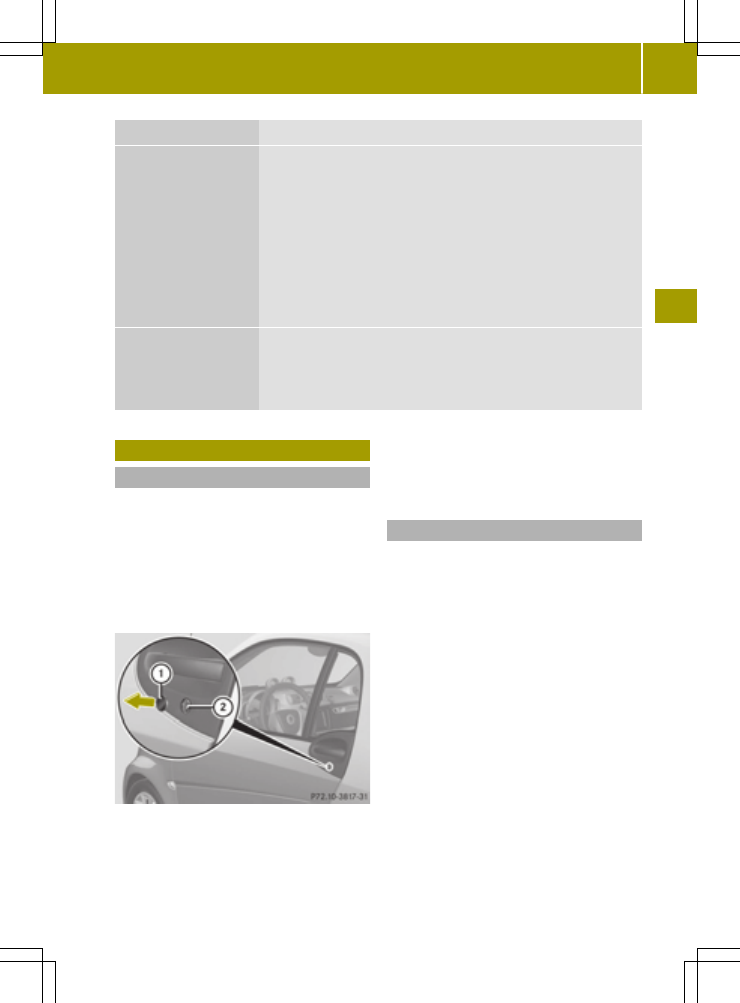

Unlocking/locking manually
Unlocking the vehicle

You can unlock the driver’s door and the

charge socket flap by unlocking the

driver’s door using the key. The lock cyl-

inder is fitted with a cap.

X

Press button # on the key.

i

For replacing the transmitter battery

(

Y

page 178).

X

Remove cap : from lock cylinder ;.

X

Unlock the driver’s door.

The driver’s door and the charge socket

flap are unlocked.

i

To unlock the vehicle centrally press

the central unlocking switch in the upper

center console (

Y

page 27).

Locking the vehicle

If you can no longer lock the vehicle using

the remote control and you do not have a

spare transmitter battery at hand, please

proceed as follows:

X

Open the driver’s door.

X

Press the central locking switch

(

Y

page 53).

The indicator lamp on the central lock-

ing switch comes on, when the starter

switch is in position 1.
The indicator lamp on the central lock-

ing switch flashes, when the starter

switch is in position 0.

X

Remove the key from the starter switch,

take it with you, and close all doors.

The vehicle is now locked.

Unlocking/locking manually

177

>>

Practical

hints

.

Z

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Closing the rear soft top

If the rear soft top does not lock properly

after being closed, proceed as follows:

X

Stop the vehicle in a safe location.

X

Engage the parking brake.

X

Make sure the key is in starter switch

position 1.

X

Fold up the rear soft top completely.

The rear soft top stops in the unlocked

position.

X

Within one minute, press and hold symbol

G on the retractable soft top switch

for 15 seconds twice.

The rear soft top closes the locking

hooks.

X

Close the retractable soft top com-

pletely.

X

Have the rear soft top checked at an

authorized electric drive smart center.

Replacing transmitter battery
Notes

The remote control’s transmitter battery is

almost spent when the turn signals flash

rapidly nine times in a row when locking

the vehicle.

i

If you do not replace the transmitter

battery, after about 100 more times you

will no longer be able to lock or unlock

the vehicle using the remote control.

X

Replace the transmitter battery.

or

X

Have the transmitter battery replaced at

an authorized electric drive smart cen-

ter.

G

WARNING

Batteries contain poisonous and corrosive

substances. Therefore keep the batteries

out of reach of children.
If a battery is swallowed, seek medical help

immediately.

Batteries contain materials that can harm

the environment if disposed of improperly.

Recycling of batteries is the preferred

method of disposal. Many states/provinces

require sellers of batteries to accept old

batteries for recycling.

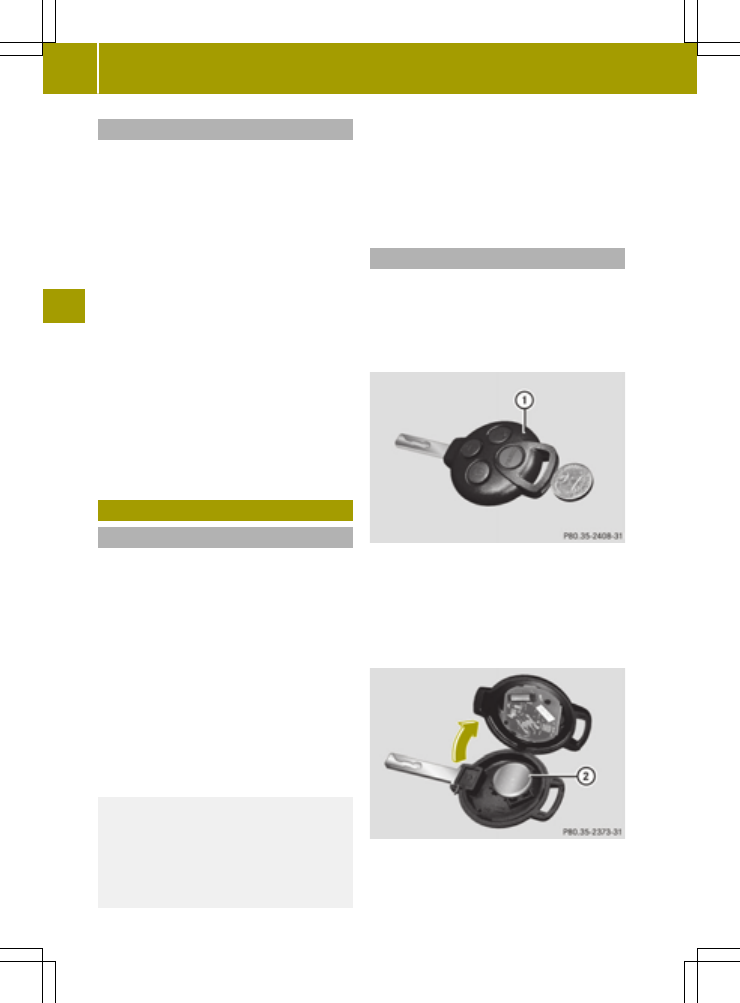

Replacing battery

Replacement battery: CR 2016 button cell

!

Replace the remote control’s transmit-

ter battery every two years at the latest.

Otherwise there is a danger of leakage.

The remote control could be damaged.

X

Insert a suitable object such as a coin

into the slot at the eyelet of the key hous-

ing.

X

Carefully turn the coin until key housing

top half : is unlatched.

X

Open key housing top half : to the side.

X

Remove transmitter battery ; from the

board.

178

Replacing transmitter battery

>>

Practical

hints.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

!

Check the polarity when inserting the

new transmitter battery. You could oth-

erwise damage parts of the electrical

system. When inserting the batteries,

make sure they are clean and free of lint.

X

Insert the new transmitter battery.

X

Press both halves of the key housing

together again.

X

Check the operation of the remote con-

trol.

Replacing bulbs
About replacing bulbs

Safe vehicle operation depends on proper

exterior lighting and signaling. It is

therefore essential that all bulbs and lamp

assemblies are in good working order at all

times.
Correct headlamp adjustment is extremely

important. Have headlamps checked and

readjusted at regular intervals and when a

bulb has been replaced. Contact an author-

ized electric drive smart center for head-

lamp adjustment.

G

WARNING

Bulbs and bulb sockets can be very hot.

Allow the lamp to cool down before changing

a bulb. Otherwise you could be burned if you

touch them.
Keep bulbs out of the reach of children.
Halogen lamps contain pressurized gas. A

bulb can explode if you:

R

touch or move it when hot

R

drop the bulb

R

scratch the bulb

Wear eye and hand protection.

i

If the headlamps or front fog lamps* are

fogged up on the inside as a result of

high humidity, driving the vehicle a

distance with the lights on should clear

up the fogging.

Notes on bulb replacement:

R

Only use bulbs of the same type and with

the specified watt rating.

R

Switch the lights off before replacing a

bulb to prevent short circuits.

R

Always use a clean lint-free cloth when

handling bulbs.

R

Your hands should be dry and free of oil

and grease.

R

Avoid touching the glass of the bulb with

bare fingers.

R

If the newly installed bulb does not come

on, contact an authorized electric drive

smart center.

R

Have the bulbs for the front fog lamps*

and the LED daytime running lamps*

replaced at an authorized electric drive

smart center.

Replacing bulbs

179

>>

Practical

hints.

* optional

Z

-------------------------------------------------------------------------------------------------------------------------------------------------------------

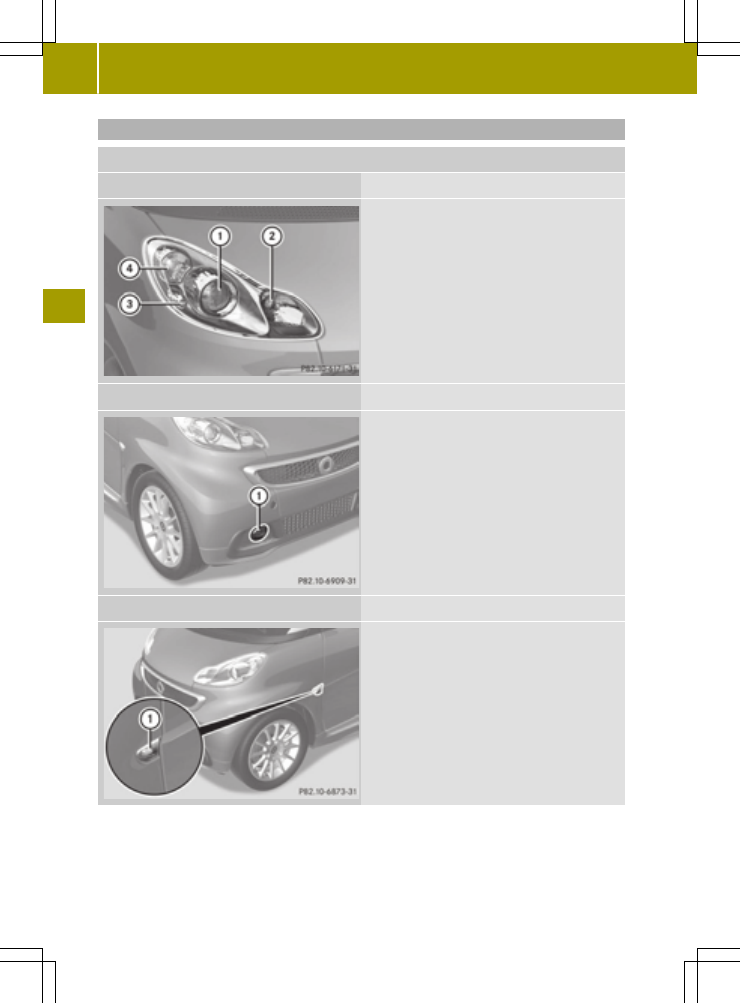

Overview bulbs

Front lamps
Headlamp

Type
: Low‑beam headlamp

H7 (55 W)

; High‑beam headlamp

H7 (55 W)

= Parking and side marker lamp

WY 5 W

? Turn signal lamp

2357 A

Front fog lamp*

Type
: Front fog lamp

H 11

Side turn signal lamp

Type
: Side turn signal lamp

WY 5 W

180

Replacing bulbs

>>

Practical

hints

.

* optional

-------------------------------------------------------------------------------------------------------------------------------------------------------------

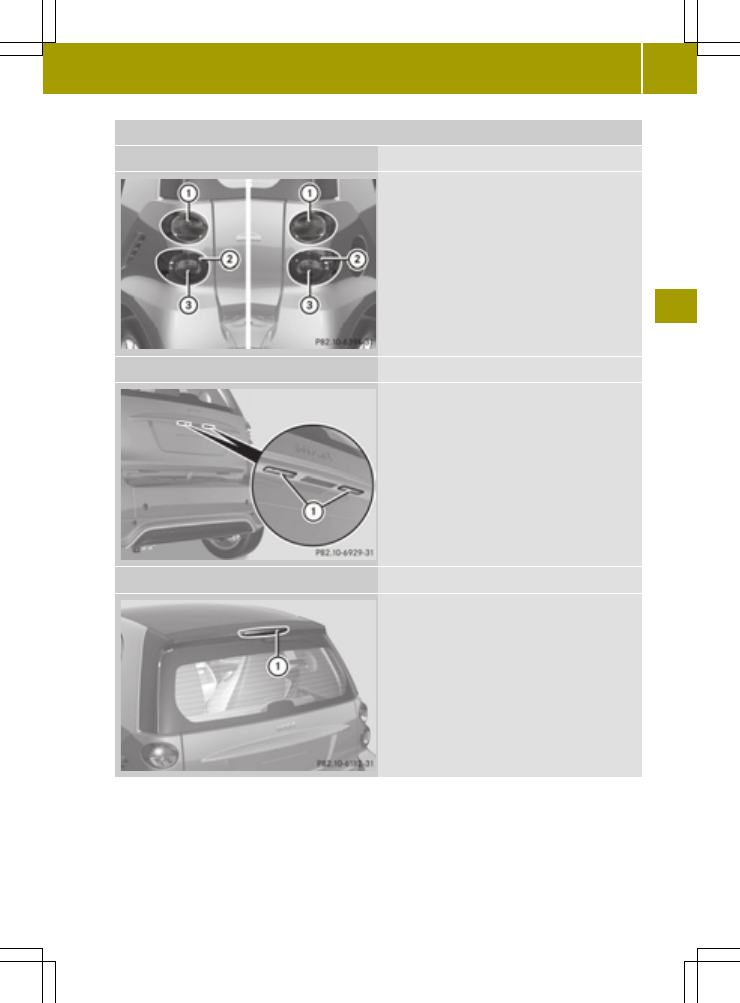

Rear lamps
Tail lamp unit

Type
: Brake lamp/tail lamp/turn signal

lamp/side marker lamp
12 V 21/5 W

; Reflector

-

= Backup lamp

12 V 21 W

License plate lamps

Type
: License plate lamps

C 5 W

High‑mounted brake lamp

Type
: High‑mounted brake lamp

W 16 W

Replacing bulbs

181

>>

Practical

hints.

Z

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Replacing bulbs for front lamps

Before you start to replace a bulb for a

front lamp, do the following first:

X

Turn the exterior lamp switch to position

$ (

Y

page 64).

X

Switch off the ignition.

X

Open the service flap (

Y

page 123).

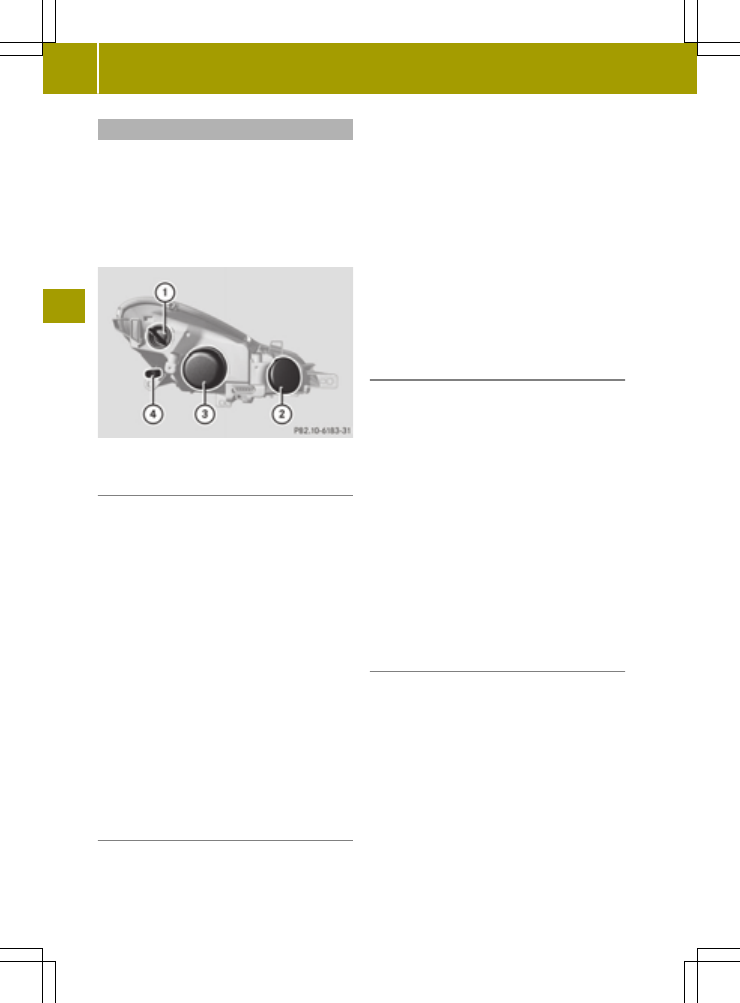

Left headlamp, (right headlamp in reverse)

Parking and side marker lamp bulb

X

Removing:
Driver’s side: Turn bulb socket ? toward

the outside.
Passenger side: Turn bulb socket ?

toward the outside.

X

Pull bulb socket ? out of the headlamp

housing.

X

Pull the bulb out of bulb socket ?.

X

Installing: Insert the new bulb into bulb

socket ?.

X

Insert bulb socket ? into the headlamp

housing.

X

Driver side: Turn bulb socket ? toward

the inside.
Passenger side: Turn bulb socket ?

toward the inside.

Low‑beam headlamp bulb

X

Removing: Take off low‑beam headlamp

cover =.

X

Detach the electrical connector.

X

Bend the retainer spring end down and

forward until it unclips. Fold the

retainer spring back.

X

Pull the bulb out of the headlamp hous-

ing.

X

Installing: Insert the new bulb into the

headlamp housing.

X

Fold the retainer spring forward.

X

Bend the retainer spring end forward

then up and back to clip in.

X

Attach the electrical connector.

X

Reinstall low‑beam headlamp cover =.

High‑beam headlamp bulb

X

Removing: Take off high‑beam headlamp

cover ;.

X

Detach the electrical connector.

X

Tilt the bulb socket down and pull it out.

X

Pull the bulb out of the bulb socket.

X

Installing: Insert the new bulb into the

bulb socket.

X

Fit the bulb so that the retaining lug of

the base plate is pointing up.

X

Press the bulb into the bulb socket until

it is fully engaged.

X

Attach the electrical connector.

X

Reinstall high‑beam headlamp cover ;.

Front turn signal lamp bulb

X

Removing: Turn bulb socket : counter-

clockwise by a quarter of turn and pull it

out of the headlamp housing.

X

Press gently onto the bulb and turn it

counterclockwise.

X

Pull the bulb out of bulb socket :.

X

Installing: Insert the new bulb into bulb

socket :.

X

Press gently onto the bulb and turn it

clockwise.

X

Insert bulb socket : into the headlamp

housing.

182

Replacing bulbs

>>

Practical

hints.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The arrow on bulb socket : must be in

line with the line on the headlamp hous-

ing.

X

Turn bulb socket : clockwise by a quar-

ter of turn.

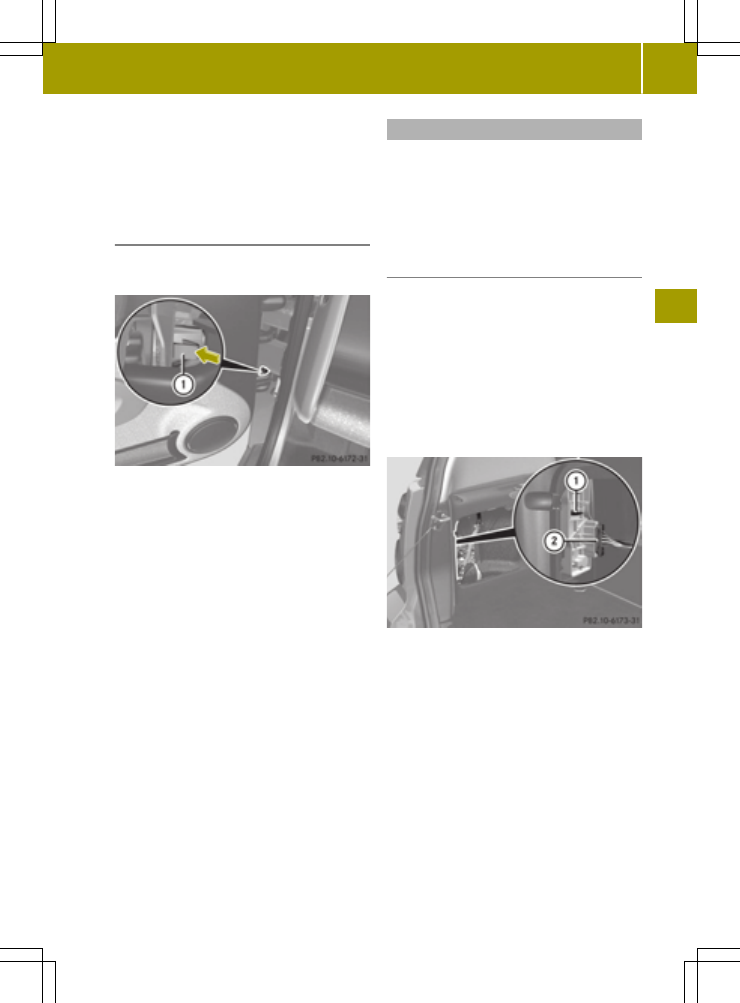

Side turn signal lamp bulb

X

Removing: Open the door on the corre-

sponding side.

X

Press on retaining lug : in the direc-

tion of the arrow until the side turn sig-

nal lamp housing disengages.

X

Close the door.

X

Use a suitable tool to loosen the side turn

signal lamp housing from the fender.

X

Turn the bulb socket counterclockwise

and pull it out of the side turn signal

lamp housing.

X

Pull the bulb out of the bulb socket.

X

Installing: Insert the new bulb into the

bulb socket.

X

Insert the bulb socket into the side turn

signal lamp housing and turn the bulb

socket clockwise.

X

Fit the side turn signal lamp housing

onto the fender.

X

Press gently onto the side turn signal

lamp housing.
The side turn signal lamp housing must

audibly engage.

Replacing bulbs for rear lamps

Before you start to replace a bulb for a rear

lamp, do the following first:

X

Turn exterior lamp switch to position

$ (

Y

page 64).

X

Switch off the ignition.

Tail lamp unit

X

Removing:
Coupé: Open the upper tailgate.

X

Open the lower tailgate.

X

Cabriolet: Open the rear soft top

(

Y

page 72).

X

Remove the side cover in the cargo com-

partment on the corresponding side.

X

Fold the damping material forward, if

necessary.

Left bulb carrier illustrated as example
:

Retaining tab

;

Electrical connector

X

Press retaining tab : in the center of

the bulb carrier upwards.

X

Pull the bulb carrier out of the tail lamp

housing.

Replacing bulbs

183

>>

Practical

hints.

Z

-------------------------------------------------------------------------------------------------------------------------------------------------------------

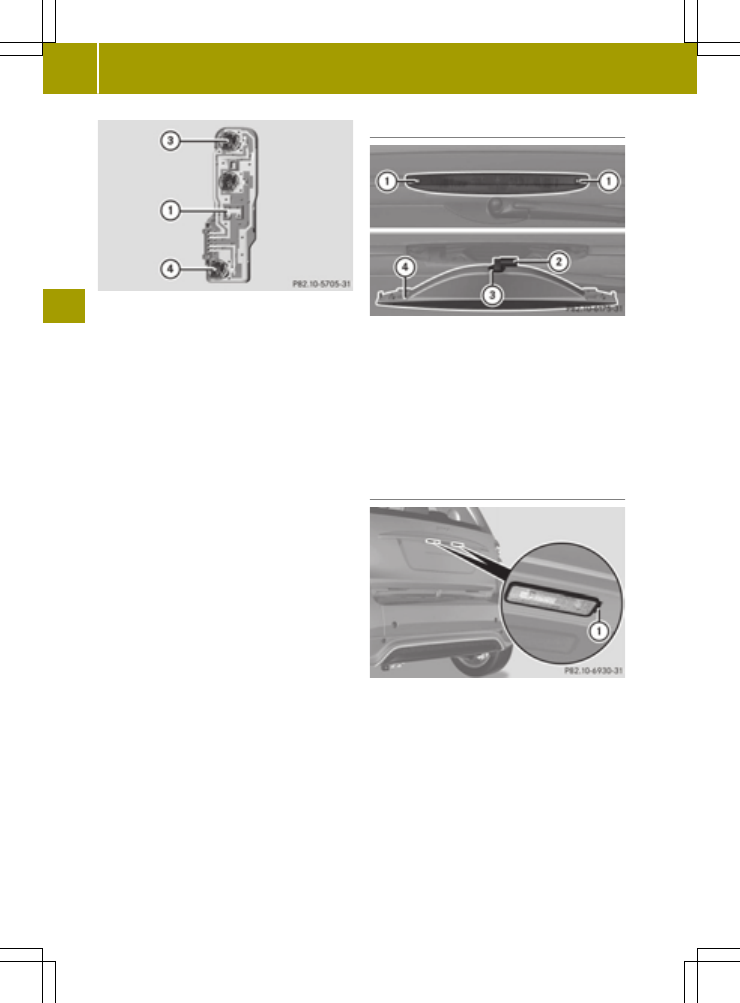

Left bulb carrier with bulb sockets (right bulb

carrier in reverse)
:

Retaining tab

=

Brake, tail, turn signal and side marker

lamp bulb

?

Backup lamp bulb

X

Depending on which bulb needs to be

replaced, press gently onto bulb = or ?

and turn it counterclockwise.

X

Pull the bulb out of the bulb socket.

X

Installing: Insert the new bulb into the

bulb socket.

X

Press gently onto the bulb and turn it

clockwise until it engages.

X

Insert the bulb carrier into the tail lamp

housing.

X

Press gently onto the bulb carrier.
Let retaining tab : engage.

X

Fold the damping material backward, if

necessary.

X

Reinstall the side cover in the cargo

compartment.

High-mounted brake lamp

X

Removing: Unscrew retaining screws :.

X

Remove high-mounted brake lamp ?.

X

Detach electrical connector ; from bulb

socket =.

X

Turn the bulb counterclockwise and pull

it out of its socket.

X

Installing: Install in the reverse order.

License plate lamps

X

Use a suitable tool to loosen the corre-

sponding license plate lamp unit at

jacking point :.

X

Carefully unclip the license plate lamp

unit.

184

Replacing bulbs

>>

Practical

hints

.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

X

Detach electrical connectors ;.

X

Remove bulb =.

X

Insert the new bulb.

X

Attach electrical connectors ;.

X

Fit the license plate lamp unit on the

right and press gently on the left.
The license plate lamp unit must audibly

engage.

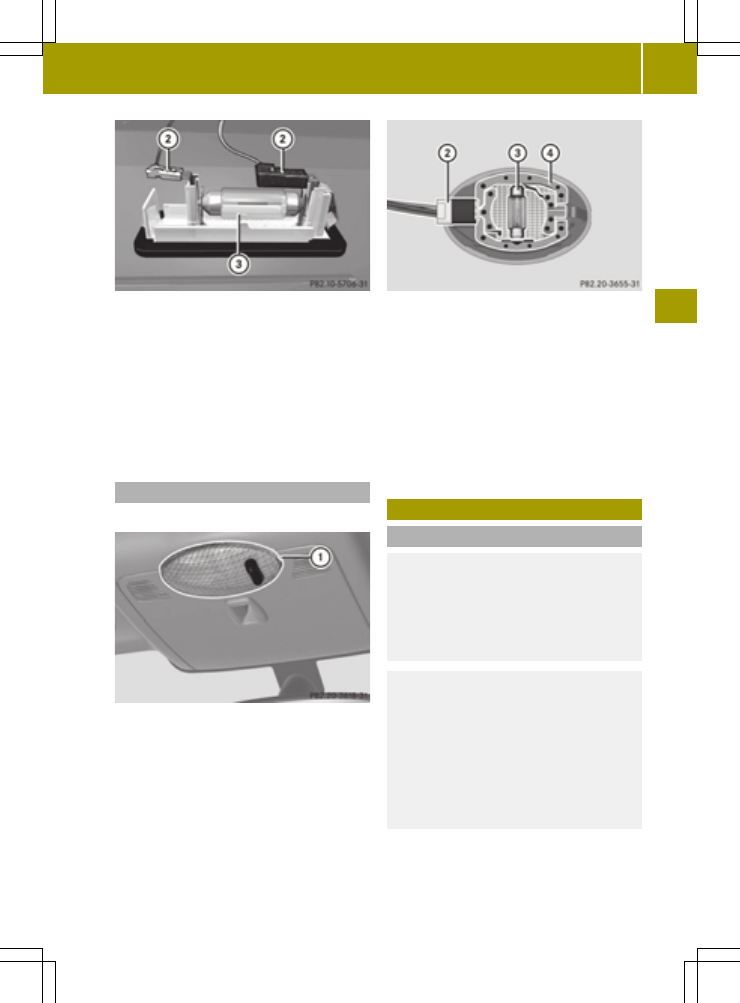

Replacing interior lighting lamps

A 12 V/10 W bulb is required.

X

Removing: Use a flat object to pry the

lamp lens : off from the passenger side.

X

Detach electrical connector ; from the

interior lamp.

X

Remove bulb = from mount ?.

X

Installing: Insert the new bulb.

X

Attach electrical connector ; to the

interior lamp.

X

Fit the lamp lens on the left in the open-

ing and press gently on the right.
The lamp lens must audibly engage.

Replacing wiper blades
About replacing wiper blades

G

WARNING

For safety reasons, switch off the wipers

and remove the key from the starter switch

before replacing a wiper blade. The wind-

shield wipers could otherwise be set in

motion and cause injury.

G

WARNING

Wiper blades are components that are sub-

ject to wear and tear. Replace the wiper

blades at least twice a year, preferably in

the spring and fall. Otherwise the windows

will not be properly wiped. As a result, you

may not be able to observe surrounding

traffic conditions and could cause an acci-

dent.

!

Hold on to the wiper when folding the

wiper arm back. If released, the force of

the impact from the windshield wiper

Replacing wiper blades

185

>>

Practical

hints

.

Z

-------------------------------------------------------------------------------------------------------------------------------------------------------------

tensioning spring could crack the wind-

shield.
Do not allow the wiper arms to contact the

windshield glass without a wiper blade

inserted.
We recommend that you have this work

carried out at an authorized electric

drive smart center.

To ensure proper visibility

R

it is vital that you have wiper blades that

are in perfect shape

R

clean the wiper blades regularly with a

cleaning agent

R

remove any tough dirt stains with a

sponge or brush

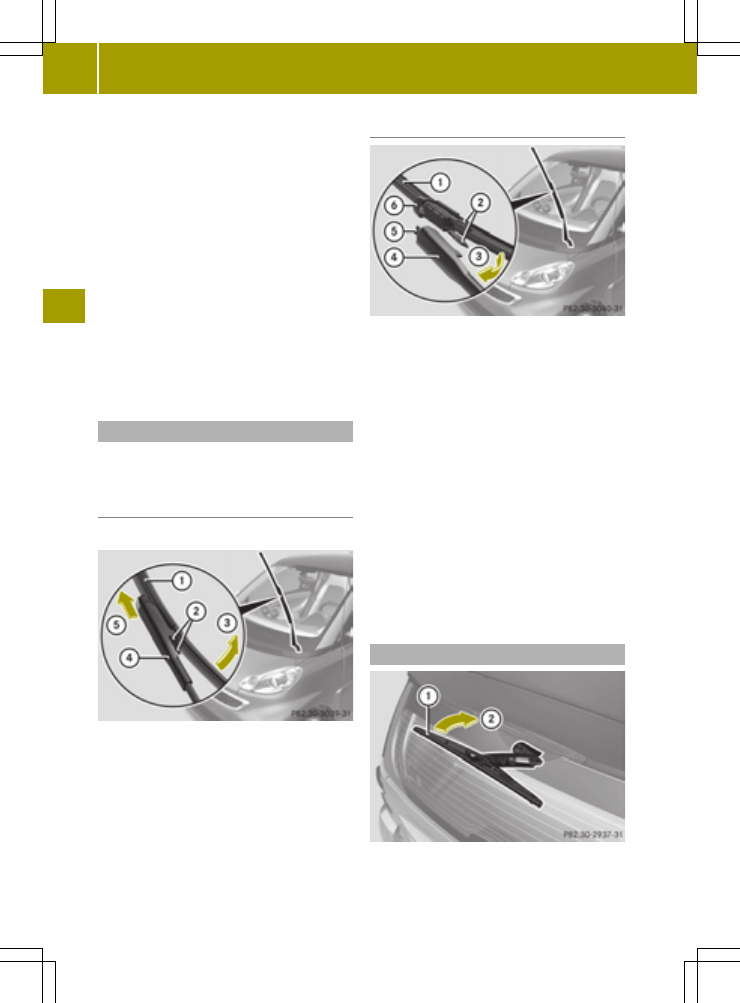

Windshield wiper blades

!

Do not pull on the wiper blade inserts.

They could tear.

Removing

X

Remove the key from the starter switch.

X

Fold wiper arm ? away from the wind-

shield until it snaps into place.

X

Press on retaining springs ; on both

sides of wiper blade :.

X

Fold wiper blade : away from wiper

arm ? in direction of arrow =.

X

Detach wiper blade : in direction of

arrow A.

Installing

X

With guide tab A sliding into opening

B, attach new wiper blade : onto the

wiper arm.

X

Fold wiper blade : towards the wiper

arm in direction of arrow =.

Retaining springs ; must audibly

engage in attachment ?.

X

Check whether wiper blade : is securely

fastened.

X

Fold the wiper arm backward to rest on

the windshield.

Make sure to hold on to the wiper when

folding it back.

!

Make sure the wiper blades are properly

installed. Improperly installed wiper

blades may cause windshield damage.

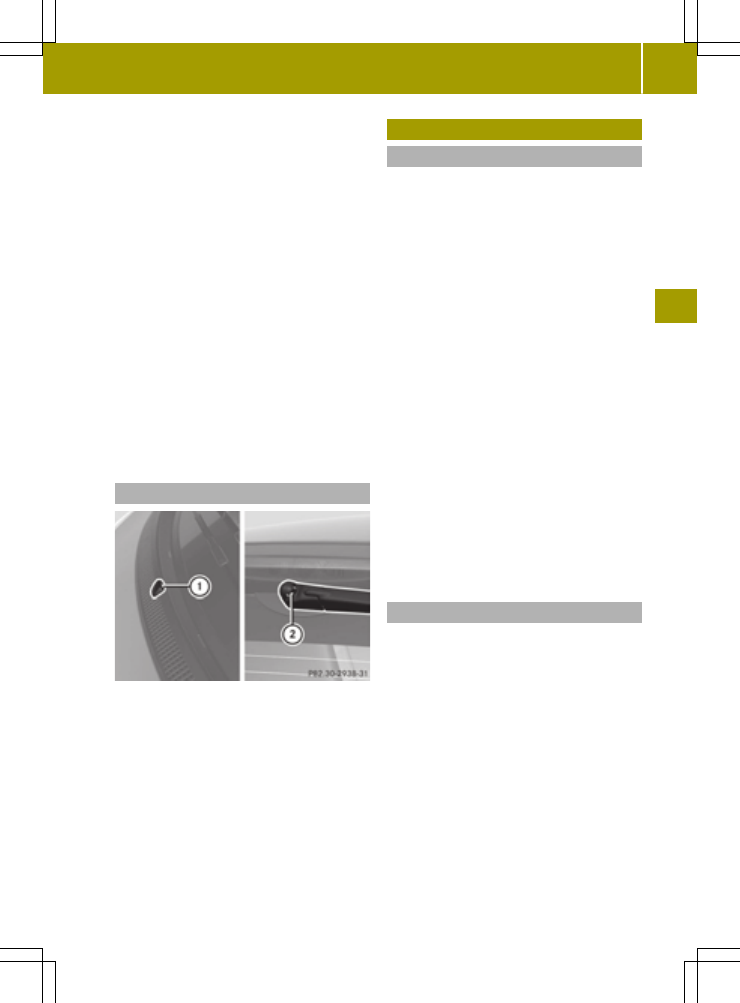

Rear window wiper blade

186

Replacing wiper blades

>>

Practical

hints

.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

X

Removing: Fold the wiper arm away from

the rear window until you feel it engage.

X

Fold wiper blade : away from the wiper

arm in direction of arrow ; until it

disengages from its mounting.

X

Detach wiper blade :.

X

Installing: Push the new wiper blade onto

the wiper arm until you feel it engage.

X

Fold the wiper blade into a position par-

allel to the wiper arm.

X

Fold the wiper arm backward to rest on

the rear window.
Make sure to hold on to the wiper when

folding the wiper arm back.

!

Make sure the wiper blade is properly

installed. An improperly installed

wiper blade may cause rear window dam-

age.

Adjusting the washer jet nozzles

:

Front washer jet nozzles

;

Rear washer jet nozzles

X

Adjusting: Use a needle to move washer

jet nozzles : or ; left, right, up, or

down.

i

Check the setting of the washer jet noz-

zles at regular intervals. The washer jet

nozzles are correctly set when the water

jet hits the windshield or the rear win-

dow approximately in the center.

Flat tire
Preparing the vehicle

Upon experiencing any type of problem

with the vehicle’s tires, switch on the haz-

ard warning flasher, carefully slow down

and exit the roadway in a cautious manner.

X

Park the vehicle at a safe distance from

moving traffic on a hard, flat surface

when possible.

X

Make sure the tire valve of the damaged

tire is located below the horizontal axle

of the wheel hub.

X

Engage the parking brake.

X

Turn the steering wheel so that the front

wheels are in a straight ahead position.

X

Move the gear selector lever to park

position P.

X

Switch off the drive system.

X

Remove the key from the starter switch

and take the key with you.

i

Open door only when conditions are safe

to do so.

X

Have any passenger exit the vehicle at a

safe distance from the roadway.

Using the tire repair kit

!

Depending on the type of damage on the

tire, the tire sealant could damage the

sensor of the Tire Pressure Monitoring

System (TPMS)*. Such damage is not cov-

ered by the smart Limited Warranty.
When having the damaged tire replaced,

also have the TPMS sensors* checked for

proper function. When the sensor is dam-

aged, the TPMS* will not function prop-

erly. The sensor must then be replaced at

an authorized electric drive smart cen-

ter as soon as possible.

i

Depending on production date of your

vehicle, it will be equipped with version

1 or version 2 of the tire repair kit.

Please make sure to refer to the descrip-

Flat tire

187

>>

Practical

hints.

* optional

Z

-------------------------------------------------------------------------------------------------------------------------------------------------------------

tion of the tire repair kit in your vehicle

before sealing a tire.

The tire repair kit can be used to seal

punctures of up to approximately 0.16 in

(4 mm) on the tire tread.
The tire repair kit enables you to drive on

the sealed tire to the nearest authorized

electric drive smart center.

X

You should have the sealed tire replaced

at an authorized electric drive smart

center.

G

WARNING

Take care not to allow the contents of the

tire sealant to come in contact with hair,

eyes or clothing. The tire sealant is harm-

ful if inhaled, swallowed or absorbed

through the skin - causes skin, eye and res-

piratory irritation. Wear gloves while

using this product if they are available.
Any contact with eyes or skin should be

flushed immediately with plenty of water.
If clothing comes in contact with the tire

sealant, change clothing as soon as possi-

ble.
In case of allergic reaction or rash, consult

a physician immediately.

Notes

R

Small tire punctures, particularly those

in the tread, can be sealed with the tire

sealant.

R

The tire sealant can be used in ambient

temperatures from ‑4¦ (‑20¥) to 104¦

(+40¥).

R

Do not remove any foreign objects such as

nails or screws that have penetrated the

tire.

R

Do not use the tire sealant if the tire has

been damaged by being driven when

insufficiently inflated (e.g. bumps,

cuts, cracks etc. on the tire).

R

Allow escaped tire sealant to dry, then

peel it off.

R

Immediately wash all painted surfaces

that came into contact with the tire seal-

ant using a damp cloth.

R

Avoid skin and eye contact with the tire

sealant.

R

Do not swallow the tire sealant.

R

Allow the tire sealant that is inside the

damaged tire to dry and dispose of

together with the tire.

R

Do not use the tire sealant after the expi-

ration date has elapsed (see top of con-

tainer).
Instead, have it replaced at an author-

ized electric drive smart center.

G

WARNING

The tire sealant is a limited repair device.

The tire sealant cannot be used for cuts or

punctures larger than approximately

0.16 in (4 mm) and tire damage caused by

driving with extremely low tire inflation

pressure, or on a flat tire, or a damaged

wheel.
Do not drive the vehicle under such cir-

cumstances.
If you are unsure of the condition of the tire

or have any question whatsoever about its

suitability for driving contact the nearest

authorized electric drive smart center for

assistance or call Roadside Assistance.

G

WARNING

Please review the instructions below for

using the tire repair kit. If you are not

confident that you can competently follow

the instructions for using this kit, do not

use the kit, but instead call for Roadside

Assistance.

G

WARNING

Keep the tire sealant out of reach of chil-

dren. If swallowed, rinse mouth immedi-

ately with plenty of water and drink plenty

of water.
Do not induce vomiting!
Consult a physician immediately.

188

Flat tire

>>

Practical

hints

.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     9      10      11      12     ..
