Smart fortwo coupe and smart fortwo cabriolet (2019). Manual - part 5

Mounting the side rails

X

Open the driver’s and passenger door
when conditions are safe to do so.

X

Open the tailgate.

X

Pull handle : on the inside of the
tailgate backward.

X

Lift up the storage compartment cover.

X

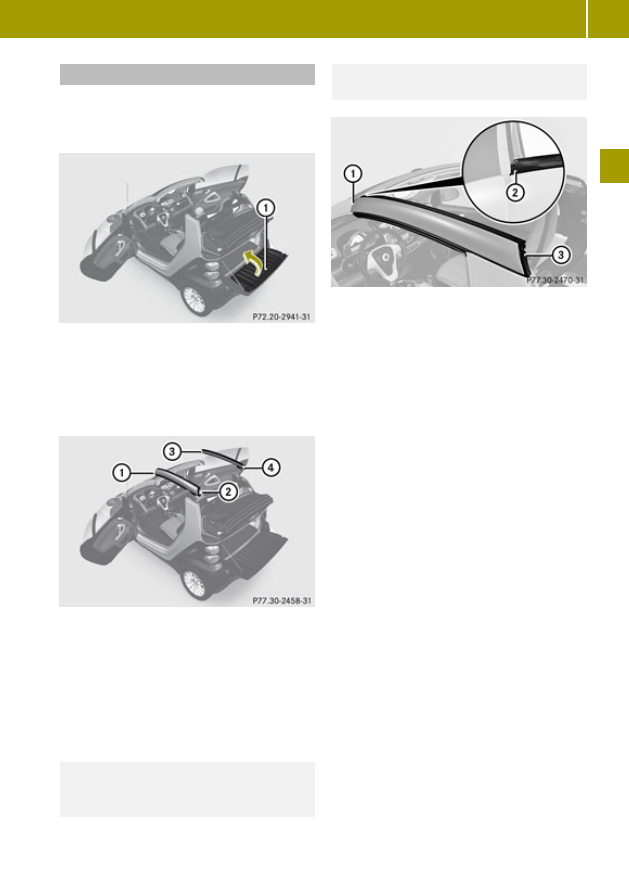

Remove the side rails from the storage
compartment in the tailgate.

:

Front left

;

Rear left

=

Front right

?

Rear right

X

Install the side rails in the designated
order : to ?.

X

Close the storage compartment cover.

G

Warning!

Make sure the side rails are properly
mounted. Otherwise the side rails could

disengage while driving and injure you and
other persons.

X

Take one side rail and start by attaching
it to front end :.

X

Make sure the seal of the side rail is
facing up at position ; and is not
pinched.

X

Push the side rail at rear end =
downwards until it audibly engages into
place twice.

X

Install the side rail on the other side in
the same manner.

!

Make sure the side rails are installed

correctly. Otherwise the side rails may
not function properly or may be damaged.

Soft top system (cabriolet only)

77

>> Controls.

Z

Side windows

Opening and closing the side windows

Opening and closing the side windows
manually

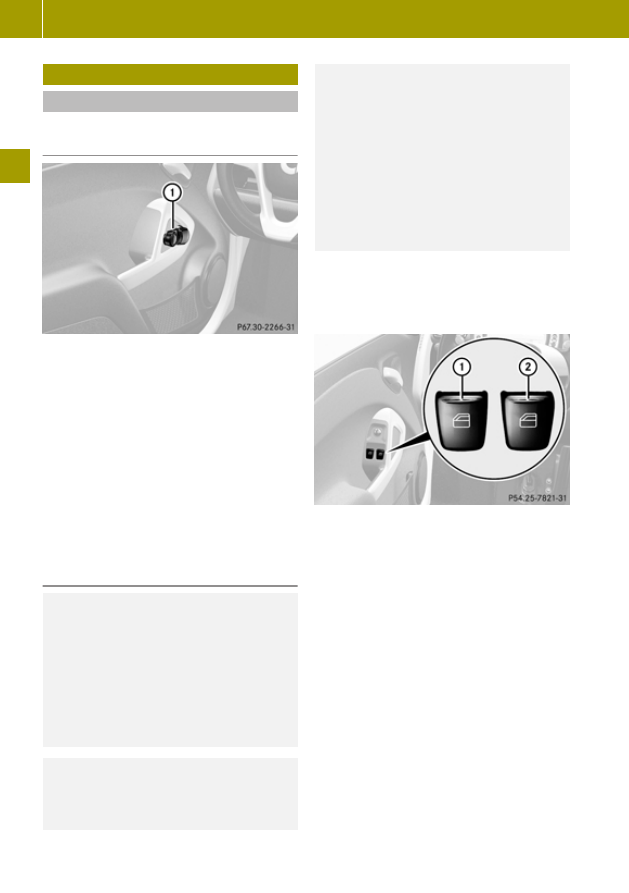

Crank for side window on driver’s door

Side window on the driver’s door

X

Opening: Turn crank :
counterclockwise.

X

Closing: Turn crank : clockwise.

Side window on the passenger door

X

Opening: Turn crank : clockwise.

X

Closing: Turn crank :
counterclockwise.

Opening and closing the power windows
(model passion only)

G

Warning!

Do not keep any part of your body up against
the side window pane when opening a
window. The downward motion of the pane
may pull that part of your body down between
the window pane and the door frame and trap
it there. If there is a risk of entrapment,
release the switch and pull up the top of the
switch to close the window.

G

Warning!

When closing the windows, make sure there
is no danger of anyone being harmed by the
closing procedure.

The closing of the side windows can be
immediately halted by releasing the
switch.
When leaving the vehicle, always remove the
key from the starter switch, take it with
you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. A child’s
unsupervised access to a vehicle could
result in an accident and/or serious
personal injury.

The switches for both power windows are on
the driver’s door. In addition, there is a
switch for the passenger side on the
passenger door.

:

Side window driver’s door

;

Side window passenger door

X

Make sure the key is in starter switch
position 1.

X

Opening: Press the top of the respective
switch to the resistance point.
The corresponding side window moves
downwards until you release the switch.

X

Closing: Pull up the top of the respective
switch to the resistance point.
The corresponding side window moves
upwards until you release the switch.

78

Side windows

>> Controls.

X

Automatic opening: Press the top of the
respective switch briefly.
The corresponding side window opens
completely.

X

Stopping during automatic opening:
Press or pull up the top of the respective
switch briefly.
The corresponding side window stops
immediately.

Driving and parking

Starting

G

Warning!

Make sure absolutely no objects are
obstructing the pedals’ range of movement.
Keep the driver’s footwell clear of all
obstacles. If there are any floormats* or
carpets in the footwell, make sure the
pedals still have sufficient clearance.
During sudden driving or braking
maneuvers, the objects could get caught
between or beneath the pedals and restrict
your ability to brake or accelerate. This
could lead to accidents and injury.

G

Warning!

Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains
carbon monoxide (CO), and inhaling it can
cause unconsciousness and lead to death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while
driving, have the cause determined and
corrected immediately. If you must drive
under these conditions, drive only with at
least one window fully open at all times.

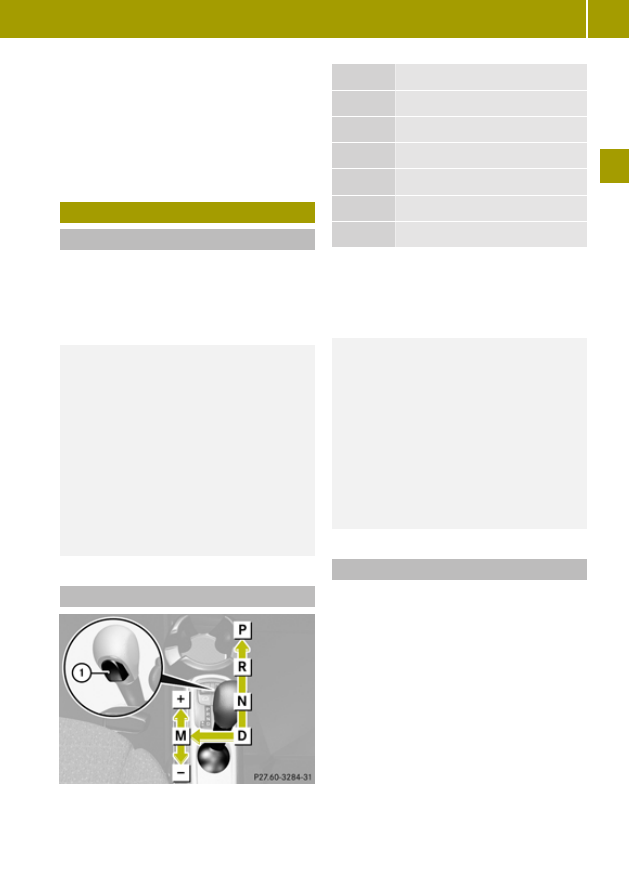

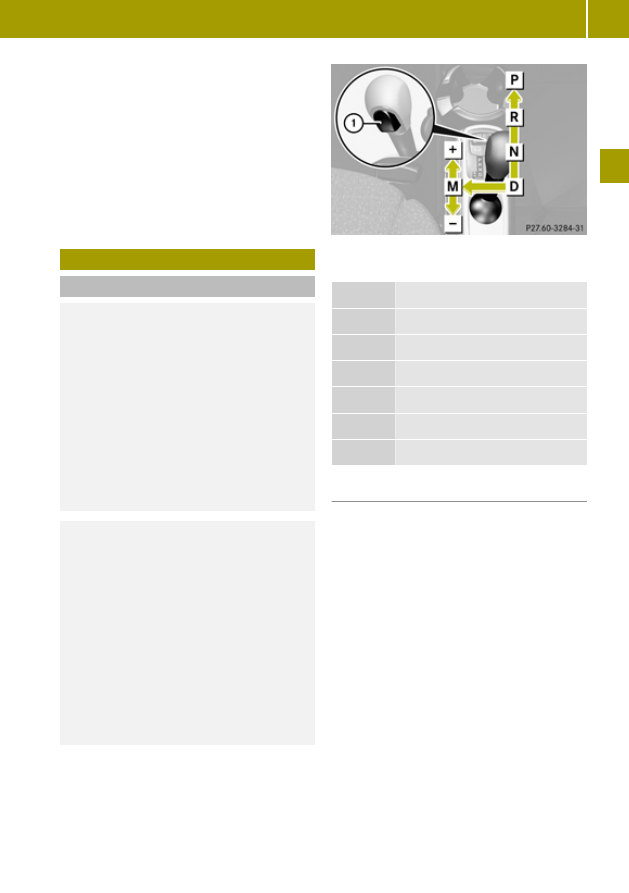

Gearshift pattern for transmission
:

Release button

j

Park position

k

Reverse gear

i

Neutral position

h

Drive position

p

Manual gear shifting

q

Upshifting

±

Downshifting

Starting the engine

!

Shift the transmission into park

position P or reverse gear R only when the
vehicle is stopped in order to avoid
damaging the transmission.

X

Make sure the gear selector lever is set
to park position P.
The transmission position indicator
should be on

P

.

X

Do not depress the accelerator pedal.

X

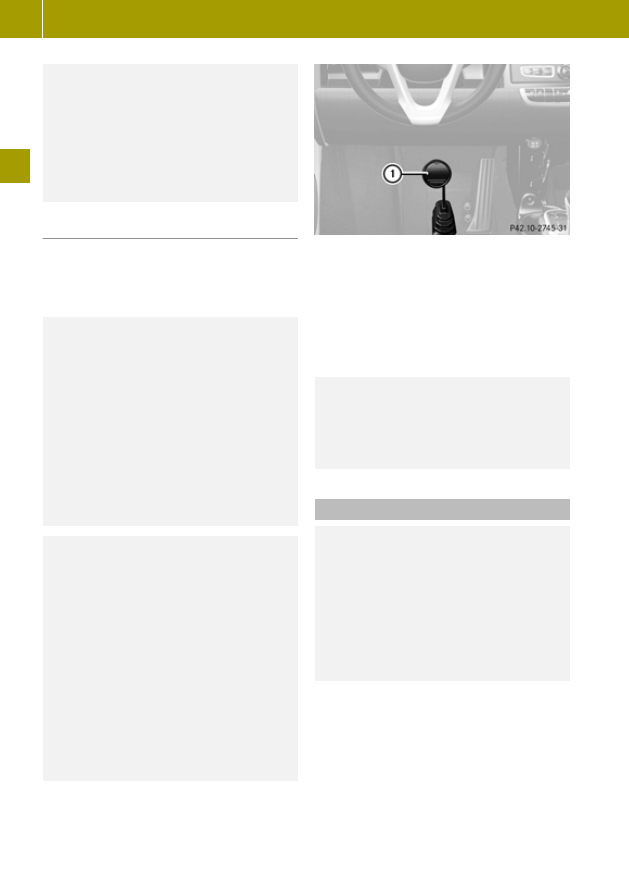

Turn the key to starter switch position
2 and release it again immediately.
The engine starts automatically (“touch-
start” function).

Driving and parking

79

>> Controls.

* optional

Z

Driving

X

Depress the brake pedal.

X

Press release button : (

Y

 page 79) to

disengage the gear selector lever lock.

X

Move the gear selector lever to drive
position D.

D

 appears in the transmission position

indicator.

X

Release the brake pedal.

X

Carefully depress the accelerator pedal.

G

Warning!

On slippery road surfaces, never downshift
in order to obtain braking action. This
could result in drive wheel slip and
reduced vehicle control. Your vehicle’s ABS
will not prevent this type of loss of control.

G

Warning!

It is dangerous to shift the transmission
out of park position P or neutral position
N if the engine speed is higher than idle
speed. If your foot is not firmly on the brake
pedal, the vehicle could accelerate quickly
forward or in reverse. You could lose
control of the vehicle and hit someone or
something. Only shift into gear when the
engine is idling normally and when your
right foot is firmly on the brake pedal.

!

Do not run a cold engine at high engine

speeds. Running a cold engine at high
engine speeds may shorten the service
life of the engine.

!

Simultaneously depressing the

accelerator pedal and applying the
brakes reduces engine performance and
causes premature brake and drivetrain
wear.

Reversing the vehicle

!

Shift the transmission into reverse

gear R only when the vehicle is stopped
in order to avoid damaging the
transmission.
You can drive in reverse gear at a speed
of up to 9 mph (15 km/h).

X

Depress the brake pedal.

X

Press the release button (

Y

 page 79) to

disengage the gear selector lever lock.

X

Move the gear selector lever to reverse
gear R.

R

 appears in the transmission position

indicator.

X

Release the brake pedal.

X

Carefully depress the accelerator pedal.

Parking

G

Warning!

Do not park this vehicle in areas where
combustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system. These materials could be
ignited and cause a vehicle fire.
Vehicle movement can cause serious
personal injury or damage to the vehicle or
the vehicle drivetrain. Therefore, always
do the following before turning off the
engine and leaving the vehicle:

R

Keep right foot on the brake pedal.

R

Engage the parking brake.

R

Move the gear selector lever to park
position P.

R

Slowly release the brake pedal.

R

When parked on an incline, always turn
the front wheels towards the road curb.

80

Driving and parking

>> Controls.

R

Turn the key to starter switch position 0
and remove the key from the starter
switch.

R

Take the key with you and lock the vehicle
when leaving.

G

Warning!

With the engine not running, there is no
power assistance for the brake and
steering* systems. In this case, it is
important to keep in mind that a
considerably higher degree of effort is
necessary to brake and steer the vehicle.
Adapt your driving accordingly.

X

Properly stop and park the vehicle.

X

Depress the brake pedal.

X

Engage the parking brake (

Y

 page 81).

When the ignition is switched on or the
engine is running, the brake warning
lamp $ (USA only) or J (Canada
only) in the instrument cluster comes on.

X

Release the brake pedal.

Parking brake

The parking brake serves to secure the
vehicle against rolling away when it is
stationary or parked.

G

Warning!

Engaging the parking brake while the
vehicle is in motion can cause the rear
wheels to lock up. You could lose control of
the vehicle and cause an accident. In
addition, the vehicle’s brake lights do not
light up when the parking brake is engaged.

X

Releasing: Depress the brake pedal.

X

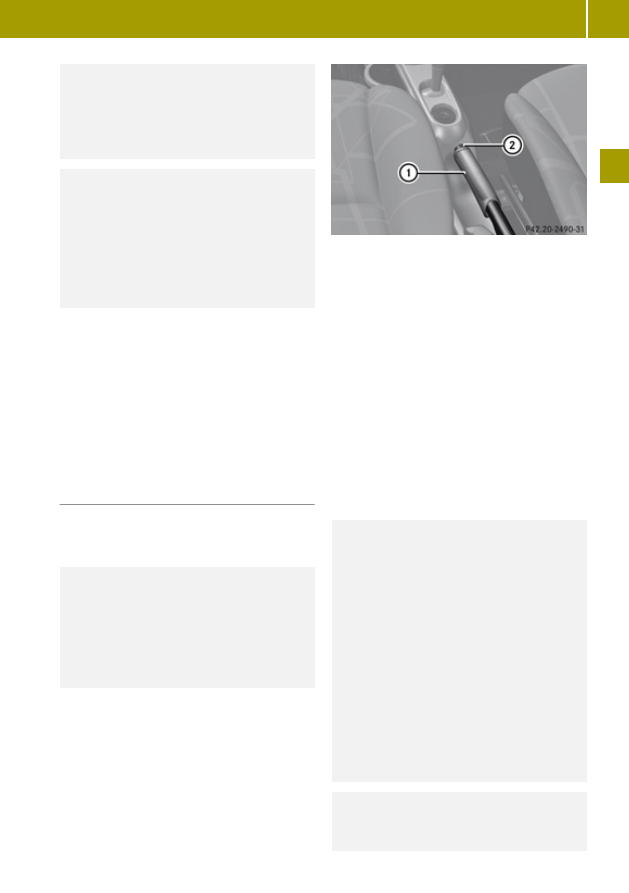

Pull up slightly on parking brake
lever : and press release button ;.

X

Push parking brake lever : down as far
as it will go.
When the ignition is switched on or the
engine is running, the brake warning
lamp $ (USA only) or J (Canada
only) in the instrument cluster goes out.

X

Engaging: Pull up parking brake
lever : firmly.
When the ignition is switched on or the
engine is running, the brake warning
lamp $ (USA only) or J (Canada
only) in the instrument cluster comes on.

G

Warning!

Getting out of your vehicle with the
transmission not fully engaged in park
position P is dangerous. When the engine is
shut off and the brakes are released, the
vehicle can be moved freely with the gear
selector lever in all positions except park
position P. Also, when parked on an incline,
park position P alone may not prevent your
vehicle from moving, possibly hitting
people or objects.
Always engage the parking brake in
addition to shifting to park position P.
When parked on an incline, always turn the
front wheels towards the road curb.

G

Warning!

When leaving the vehicle, always remove the
key from the starter switch, take it with

Driving and parking

81

>> Controls.

* optional

Z

you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Children
could release the parking brake and/or
move the gear selector lever from park
position P, either of which could result in
an accident and/or serious personal
injury.

Brake pedal

The brake pedal has two brake circuits
independent of each other. A brake servo is
used during braking (when the engine is
running) to increase pedal force.

G

Warning!

Make sure absolutely no objects are
obstructing the pedals’ range of movement.
Keep the driver’s footwell clear of all
obstacles. If there are any floormats* or
carpets in the footwell, make sure the
pedals still have sufficient clearance.
During sudden driving or braking
maneuvers, the objects could get caught
between or beneath the pedals and restrict
your ability to brake or accelerate. This
could lead to accidents and injury.

G

Warning!

Considerably more effort will be required
to apply the brakes if

R

the brake servo has failed

R

a brake circuit has failed

R

the engine is switched off, e.g. for
towing the vehicle

The braking distance is likewise greater.
Make sure the engine is running whenever
the vehicle is rolling. Have the brake
system repaired at an authorized smart
center, if there is a fault in the brake
system.

:

Brake pedal

If a brake circuit has failed (

Y

 page 154),

you must depress the brake pedal further
down to achieve the same effect and the
braking distance is increased.

i

The brake servo will only function with

the engine switched on.

G

Warning!

In the event of the vehicle needing to be
towed, a significantly greater amount of
pedal pressure will be required when the
engine is switched off.

Turning off the engine

G

Warning!

Do not turn off the engine before the
vehicle has come to a complete stop. With
the engine not running, there is no power
assistance for the brake and steering*
systems. In this case, it is important to
keep in mind that a considerably higher
degree of effort is necessary to brake and
steer the vehicle.

X

Depress the brake pedal.

X

Press the release button (

Y

 page 79) to

disengage the gear selector lever lock.

X

Move the gear selector lever to park
position P.

!

Always engage the parking brake in

addition to shifting to park position P.

82

Driving and parking

>> Controls.

* optional

X

Release the brake pedal.

X

Turn the key to starter switch position
0.

X

Remove the key from the starter switch.
The electronic immobilizer is
activated.

Transmission

Introduction

Your vehicle is equipped with a 5‑speed
automated transmission with manual or
automatic mode. For information on
driving with the transmission see also
“Starting” (

Y

 page 79).

G

Warning!

Make sure absolutely no objects are
obstructing the pedals’ range of movement.
Keep the driver’s footwell clear of all
obstacles. If there are any floormats* or
carpets in the footwell, make sure the
pedals still have sufficient clearance.
During sudden driving or braking
maneuvers, the objects could get caught
between or beneath the pedals and restrict
your ability to brake or accelerate. This
could lead to accidents and injury.

Gear selector lever

Gearshift pattern for transmission
:

Release button

j

Park position

k

Reverse gear

i

Neutral position

h

Drive position

p

Manual gear shifting

q

Upshifting

±

Downshifting

The current gear selector lever position
appears in the transmission position
indicator. When M is selected the currently
selected gear appears (

Y

 page 89).

G

Warning!

It is dangerous to shift the transmission
out of park position P or neutral position
N if the engine speed is higher than idle
speed. If your foot is not firmly on the brake
pedal, the vehicle could accelerate quickly
forward or in reverse. You could lose
control of the vehicle and hit someone or
something. Only shift into gear when the
engine is idling normally and when your
right foot is firmly on the brake pedal.

Shifting procedure

The transmission selects individual gears
automatically, depending on:

R

the gear selector lever position D
(

Y

 page 84)

R

the position of the accelerator pedal
(

Y

 page 85)

R

the vehicle speed

R

uphill or downhill grades

Press release button : (

Y

 page 83) to

disengage the gear selector lever lock
when moving the gear selector lever from

Transmission

83

>> Controls.

* optional

Z

R

P to R, N, or D

R

R to P

R

N to R or P

!

Allow the engine to warm up under low

load use. Do not place full load on the
engine until the operating temperature
has been reached.
Shift into reverse gear R or parking
position P only when the vehicle is
stopped.
Avoid spinning of a drive wheel for an
extended period when driving off on
slippery road surfaces. Otherwise, the
drivetrain could be damaged, which is
not covered by the smart Limited
Warranty.

With manual gearshifting M selected
(

Y

 page 85), you can use the gear selector

lever or steering wheel gearshift control
to change the gears manually.

Gear selector lever positions

Effect

B

Park position
Gear selector lever position
when the vehicle is parked.
Place the gear selector lever
in park position P only when
the vehicle is stopped. The
park position is not intended
to serve as a brake when the
vehicle is parked.
Rather, the driver should
always engage the parking
brake in addition to placing
the gear selector lever in park
position P to secure the
vehicle.
The key can only be removed
from the starter switch with
the gear selector lever in park
position P. With the key
removed, the gear selector
lever is locked in park
position P.

C

Reverse gear
Shift into reverse gear R only
when vehicle is stopped.

A

Neutral position
No power is transmitted from
the engine to the drive axle.
When the brakes are released,
the vehicle can be moved
freely (pushed or towed).

7

Drive position
The transmission shifts
automatically.

x

Manual gearshifting
System-controlled automatic
gearshifting is switched off.
The driver has to change the
gears manually.

84

Transmission

>> Controls.

The current gear selector lever position
appears in the transmission position
indicator (

Y

 page 89).

Driving tips

Accelerator pedal position

Your driving style influences the
transmission’s shifting behavior:
Less throttle, earlier upshifting
More throttle, later upshifting

Kickdown

Use kickdown when you want maximum
acceleration.

X

Press the accelerator pedal past the
point of resistance.
Depending on the engine speed the
transmission shifts into a lower gear.

X

Ease on the accelerator pedal when you
have reached the desired speed.
The transmission shifts up again.

Stopping

When you stop briefly, e.g. at traffic
lights:

X

Leave the transmission in gear.

X

Hold the vehicle with the brake.

When you stop for a longer period with the
engine idling and/or on a hill:

X

Engage the parking brake.

X

Move the gear selector lever to park
position P.

Working on the vehicle

G

Warning!

When working on the vehicle, engage the
parking brake and move the gear selector
lever to park position P. Otherwise the
vehicle could roll away which could result

in an accident and/or serious personal
injury.

Driving off uphill

Your vehicle has a hill start assist system.

G

Warning!

The hill start assist system is not designed
to function as a parking brake and does not
prevent the vehicle from moving when
parked on an incline.
Always engage the parking brake in
addition to shifting to park position P.

On uphill grades the hill start assist
system maintains the pressure in the brake
system for approximately one second after
you have released the brake pedal.
Therefore, you can start off smoothly
without the vehicle moving immediately
after releasing the brake pedal.

X

Release the brake pedal.

X

Apply sufficient pressure to the
accelerator pedal.

!

After approximately one second, the

hill start assist system stops braking the
vehicle, which then can roll backwards.
If you open the driver’s door within this
time, the hill start assistance is
deactivated and a warning signal sounds.

i

The hill start assist system is inactive

if you start off with the parking brake
engaged.

Manual gearshifting

With manual gearshifting M selected,
system-controlled automatic gearshifting
is switched off and you need to change the
gears by upshifting or downshifting
manually using the gear selector lever or
the steering wheel gearshift control

12

.

12

Model passion only.

Transmission

85

>> Controls.

Z

!

Allow the engine to warm up under low

load use. Do not place full load on the
engine until the operating temperature
has been reached.
Shift into reverse gear R or parking
position P only when the vehicle is
stopped.
Avoid spinning of a drive wheel for an
extended period when driving off on
slippery road surfaces. Otherwise, the
drivetrain could be damaged, which is
not covered by the smart Limited
Warranty.

Activating manual gearshifting

X

Move the gear selector lever to drive
position D (

Y

 page 83).

X

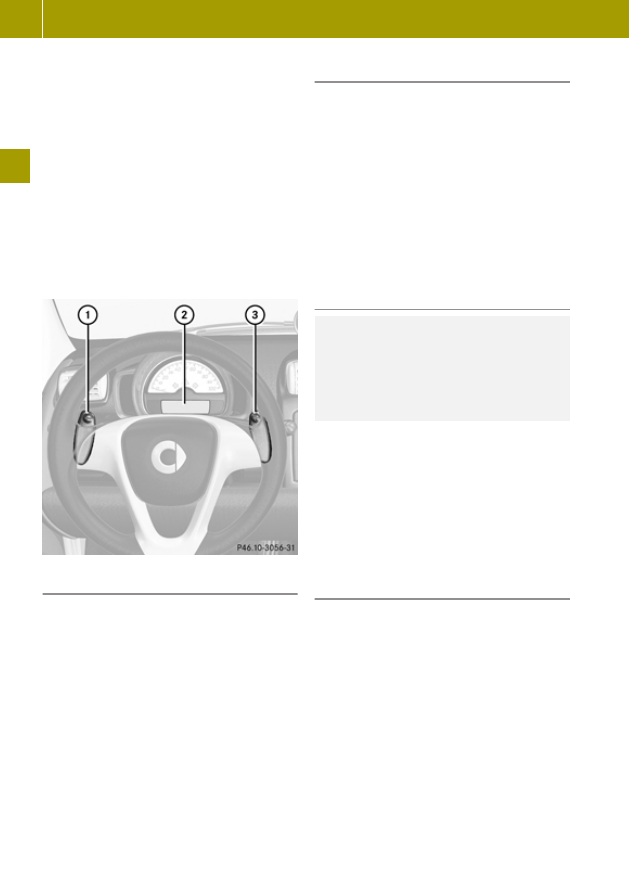

Pull one of the shift paddles (

Y

 page 86)

towards you.

or

X

Move the gear selector lever to manual
gearshifting M (

Y

 page 83).

System-controlled automatic
gearshifting is switched off.
You can upshift or downshift through the
gears in succession.

The currently engaged gear appears in
multifunction display ; (

Y

 page 86).

Upshifting

X

Briefly push the gear selector lever
forward in the + direction (

Y

 page 83).

or

X

Pull right shift paddle = (

Y

 page 86)

towards you.
The transmission shifts to the next
higher gear.

i

With manual gearshifting M selected,

the transmission shifts up only to
prevent engine overrevving.

Downshifting

G

Warning!

On slippery road surfaces, never downshift
in order to obtain braking action. This
could result in drive wheel slip and
reduced vehicle control. Your vehicle’s ABS
will not prevent this type of loss of control.

X

Briefly pull the gear selector lever
backward in the - direction (

Y

 page 83).

or

X

Pull left shift paddle : (

Y

 page 86)

towards you.
The transmission shifts to the next lower
gear.

Kickdown

You can use kickdown when you want
maximum acceleration.

86

Transmission

>> Controls.

X

Press the accelerator pedal past the
point of resistance.
Depending on the engine speed the
transmission shifts into a lower gear.

X

When you have reached the desired speed,
briefly push the gear selector lever
forward in the + direction (

Y

 page 83).

or

X

Pull right shift paddle = (

Y

 page 86)

towards you.
The transmission shifts to the next
higher gear.

Deactivating manual gearshifting

X

With drive position D selected: Pull and
hold right shift paddle = (

Y

 page 86)

towards you for longer than two seconds.

or

X

With manual gearshifting M selected:
Move the gear selector lever to drive
position D (

Y

 page 83).

System-controlled automatic
gearshifting is switched on again.

Emergency operation (limp-home
mode)

In this mode only a certain gear or a
certain gear combination can be selected.
This mode is triggered in case of
transmission malfunctions and enables you
driving to the nearest workshop such as a
smart center.
If vehicle acceleration becomes less
responsive or sluggish or the transmission
no longer shifts, the transmission is most
likely operating in limp-home (emergency
operation) mode. The transmission
position indicator flashes and the

¬

symbol appears in the multifunction
display.

Driving in limp-home mode:

X

Move the gear selector lever to drive
position D (

Y

 page 83).

X

Continue to drive.

X

Have the transmission checked at an
authorized smart center as soon as
possible.

i

It is possible that a gear combination

including the reverse gear can not be
selected. Keep in mind when parking,
that reversing the vehicle might be
impossible.

In case of a minor transmission
malfunction, it might be possible to teach-
in the transmission in order to restore the
normal transmission mode.

i

If the attempt to teach-in the

transmission fails, you cannot continue
to drive. Therefore we strongly
recommend that you have the
transmission taught-in at a qualified
workshop or at an authorized smart
center.

Teaching-in the transmission system:

X

Stop the vehicle in a safe location.

X

Move the gear selector lever to park
position P.

X

Turn off the engine.

X

Wait at least 30 seconds before
restarting.

X

Press the brake pedal.

X

Restart the engine
Three bars instead of

P

 appear in the

multifunction display.

X

Wait at least 30 seconds.
The transmission is taught in.

When teaching-in was successful:

P

 appears in the multifunction display

again and normal transmission operating
is restored.

X

Continue to drive.

After an unsuccessful teaching-in:

Transmission

87

>> Controls.

Z

Three bars instead of

P

 appear in the

multifunction display.

X

Do not continue to drive.

X

Turn off the engine.

X

Engage the parking brake when leaving
the vehicle.

X

Contact Roadside Assistance or an
authorized smart center.

Instrument cluster

Multifunction display

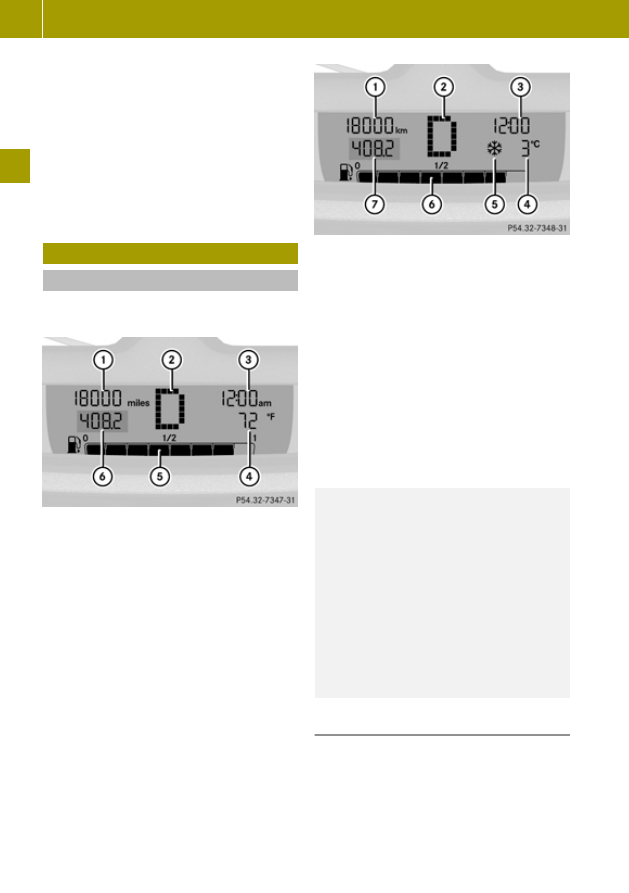

The following displays and indicators
appear in the multifunction display:

Multifunction display (U.S. vehicles)
:

Main odometer display, or when active,
days or distance to next maintenance
service

;

Transmission position indicator

=

Digital clock

?

Outside temperature display

A

Fuel level display

B

Status indicator with:
• Trip odometer display
• Maintenance service interval display
• Reserve fuel indicator

Multifunction display (Canada vehicles)
:

Main odometer display, or when active,
days or distance to next maintenance
service

;

Transmission position indicator

=

Digital clock

?

Outside temperature display

A

Freeze warning

B

Fuel level display

C

Status indicator with:
• Trip odometer display
• Maintenance service interval display
• Reserve fuel indicator

G

Warning!

No messages will be displayed if either the
instrument cluster or the multifunction
display is inoperative.
As a result, you will not be able to see
information about your driving
conditions, such as speed, outside
temperature, or warning/indicator lamps.
Driving characteristics may be impaired.
If you must continue to drive, please do so
with added caution. Visit an authorized
smart center as soon as possible.

Multifunction display illumination

The multifunction display illumination
comes on when the starter switch is in
position 1. It goes out after approximately
30 seconds when the starter switch is in
position 0.

88

Instrument cluster

>> Controls.

For adjusting the multifunction display
illumination, see “Adjusting instrument
cluster illumination” (

Y

 page 93).

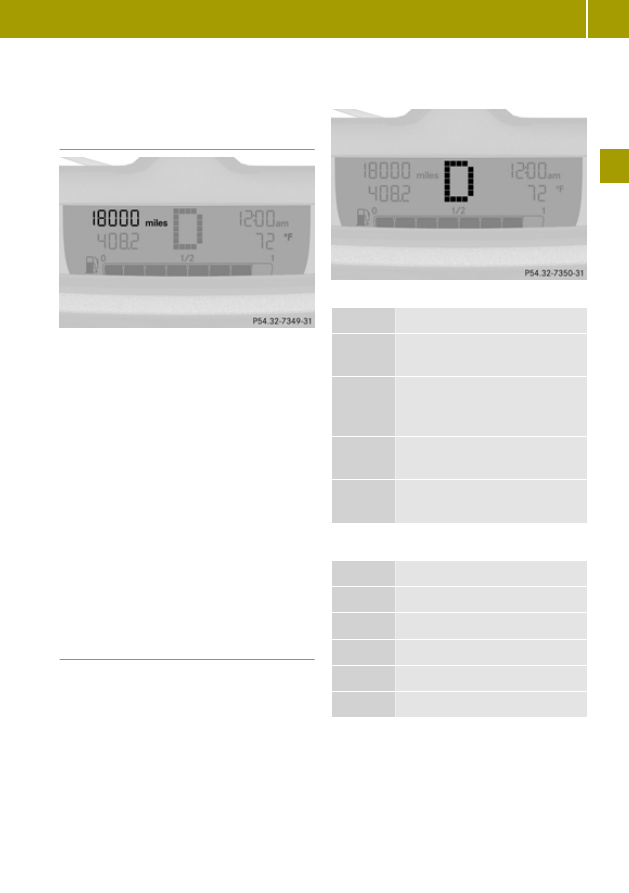

Main odometer display

Example illustration (U.S. vehicles)

i

Canada vehicles: The main odometer

display shows

km

 instead of

miles

.

The main odometer display appears in the
multifunction display continuously.
Exception:
The next maintenance service is due. After
starting the engine, days or distance to
next maintenance service will appear
instead of the main odometer display. The
main odometer display will reappear after
approximately ten seconds.
For information on how to select the
maintenance service interval display, see
“Maintenance service interval display”
(

Y

 page 92).

Transmission position indicator

The following information is displayed in
the transmission position indicator:

R

Current gear selector lever position

R

Current engaged gear (when manual
gearshifting selected)

i

A flashing

R

 in the display indicates

that the gear selector lever is in
position R but the reverse gear is not

engaged. Stop the vehicle to let the
reverse gear engage.

Example illustration (U.S. vehicles)

Display

Function

P

Gear selector lever in park
position P

R

Gear selector lever in
position R (Reverse gear
engaged)

N

Gear selector lever in neutral
position N

D

Gear selector lever in drive
position D

When manual gearshifting is selected:

Display

Function

1

First gear engaged

2

Second gear engaged

3

Third gear engaged

4

Fourth gear engaged

5

Fifth gear engaged

Instrument cluster

89

>> Controls.

Z

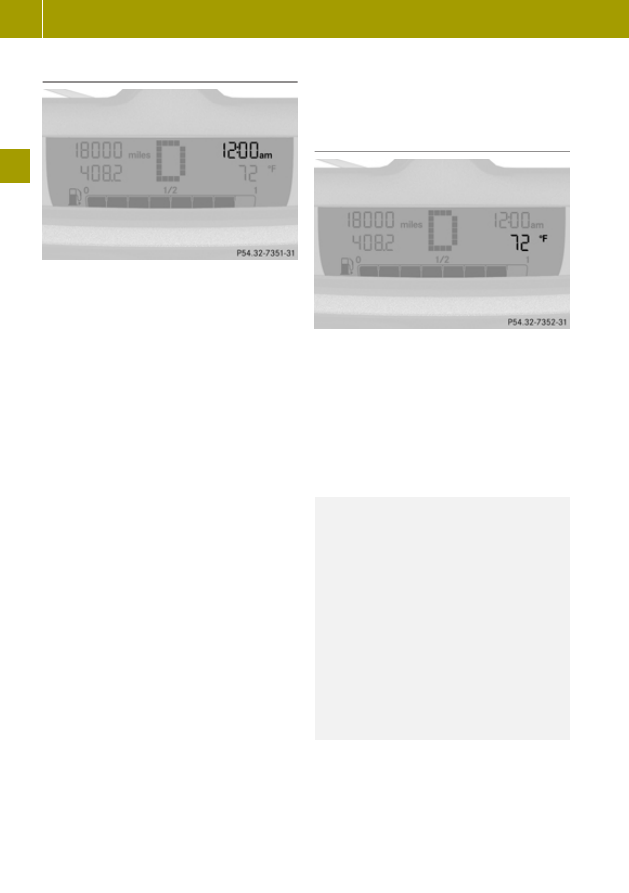

Digital clock

Example illustration (U.S. vehicles)

i

Canada vehicles: The digital clock

shows a 24 h-clock instead of a
12 h-clock.

The time can only be set as long as the colon
in the digital clock flashes.

X

Activating time setting: Press and hold
left button : (

Y

 page 91) until the

colon in the digital clock starts
flashing.

X

Setting the time in 1 minute
increments: Press left button : or right
button ; (

Y

 page 91) repeatedly until

the desired time is set.

X

Setting the time quickly: Press left
button : or right button ;
(

Y

 page 91) for longer than one second.

The setting speed accelerates.

X

Setting the time in 10 minute
increments: Press left button : or right
button ; (

Y

 page 91) for longer than

five seconds.
The time is set in 10 minute increments.

X

Confirm time setting: Refrain from
pressing either left button : or right
button ; (

Y

 page 91) until the colon in

the digital clock stops flashing.
The time is set.

i

The digital clock in the multifunction

display is not synchronized with the
cockpit clock* (

Y

 page 93).

Outside temperature display

Example illustration (U.S. vehicles)

i

Canada vehicles: The outside

temperature display shows

°C

 instead

of

°F

.

The outside temperature display appears
in the multifunction display continuously.
A change of the outside temperature will be
displayed with delay.

G

Warning!

The outside temperature display is not
designed as an ice-warning device and is
therefore unsuitable for that purpose.
Indicated temperatures just above the
freezing point do not guarantee that the
road surface is free of ice. The road may
still be icy, especially in wooded areas or
on bridges. Your vehicle could start to skid
if you do not adjust your driving style
accordingly.
Therefore, always adjust your driving style
to the prevailing road and weather
conditions.

90

Instrument cluster

>> Controls.

* optional

Freeze warning (Canada vehicles only)

When the outside temperature falls below
3

¥, the multifunction display makes you

aware of the fact that the road may be icy.
An additional freeze warning, i.e. an ice
crystal symbol, in the multifunction
display flashes. After 60 seconds, the
freeze warning stops flashing but
continues to be displayed. When the
outside temperature rises above 3

¥, the

freeze warning goes out.

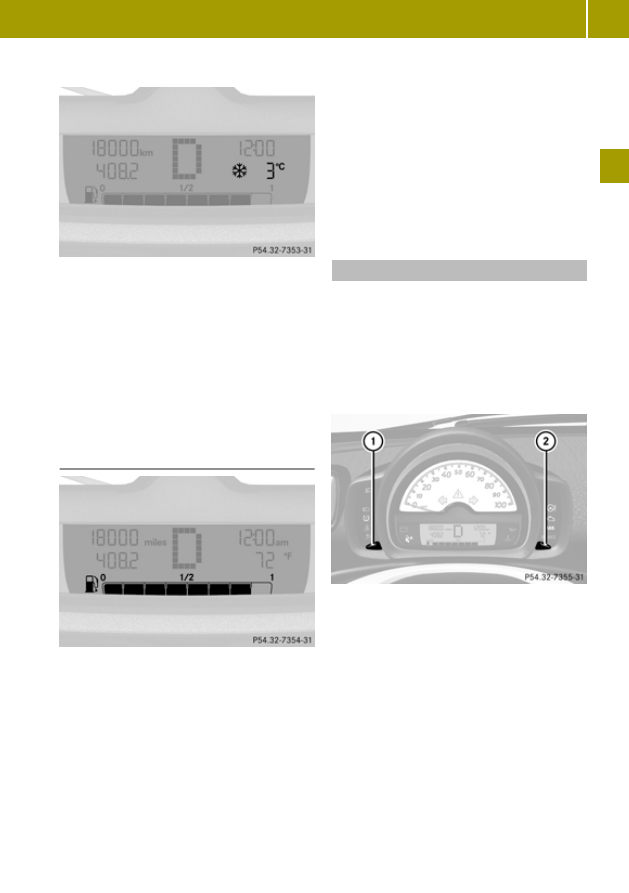

Fuel level display

Example illustration (U.S. vehicles)

The fuel level display shows the tank’s fuel
level with the aid of eight segments. The
number of dark segments indicates the fuel
level in the tank. If all eight segments are
dark, the tank is full.
You are driving on reserve fuel if there are
no more than 1.0 US gal (3.78 l) of fuel in the
tank.

If this occurs,

R

the fuel pump symbol in the fuel level
display flashes

R

the reserve fuel indicator shows the fuel
level in the tank in 0.1 US gal (0.5 l)
increments.

For selecting the reserve fuel indicator to
be displayed in the status indicator, see
“Reserve fuel indicator” (

Y

 page 92).

Selecting display for status indicator

You can select the information to be
displayed in the status indicator:

R

Trip odometer display (

Y

 page 92)

R

Maintenance service interval display
(

Y

 page 92)

R

Reserve fuel indicator (

Y

 page 92)

:

Selecting display for status indicator,
setting the clock, activating
maintenance service interval display

;

Setting the clock, adjusting instrument
cluster illumination

Instrument cluster

91

>> Controls.

Z

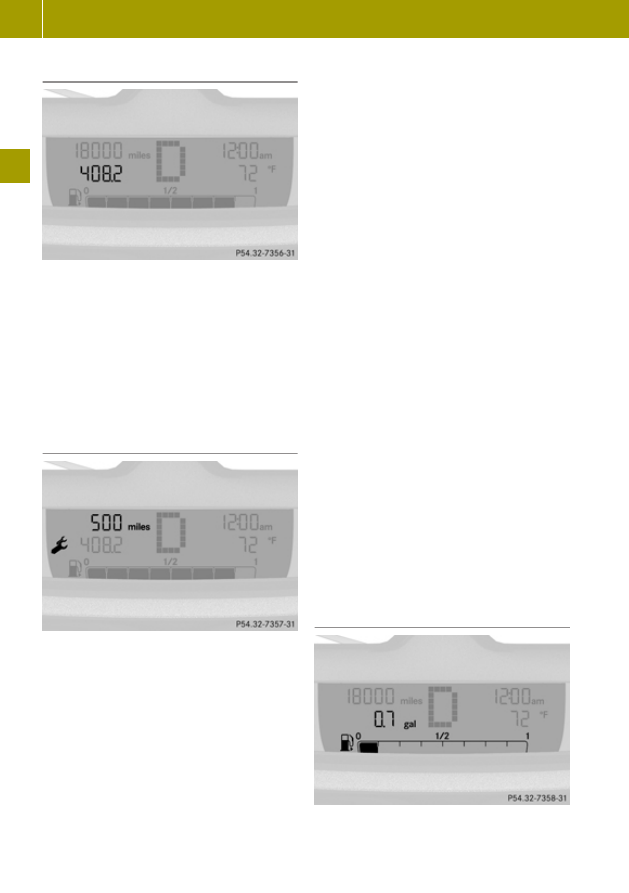

Trip odometer display

Example illustration (U.S. vehicles)

X

Selecting trip odometer display: Press
left button : (

Y

 page 91) repeatedly

until the trip odometer display appears
in the status indicator.

X

Resetting trip odometer display: Press
and hold left button : (

Y

 page 91) until

the value is set to

0

.

Maintenance service interval display

Example illustration (U.S. vehicles)

i

Canada vehicles: The maintenance

service interval display shows

km

instead of

miles

.

The maintenance service interval display
will notify you approximately one month
before the next maintenance service is
due.

The following information will be
displayed after starting the engine:

R

Days or distance to next maintenance
service
This information will be displayed
instead of the main odometer display.
The main odometer display will reappear
after approximately ten seconds
(

Y

 page 89).

R

Type of service that is due
This information will be displayed in
the status indicator.

X

Start the engine.

X

Selecting maintenance service interval
display: Press left button : (

Y

 page 91)

repeatedly until the maintenance
service interval display appears in the
status indicator.
Depending on the type of maintenance
service that is due, symbol

¬ or } is

displayed.

X

Clearing maintenance service interval
display: Press left button : (

Y

 page 91)

once.
The maintenance service interval
display is cleared.

X

Activating maintenance service interval
display: Press left button : (

Y

 page 91)

twice in quick succession.

Reserve fuel indicator

Example illustration (U.S. vehicles)

92

Instrument cluster

>> Controls.
