Skoda Superb (2019 year). Manual - part 15





The front of the vehicle and the distance to the vehicle ahead is monitored by

a radar sensor

» page 216

.

The state in which the ACC maintains the speed or the proximity is described

as control from here on.

WARNING

The general information relating to the use of assistance systems must be

observed

» page 216,

   in section Introduction.

The driver must always be ready to take over the operation of the accel-

erator and brake pedal.

The ACC does not react when approaching a stationary obstacle, such as

traffic jams, vehicle breakdowns or vehicles waiting at a traffic light.

The ACC does not respond to crossing or oncoming objects.

If the ACC does not decelerate fast enough, immediately apply the vehi-

cle's foot brake.

WARNING

For safety reasons, do not use the ACC under the following conditions.

When driving in turning lanes, motorway exits or construction sites, to

avoid an unwanted acceleration to the stored speed.

When visibility is poor, (e.g. fog, heavy rain, thick snowfall).

When road conditions are poor (e.g. ice, slippery road, gravel, dirt road).

Driving in “sharp” corners or in steep gradients / on steep inclines.

When driving through places where metal objects (such as metal build-

ings, railway tracks, etc.) can be found.

When driving through very divided and enclosed spaces (such as large-

capacity garages, car ferries, tunnels and the like.).

Note

The ACC is designed primarily for use on motorways.

The ACC reduces the speed by automatically releasing the accelerator or by

means of a braking procedure as appropriate. If the brakes are used for an au-

tomatic speed reduction at any moments, then the brake light illuminates.

In case of failure of more than one brake light on the vehicle or on the con-

nected trailer, the ACC becomes unavailable.

The control automatically cancels the engagement of the brake supportive

assistance systems (e.g. ESC) or when the maximum permitted engine speed is

exceeded.

Settings in Infotainment

Read and observe   on page 237 first.

In the infotainment system, in menu



/  tap on function surface  → Driv-

er assistance.

ACC (adaptive cruise control) - Setting for the ACC

Driving progr.: - Adjustment of vehicle acceleration when ACC is activated

(this setting is made for vehicles with driving mode selection

» page 244

)

Last distance selected - Last selected distance level on/off

Distance: - Set the distance to the vehicles ahead

Operation

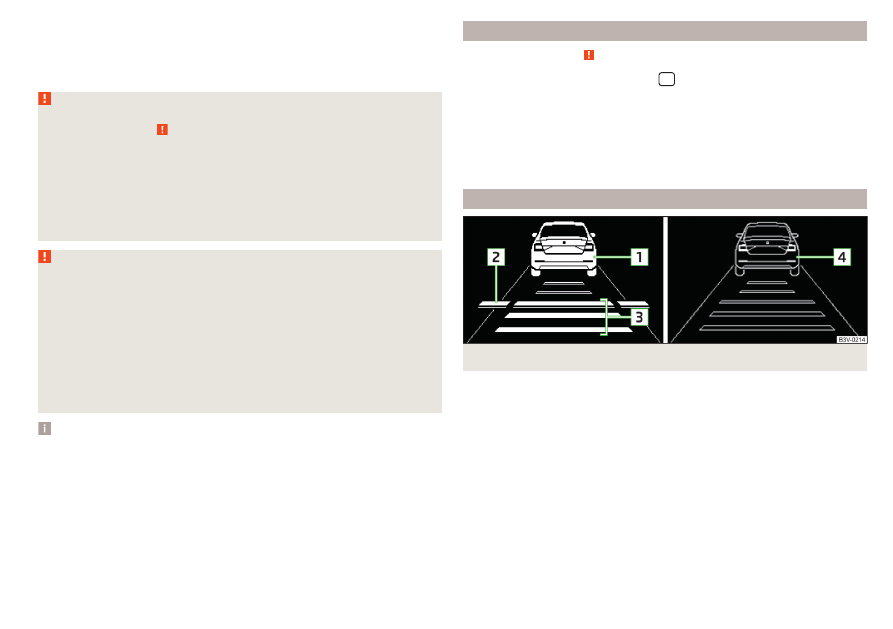

Fig. 296  Instrument cluster display: Examples of ACC displays

237

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

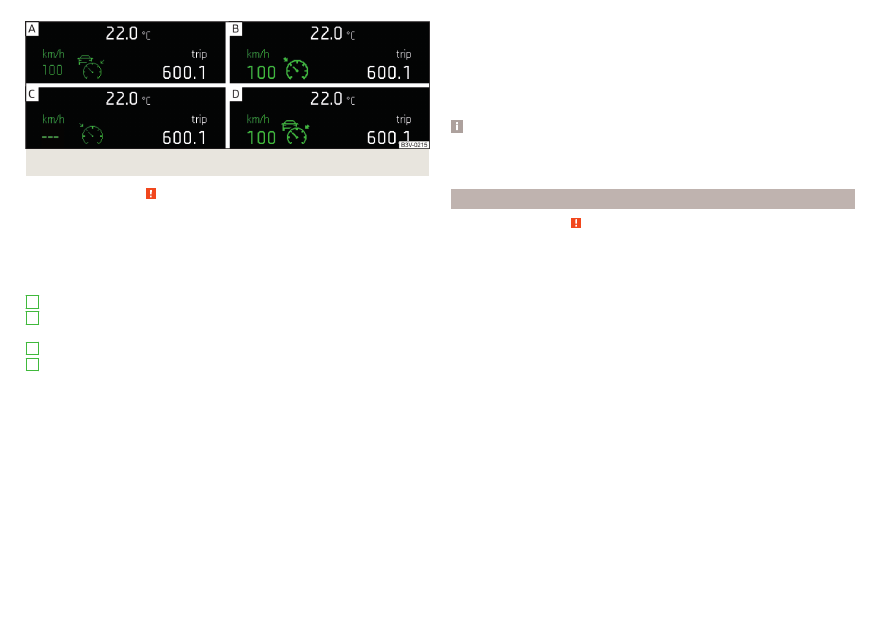

Fig. 297  Instrument cluster display: Examples of ACC status displays

Read and observe   on page 237 first.

The ACC makes it possible to set a speed of 30-160 or 30-210 km/h (depend-

ing on equipment fitted) as well as the distance to preceding vehicles.
The ACC can detect a vehicle that is up to approx. 150 m ahead using the radar

sensor.
ACC displays

» Fig. 296

Vehicle detected (control active)
Line showing the displacement of the distance when setting

» page 240

,

Setting the distance
Set distance to the vehicle ahead
Vehicle detected (control deactivated)

Status conditions of the ACC

» Fig. 297

Regulation is inactive (in the colour display the digits of speed limits is

shown in grey).
Regulation active - no vehicle detected (in the colour display the digits of

the speed limits are highlighted).
Regulation deactivated - no speed stored.
Regulation active - vehicle detected (in the colour display the digits of the

speed limits are highlighted).

Note to reduce speed

If the delay of the ACC is insufficient in relation to the vehicle in front, the

warning light

 lights up in the instrument cluster and the display shows a

message to engage the brake pedal.

1

2

3
4

Regulation according to the vehicle in the adjacent lane

During regulation your vehicle may be regulated according to the vehicle in the

adjacent lane.
This could occur at speeds above about 80 km/h when your vehicle is moving

faster than the vehicle in the adjacent lane on the driver's side. The display

shows the detected vehicle is in the adjacent lane.

Note

Some ACC notifications in the display of the instrument cluster may be hidden

by notifications for other functions. An ACC notification automatically appears

for a brief moment when there is a change in status of the ACC.

Automatic stopping and starting

Read and observe   on page 237 first.

Vehicles with an automatic transmission can decelerate to a standstill and

start moving again using the ACC.

Decelerate to a standstill

If a vehicle ahead decelerates to a standstill, the ACC will also decelerate your

vehicle to a standstill.

Starting to drive again after a holding period

As soon as the vehicle ahead starts moving again after a holding period, your

vehicle will also move and the speed will continue to be regulated.
If the preceding vehicle starts moving again after a long break, then to contin-

ue the regulation press the accelerator pedal or lever to set the lever in


» page 239

 position.

238

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

summary of operations

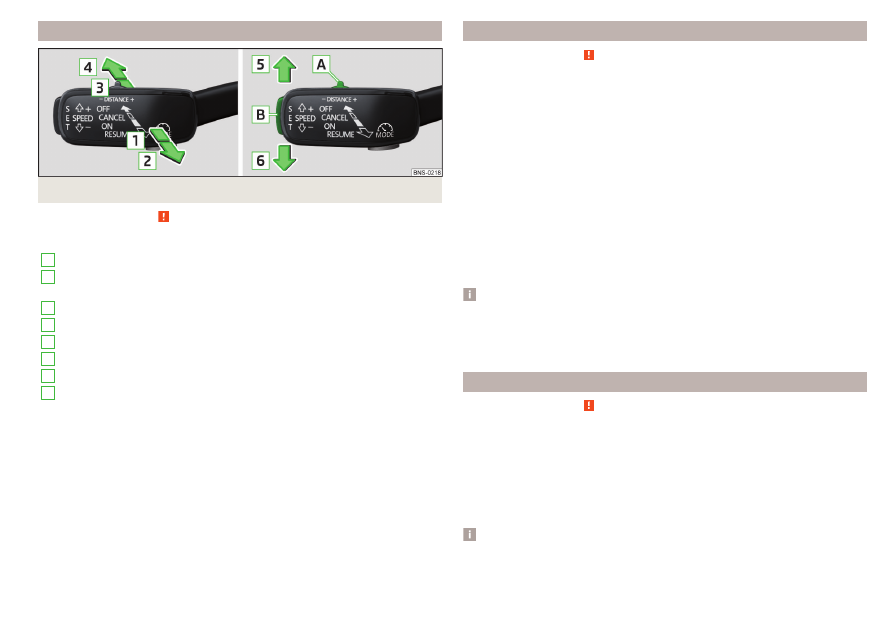

Fig. 298  Operating lever

Read and observe   on page 237 first.

Overview of ACC functions operated with the lever

» Fig. 298

1



Activate ACC (regulation deactivated)

2



Start control (resume) / increase speed by 1 km/h at a time

(sprung position)

3



Stop control (sprung position)

4



Deactivate ACC

5



 

Increase speed by 10 km/h at a time

6



 

Decrease speed by 10 km/h at a time

A

  Set proximity level

B



Start control / reduce speed in increments of 1 km/h

If the lever is set from the position  directly into the sprung position 

the current speed is stored and the control process is started.

Start control

Read and observe   on page 237 first.

Basic requirements for start of control

The ACC is activated.
On vehicles with manual transmission, the second gear or a higher gear is

selected and the current speed is greater than 30 km/h.
On vehicles with automatic transmission, the selector lever is in the D/S

position or in the Tiptronic position.

Start control

Press the button 

» Fig. 298

 on page 239 .

or: Set the lever into the sprung position 

» Fig. 298

 on page 239 .

The ACC takes the current driving speed and performs the control, the warn-

ing light

 illuminates in the instrument cluster.

If the control is started by moving the lever to the position  and should

the speed be stored already, the ACC adopts this speed and executes control.

Note

If control is started at a speed of less than 30 km/h on vehicles with an auto-

matic transmission, the speed of 30 km/h is stored. The speed increases auto-

matically to 30 km/h or is regulated with respect to the speed of the vehicle

ahead.

Stop/resume control

Read and observe   on page 237 first.

Stop control

Set the lever into the sprung position 

» Fig. 298

 on page 239 .

or: Apply the brake.

Control stops, the speed remains stored.

Resume control

Start control

» page 239

Start control.

Note

Control is also stopped when the clutch pedal is held down for longer than 30

s or the TCS is deactivated.

239

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Set/change the desired speed

Read and observe   on page 237 first.

The desired speed can be set or changed using the control lever

» Fig. 298

 on

page 239.
Setting/changing the speed by increments of 10 km/h at a time () - re-

quirements

The ACC is activated.

Increasing/reducing the speed by increments of 1 km/h at a time (/

- requirements

The ACC is activated.
Vehicle control takes place.

Changing the speed by adopting the current speed () - requirements

The ACC is activated.
The vehicle is moving at a speed other than that which is stored.

Note

If during control the speed is increased by pressing the accelerator, control is

temporarily stopped. Upon releasing the accelerator, control is automatically

resumed.

If during control the speed is reduced by applying the brake, control is stop-

ped. Control needs to be restarted in order to resume

» page 239

.

If the vehicle is controlled by a lower speed than the stored speed, then 

the current speed is stored by pressing the button again  and the speed is

reduced in increments of 1 km/h.

Setting the distance

Read and observe   on page 237 first.

The ACC allows you to set five distance steps to the preceding vehicle.
The distance is adjustable in a range of 1 to 3.6 s.

Adjusting the distance in the Infotainment system

In Infotainment in the ACC the Distance: menu item and set the distance

» page 237

Settings in Infotainment.

Adjust the distance with the lever

Set the switch  Adjust in the spring-tensioned position  or 

» Fig. 298

on page 239.

The display of the instrument cluster shows line

2



» Fig. 296

 on page 237,

which indicates the proximity.

Using the switch  on the lever, adjust the line

2

 to the desired dis-

tance.

Note

If the distance is changed in the Infotainment, the change will only come into

effect after a subsequent activation of the ACC.

The distance setting is stored (depending on Infotainment model) in active

user account personalisation

» page 55

.

Special driving situations

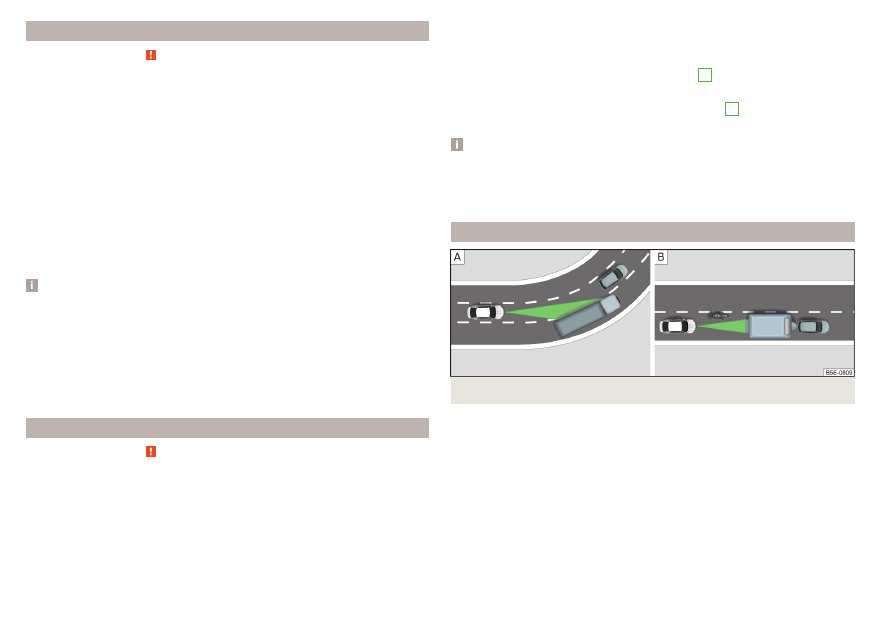

Fig. 299  Cornering / narrow vehicles or vehicles travelling side by side

240

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

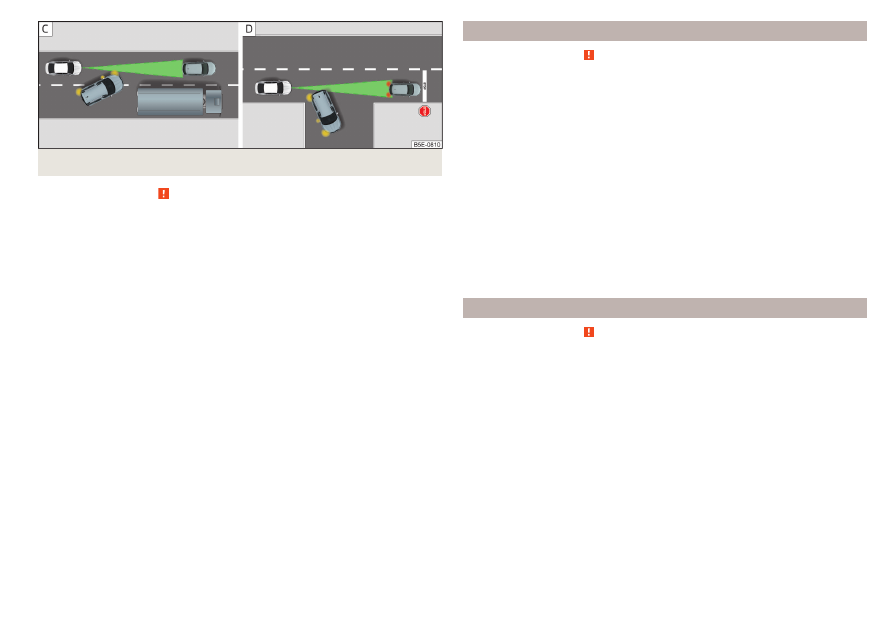

Fig. 300  Lane changes of other vehicles / stationary vehicles

Read and observe   on page 237 first.

The following (and similar) situations require special attention and possibly the

intervention of the driver (braking, accelerating etc.).

When cornering

When driving into or driving out of long corners, it could be that a vehicle is

travelling in the adjacent lane and is scanned by the radar

» Fig. 299

 - . The

host vehicle is then controlled according to this vehicle.

Narrow vehicles or vehicles travelling side by side

A narrow or offset vehicle driving can only be recognized by the ACC if this is

located in the scanning range of the radar

» Fig. 299

 - .

Other vehicles changing lanes

Vehicles that change onto the lane with a small distance

» Fig. 300

 -  may not

be detected by ACC in good time.

Stationary vehicles

The ACC does not detect stationary objects! When a vehicle detected by the

ACC turns or sheers off and there is a stationary vehicle in front of this vehicle,

» Fig. 300

 - the ACC does not respond to the stationary vehicle.

Vehicles with special load or special body parts

Other vehicles with a load or with body parts protruding from the sides, back

or top of the vehicle contour may not be detected by the ACC.

Overtaking and towing

Read and observe   on page 237 first.

When overtaking

When your vehicle is being controlled at a speed that is lower than the set

speed and the turn signal is operated, ACC assesses this situation as meaning

that the driver wishes to overtake. The ACC automatically accelerates the ve-

hicle, thereby reducing the proximity to a vehicle ahead.
If your vehicle changes to the overtaking lane and no vehicle is detected

ahead, ACC accelerates until the set speed is reached and then keeps it con-

stant.
Acceleration can be cancelled at any time by touch on the brake pedal or

pressing the button  on the lever

» Fig. 298

 on page 239.

Towing a trailer

When towing, or if another accessory is connected to the trailer socket, ACC

control is set with a lower rate. The manner of driving should therefore be

adapted to this limitation.

Malfunctions

Read and observe   on page 237 first.

If ACC is not available, the warning light  appears in the display of the instru-

ment cluster and an appropriate message is shown.

Sensor covered / dirty

If the sensor cover or the sensor is dirty or covered, a message appears on the

instrument cluster display stating there is no sensor view. Clean the sensor

cover or remove the obstacles

» Fig. 268

 on page 216.

If there is no sensor view in the winter, the snow on the sensor under the cov-

er could be the reason. The ACC is functional again after the snow melts away

from the sensor.

ACC not available

If the ACC is unavailable, a message concerning the unavailability appears.

Stop the vehicle, switch off the engine and then start it again. If ACC continues

to be unavailable, seek the assistance of a specialist garage.

241

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ACC fault

With an ACC fault, an error message appears. Seek help from a specialist ga-

rage.

Front Assist

Introduction

The Front Assist (hereinafter referred to as the system) warns you of the dan-

ger of a collision with a vehicle or another obstacle in front of the vehicle, and

tries to avoid a collision or mitigate its consequences by automatically applying

the brakes where necessary.
The area in front of the vehicle is monitored by a radar sensor

» page 216

.

WARNING

Please take note of the general points relating to the use of assistance

systems

» page 216,

   in section Introduction.

The system does not respond to crossing or oncoming objects.

CAUTION

In case of failure of more than one brake light on the vehicle or on the electri-

cally connected trailer, the system becomes unavailable.

Settings in Infotainment

Read and observe   and   on page 242 first.

In the infotainment system, in menu



/  tap on function surface  → Driv-

er assistance.

Front Assist (ambient traffic monitor. sys.) - Set the assistant for distance

monitoring to the vehicles ahead

Active - Activate/deactivate the assistant

Advance warning - Activate/deactivate and set the distance level at which a

warning occurs

Display distance warning - Activate/deactivate distance warnings

Operation

Read and observe   and   on page 242 first.

The system support is provided in the following manner.

Alerts you about a dangerous proximity to the vehicle ahead.

Warns you of an impending collision.

Assists with a brake action triggered by the driver.

If the driver fails to respond to a detected danger, an automatic braking ac-

tion is performed.

The system can work only if the following basic conditions are met.

The system is activated.
TCS is activated

» page 218

.

The vehicle is travelling forwards at a speed of more than approx. 5 km/h.

Note

The system can be impaired or may not be available, for example when driving

in “sharp ”curves or with an ESC engagement

» page 217

.

Distance warning

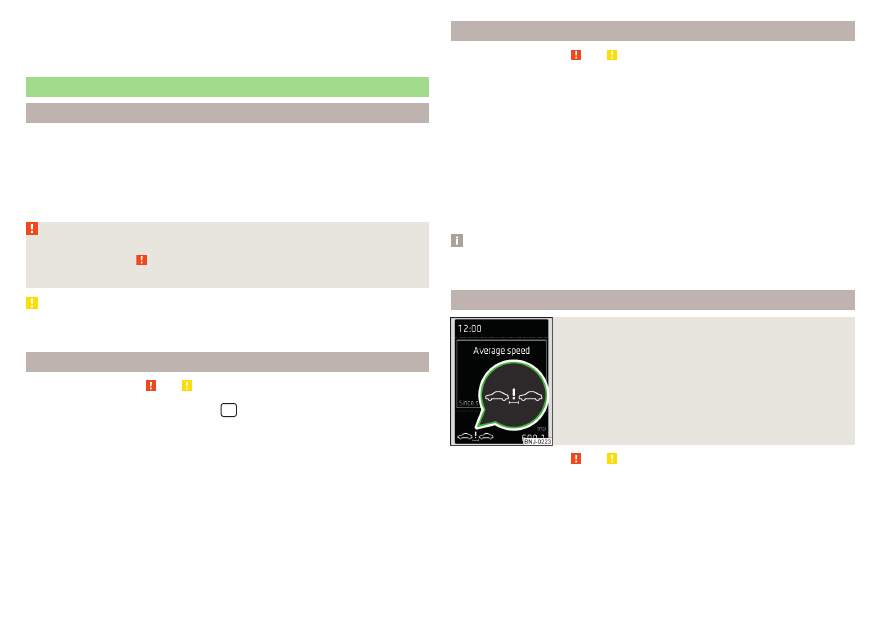

Fig. 301

Instrument cluster display: Distance warning

Read and observe   and   on page 242 first.

If a safe distance from the vehicle ahead is fallen short of, the warning light ap-

pears in the display 

» Fig. 301

.

Immediately increase the proximity if the current traffic situation allows

you to do so!
The proximity at which the warning is displayed depends on the current speed.
The warning may occur when driving between about 60 km/h and 210 km/h.

242

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Warning and automatic braking

Fig. 302

Instrument cluster display: Advance warning or

emergency braking at low speed

Read and observe   and   on page 242 first.

Emergency braking at low speed

If there is a risk of collision in a vehicle speed range of about 5 km/h to 45

km/h, the system triggers an automatic braking.
With automatic braking, the warning light appears in the display 

» Fig. 302

.

Advance warning

If the system detects a risk of collision, the warning light appears on the dis-

play 

» Fig. 302

 and an audible signal is emitted.

The pre-warning display can occur in the following situations.

If there is a risk of collision with a moving obstacle in a speed range of ap-

proximately 30 km/h to 210 km/h.

If there is a risk of collision with a stationary obstacle in a speed range of ap-

proximately 30 km/h to 80 km/h.

With a warning the brake pedal must be pressed or the moving obstacle is

to be avoided!

Immediate warning and automatic braking - a moving obstacle

If the driver does not react to the advance warning when in danger of a colli-

sion with a moving obstacle, the system briefly applies the brake automatically

via an active brake intervention to draw attention to the potential danger of a

collision again.
If the driver does not respond to acute warning, the system begins to auto-

matically brake the vehicle.

Automatic braking - a stationary obstacle

If the driver does not respond to the advance warning of the risk of a collision

with a stationary obstacle in a speed range of approximately 30 km/h to 60

km/h, the system initiates automatic braking.

Information on automatic braking

If an automatic brake intervention is triggered by the system, the pressure in

the brake system increases and the brake pedal cannot be operated with the

normal pedal stroke.
The automatic braking interventions can be cancelled by pressing the acceler-

ator pedal or by means of a steering intervention.

Brake assist

If the driver brakes inadequate with an impending collision, the system auto-

matically increases braking force.
The braking assistance only occurs as long as the brake pedal is being firmly

pressed down.

Disable/enable

Read and observe   and   on page 242 first.

In the instrument cluster display, in the Assist systems menu item.

In Infotainment, in the Front Assist (ambient traffic monitor. sys.) menu, in

the Active

» page 242

Settings in Infotainment menu item.

The system is automatically activated each time the ignition is switched on.
The system should only be disabled in exceptional cases

»

.

WARNING

In the following situations, Front Assist should be switched off for safety

reasons.

When the vehicle is being towed away.

When the vehicle is on a rolling test bench.

If an unfounded warning or a system action was taken.

When on a truck, or a car ferry service or similar.

243

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Malfunctions

Read and observe   and   on page 242 first.

If the system is not available, an appropriate message appears in the display of

the instrument cluster.

Sensor covered / dirty

If the sensor cover or the sensor is dirty or covered, a message appears on the

instrument cluster display stating there is no sensor view. Clean the sensor

cover or remove the obstacles

» Fig. 268

 on page 216.

If there is no sensor view in the winter, the snow on the sensor under the cov-

er could be the reason. The system is functional again after the snow melts

away from the sensor.

System unavailable

If the system is unavailable, a message concerning the unavailability appears.

Stop the vehicle, switch off the engine and then start it again. If the system

still is not available, seek the assistance of a specialist garage.

Select the driving mode (Driving Mode Selection)

Introduction

By selecting the driving mode, the driving behaviour can be adapted to the de-

sired mode of operation.
the following modes EcoComfortnormalSports and individualare available.
The Comfort mode is only available on vehicles with the adaptive chassis ( DCC).

WARNING

Please take note of the general points relating to the use of assistance sys-

tems

» page 216,

   in section Introduction.

Adaptive chassis (DCC)

Read and observe   on page 244 first.

The adaptive chassis (hereafter known as DCC) provides the ability to adjust

the shock characteristics for the sporty, normal or comfortable driving when

the corresponding control mode is selected.

The DCC evaluates steering response and road conditions while driving contin-

uously and adjusts the suspension behaviour within the selected driving mode

accordingly.

mode Eco

Read and observe   on page 244 first.

This mode is suitable for a relaxed style of driving and helps to save fuel.
Selecting this mode primarily affects the function of the following systems.

Drive

Vehicle acceleration is more relaxed than in Normal mode.
The recommended gear is controlled such to achieve the lowest possible fuel

consumption

» page 49

.

If the START-STOP system is deactivated manually

» page 207

, this will be au-

tomatically activated.
The automatic gearbox is set automatically to mode E

» page 212

.

Adaptive Cruise Control (ACC)

Acceleration occurs more relaxed than in Normal

» page 236

mode with distance

control.

Xenon headlight

The system is in economic mode

» page 72

. The headlamps are in basic setting

and do not adapt to the direction of travel.

Air conditioning (Climatronic)

The air conditioning is controlled so as to save energy. For this reason, for ex-

ample, it may take longer to reach the desired interior temperature in mode

Normal.

Note

The maximum vehicle acceleration (kick down function) is possible also in driv-

ing mode Eco.

244

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Mode Comfort

Read and observe   on page 244 first.

This mode is suitable for driving on roads with poorer surface or for long mo-

torway journeys.

Mode Normal

Read and observe   on page 244 first.

This mode is suitable for a conventional driving.

Mode Sports

Read and observe   on page 244 first.

This mode is suitable for a sporty driving.
Selecting this mode primarily affects the function of the following systems.

DCC

The DCC adjusts the chassis for the sporty driving style.

Steering

The power steering is reduced slightly, i.e., the driver needs to exert more

force for steering .

Drive

The vehicle acceleration is more dynamic than in Normal mode.

Adaptive Cruise Control (ACC)

The acceleration is quicker than in Normal mode with distance control

» page 236

.

Xenon headlight

The headlamps adapt to the driving style more dynamically than in mode Nor-

mal

» page 72

.

ProActive passenger protection

The first level of protection is deactivated

» page 246

.

Mode individual

Read and observe   on page 244 first.

In the mode Individual each system can be set independently

» page 246

Set-

tings for individualmode.

Mode selection and Infotainment display

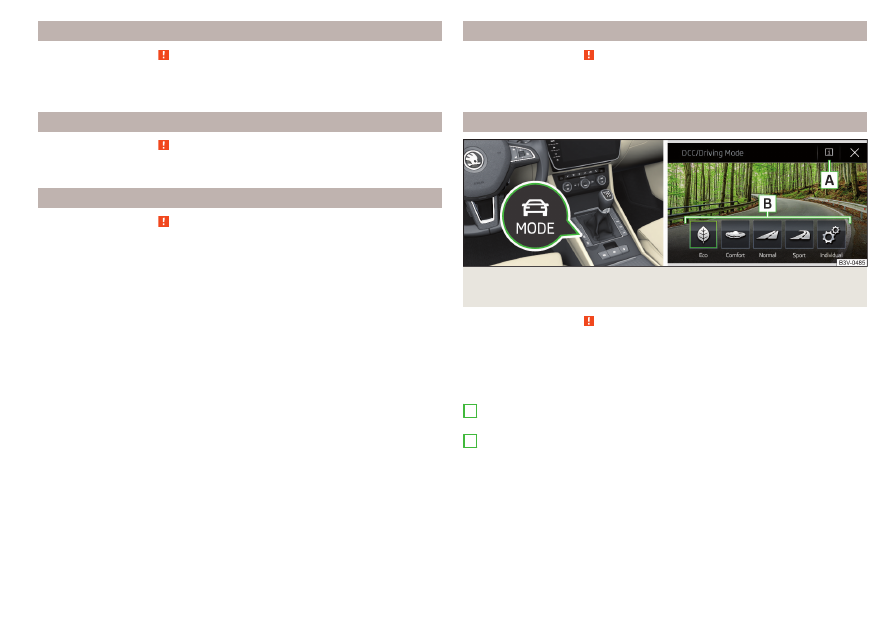

Fig. 303  Button for selecting the driving mode / Display in Infotainment

screen

Read and observe   on page 244 first.

Display of the driving mode menu

Press the 

» Fig. 303

 button.

The following function surfaces are displayed on the Infotainment screen

» Fig. 303

.

Information on setting the currently selected mode

Setting the Individual mode
Driving mode menu

The driving mode selection is performed in one of the following ways.

By repeatedly pressing the button .

By tapping the relevant function surface on the Infotainment screen

» Fig. 303

,

After switching the ignition off and on, the Normal mode is set.

A

B

245

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Note

The currently selected driving mode is displayed in the infotainment system

in the status bar next to the symbol .

The setting for the individual mode is stored in the active personalisation user

account

» page 55

.

Settings for individualmode

Read and observe   on page 244 first.

In the Individual mode, the following menu items can be set.

DCC: - Sets the shock characteristics

Steering: - Set the power steering characteristics

Drive: - Sets the drive characteristics

ACC: - sets the vehicle acceleration when adaptive cruise control is activated

Dynamic Cornering light: - Set the characteristics of the Xenon headlights

Air conditioning: - Sets the Climatronic characteristics

Reset mode - Setting for all menu items in the Individual mode to Normal

Cancel - Keep the current settings

Reset - cancels all menu items in the Normal mode

Proactive occupant protection (Crew Protect Assist)

Introduction

ProActive passenger protection (following known as system) increases pas-

senger protection in the front seats in situations that could lead to vehicle im-

pact or overturning.

WARNING

Please take note of the general points relating to the use of assistance sys-

tems

» page 216,

   in section Introduction.

Note

The system component service life is monitored electronically. Further infor-

mation

» page 42

 Safety systems.

If the front passenger front airbag is deactivated, the belt tensioning func-

tion for the front passenger seat is switched off.

Function

Read and observe   on page 246 first.

In critical driving situations (e.g. during emergency braking or a sudden change

in direction), the following steps can be taken separately or combined in order

to reduce the risk of serious injury.

The front passenger's and driver's seatbelts, if worn, are automatically ten-

sioned closely over the body.

Opened electrically powered door windows are closed automatically up to a

gap of about 5 cm from the edge.

The sliding/tilting roof is closed.

Once the critical driving situation has passed, the tension on the seatbelts will

be released again.
The system operates at two levels of protection.

The first level of protection

The system already intervenes in situations that may occur during dynamic

driving. As a result, this primarily helps to keep the driver and the passenger in

the correct seated position.
The first protection level can be deactivated in one of the following ways.

In the infotainment system, in menu



/  tap on function surface  → Driv-

er assistance.

Deactivating the TCS

» page 218

.

By selecting the driving mode Sport

» page 245

.

After switching the ignition off and on, the system is activated in both levels of

protection.

The second level of protection

The system intervenes only if the situation is evaluated as critical, such as

when panic braking at high speeds.
This level of protection cannot be deactivated.

Vehicles with the Front Assist system

Using this information, a system intervention may also occur when there is the

danger of a collision with an obstacle detected in front of the vehicle.

246

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Spurhalteassistent (Lane Assist)

Introduction

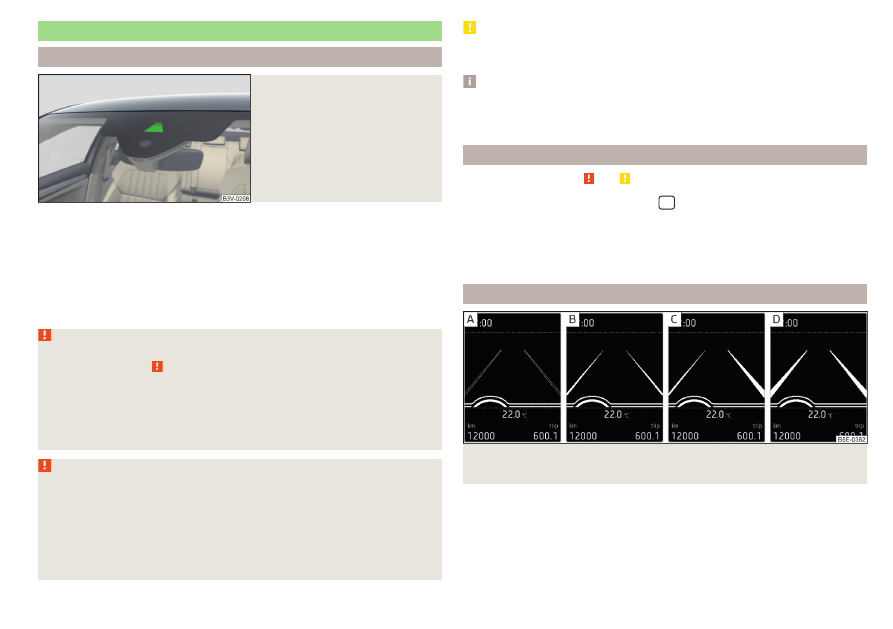

Fig. 304

Sensor for Lane Assist

The lane departure warning (following known as system) helps to keep the ve-

hicle between the boundary lines of a lane.
The system recognises the boundary lines of the lane using a sensor

» Fig. 304

.

When the vehicle approaches a detected line between lanes, the system

makes a light movement of the steering wheel in the opposite direction to the

boundary line. This corrective steering intervention can be manually overridden

at any time.

WARNING

Please take note of the general points relating to the use of assistance

systems

» page 216,

   in section Introduction.

Lane Assist can help you keep the vehicle within the lane. However, it

does not steer the vehicle for you. The driver retains full responsibility for

steering at all times.

Some objects or markings on the road can be recognised as the boundary

lines - an erroneous steering intervention may be the result.

WARNING

The system may not be able to recognise the boundary line, or recognise it

incorrectly, for example, in the following situations.

When visibility is poor, (e.g. fog, heavy rain, thick snowfall).

When driving in “sharp” bends.

The sensor is blinded by the sun or oncoming traffic.

The field of view of the sensor is limited by an obstacle or a preceding ve-

hicle.

CAUTION

Do not attach any stickers or similar objects in front of the sensor on the wind-

screen to avoid impairing the functions of the system.

Note

The system is designed for driving on motorways and roads with adequate

longitudinal markings.

The system can detect both continuous and broken lines.

Settings in Infotainment

Read and observe   and   on page 247 first.

In the infotainment system, in menu



/  tap on function surface  → Driv-

er assistance.

Lane Assist (lane departure warning system) - Settings for Lane Assist

Active - Activate/deactivate the assistant

Adaptive lane guidance - Activate/deactivate adaptive lane guidance

Operation

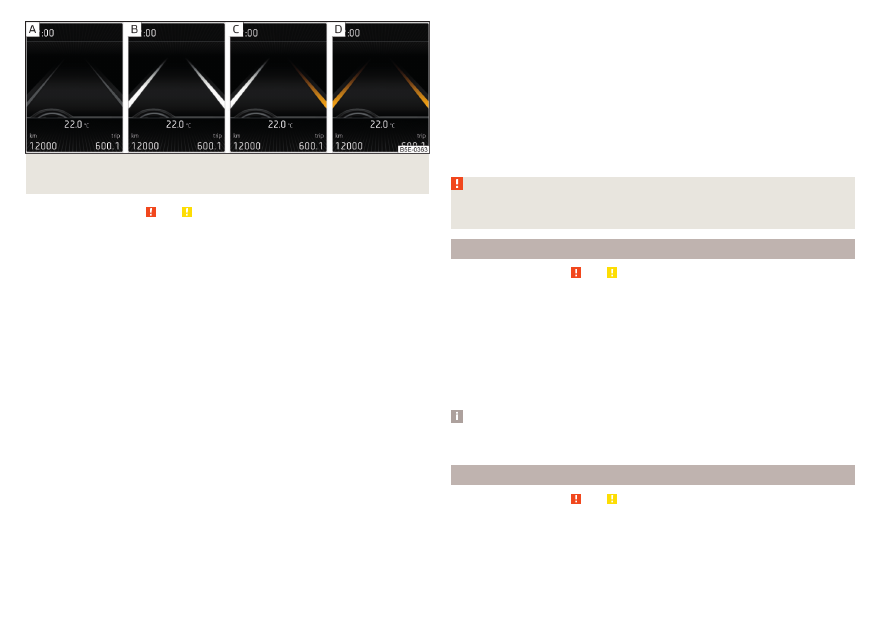

Fig. 305  Monochromatic display of the instrument cluster: Examples of

system indications

247

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fig. 306  Colour display of the instrument cluster: Examples of system

indications

Read and observe   and   on page 247 first.

System displays

» Fig. 305

 and

» Fig. 306

The system is active, but not ready to intervene.
The system is active and ready to intervene.
The system intervenes when approaching the right-hand boundary lane.
Adaptive tracking takes place.

The system can intervene when the following basic conditions are present.

The system is activated.
The vehicle speed is higher than about 65 km/h (not applicable to vehicles

with the traffic jam assistant

» page 249

).

The boundary line of at least one side of the lane is detected.
The driver's hands are on the steering wheel.
The lane is more than 2.5 m in width.

If the turn signal is switched on (e.g. when turning), no steering intervention

takes place when the vehicle approaches the boundary line. The system re-

gards the situation as an intended lane change.

Warning lights in the instrument cluster

The system is active, but not ready to intervene.
The system is active and ready to intervene or is currently intervening.

Adaptive lane assist

Adaptive tracking helps to keep the vehicle in the position between the boun-

dary lines selected by the driver, by means of steering intervention.

If the position within the lane is changed, the system quickly adapts and holds

the newly-selected position.

Steering wheel vibrations

In the following situations, it may occasionally be the case that due to the

steering wheel vibrations the syst4em indicates that a driver steering interven-

tion is required.

The system is not able to keep the vehicle by a within the lane due to a steer-

ing intervention.

During an intense system-related steering intervention, the system suddenly

cannot recognize the boundary lines.

WARNING

The system function may be restricted if, for example there is danger due

to ruts on a downhill road or in a crosswind.

Activation / deactivation

Read and observe   and   on page 247 first.

The activation/deactivation of the system can be carried out in one of two

ways.

In the instrument cluster display

» page 54

Assist systems menu item.

In Infotainment

» page 247

Settings in Infotainment.

Adaptive tracking can also be enabled or disabled In Infotainment.
After switching off and switching on the ignition, the system setting is re-

tained.

Note

The system setting is stored (depending on the Infotainment type) in the ac-

tive user account personalisation

» page 55

.

Malfunctions

Read and observe   and   on page 247 first.

If the system is not available, an appropriate message appears in the display of

the instrument cluster.

248

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Sensor covered / dirty

If the windscreen is dirty, iced or misted up in the sensor area, a message ap-

pears indicating that there is no sensor view. Clean the windscreen or remove

the obstacles from the sensor area.

System unavailable

If the system is unavailable, a message concerning the unavailability appears.

Try to re-activate the machine. If the system still is not available, seek the as-

sistance of a specialist garage.

System fault

In the case of a system fault, an error message appears. Seek help from a spe-

cialist garage.

Request to take over steering

If the system detects that there are no hands are on the steering wheel, this

will not work properly. You will be prompted to take over steering. Place your

hands on the steering wheel.

Traffic jam assistant

Introduction

WARNING

Please take note of the general points relating to the use of assistance

systems

» page 216,

   in section Introduction.

The driver must always have hands on the steering wheel and be ready to

take over steering of the vehicle himself (accelerate or brake).

Note

The system is designed primarily for use on motorways.

Function

Read and observe   on page 249 first.

The traffic jam assistant (referred to as system) helps to keep the vehicle with-

in the lane at speeds below 65 km/h while keeping the distance to the vehicle

ahead.
Only vehicles with automatic transmission, Lane Assist and ACC can be equip-

ped with the system.

The traffic jam assistant works using the functions of the Lane Assist systems

» page 247

 and ACC

» page 236

. For this reason, the chapters relating to these

systems must be read carefully and the safety instructions listed therein must

be observed.

Operating conditions

Read and observe   on page 249 first.

The system activation occurs automatically whilst fulfilling the following

basic conditions.

Lane Assist with the adaptive tracking is enabled, the boundary lines on

both sides are recognized lane

» page 247

.

ACC is activated and the regulation

» page 236

 follows.

The vehicle speed is below 65 km/h.

Assistant for emergencies

Introduction

WARNING

Please take note of the general points relating to the use of assistance

systems

» page 216,

   in section Introduction.

The system is intended for emergency situations when the driver is sud-

denly unable to take over the steering task. Therefore, never try to test out

the system - there is a risk of an accident!

Function

Read and observe   on page 249 first.

The assistant for emergencies (following known as system) detects inactivity

of the driver, which for example can be caused by a sudden loss of conscious-

ness. The system then performs measures as safely as possible to decelerate

the vehicle to a stop.
Only vehicles with automatic transmission, Lane Assist and ACC can be equip-

ped with the system.

249

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The Emergency Situation assistant works using the functions of the Lane As-

sist systems

» page 247

 and ACC

» page 236

, For this reason, the chapters re-

lating to these systems must be read carefully and the safety instructions lis-

ted therein must be observed.

System intervention

If the system detects the driver's inactivity, it draws attention to this fact by a

beep and a message on the display of the instrument cluster. It keeps the vehi-

cle in its lane.
If the driver does not take over the steering even after a repeated warning, the

system automatically brakes the vehicle and after it has come to a standstill

the parking brake switch on.
With automatic braking, the hazard warning system is switched on.
The automatic braking interventions can be cancelled by pressing the acceler-

ator pedal or by means of a steering intervention.

Operating conditions

Read and observe   on page 249 first.

The system can intervene when the following basic conditions are present.

Lane Assist is activated and the limiting lines on the two lane sides are rec-

ognised

» page 247

.

ACC is activated and the regulation

» page 236

 follows.

Traffic sign recognition

Introduction

The traffic sign recognition (following known as system) shows certain traffic

signs (e.g. speed limits) on the display of the instrument cluster and if necessa-

ry warns against excessive speeds.

WARNING

Please take note of the general points relating to the use of assistance

systems

» page 216,

   in section Introduction.

Vertical traffic signs must always take precedence over the traffic signs

shown in the display. The driver is always responsible for correctly assess-

ing the traffic situation.

The speed indications in the traffic signs shown refer to the speed units

that are common in the country. For example, the display  may relate to

km/h or mph depending on the country in question.

WARNING

The traffic signs may not be displayed or displayed incorrectly in the sys-

tem e.g. in the following situations.

When visibility is poor, (e.g. fog, heavy rain, thick snowfall).

The sensor is blinded by the sun or oncoming traffic.

The field of view of the sensor is limited by an obstacle or a preceding ve-

hicle.

Travelling at high speed.

The traffic signs are covered (e.g. by trees, snow or dirt).

The traffic signs are not standard (round with a red border) or are dam-

aged.

The traffic signs are attached to flashing neon signs.

The traffic signs were changed (the navigation data are out of date).

Note

The system is only available in some countries.

Settings in Infotainment

Read and observe   on page 250 first.

In the infotainment system, in menu



/  tap on function surface  → Driv-

er assistance.

Dynamic Road Sign Display - Settings for the Dynamic Road Sign Display

Show in instrument cluster - Activation/deactivation of the additional traffic

signs in the display of the instrument cluster

Speed warning: - Configures a warning when the speed limit is exceeded

Warning at over - Setting warning timing with the option to exceed the speed

limit in a range from 0 to 20 km / h

250

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Trailer recognition

Show road signs relevant to trailers - Activating / deactivating the display of road

signs relevant to trailers

Use for route calculation - Activation / deactivation of taking the trailer into ac-

count for route calculation in navigation

Maximum speed for trailer - Set the top speed for towing a trailer

Operation

Fig. 307

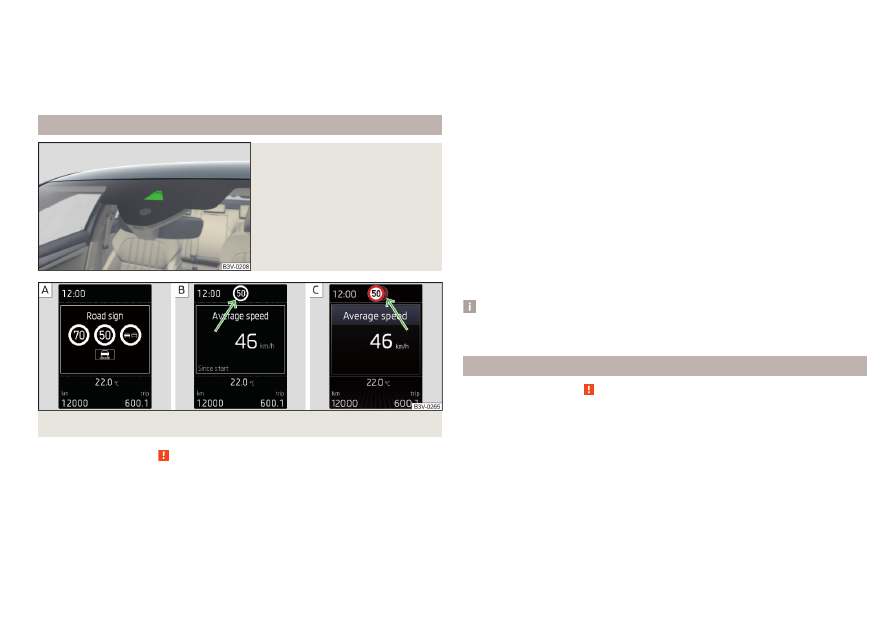

Sensor for Dynamic Road Sign

Display

Fig. 308  Instrument cluster display: Display examples

Read and observe   on page 250 first.

Description of indications and displayed traffic signs

Display

» Fig. 308

Display of detected road signs

» page 51

Driving data (Multifunction dis-

play)

Additional display (monochromatic display)

Additional display (colour display)

The system can display the following (vertical) traffic signs where identified.

Speed limit.

Overtaking prohibited.

Additional signs, such as 'when wet' or signs which only apply for a limited time

can also be displayed.
The system displays only traffic signs that are in the “viewing area” of the sen-

sor

» Fig. 307

.

Data from the sensor is supplemented by information from the Infotainment

Navigation. This is the reason why traffic signs with maximum speeds can also

be shown on sections of roads which do not have any traffic signs.

Warning when exceeding the speed limit

The warning when exceeding the permissible speed (based on the detected

traffic sign) can be activated and set in Infotainment

» page 250

.

Mode when towing a trailer

For vehicles with a factory-fitted towing device, in the Infotainment it is possi-

ble to enable or disable the relevant traffic signs for trailer operation and the

top speed for towing a trailer

» page 250

Settings in Infotainment.

Note

If, for example, you are on a motorway without speed limits, then a road sign

relating to the end of all limits is shown in the instrument cluster display.

Additional display

Read and observe   on page 250 first.

If the menu item Road sign is currently not shown

» Fig. 308

 on page 251 - ,

the road sign with the speed limit will appear in the upper display area of the

instrument cluster

» Fig. 308

 on page 251 - , .

If several traffic signs are detected simultaneously, in some cases the next

traffic sign will also be displayed in the colour display -

» Fig. 308

 on page 251 -

.

All detected traffic signs can be displayed via the multifunction display in the

menu item Traffic Sign Recognition

» Fig. 308

 on page 251 - .

This additional function can be activated/deactivated in Infotainment

» page 250

.

251

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Note

The setting (activation/deactivation) of the auxiliary display will be saved (de-

pending on the Infotainment type) in the active user account personalisation

» page 55

.

Malfunction and information messages

Read and observe   on page 250 first.

If the system is not available, an appropriate message appears in the display of

the instrument cluster.

Sensor dirty/covered

If a note appears in relation to the cleaning of the windscreen, clean the wind-

screen or remove the obstruction from the sensor area.

System fault

If an error message appears, seek assistance from a specialist garage.

System limitation

The system displays a message about system limitation in the following cases.

The map documents are not up to date.

The vehicle is located in an area for which no map documents are present.

Fatigue detection system

The fatigue detection system (hereinafter simply the system) advises the driv-

er to take a break from driving when driver fatigue can be detected based on

the driver's steering behaviour.
The system evaluates the steering behaviour at speeds of 60-200 km/h.
Conditions under which a break from driving is detected by the system

The vehicle is stopped and the ignition switched off.

The vehicle is stopped, the seat belt removed and the driver's door opened.

The vehicle is stopped for more than 15 minutes.

If none of these conditions are met or if the driving style is not changed, the

system recommends a driving break again after 15 minutes.
The system can be activated/deactivated in menu



/  →  → Driver assis-

tance menu.

Pause recommendation

The icon appears and the following message for a few seconds in the display

of the instrument cluster  and a message about detected fatigue. An audible

signal is also emitted.

WARNING

Please take note of the general points relating to the use of assistance

systems

» page 216,

   in section Introduction.

For the driving ability is always the driver's responsibility. Never drive if

you feel tired.

The system may not detect all cases where a break is needed.

Therefore, take regular, sufficient breaks during long trips.

There will be no system warning during the so-called micro-sleep.

Note

In some situations, the system can evaluate the steering behaviour incorrect-

ly and therefore falsely display a break recommendation.

The system is designed primarily for use on motorways.

Tyre pressure monitoring

Introduction

The tyre pressure monitoring function (following known as system) monitors

the tyre pressure while driving.
If the tyre inflation pressure changes, the warning light

 lights up in the in-

strument cluster and an audible signal sounds

» page 43

.

The system can only function properly if the tyres have the prescribed inflation

pressure and these pressure values are stored in the system.
Always save the tyre pressure values in the system if one of the following

events occurs.

Change of tyre pressure values.

Change one or more wheels.

Change in position of a wheel on the vehicle.

The warning light

in the instrument cluster.

252

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     13      14      15      16     ..
