Approximate range of sensors (in cm)

Area

» Fig. 271

Variant 1

(4 sensors)

Variant 2

(8 sensors)

Variant 3

(12 sensors)

A

-

120

120

B

-

60

90

C

160

160

160

D

60

60

90

E

-

-

90

Audible signals

The interval between the acoustic signals becomes shorter as the clearance is

reduced. At a distance of approx. 30 cm a continuous tone starts to sound -

Danger area.
The acoustic signals can be set in Infotainment

» page 220

.

Towing a trailer

When towing, or when another accessory is connected to the trailer socket,

only the areas

A

 and

B



» Fig. 271

 are active in the system.

Note

If with Version 3 vehicles not all fields around the vehicle silhouette are ac-

tive after activation the vehicle should be moved forwards or backwards.

The signal tones for front obstacle recognition are factory-set to be higher

than for rear obstacle recognition.

The setting of the acoustic signals is stored (depending on the Infotainment

type) in the active user account personalisation

» page 55

.

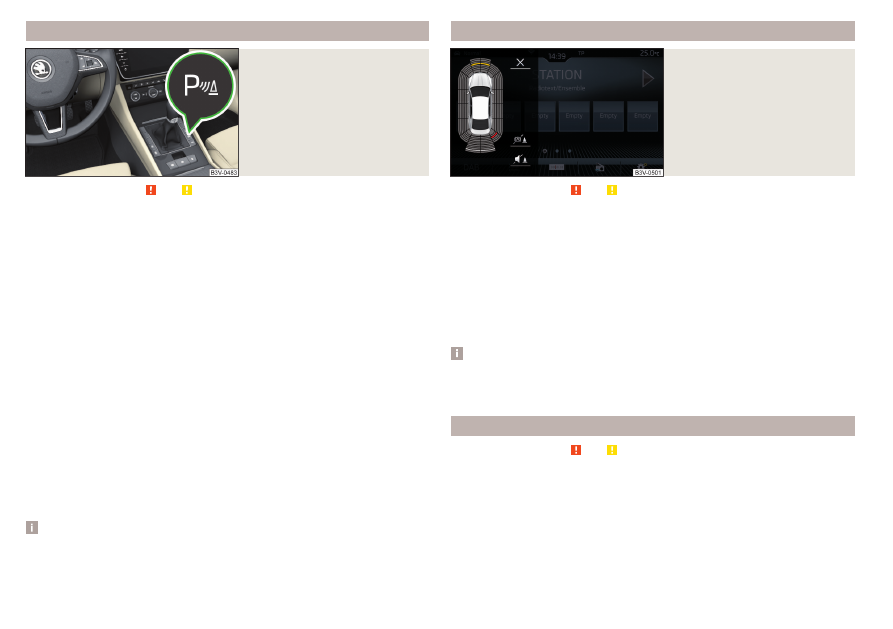

Display in Infotainment screen

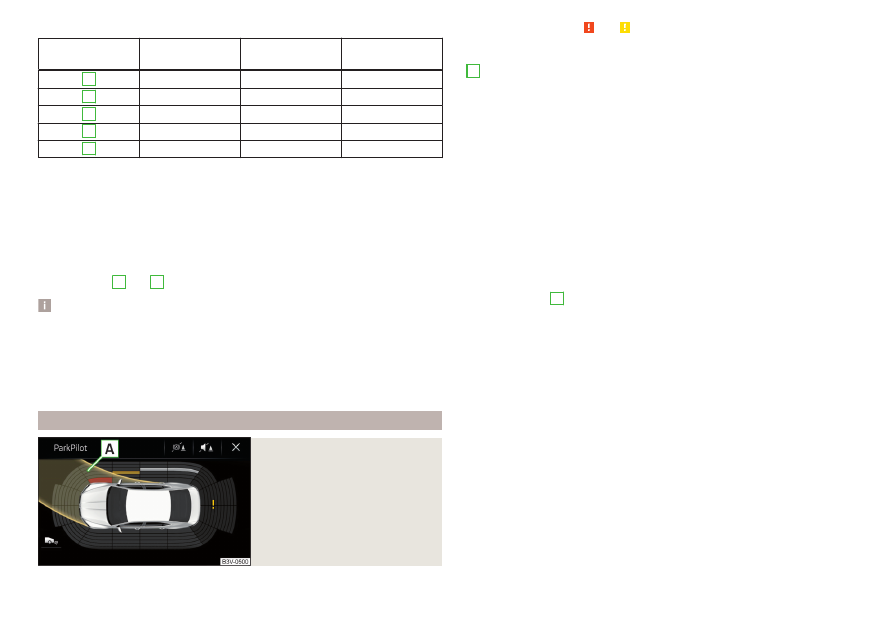

Fig. 272

Screen display

Read and observe   and   on page 219 first.

Function surfaces and warnings

» Fig. 272

A

Road display.

   Depending on the Infotainment type: Switching off park assistant dis-

play.

   Switching audible parking signals on/off.

Disable / enable the automatic emergency braking.

Change to rear-view camera display .

There is an obstacle in the collision area (the distance to the obstacle

is less than 30 cm).

 Stop moving in the direction of the obstacle!

There is an obstacle in the road (the distance to the obstacle is great-

er than 30 cm).

An obstacle is located outside of the road (the distance to the obsta-

cle is greater than 30 cm).

System failure (there is no indication of obstacles).

Road display

The road display

A



» Fig. 272

 indicates the road on which the vehicle would

take the current steering wheel and shift / selector lever position.
The shift lever is in the neutral position and the gear selector is in mode N. the

road display is at the front.

221

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Activation / deactivation

Fig. 273

System key (option 2, 3)

Read and observe   and   on page 219 first.

Activation

To activate the system, engage reverse gear and, on vehicles with version 2

and 3, also press the 

» Fig. 273

 button.

When activating, an alarm sounds and the symbol

 illuminates in the button.

Deactivation

On vehicles with Version 1, the system can be deactivated by moving out of

reverse gear.
For vehicles with version 2 and 3, the system is automatically deactivated by

pressing the  button or at a speed above 15 km/h (the

 symbol in the but-

ton goes out).

Fault display

Vehicles with Variant 1

After system activation an acoustic signal sounds for approx. 3 seconds

(there is no obstacle near the vehicle).

Vehicles with the Variants 2 and 3

After system activation, the

 symbol flashes in the button.

In the display of the instrument cluster a message about an error of the Park-

Pilot system appears (at the same time there is an audible signal).

Seek help from a specialist garage.

Note

The system can only be activated with the button at a speed of below 15

km/h.

Automatic system activation when moving forward

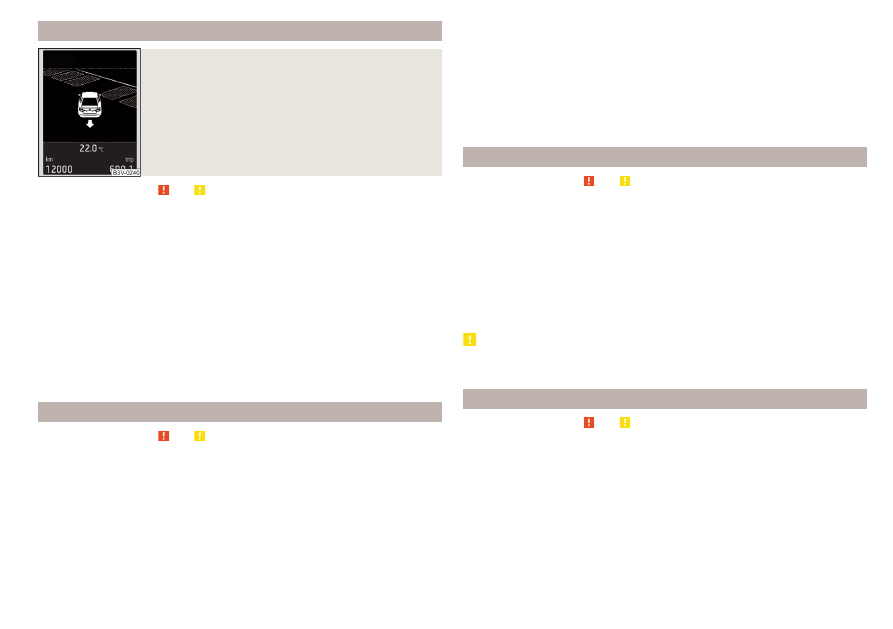

Fig. 274

Infotainment screen: Display

with automatic activation

Read and observe   and   on page 219 first.

The automatic system activation occurs when moving forward at a speed be-

low 10 km/h when the vehicle approaches an obstacle.
After activation, the following is shown in the left pane of Infotainment display

» Fig. 274

.

Acoustic signals are sounded as of a distance from the obstacle of around

50 cm.
The automatic display can be activated / deactivated in Infotainment

» page 220

.

Note

The setting (activate / deactivate) of the automatic display is stored (depend-

ing on the Infotainment type) in the active user account personalisation

» page 55

.

Automatic emergency braking

Read and observe   and   on page 219 first.

If the system detects a collision risk when travelling forwards or reversing at a

speed up to 8 km/h, there is an automatic emergency braking to reduce the

impact consequences.

Disable / Enable

The brake function can be enabled / disabled in the Infotainment in the menu

Parking and manoeuvring

» page 220

.

222

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

After switching the ignition on and off, the systems remains activated / deacti-

vated depending on the setting prior to switching off the ignition.
The brake function can also be deactivated once with the function surface 

» Fig. 272

 on page 221.

CAUTION

Automatic emergency braking will only work if the system is engaged by en-

gaging reverse gear or pressing the button  has been activated.

Rear traffic alert and wizard for “Blind spot”Monitoring

Introduction

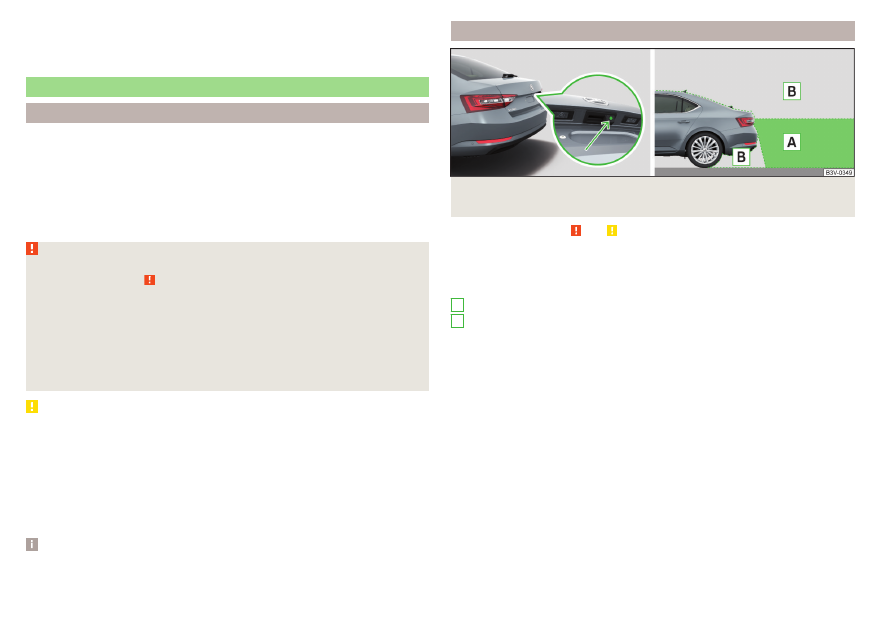

Fig. 275

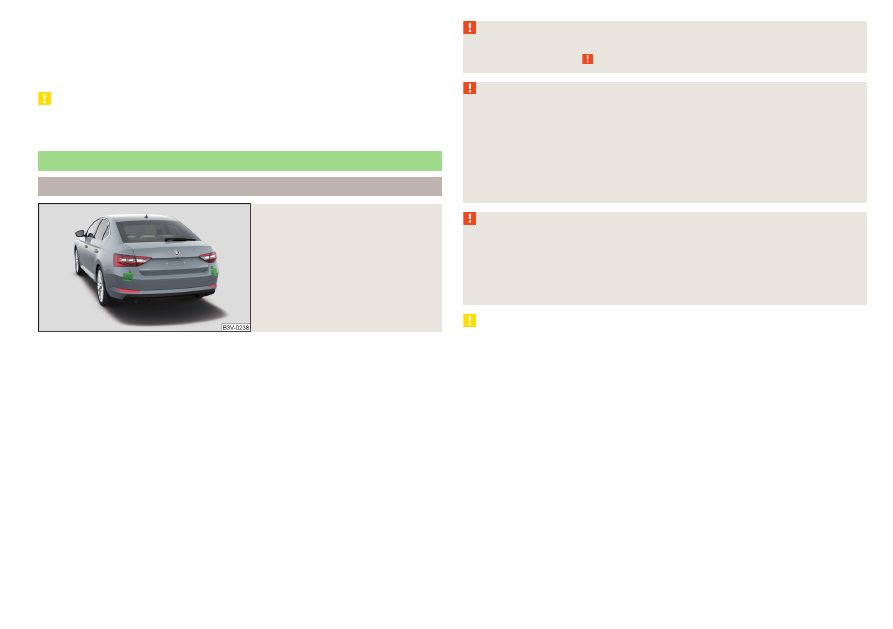

Installation location of the radar

sensors

The Rear Traffic Alert and Wizard for “blind spot” monitoring works based on

the information from the radar sensors in the rear bumper

» Fig. 275

. The radar

sensors are not visible from the outside.

Rear Traffic Alert

The Rear Traffic Alert (hereinafter referred to as system) warns when leaving a

parking space from a transverse parking space about any approaching vehi-

cles.
If necessary, the system tries to avoid a collision with automatic braking, or at

least to mitigate the consequences.

Wizard for “blind spot”monitoring

The wizard for“blind spot monitoring” (hereafter referred to as system) draws

attention to vehicles travelling in the same direction in the next lane in the so-

called blind spots.
The “blind spot” is an area that is not easily visible in a rear-view mirror or even

directly from the vehicle.

WARNING

The general information relating to the use of assistance systems must be

observed

» page 216,

   in section Introduction.

WARNING

In the case of a collision or damage to the rear of the vehicle, the function

of the systems may be affected - risk of accident! Have the vehicle

checked by a specialist garage.

Do not cover the sensor area - the function of the systems could be limi-

ted.

Remove snow, ice and such obstacles from the sensor environment im-

mediately.

WARNING

The wizard for “blind spot”monitoring is limited by physical and system-re-

lated limits. Therefore, in the following situations the system can be de-

layed in drawing attention (or not at all) to a vehicle in the next land.

When a vehicle is approaching at a very high speed.

When passing through a very sharp curve or a roundabout.

CAUTION

If a trailer or other accessory is to be connected to the trailer socket, then

the two systems are not available.

In adverse weather conditions (heavy rain, water vapour, very low or high

temperatures, etc.), the system function may be limited - “failure to recognise

a vehicle”.

Accessories additionally installed on the vehicle rear, such as bicycle carriers,

can impair the system function.

223

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Rear Traffic Alert- Operation

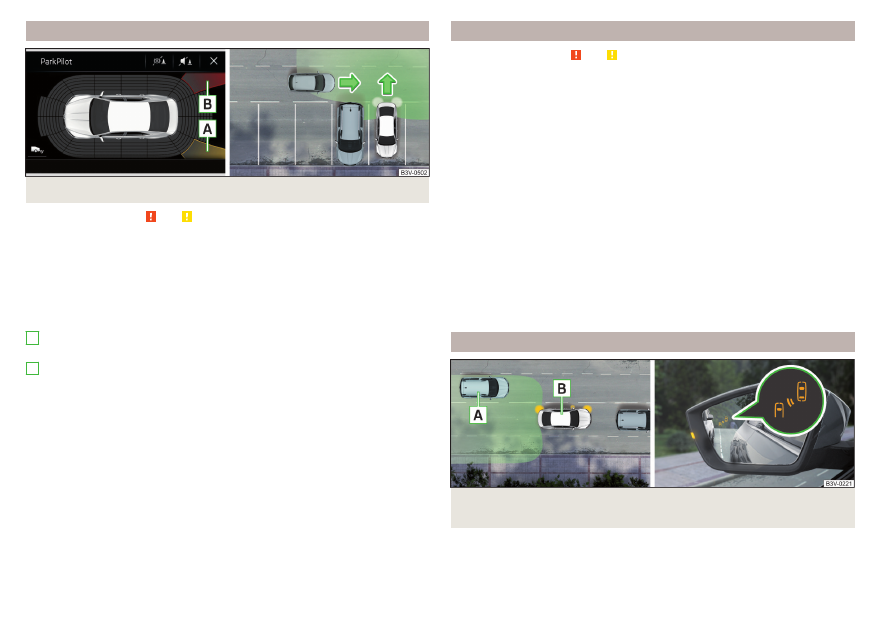

Fig. 276  Infotainment screen: warning indicator / driving situation

Read and observe   and   on page 223 first.

With the ignition switched on, the area next to and behind the vehicle is moni-

tored by the radar sensors of the system. If an approaching vehicle is detected

from the rear of the vehicle

» Fig. 276

, the system warns of this fact.

Warning - vehicles with parking aid

You will hear a continuous tone and one of the following warning levels ap-

pears on the Infotainment screen

» Fig. 276

.

An oncoming vehicle is detected. Do not continue driving backwards and

check around the vehicle.
A vehicle in the collision region is detected. Do not continue driving back-

wards

.

Warning - vehicles without parking sensors

An acoustic signal is sounded and information for the driver to observe the

traffic behind is shown in the instrument cluster.

Automatic emergency braking

If the driver does not react to the warning and the system detects an impend-

ing collision, then this can trigger an automatic braking at a speed up to 10

km/h. A corresponding message is shown in the information cluster display.

A

B

Wizard for “Blind Spot”Monitoring - Operation

Read and observe   and   on page 223 first.

At a speed over 15 km/h, the area alongside and behind the vehicle is moni-

tored by the system. At the same time, the distance and the difference in

speed between your vehicle and the other vehicles in the monitored area can

be measured.
When driving, the sensors monitor an area to the left and right to the extent of

a normal lane width.
If a vehicle is detected in the “blind spot” area, the system indicates this vehi-

cle by the indicator light

 in the exterior mirror.

System constraint

The system is unable to recognise the specific lane width by means of sensors.

Therefore this can e.g. in the following cases respond to a vehicle in a further

lane.

When driving on a road with narrow lanes or on the lane edge.

Driving around a bend.

The system may also respond to objects on the roadside such as crash barri-

ers, noise barriers or similar objects.

Wizard for “Blind Spot”Monitoring - driving situations and warnings

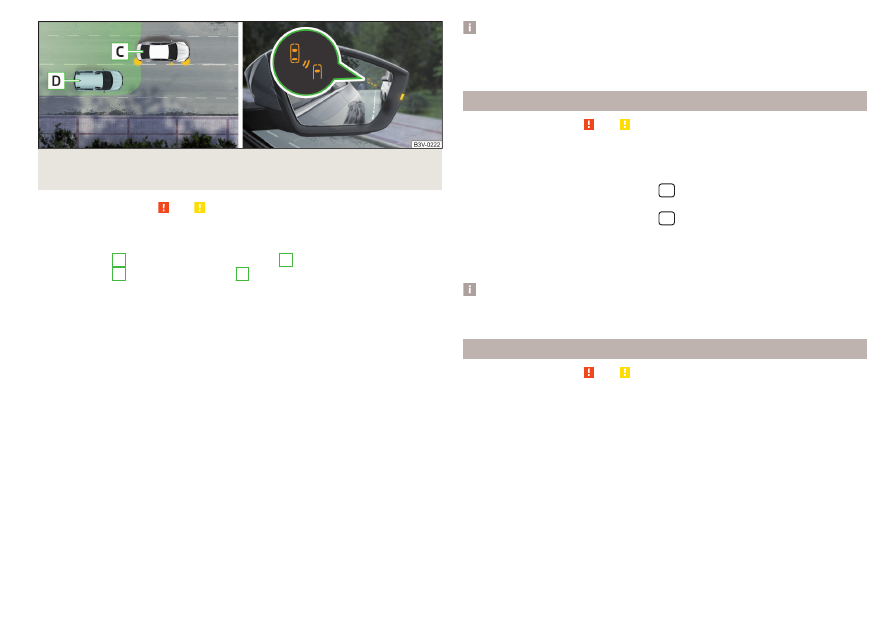

Fig. 277  Driving situation / indicator light in the left outside mirror indi-

cates the driving situation

224

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fig. 278  Driving situation / indicator light in the right outside mirror in-

dicates the driving situation

Read and observe   and   on page 223 first.

In the following situations, the indicator light in the outside mirror indicates a

vehicle in the “blind spot”.

Your vehicle

B

 is being overtaken by vehicle

A

» Fig. 277

.

Your vehicle

C

 is overtaking vehicle

D

 at a speed of max. 10 km high-

er

» Fig. 278

. If the speed during the overtaking is even higher, then there is

no warning by the warning light.

The warning display is always in the exterior mirror on the side of the vehicle

where a vehicle is detected in the “blind spot”.
The greater the speed difference between the two vehicles, the earlier the

warning (by means of the warning light) regarding the vehicle that is overtak-

ing you takes place.

Two warning levels

 light up - a vehicle has been detected in the “blind spot”.

 flash - a vehicle has been detected in the “blind spot” and the turn signal is

switched on.

An advanced warning for vehicles with Lane Assist

 flash also if the steering wheel is turned in the direction of the vehicle in

the “blind spot” . Therefore the Lane Assist

» page 247

 must be enabled and

the boundary line between the vehicles detected.
If in this case your vehicle indicates crossing the boundary line, with a short vi-

bration of the steering wheel.

Note

The brightness of the indicator light

 is dependent on the setting of the vehi-

cle lighting. With the low or high beam on the brightness of the light will be

lower.

Activation / deactivation

Read and observe   and   on page 223 first.

The activation or deactivation of the system can be carried out in one of the

following ways.

In the instrument cluster display

» page 54

Assist systems menu item.

In the infotainment system, in menu



/  →  → Driver assistance (applies to

the wizard for “blind spot” monitoring).

In the infotainment system, in menu



/  →  → Parking and manoeuvring (Ap-

plies to Rear Traffic Alerts).

After switching off and switching on the ignition, depending on the setting pri-

or to switching off the ignition, the systems remains activated / deactivated.

Note

When activating the wizard for “blind spot” monitoring, the

 warning lights

illuminate briefly in the two exterior mirrors.

Malfunctions

Read and observe   and   on page 223 first.

If the systems are not available, an appropriate message appears in the display

of the instrument cluster.

Sensor covered / dirty

If the sensor is dirty or covered, a message indicating that there is no sensor

view appears. Clean or remove the obstructing object from the sensor envi-

ronment

» Fig. 275

 on page 223.

Systems unavailable

If the systems are unavailable, a message regarding unavailability appears. Stop

the vehicle, switch off the engine and then start it again. If the systems are still

not available, seek the assistance of a specialist garage.

225

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

System fault

In the case of a system fault, an error message appears. Seek help from a spe-

cialist garage.

Rear View Camera

Introduction

The rear view camera (following as system) helps the driver when parking and

manoeuvring by displaying the area behind the vehicle in the Infotainment

screen (hereinafter only referred to as screen).
There are four modes available for different situations during the park and ma-

noeuvring action. The mode change is carried out using the function surfaces

on the screen

» page 227

.

WARNING

The general information relating to the use of assistance systems must be

observed

» page 216,

   in section Introduction.

The system displays auxiliary boxes and lines regardless of the current ve-

hicle environment. The driver is responsible for checking that there is no

obstacle in the selected parking space and that the vehicle can safely park

in this space.

The camera may not be soiled or obscured, otherwise the system func-

tion will be significantly affected - there is a risk of accident. For informa-

tion on cleaning

» page 262

.

CAUTION

The camera image is distorted by contrast with eyesight. For this reason, the

screen display is only of limited use for estimating distances to following vehi-

cles.

Some items, such as narrow columns, chain link fences, lattices or roadway

irregularities may not be represented adequately in terms of screen resolution.

In a crash or damage the vehicle's rear camera can possibly deviate from the

correct position. If this is the case, have the sensor checked by a specialist ga-

rage.

Note

The camera is equipped with a cleaning system. Spraying takes place automat-

ically, together with spraying the rear or windscreen.

Operation

Fig. 279  Installation location of the camera / scanned area behind the

vehicle

Read and observe   and   on page 226 first.

The camera for capturing the area behind the vehicle is in the grip of the boot

lid

» Fig. 279

.

Area behind the vehicle

» Fig. 279

Detection range of the camera
Area outside the detection range of the camera

The system can assist the driver when parking and manoeuvring under the fol-

lowing basic conditions.

The ignition is switched on.
The system is activated.
The luggage compartment lid is completely closed.
The vehicle is travelling at less than 15 km/h.
The area behind the vehicle is clearly visible.
The selected parking / manoeuvring area is clear and even.

A
B

226

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Activation/deactivation

Fig. 280

Button for activation / deactiva-

tion

Read and observe   and   on page 226 first.

Activation

The system is activated by selecting reverse gear or pressing the symbol 

button

» Fig. 280

.

When activating, an alarm sounds and the symbol

 illuminates in the button.

The mode for traverse parking is displayed on the screen.

Deactivation

The system is deactivated when you press button , switch off the ignition,

put the selector lever in position P, or when you drive forwards at a speed of

more than 15 km/h (the

 symbol in the button goes out).

Function surfaces

Fig. 281

Function surfaces

Read and observe   and   on page 226 first.

It is possible to adjust the parking and manoeuvring mode by means of the

function surfaces.

Function surfaces

» Fig. 281

Turns off the display of the area behind the vehicle
Mode - traverse parking
Mode - parallel parking
Mode - driving up to a trailer / distance monitoring
Mode - monitor the area behind the vehicle (wide view)
Screen settings - brightness, contrast, colour
Parking aid (mini display)

   Switch thumbnail display on/off

 Switch to full screen display

Orientation lines and lane

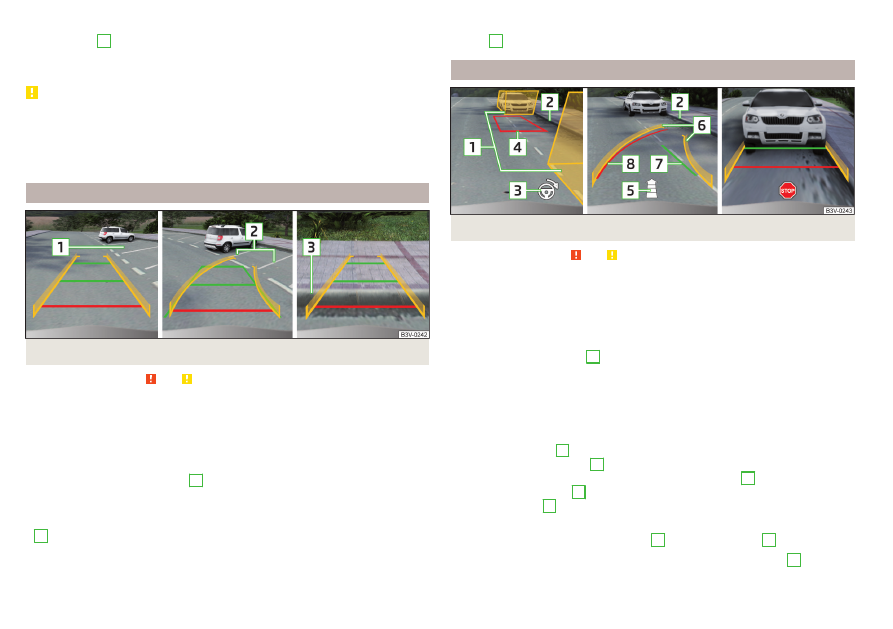

Fig. 282

Orientation and lane lines

Read and observe   and   on page 226 first.

In the modes for transverse and parallel parking guidance, orientation lines for

the assessment of distance and lane lines are displayed on the screen.
Screen display

» Fig. 282

The distance is about 40 cm (safety distance limit).
The distance is about 100 cm.
The distance is about 200 cm.
The lane lines terminate approximately 300 cm behind the vehicle.

The distance may vary slightly depending on the load of the vehicle and the

road inclination.
The distance between the side lines corresponds approximately to the vehicle

width including mirrors.

A
B
C
D

E
F

G

A
B
C
D

227

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Lane

The lane lines

D



» Fig. 282

 change depending on the steering angle and indi-

cate the roadway on which the vehicle would take with the current steering

wheel position.

CAUTION

The objects shown on the screen can be closer or even further away than they

appear. This is especially the case in the following situations.

Protruding objects, such as the rear of a truck and the like.

When driving from a horizontal surface into a slope or a depression.

When driving from a slope or a depression onto a horizontal surface.

Mode - traverse parking

Fig. 283  Screen display

Read and observe   and   on page 226 first.

This mode supports the driver when reverse parking in a parking space that is

transverse to the road.

Parking manoeuvre

Select a suitable parking space.

Press the 

» Fig. 280

 on page 227 button.

At the selected parking space

1

» Fig. 283

 slowly drive past and stop the ve-

hicle.

Engage reverse gear.

Adjust the steering wheel so that the lane lines lead into the parking space

2

.

Carefully move backward and steer so that the yellow lines are still leading

into the parking space.

At the latest when the red line of the back of the parking space (for example,

curb)

3

 is touched, stop the vehicle.

Mode - parallel parking

Fig. 284  Screen display

Read and observe   and   on page 226 first.

This mode supports the driver when reverse parking in a parking space that is

parallel to the road.

Parking manoeuvre

When driving past a parking space push the button 

» Fig. 280

 on

page 227.

Tap the function surface

C



» Fig. 281

 on page 227.

The screen shows auxiliary boxes for both road sides.

Switch on the indicator for the side on which you want to park.

The auxiliary boxes for the opposite side will be hidden.

Stop the vehicle stop so that there are no obstructions in the gap between

the auxiliary boxes

1

» Fig. 284

 and the rear box does not extend over the

side of the parking space

2

 (e.g. kerb).

Turn the steering wheel in the direction recommended

3

 until the colour of

the trapezoidal frame

4

 is green. Hold the steering wheel in this position.

Once the arrow

5

 appears on the screen, reverse (when reversing in the

parking space the arrow will get shorter).

The screen shows the yellow lane lines

6

 and the green line

7

.

If the steering angle is corrected while reversing then the red line

8

 appears

(required roadway alignment).

228

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In this case, adjust the steering wheel so that the yellow lines

6

 the red line

8

 fade into each other.

Carefully reverse until

 appears on the screen or the green line

7

 is con-

gruent with the lateral boundary of the parking space (e.g. kerb)

2

.

Stop the vehicle and steer opposite until the yellow lines

6

 the red line

8

fade into each other (required roadway alignment). Hold the steering wheel

in this position.

Orientation lines are displayed

» Fig. 282

 on page 227 on the screen.

Carefully move backwards.

Stop the vehicle when

 appears on the screen, or at a safe distance from

the obstacle situated behind the vehicle.

Note

The guidance in the parking space is cancelled due to the system when the

steering wheel is set for a period of time against the required road direction.

The parking is to be started again.

Mode - driving up to a trailer / distance monitoring

Fig. 285

Screen display

Read and observe   and   on page 226 first.

In this mode, the area behind the vehicle is shown at the top of the screen.

Vehicles with towing hitch

If your vehicle is factory fitted with a tow-bar, this mode supports the driver

when the vehicle approaches a trailer draw bar.
Screen display

» Fig. 285

Ball head of the towing device
Lines for the distance estimation (at a distance of about 10 cm)

A
B

Line for approaching a trailer draw bar
Trailer draw bar

The line

C

 moves depending on the steering angle and indicate the roadway

on which the vehicle would take with the current steering wheel position.

Vehicles without towing hitch

If your vehicle is not factory equipped with a towing hitch, a red line for moni-

toring the distance to obstacles is displayed on the screen at a distance of 40

cm behind the vehicle.

Mode - monitor the area behind the vehicle

Read and observe   and   on page 226 first.

In this mode, the area behind the vehicle is shown on the screen.
The mode is suited for the entire view of the situation behind the vehicle.

Park Assist

Introduction

Park Assist (following referred to system) helps drivers park in suitable parallel

and perpendicular parking places or also to manoeuvre out of parallel parking

spaces.
The system takes over the steering movements only when parking or leaving a

parking space. The driver operates the brake, accelerator or clutch pedal and

the shift / selector lever.
The state in which the steering wheel is operated by the system, is referred to

as parking operation.
The Park Assist is an extension of the parking aid

» page 219

 and operates on

the basis of data collected by the ultrasonic sensors.
For this reason, the chapter on the parking aid is to be read carefully and

the safety notes are to be observed.

C
D

229

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING

The general information relating to the use of assistance systems must be

observed

» page 216,

   in section Introduction.

During the parking process, the system automatically performs rapid

steering movements. While it is doing so, do not place your hands between

the steering wheel – risk of injury!

During a parking manoeuvre on loose or slippery surfaces (gravel, snow,

ice, etc.) you may stray from the calculated road. It is therefore recommen-

ded that you do not use the system in such situations.

CAUTION

The correct evaluation of the parking space and the parking procedure de-

pends on the circumference of the wheels on the vehicle.

The system only works correctly if the vehicle is fitted with the wheel size

approved by ŠKODA AUTO.

Do not use the system if snow chains or an emergency wheel are fitted.

If wheels other than those approved by ŠKODA AUTO are fitted, the result-

ing position of the vehicle in the parking space can differ slightly. This can be

avoided by readjusting the system at a specialist garage.

CAUTION

If other vehicles are parked behind or on the curb, the system can drive your

vehicle over the kerb or up to the kerb - there is a risk of damage to the

wheels. Intervene in time if necessary.

Note

We recommend performing the parking at a safe speed to about 5 km/h.

The parking procedure can be stopped at any time by pressing the 

» Fig. 286

 on page 230 button or by a steering intervention.

Operation

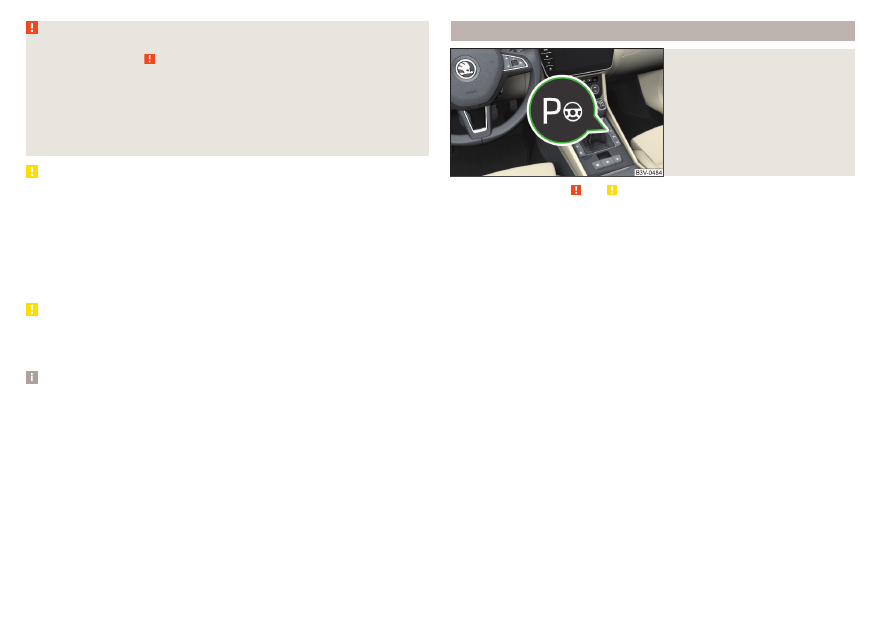

Fig. 286

System button

Read and observe   and   on page 230 first.

The system support is provided in the following manner.

While the parking space search is going on, a measurement and evaluation of

the parking space size is completed.

The display of the instrument cluster (hereinafter only display) shows suita-

ble parking spaces and a parking mode is recommended.

The display shows instructions and information before the start and during

the parking.

Based on the calculated road surface, the front wheels will be automatically

rotated during the parking.

Conditions for the system function

The system can look for a parking space only if the following basic conditions

are met.

The system is activated.
The vehicle is travelling at less than 40 km/h.
The vehicle is travelling at less than 20 km/h.
The distance to a number of parked vehicles is approximately 0.5 - 1.5 m.
TCS is activated

» page 218

.

The system can only carry out the parking procedure if the following basic

conditions are met.

The vehicle is travelling at less than 7 km/h.
The parking procedure takes less than 6 minutes.
There is no driver intervention in the automatic steering operation.
TCS is activated

» page 218

.

230

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The TCS does not engage.
No trailer or other accessory is connected to the trailer socket.

Activation/deactivation

The system can be activated/deactivated by pressing the  button

» Fig. 286

.

When the system is activated, the

 symbol illuminates in the button.

Parking space search

Read and observe   and   on page 230 first.

The system searches for a parking space in a number of parallel and transverse

parked vehicles on the passenger or driver's side.

Process with the parking space search

Slowly drive past a row of parked vehicles.

Activate the system with the  button

» Fig. 286

 on page 230.

The system will automatically search for a parking space on the passenger

side.
If the system finds a parking space, the recommended parking mode is dis-

played

» Fig. 288

 on page 232  or

» Fig. 289

 on page 232 - .

Activate the turn signal on the driver's side if you wish to look for a parking

space on this side of the road. The display changes and the system searches

for a parking space on the driver's side.

Note

If the symbol  (km / h) is shown in the display while you are looking for a

parking space, the vehicle speed should be reduced below 40 km / hr (parallel

parking) or below 20 km / hr (Transverse parking).

Switch to park mode

Fig. 287  Menus with the parking modes: Display

Read and observe   and   on page 230 first.

While the parking space search is going on and before the start of the parking,

a menu may appear showing other suitable parking modes.
Parking modes

» Fig. 287

To park backwards in a parallel parking space
To park backwards in a traverse parking space
To park forwards in a traverse parking space

The parking mode can be changed by pressing the 

» Fig. 286

 on page 230

button.
After switching through all parking modes offered, an additional press of the

 button deactivates the system.

If you want to return to the originally recommended parking mode, press the

 button again.

231

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Parking

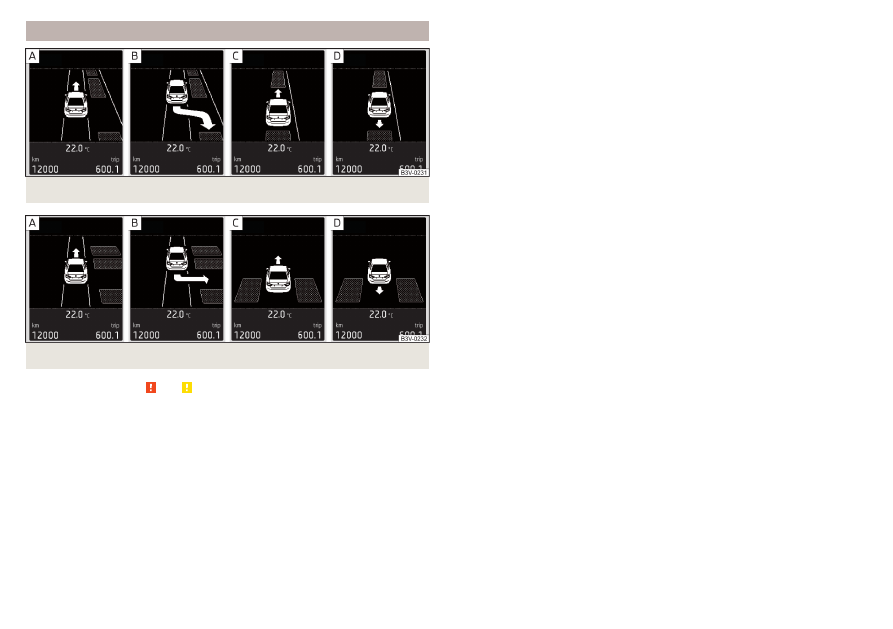

Fig. 288  To park in a parallel parking space: Display

Fig. 289  To park in a traverse parking space: Display

Read and observe   and   on page 230 first.

The system supports the driver when reverse parking in the parking space

found in a number of traverse and parallel parked vehicles.
Display view

» Fig. 288

 or

» Fig. 289

Parking space recognised with the information to drive on
Parking space recognised with the information to reverse
Note to drive on to the parking space
Note to reverse to the parking space

Process for reverse parking

The parking space found is shown in the display

» Fig. 288

 -  or

» Fig. 289

 -

.

Continue driving forwards until  appears in the display.

Stop and ensure that the vehicle does not continue to move forward until the

parking procedure starts.

Select reverse gear or move the selector lever into position R.

As soon as the following message is shown in the display: Steering int. active. Be

mindful of your surroundings, let go of the steering wheel and the steering is tak-

en over by the system.

Observe the direct vicinity of the vehicle and reverse carefully.

If necessary, the parking procedure can be continued with further steps.

If the arrow in the information display is flashing to the front , engage

1st gear or move the selector lever into the position D/S.

The display shows the  icon (brake pedal).

Depress the brake pedal and wait until the steering wheel automatically ro-

tates into the required position, the symbol  goes out.

Carefully drive forwards.

If the backwards arrow is flashing in the display - , select reverse gear again

or move the selector lever into position R.

The display shows the  icon (brake pedal).

Depress the brake pedal and wait until the steering wheel automatically ro-

tates into the required position, the symbol  goes out.

Carefully move backwards.

You can repeat these steps several times in succession.
As soon as the parking procedure is complete, an audible signal sounds and the

following message appears in the display.

232

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Parking forwards

Fig. 290

To park forwards in a traverse parking space: Display

Read and observe   and   on page 230 first.

The system supports the driver when parking forward in the parking space

found in a number parallel parked vehicles.
As soon as the system finds a parking space, select the 

» Fig. 286

 on

page 230 button for forwards parking mode

» Fig. 287

 on page 231 - . The

display shows the following

» Fig. 290

.

The further procedure is analogous to that for reverse parking.

Follow the system instructions shown in the display.

As soon as the parking procedure is complete, an audible signal sounds and the

following message appears in the display.
The system is activated by pressing the  button and this is also possible if the

vehicle has already been partially moved to a suitable parking space.

Departing from a parallel parking space

Read and observe   and   on page 230 first.

The system supports the driver when leaving a parking space of a parallel

parking space.

Leaving a parking space process

Press the 

» Fig. 286

 on page 230 button.

The following message is displayed: Please indicate and engage reverse gear.

Activate the turn signal for side of the vehicle where the parking space is out

of which you wish to manoeuvre.

Select reverse gear or move the selector lever into position R.

The further procedure is analogous to that for reverse parking.

Follow the system instructions shown in the display.

As soon as the parking procedure is complete, an audible signal sounds and the

following message appears in the display.
If the parking space is too small, it is not possible to use the system to leave

the parking space. A corresponding message is shown in the information clus-

ter display.

Automatic brake assist

Read and observe   and   on page 230 first.

Automatic brake assist when speeding

If a velocity of 7 km / h is exceeded during the parking manoeuvre for the first

time, the speed will be automatically reduced by the system to less than 7 km /

h. This prevents the parking manoeuvre from aborting.

Automatic emergency braking

If the system detects a risk of collision during parking, automatic emergency

braking takes place to prevent a collision.
The parking is terminated by the emergency braking.

CAUTION

The automatic emergency braking is not triggered by the system when the

parking process stops due to the speed of 7 km / hr being exceeded!

Malfunctions

Read and observe   and   on page 230 first.

If the system is not available, an appropriate message appears in the display of

the instrument cluster.

System unavailable

If the system is not available because the vehicle has a fault, a message ap-

pears concerning the unavailability. Seek help from a specialist garage.

System fault

In the case of a system fault, an error message appears. Seek help from a spe-

cialist garage.

233

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Cruise Control System

Introduction

The Cruise Control System (CCS) maintains a set speed without you having to

actuate the accelerator pedal. The state where the CCS maintains the speed is

referred to hereinafter as the control.

WARNING

The general information relating to the use of assistance systems must be

observed

» page 216,

   in section Introduction.

After pressing the clutch pedal, no interrupted control occurs! For exam-

ple, if a different gear is engaged and the clutch pedal is released, control is

continued.

Operation

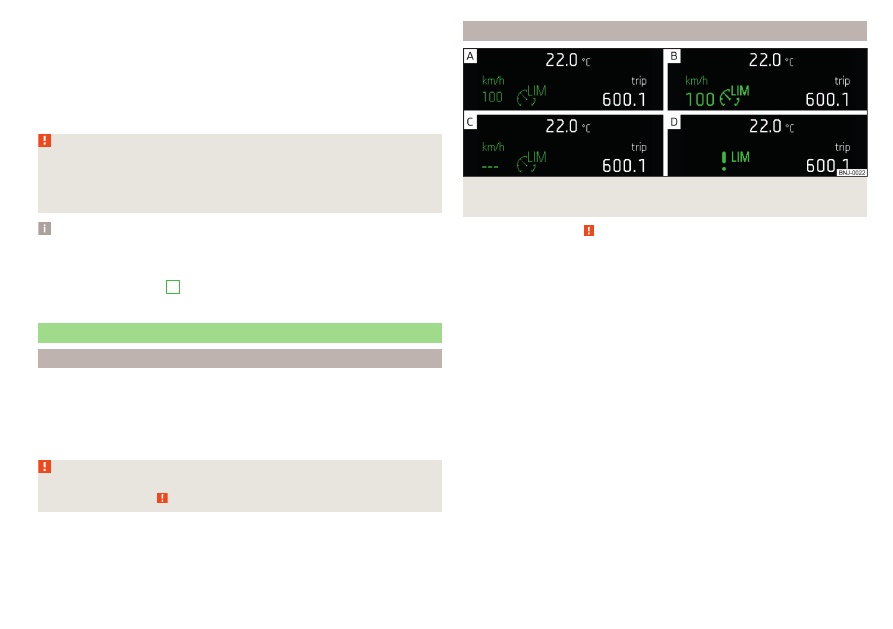

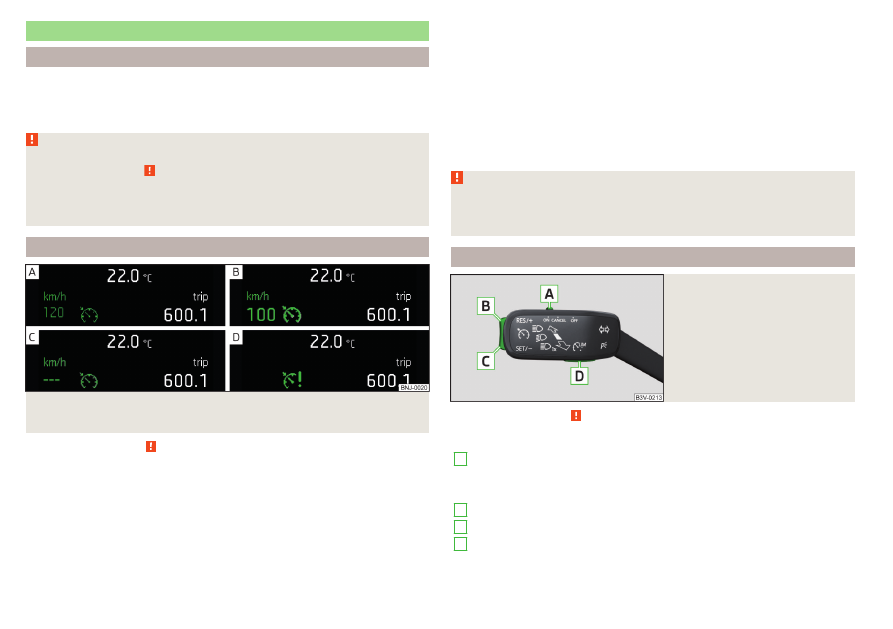

Fig. 291  Instrument cluster display: Examples of status displays the

CCS

Read and observe   on page 234 first.

CCS status displays

» Fig. 291

Speed is set, control is inactive (in the colour display the digits of speed

limits is shown in grey).
Control active (in the colour display the digits of the speed limits are high-

lighted).
No speed set.
System fault - seek assistance from a specialist garage immediately.

Basic requirements for start of control

The CCS is activated.
On vehicles with a manual transmission, the second gear or higher is en-

gaged.
On vehicles with an automatic transmission, the selector lever is in the

D/S position or in the Tiptronic position.
The current speed is greater than approx. 20 km/h.

This is only possible within the range which is permitted by the power output

and braking power of the engine.

WARNING

If the engine power and engine braking effect is insufficient in order to

maintain the set speed, the acceleration and brake pedals must be taken

over!

operation description

Fig. 292

Cruise control system controls

Read and observe   on page 234 first.

Overview of the control elements of the CCS

» Fig. 292

A



Activate CCS (regulation deactivated)





Interrupt control (sprung position)





Deactivate CCS (delete set speed)

B



Take control again

a)

 / Increase speed

C



Launch control / reduce speed

D

Switching between CCS and speed limiter

a)

If no speed is set the current speed is adopted.

234

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------

After the start of the regulation, the CCS regulates the vehicle to the current

speed and the warning light

 illuminates in the instrument cluster.

The automatic control interruption occurs if any of the following conditions

are met.

The brake pedal is operated.

When one of the brake assist systems (e.g. ESC) intervenes.

Through an airbag deployment.

WARNING

Always deactivate the cruise control system after use to prevent the sys-

tem being switched on unintentionally.

The control does not resume if the set speed for the existing traffic con-

ditions is too high.

Note

During control, speed can be increased by pressing the accelerator pedal. Re-

leasing the accelerator pedal will cause the speed to drop again to the set

speed.

By pressing the button

D



» Fig. 292

 during the regulation this is cancelled

and the Speed Limiter is activated.

Speed limiter

Introduction

The Speed Limiter limits the maximum driving speed to the set speed limit.
The speed limit can only be exceeded by depressing the accelerator pedal fully.
The condition in which the Speed Limiter prevents a potential set speed limit

excess is referred to as Regulation.

WARNING

The general information relating to the use of assistance systems must be

observed

» page 216,

   in section Introduction.

Function

Fig. 293  Instrument cluster display: Examples of Speed Limiter status

displays

Read and observe   on page 235 first.

Speed limiter status displays

» Fig. 293

Speed limit is set, control is inactive (in the colour display the digits of

speed limits is shown in grey).
Control active (in the colour display the digits of the speed limits are high-

lighted).
No speed limit set.
System fault - seek assistance from a specialist garage immediately.

Basic requirements for start of control

The Speed Limiter is activated.
The current speed is greater than approx. 30 km/h.

After starting the system, the current speed is set as the speed limit, the warn-

ing light

 lights up in the instrument cluster.

Exceeding the speed limit during the regulation

If, during the control, it is necessary to exceed the speed limit (e.g. to over-

take), the accelerator pedal must be pressed fully.
When exceeding the speed limit (e.g. driving down a hill), an acoustic signal

sounds and the warning light

 flashes in the instrument cluster.

The regulation is resumed once the speed has fallen below the set limit.

235

Assist systems

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Operation description - variant with GRA

Fig. 294

Operating elements of the

speed limiter

Read and observe   on page 235 first.

Overview of the control elements of the speed limiter

» Fig. 294

A



Activate CCS (required condition for the subsequent activation of

the speed limiter)





Toactivate the speed limiter, set the switch in the position  and

then press button

D

.





Interrupt control (sprung position)





Speed Limiter disable (set limit delete)

B



Take control again

a)

/ increase speed limit - press (in increments of

1 km/h), hold (in increments of 10 km/h)

C



Start control/ reduce speed limit - press (in increments of 1 km/h),

hold (in increments of 10 km/h)

D

Switching between CCS and speed limiter

a)

If no speed limit is set, the current speed is set as the speed limit.

Note

By pressing the button

D



» Fig. 294

 during the regulation this is cancelled and

the CCS is activated.

Operating Instructions - Variant with ACC

Fig. 295  Controls the speed limiter (variant with ACC)

Read and observe   on page 235 first.

Overview of the control elements of the speed limiter

» Fig. 295

1



Activate ACC (required condition for the subsequent activation

of the speed limiter)





Toactivate the speed limiter, set the lever in the position 

and then press button

B

.

2



Resume control

a)

 / increase speed limit by 1 km/h at a time

(sprung position)

3



Stop control (sprung position)

4



Disable speed Limiter (delete set limit )

5



 

Increase speed limit by 10 km/h at a time

6



 

Decrease speed limit by 10 km/h at a time

A



Start control / reduce speed limit in increments of 1 km/h

B



Switching between ACC and speed limiter

a)

If no speed limit is set, the current speed is set as the speed limit.

Adaptive Cruise Control (ACC)

Introduction

The Adaptive Cruise Control (hereinafter referred to as ACC) maintains the set

speed and at the same time the distance to the vehicle ahead without the ac-

celerator or brake pedal being pressed.

236

Driving

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     12      13      14      15     ..
