Skoda Karoq (2019 year). Manual - part 18

Once a tyre inflation pressure of 2.0 – 2.5 bar is achieved, continue the journey

at a maximum speed of 80 km/h (50 mph).

WARNING

■

If the tire does not inflate to at least 2.0 bar, the damage is too great. The

sealing agent cannot be used to seal the tyre.



 Do not continue to drive!

Seek help from a specialist garage.

■

The tyre inflation hose and air compressor may get hot as the tyre is be-

ing inflated – risk of burning.

CAUTION

Switch off the air compressor at the latest after the running time according to

the instructions of the repair kit manufacturer has elapsed – otherwise there is

the risk of compressor damage! Allow the air compressor to cool a few mi-

nutes before switching it on again.

Information for driving with repaired tyres



Read and observe   on page 283 first.

The inflation pressure of the repaired tyre must be checked after driving for 10

minutes.

If the tyre inflation pressure is 1.3 bar or less

›

The tyre cannot be properly sealed with the breakdown kit.



 Do not drive

the vehicle! Seek help from a specialist garage.

If the tyre inflation pressure is 1.3 bar or more

›

Set the tyre pressure back to the correct value

» page 275

.

›

Continue driving carefully to the nearest specialist garage at a maximum

speed of 80 km/h (50 mph).

WARNING

A tyre filled with sealant has the same driving characteristics as a standard

tyre. The following guidelines must be observed.

■

Do not drive faster than 80 km/h (50 mph).

■

Avoid accelerating at full throttle, sharp braking and fast cornering.

Jump-starting



Introduction

WARNING

■

The following instructions must be followed at all times when working on

the engine compartment

» page 267

.

■

When handling the vehicle battery, the following warnings must be ob-

served

» page 272

.

■

A discharged vehicle battery may already freeze at temperatures just be-

low 0 °C. If the battery is frozen, do not carry out a jump start with the bat-

tery of another vehicle – risk of explosion!

■

Never jump-start vehicle batteries with an acid level that is too low – risk

of explosion and caustic burns!

Start using the battery from another vehicle

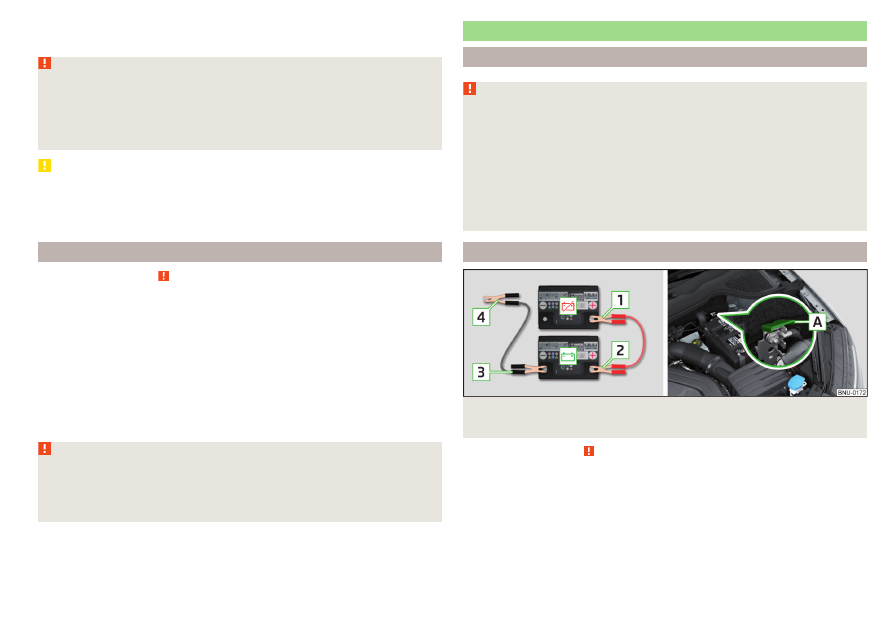

Fig. 326  Jump-starting:  - discharged battery,  - power-supplying

battery/ground point of the engine for the START-STOP system



Read and observe   on page 285 first.

If it is not possible to start the engine due to a discharged vehicle battery, the

battery of another vehicle can be used to start the engine. Only use jump-start

cables which have an adequately large cross-section and insulated terminal

clamps.
The rated voltage of the two batteries must be 12V. The capacity (Ah) of the

current-giving battery must not be significantly less than the capacity of the

discharged battery in your vehicle.



285

Emergency equipment and self-help

The jump-start cables must be attached in the following sequence.

›

Attach clamp

1

 to the positive terminal of the discharged battery.

›

Attach clamp

2

 to the positive terminal of the current-giving battery.

›

Attach clamp

3

 to the negative terminal of the current-giving battery.

›

For vehicles with the START-STOP system, secure the clamp

4

 to the

ground point of the engine

A



» Fig. 326

.

›

For vehicles without the START-STOP system, secure the clamp

4

 to a solid

metal part that is firmly attached to the engine block or secure to the engine

block directly.

Starting engine

›

Start the engine on the vehicle providing the power and allow it to idle.

›

Start the engine in the vehicle with the discharged battery.

›

If the engine does not start within 10 s, then cancel the starting procedure

and repeat after half a minute.

›

Remove the jump start cables in the reverse order as attachment.

WARNING

■

Never clamp the jump-start cable to the negative terminal of the dis-

charged battery - danger of explosion.

■

The non-insulated parts of the terminal clamps must never touch each

other – risk of short circuit!

■

The jump-start cable connected to the positive terminal of the battery

must not come into contact with electrically conducting parts of the vehi-

cle – risk of short circuit!

■

Route the jumper cables so that they cannot be caught in rotating parts in

the engine compartment - danger of injuries and the risk of vehicle dam-

age.

Towing the vehicle

Information about the towing process

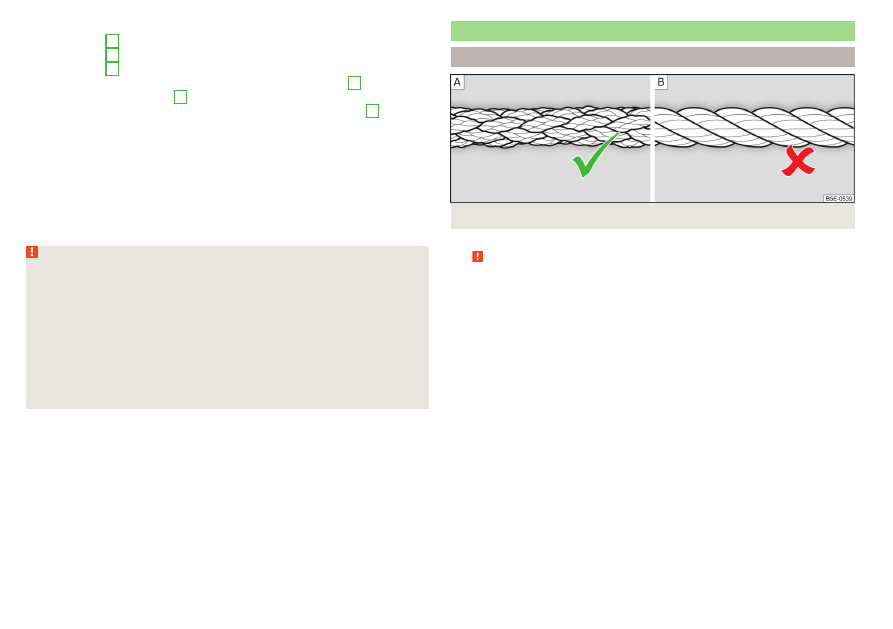

Fig. 327  Braided tow rope / Spiral tow rope

For towing using a tow rope, use only a braided synthetic fibre rope

» Fig. 327

 -





»

.

Attach the tow rope or the tow bar to thetowing eyes at the front

» page 287

,towing eyes at the rear

» page 287

or to thetowing device of the

trailer device

» page 252

.

Conditions for towing.

Cars with automatic gearboxes must not be towed with the rear wheels

raised - there is a risk of gearbox damage!
If the gearbox has no oil, your vehicle must be towed with the front axle

raised clear of the ground or on a breakdown vehicle or trailer.
The maximum towing speed is 50 km/h.
The vehicle must be transported on a special breakdown vehicle or trailer

if it is not possible to tow in the vehicle in the way described or if the tow-

ing distance is greater than 50 km.

Driver of the tow vehicle

›

On vehicles with manual transmission, engage gear slowly when starting.

›

On vehicles with automatic transmission, accelerate with particular care.

›

Only then approach correctly when the rope is taut.











286

Do-it-yourself

Driver of the towed vehicle

›

If possible, the vehicle should be towed with the engine running. Operate the

brake booster and power steering only if the engine is running, otherwise the

brake pedal must be depressed more strongly and more power has to be

directed to the steering.

›

If it is not possible to start the engine, switch on the ignition so that the

steering wheel is not locked and so that the turn signal lights, windscreen

wipers and windscreen washer system can be used.

›

Take the vehicle out of gear or move the selector lever into position N if the

vehicle is fitted with an automatic gearbox.

›

Always keep the tow rope taut during the towing procedure.

WARNING

■

Wound tow ropes must not be used for towing

» Fig. 327

- , the towing

eye may unscrew out of the vehicle - risk of accident.

■

Ensure tow rope is not twisted - risk of accident.

CAUTION

■

Do not tow-start the engine – risk of damaging the engine! The battery from

another vehicle can be used as a jump-start aid

» page 285

, Jump-starting.

■

In the case of off-road towing manoeuvres, for both vehicles there is the risk

that the fastening parts could be overloaded and damaged.

Note

We recommend that you use the tow rope from ŠKODA Original Accessories.

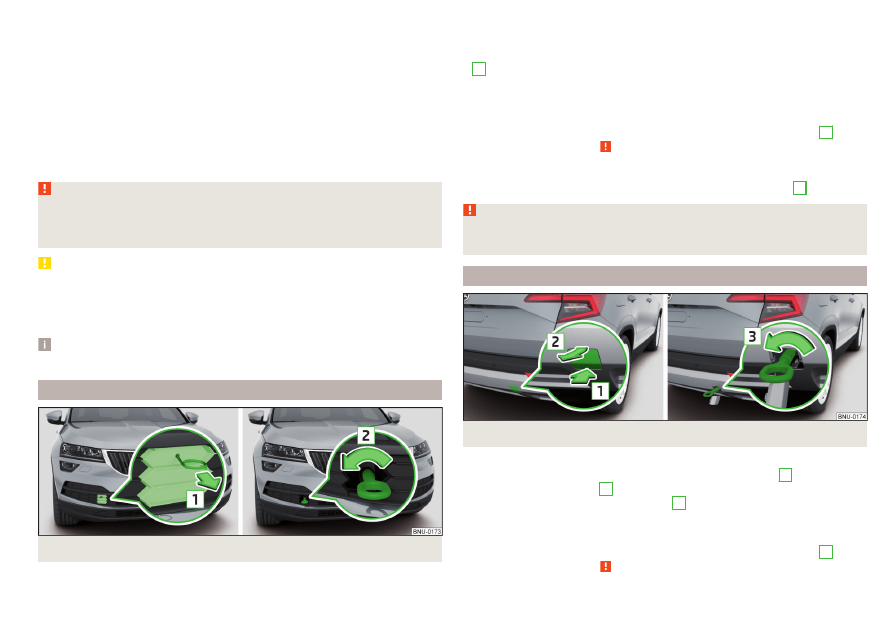

Front towing eye

Fig. 328  Remove protective grille / install towing eye

Removing/inserting protective grille

›

To remove, insert the clamp for taking off the full wheel trims in the recess in

the protective grille and remove the protective grille in the direction of arrow

1



» Fig. 328

.

›

To insert, insert the protective grille in the opening and push in gently. The

protective grille must engage firmly.

Removing/installing the towing eye

›

To install, screw in the towing eye by hand in the direction of arrow

2

» Fig. 328

 until the stop

»

.

›

Tighten the towing eye using a wheel wrench or similar object. To do this, in-

sert the wheel wrench through the eye.

›

To remove, unscrew the towing against the direction of arrow

2

.

WARNING

The towing eye must always be tightened, otherwise the towing eye may

break during the towing.

Towing eye rear

Fig. 329  Remove cap / install towing eye

Remove/insert cap

›

To remove, press down on the cap in the direction of arrow

1

 and remove it

in the direction of arrow

2



» Fig. 329

.

›

To insert, insert the cap in arrow range

1

 and then press on the opposite

edge of the cap. The cap must engage firmly.

Removing/installing the towing eye

›

To install, screw in the towing eye by hand in the direction of arrow

3

» Fig. 329

 until the stop

»

.



287

Emergency equipment and self-help

›

Tighten the towing eye using a wheel wrench or similar object. To do this, in-

sert the wheel wrench through the eye.

›

To remove, unscrew the towing against the direction of arrow

3

.

Vehicles with a tow hitch

For vehicles with factory-fitted towing device, at the back there is no mount

for a screw-in towing eye. Use the detachable ball rod for towing

» page 252

,

Hitch.

WARNING

The towing eye must always be tightened, otherwise the towing eye may

break during the towing.

Remote control and removable light - changing the battery



Introduction

CAUTION

■

The replacement battery/batteries must comply with the original specifica-

tion.

■

Pay attention to the correct polarity when changing the rechargeable batter-

ies.

Note

We recommend having the faulty battery/batteries replaced by a specialist ga-

rage.

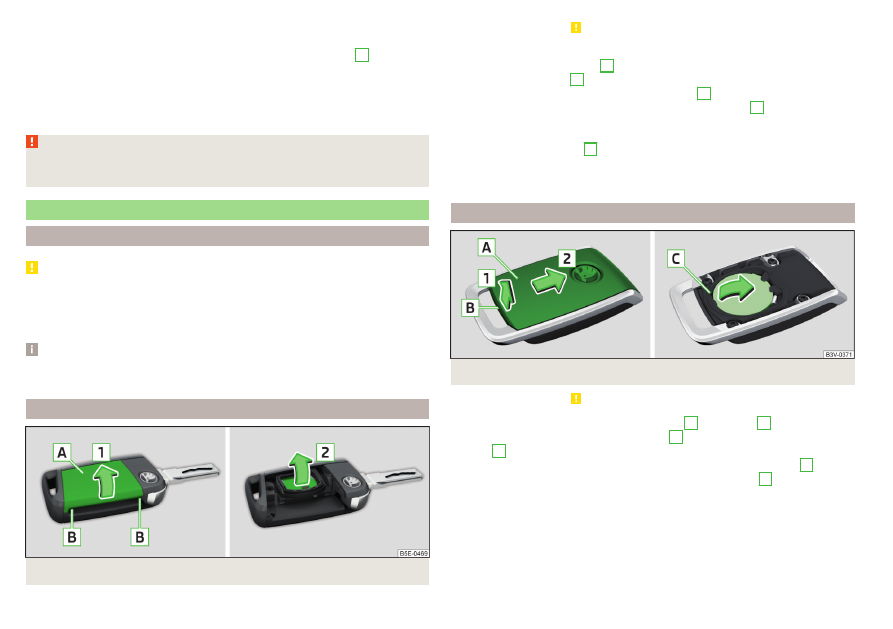

Key with fold-out key bit

Fig. 330  Open the cover/remove the battery



Read and observe   on page 288 first.

›

Fold out the key bit.

›

Press off the battery cover

A



» Fig. 330

 with your thumb or by using a flat

screwdriver in region

B

.

›

Open the battery in the direction of the arrow

1

.

›

Remove the discharged battery in the direction of arrow

2.

›

Hold any button on the key for about 5 s.

›

Insert the new battery.

›

Insert the battery cover

A

 and press it down until it clicks audibly into place.

The key has to be synchronised if the vehicle cannot be unlocked or locked

with the key after replacing the battery

» page 63

.

Remote control of the auxiliary heating

Fig. 331  Open the cover/remove the battery



Read and observe   on page 288 first.

›

Use a thin screwdriver to remove the cover

A

 in the area

B

» Fig. 331

.

›

Open the cover in the direction of arrow

1

 and push out in the direction of

arrow

2

.

›

Use the screwdriver to remove and replace the battery in the area

C

.

›

Insert the battery cover in the opposite direction to arrow

2

 until it audibly

clicks into place.

288

Do-it-yourself

Removable light

Fig. 332

Locking clip on the battery cov-

er



Read and observe   on page 288 first.

›

Lever off the cover for the rechargeable batteries with a narrow and pointed

object from the area of the lock clips

A



» Fig. 332

.

›

Replace the batteries.

›

Insert the cover for the rechargeable batteries and press it down until it

clicks into place.

CAUTION

If an incorrect battery type is used or a non-rechargeable battery, there is a

risk of damaging the light and the vehicle's electrical system.

Emergency unlocking / unlocking of doors

Unlocking/locking the driver's door

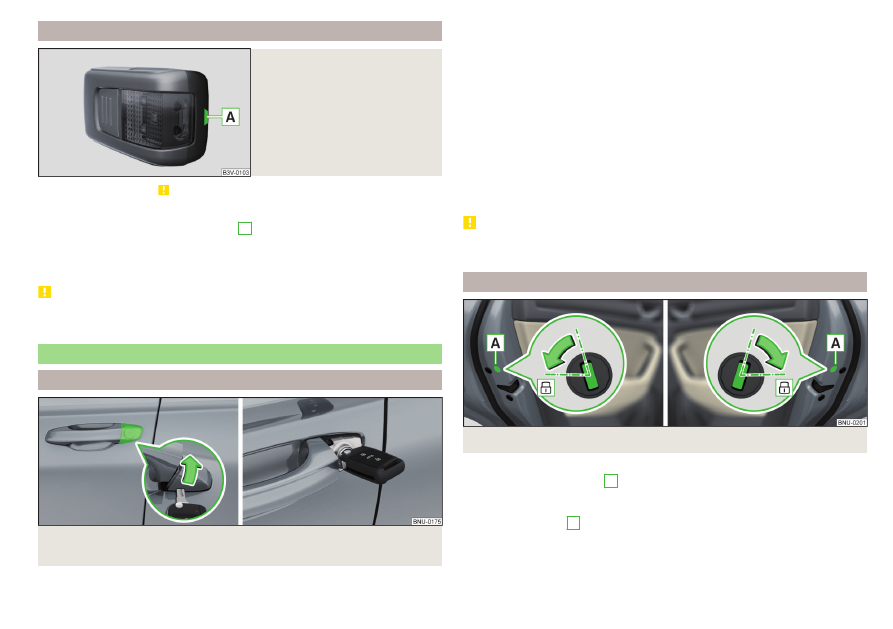

Fig. 333  Handle on the driver's door: Open lock cover / lock cylinder

with key

The driver's door can be emergency unlocked / emergency locked using the

key via the lock cylinder.

›

Pull on the door handle and hold.

›

Insert the key into the recess on the lower side of the cover and fold up the

cover in the direction of arrow

» Fig. 333

.

›

Release the door handle.

›

For vehicles with LHD, insert the key with the fold-out key bit with the but-

tons facing upwards

» Fig. 333

 into the lock cylinder and unlock/lock the ve-

hicle.

›

For vehicles with RHD, insert the key with the fold-out key bit with the but-

tons facing downwards into the lock and unlock/lock the vehicle.

›

Pull on the door handle and hold.

›

Replace the cover.

CAUTION

Make sure you do not damage the paint when performing an emergency lock-

ing/unlocking.

Locking the door without locking cylinders

Fig. 334  Left door/right door:

›

Open the corresponding door.

›

In vehicles with the panel

A

, remove this panel

» Fig. 334

.

›

Insert the key into the slot and turn in the direction of the arrow (sprung po-

sition).

›

Replace the cover

A

.

After closing, the door is locked.

289

Emergency equipment and self-help

Unlock the boot lid

Fig. 335

Unlocking the door

The boot lid can be unlocked manually from inside.

›

Insert a screwdriver or similar tool into the opening in the trim

» Fig. 335

 as

far as the latch.

›

Unlock the lid by moving it in the direction of the arrow.

Selector lever emergency unlocking

Fig. 336  Remove / release the selector lever

›

Switch on the parking brake.

›

Open the stowage compartment in the front centre console.

›

Insert a slotted screwdriver or similar tool into the gap in the area of arrow

1



» Fig. 336

 and lift the cover in arrow direction

2

.

›

Press on the yellow plastic part in the direction of arrow

3

, simultaneously

press the lock button in the selector lever handle and put the lever in position

N.

If the selector lever is moved again to position P, it is once again blocked.

CAUTION

Make sure when lifting not to damage cover parts by the screwdriver in the

shift lever environment.

Replacing windscreen wiper blades



Introduction

WARNING

Replace the windscreen wiper blades once or twice a year for safety rea-

sons.

Replacing the windscreen wiper blades

Fig. 337

Setting the service position for

the wiper arms



290

Do-it-yourself

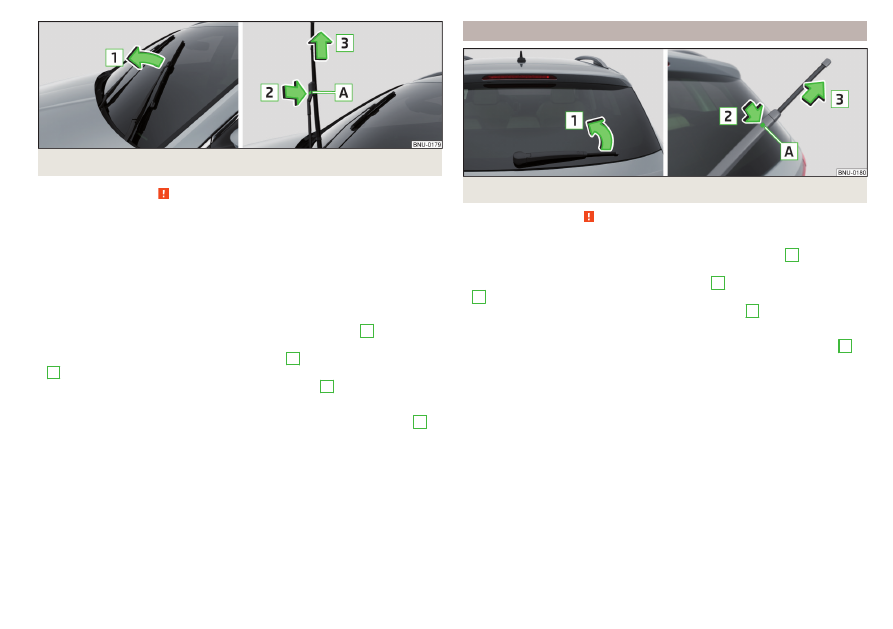

Fig. 338  Replace windscreen wiper blade



Read and observe   on page 290 first.

Before replacing the windscreen wiper blade, put the windscreen wiper arms

into the service position.

Setting the service position

›

Switch the ignition on and off again.

›

Within 10 seconds, push the lever in the direction of arrow

» Fig. 337

 and

hold for approximately 2 seconds.

Removing the wiper blade

›

Lift the wiper arm from the window in the direction of arrow

1



» Fig. 338

.

›

Tilt the wiper blade to the stop in the same direction.

›

Hold the wiper arm and press the safety catch

A

 in the direction of arrow

2

.

›

Remove the wiper blade in the direction of the arrow

3

.

Attaching the windscreen wiper blade

›

Push the windscreen wiper blade in the opposite direction of the arrow

3

until it locks into place. Check that the windscreen wiper blade is correctly

attached.

›

Fold the windscreen wiper arm back to the windscreen.

›

Turn on the ignition and press the lever into the direction of the arrow

» Fig. 337

.

Move the windscreen wiper arms into the home position.

Replacing the rear window wiper blade

Fig. 339  Replace the rear window wiper blade



Read and observe   on page 290 first.

Removing the wiper blade

›

Lift the wiper arm from the window in the direction of arrow

1



» Fig. 339

.

›

Tilt the wiper blade to the stop in the same direction.

›

Hold the wiper arm and press the safety catch

A

 in the direction of arrow

2

.

›

Remove the wiper blade in the direction of the arrow

3

.

Attaching the windscreen wiper blade

›

Push the windscreen wiper blade in the opposite direction of the arrow

3

until it locks into place. Check that the windscreen wiper blade is correctly

attached.

›

Fold the windscreen wiper arm back to the windscreen.

291

Emergency equipment and self-help

Fuses and light bulbs

Fuses



Introduction

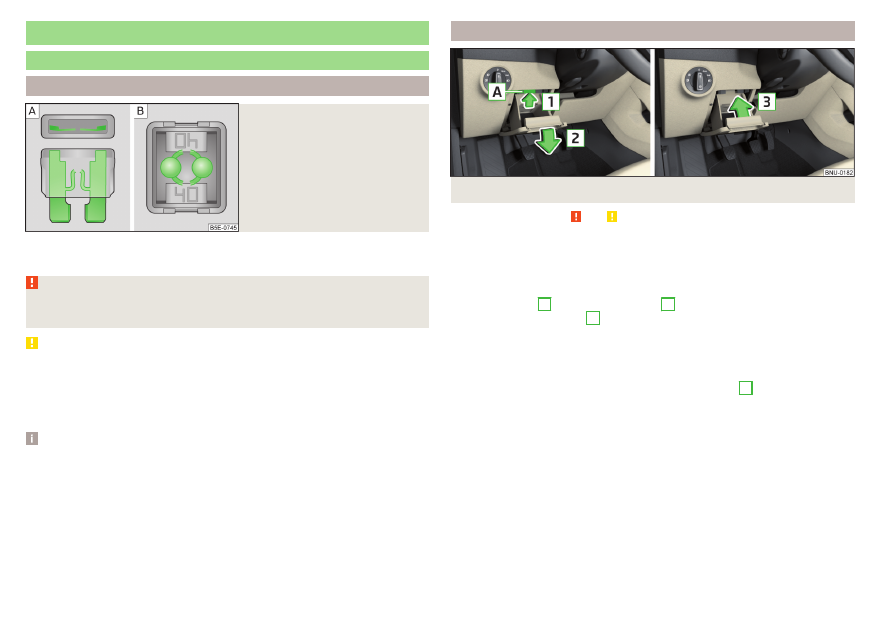

Fig. 340

Blown fuse

Individual electrical circuits are protected by fuses. A blown fuse is recognisa-

ble by the molten metal strip

» Fig. 340

 /.

WARNING

Always read and observe the warnings before completing any work in the

engine compartment

» page 267

.

CAUTION

■

Replace the faulty fuse with a new one of the same amperage.

■

If a newly inserted fuse blows after a short time, then seek the assistance of

a specialist garage.

■

Do “not repair” the fuses and do not replace them with stronger ones - it can

cause a fire and could damage parts of the electrical system.

Note

■

We recommend always carrying replacement fuses in the vehicle.

■

There can be several power consuming devices for one fuse. Multiple fuses

may exist for a single power consuming device.

Fuses in the dashboard- LHD

Fig. 341  Storage compartment on the driver's side



Read and observe   and   on page 292 first.

The fuse box is located behind the storage compartment on the driver's side.

Replacing fuses

›

Remove the ignition key, turn off the lights and all electrical consumers.

›

Open the storage box on the driver side.

›

Press the latch

A

 in direction of arrow

1



» Fig. 341

 open the compartment

in the direction of arrow

2

.

›

Remove the plastic clip under the cover of the fuse box in the engine com-

partment

» Fig. 344

 on page 295.

›

Use the clip to pull the fuse out, then insert a new fuse.

›

Stow the clamp back in the original position.

›

Close the compartment by pressing in arrow direction

3

 until you hear it

click.

292

Do-it-yourself

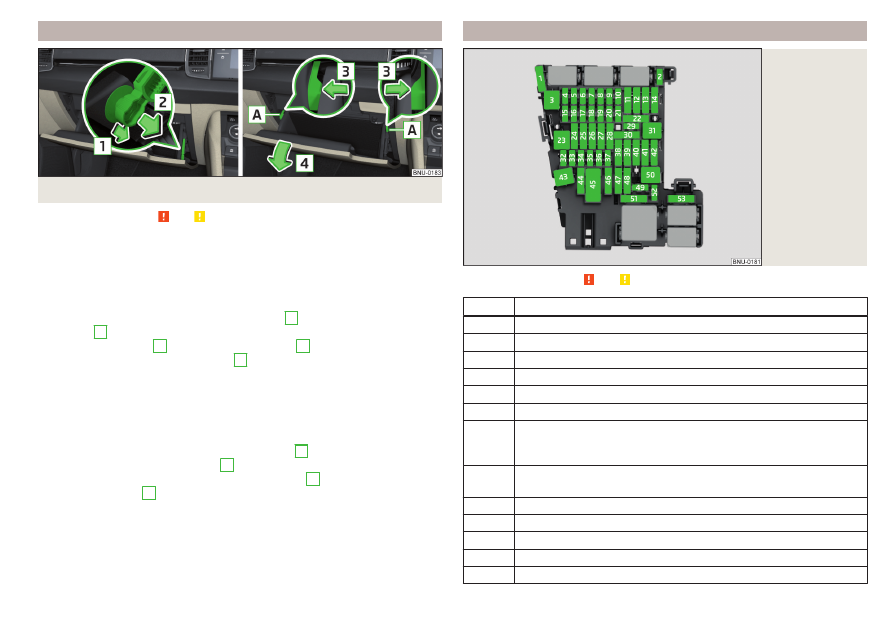

Fuses in the dashboard- RHD

Fig. 342  Storage compartment on the front passenger side



Read and observe   and   on page 292 first.

The fuse box is located behind the storage compartment on the front passen-

ger side.

Fold down the storage compartment and replace the fuse

›

Remove the ignition key, turn off the lights and all electrical consumers.

›

Open the storage compartment on the front passenger side.

›

Unlock the brake rod in the direction of arrow

1

 and remove in the direction

of arrow

2



» Fig. 342

.

›

Unlock the stop pad

A

 in the direction of arrow

3

 and the compartment

folds down in the direction of arrow

4

.

›

Remove the plastic clip under the cover of the fuse box in the engine com-

partment

» Fig. 344

 on page 295.

›

Use the clip to pull the fuse out, then insert a new fuse.

›

Stow the clamp back in the original position.

Fold back the storage compartment

›

Raise the tray in the opposite direction of arrow

4

.

›

Overcome resistance of stop pad

A

.

›

Insert the brake rod against the direction of arrow

2

 and lock against the

direction of arrow

1

.

›

The compartment closes (increased force is required to close it) until it clicks

into place.

Fuse assignment in the dashboard

Fig. 343

Fuses



Read and observe   and   on page 292 first.

No.

Consumer

1

SCR (AdBlue

®

)

2

Heated steering wheel

3

Not assigned

4

Not assigned

5

Databus

6

Sensor Alarm

7

Airconditioner, remote control radio remote control receiver, rear

window heating, automatic gearbox, ignition key lock (vehicle with

automatic transmission)

8

Light switch, rain sensor, parking brake, background lighting, front

headlights

9

Operating lever underneath the steering wheel

10

Infotainment screen

11

Light - left

12

Infotainment

13

Left side belt tensioner



293

Fuses and light bulbs

No.

Consumer

14

Air blower for air conditioning,heating

15

Electric steering lock

16

USB ports, diagnostics connector, Phonebox

17

Instrument cluster, emergency call

18

Reversing camera

19

KESSY system

20

SCR (AdBlue

®

)

21

All-wheel drive

22

Tow hitch

23

Panoramic tilting / sliding sunroof

24

Light - right

25

Central locking- front and rear door left, power window - left, exte-

rior mirrors left - heating, fold-in function, setting the mirror sur-

face

26

Heated front seats

27

Interior lighting

28

Tow hitch

29

Not assigned

30

Not assigned

31

Opening the boot lid

32

Parking aid (Park Assist)

33

airbag

34

Air conditioning, reversing light switch, mirror with automatic dim-

ming, seat heating, parking brake, light switches, bar with buttons,

USB ports, sport sound generator

35

Diagnostics connector, front camera, distance monitoring system

(e.g. ACC, Front Assist)

36

LED spotlight - right

37

LED spotlight - left

38

Tow hitch

No.

Consumer

39

Central locking- front and rear door right, power window - right,

exterior mirrors right - heating, fold-in function, setting the mirror

surface

40

12 volt sockets

41

Right side belt tensioner

42

Luggage compartment lock, rear door lock, tank flap lock, headlight

cleaning system, front and rear windscreen washer system

43

Music amplifier

44

Tow hitch

45

Electrical operation of driver's seat

46

230 volt sockets

47

Rear window wiper

48

“Blind spot” detection

49

Engine starting, clutch pedal switch

50

Not assigned

51

Heating of the rear seats

52

Shock absorber adjustment (adaptive suspension)

53

Heated rear window

294

Do-it-yourself

Fuses in the engine compartment

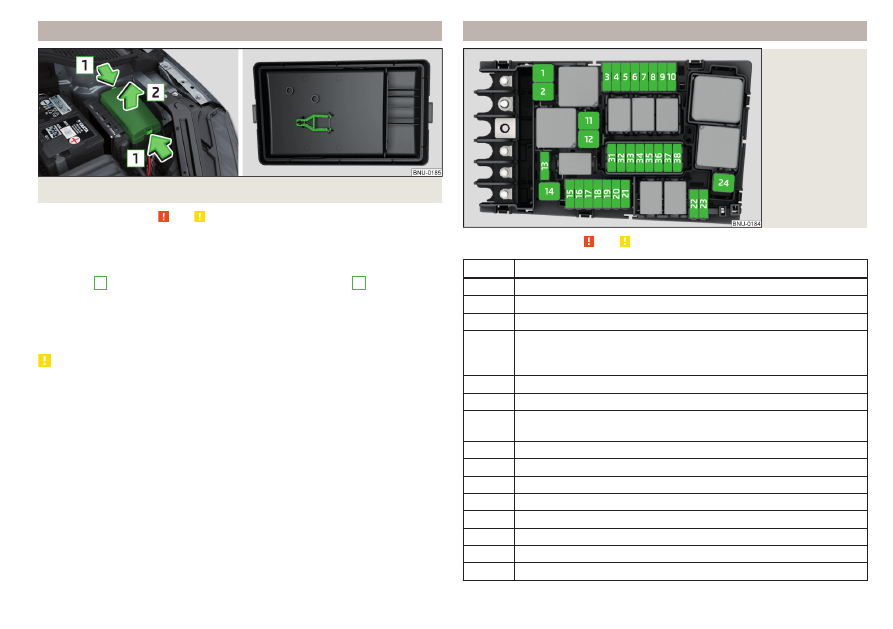

Fig. 344  Fuse box cover: Removing the cover / Plastic clip for fuses



Read and observe   and   on page 292 first.

Replacing fuses

›

Remove the ignition key, turn off the lights and all electrical consumers.

›

Simultaneously press the lock buttons of the cover together in the direction

of arrow

1

 and remove the cover in the direction of arrow

2



» Fig. 344

.

›

Remove the plastic clip under the cover of the fuse box

» Fig. 344

.

›

Use the clip to pull the fuse out, then insert a new fuse.

›

Stow the clamp back in the original position.

›

Replace the cover, push the lock buttons of the cover together and lock.

CAUTION

The cover of the fuse box in the engine compartment must always be used

correctly, otherwise water may penetrate into the fuse box – there is a danger

of damage to the vehicle!

Fuse assignment in engine compartment

Fig. 345

Fuses



Read and observe   and   on page 292 first.

No.

Consumer

1

ESC, parking brake

2

ESC

3

Engine control system

4

Radiator fan, oil level and oil temperature sensor, additional electric

heating system, SCR (AdBlue

®

), pre-heating unit, air mass meter,

engine components

5

Engine components

6

Brake sensor

7

Coolant pump, exhaust flap, crankcase ventilation, engine compo-

nents

8

Lambda probe, NOx sensor

9

Engine components

10

Fuel pump

11

Electrical auxiliary heating

12

Electrical auxiliary heating

13

Oil pump for automatic gearbox

14

Heated windscreen

15

Horn



295

Fuses and light bulbs

No.

Consumer

16

Not assigned

17

ESC, engine control unit, main relay coil

18

Databus, battery data module

19

Windscreen wipers

20

Anti-theft alarm

21

Automatic gearbox

22

Engine control system

23

Starter

24

Electrical auxiliary heating

31

Vacuum pump for the brake system

32

Not assigned

33

Not assigned

34

Not assigned

35

Not assigned

36

Not assigned

37

Aux. heating

38

Not assigned

Bulbs



Introduction

This Owner's Manual only describes the replacement of bulbs where it is possi-

ble to replace the bulbs on your own without any complications arising. Other

bulbs or LED lights must be replaced by a specialist garage.
For this reason, we recommend having bulbs replaced by a specialist garage or

seeking other expert help in the event of any uncertainties.

▶

Switch off the ignition and all of the lights before replacing a bulb.

▶

Faulty bulbs must only be replaced with the same type of bulbs. The designa-

tion is located on the light socket or the glass bulb.

We recommend having the headlight settings checked by a specialist garage

after replacing a bulb in the low, high or fog beam.

WARNING

■

Always read and observe the warnings before completing any work in the

engine compartment

» page 267

.

■

Accidents can be caused if the road in front of the vehicle is not suffi-

ciently illuminated and the vehicle cannot or can only be seen with difficulty

by other road users.

■

H7 and H8 bulbs are pressurised and may burst when changing the bulb -

risk of injury! We therefore recommended wearing gloves and safety

glasses when changing a bulb.

CAUTION

■

Do not take hold of the glass bulb with naked fingers (even the smallest

amount of dirt reduces the working life of the light bulb). Use a clean cloth,

napkin, or similar.

■

The cap of the filament bulb must always be seated correctly in the head-

light, otherwise this may allow water and debris to enter the headlight - risk of

damage to the headlights.

Note

We recommend that a box of replacement bulbs always be carried in the vehi-

cle.

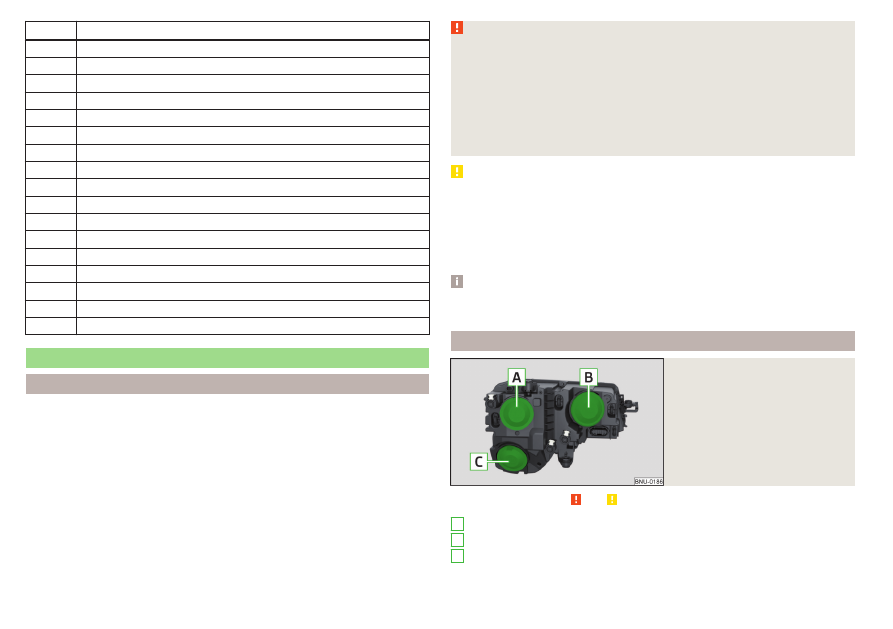

Bulb arrangement in the halogen headlights

Fig. 346

Left headlight



Read and observe   and   on page 296 first.

Low beam
Main beam, turn signal and parking light
Fog lights

A
B
C

296

Do-it-yourself

Removing bulbs for low and main beam

Fig. 347  Removing bulbs for low and main beam



Read and observe   and   on page 296 first.

›

Remove the protective caps

A

 and

B

» Fig. 346

 on page 296.

›

Press the latch

A

 on the holder in the direction of the arrow

1



» Fig. 347

.

›

Remove the connector to the bulb in the direction of arrow

2

.

›

Remove the connector.

›

Plug the connector into the new bulb so that the fixing lug

B

 on the bulb

points upwards.

›

Insert the connector, with the bulb, into the headlight opposite to the direc-

tion of arrow

2

 until you feel it lock into place.

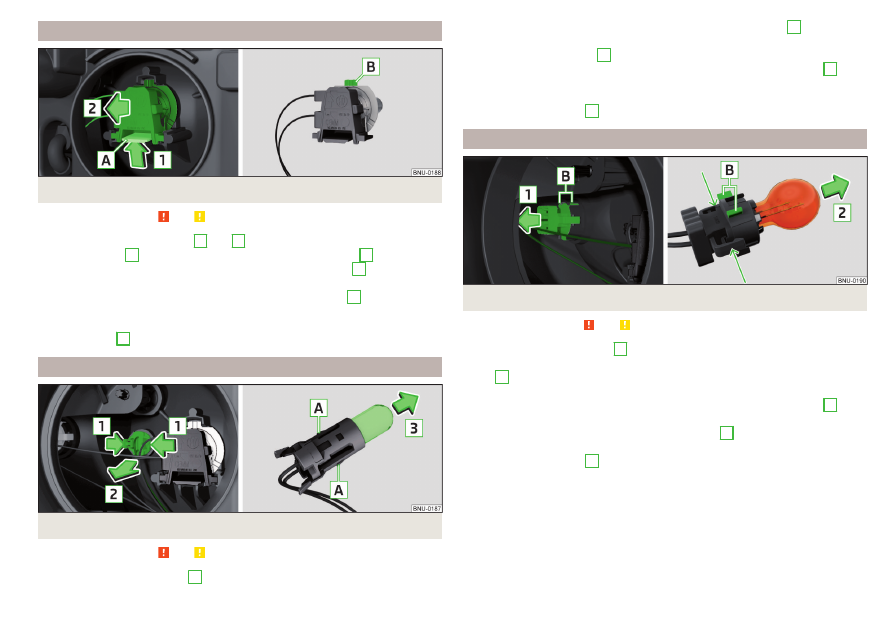

Change the light bulb for the parking light

Fig. 348  Change the light bulb for the parking light



Read and observe   and   on page 296 first.

›

Remove the protective cap

B



» Fig. 346

 on page 296.

›

Press the attachment securing lugs in the direction of arrows

1

, and care-

fully pull out the bulb holder with the bulb.

›

Grasp the holder in area

A

.

›

Remove the faulty bulb from the holder in the direction of the arrow

2

.

›

Insert a new bulb in the holder until it stops.

›

Insert the housing with bulb into the headlight again.

›

Fit the protective cap

B



» Fig. 346

 on page 296.

Changing the bulb for the front turn signal light

Fig. 349  Changing the bulb for the front turn signal light



Read and observe   and   on page 296 first.

›

Remove the protective cap

B



» Fig. 346

 on page 296.

›

Remove the holder with the bulb by jiggling it out in the direction of the ar-

row

1



» Fig. 349

.

›

Hold the holder with the bulb in the locations shown by the arrows.

›

Remove the faulty bulb from the holder in the direction of the arrow

2

.

›

Insert a new bulb in the holder until it stops.

›

Slide the holder with the bulb with the fixing lug

B

 upwards so that it fits

into the recess on the reflector.

›

Fit the protective cap

B



» Fig. 346

 on page 296.

297

Fuses and light bulbs

Changing light bulbs for fog lights

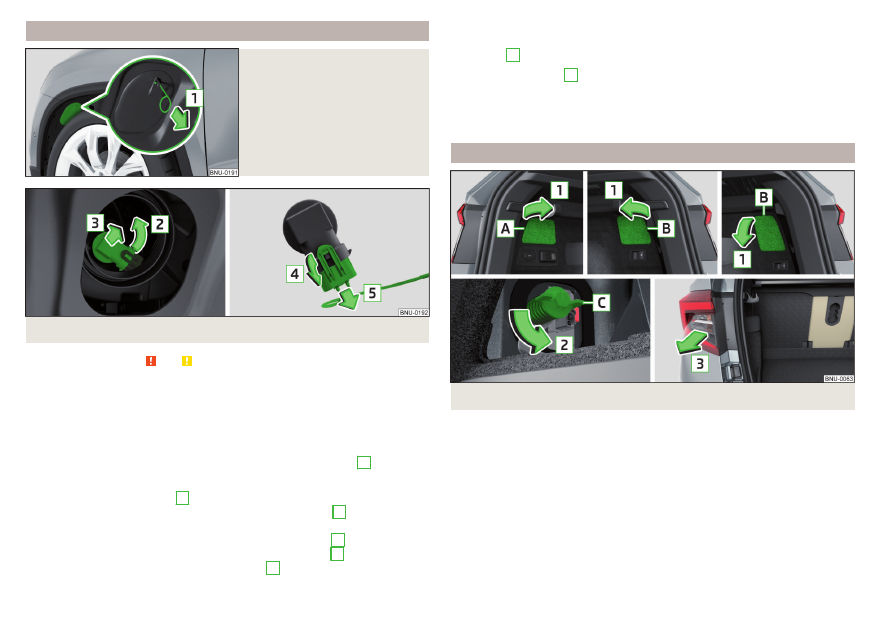

Fig. 350

Remove plastic cover

Fig. 351  Changing light bulbs for fog lights



Read and observe   and   on page 296 first.

To replace the bulb for the fog lists, remove the cover of the front wheel arch.

Remove the cover

›

Set the front wheels so that the respective cover is accessible

» Fig. 350

.

›

Insert the clamp for removing the full wheel covers into the recess in the

cover.

›

Remove the cover by pulling the hook in the direction of arrow

1

.

Replacing the light bulb

›

Remove the protective cap

C



» Fig. 346

 on page 296.

›

Turn the holder with the bulb in the direction of the arrow

2

 as far as the

stop

» Fig. 351

.

›

Remove the holder with the bulb in the direction of arrow

3

 .

›

Undo the latch on the connector in the direction of arrow

4

.

›

Remove the key in the direction of the arrow

5

.

›

Attach the connector to the new holder with the light bulb.

›

Insert a new holder with the bulb in the headlamp and turn it in the direction

of arrow

2

 as far as the stop.

Fit the protective cap

C



» Fig. 346

 on page 296.

Insert cover

›

Insert and push the cover into the corresponding opening

» Fig. 350

. The

cover must engage securely.

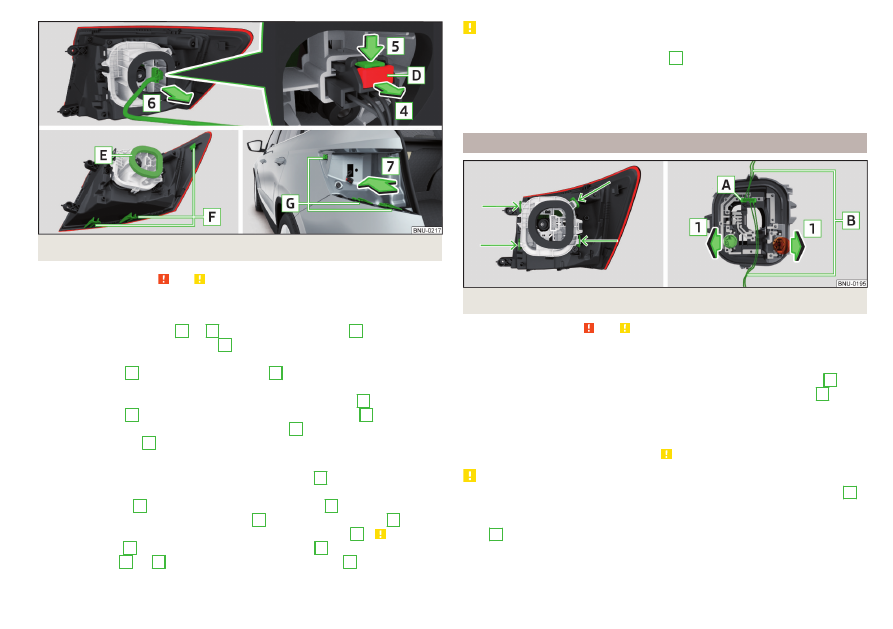

Removing/installing tail light

Fig. 352  Removing the pop-up version for the cap / light



298

Do-it-yourself

Fig. 353  Removing the plug / installing the light



Read and observe   and   on page 296 first.

Removing

›

Open the boot lid.

›

Open the respective cap

A

 or

B

 in the direction of arrow

1



» Fig. 352

. The

pop-up versions for the right cap

B

 are different depending on equipment

fitted.

›

Remove screw

C

 in the direction of arrow

2

. The screw remains in the

body, which is fitted with an anti-fall device.

›

Hold the light and carefully remove in the direction of arrow

3

.

›

Press the latch

D

 on the holder in the direction of the arrow

4



» Fig. 353

.

›

Press the securing lug in the direction of arrow

5

 and pull out the plug in the

direction of arrow

6

.

Fitting

›

Slide the plug in the opposite direction of the arrow

6

» Fig. 353

 into the

light.

›

Secure the latch

D

 in the opposite direction to arrow

4

.

›

Carefully insert the lamp with the strips

F

 into the guide grooves

G

 in the

body and the lamp to the stop in the direction of the arrow

7



»

.

›

Tighten screw

C

 in the opposite direction to arrow

2



» Fig. 352

.

›

Close the cap

A

 or.

B

 in the opposite direction of arrow

1

 and insert into

the respective opening.

CAUTION

■

Ensure that when re-inserting the light the wiring harness between the body

and the light is not jammed and the seal

E



» Fig. 353

 is correctly inserted -

Otherwise there is a risk of water ingress and damage to the electrical installa-

tion.

■

Ensure that the vehicle paintwork and the tail lamp are not damaged when

removing and installing the tail lamp.

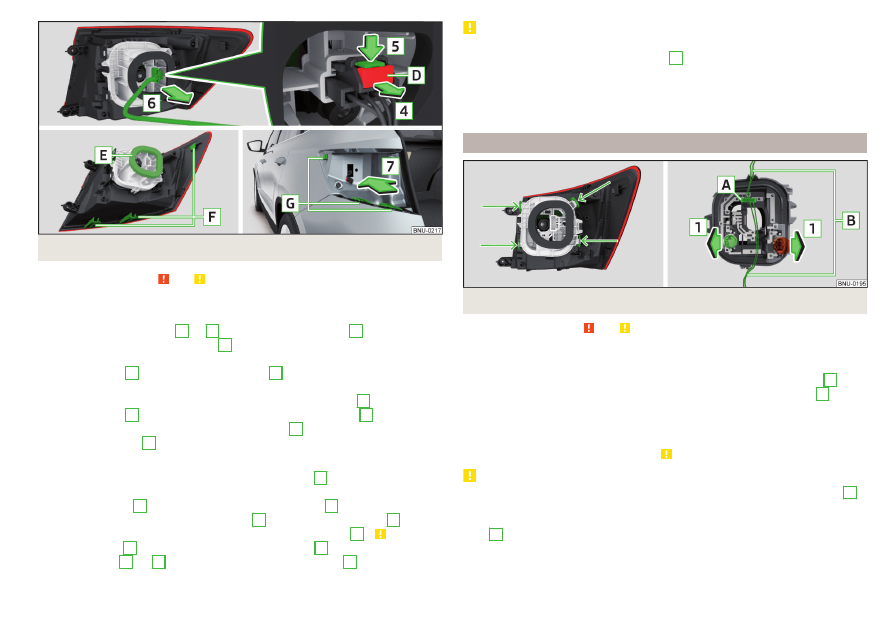

Changing the bulbs in the taillight (turn signal and reversing lights)

Fig. 354  Outer part of the lamp/holder with bulbs



Read and observe   and   on page 296 first.

›

Unlock the bulb holder at the areas marked with arrows

» Fig. 354

 and re-

move from the light.

›

Remove the faulty bulb from the holder in the direction of the arrow

1

.

›

Insert a new bulb into the holder in the opposite direction to arrow

1

.

The lamp holder for the indicator is provided with the lettering .
The lamp holder for the reversing lamp is provided with the lettering .

›

Insert the bulb holder into the light

»

. The holder must engage securely.

CAUTION

■

Before inserting the bulb holder into the light , check that the connector

A

» Fig. 354

 is fitted correctly between the light and the bulb holder.

■

Make sure that when refitting the bulb holder into the light, the wiring har-

ness

B

 is not pinched - otherwise there is a risk of damage to the electrical

installation.

299

Fuses and light bulbs

Technical data

Technical data

Basic vehicle data



Introduction

The details given in the vehicle's technical documentation always take prece-

dence over the details in the Owner's Manual.
The listed performance values were determined without performance-reduc-

ing equipment, e.g. air conditioning system.
The values given have been determined in accordance with the rules and con-

ditions specified in statutory or technical regulations for determining opera-

tional and technical data for motor vehicles.
The values listed are for the basic model without any optional equipment.

Vehicle data

Fig. 355

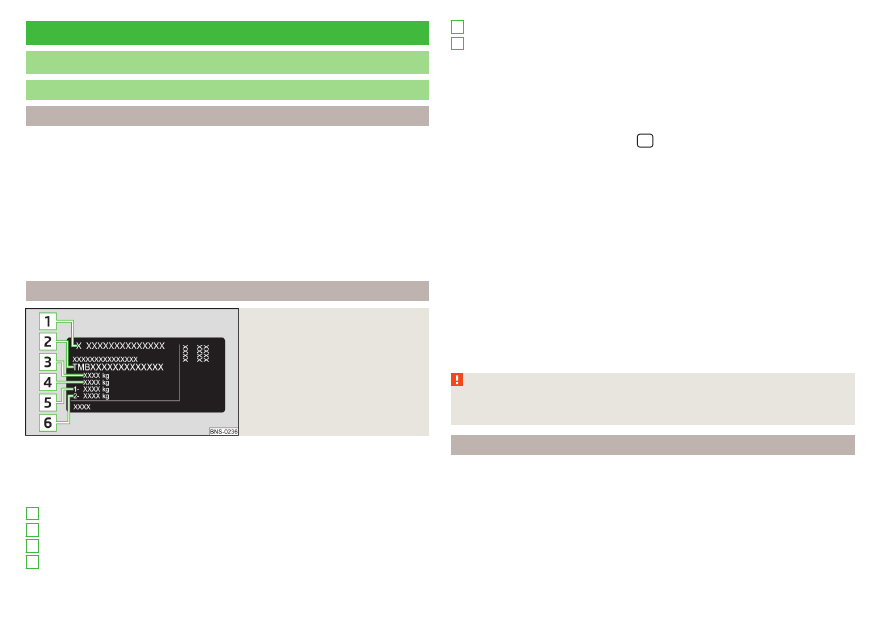

Type plate

Type plate

The rating plate

» Fig. 355

 is located at the bottom of the B-column on the

right-hand driver's side.
The type plate contains the following data.

Vehicle manufacturers
Vehicle identification number (VIN)
Maximum permissible gross weight
Maximum permissible towed weight (towing vehicle and trailer)

1

2
3
4

Maximum permissible front axle load
Maximum permissible rear axle load

Vehicle identification number (VIN)

The vehicle identification number - VIN (vehicle body number) is stamped into

the engine compartment on the right hand suspension strut dome. This num-

ber is also located on a sign on the lower left hand edge below the windscreen

(together with a VIN bar code), and on the type plate.
The VIN can also be displayed in the



/  →  → Events menu.

Engine number

The engine number is embossed in the engine block.

Supplementary Information (applies to Russia)

The full type approval number of the means of transport is indicated in the

registration documents, field 17.

Maximum permissible towed weight

The listed maximum allowable trailer weight is only valid for altitudes up to

1000 m above sea level.
The engine output falls as altitude increases, as does the vehicle's climbing

power. Therefore, for every additional 1000 m in height (or part), the maxi-

mum permissible towed weight must be reduced by 10%.
The towed weight is made up of the actual weights of the loaded towing vehi-

cle and the loaded trailer.

WARNING

Do not exceed the specified maximum permissible weights – risk of acci-

dent and damage!

Operating weight

This value is only a guide value and corresponds to the lowest possible operat-

ing weight without any equipment added that would also increase the weight

(e.g. emergency or spare wheel etc.). This includes 75 kg driver's weight, the

weight of the operating fluids and the on-board tool kit and a fuel tank filled to

min. 90%.



5
6

300

Technical data
