Skoda Karoq (2019 year). Manual - part 7

Inserting hook

›

Place the hook in the direction of the slant on the fastening strip and

straighten in the direction of the arrow

6



» Fig. 141

.

›

Press in the hook in the direction of arrow

7

 and fold down in the direction

of arrow

8

.

Hooks

Fig. 142

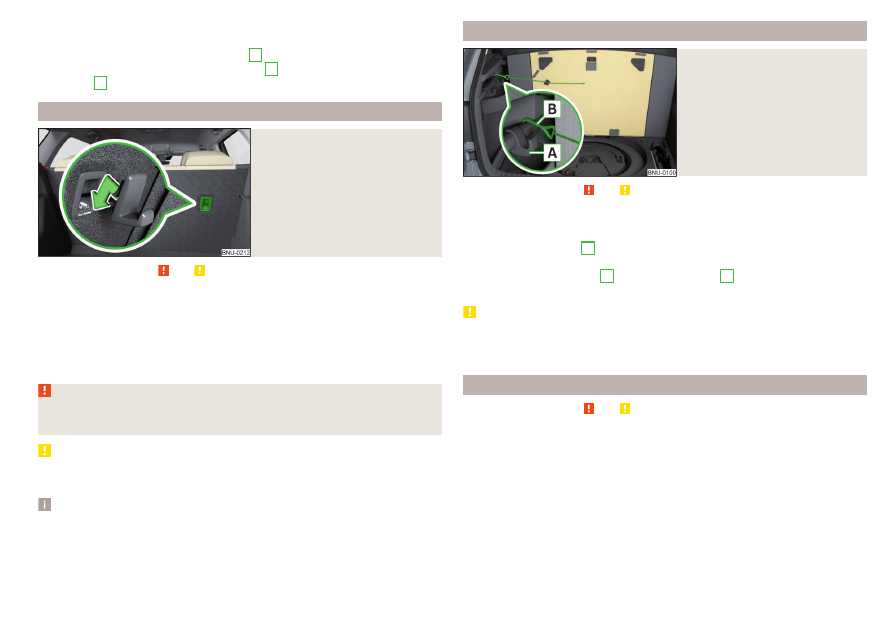

Inserting hook



Read and observe   and   on page 107 first.

The hook can be attached to the locking eye of the   system. This is

intended to be used for holding small items of luggage (e.g. bags or similar).

›

Hang the hook on the locking eye in the direction of the arrow

» Fig. 142

.

Removing takes place in reverse order.
The maximum permissible load of the hook is 5 kg.

WARNING

Remove the hook before folding the rear seat backrests - there is a risk of

injury.

CAUTION

Remove the hook before folding the rear seat backrests - there is a risk of

damage to the hook as well as to the transported load.

Note

Secure the hook before attaching the child restraint strap to the  sys-

tem.

Fasten the flooring

Fig. 143

fixing the floor covering



Read and observe   and   on page 107 first.

The flooring can be fastened with the hook to the strip on the left side of the

luggage compartment.

›

Move the front hook

A

 as far forward as possible and fold it down as far as

it will go

» Fig. 143

.

›

Fasten the flooring hook

B

 in front of the hook

A

 that has been folded

down.

CAUTION

The flooring covering may be only fastened to this strip with the boot open.

Before closing the lid, check that the flooring is not fastened to the strip -

there is a risk of damage to the luggage compartment cover.

Floor covering on both sides



Read and observe   and   on page 107 first.

A double-sided floor covering can be fitted in the luggage compartment. One

side is made of fabric, the other side is washable (suitable for transporting wet

or dirty items ).

109

Transport of cargo

Luggage compartment cover

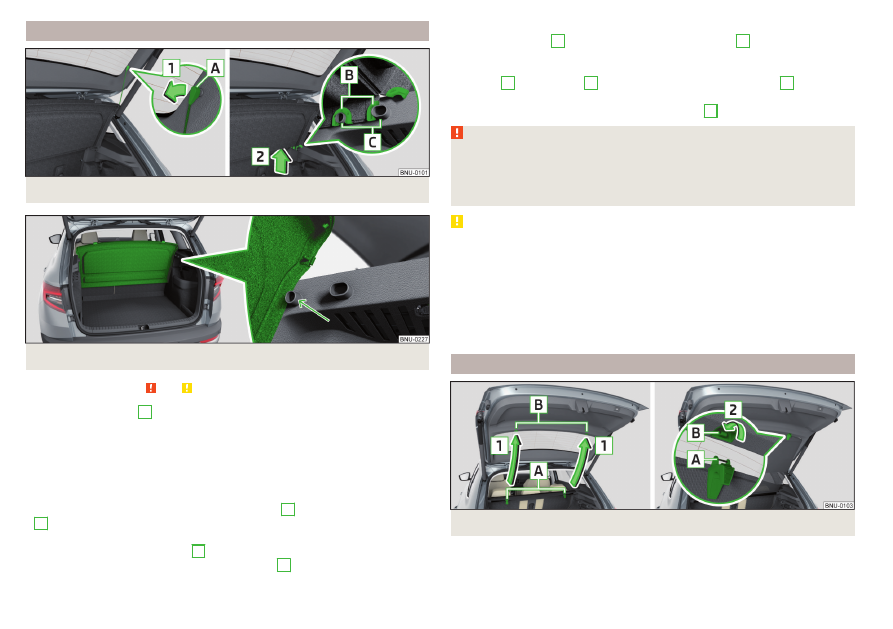

Fig. 144  Remove the luggage compartment cover

Fig. 145  Luggage compartment cover stowed behind the rear seats



Read and observe   and   on page 107 first.

If the retaining straps

A



» Fig. 144

 are attached to the boot lid, then opening

the lid will also raise the luggage compartment cover (hereafter only referred

to as "cover").
The cover may be removed from the vehicle or stored in front of the bracket

» Fig. 145

.

Removing

›

On both sides of the boot lid, unhook the straps

A

 in the direction of arrow

1



» Fig. 144

.

›

Hold the raised cover and press on the two sides on the underside of the

cover in the area of the recess

C

.

›

Remove the cover in the direction of the arrow

2

.

Fitting

›

Place the fixtures

B

 on the cover above the brackets

C

 on the side trim

» Fig. 144

.

›

Press on the two sides to the upper side of the cover in the region of the

mounts

C

. The fixtures

B

 must lock into place in the mounts

C

 on both

sides of the luggage compartment.

›

On both sides of the boot lid unhook the straps

A

.

WARNING

■

During the trip there must be no objects on the cover - risk of injury in the

event of sudden braking or a vehicle collision!

■

The luggage compartment cover stowed behind the rear seats restricts

the driver's rear view.

CAUTION

■

Observe the following instructions to avoid canting and the subsequent

damage to the cover or the side trim.

■

The cover must be inserted properly and the load must not exceed the

height of the cover.

■

The cover must not be jammed in the surrounding seal of the luggage com-

partment lid when it is in the raised position.

■

There must be no object in the gap between the cover in the raise position

and the rear backrest.

Roll-up cover

Fig. 146  Fastening roll-up cover to luggage compartment flap



110

Operation

Fig. 147

Removing the roll-up cover



Read and observe   and   on page 107 first.

The roll-up cover (hereinafter only referred to as cover) can be attached to the

luggage compartment flap.
If the cover detents

A



» Fig. 146

 are fastened to the luggage compartment

flap, the cover is also pulled out simultaneously when the flap is opened.

Fastening/ releasing

›

to fasten, pull out the cover in the direction of the arrows

1

 Pull out and

fasten the detents

A

 in the direction of the arrow

2

 in the attachments

B

»

.

›

To detach, unhook the detents

A

 From the attachments

B

 against the di-

rection of the arrow

2

.

›

Hold the cover in such a way that it can roll up slowly and without any dam-

age away from the direction of the arrow

1

.

Removing/inserting

The rolled-up cover can be removed.

›

Press on the side of the cross bar in the direction of arrow

3

 and remove

the cover in the arrow direction

4



» Fig. 147

.

To insert, proceed in reverse order.

WARNING

No objects should be placed on the roll-up cover - there is a risk of damage

to the cover and a risk of injury in the event of a sudden stop or a vehicle

collision!

CAUTION

■

The detents must be properly inserted into both attachments - otherwise

there is a risk of damage to the cover.

■

Do not place sharp objects under the cover - there is a risk of damage to the

cover.

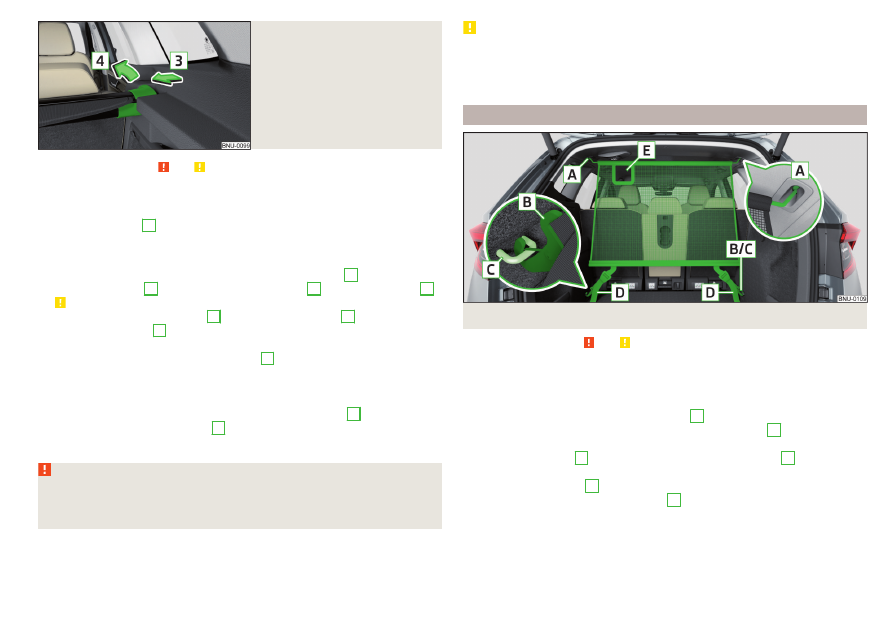

Net partition

Fig. 148  Net partition behind the rear seats



Read and observe   and   on page 107 first.

The net partition can either fitted behind the front seats or behind the rear

seats.

Fitting/removing net partition behind the rear seats

›

To the install the cross rod into the mount

A

, first insert it at side and then

press it forward. Insert the transverse rod into the mount

A

 on the other

side of the vehicle in the same way

» Fig. 148

.

›

Latch the carabines

B

 at the belt ends into the lashing eyes

C

.

›

In the case of vehicles with the variable loading floor,lock the carabiners into

the front lashing eyes

D



» Fig. 137

 on page 107.

›

Pull the straps at the free ends tightly

D



» Fig. 148

.

Removingis carried out in the reverse order.

Fitting/removing net partition behind the front seats

The process is analogous to that for behind the rear seats.



111

Transport of cargo

The lashing eyes for hooking the carabiner are located under the central body

pillars.

WARNING

Depending on the equipment fitted, a “safety loop” can be on the net parti-

tion belts. Never try to detach the “loop”. In the event of an accident, the

net partition could become detached and thus occupants sustaining inju-

ries.

Note

The opening

D

 in the net partition is for passing the seat belt through.

Storage compartments in the luggage compartment

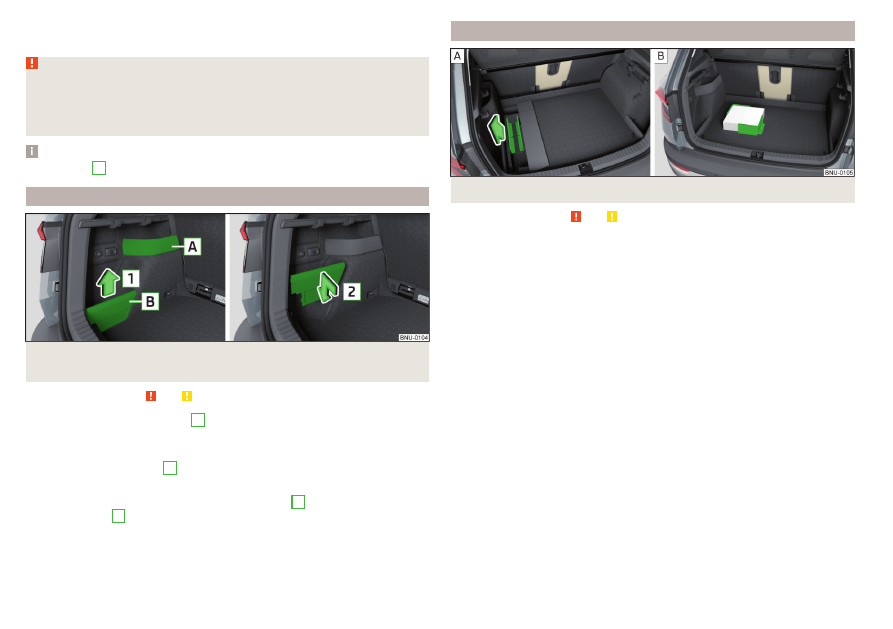

Fig. 149  Storage compartments, removing the cover / inserting the

cover



Read and observe   and   on page 107 first.

The fixed storage compartment

A



» Fig. 149

 can be on the left or right side of

the luggage compartment and is intended for placing small items up to a total

weight of 1.5 kg.
The storage compartment

B

 is on both sides of the luggage compartment

and is designed for storing small objects of up to 2.5 kg. in weight in total.
The cover can be removed in the direction of arrow

1

 and inserted in the di-

rection of arrow

2

 .

Cargo elements

Fig. 150  Removing cargo element / Load fastening example



Read and observe   and   on page 107 first.

Depending on the equipment fitted, Cargo elements can be stored under the

floor in the boot.
The cargo elements are designed for mounting and securing loads with a maxi-

mum gross weight of 8 kg.

›

To reach the CargoElements, first fold the left part of the floor covering

» Fig. 151

 on page 113.

›

Before use, remove theCargo elements in the direction of arrow

» Fig. 150

 -



.

›

Use the cargo elements to secure the load as close as possible to the rear

seats

» Fig. 150

 .

›

After use, stow the Cargoelements in their original position.

112

Operation

Storage compartments under the floor covering

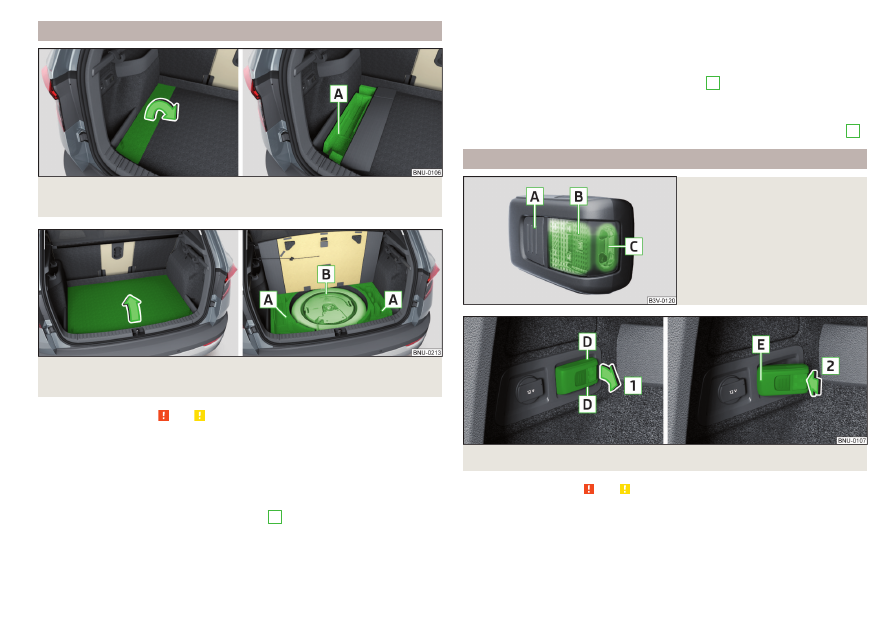

Fig. 151  Variant 1: fold floor covering/storage compartment under the

floor covering

Fig. 152  Variant 2: Lift floor covering/storage compartments under the

floor covering



Read and observe   and   on page 107 first.

There are storage compartments for storage of items up to a total weight of

15 kg

» Fig. 151

 or.

» Fig. 152

 under the luggage compartment flooring.

Using the storage compartments - variant 1

›

To reach the storage compartment, fold the left part of the floor covering in

the direction of the arrow

» Fig. 151

.

›

Stow the load in the storage compartment

A

.

›

Fold back the flooring opposite the direction of the arrow.

Using the storage compartments - variant 2

›

Raise the floor of the luggage compartment in the direction of the arrow and

hook the hook on the bar, on the left side of the luggage compartment

» Fig. 152

.

›

Stow the cargo in the storage compartments

A

.

›

Unhook the hook and fold back the flooring opposite the direction of the ar-

row.

Depending on the equipment fitted, a storage compartment can be in area

B

.

Removable light

Fig. 153

Removable light

Fig. 154  Removing light/inserting light



Read and observe   and   on page 107 first.

The lamp is for the illumination of the luggage compartment or it can be used

as a portable lamp.
The lamp is equipped with a magnet. As a result, this can, for example, be fitted

to the vehicle body.



113

Transport of cargo

Description of the light

» Fig. 153

Button to turn the light that has been removed on / off
Part that lights up when the lamp is in the mount
Part that lights up when the lamp is not in the mount

If the light is in the mount, this will illuminate when the boot lid is opened.

›

To remove, hold the light in the area

D

 and swivel in the direction of arrow

1

» Fig. 154

.

›

To switch on the removed light, press button

A

» Fig. 153

. Pressing the light

again will switch it off.

›

To insert, first of all insert the light with the rear part

E

 into the mount

» Fig. 154

 and then push the light in the direction of arrow

2

 until it audibly

clicks into place.

If the light is not switched off and is correctly inserted in the mount, the LED

diodes in the front part of the light

C

» Fig. 153

 are automatically switched off.

If the lamp is not correctly inserted into the holder, this does not light up when

the boot lid is opened and the rechargeable batteries are not charged.

Lamp charges

The lamp is supplied by three rechargeable type NiMH AAA batteries (voltage

1.2 V). The batteries are charged continuously with the engine running (to fully

charge the battery takes approximately 3 hours).
Replace batteries

» page 289

.

CAUTION

The light is not waterproof, so it must be protected from humidity - otherwise

there is risk of damage.

A
B
C

Variable loading floor in the luggage compartment (Estate)

Positions of the variable loading floor

Fig. 155  Adjusting the variable loading floor

The variable loading floor can be adjusted to the upper, lower position, or a

connection can be formed to the seat backrests that have been folded for-

wards.

›

Raise the variable loading floor by the handle

A

 in direction of arrow

1

 and

move partially in the direction of arrow

2



» Fig. 155

.

›

To set in the upper position, position the variable loading floor in the front

area on edge

C

.

›

To set to the lower position Lay the variable loading floor on the luggage

compartment flooring and the front area on edge

B

.

›

To form a connection to seat backrests that have been folded forwards, lay

the variable loading floor in the front area on edge

D

.

›

Lay the variable loading floor in direction of arrow

3

 up to the latch and the

arrow

4

 .



114

Operation

The area under the variable loading floor can be used to stow small objects.

The maximum permissible load of the variable loading floor is 75 kg. For the

transport of heavy loads, adjust the variable loading floor in the lower position.

“Parking position”

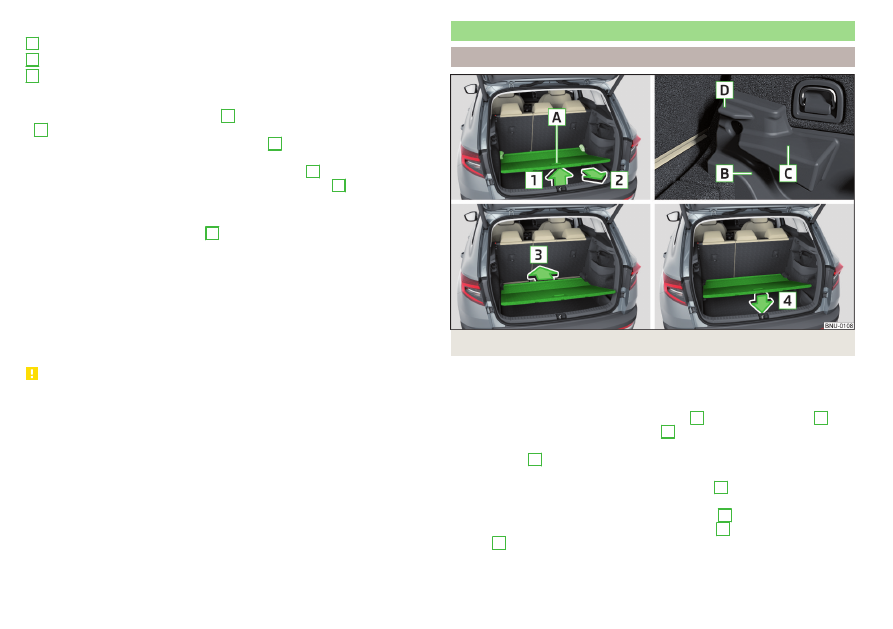

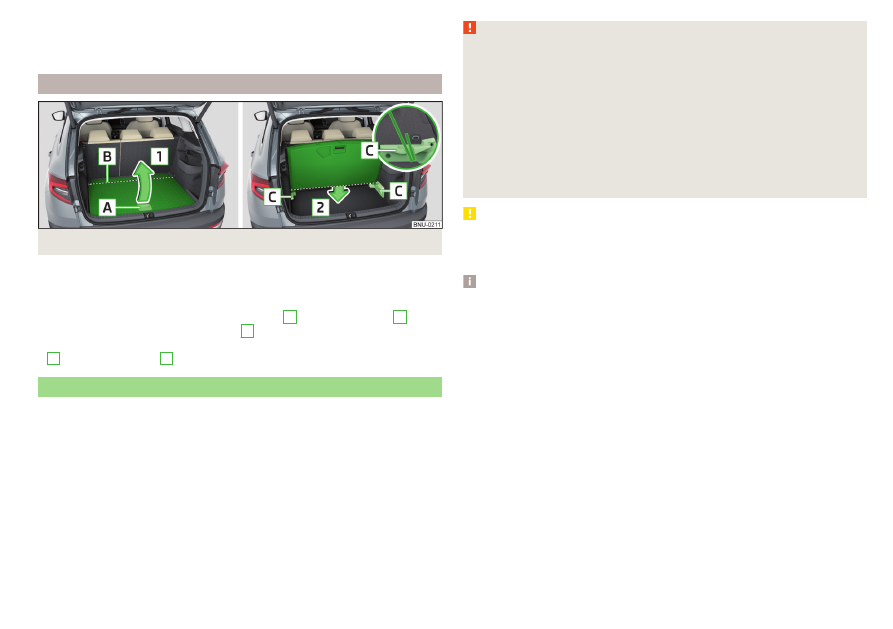

Fig. 156  Adjustment options for the variable loading floor

For instance, to reach the spare wheel more easily, the variable loading floor

can be set to the “parking position”.

›

Set the variable loading floor to the upper position.

›

Lift the variable loading floor using the handle

A

 in the direction of

1

. The

variable loading floor is kinked in area

B

 “”

» Fig. 156

.

›

Push the variable loading floor that is “kinked” in the direction of the arrow

2

 into the side panel

C

.

Transportation on the roof rack

The roof cross beams can be attached to the roof rail depending on the equip-

ment fitted.
Mounting and dismounting of the roof bars is carried out according to the in-

structions provided.

Roof load

The maximum permitted weight of the load incl. the carrier is 75 kg.

WARNING

For road safety when transporting cargo on the roof rack, observe the fol-

lowing instructions.

■

Always distribute the load on the roof rack evenly and secure properly us-

ing suitable lashing straps or tensioning straps.

■

When transporting heavy objects or objects which take up a large area on

the roof rack system, the handling of the car may change as a result of the

displacement of the centre of gravity. The style of driving and speed must

therefore be adapted to the current circumstances.

■

The permissible roof load, permissible axle loads and permissible total ve-

hicle weight must not be exceeded under any circumstances – risk of acci-

dent!

CAUTION

■

Make sure that the sliding / tilting roof or the boot lid does not collide with

the roof load when opened.

■

Ensure the roof aerial is not impaired by the load being transported.

Note

We recommend that you use a roof rack from ŠKODA Original Accessories.

115

Transport of cargo

Heating and ventilation

Heating, manual air conditioning system, Climatronic



Introduction

The heating heats and ventilates the vehicle interior. The air conditioning sys-

tem also cools and dehumidifies the vehicle interior.
The heating effect is dependent upon the coolant temperature, thus full heat

output only occurs when the engine has reached its operating temperature.
The cooling system works under the following conditions.

The cooling system is switched on.
The engine is running.
The outside temperature is below 2 ° C.
The blower is switched on.

Fogging is prevented when the cooling system is switched on.
It is possible to boost the effectiveness of the cooling system by briefly acti-

vating the air recirculation system

» page 119

.

Health protection

To reduce health risks (e.g. common colds), the following instructions for the

use of the cooling system are to be observed.

▶

The difference between the indoor temperature and the outdoor air temper-

ature should not be greater than about 5 ° C.

▶

The cooling system should be turned off about 10 minutes before the end of

the journey.

▶

Once a year, the air conditioning should be disinfected by a specialist garage.

WARNING

■

The blower should always be on to prevent the windows from misting.

Otherwise there could be an accident.

■

Under certain circumstances, air at a temperature of about 5 °C can flow

out of the vents when the cooling system is switched on.









Note

■

The air inlet in front of the windscreen must be free of e.g. ice, snow or

leaves to ensure that the heating and cooling system operates properly.

■

After switching on the cooling Condensation from the evaporator of the air

conditioning may drip down and form a puddle below the vehicle. This is not a

leak!

■

If the coolant temperature is too high, the cooling system is switched off to

ensure that the engine cools down.

Heating and manual air conditioning

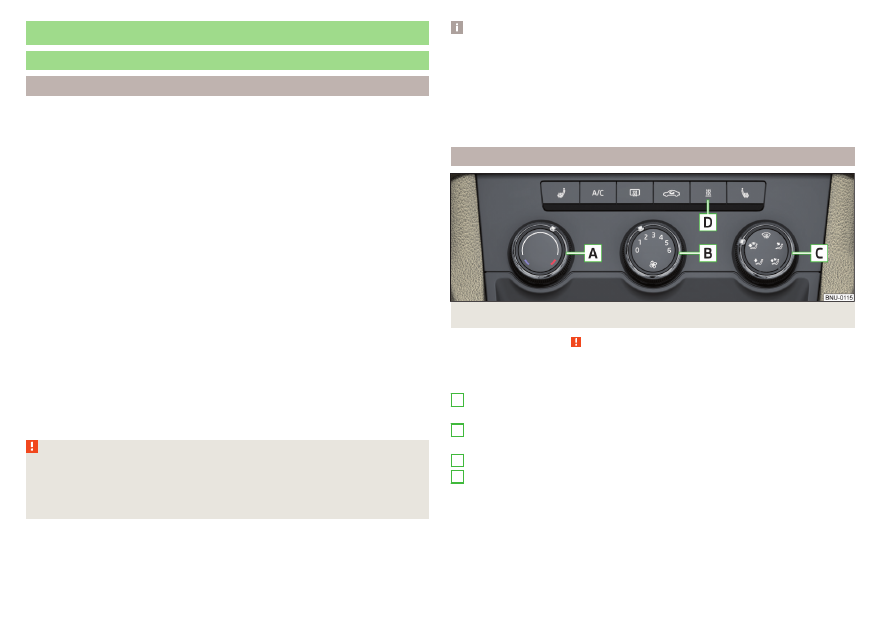

Fig. 157  Controls of the heating / air conditioning



Read and observe   on page 116 first.

Individual functions can be set or switched on by turning the dial or pressing

the corresponding button

» Fig. 157

.

Setting temperature

▶



 Reduce the temperature/



 Increase the temperature

Set the blower speed (Level 0: Adjust the fan speed (level 0: fan off; level

6: highest speed)
Set the direction of the air outlet

» page 120

Depending on equipment fitted:

▶



 Auxiliary heating and ventilation on / switch off

» page 121

▶



 Switch the windscreen heater on/off

» page 79

Switch the cooling system on/off
Switch on/off the rear window heating

» page 79

Switch recirculation on/off

» page 119



A

B

C
D







116

Operation

When the function is switched on, the indicator lamp below the button lights

up.

Information on the cooling system

After pressing the button , the warning light underneath the button illumi-

nates even if not all conditions are met for the cooling system. The cooling

system starts to work as soon as the following conditions have been met

» page 116

.

When the air distribution control is turned to position  the cooling system is

activated.

Note

To ensure adequate thermal comfort, during operation of the manual air condi-

tioning there could be an increase in the engine idle speed in some circumstan-

ces.

Climatronic (automatic air conditioning)

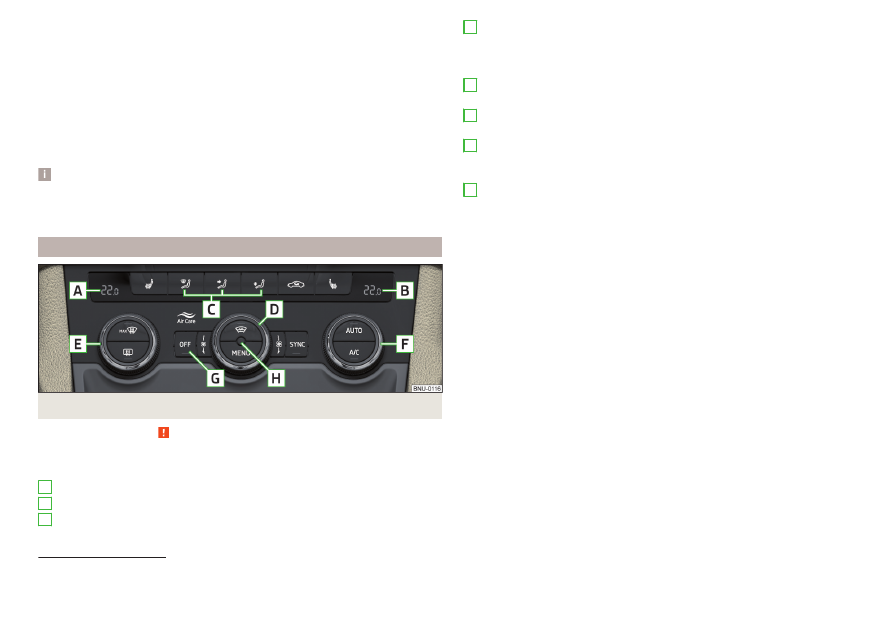

Fig. 158  Controls the Climatronic



Read and observe   on page 116 first.

Individual functions can be set or switched on by turning the dial or pressing

the corresponding button

» Fig. 158

.

Display the temperature setting for the left side
Display the temperature setting for the right side
Set the direction of the air outlet

» page 120

A
B
C

Adjust fan speed (the setting is indicated by the number of illuminated

control lamps shown in the knob)

▶

Turn to the left: Reduce speed up to turning off the Climatronic

▶

Turn to the right: Increase speed

Adjust the temperature for the left side (or for both sides)

1)

▶



 Reduce the temperature/



 Increase the temperature

Adjust the temperature for the right side (or for both sides)

2)

▶



 Reduce the temperature/



 Increase the temperature

Depending on equipment fitted:

▶



 Auxiliary heating and ventilation on / switch off

» page 121

▶



 Switching Climatronic system off

Interior temperature sensor
Switch recirculation on/off

» page 119

Intense air flow to the windscreen on / off (when switching on, the air

flow to the windows  and  is also switched on)
Switch on/off the rear window heating

» page 79

Switching the windscreen heater on/off

» page 79

Setting Climatronic in Infotainment ( can also be operated with some

functions)

Synchronize the temperature inside the entire vehicle according to the

temperature setting on the driver's side

Switching automatic mode on

» page 118

Switch the cooling system on/off

When the function is switched on, an indicator lamp lights up inside or below

the button.

Setting temperature

The temperature can be set on the Climatronic control unit or in Infotain-

ment

» page 118

. In the range between 16°C to 29.5°C, an automatic tempera-

ture control takes place.
At a temperature setting below 16 ° C,  lights up in the temperature display,

the Climatronic functions with maximum cooling performance.
At a temperature setting over 29.5 ° C,  lights up in the temperature display,

the Climatronic functions with maximum heating output.



D

E

F

G

H

















1)

Applies to left-hand drive vehicles.

2)

Applies to right-hand drive vehicles.

117

Heating and ventilation

CAUTION

Do not cover the interior temperature sensor

H



» Fig. 158

 - the function of

the Climatronic could be affected.

Note

■

In order to ensure adequate thermal comfort, there may be an increase in en-

gine idle speed during operation of the Climatronic in some circumstances.

■

The setting of the Climatronic is stored in the active user account personali-

sation

» page 57

.

Operate Climatronic in Infotainment

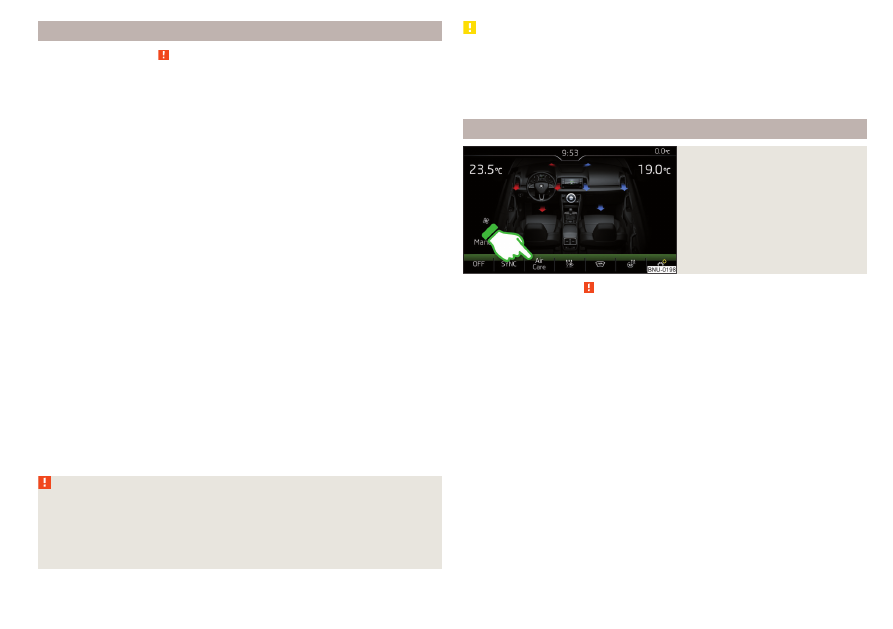

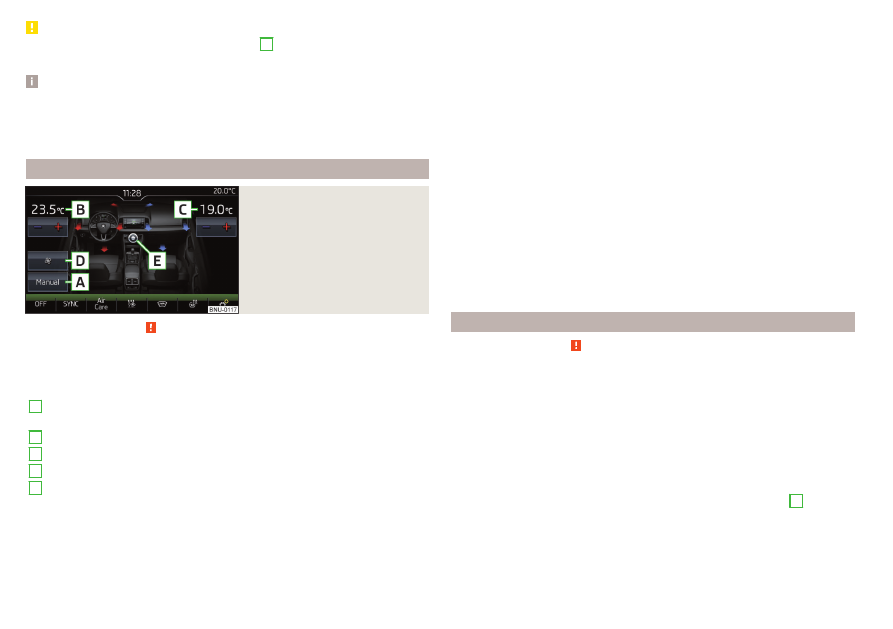

Fig. 159

Infotainment: example display of

the main Climatronic menu



Read and observe   on page 116 first.

›

To display the main menu press the button  on the Climatronic control

unit.

Function surfaces and screen display

» Fig. 159

.

A

Displays the current operation mode (or set the operation mode) of

the Climatronic

B

Set the desired temperature (front - left side)

C

Set the desired temperature (front - right side)

D

Setting the power in  operation

E

Switching on/off and adjusting the fan speed, cooling system, air dis-

tribution and air recirculation

a)







Colour representation of the air flow from the air vents at the front

(Blue colour - temperature reduction / red colour - temperature in-

crease)



Switching on/off the Climatronic



Switch the temperature synchronisation on/off throughout the entire

interior of the vehicle according to the temperature setting on the

driver's side

a)



  Switch Air Care function on/off



Set the auxiliary heater and ventilation



Switch the windscreen heating on/off

a)



Turn the steering wheel heating on/off

a)



Other Climatronic settings

a)

When function is switched on, the symbol in the function surface is green.

Other Climatronic settings

Press the  button on the Climatronic control panel → Tap the function sur-

face  on the Infotainment screen.

■

Air con. profile - Setting the operating performance  during operation (ap-

plies to Infotainment Swing)

■

Automatic air recirculation - Automatic re-circulated air mode on/off

■

Automatic auxiliary heater - Quick interior heating on/off

■

Automatic windscreen heating - Activates/deactivates the automatic windscreen

heating

Climatronic - automatic operation



Read and observe   on page 116 first.

The automatic mode is used in order to maintain a constant temperature and

to demist the windows in the interior of the car.

›

To turn on, press 

» Fig. 158

 on page 117 .

›

To turn off, press any button for the air distribution or change the blower

speed. The temperature regulation is continued.

Holding the button  will turn on  automatically.

Operating modes

Automatic mode works in three modes - moderate, medium, and intensive.

Setting the different modes is carried out via the function surface

D



» Fig. 159

on page 118.
After the automatic mode is switched on, Climatronic works in the last selec-

ted mode. The currently selected mode is displayed in the Infotainment dis-

play.

118

Operation

Air distribution control



Read and observe   on page 116 first.

The recirculation mode prevents contaminated outside air getting into the In-

terior of the vehicle. In recirculated air mode air is sucked out of the interior of

the vehicle and then fed back into the interior.

›

To switch on, press the  button. The warning light below the button lights

up.

›

To switch off, press the  button again. The warning light below the button

goes out.

Heating and manual air conditioning system

If the air distribution control is set to position  when the recirculation modes

is switched on, the recirculated-air mode is switched off. By pressing the 

button, the air recirculation also in this position can be switched on again.
When the cooling system ( button) is switched on and the temperature reg-

ulator is “turned” to the left, the recirculated-air mode is switched on.

Climatronic

The Climatronic can have a sensor that measures the air recirculation mode

and automatically turns on if there is an increased concentration of pollutants

in the incoming air.
When the pollutant concentration decreases to the normal level, the recircula-

ted air mode is automatically switched off.
Automatic switch-on/switch-off of the air recirculation function can be set in

the Infotainment screen, by pressing the  button on the Climatronic and by

then pressing the function surface  → Automatic air recirculation.
A shut-off of the air recirculation function takes place automatically by press-

ing the button, possibly depending on the moisture conditions in the vehi-

cle interior.

WARNING

The air recirculation cannot be switched on for a longer period of time be-

cause there is no supply of fresh air from the outside. “Stale air” may result

in fatigue in the driver and occupants, reduce attention levels and also

cause the windows to mist up. As soon as the windows mist up, turn the air

recirculation mode off immediately - there is a risk of accident!

CAUTION

We recommend not smoking in the vehicle when the recirculating air opera-

tion is switched on. The smoke sucked from inside the vehicle is deposited on

the evaporator of the air conditioner. This produces a permanent odour when

the air conditioning system is operating which can only be eliminated through

considerable effort and expense (replacement of compressor).

Climatronic - Air Care function

Fig. 160

Example display of the Air Care

function



Read and observe   on page 116 first.

The Air CareFunction reduces pollutant penetration contained in the outside

air into the vehicle.
When the function is activated, the air in the vehicle is circulated and cleaned

at the same time. The cleaning process is displayed by the zones displayed in

the Infotainment screen.

›

To switch on/off, press the  button on the Climatronic control panel, and

then tap on the function surface   → Active on the Infotainment

screen

» Fig. 160

.

To ensure correct Air Care functioning, all doors and windows including the

panoramic sliding/tilting roof must be closed.
When opening a door or a window, the corresponding message is displayed in

the Infotainment screen.

119

Heating and ventilation

Air outlet vents

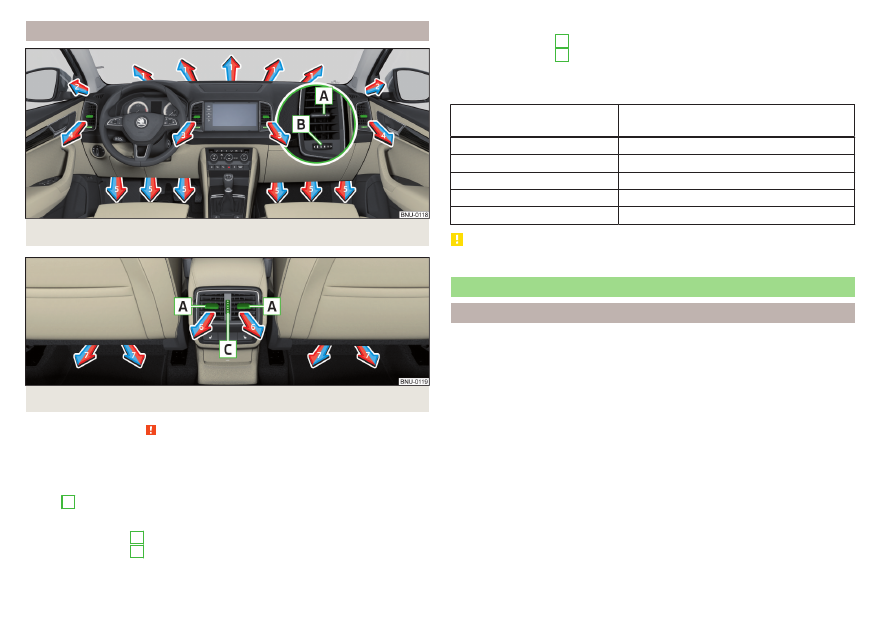

Fig. 161  Air outlet vents

Fig. 162  Air vents at the rear



Read and observe   on page 116 first.

The direction of airflow can be adjusted using the air outlet vents 3, 4

» Fig. 161

and 6

» Fig. 162

, and the vents can be opened and closed individually.

The setting of the airflow direction is carried out by moving the adjustment el-

ement

A



» Fig. 161

 or

» Fig. 162

 in the desired direction.

Opening

›

Turn the regulator

B



» Fig. 161

 downwards.

›

Turn the regulator

C



» Fig. 162

 upwards.

Closing

›

Turn the regulator

B



» Fig. 161

 downwards.

›

Turn the regulator

C



» Fig. 162

 downwards.

Depending on the setting of the air distribution, the air stream comes out of

the following air vents.

Set the direction of the air

outlet

Air vents

» Fig. 161

 and

» Fig. 162



1, 2, 4



1, 2, 4, 5, 7



3, 4, 6



4, 5, 7



3, 4, 5, 6, 7

CAUTION

Do not cover the air vents - the air distribution could be compromised.

Auxiliary heating (auxiliary heating and ventilation)



Introduction

The auxiliary heating heats the vehicle interior as well as the engine. For heat-

ing, fuel is consumed from the fuel tank.
The auxiliary ventilation enables fresh air to flow into the vehicle interior with

the engine switched off, whereby the interior temperature is effectively de-

creased (e.g. with the vehicle parked in the sun).
The auxiliary heating (auxiliary heating and ventilation) (referred to just as auxil-

iary heating in the following) ensures the heating / ventilation depending on

the setting of the air conditioning and the air outlet vents before switching off

the ignition.



120

Operation

WARNING

■

The auxiliary heating must never be operated in closed rooms (e.g. garag-

es) – risk of poisoning!

■

The auxiliary heating must not be allowed to run during refuelling – risk of

fire.

■

The exhaust pipe of the auxiliary heating is located on the underside of

the vehicle. If you want to use the auxiliary heating, do not park the car in

places where the exhaust fumes can come into contact with flammable

materials such as dry grass, undergrowth, leaves, spilled fuel etc. - risk of

fire.

CAUTION

The air inlet in front of the windscreen must be free (e.g. of ice, snow or

leaves) to ensure that the auxiliary heating operates properly.

Note

■

The auxiliary heating switches the blower on, if it has achieved a coolant tem-

perature of approx. 50 °C.

■

In the engine compartment, water vapour may form during the operation of

the heater.

Power on/off

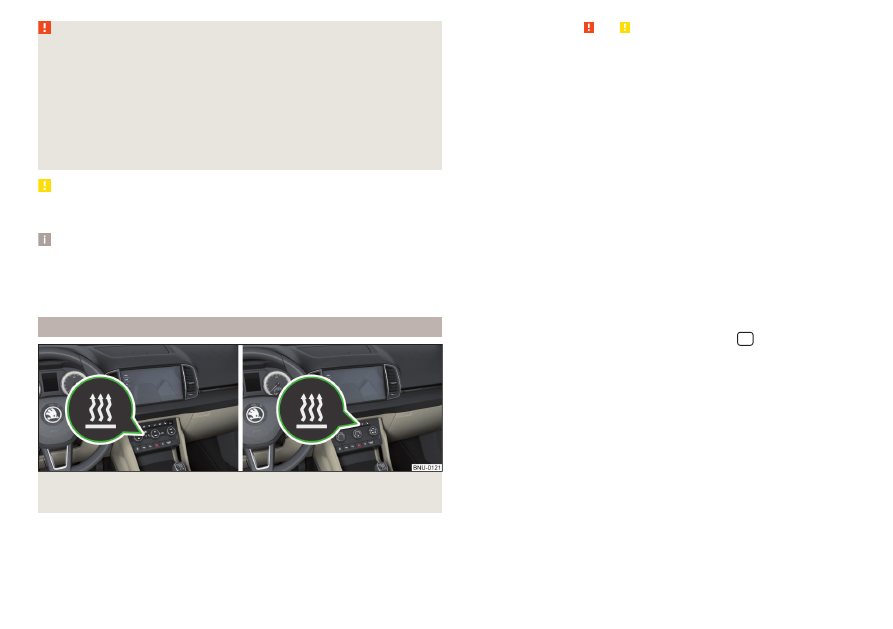

Fig. 163  Button for switching on / off (Climatronic / manual air condi-

tioning)



Read and observe   and   on page 121 first.

Functional requirements of the auxiliary heating.

The charge state of the vehicle battery is sufficient.
The fuel supply is adequate (the warning light



 is not illuminated in the

instrument cluster).

Manual on / off

▶

Using the  button on the control panel of the air conditioner

» Fig. 163

.

▶

Using the  (switch on) /  (switch off) button on the remote control opera-

tion.

Automatic on / off

▶

Via an enabled pre-selection time in Infotainment.

▶

According to the environmental conditions.

After switching off the system, the coolant pump and the auxiliary heating will

continue running a little while longer in order to burn the remaining fuel in the

heating.

Setting automatic on / off

Climatronic: On the Climatronic, press the  button → tap the  function

surface on the Infotainment screen. There will be a display of the last set oper-

ating mode with the option to change this.
Manual air conditioning: in Infotainment in the menu



/  tap the  func-

tion surface.
Then follow the instructions in the Infotainment screen.
When automatic switching on is activated, the warning light in the  symbol

button lights up for about 10 seconds after the ignition is turned off

» Fig. 163

.





121

Heating and ventilation

Operation in Infotainment

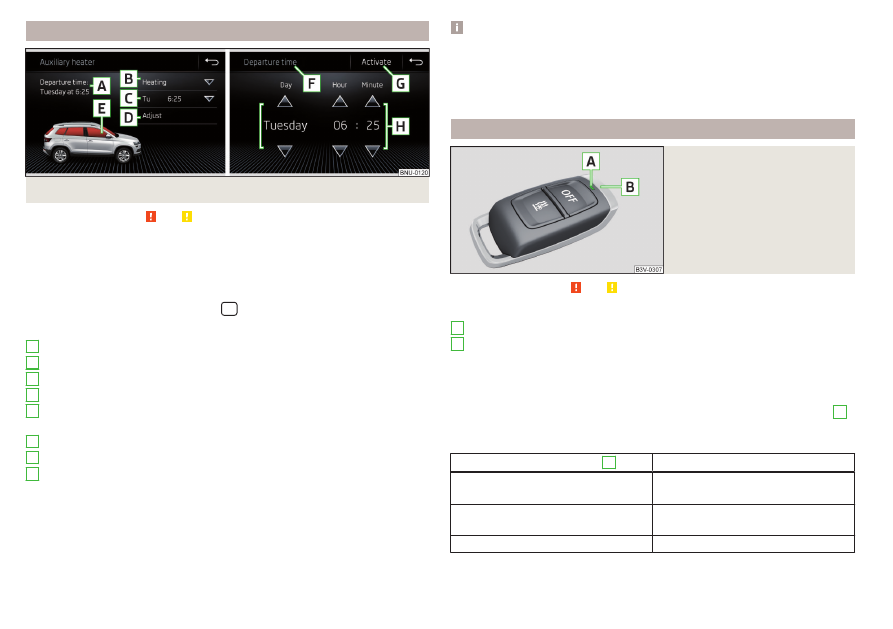

Fig. 164  Auxiliary heater: Main menu/set preset time



Read and observe   and   on page 121 first.

Call up the main menu

›

On the Climatronic, press the  button → Tap on the function surface  in

the Infotainment screen.

Or vehicles with manual air conditioning:

›

In the Infotainment system, in menu



/  tap the  function surface.

Function surfaces and screen display

» Fig. 164

Departure time - Day and time when the vehicle is to be ready for use
Setting the operating mode (heating / ventilation)
List of pre-selected times, activation / deactivation of the preset time
Set the preset times 1-3 and the duration (10-60 minutes)
When heating the windows are shown in red / with continuous aeration,

the windows are shown in blue
Currently displayed preset time
Activation of the currently displayed preset time
Setting the departure time: Day, hour, minute

Only one preset time can be active. The activated preset time will be deactiva-

ted again after it has started automatically. For the next start, activate one of

the preset times.

A
B
C
D

E

F

G
H

Note

■

When selecting the day in the preset time, there is an option between Sun-

day and Monday without the specified day. If this setting is selected, the vehi-

cle will be ready for use at the selected time, regardless of the current day.

■

If a different time is set, the activated preset time is automatically deactiva-

ted. The preset time must be reactivated.

Radio remote control

Fig. 165

Wireless remote control



Read and observe   and   on page 121 first.

Description of the remote control

» Fig. 165

Warning light
Aerial
Switch on the auxiliary heating
Switch off the auxiliary heating

The auxiliary heating is switched on/off by pressing the button. To switch the

remote control on or off, hold the remote control vertically, with the aerial

B

» Fig. 165

 pointing upwards. Do not cover the antenna with the fingers or the

palm of the hand.

Display warning light

A

Meaning

Lights up green for 2 seconds.

The auxiliary heating has been switch-

ed on.

Lights up red for 2 seconds.

The auxiliary heating has been switch-

ed off.

Slowly flashes green for 2 seconds.

The ignition signal was not received.



A
B





122

Operation

Display warning light

A

Meaning

Quickly flashes green for 2 seconds.

The auxiliary heating is blocked, e.g.

because the tank is nearly empty or

there is a fault in the auxiliary heating.

Flashes red for 2 seconds.

The switch off signal was not re-

ceived.

Lights up orange for 2 seconds, then

green or red.

The battery is weak, however the

switching on or off signal was re-

ceived.

Lights up orange for 2 seconds, then

flashes green or red.

The battery is weak, however the

switching on or off signal was not re-

ceived.

Flashes orange for 5 seconds.

The battery is discharged, however

the switching on or off signal was not

received.

Replace the battery

» page 288

.

CAUTION

■

The remote control must be protected against moisture, severe shocks and

direct sunlight - otherwise, there is a risk of damage to the remote control.

■

The range of the remote control with a charged battery is a few hundred me-

tres (depending on obstructions between the remote control and the vehicle,

weather conditions, the battery condition etc.).

123

Heating and ventilation

Infotainment

Introductory information

Important information

Introduction to the subject

WARNING

■

Only use Infotainment in such a way that you have control of the vehicle

in every traffic situation (e.g. Do not write text messages while driving, do

not couple or connect the telephone, do not work with the contact list, do

not enter any destinations, do not connect WLAN or SmartLink etc.)- Oth-

erwise there is a risk of an accident!

■

Always route the connection cable of the external device in such a way

that it does not restrict you when driving.

WARNING

■

Adjust the volume to ensure that acoustic signals from outside the vehi-

cle, e.g. sirens from emergency vehicles, can be heard at all times.

■

High volumes can cause hearing damage!

CAUTION

In some countries, some Infotainment features can no longer be selected

when the vehicle is running faster than a certain speed. This is not a malfunc-

tion, but complies with the national legal regulations.

Mobile devices and applications

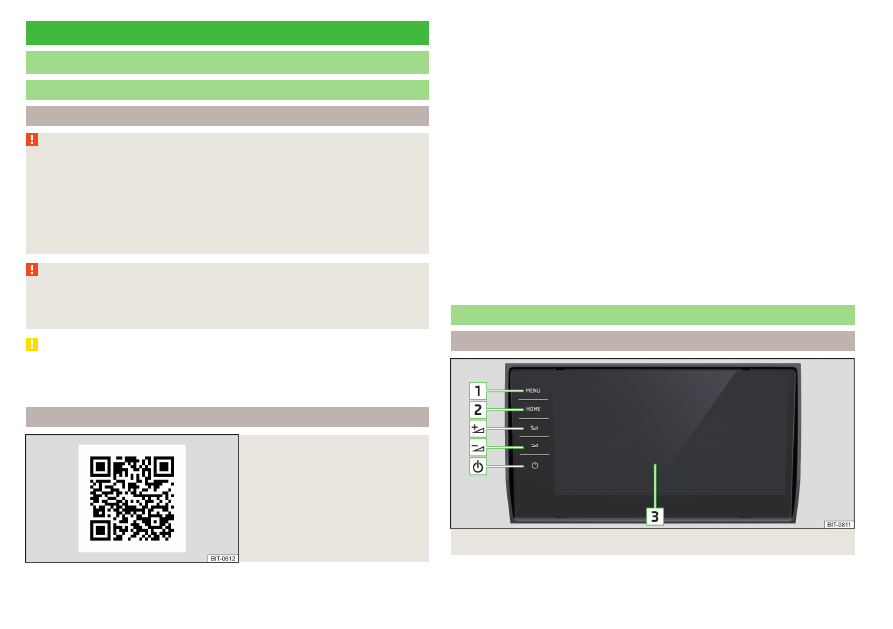

Fig. 166

QR code with reference to web

pages for checking the compati-

bility of devices

The availability of some of the functions described in this Owner's Manual

depends on the type of device to be connected and the applications instal-

led in it.

Compatibility

On the ŠKODA pages, check to see if Infotainment is compatible with the se-

lected mobile devices. This check takes place by reading the QR code

» Fig. 166

 or after typing the following address into the web browser.

http://go.skoda.eu/compatibility

Applications

Applications can be installed in external devices (e.g. Mobile, tablet) making it

possible to display additional information in the Infotainment screen or to op-

erate Infotainment.
Due to the variety of applications as well as their ongoing development, the

available applications may not work in all external devices. ŠKODA AUTO can

accept no liability for their proper function.
The range of available applications and their functionality is dependent on the

Infotainment type, as well as vehicle and region.

Infotainment Overview

Description - Infotainment Columbus

Fig. 167  Infotainment Columbus



124

Infotainment
