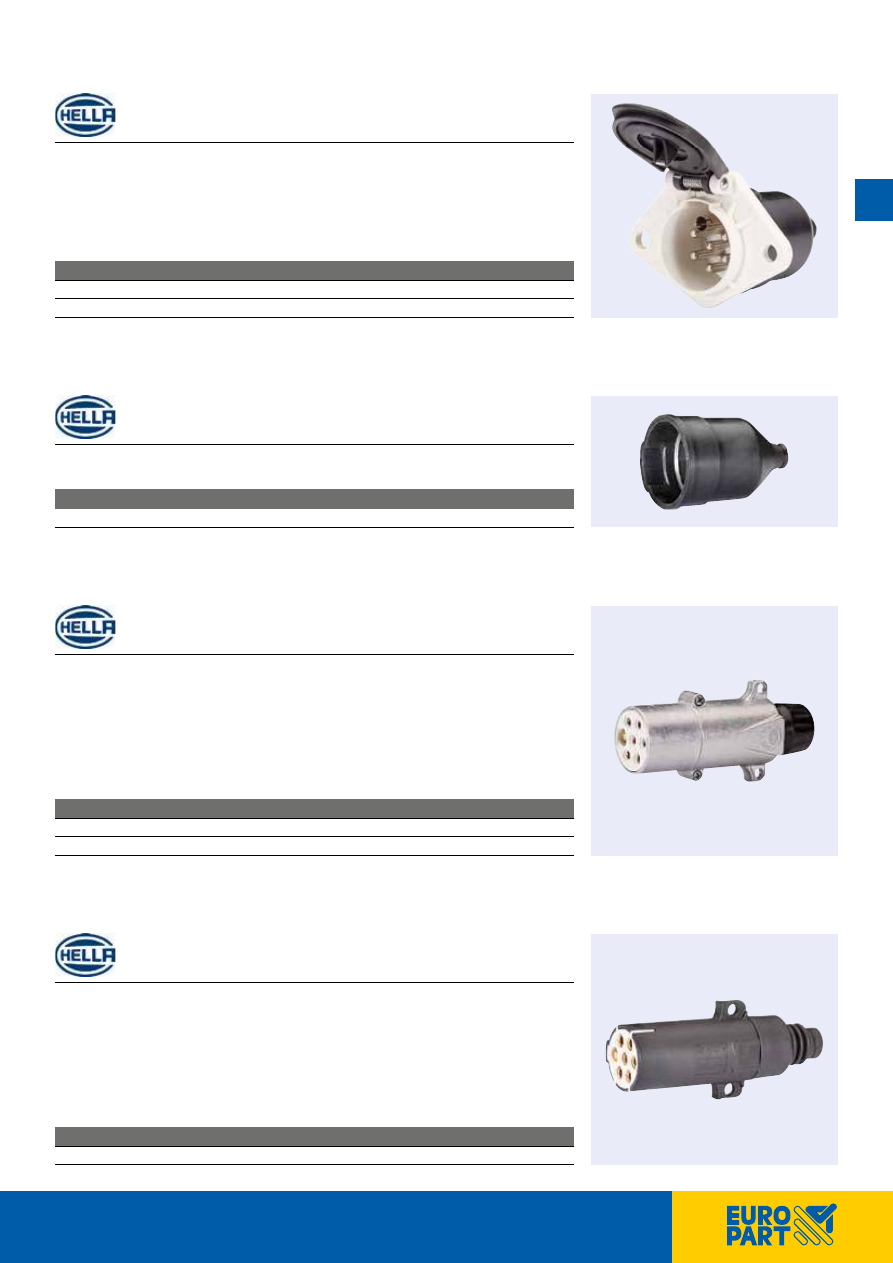

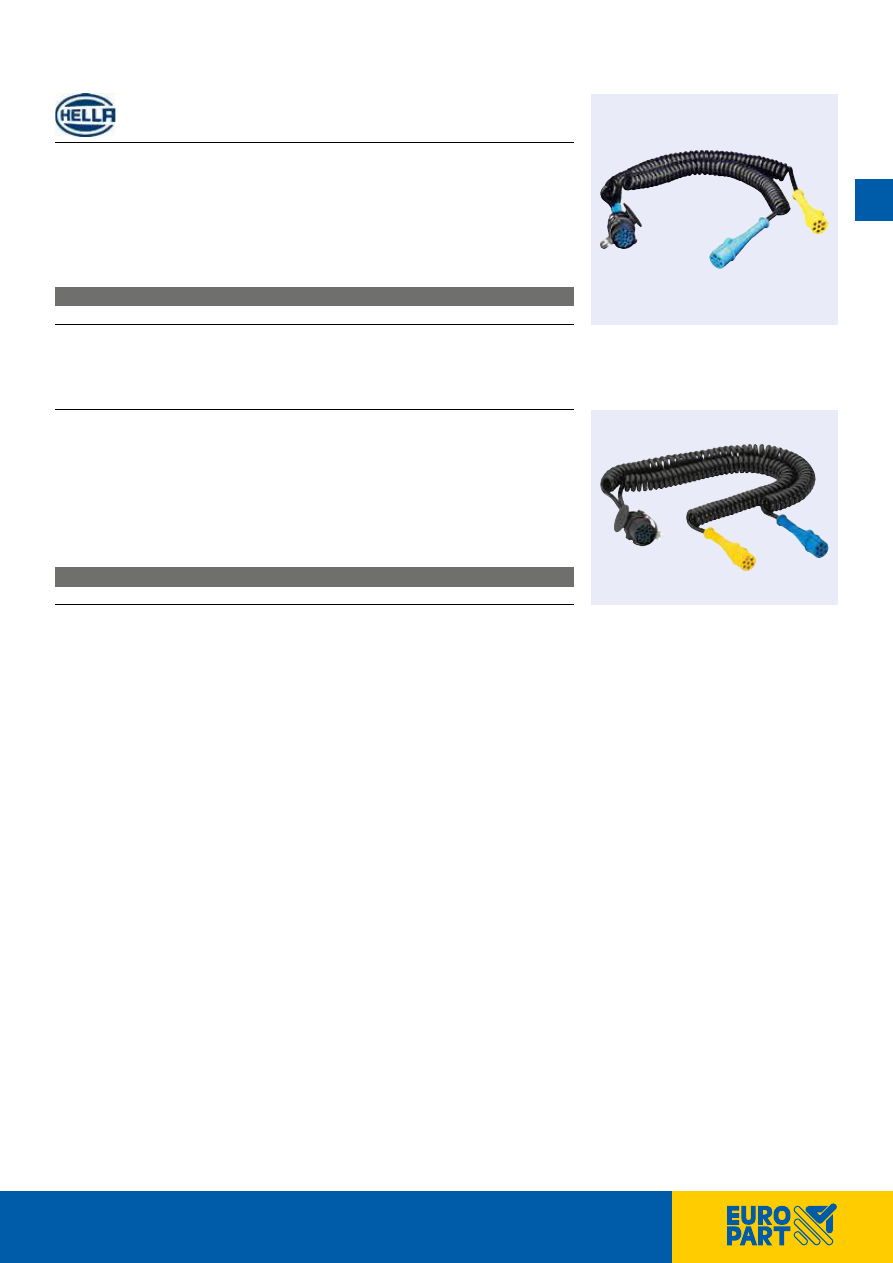

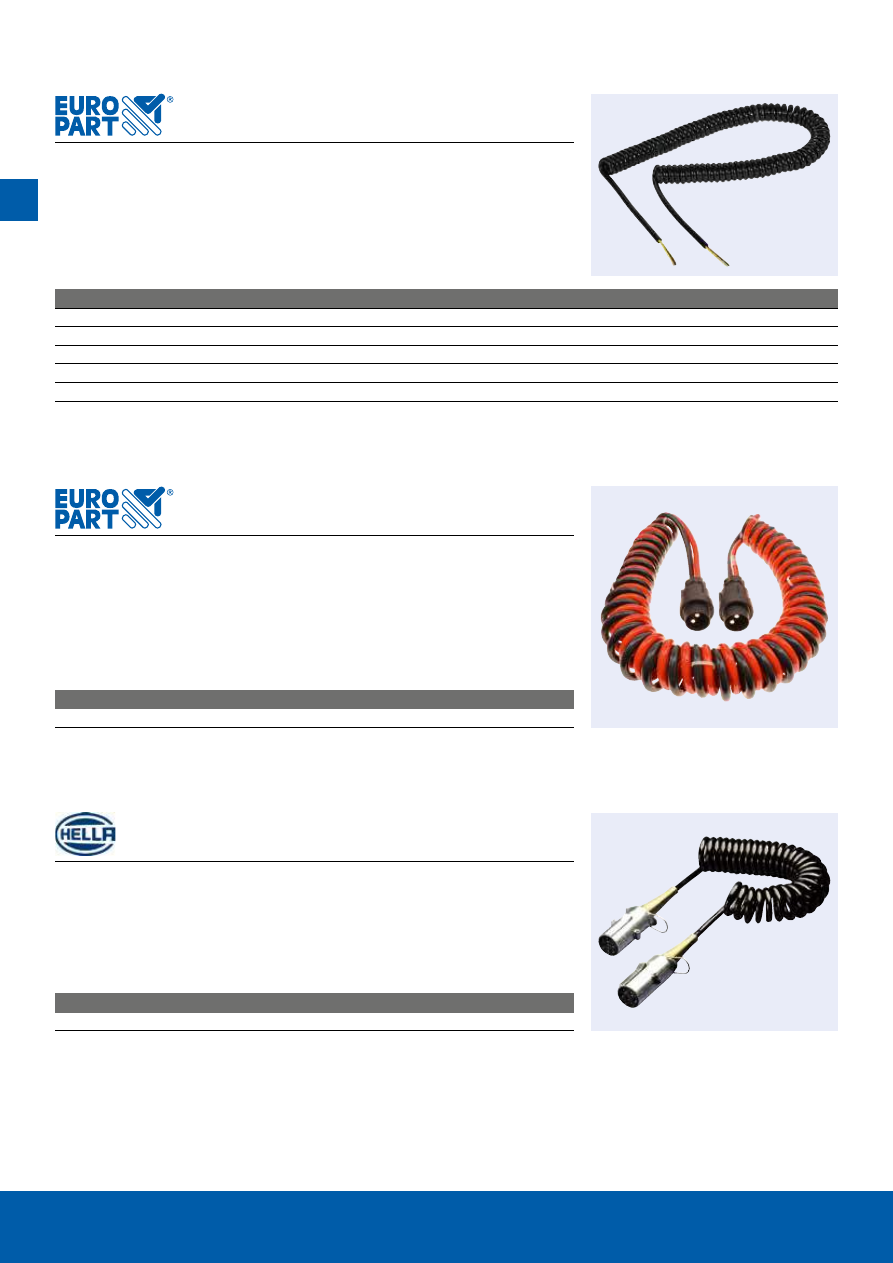

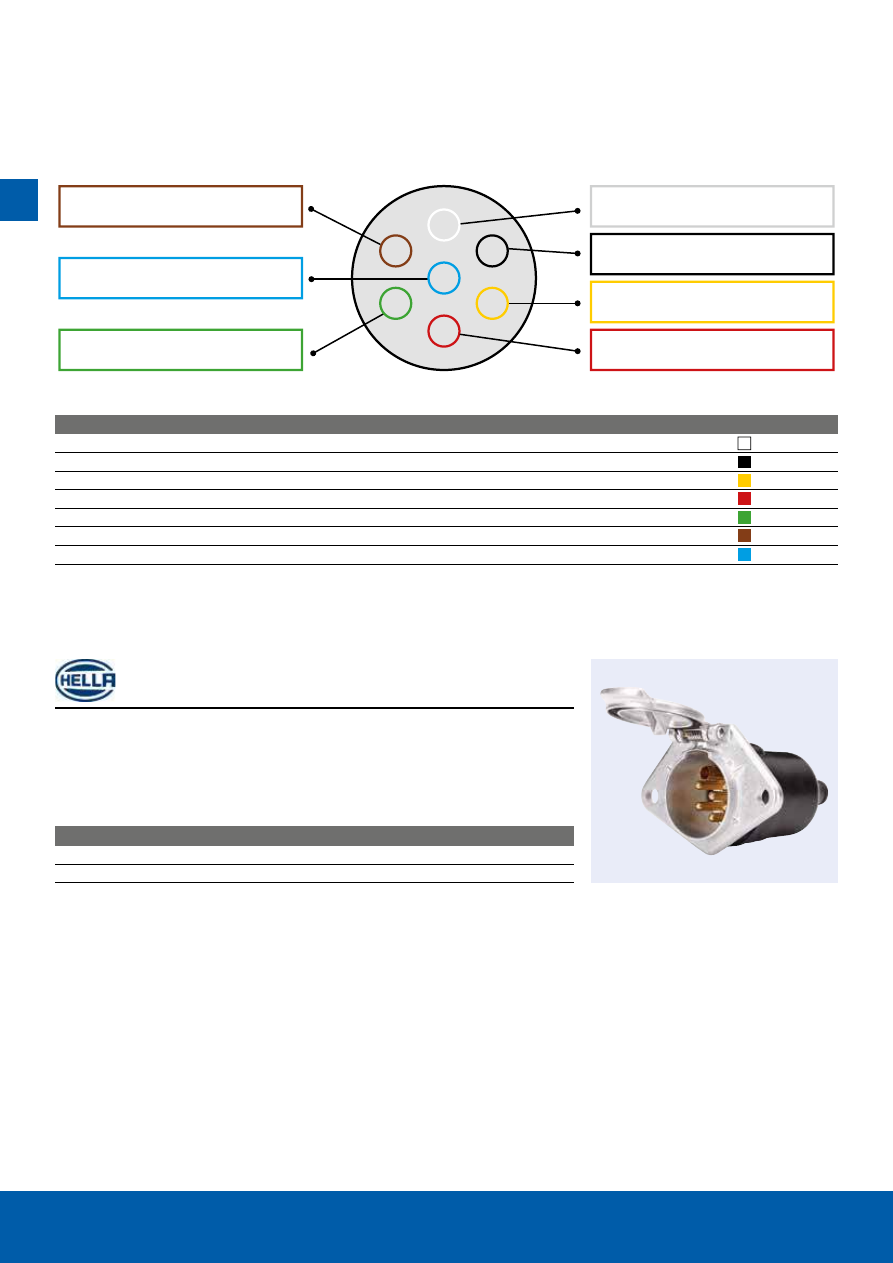

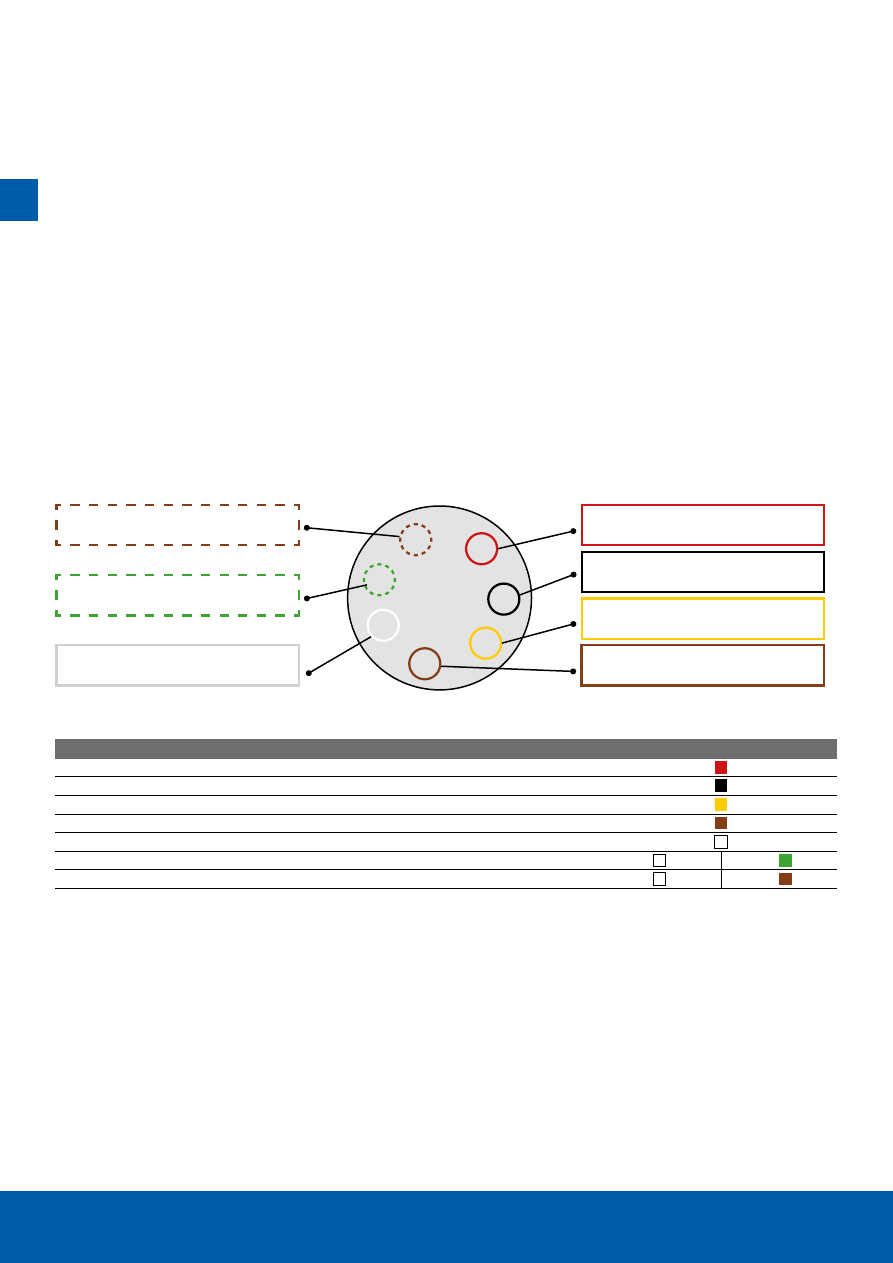

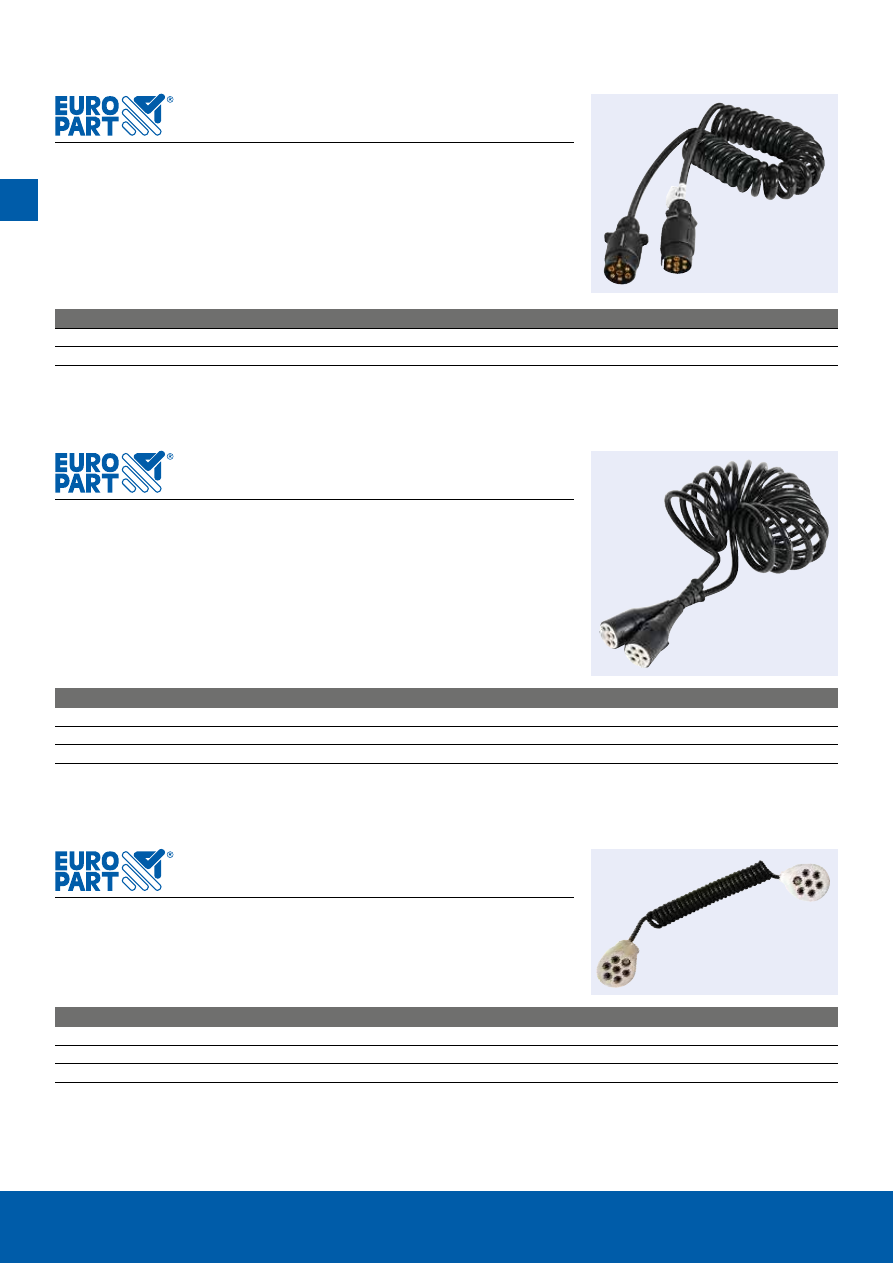

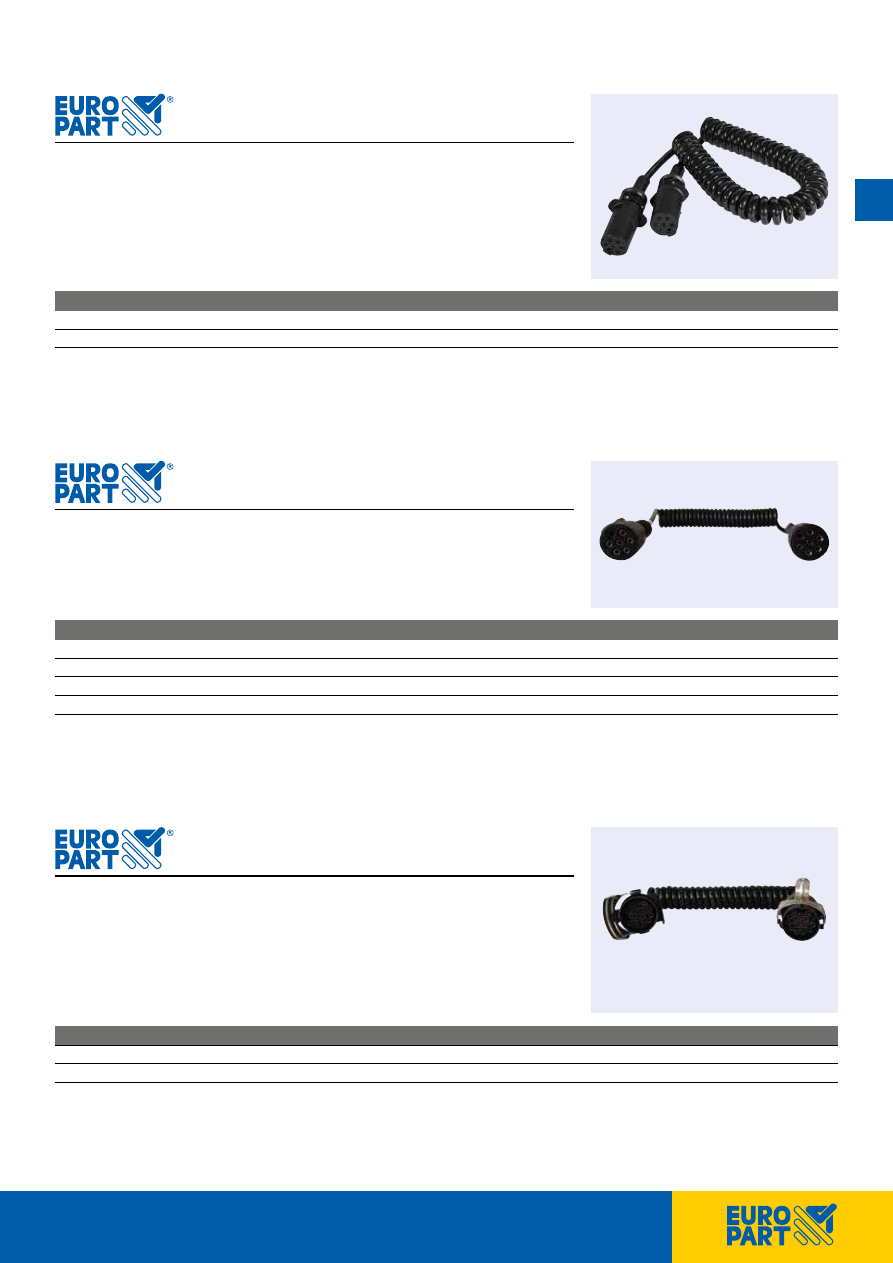

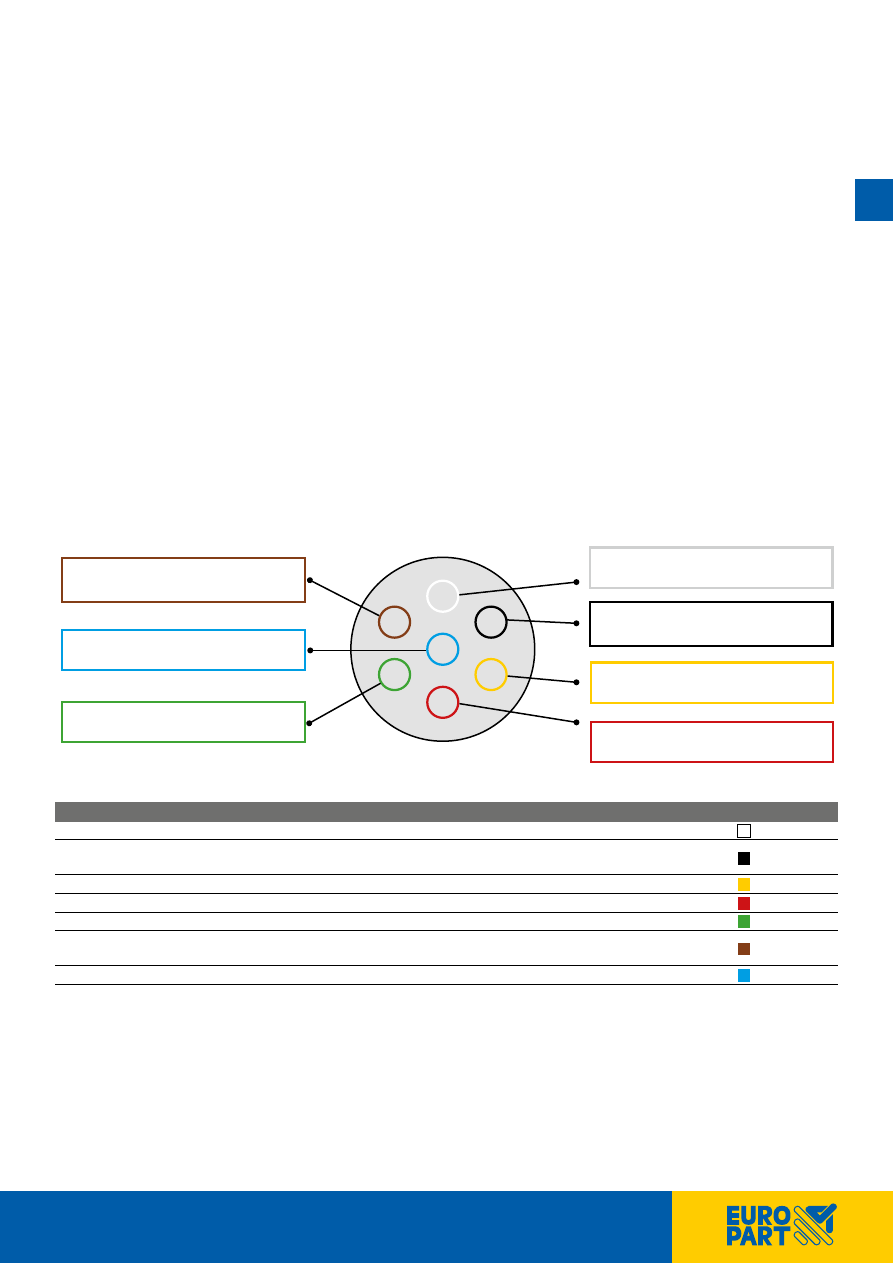

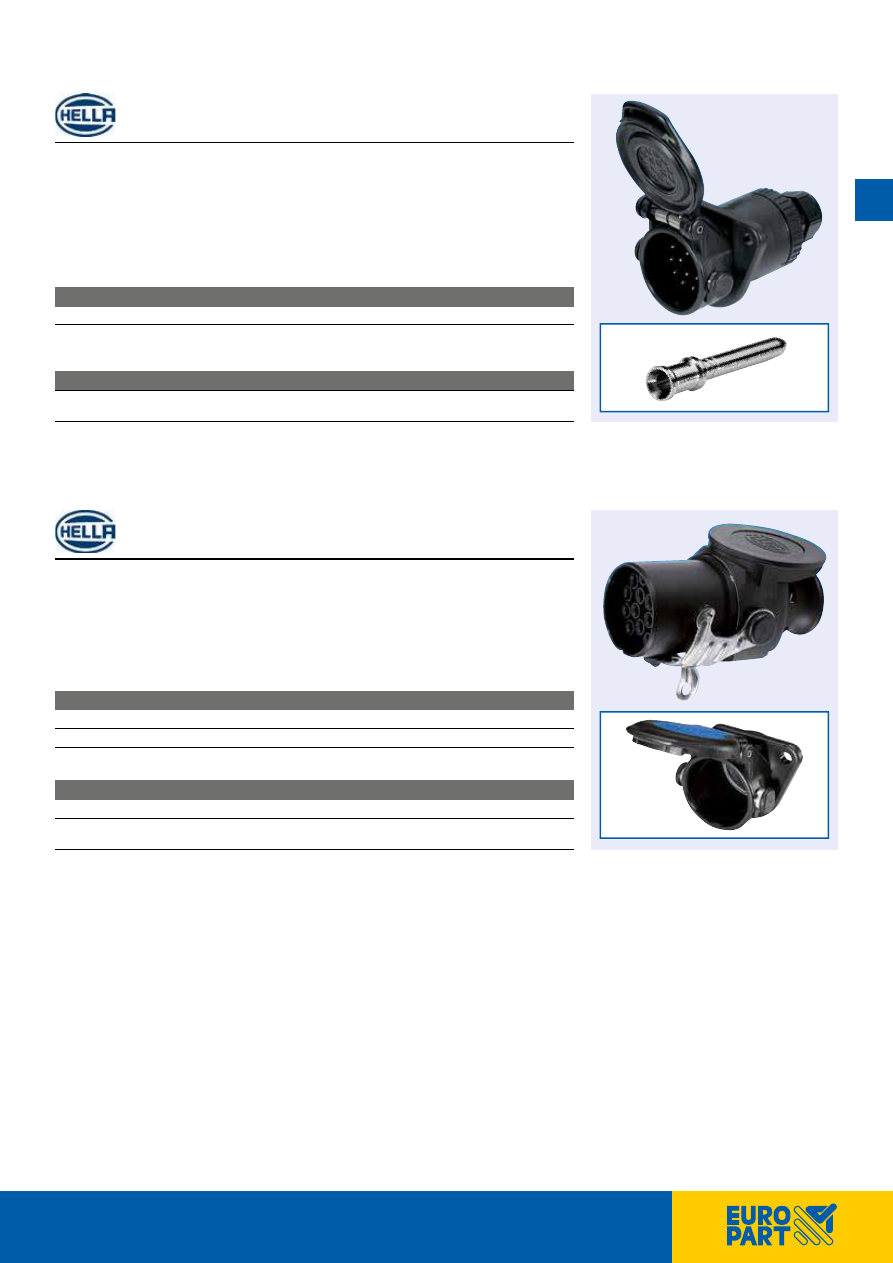

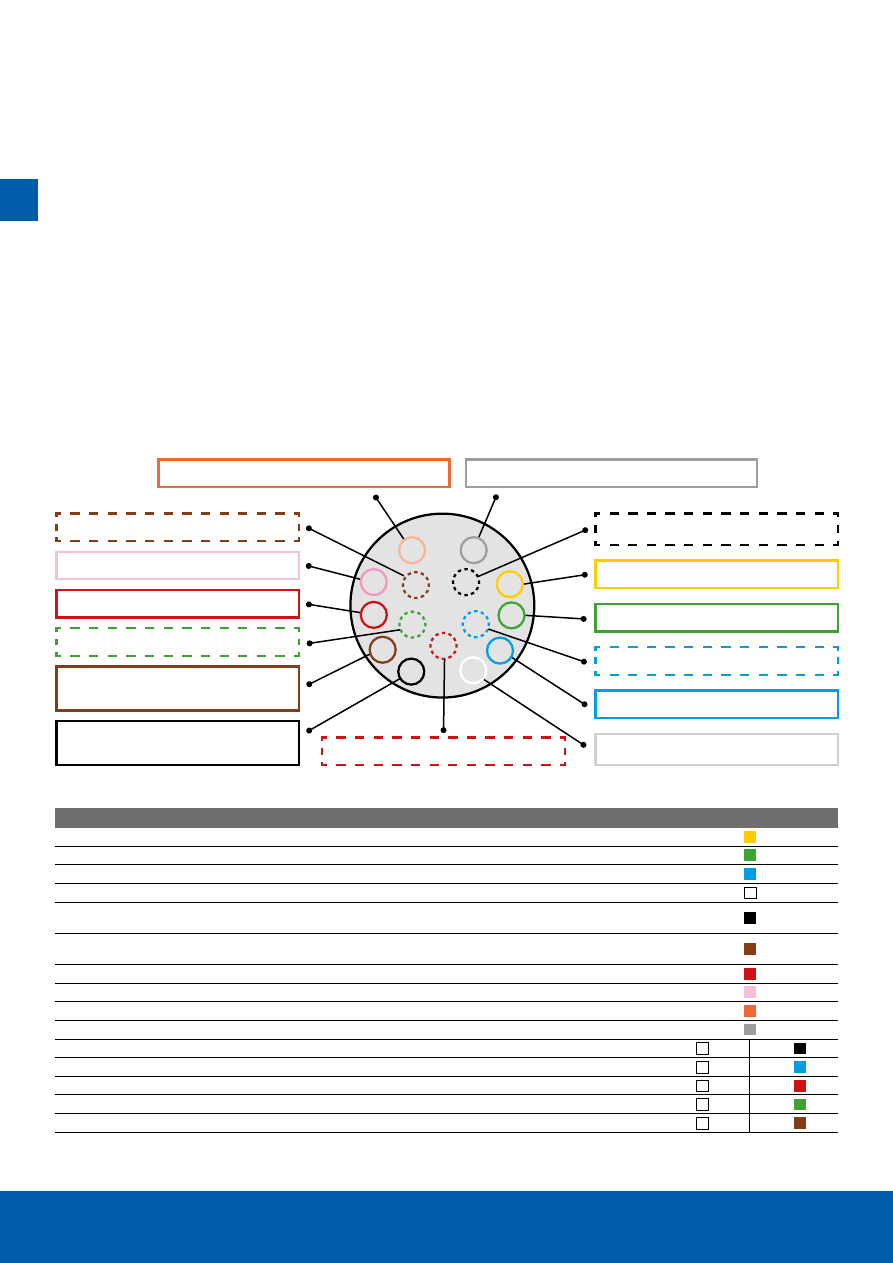

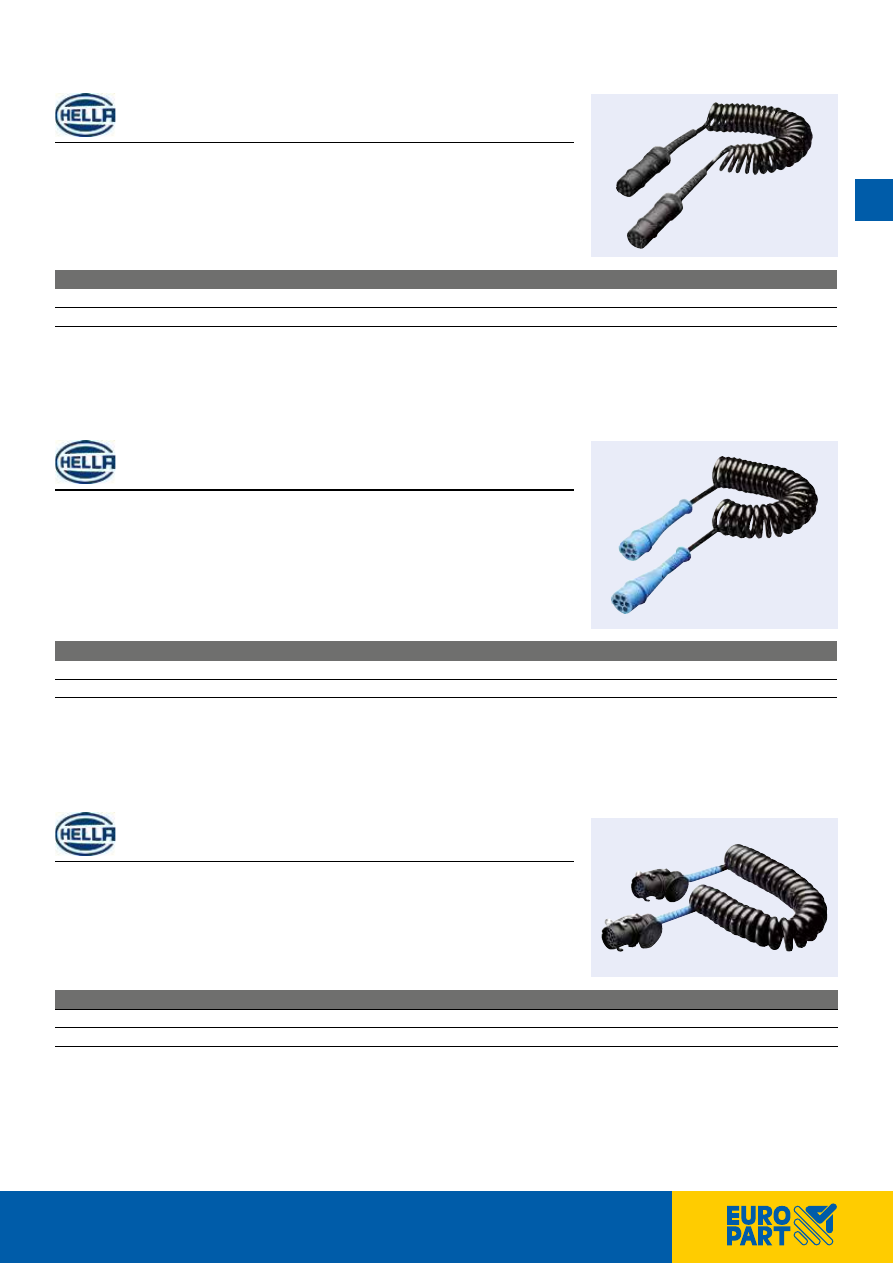

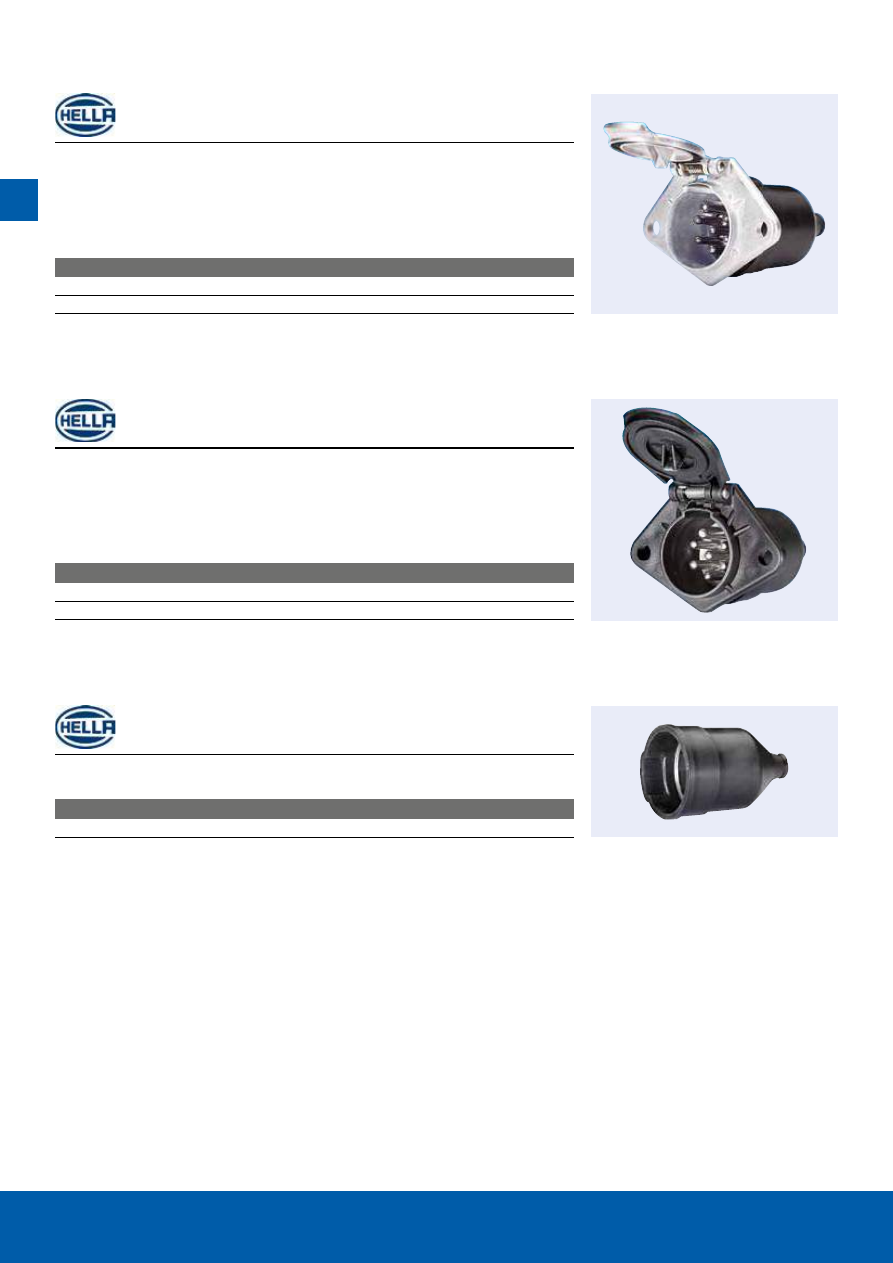

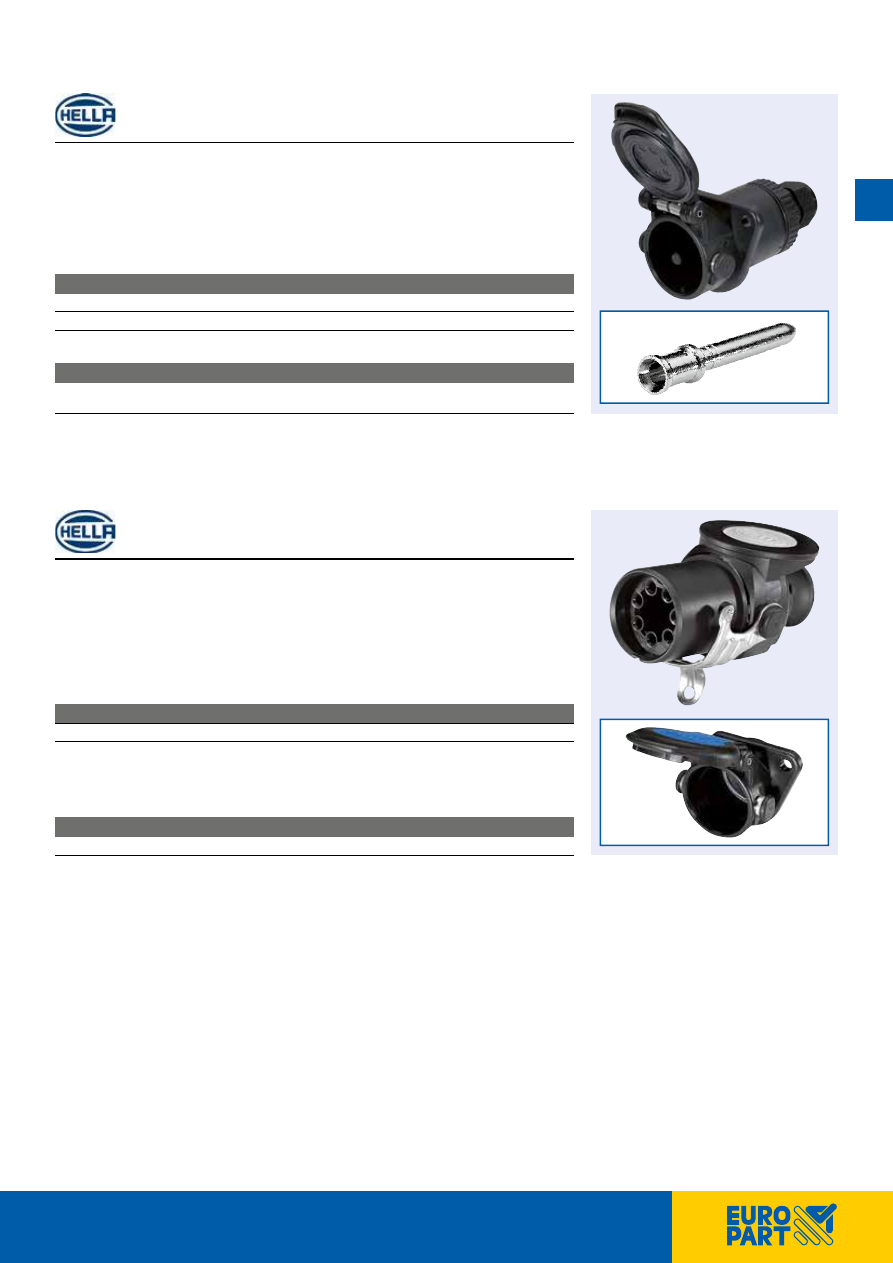

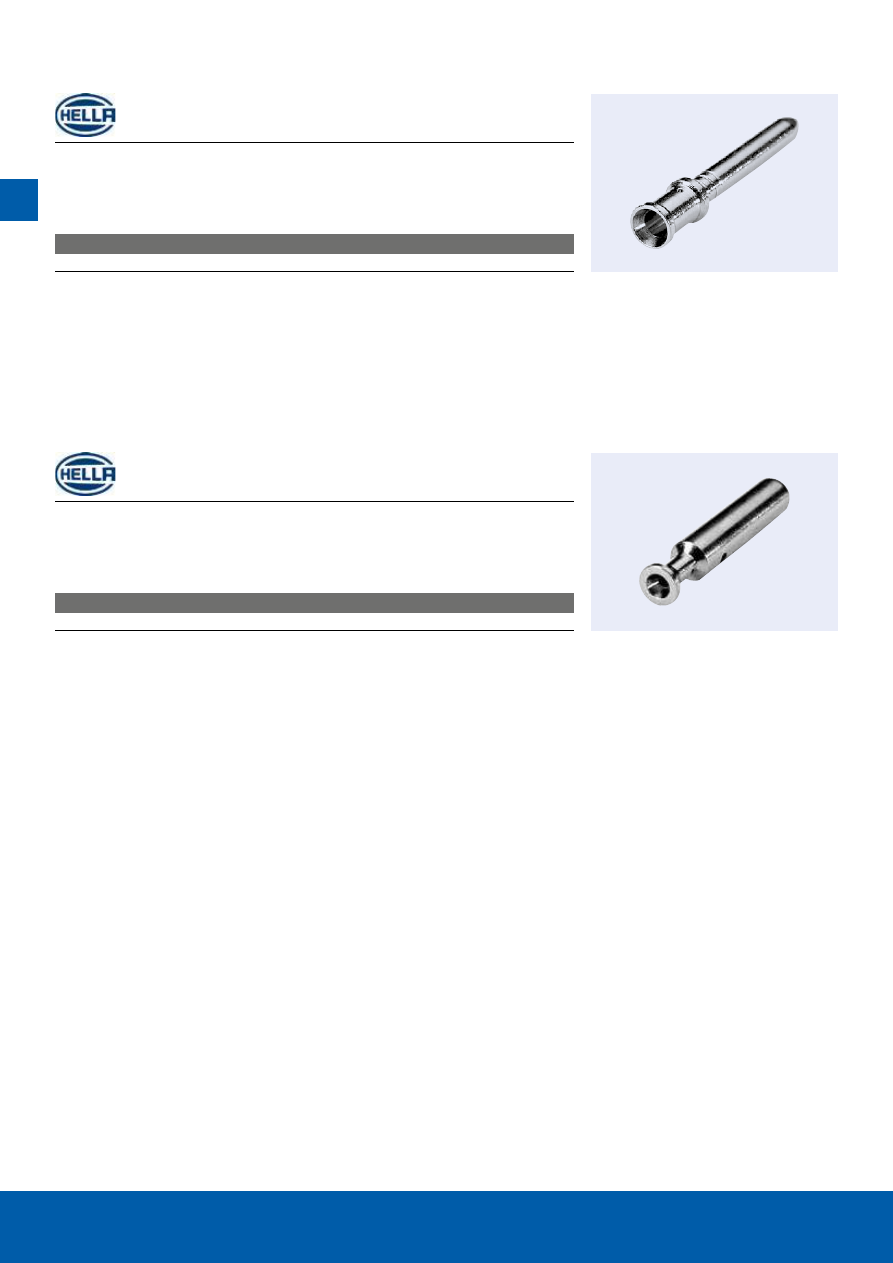

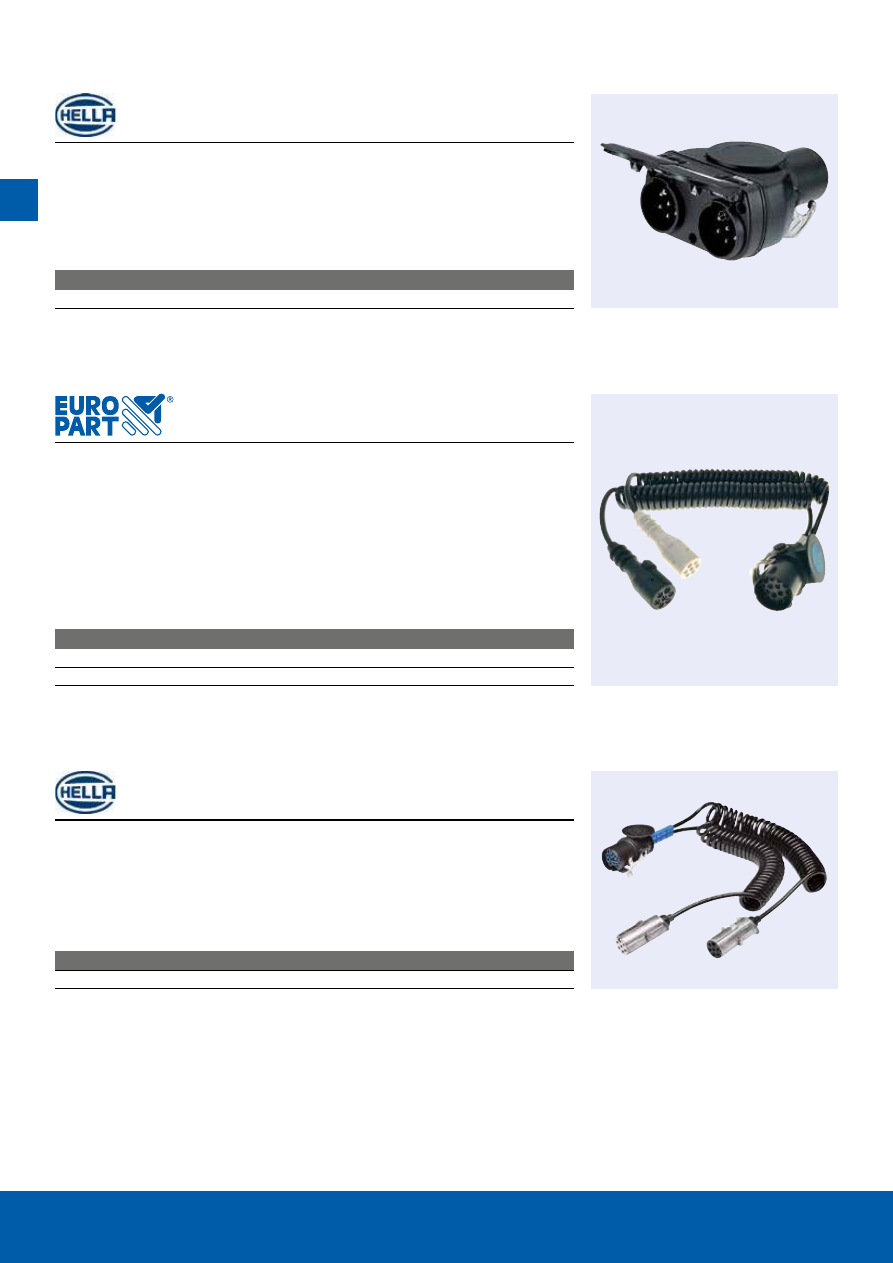

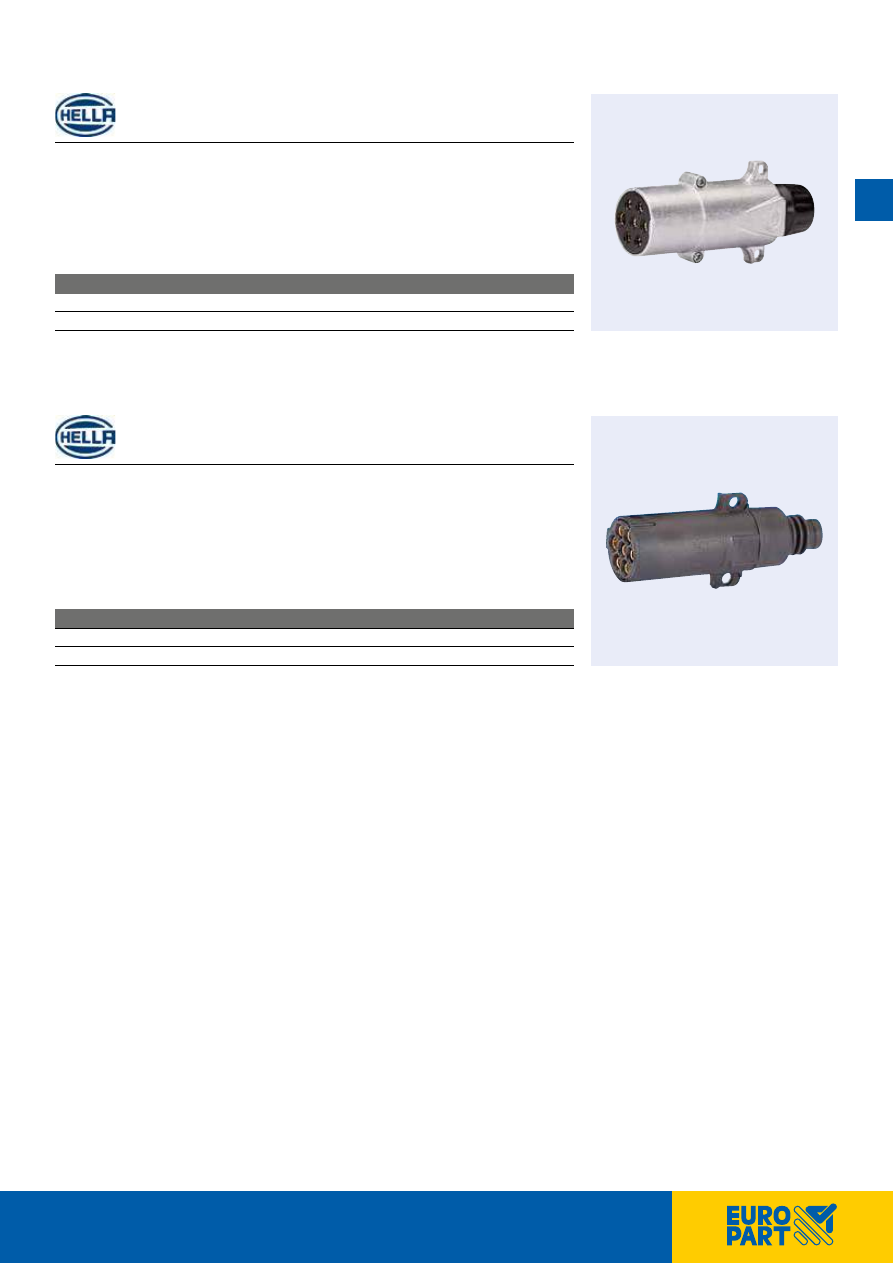

242 | 3 U niv er sal v ehicle par ts f or Scania T ruc ks The connector system to ISO 7638-1/ISO 7638-2 is used on almost all commercial vehicles with an ABS/EBS system. The plug-in connectors are suitable for GGVS/ ADR applications. Application: n The system meets the high requirements of modern trailer plug-in connectors in accordance with ISO 4091 n High-quality laminated contacts with crimp connection n Simple mounting n Crimp connection for OE applications n Screw-in connection for replacement part applications Advantages of the range: n Max. 16 A with 24 V (cable cross-section 1.5 mm²) n Max. 25 A with 24 V (cable cross-section 2.5 mm²) n Max. 30 A with 24 V (cable cross-section 4-6 mm²) Load capacity: ABS/EBS plug systems 24 V according to ISO 7683 1 The warning device is actuated via contact no. 5. The circuit for this contact in the trailer is open during normal operating conditions. ² In accordance with ISO 11992-1 and ISO 11992-2. Contact assignment for ABS/EBS plug-in connector 24 V/5/7-pin ISO 7638-1 Contact no. Function Cable cross-section Wire insulation colour 1 Solenoid valve positive 4 mm² 2 Electronics positive 1.5 mm² 3 Electronics negative 1.5 mm² 4 Solenoid valve negative 4 mm² 5 Warning device 1 1.5 mm² 6 CAN H ² 1.5 mm² 7 CAN L ² 1.5 mm² 7 2 6 3 4 5 1 CAN H data communication CAN L data communication Electronics negative Solenoid control valves, negative Electronics positive Solenoid control valves, positive Warning device Assignment plan Trailer plug-in device for ABS/EBS 24 V/5/7-pin ISO 7638-1 Lighting and electrics |
