Preparing the engine for storage
When the engine is to be taken into
operation again
1. If the engine is equipped with an SCR sys-
tem: Drain and clean the reductant tank and
fill with new reductant.
2. Remove plugs and tape from the coolant
connections, air intake and exhaust pipe.
3. Fill the cooling system with coolant.
4. Drain the preservative oil.
5. Renew the oil filter and fuel filter.
6. Fill with new engine oil.
7. Remove the rocker covers and lubricate the
valve mechanisms with pushrods and the
valve tappets, as well as the injector mecha-
nism, using a liberal amount of oil. Refit the
rocker covers.
8. Drain the preservative fuel from the fuel
manifold.
9. Connect and bleed the fuel system.
10. Wash off any preservative oil on the outside
using white spirit.
112
Technical data
Technical data
General data
Number of cylinders and configuration
6, straight
Working principle
4-stroke engine
Cylinder diameter (mm/in)
130/5.12
Piston stroke (mm/in)
160/6.30
12.7/775.0
Displacement (dm3/in3)
Firing order
1 - 5 - 3 - 6 - 2 - 4
Compression ratio
DC13 072/073A
16.3:1
DC13 074/076/077/071A
17.3:1
DC13 084/384/085/385/087/387/089/389A
17.5:1
DC13 078/080/081/082/083/091A
18:1
Engine direction of rotation viewed from rear
Anti-clockwise
Fan direction of rotation viewed from front
Clockwise
Cooling
Coolant
Valve clearances, cold engine
Intake valve (mm/in)
0.45/0.018
Exhaust valve (mm/in)
0.70/0.028
Number of teeth on the flywheel
158
Low idling speed (rpm)
500-975
Maximum full-load speed (rpm)
1,800/2,100
Fuel
Diesel
Approximate weight, without coolant and oil (kg/lb)
DC13 084/384/085/385/087/387/089/389A
1,075/2,370
Other engine types
1,050/2,315
Lubrication system
Oil volume
See Maintenance
Oil cleaning
Centrifugal oil cleaning
Oil cooler
Coolant cooled, full flow
Oil filter
Paper filter from Scania
Interval between oil changes (h)
500
Oil pressure (bar/psi)
Normal with the engine at operating temperature, operating speed
3-6/43.5-87
Minimum permitted at idling speed
0.7/10.2
Crankcase pressure with closed crankcase ventilation (mbar/psi)
-5.4 to 2.0/-0.08 to 0.03
113
Technical data
Intake system
Permissible pressure drop in the intake system with cleaned or new filter
30/0.44
(mbar/psi)
Permissible pressure drop in the intake system with blocked (dirty) filter
65/0.94
(mbar/psi)
Cooling system
Coolant volume, excluding radiator (dm3/US gallons)
DC13 084/384/085/385/087/387/089/389A
17/4.5
Other engine types
16/4.2
Coolant volume including 1.1 m2 radiator (dm3/US gallons)
DC13 084/384/085/385/087/387/089/389A
39/10.3
Other engine types
38/10.0
Coolant volume including 1.3 m2 radiator (dm3/US gallons)
DC13 084/384/085/385/087/387/089/389A
46/12.2
Other engine types
45/11.9
Coolant temperature (°C/°F)
90-95/194-203
Number of thermostats
1
Thermostat opening temperature (°C/°F)
80/176 and 87/189
Fuel system
Injection system
XPI (Extra High Pressure In-
jection)
Engine management system
EMS
Fuel filter
Paper filter from Scania
Water separating prefilter
Paper filter from Scania
Electrical system
Type
1-pin, 24 V, DC
Starter motor, standard equipment
1-pin, 24 V, 6 kW
Alternator, standard equipment
1-pin, 28 V, 100 A
114
Scania Assistance
Scania Assistance
Wherever you are, you can always get assistance
from the Scania service organisation, Scania As-
sistance, all day, every day of the year.
Always call the contact for your country.
Country
Tel
Country
Tel
Austria
+43 1 256 44 11
Latvia
+371 29 44 24 24
America
+1 (0) 800 272 2642
Lithuania
+46 8 52 24 24 24
America
1 800 272 2642
Luxembourg
+32 2 264 00 00
Argentina
800 999 722 642
Malaysia
1800 08 8500
Australia
+611300722642
Malaysia
+6035590907
Belgium
+32 2 264 00 00
Mexico
+543327451092
Botswana
+267 72 102 591
Morocco
+3222640000
Brazil
+8000194224
Namibia
+264634461352
Bulgaria
+359 88 666 0001
Netherlands
+31 76 52 54 111
Chile
188 800 722 642
Norway
+47 223 217 00
Colombia
+1800184548
Peru
0800-51-727
Czech Republic
+420 225 020 225
Peru
(01)512-1877
Denmark
+45 333 270 44
Poland
+48 22 331 22 33
Estonia
Tallinn: +372 5153 388
Portugal
+34 91 678 9247
Estonia
Tartu: +372 5126 333
Romania
+40 723 27 27 26
Estonia
Pämu: +372 5071 477
Russia
+7(495) 925 77 75
Estonia
Rakvere: +372 5074 655
Singapore
+6565917180
Finland
+358 10 555 24
Slovakia
+421 903 722 048
France
+33 2 414 132 32
South Africa
0 800 005 798
Germany
+49 261 887 8888
South Africa
+27 11 226 5005
Great Britain
0 800 800 660
Spain
+34 91 678 80 58
Great Britain
+441274301260
Sweden
+46 42 100 100
Hungary
+36 209 727 197
Switzerland
+41 800 55 24 00
Ireland
+353 71 963 4000
Thailand
+66819397525
Italy
+39046 1996222
Thailand
+1800 019 88
Latvia
+46 8 52 24 24 24
Uruguay
0 800 835 1
Other countries: +46 8 52 24 24 24
Note:
Calls will be recorded for training purposes.
115

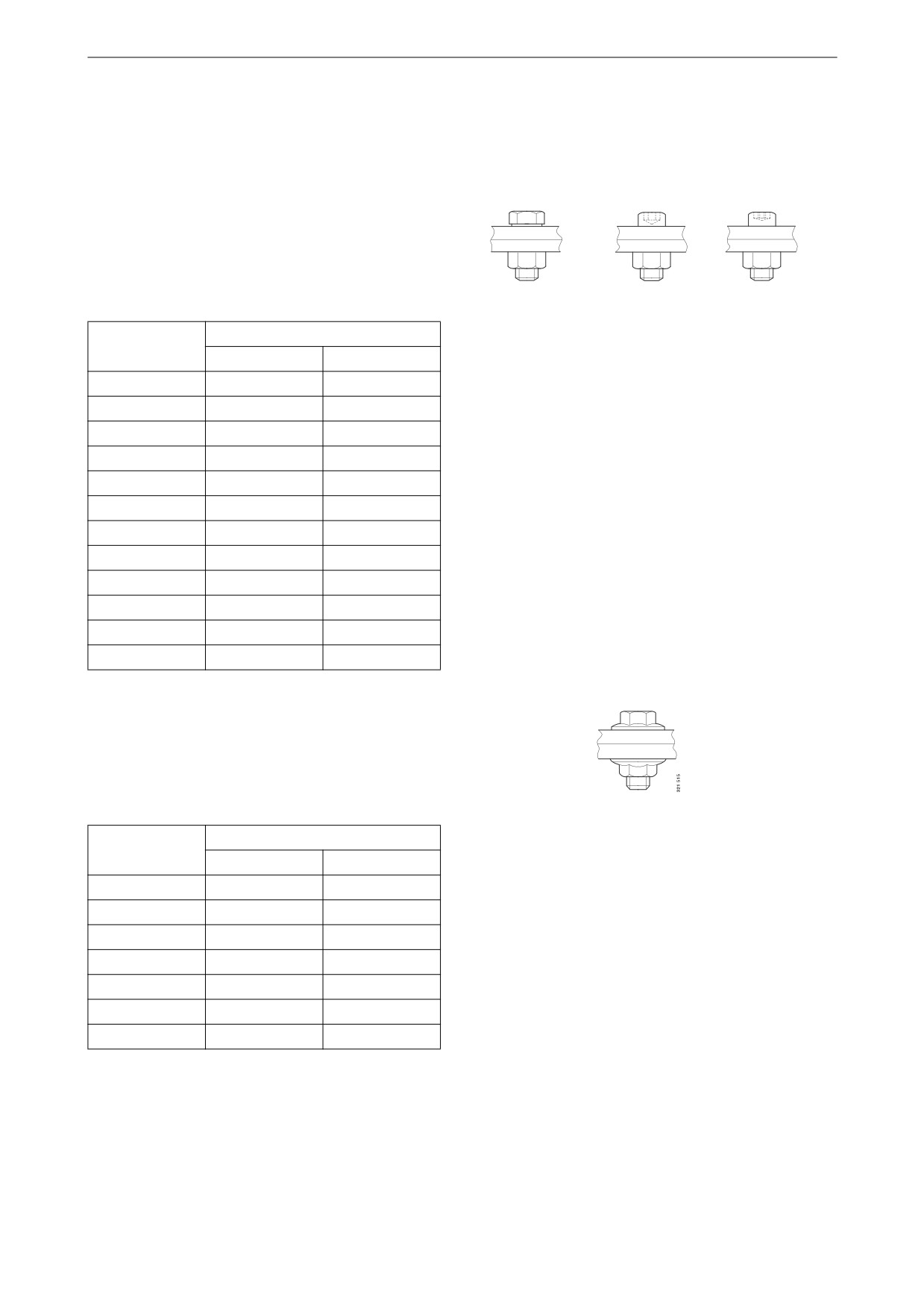

General tightening torques for screw joints
General tightening torques
for screw joints
Hexagon screws, hexagon
socket screws, Torx screws,
hexagon nuts
Metric thread. Strength class 8.8/8.
Tightening torque
Thread
Nm
Lb-ft
M4
2.9
21
M5
6
4
M6
9.5
7
M8
24
18
M10
47
35
M12
84
62
M14
135
100
M16
210
155
M18
290
214
M20
420
310
M22
580
428
M24
730
538
Flange screws with hexago-
nal head and hexagonal
flange nuts
Metric thread. Strength class 8.8/8.
Tightening torque
Thread
Nm
Lb-ft
M5
6.7
5
M6
10.2
8
M8
26
19
M10
50
37
M12
92
38
M14
149
110
M16
184
136
116
General tightening torques for screw joints

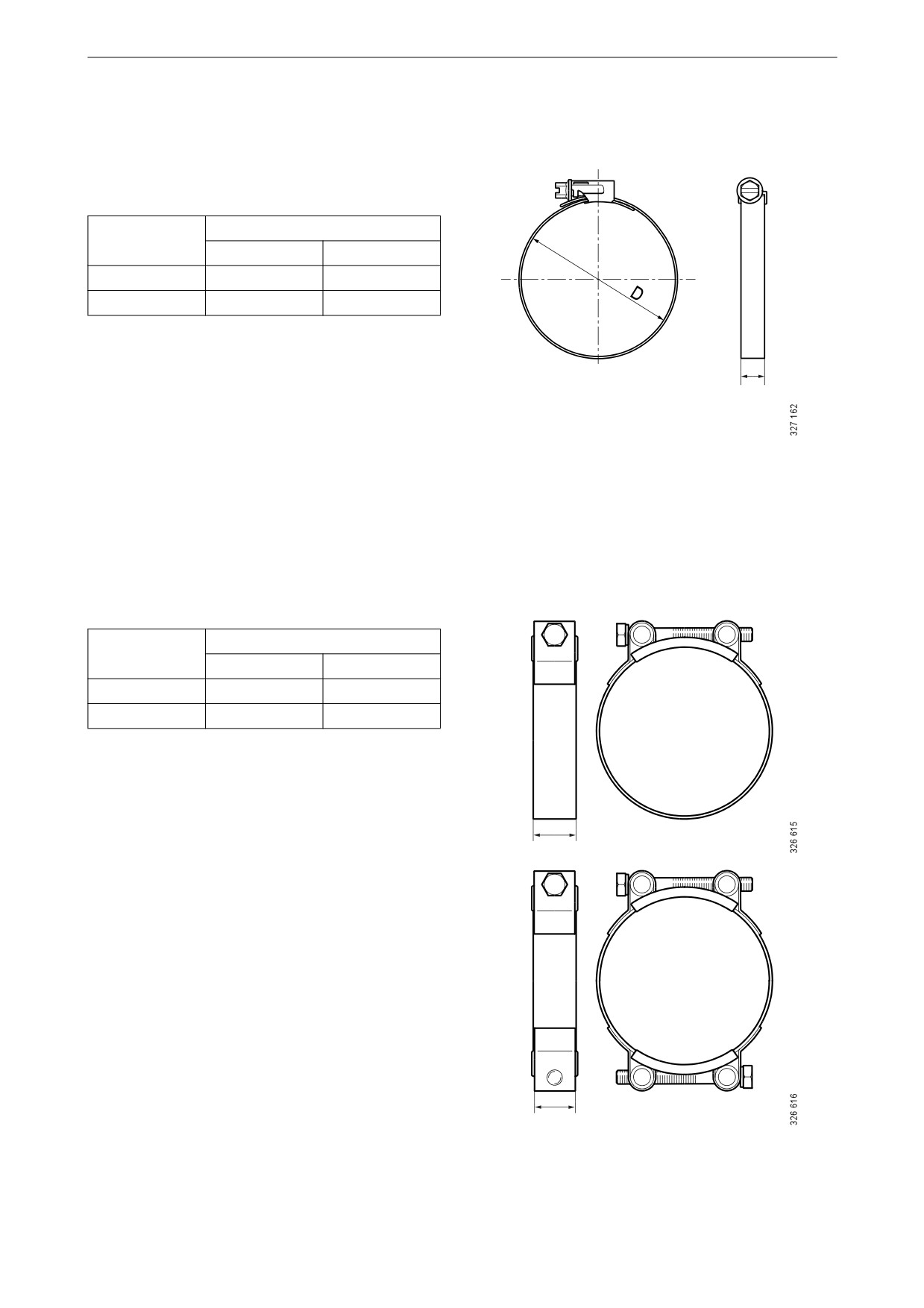

Hose clamps
Specifications in the tables show tightening
torque when tightening by hand.
A = width
Tightening torque
(mm)
Nm
Lb-ft
7.5-9
1.5
1
12
5
4
A
Tightening torque for new unfitted hose clamp is
max 1 Nm (0.7 lb-ft).
A = width
Tightening torque
(mm)
Nm
Lb-ft
20
10
7
25
20
15
A
A
