Scania DC13 XPI. Industrial engine. Operator’s manual - part 3
Starting and running
Belt transmission
When the belt transmission is new, it may make
a squeaking noise when running. This noise is
normal and disappears after 50-100 hours of op-
eration. The noise does not affect the service life
of the belt transmission.
Raised idling rotational speed for en-
gines with SCR system
If the engine is run without load for an extended
period of time, the SCR system needs to be heat-
ed by raising the idling speed. The function is
called periodic hydrocarbon evaporation and is
used to avoid damaging the SCR catalytic con-
verter.
Periodic hydrocarbon evaporation functions dif-
ferently depending on how the engine is
equipped. A warning is output for all engines if
the engine needs to be warmed up. The warning
is output after approx. eight hours if the engine is
idling without load and the outdoor temperature
is 20°C (68°F). The time is reduced as the out-
door temperature becomes colder.
For some engines, a request for automatic raising
of the idling speed is also output after the warn-
ing. If the request is confirmed, the idling speed
is raised automatically. The function is active for
45 minutes or less and is deactivated automati-
cally. If the request is not confirmed, the engine
is switched off after approx. 45 minutes, if the
engine has been configured with engine shut-
down.
Note:
With hydrocarbon evaporation, the engine speed
can rise to 1,500 rpm for all-speed engines and
with engines configured for single-speed, all hy-
drocarbon evaporation occurs at the selected ro-
tational speed.
32
Starting and running
Engine shutdown
IMPORTANT!
There is risk of post boiling and of damage to the
turbocharger if the engine is switched off with-
out cooling. The power must not be switched off
before the engine has stopped.
If the engine is equipped with a battery master
switch and an SCR system, the SCR system must
run for a while after the engine has been switched
off to allow it to cool down. During this period
the power must not be cut using the battery mas-
ter switch.
Note:
The battery voltage must remain on for a few
seconds after the 15 voltage is switched off so
that the control units can store the values and
switch to standby mode.
10 prohibited engine shutdowns will cause a
torque reduction (70% of fuel quantity). Reset
the engine by switching it off correctly once.
1. Run the engine without a load for a few min-
utes if it has been run continuously with a
heavy load.
2. Switch off the engine.
33
Starting and running
Checks after running
WARNING!
Block the starting device when working on the
engine. If the engine starts unexpectedly, there is
a serious risk of injury.
There is always a risk of sustaining burns when
an engine is hot. Particularly hot parts are engine
manifolds, turbochargers, oil sumps, as well as
hot coolant and oil in pipes and hoses.
IMPORTANT!
Check the coolant level following the first start.
Top up with coolant as necessary.
1. Check that the power supply has been cut.
2. Top up the fuel tank. Make sure that the filler
cap and the area round the filler opening are
clean to avoid contamination of the fuel.
3. If the engine is equipped with an SCR sys-
tem: Top up the reductant tank. Make sure
that the filler cap and the area round the filler
opening are clean to avoid contamination of
the reductant.
4. If there is a risk of freezing, the cooling sys-
tem must contain enough glycol. See the sec-
tion Risk of freezing.
5. If the temperature is below 0°C (32°F): Pre-
pare for the next start by connecting the en-
gine heater (if fitted).
34
Maintenance
Maintenance
The maintenance programme covers a number of
points that are divided into the following sec-
tions:
• Lubrication system
• Air cleaner
• Cooling system
• Fuel system
• Miscellaneous
WARNING!
Block the starting device when working on the
engine. If the engine starts unexpectedly, there is
a serious risk of injury.
There is always a risk of sustaining burns when
an engine is hot. Particularly hot parts are engine
manifolds, turbochargers, oil sumps, as well as
hot coolant and oil in pipes and hoses.
The maintenance programme includes the fol-
lowing:
• R maintenance: One event when taken into
service.
• S maintenance: Minimum basic maintenance.
• M maintenance: More extensive mainte-
nance.
• L maintenance: Includes nearly all mainte-
nance items in the form.
• XL maintenance: Includes all maintenance
items in the form.

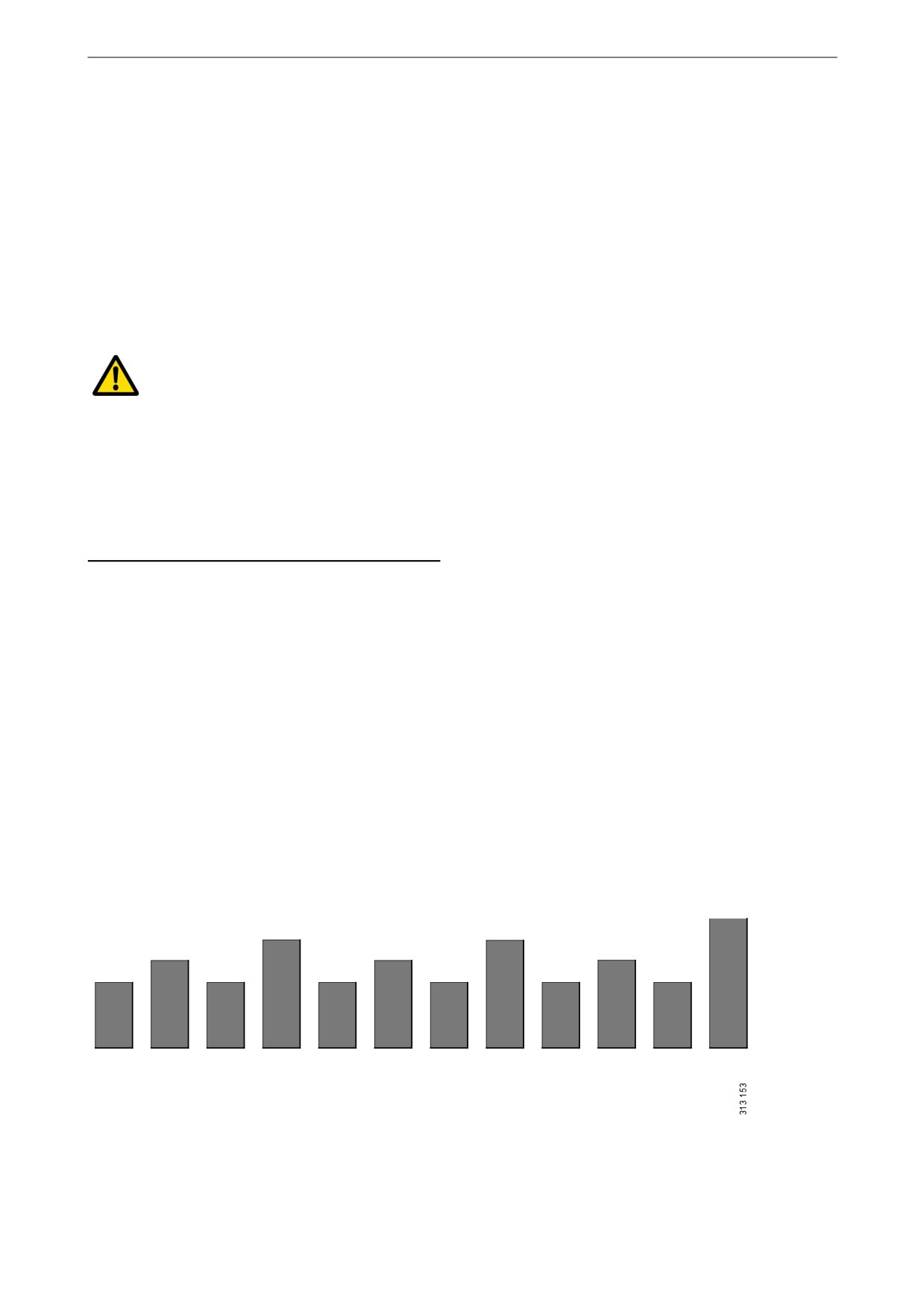

During a period, the sequence is S-M-S-L-S-M-
S-L-S-M-S-XL.
XL
L
L
M
M
M
S
S
S
S
S
S
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
5500
6000
35
Maintenance
IMPORTANT!
On delivery a Scania engine is optimised for its
application. However, regular maintenance is
necessary to:
• prevent unplanned stops
• extend the service life of the engine
• maximise the long-term emission perfor-
mance of the engine
• give the best possible operating economy.
36
Maintenance

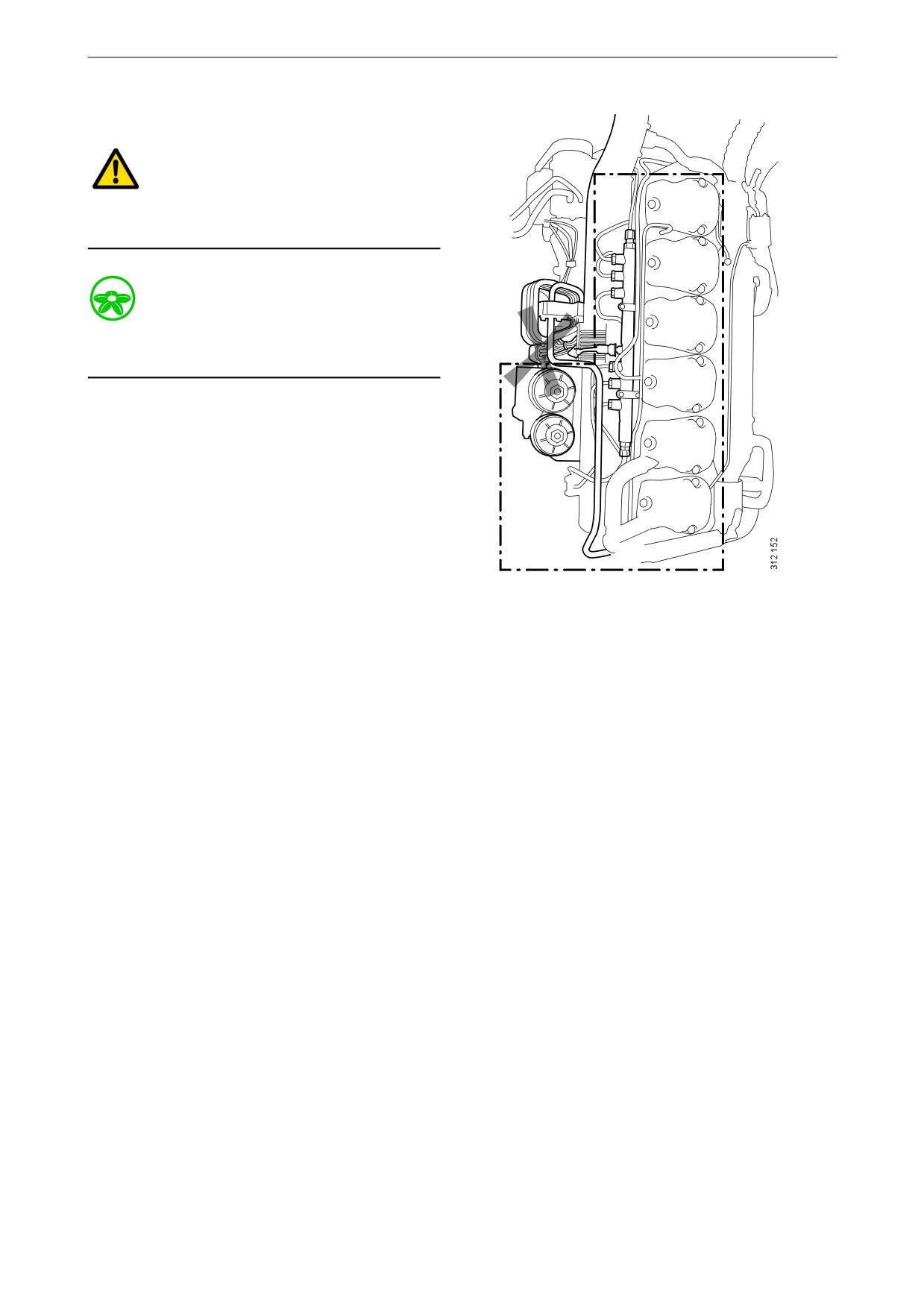

Cleaning the engine
WARNING!
Beware of hot washing water. Wear eye protec-
tion, protective clothes and protective gloves.
Environment
Dispose of the washing water in compliance with
relevant national or local regulations.
Wash the engine before relevant maintenance.
Clean the engine with hot water. Also use a de-
greasing agent, if necessary.
Do not spray water on the engine control unit,
which is marked in the illustration.
Clean within the marked area
37
Maintenance
Engines with few hours of op-
eration
IMPORTANT!
On engines with few hours of operation, mainte-
nance must be carried out annually or every 5
years.
Stand-by generator sets and the like that are not
used regularly should be test run and checked in
accordance with the manufacturer's instructions.
The following maintenance items must be car-
ried out once the engine has been warmed up to
operating temperature.
1. Checking oil level.
2. Checking coolant level.
3. Checking vacuum indicator.
4. Checking fuel level.
5. Check for engine leaks.
38
Maintenance
Maintenance intervals
Daily
First time at
Interval (hours)
At least
first start
500
500
1,000
2,000
6,000
annu-
every
ally
5
S
M
L
XL
R
years
Lubrication system
Checking the oil level
X
X
Changing the oil
X
X
X
X
X
X
Renewing/cleaning rotor in cen-
X
X
X
trifugal oil cleaner
Renewing the oil filter
X
X
X
X
X
X
Air cleaner
Reading the vacuum indicator
X
X
X
X
X
X
Renewing the filter element
X
X
X
Renewing the safety cartridge
X
X
X
Cooling system
Checking the coolant level
X
X
X
X
X
X
X
Checking the coolant's anti-
X
X
X
X
freeze and corrosion protection
Changing the coolant and clean-
X
X
ing the cooling system
Fuel system
Checking the fuel level
X
X
Renewing the fuel filter
X
X
X
X
Miscellaneous
Checking the drive belt
X
X
X
X
X
Checking for leaks
X
X
X
X
X
Checking and adjusting the
X
X
X
valve clearance
Renewing the reductant filter
X
X
X
X
Cleaning the reductant tank filler
X
X
X
X
filter
Cleaning the reductant tank ven-
X
X
X
X
X
tilation filter
Checking/renewing the particu-
1
4,500 hours
late filter
1. In order to attain this change interval, Scania LDF4 engine oil must be used.
39
Maintenance

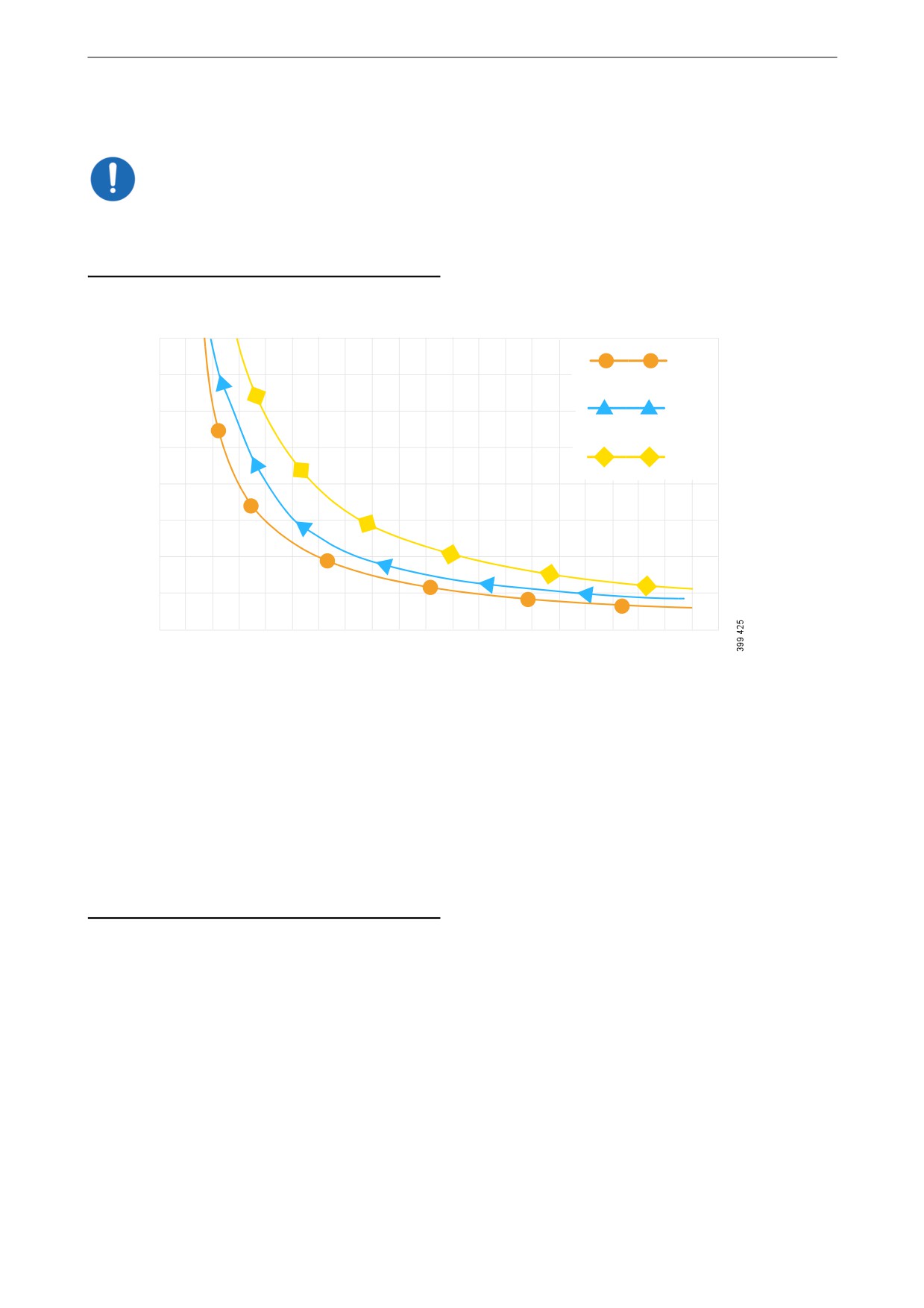

Particulate filter maintenance inter-
vals
IMPORTANT!
Scania recommends using Scania LDF-4 engine
oil. The graph can only be used if this condition
is met.
h
16000
= A
14000
12000
= B
10000
= C
8000
6000
4000
2000
0
0
10
20
30
40
50
60
70
80
90
l/h
The diagram shows calculated driving time before particulate filter renewal must be carried out on engines
with the following 3 types of dynamic load:
• A = High dynamic load, for example excavator and wheel loader
• B = Semi-dynamic load, for example stone crushing plant and dumper truck
• C = Low dynamic load, for example generator set
Note:
The Y axis shows the driving time and the X axis
shows the average fuel consumption.
40
Lubrication system
Lubrication system
Oil grade
Scania LDF stands for the Scania Long Drain
Field test standard. Scania LDF oils have been
carefully selected after extensive testing. The ap-
proval is only granted to the highest quality en-
gine oils available on the market.
Recommended engine oil
Scania LDF-4
Scania LDF-3
Scania LDF-2
Scania LDF
Scania E7
IMPORTANT!
Regarding particulate filters, the information in
this document is not valid if an engine oil other
than Scania LDF-4 is used.
The engine oil must fulfil the following quality
requirements:
• ACEA E6
• ACEA E9
• API CJ4
Check with your oil supplier that the oil meets
these requirements.
41
Lubrication system
If Scania LDF-4 is not used, the oil must be of a
viscosity class suitable for the outdoor tempera-
ture in the area where the engine is used.
Viscosity
Outdoor temperature in °C
class
SAE 20W-30
-15°C
-
+30°C
SAE 30
-10°C
-
+30°C
SAE 40
-5°C
-
+45°C
SAE 50
0°C
-
+45°C
SAE 5W-30
< -40°C
-
+30°C
SAE 10W-30
-25°C
-
+30°C
SAE 15W-40
-20°C
-
+45°C
Viscosity
Outdoor temperature in °F
class
SAE 20W-30
5°F
-
86°F
SAE 30
14°F
-
86°F
SAE 40
23°F
-
113°F
SAE 50
32°F
-
113°F
SAE 5W-30
< -40°F
-
86°F
SAE 10W-30
-13°F
-
86°F
SAE 15W-40
-4°F
-
113°F
For operation at extremely low outdoor tempera-
tures: Consult your nearest Scania representative
on how to avoid starting difficulties.
If the engine is used in areas of the world where
engine oil with ACEA or API classification is
not available, the oil grade must be measured in
actual operation. In this case contact the nearest
Scania workshop.
42
Lubrication system

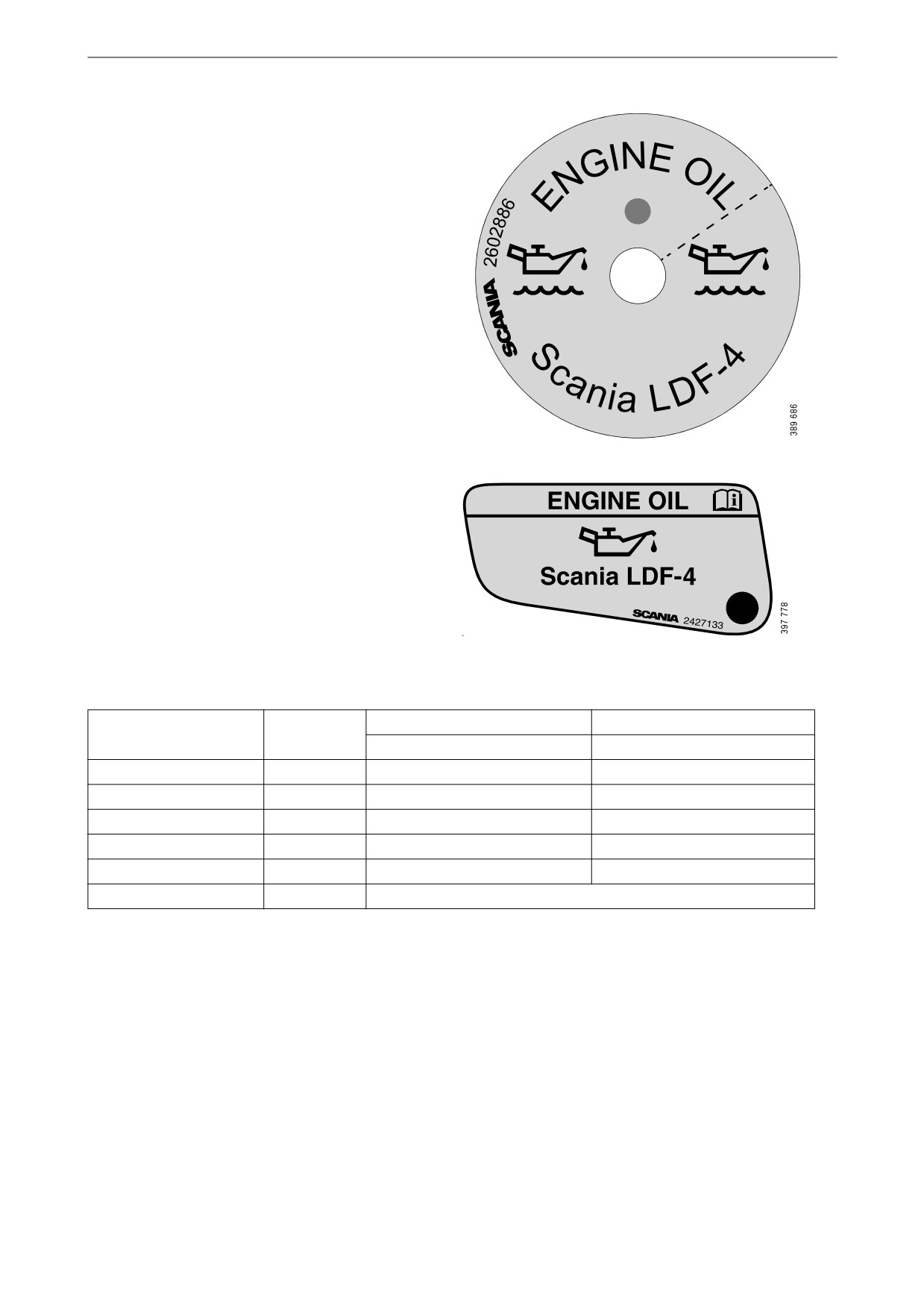

Filled engine oil grade label
When changing oil it is important to use the cor-
rect engine oil grade. The oil filler cap must be
clearly marked with a label showing the filled oil
grade. However, there are only labels for oils
from Scania and oil grade ACEA E9.
Stick on a new label if the oil type or oil grade is
changed in favour of any of the oil types above.
Replace the label if it is missing.
If the oil grades below are used, it is possible to
order labels for the oil filler cap from Scania.
Oil filler label in the cylinder block.
Oil filler label in rocker cover
Oil grade
Colour
Part no.
Part no.
Filling in the cylinder block
Filling in the rocker cover
Scania LDF-4
Blue
2 602 886
Scania LDF-4
Yellow
2 602 885
Scania LDF-3
Red
2 132 426
2 427 133
Scania LDF-2
Blue
2 132 424
-
Scania LDF
Grey
2 269 345
-
ACEA E9
-
2 132 429
43
Lubrication system
Oil analysis
To be able to extend the oil change intervals us-
ing an oil analysis, Scania LDF-4 oils must be
used. Certain laboratories offer engine oil analy-
sis.
The following conditions must remain fulfilled
when the oil is changed:
• Viscosity at 100°C (212°F): max. ±20% of
original value of the fresh oil.
• TBN (in accordance with ASTM D4739):
>3.5.
• TBN (in accordance with ASTM D4739): >
TAN (in accordance with ASTM D664).
• Oil oxidation (in accordance with
DIN 51453) > 10.
Such analysis measures the oil's TBN (Total
Base Number), TAN (Total Acid Number), fuel
dilution, water content, viscosity and the quanti-
ty of particles in the oil.
The result of a series of analyses is used as the
basis for establishing a suitable oil change inter-
val.
If the conditions are changed, a new oil analysis
programme must be carried out to establish new
oil change intervals. Work out the new oil
change interval for the engine in conjunction
with the workshop.
Note:
Only Scania LDF-4 oils may be used in conjunc-
tion with oil analysis and a possible extended oil
change interval.
Depending on the market, the warranty condi-
tions may also change if the oil change intervals
differ from the recommended Scania timetable.
44
Lubrication system

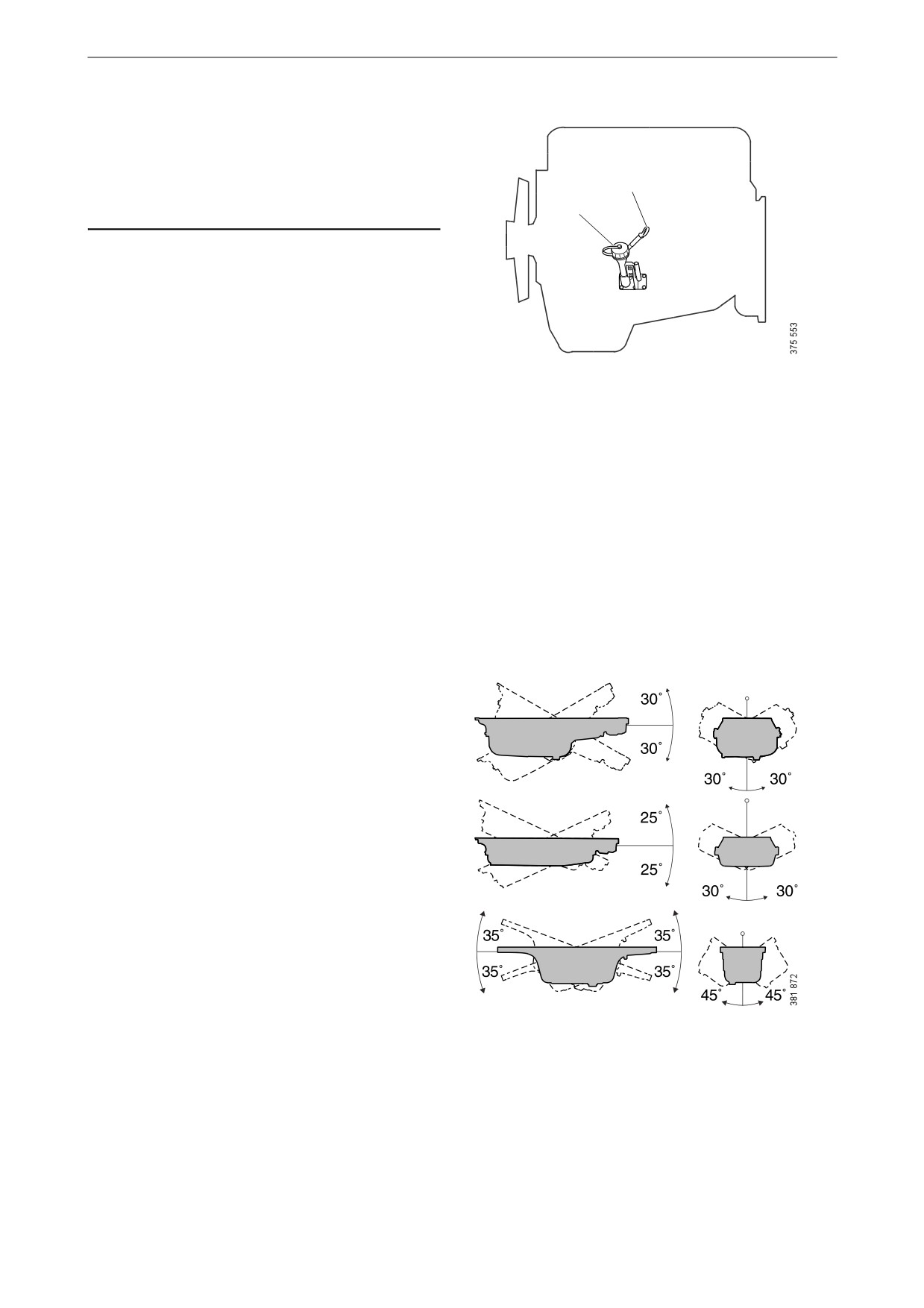

Checking the oil level
Note:
1
Leave the engine off for at least 7 minutes before
you check the oil level.
2
1. Remove the oil dipstick and check the oil
level. The correct level is between the mini-
mum and maximum marks on the oil dip-
stick.
2. Top up with more oil via the oil filler if the
oil level is at or below the minimum mark.
1. Oil dipstick
For information on the correct oil grade, see the
2. Oil filler
section Oil grade.
Maximum angles of inclina-
tion during operation
Maximum permissible angles of inclination dur-
ing operation vary, depending on the type of oil
sump. See illustration.
45
Lubrication system

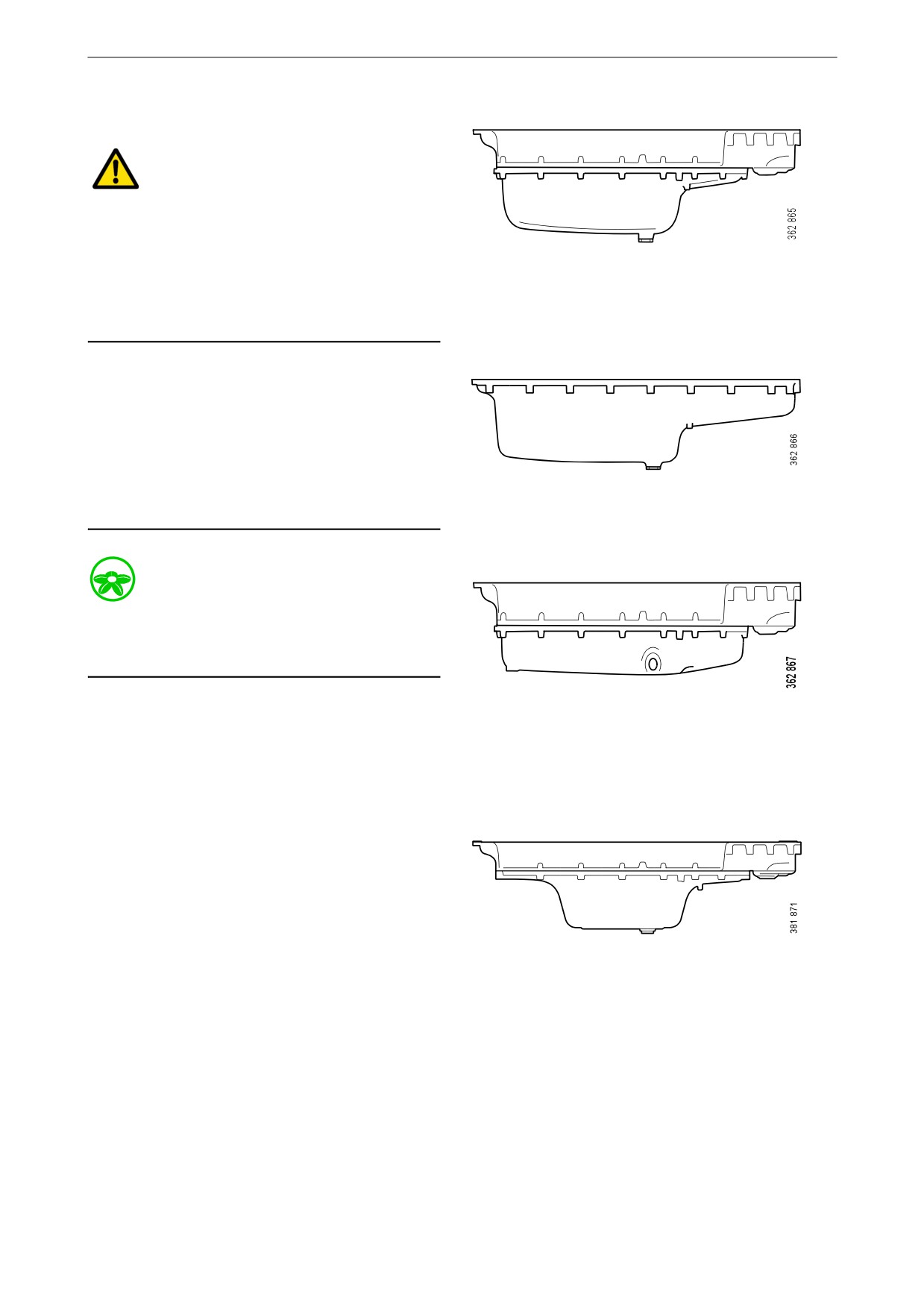

Changing the oil
WARNING!
Hot oil can cause burns and skin irritation. Wear
protective gloves and eye protection when
changing hot oil. Make sure that there is no pres-
sure in the lubrication system before changing
Oil volume:
the oil. The oil filler cap must always be in place
Min. 39 litres (10.3 US gallons)
when starting and running the engine to prevent
oil being ejected.
Max. 45 litres (11.9 US gallons)
Note:
Change oil more often if the engine is subjected
to particularly demanding operation, such as a
dusty environment, or if deposits in the centrifu-
gal oil cleaner are thicker than 28 mm (1.1 in).
Renew the oil filter and clean the centrifugal oil
Oil volume:
cleaner when changing oil.
Min. 30 litres (7.9 US gallons)
Max. 36 litres (9.5 US gallons)
Environment
Use a suitable container. Used oil must be dis-
posed of as specified in national and internation-
al laws and regulations.
Oil volume:
Min. 28 litres (7.4 US gallons)
1. Unscrew the oil plug and drain the oil when
the engine is hot. In certain engine types the
Max. 34 litres (9.0 US gallons)
oil is pumped out by means of a bilge pump.
If the engine is drained via the valve, the oil
should be hot. Alternatively, use a pump.
This so that draining occurs more quickly.
2. Wipe off the magnet on the oil plug.
3. Renew the gasket on the oil plug.
4. Refit the oil plug.
5. Fill with the amount of oil specified for the
Oil volume:
oil sump.
6. Wait at least 7 minutes.
Min. 33 litres (8.7 US gallons)
7. Check the level on the oil dipstick.
Max. 39 litres (10.3 US gallons)
46
Lubrication system

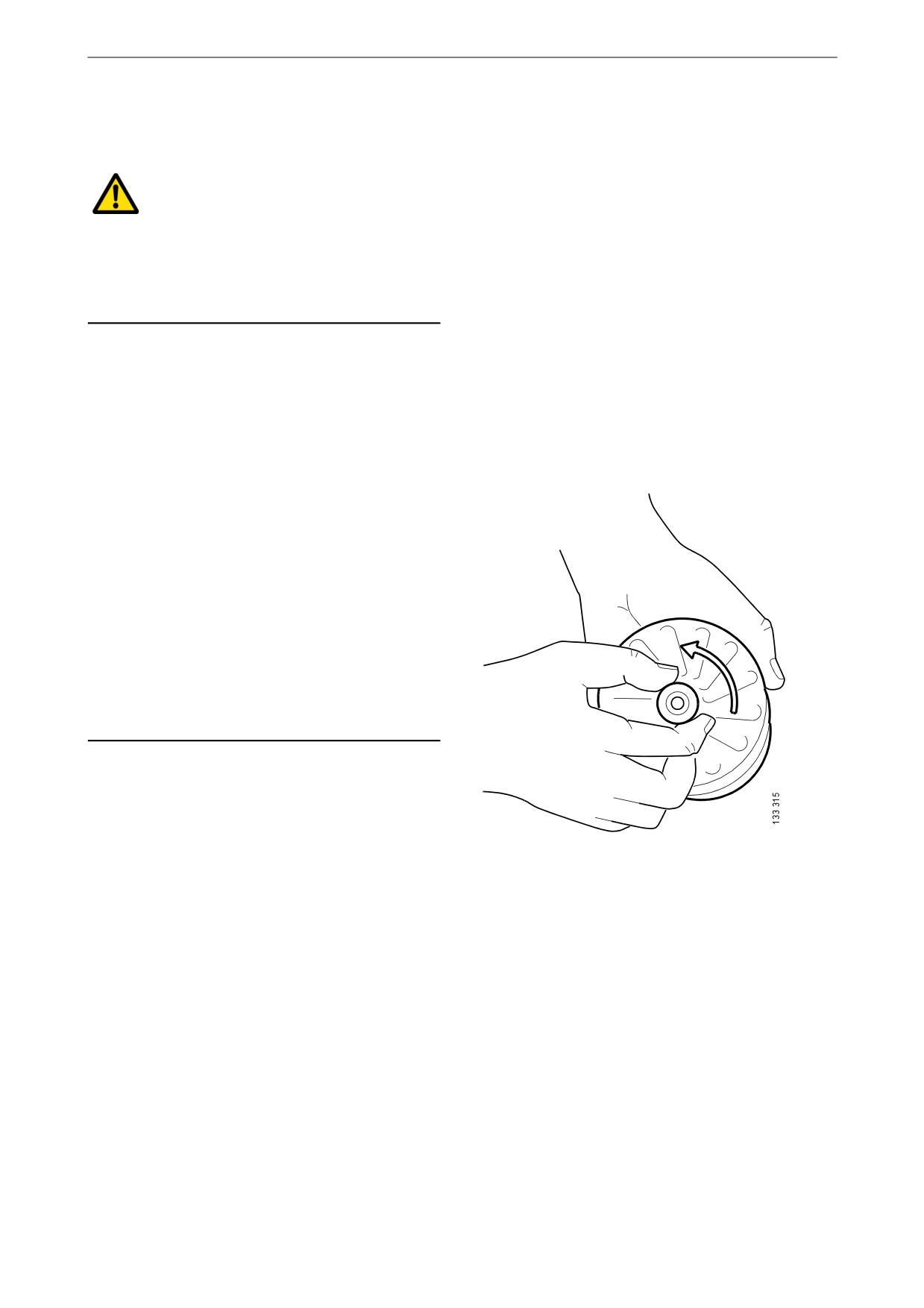

Cleaning upwards-moving
centrifugal oil cleaner
WARNING!
The oil may be hot. Carefully remove the cover
from the centrifugal oil cleaner.
Use eye protection and protective gloves when
working on the centrifugal oil cleaner.
When the centrifugal oil cleaner is cleaned, there
should be some dirt deposits on the paper in the
rotor cover. If the paper is clean, the equipment
is not working as it should. If this is the case, in-
vestigate the cause of this.
Renew the paper more frequently if the dirt de-
posits are thicker than 28 mm (1.1 inches) during
a scheduled oil change.
1. Clean the cover.
2. Unscrew the nut securing the outer cover.
3. Let the oil run out from the rotor.
x 1.5
4. Lift out the rotor. Wipe off the outside.
5. Loosen the rotor nut and unscrew it about
1.5 turns.
Note:
Take care not to damage the rotor shaft.
47
