Scania DI14 69 (750 hp), DI14 82 (800 hp). Marine engine. Operator’s manual - part 2





Changing functions using the DIP
Readout of fault codes
switches in the control unit
Note If the engine has stopped or lost power but

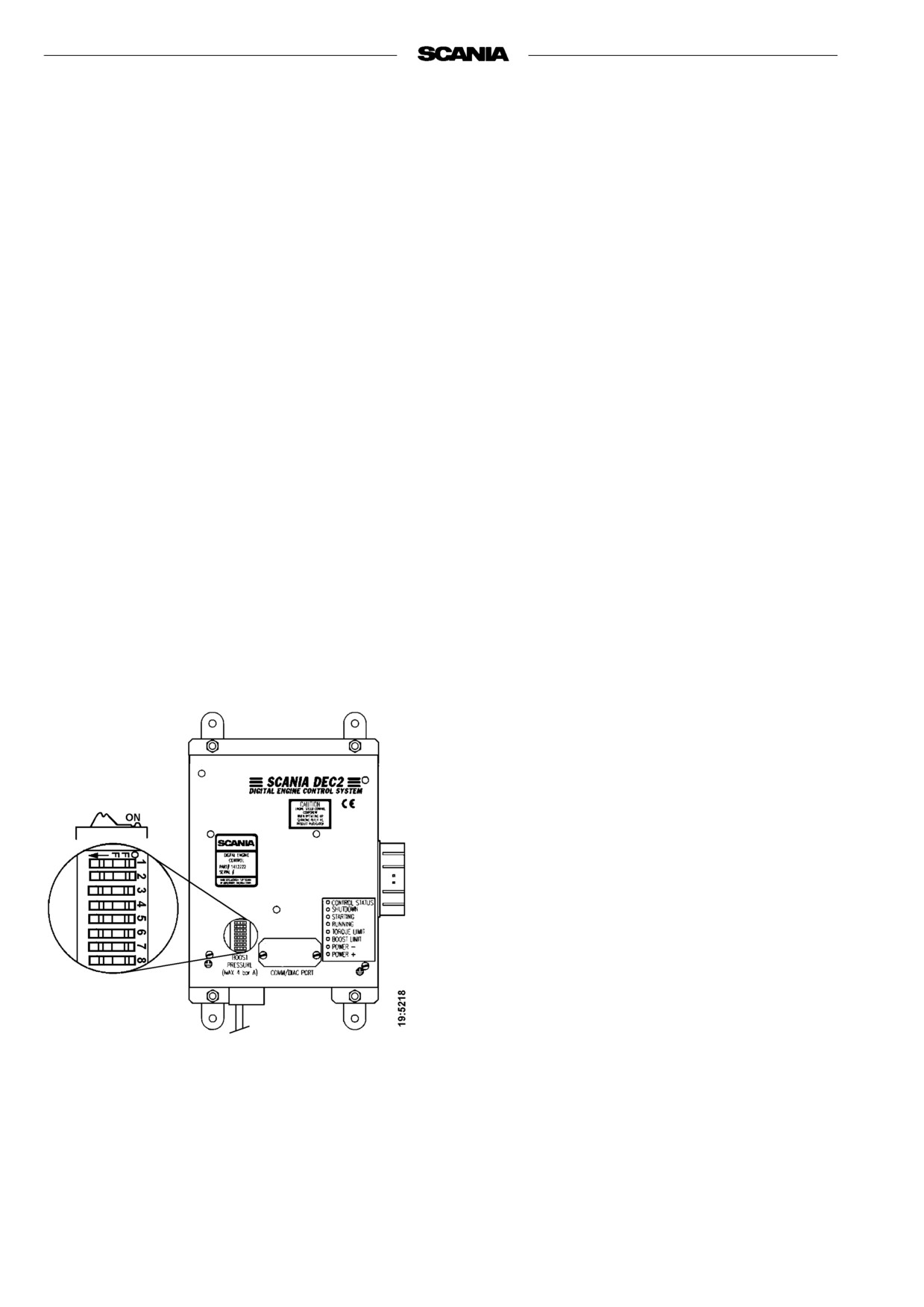

There are 8 DIP switches in the control unit under the
the main indicator lamp is out and neither
round black rubber cover.
POWER- nor SHUTDOWN are on, the
fault is outside the control unit detection
These switches shall be in the ON position to obtain
range. Probable causes: fuel shortage,
normal functions according to the operating program.
temporary overload, mechanical fault.
However, for single-speed engines, the normal
position of DIP switches 6, 7, and 8 may also be OFF
-
Activate the lamp test/fault code switch. In
Scania electrical equipment the main indicator
Shutdown at threshold values for low oil pressure and
lamp is located in this switch on the main supply
high coolant temperature can be selected by setting
box.
DIP switch 4 to OFF
-
All LEDs will then come on for 2 seconds to
With DIP switch 4 in position ON, Power- indication
indicate that they are intact and in working order.
is obtained for these threshold values. Engine output
This also applies to the main indicator lamp in the
reduction (LOP) can be selected to prevent damage to
main supply box and the instrument panel. Make
the engine. Changes to the program must only be
a note of any LED that is defective.
performed by authorized personnel.
-
All LEDs will then be out for approximately 4
Note
Do not operate the engine with a Power-
seconds.
indication except for in emergencies.
-
Following this, a fault code will be indicated on
one of the LEDs for 2 seconds. Note which LED
it is.
-
The control unit then resumes the operating mode
automatically.
-
After having made a note of the fault code, reset
the lamp test/fault code switch and reset the
control unit by turning off its power supply
momentarily.
-
The most probable cause of the fault can then be
found in the trouble shooting schedule on the next
page.
-
When the fault or faults have been rectified the
engine can be restarted.
-
If the control system continues to indicate a fault
by way of the main indicator lamp, further faults
may have been recorded. The fault code readout
must then be repeated as per above since the
system can only display one fault code at a time.
-
The fault(s) will be stored in a special memory in
the control unit along with information about the
operating time when it(they) occurred. Stored
faults can be accessed and erased by authorised
service personnel.
The DIP switches are showed in ON position
16
2001-05:1
READOUT OF FAULT CODES
LED INDICATION WHEN THE LAMP TEST/FAULT CODE SWITCH IS ACTIVATED
Probable cause
Action
Send in the control unit for repair as soon as
DEC2 has detected an internal fault in the control unit.
possible.
The engine temperature has reached the threshold level
Check the cooling system. Check the temperature
or the temperature sensor is inoperative.
sensor and cable routing.
The engine has reached the overrevving limit or the
Check the wiring and connector.
engine speed sensor is inoperative.
Renew the engine speed sensor.
Control rack position sensor inoperative.
Check connectors and cables to governor.
The intake air temperature has reached the threshold
Check the intake system. Check the temperature
level or the charge air temperature sensor is inoperative.
sensor and cable routing.
DEC2 detects no charge air pressure.
Check the charge air pressure hose. Send in the
The charge air pressure sensor is inoperative.
control unit for repair if the connection is damaged.
Engine speed potentiometer or the idling safety switch
Check the cable routing, connectors and cables.
is inoperative.
The oil pressure has dropped to the threshold level or
Check oil level, connector and cable.
the oil pressure monitor is inoperative.
Renew the oil pressure monitor.
=LED on
STARTING AND RUNNING
AT FIRST START
Coolant composition:
When the engine is started for the first time, the maintenance points listed
under ”First start” in the maintenance schedule should be followed, see
If there is a danger of freezing:
page 25.
minimum 30% glycol by volume
Since these points are important for the engine to work satisfactorily right
maximum 60 % glycol by volume
from the start, they are also listed below.
1. Checking oil level (see page 27).
If there is no danger of freezing:
8. Checking coolant (see page 32).
7-12% by volume
The coolant should contain anti-corrosive to protect the cooling system
Scania Anti-corrosive
from corrosion.
(no glycol)
If there is a danger of freezing:
- Only glycol anti-freeze should be used in the coolant as protection
against corrosion. We recommend only nitrite-free glycol anti-freeze
with the following supplier designations:
BASF G48 or BASF D542
Ethylene glycol and corrosion
- The concentration of glycol should be 30 - 50% by volume depending
inhibitor, if swallowed can be
on ambient temperature. 30% by volume offers protection down to
fatal.
-18 °C. See page 32.
Avoid contact with the skin.
- Never top up with water only or glycol only. Lost fluid should always
be replaced with pre-mixed coolant with the same glycol content as the
coolant in the engine. If the concentration of glycol drops, both anti-
freeze and corrosion protection will suffer.
Note: A glycol concentration below 30% by volume will not provide suf-
The recommended glycol must
ficient protection against corrosion. A glycol concentration
not be mixed with glycol having
greater than 50% will not increase anti-freeze protection and
reduces engine cooling capacity.
nitrite-based anti-corrosive.
If there is no danger of freezing:
- Only Scania Anti-corrosive should be used in the coolant to protect
against corrosion. The correct level of anti-corrosive is 7-12% by vol-
ume and this must never drop below 7% by volume. The inhibitor in
Scania Anti-corrosive is nitrite-free.
The use of too much Scania
Anti-corrosive as mixed with
- First fill: Fill with Scania Anti-corrosive as indicated on the packaging.
glycol may cause deposits.
- Never top up with water only or anti-corrosive only. Lost fluid should
always be replaced with pre-mixed coolant:
water + 10% Scania Anti-corrosive by volume.
Coolant filter
If a coolant filter has been fitted
Only coolant filter without inhibitor may be used. The use of a coolant filter
it must not contain inhibitor.
increases the life of the coolant and reduces the risk of deposit corrosion.
18
2001-05:1
12. Checking fuel level (see page 41).
15. Checking electrolyte level in batteries (see page 43).
16. Checking battery charge (see page 43).
18. Checking coolant level monitor (see page 44).
Immobilise the starting device
19. Checking V-belt tension (see page 45).
when working on the engine.
If the engine starts out of
control, there is a
SERIOUS RISK
OF INJURY.
CHECKS BEFORE RUNNING
Before running, ”Daily maintenance” as described in the maintenance sched-
ule should be carried out, see page 25.
STARTING THE ENGINE
If the fuel tank has been run dry or if the engine has not been used for a long
time, bleed the fuel system, see page 41.
Only start the engine in a
properly ventilated area.
Out of consideration for our common environment, your new Scania engine
has been designed to start using a smaller amount of fuel. Unnecessarily large
When operating the engine in
amounts of fuel used for starting the engine always result in the discharge of
an enclosed area, an effective
unburnt fuel.
extraction device for exhaust
- Open the seawater system’s intake valve (if fitted).
gases and crankcase gases
must be used.
- Open the fuel cock (if fitted).
- Disengage the engine.
- Engines with battery master switch: Switch on the power using the bat-
tery master switch.
- DEC2: If the main indicator lamp comes on or flashes when the power is
turned on, this indicates the presence of a fault in the control system or
engine which must be found and rectified before the engine is started.
Never use starting spray or
See page 16.
similar as a starting aid.
- Start the engine by means of the starter button or ignition key.
An explosion may occur in the
intake pipe, which could cause
Starting at low temperatures
personal injury.
Local environmental requirements should be complied with. Start aids,
engine heater and/or flame start should be used to avoid starting problems
and white smoke.
To limit white smoke, the engine should be run at low speed and under mod-
erate load. Avoid running it longer than necessary at idling speed.
2001-05:1
19
At temperatures below 0 °C:
Note: Use only start aids recommended by Scania.
- The starter motor may only be used for 30 seconds, after which it must
rest for 2 minutes.
If the engine has flame start:
- Operating flame start without timer relay: Press the control button
which also acts as a pre-glow button (max. 20 s). The glow plug contin-
ues to glow as long as the button is held down after the engine is started.
Max. time is 5 minutes.
Maximum starter engagement
- Operating flame start with timer relay: Press the pre-glow button (max.
time is 30 seconds. Risk of
20 s). Release the pre-glow button after the engine starts. The timer
overheating. Allow starter to
relay keeps the glow plug working for 5 minutes. If a shorter on-time is
cool for 2 minutes after a
required, press the release button. The key must be set to 0 if the start
starting attempt before
attempt fails.
cranking again.
Note: If the engine is equipped with an INTERLOCK switch, this
switch should be depressed and held down until the oil pressure
has reached a sufficiently high level.
- Run the engine until warm with a light load. A light load on a cold
engine gives better combustion and faster heating than warming up with
no load.
20
2001-05:1
RUNNING
Check instruments and warning lamps at regular intervals.
Engine speed
The Scania tachometer is divided into different coloured sectors as follows.
0-500 rpm
red area:
prohibited engine speed,
passed when stopping and
starting.
500-700 rpm
yellow area:
low idle.
700-2200 rpm
green area:
normal operating speed.
The engine’s operating
speed range is controlled by
the DEC2 control system.
2200-2600 rpm
yellow/green
unsuitable operating speed.
striped:
May occur when switching
off
2600-3000 rpm
red area:
prohibited engine speed
Cruising speed
Important: To achieve good operating economy and long engine life,
cruising speed should be about 200 rpm below maximum
engine speed.
Coolant temperature
Normal coolant temperature when the engine is running should be 70 - 90 °C.
DEC2: If the temperature is too high, 98 °C or above, the control system will
reduce engine power (Power -) in order to lower the temperature.
If the temperature continues to rise, the engine will be stopped automatically
(Shutdown) at 103 °C.
Excessively high coolant temperature can damage the engine.
If run for extended periods under an extremely light load, the engine may
have difficulty in maintaining normal operating temperature. However, the
temperature will rise to a normal level again when the load on the engine is
increased.
2001-05:1
21
Oil pressure
Max. oil pressure:
warm engine at speed above 800 rpm
6 bar
High lubrication oil pressure
Normal oil pressure:
(above 6 bar) is normal when
warm engine at operating speed
3 - 6 bar
starting a cold engine.
Min. oil pressure:
warm engine at 800 rpm
0.7 bar
At speeds below 800 rpm, the gauge may show low oil pressure without there
being a fault.
Oil pressure below 0.7 bar at speeds above 800 rpm will cause engine dam-
age. The engine must be stopped immediately.
Charge warning lamp
If the lamp lights during operation:
Check/adjust the alternator drive belts as described under maintenance point
See page 45. If the charge warning lamp is still lit, there may be a fault in the
alternator or in the electrical system.
STOPPING THE ENGINE
1. Allow the engine to run without load for a few minutes if it has been run
with a high continuous load.
2. Stop the engine with the stop button. Keep the stop button depressed
until the engine is completely stationary.
There is danger of turbo damage
3. DEC2: Before switching off, check that the control system’s main indi-
and post boiling if the engine is
cator lamp is not on or flashing. See page 9 for trouble shooting.
stopped without cooling.
4. Engines with battery master switch: turn off the current using the battery
master switch.
5. Set the control switch to ”0”.
The power must not be switched
off before the engine has
stopped.
22
2001-05:1
CHECKS AFTER RUNNING
- Check that the power is cut with the battery master switch and that the
control switch is set to ”0”.
Immobilise the starting device
- Fill the fuel tank. Make sure that the cap and the area around the filler
when working on the engine.
opening are clean to avoid contamination of the fuel.
If the engine starts out of
- If there is a risk of freezing, the cooling system must be drained if it
control, there is a
does not contain sufficient anti-freeze, see page 32.
SERIOUS RISK
- Close intake valve for seawater (if fitted).
OF INJURY.
- If there is a danger of freezing, the seawater must also be drained .
- At temperatures below 0 °C: Prepare for the next start by connecting the
engine heater (if fitted).
Top up engine coolant when the
engine has been stopped after
being started for the first time.
2001-05:1
23
MAINTENANCE
The maintenance programme covers 22 points, divided into the following
main groups:
Lubrication oil system
page 26
Cooling system
page 30
Air cleaner
page 39
Fuel system
page 41
Electrical system, monitors, batteries, etc.. .page 43
Immobilise the starting device
Miscellaneous
page 45
when working on the engine.
If the engine starts out of
The maintenance points are divided into intervals as follows:
control, there is a
Daily maintenance
SERIOUS RISK
OF INJURY
Maintenance before first start
Maintenance after the first 400 hours of operation
Periodic maintenance every 200 hours of operation (carried out after
200, 400, 600, 800, etc. hours)
Periodic maintenance after every 400 hours of operation (carried out after
400, 800, 1,200, 1,600, etc. hours)
Periodic maintenance after every 1,200 hours of operation (carried out after
1,200, 2,400, 3,600, etc. hours)
Maintenance every year
Maintenance every 3rd year
ENGINES WITH FEW HOURS OF
OPERATION
The engine is run to operating temperature and the maintenance points below
should be carried out:
1. Checking oil level.
5. Checking coolant level.
For engines with few
operating hours which do not
10. Checking low pressure indicator.
receive periodic maintenance
12. Checking fuel level.
according to the maintenance
15. Checking electrolyte level in batteries.
schedule on page 25,
16. Checking battery charge.
maintenance should be
carried out according to the
17. Cleaning batteries.
schedules for:
20. Look for leaks. Remedy as necessary
“Every year”
24
2001-05:1
MAINTENANCE SCHEDULE
First time
Interval
At least
at
LUBRICATION OIL SYSTEM, page 26
1. Checking oil level
2. Oil change
1
3. Cleaning the lubrication oil cleaner
1
4. Changing the turbo filter
1
COOLING SYSTEM, page 30
5. Checking coolant level
6. Checking corrosion protection rods 4)
4
7. Checking seawater pump impeller 4)
4
8. Checking coolant
5
5
9. Cleaning cooling system
1
AIR CLEANER, page 39
10. Test reading low pressure indicator
11. Cleaning or changing filter insert
3
FUEL SYSTEM, page 41
12. Checking fuel level
13. Changing main filter
1
14. Checking injectors
ELECTRICAL SYSTEM, page 43
15. Checking electrolyte level in batteries
2
16. Checking charge state of batteries
2
17. Cleaning batteries
2
18. Checking level monitor
MISCELLANEOUS, page 45
19. Checking V-belts
20. Look for leaks. Remedy as necessary
21. Checking/adjusting valve clearance
22. Changing (or cleaning) valve for closed crankcase
ventilation
1. More often if required
2. For engines with few operating hours, see page 24.
3. Earlier if low pressure indicator shows red.
4. Guiding value. Varies according to composition of seawater.
5. If inhibitor has not been topped up for three years, the coolant should be changed.
2001-05:1
25
LUBRICATION OIL SYSTEM
OIL GRADE
The engine oil should at least meet the requirements for one of the following
oil classifications:
-Service CE or CF as per API
-CCMC - D5
-Acea E3-96
- Check with your oil supplier that the oil meets these requirements.
Additives must not be used.
- Specified oil change intervals apply under the provision that the sulphur
The oil should be suitable for all
content of the fuel does not exceed 0.3% by weight.
temperature variations until the
- Viscosities as illustrated.
next oil change.
- At very low outside temperatures: Consult your nearest Scania repre-
sentative to avoid starting difficulties.
Oil analysis
Some oil companies can offer analysis of the engine oil. This analysis meas-
ures the oil’s total base number (TBN), total acid number (TAN), fuel dilu-
tion, water content, viscosity and the content of wear particles and soot in the
oil.
The result of a series of analyses forms the basis of establishing a suitable oil
change interval.
If the conditions are changed, a new oil analysis programme must be under-
taken to establish a new change interval.
-40
-30
-20
-10
0
10
20
30
40
°C
SAE 20W-30
SAE 30
SAE 40
SAE 50
SAE 15W-40
26
2001-05:1
1. Daily:
CHECKING OIL LEVEL
Before checking oil level: Let the engine remain stationary for at
least 1 minute.
- The correct level is between the marks on the dipstick. Top up when the
level is at the lower mark.
- Correct type, see ”Oil grade”, page 26.
2. Every 200 hours:
OIL CHANGE
If the engine is used in particularly demanding operating
conditions, in an especially dusty environment or if the deposits in
the centrifugal cleaner are thicker than 20 mm: Change the oil
Max. 30 dm3
more often.
Min. 25 dm3
- Pump out the oil using the oil bilge pump when the engine is warm.
- Fill with new oil.
- Check the level on the dipstick.
Note: Observe the applicable environment protection regulations when
disposing of the old oil.
Max. 26 dm3
Min. 20 dm3
The oil may be hot.
Wear protective gloves and
goggles
Always use a suitable container
Maximum oil sump angles of inclination when in
to avoid spillage when
operation
changing oil.
Maximum permissible angles for operation vary according to the type of oil
Dispose of used oil through an
sump, see figure.
authorized waste disposal
contractor.
Note: Given angles may only be used intermittently.
15°
18°
45°
35°
30°
30°
2001-05:1
27
3. Every 200 hours:
CLEANING THE OIL CLEANER
(at same time as oil change)
- Unscrew the nut and remove the cover.
Open the cap carefully. The
oil may be hot.
- Lift out the rotor and slacken the nut for the rotor cover three turns.
- If the nut is stuck:
Clamp the nut, absolutely not the rotor, in a vice and turn the rotor three
turns by hand or using a screwdriver.
- Gently tap the nut using your hand or a plastic hammer so that the rotor
bowl becomes detached from the bottom plate.
- Undo the nut and remove the rotor bowl.
- Carefully prise the strainer loose from the bottom plate.
- Scrape away deposits from the inside of the rotor bowl. If there are no
deposits, this shows that the cleaner is not working.
- If the deposits are thicker than 20 mm: Clean more often.
28
2001-05:1

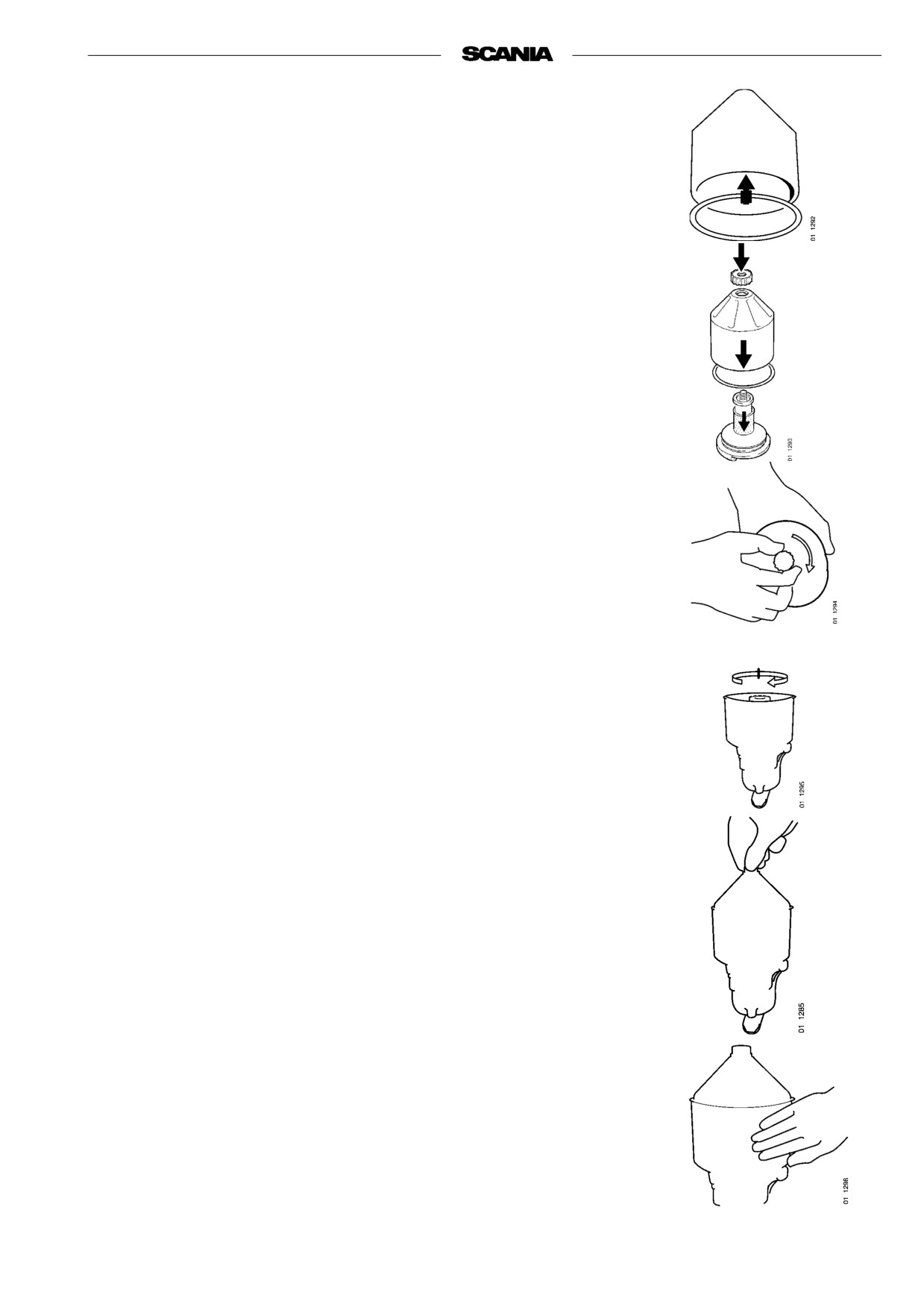

- Clean all the parts in diesel fuel oil.
- Place the O-ring in position in the rotor bowl. This must not be damaged.
Change if necessary.
- Assemble the rotor
- Tighten the rotor nut hard by hand
- Refit the rotor.
- Check that it turns easily.
- Check that the O-ring in the bowl is not damaged.
A hardened or damaged O-ring should be replaced.
- Screw down the bowl hard by hand.
If the nut is tightened using a tool, the rotor shaft, nut or bowl may be
damaged.
Operational test
The rotor turns very quickly and should continue to rotate when the engine
has stopped.
- Stop the engine when it is warm.
- Listen for the whirring from the rotor or feel whether the cleaner hous-
ing is vibrating.
The rotor normally rotates for 30 - 60 seconds after the engine has stopped.
If not: Dismantle and check.
2001-05:1
29
4. Every 200 hours:
CHANGING THE TURBO FILTER
(at the same time as the oil change)
- Remove the old filter and discard it according to environmental require-
ments.
- Oil the rubber gasket and fit a new genuine Scania filter.
- Tighten the filter by hand.
Never use tools as the filter may sustain damage, interfering with
circulation.
- Start the engine and check for leaks.
If the deposits in the centrifugal cleaner exceed 20 mm, the turbo filter
must be changed more often, at the same time as cleaning the centrifugal
filter and changing the oil.
Always collect oil in a suitable
container to avoid spillage when
renewing the oil filter.
Dispose of used filters through
an authorized waste disposal
contractor.
COOLING SYSTEM
5. Daily:
CHECKING COOLANT LEVEL
- Open the expansion tank cap and check the coolant level.
- Correct level: (Scania expansion tank)
Carefully open the cap.
Hot water and steam
- Cold engine: The coolant should reach up to the bottom of
the filler pipe.
may blow out.
- Warm engine: The coolant should be 10 - 20 mm above the bottom
of the filler pipe.
- Other types of expansion tank according to the installer’s instructions.
- Top up coolant as necessary, see point 6.
Note: When filling large amounts of coolant:
Always top up with ready mixed
Never pour cold coolant into a warm engine.
coolant.
This could crack the cylinder block and head.
30
2001-05:1

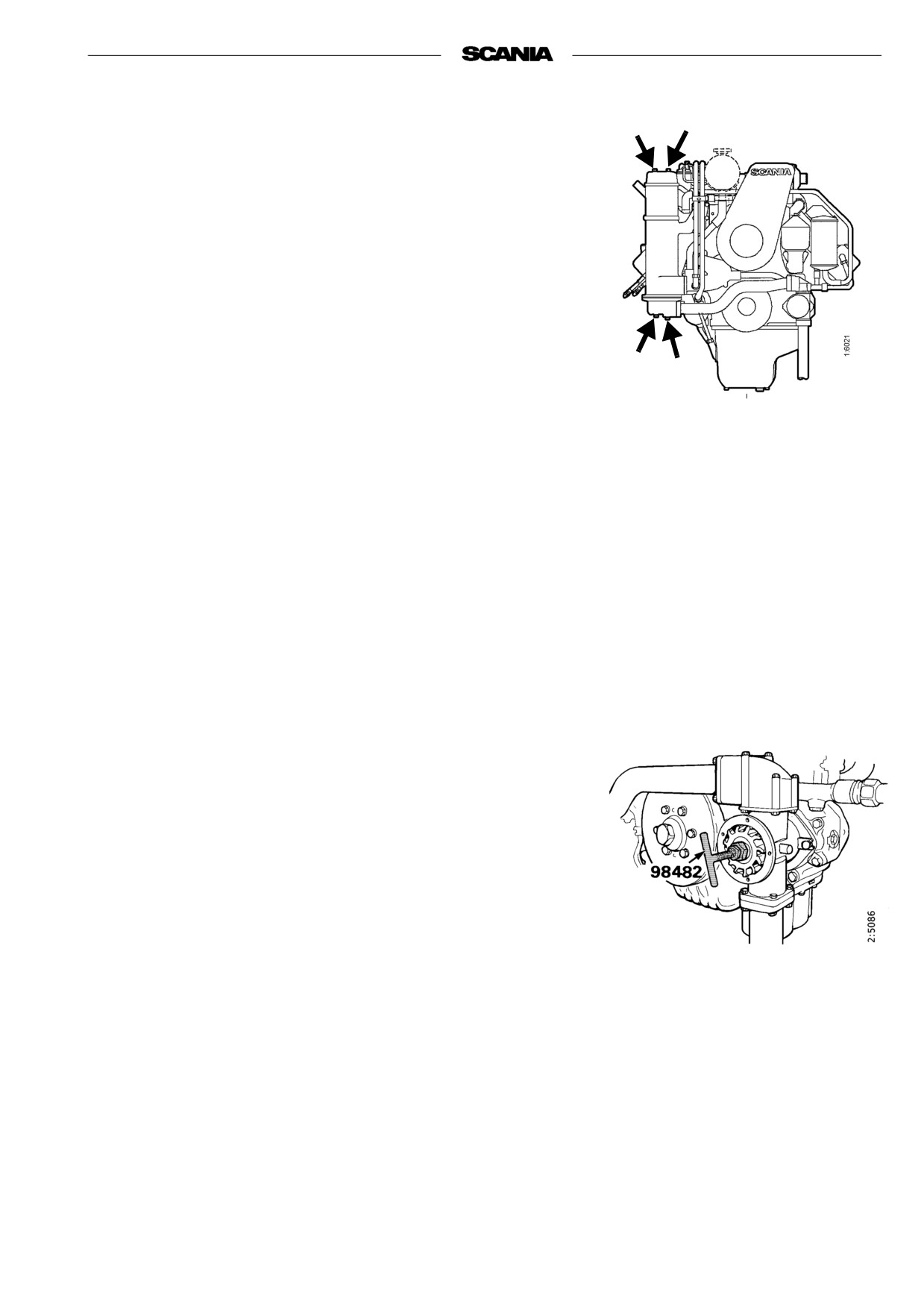

6. Every 400 hours:
CHECKING CORROSION
PROTECTION RODS
- Drain the seawater circuit and check the corrosion protection rods
(sacrificial anodes). Location as per drawing on page 11.
- Scrape away all loose material from the anode.
- Change if less than half the rod remains.
New rods are 55 mm long, diameter 17 mm.
If the corrosion protection rods are highly eroded, they should be checked
more often, e.g. every 200 hours.
7. Every 400 hours:
CHECKING SEAWATER PUMP
IMPELLER
- Close the bottom valve if the seawater pump is below the water line.
- Drain the seawater circuit.
- Remove the cover from the seawater pump.
- Check that the impeller vanes are not worn or damaged.
If the impeller often requires changing, it is necessary to improve
the purity of the seawater.
Changing the impeller
- Extract the impeller using extractor 98 482 (Scania special tool).
- Fit a new impeller and the cover. Check that the cover seal is not
hard or damaged.
Note: A spare impeller should be carried on board.
- The impeller can become deformed after long periods of standstill.
Change before starting or remove the impeller before long periods of
disuse. Also see “Mothballing”.
2001-05:1
31















Content      ..      1      2      3      ..
