EDC S6

General

This booklet contains the following
descriptions:

•

Fault codes — how to present and erase
them.

A list of the flashing codes which can be
read, and the fault codes to which they
correspond.

There is also a complete list of fault codes.
The reason why fault codes are generated
and how to rectify the fault is also described
there. It is the same fault code list that is
found in Scania Diagnos.

•

An operational test. Perform the operational
test after each repair.

General

4

ã

03:04-06

Fault codes

Working procedure

Try to form a comprehensive view of the
problem. Start by asking the driver the
following:

•

Fault symptoms

•

Conditions in which the fault occurs

•

How often the fault occurs

•

If the warning lamp came on when the fault
occurred

•

If the warning lamp went out by itself when
the fault ceased

•

If the driver has erased the fault codes

Compare them and try to conclude the probable
cause of the fault before taking any other
measures. The fault codes are stored in the order
they were registered.

Fault codes

03:04-06

ã

5

How to read fault codes from the diagnostic lamp

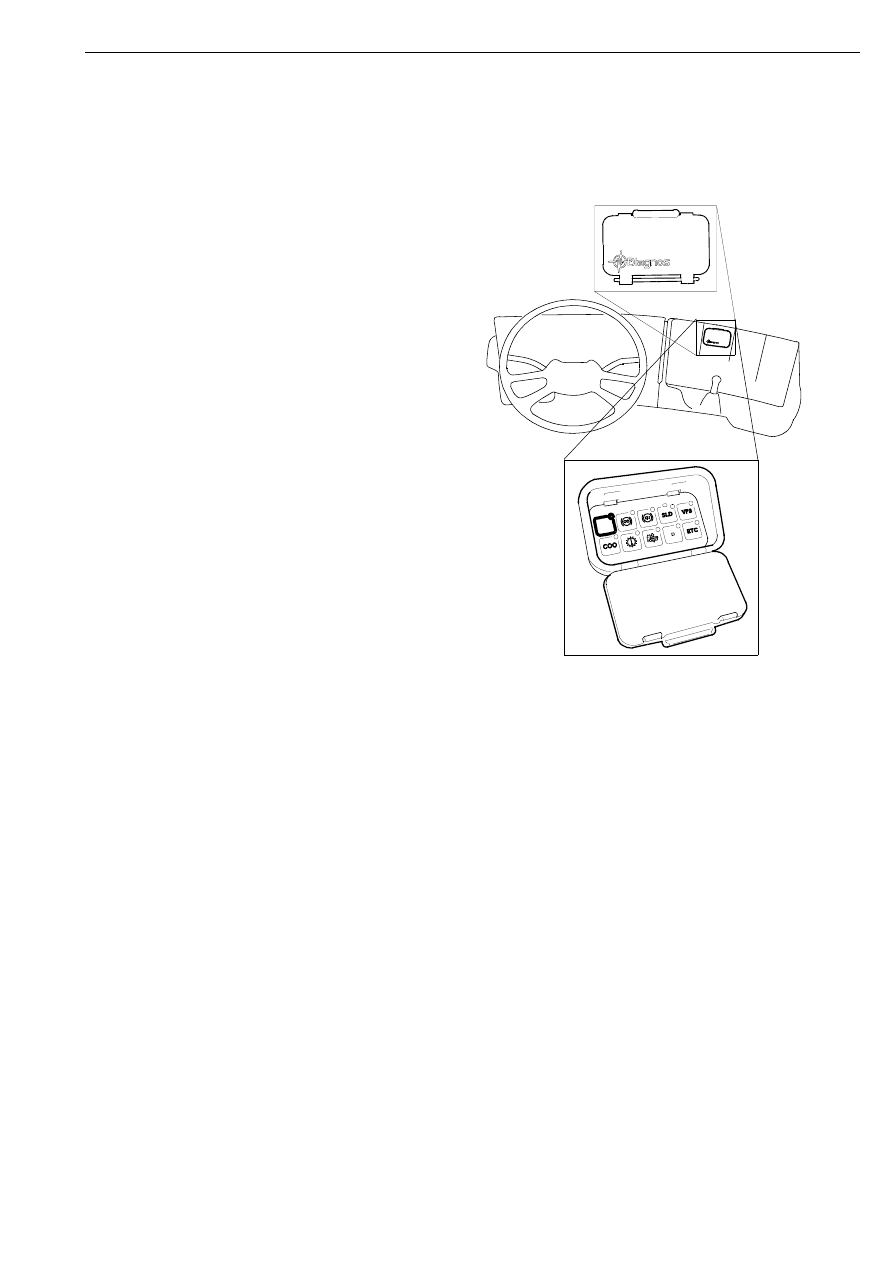

Diagnostics switch and diagnostics lamp

EDC

1

18 71

5

How to read the fault codes from the diagnostic
lamp is described below.

You can see how to interpret the flashing codes
on the next page.

1

Switch on the power using the starter key.

2

Press the diagnostic switch and note the
number of short and long flashes. You have
now presented one of the fault codes.

3

Repeat point 2 until you have presented all
the fault codes. If the same fault code is
flashed several times, there may only be one
fault in the system.

Fault codes
