Function Description

General

System components

Multi-leaf springs

Multi-leaf springs are built up of several spring
leaves of different lengths.

The spring leaves are of the same width and are
often the same thickness as each other.

The longest leaf is called the main leaf or the
1st leaf. It has eyes in the ends if the spring is
attached to the frame using spring bolts.

To prevent a failure of the main leaf causing the
spring to come loose from the spring bracket,
the second leaf also has an eye at the front end.

The spring is held together by a centre bolt
through the spring leaves, plus U-bolts that
prevent the spring leaves from moving
laterally.

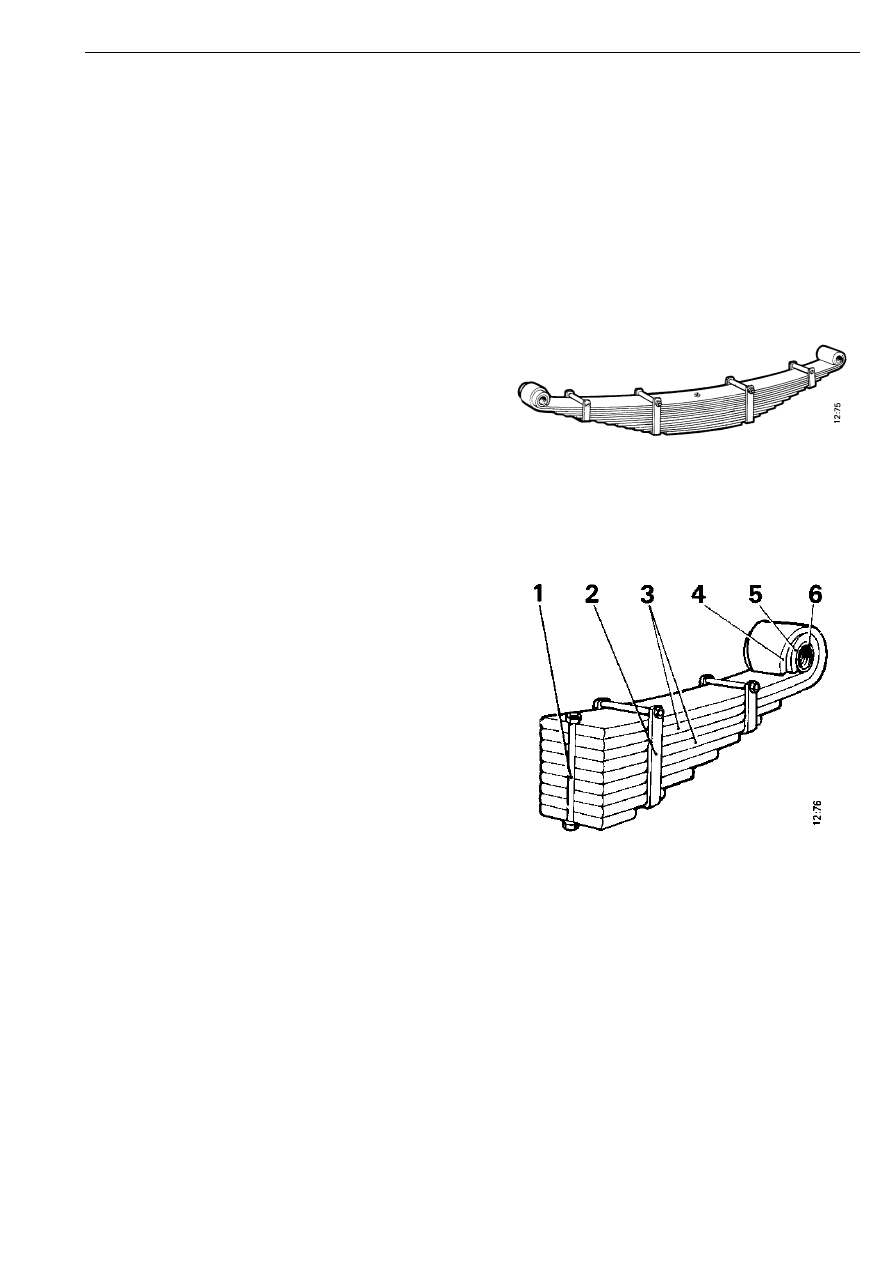

Multi-leaf spring

1

Centre bolt

2

U-bolt

3

Spring leaf

4

Safety eye

5

First leaf eye

6

Spring bushing

Multi-leaf spring construction

Multi-leaf springs

4

©

12:01-01

Parabolic spring

The parabolic spring is built up of two to four leaves
of equal length and width.

The spring leaves are slightly thicker in the centre
and taper to a thinner cross section at the ends.

The spring leaves are not in contact with each other,
as in the multi-leaf spring, but are separated by steel
spacers. This gives a softer suspension action.
Parabolic springs are therefore always combined
with shock absorbers.

The spring has eyes in both ends where the spring
bushings are pressed into place. The leaf under the
blade with bushing eyes also has an eye at the front
end, to prevent the spring from detaching if it fails
at the spring bushing.

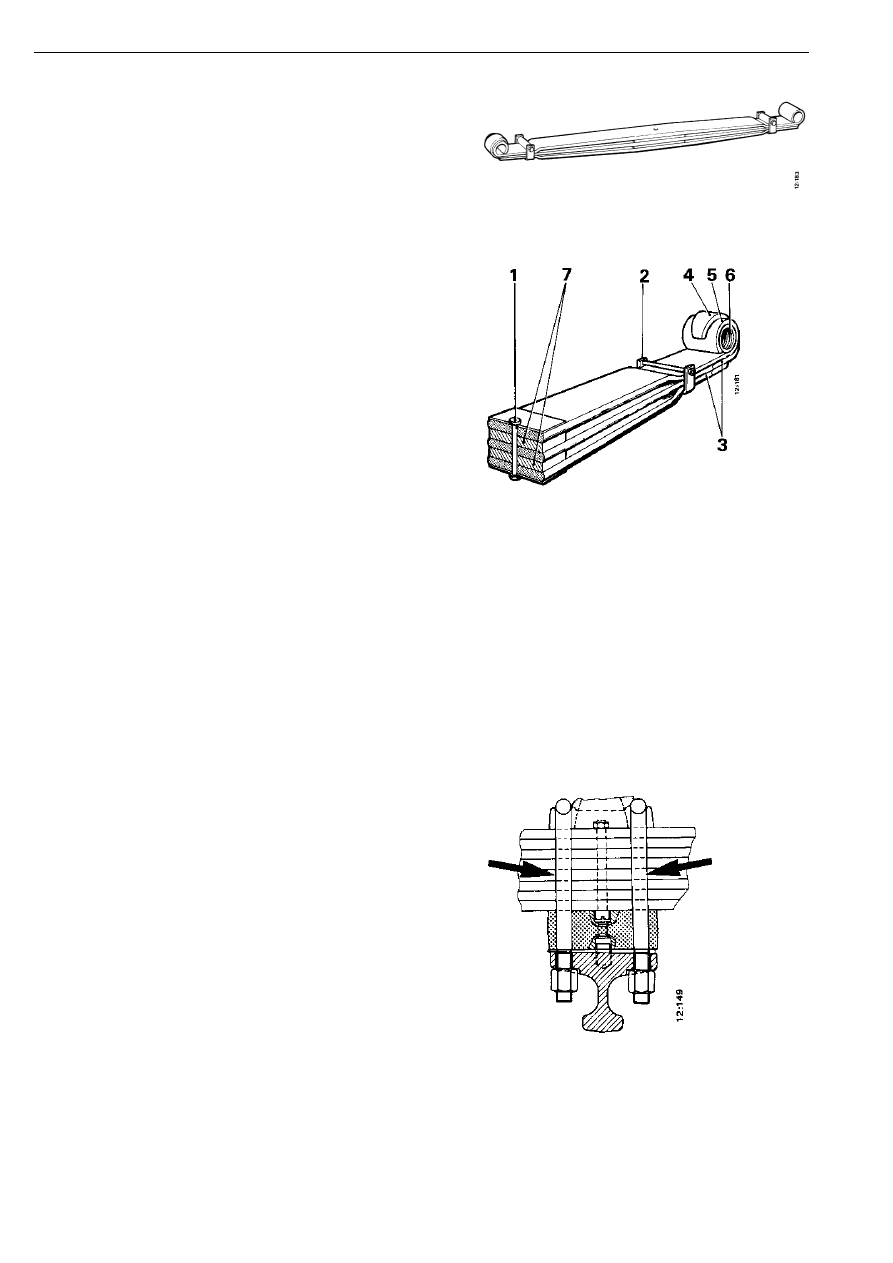

Parabolic spring

1

Centre bolt

2

U-bolts

3

Spring leafs

4

Safety eye

5

First leaf eye

6

Spring bushing

7

Spacer

Parabolic spring construction

Clamp bolts

Both the front and rear spring assemblies are
clamped to the axle using two clamp bolts per side.
The clamp bolts are threaded and tightened using
nuts to a specific torque. Consequently, the
tightening torque of the clamp bolts determines the
clamping force in the joint between the spring and
the axle. Therefore, this bolted joint requires
periodic inspections and re-tightening.

Clamp bolts

Parabolic spring - Clamp bolts
