Scania Central gear RP832-RBP832. Manual - part 13

08:04-02

©

49

Differential housing

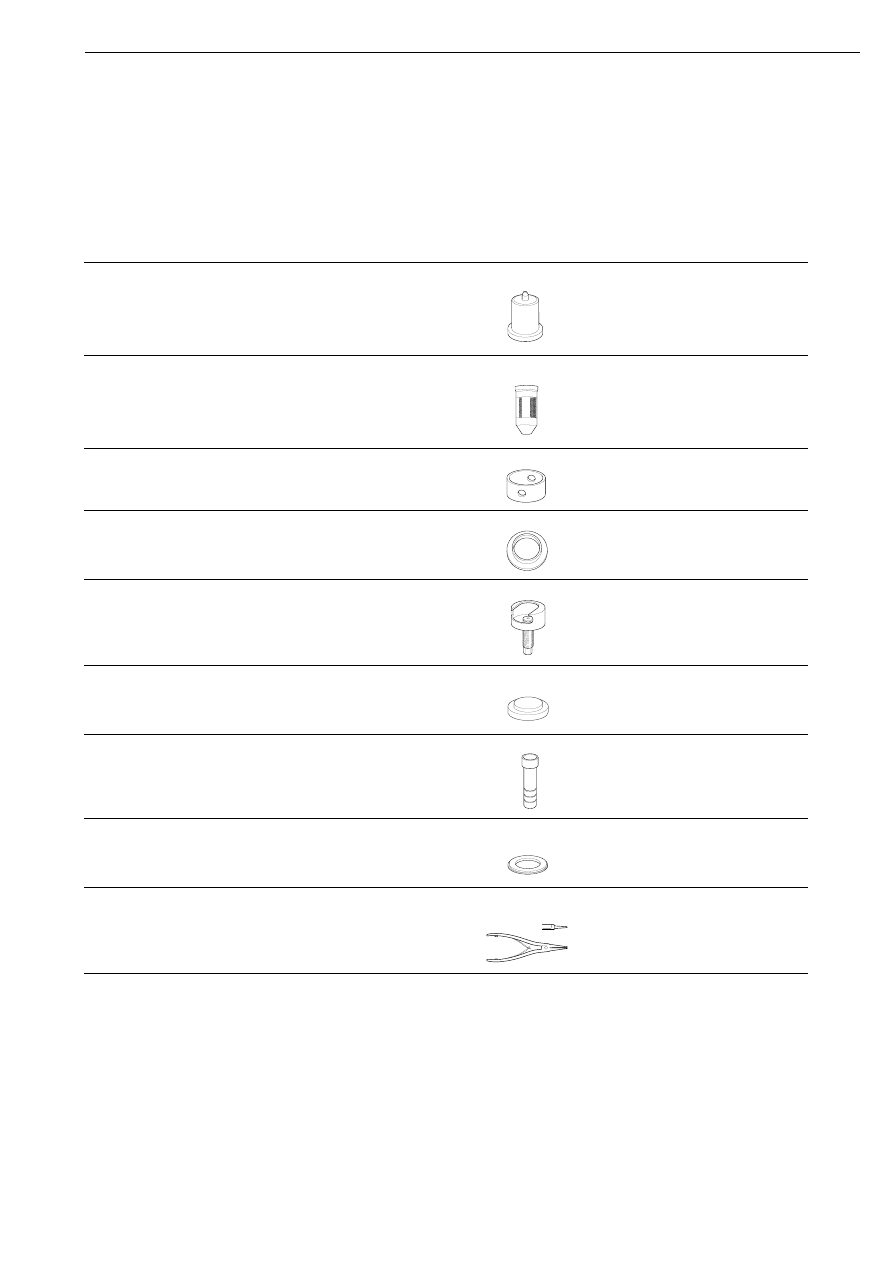

Special tools

Number

Description

Illustration

Board

87 579

Drift

R1

87 932

Drift

D3, G1

98 364

Assembly drift

R1

98 524

Assembly sleeve

R1

98 567

Puller

R2

98 568

Support drift

R2

98 574

Drift

R1

99 139

Support ring

PT1

587 311

Retaining ring pliers

00

1

8

1

6

87 579

00

1636

87 932

98 364

110

129

98 524

110 454

98 567

11

0

 5

1

0

00_1618

98 568

109 783

98 574

99 139

111 420

587 311

111 444

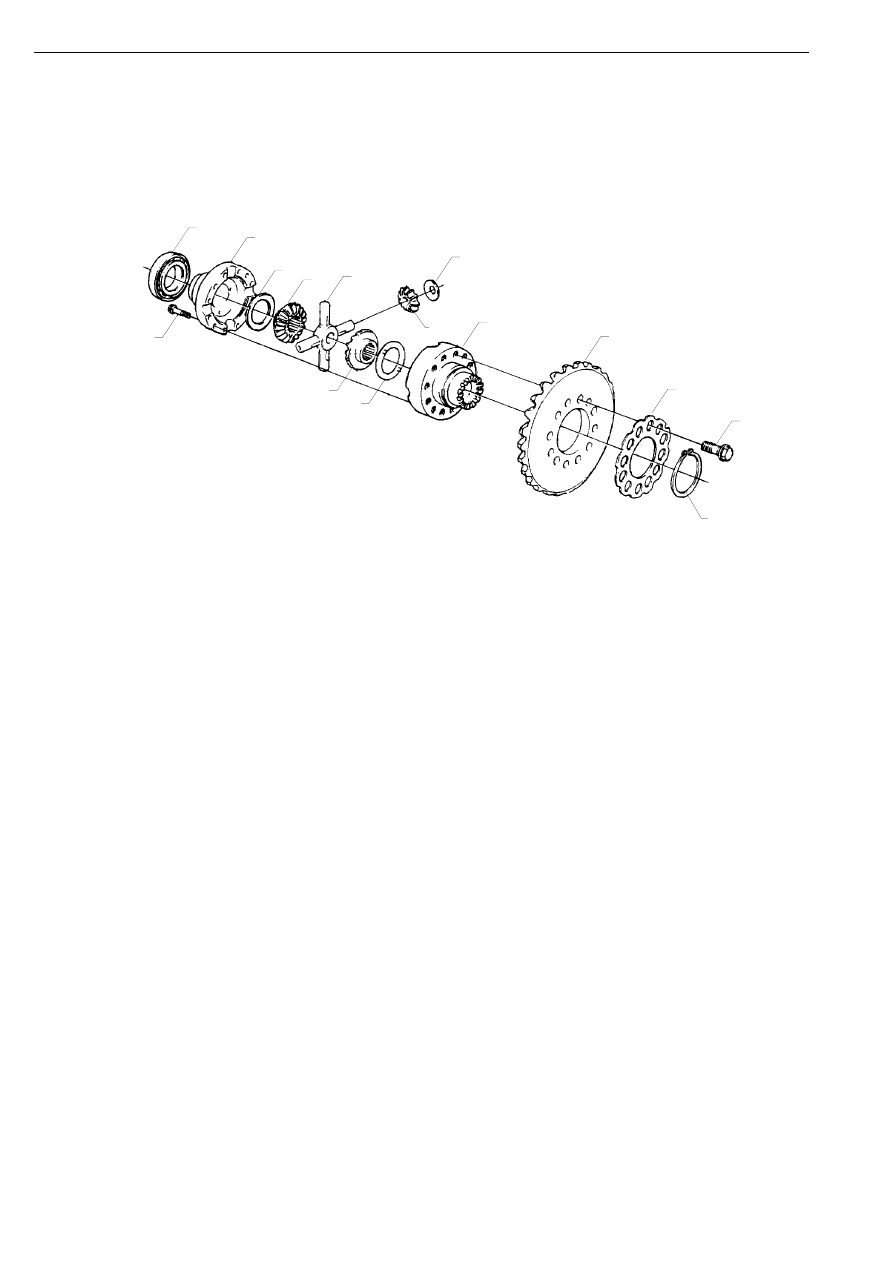

Differential housing

50

©

08:04-02

Differential housing

49

50

51

48

52

54

56

55

53

57

57

53

58

60

59

111 448

48 Crownwheel

49 Bolt

50 Retaining ring

51 Lock washer

52 Differential housing half

53 Washer

54 Washer

55 Differential pinion

56 Differential spider

57 Differential gear

58 Differential housing half

59 Bolt

60 Differential bearing

Differential housing

08:04-02

©

51

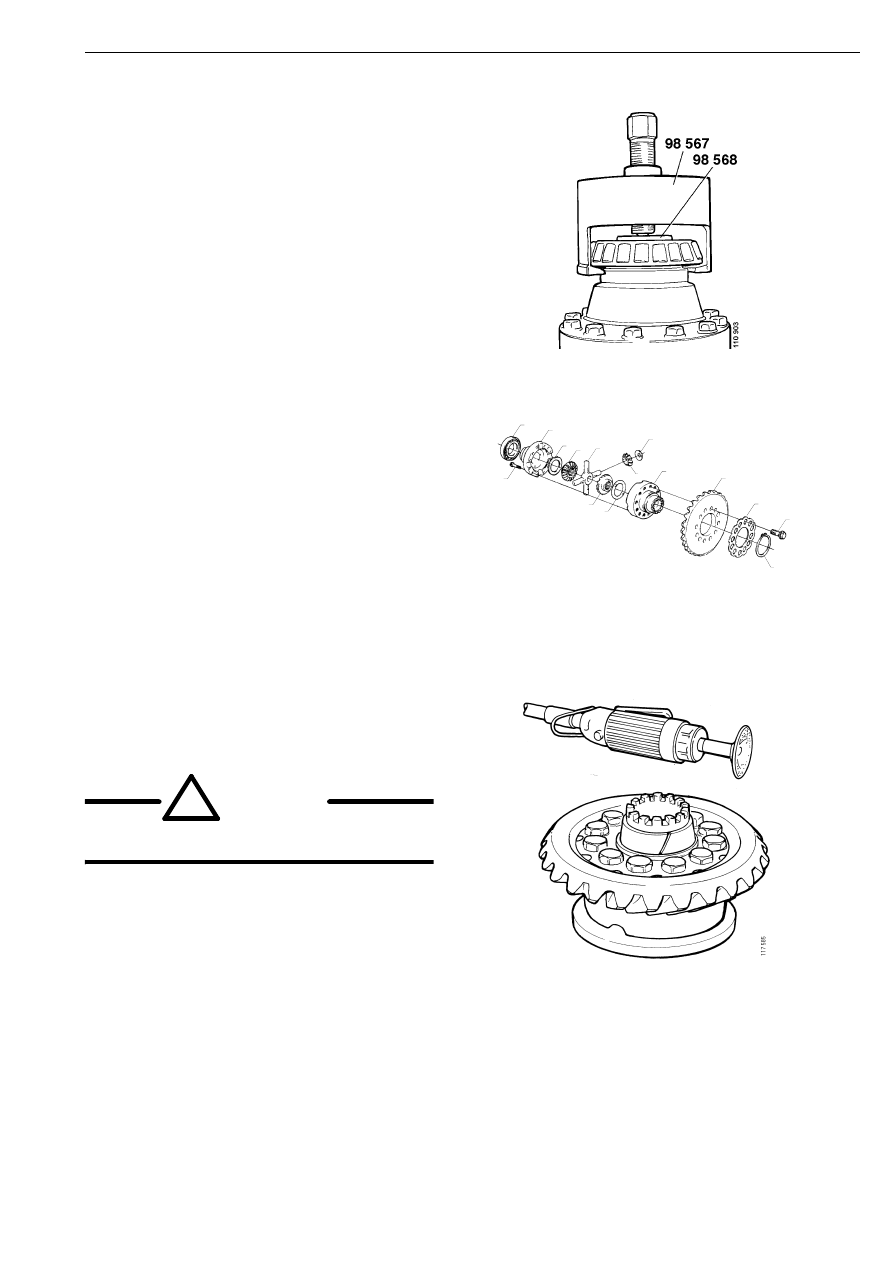

Dismantling

1

Put the differential housing on its
crownwheel side and pull off the
crownwheel bearing using tool 98 567 and
98 568.

2

Mark the mutual positions of all the parts in
the housing. Dismantle the housing 52-58
and remove the spider 56, pinions 55,
gears 57 and washers 53-54.

IMPORTANT! The parts must not be mixed
when assembling. If any part is damaged and
needs to be renewed, all the other parts must be
renewed as well.

49

50

51

48

52

54

56

55

53

57

57

53

58

60

59

111 448

3

Turn over the differential housing. Cut off
the bearing roller cage and remove the cage
and rollers.

!

WARNING!

Use protective goggles when grinding.

4

Grind a narrow groove in the inner bearing
ring with a grinding wheel with a diameter
below 60 mm.

Differential housing

52

©

08:04-02

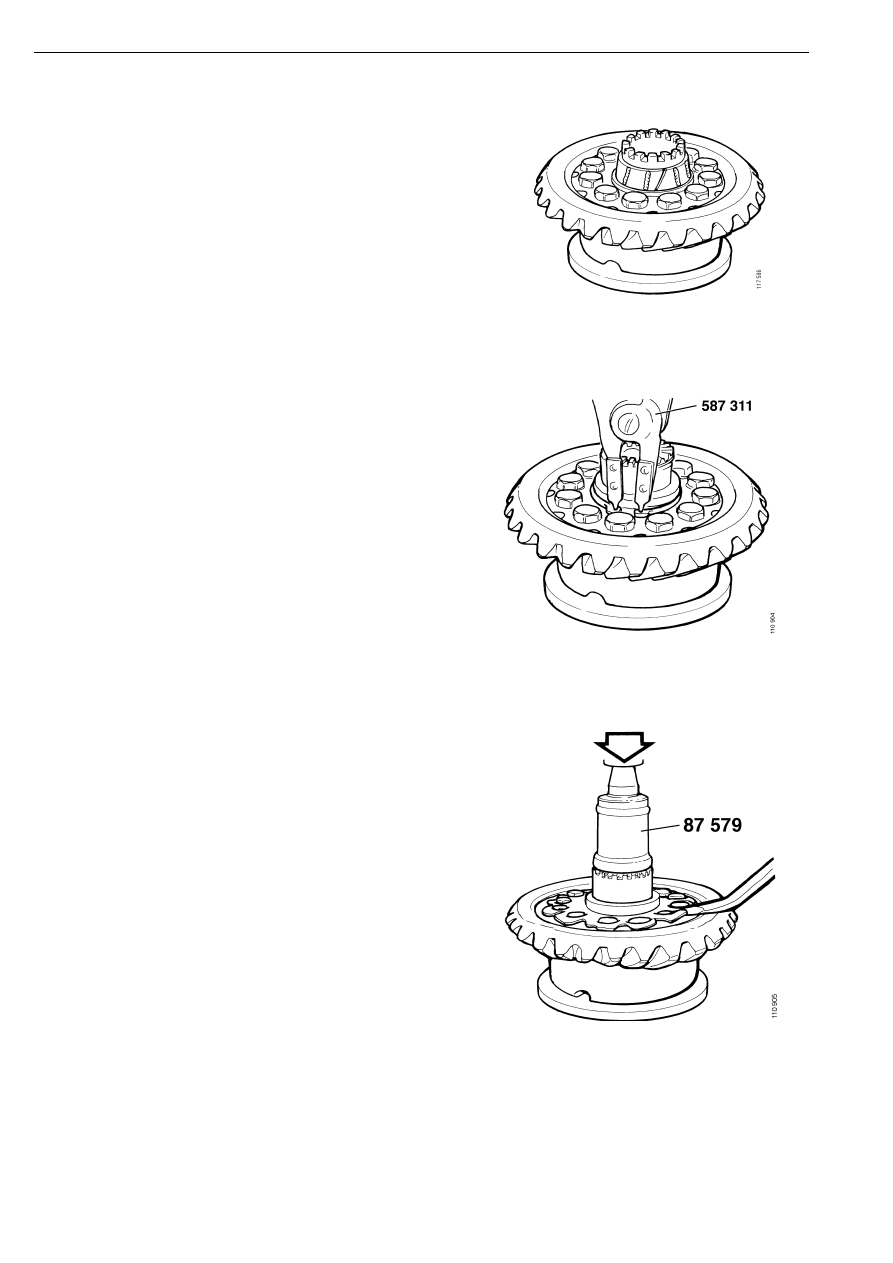

5

Weld a few beads on the inner bearing ring
with an electric welder. Cool with a wet rag
after each weld.

6

Remove the inner bearing ring once it splits.
It will break through shrinkage after 4-5
welds.

7

Remove the retaining ring 50. Use retaining
ring pliers 587 311.

8

Mount the differential housing half in a
press. Use drift 87 579 as a spacer.

9

Remove the lock washer 57 for the
crownwheel bolts 49 using a crowbar, for
example.

10 Remove the crownwheel bolts and then the

crownwheel.

Differential housing
