Scania Central gear RP832-RBP832. Manual - part 8

08:04-02

©

29

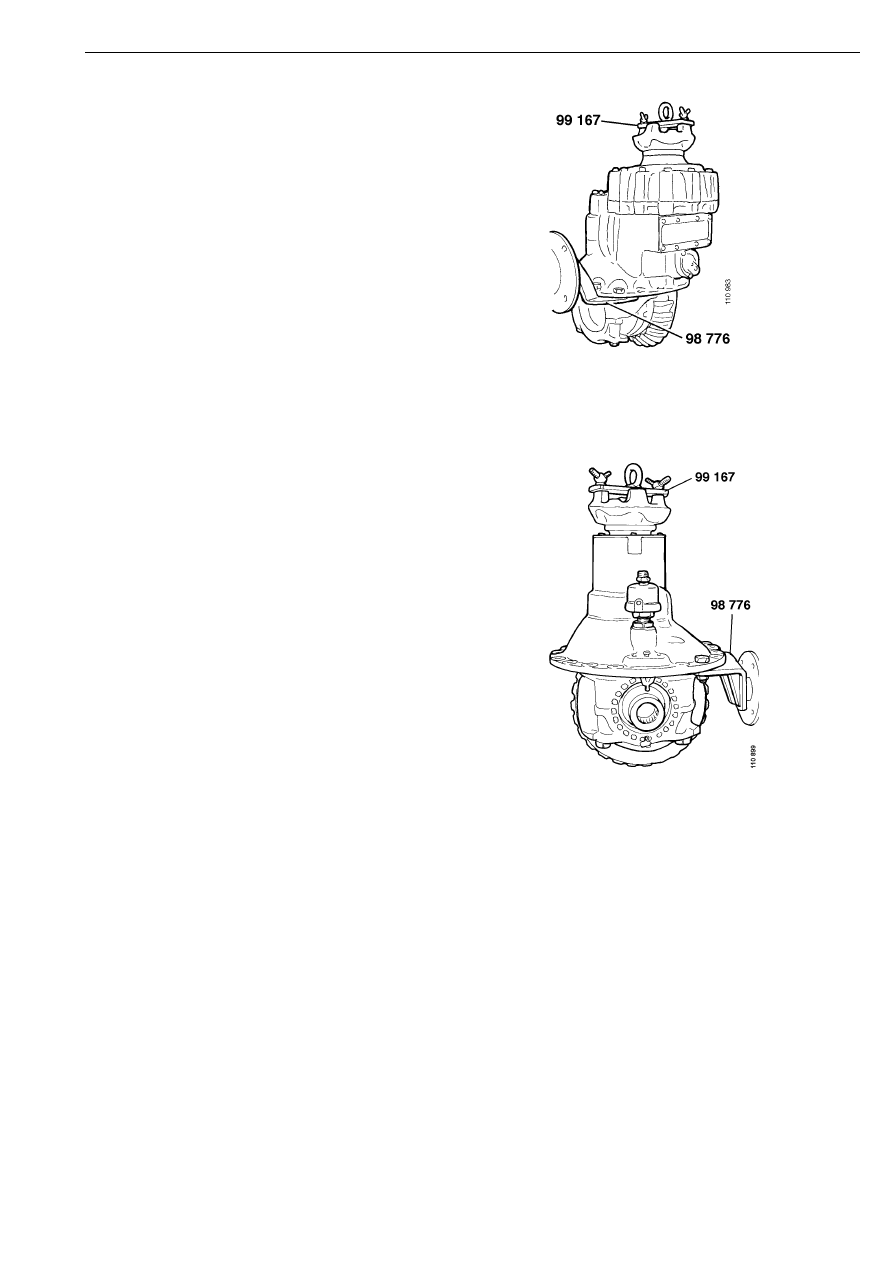

16 Lift the gear with lifting tool 99 167 and

screw it to fixture 98 776 in a universal
stand.

RBP832

RP832

Central gear

30

©

08:04-02

Fitting

1

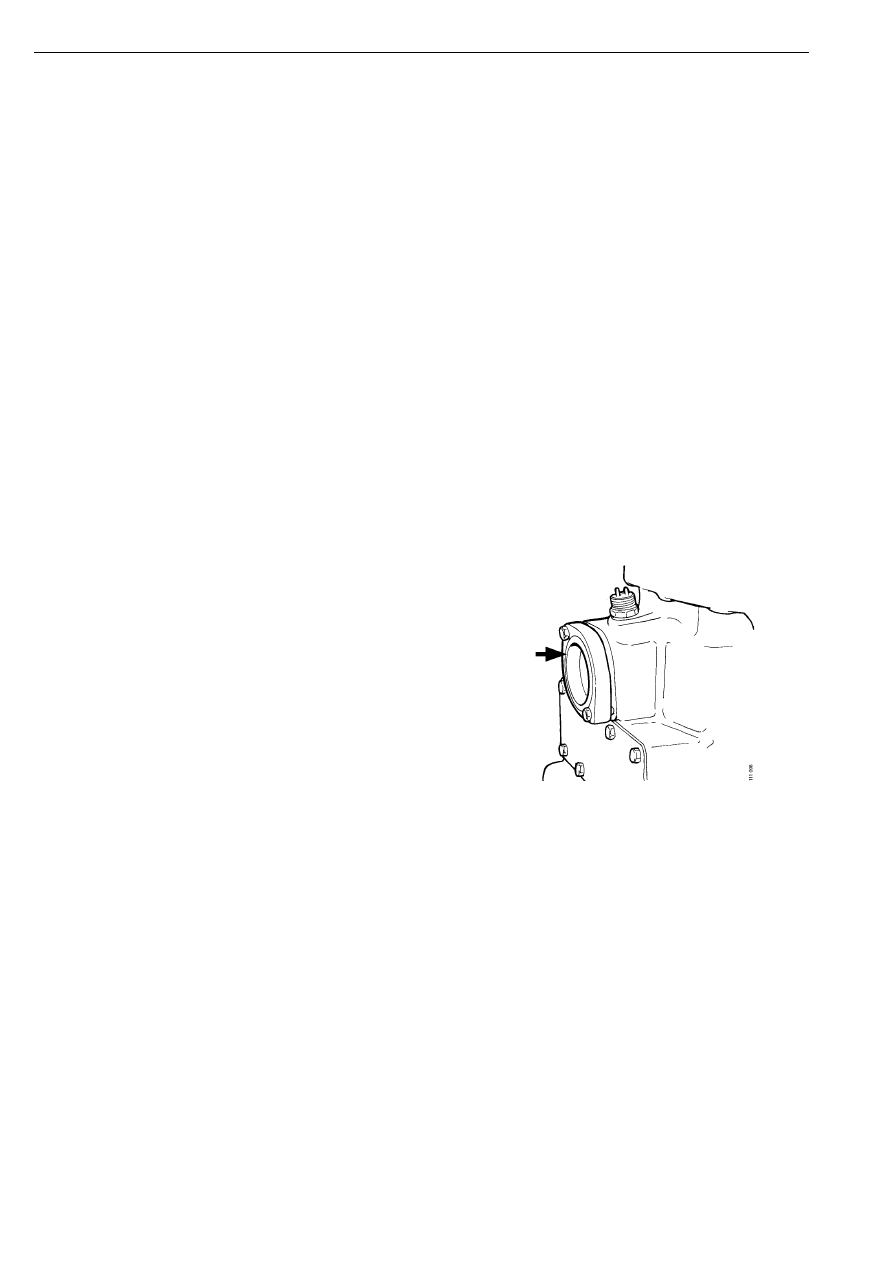

Clean inside the rear axle housing and on
the contact surface to the gear housing.

2

Position the axle gear with the pinion down.
Pour approx. 0.5 litres of oil into the gear
housing, see Workshop Manual group 0,
"Fuel, lubricants and fluids". Rotate the
pinion a few turns. This is essential to
ensure lubrication of the front pinion
bearing during the initial operating period.

IMPORTANT! Make sure the cover 54 for the
bogie differential lock on the RBP832 is fitted
reversed so that the piston is depressed and the
differential lock engages.

Central gear

08:04-02

©

31

3

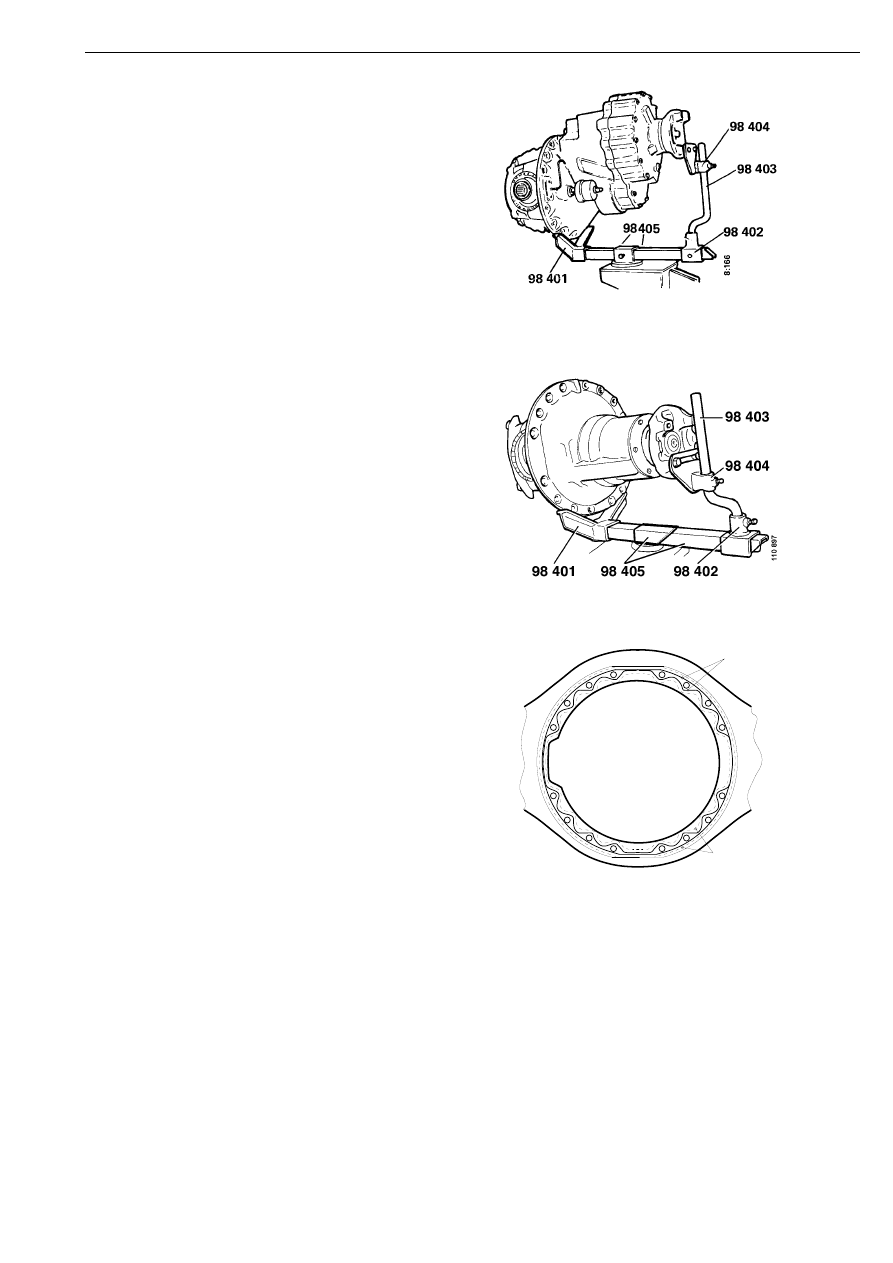

Place the gear on the gearbox jack with
fixtures 98 401, 98 402, 98 403, 98 404 and
98 405.

RBP832

RP832

4

Apply a zigzag bead of sealing agent
584 010 (silicon rubber) around the rear
axle housing contact surface. The bead must
be 2-3 mm thick.

1

2

110 775

1

Sealing agent

2

Contour of gear housing

5

Insert the gear in position in the rear axle
housing. If the retaining bolts are needed in
order to get the gear into position then use at
least every other bolt and tighten the nuts
alternately with a hand tool a little at a time.

Note: The gear must not be forced into the
housing. If it is difficult to pull the gear in place
then the reason must be investigated.

Central gear

32

©

08:04-02

6

Check that the gear housing is in contact
with the rear axle housing all the way round.

7

Tighten the nuts alternately a little at a time.
Tightening torque 260 Nm.

8

Connect the electric cables and compressed
air lines for the differential locks.

9

Lubricate the sealing rings in the axle tube
with grease.

10 Position the differential lock to make it

easier to fit the drive shaft on the
crownwheel side.

11 Carefully slide in the drive shaft, taking care

not to damage the sealing rings.

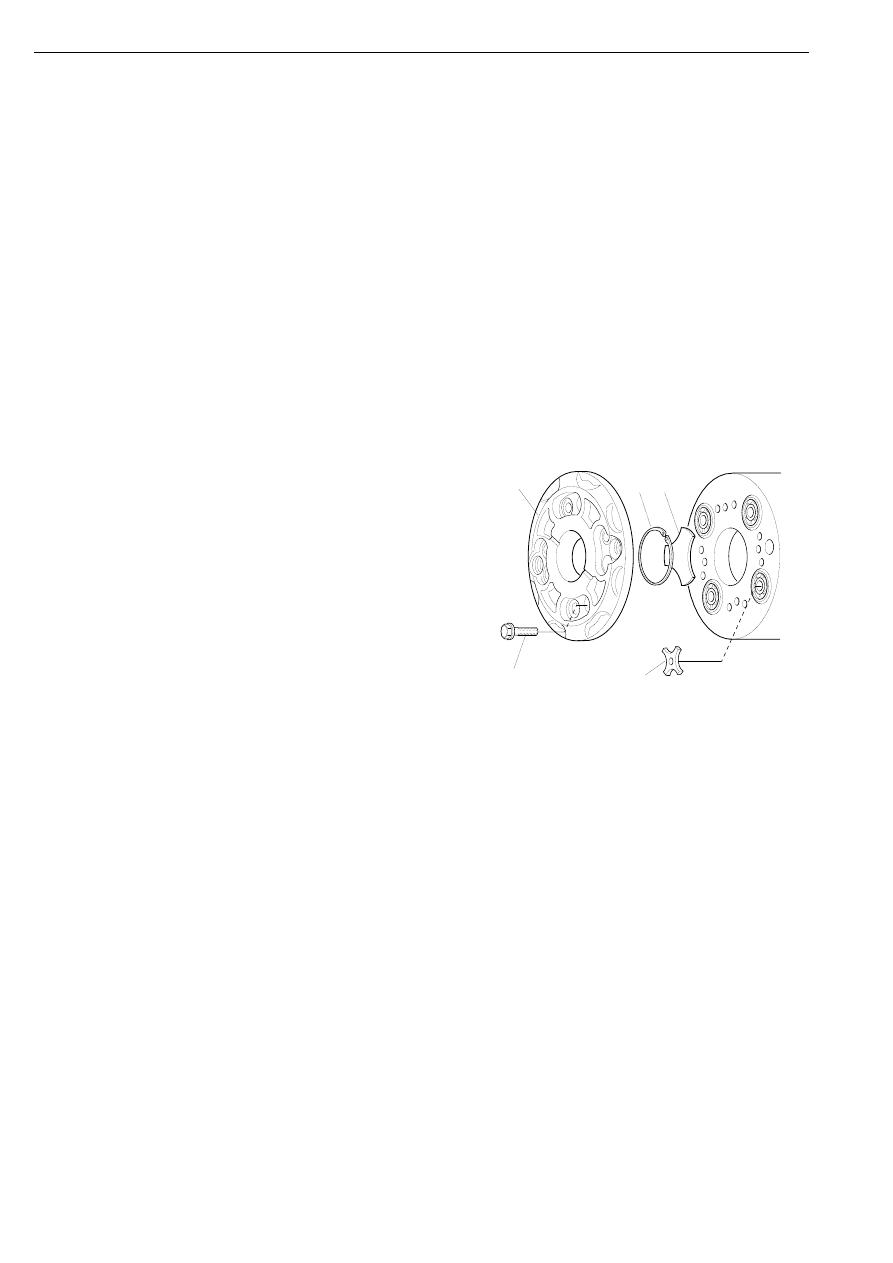

12 Fit the thrust washer 30 and retaining ring

31 into the groove in the sun wheel.

32

31 30

20

27

1

0

4 717

13 Fit the spacing washers 27. A little grease

will help to keep them in place.

14 Clean the hub cover sealing surface.

15 Apply sealing agent 815 235 to the hub

cover sealing surface and cover 32.

16 Fit the cover.

17 Tighten the bolts alternately. Tightening

torque 225 +/- 35 Nm.

Central gear
