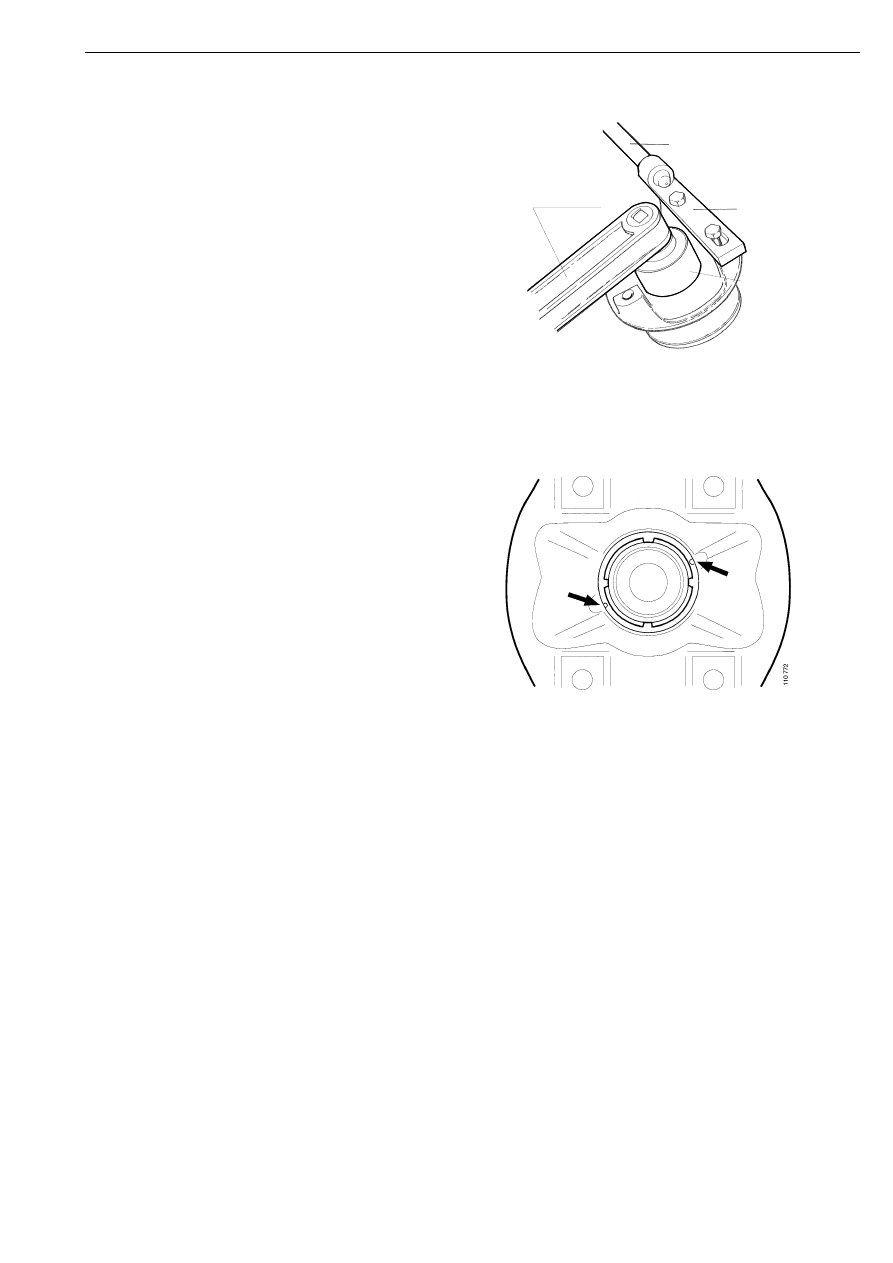

08:04-02

©

25

13 Tighten the end yoke nut with sleeve

98 765. Tightening torque 400 Nm.

88 292

99 129

98 765

111 495

400 Nm

14 Stake the nut flange in two places towards

the recesses in the end yoke to lock the nut.

IMPORTANT! Turn around the differential
lock cover. Make sure the diaphragm is in place.

Spot repairs

26

©

08:04-02

Overhaul

Central gear

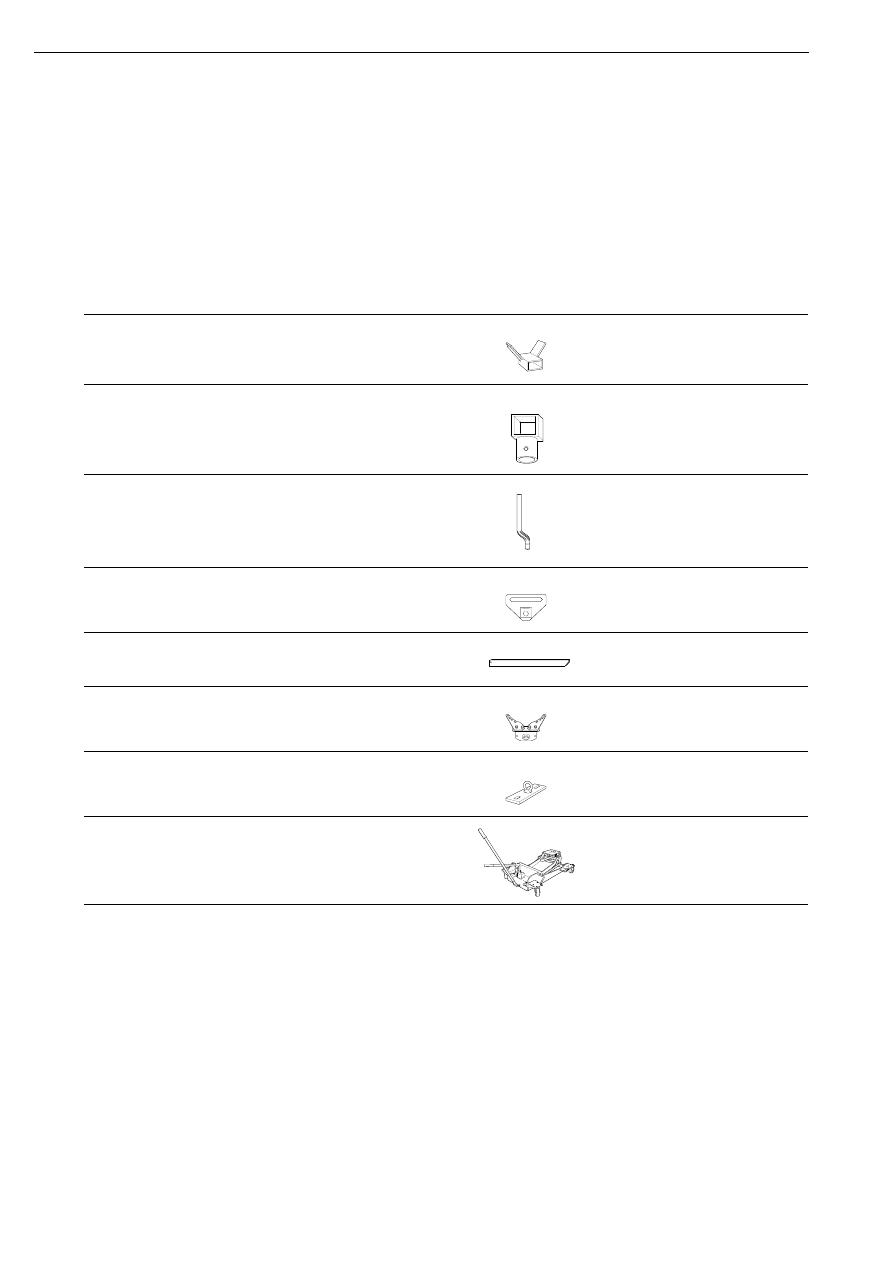

Special tools

Number

Description

Illustration

Board

98 401

V block

98 402

Retainer for fixture shaft

98 403

Fixture shaft

98 404

End yoke bracket

98 405

Bracket and fixture beam

98 776

Mounting fixture

99 167

Lifting tool

G1

587 313

Gearbox jack

00

1899

98 401

00_1643

98 402

00

1644

98 403

98 404

00_1645

98 405

00

1646

98 776

110 877

00

1625

99 167

102 902

Central gear

08:04-02

©

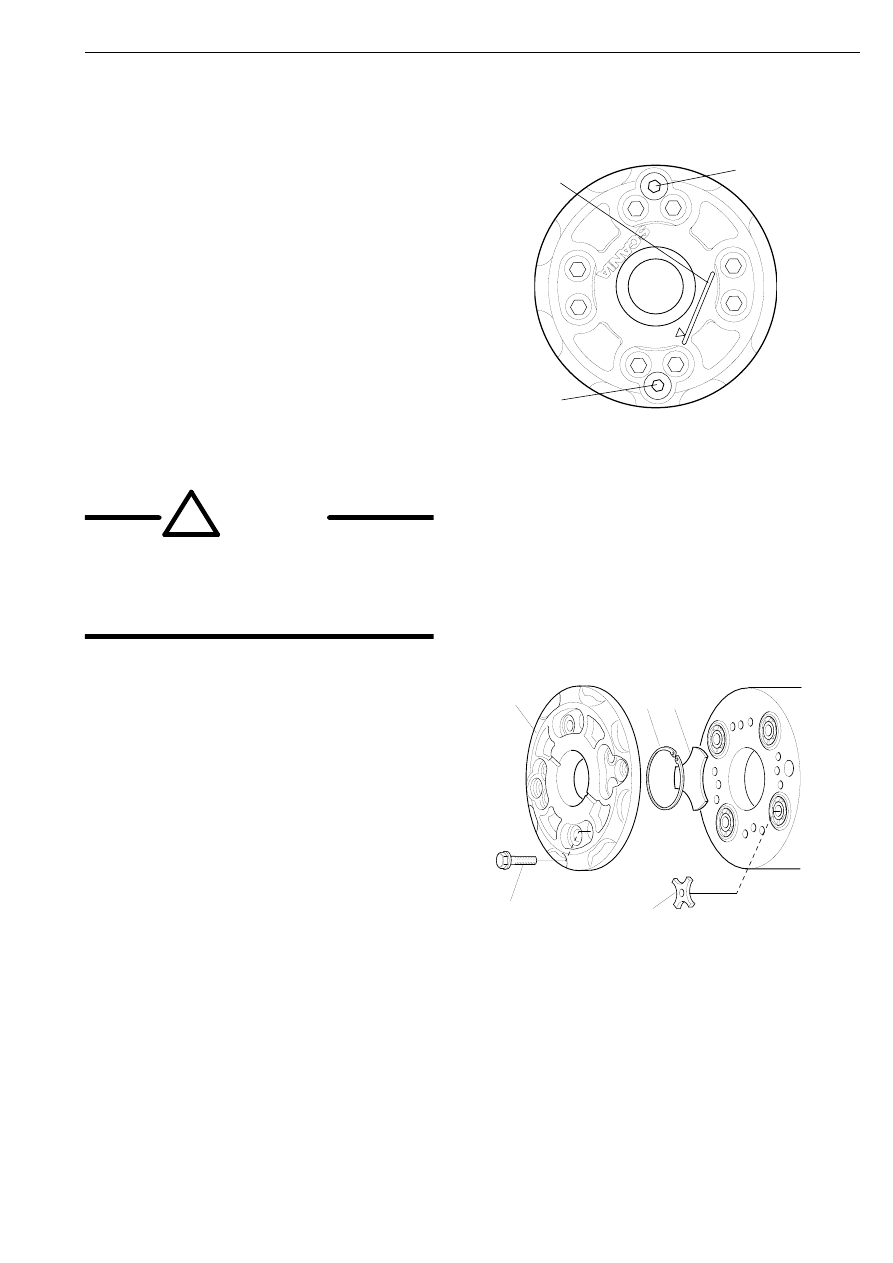

27

Removal

1

If the vehicle is loaded, relieve the rear axle
housing before removing the gear.

2

Lift the vehicle and support the rear axle on
stands under the springs. Remove the
wheels.

3

Drain the oil from the rear axle housing.

4

Turn the hub so that plug 3 is at the bottom.

100910

1

2

3

1

Marker line

2

Filler plug

3

Drain plug

!

WARNING!

The vent in the hub cover may be
blocked. Use protective goggles as oil
can spurt out at high pressure when the
oil plug is removed.

5

Remove plugs 2 and 3 and drain the oil.

6

Remove retaining ring 31 and thrust washer
30. Screw in an M10 bolt into the end of the
drive shaft and pull out the drive shaft
carefully, taking care not to damage the
sealing rings 40 in the axle tube.

7

Loosen the bracket for the compressed air
pipes.

8

Remove the pipe to the differential locks.

9

Remove the brake chambers.

32

31 30

20

27

104

717

Central gear

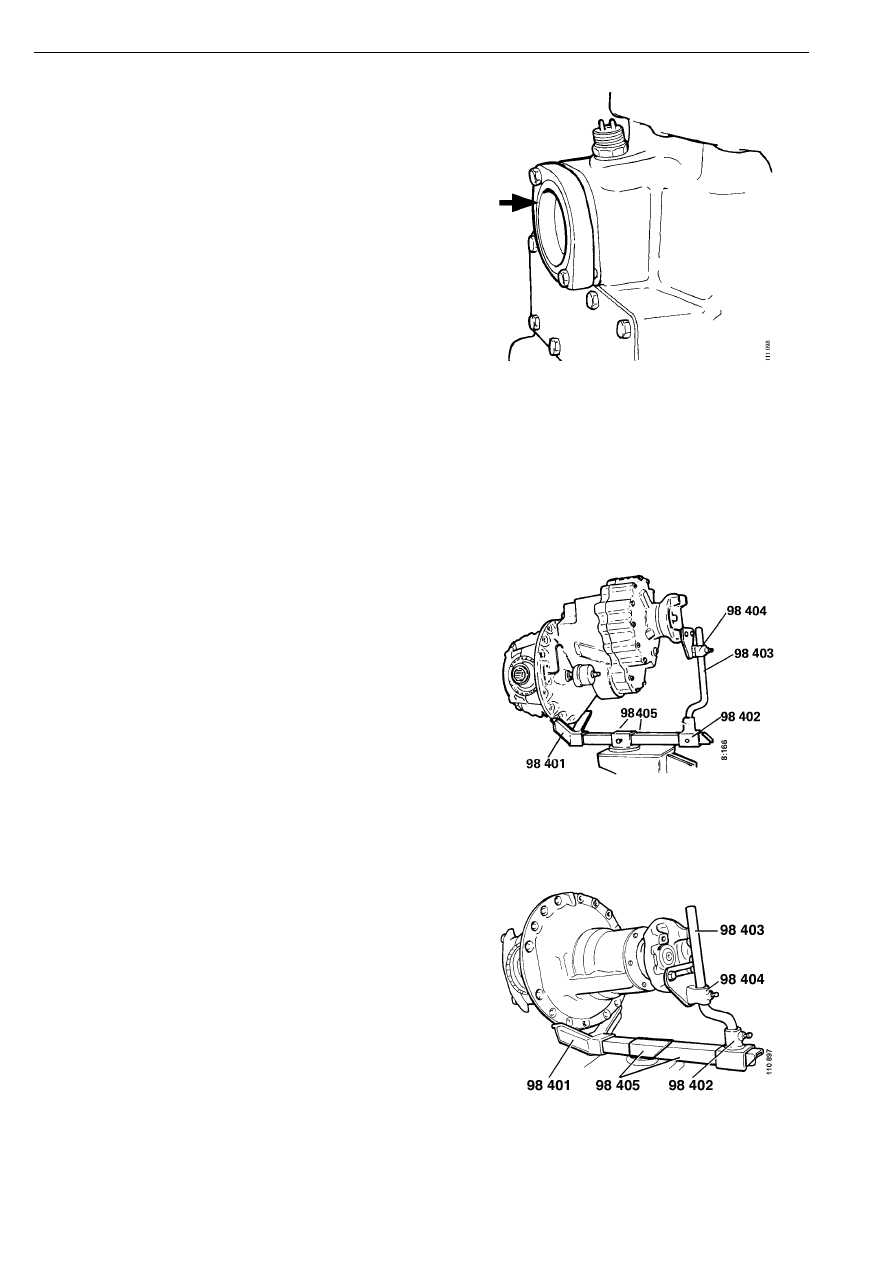

28

©

08:04-02

IMPORTANT! Remove the cover for the bogie
differential lock on the RBP832 and refit it the
other way round so that the differential lock
engages.

Bogie differential lock RBP832

10 Detach the cables to the switch for the

differential lock(s).

11 Remove both propeller shafts from the axle

gear end yoke.

12 Remove the four bottom nuts securing the

gear to the rear axle housing.

13 Rig the gearbox jack with 98 401, 98 402,

98 403, 98 404 and 98 405.

14 Attach the axle gear to the jack.

RBP832

RP832

15 Remove the remaining nuts securing the

gear and pull it forwards from the rear axle
housing.
