Emergencies

Opening and closing the fuse box situated
below the dash panel (left-hand steering
wheel)

●

Open the storage compartment on the

driver side

›››

Fig. 49

●

In this case, empty the storage compart-

ment.

●

Press the locking lid

›››

Fig. 49

upwards,

in the direction of the arrow, and at the same
time open the storage compartment even
more and remove it until the fuse box is ac-
cessible.

●

attach

the storage compartment, insert

it in the openings of the dashboard and press
it until you hear it click on both sides. Close it.

Fuses behind the glove compartment
(right-hand steering wheel)

●

Open the glove compartment and, if nec-

essary, empty it.

●

Move the braking element

›››

Fig. 50

into

the support hole facing downwards and re-
move it to one side.

●

Press the end axes

›››

Fig. 50

upwards,

in the direction of the arrows, and at the same
time open the glove compartment even more.

●

To mount the glove compartment, place it

in the correct position. Insert the braking ele-
ment into the hole of the base and move it
upwards until you hear it click. Carefully
press the glove compartment to the front,

against the resistance of the end axes

›››

Fig. 50

Identifying fuses below the dashboard by
colours

Colour

Amp rating

Light brown

Brown

7.5

Red

Blue

Yellow

White or transparent

Green

Orange

CAUTION

●

Always carefully remove the fuse box

covers and refit them correctly to avoid
problems with your vehicle.

●

Protect the fuse boxes when open to

avoid the entry of dust or humidity. Dirt and
humidity inside fuse boxes can cause dam-
age to the electrical system.

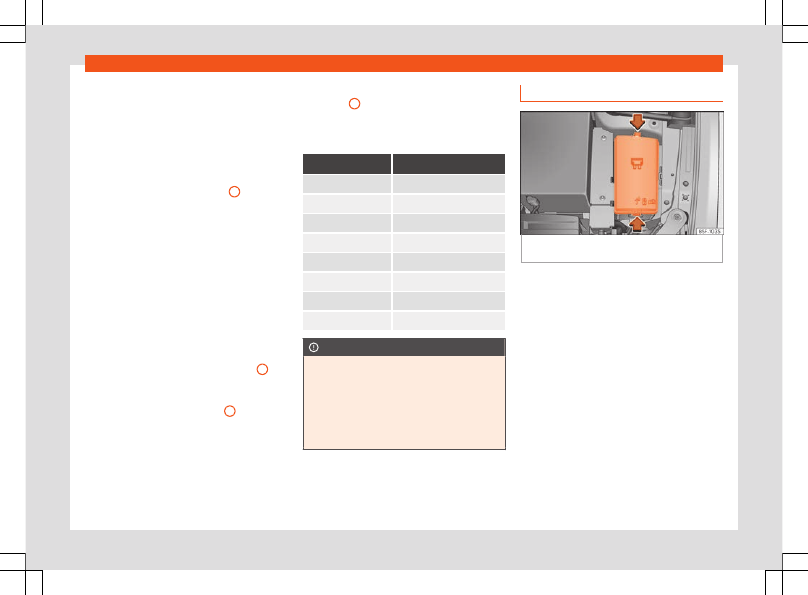

Fuses in the engine compartment

Fig. 51

In the engine compartment: fuse box

cover.

To open the engine compartment fuse box

●

Open the bonnet



›››

page 337

●

Press the locking tabs to release the fuse

box cover

›››

Fig. 51

●

Then lift the cover out.

●

fit

the cover, place it on the fuse box.

Push the locking tabs down until they click
audibly into place.

Fuses and bulbs

Replace a blown fuse

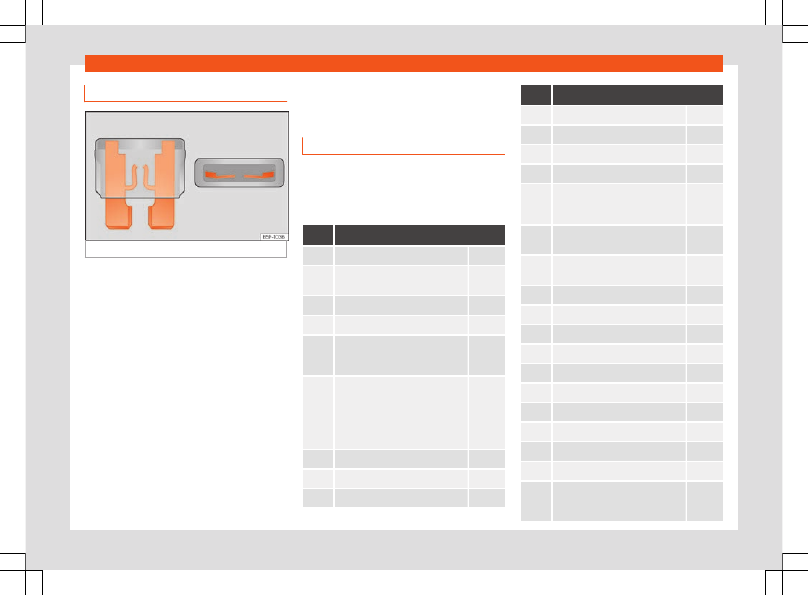

Fig. 52

Image of a blown fuse.

Preparations

●

Switch off the ignition, lights and all electri-

cal equipment.

●

Open the corresponding fuse box

›››

page 59

›››

page 60

Recognise a blown fuse

A fuse is blown if its metal strip is ruptured

›››

Fig. 52

●

Point a lamp at the fuse to see if it has

blown.

To replace a fuse

●

Remove the fuse.

●

Replace the blown fuse by one with an

identical

amperage rating (same colour and

markings) and

identical

size.

●

Replace the cover again or close the fuse

box lid.

Fuse placement

Only replace fuses with a fuse of the same
amperage (same colour and markings) and
size.

Fuses in the vehicle interior

No.

Consumers/Amps

Adblue (SCR)

DWA warning horn, on-board
computer

7.5

Gateway

7.5

Automatic gearbox lever

7.5

Air conditioning and heating con-

trol panel, back window heating,

auxiliary heating, rear heating

Diagnosis, electronic parking
brake switch, light switch, reverse

light, interior lighting, driving
mode, lit-up door sill, light/humid-

ity/rain sensor, curve lighting con-
trol unit

7.5

Steering column control unit

7.5

Radio display

7.5

On-board computer control unit

No.

Consumers/Amps

Infotainment radio

Driver seat belt pre-tensioner

Air conditioner fan

Steering column release

GSM signal reception and stabili-
sation, mobile phone interface,

USB connections control unit

7.5

Dashboard, OCU navigation in-
terface

7.5

Surroundings camera and rear
camera control unit

7.5

Kessy

7.5

SCT 1.5 L engine vacuum pump

7.5/15

4x4 Haldex Control Unit

Trailer

Electric sunroof

On-board computer

Left doors

Heated seats

Interior light

Trailer

PHEV. Switching off the high volt-
age system for rescue tasks. Iden-
tified by a yellow label.

Emergencies

No.

Consumers/Amps

Electrical lid control unit

Control unit for parking aid, front
camera and radar

Airbag

7.5

Reverse switch, climate sensor,
electrochromic mirror, electrome-

chanical brake

7.5

Diagnosis connector

7.5

Trailer

Right doors

40/1

12V socket

Passenger seat belt pre-tensioner

Central locking

Digital sound control unit

Trailer

Electric driver's seat

Rear window wiper

SoundAktor

7.5

Starter motor

7.5

Rear AC

Driving mode.

Heated rear window

Fuse arrangement in engine compartment

No.

Consumers/Amps

ABS/ESP control unit

40/60

Engine control unit (petrol/diesel)

15/30

Engine sensors, electric fans,

pressure regulator, flow rate me-

ter, spark plug relay (diesel), PTC

relays

7.5/10

Engine sensors

Brake light sensor

7.5

Engine power supply

7.5/10

Lambda probe

10/15

Engine

10/20

Fuel pump control unit

15/20

PTC

Automatic transmission oil cool-

ing pump

Horn

Ignition coil relay (2.0 petrol), in-

verter, on-board control unit

10/20

Engine control unit, ABS/ESP con-

trol unit, primary relay

7.5

Terminal 30 (positive reference)

7.5

No.

Consumers/Amps

Front windscreen washer

eBKV

Automatic gearbox control unit

Engine control unit

7.5

Starter motor

PTC

Left headlight

Parking heating

Right headlight

Note

●

In the vehicle, there are more fuses than

those indicated in this chapter. These
should only be changed by a specialised
workshop.

●

Positions not containing a fuse do not ap-

pear in the following tables.

●

Some of the equipment listed in the ta-

bles below pertain only to certain versions
of the model or are optional extras.

●

Please note that the above lists, while

correct at the time of printing, are subject
to change.

Fuses and bulbs

Bulbs

Changing bulbs

Full-LED headlights

Your vehicle is equipped with full-lead head-
light systems.

Full-LED headlights handle all light functions
(daylight, side light, turn signal, dipped beam
and route light) with light emitting diodes
(LEDs) as a light source.

Full-LED headlights are designed to last the
lifetime of the car and light bulbs cannot be
replaced. In case of headlight failure, go to an
authorised workshop to have it replaced.

Side turn signals

The side turn signals are LEDS and are inte-
grated in the exterior mirrors.

In case of failure, go to an authorised work-
shop to have them replaced.

Additional brake light

Taking into account that it consists of LED
bulbs, the change should be made at a tech-
nical service centre.

Operation

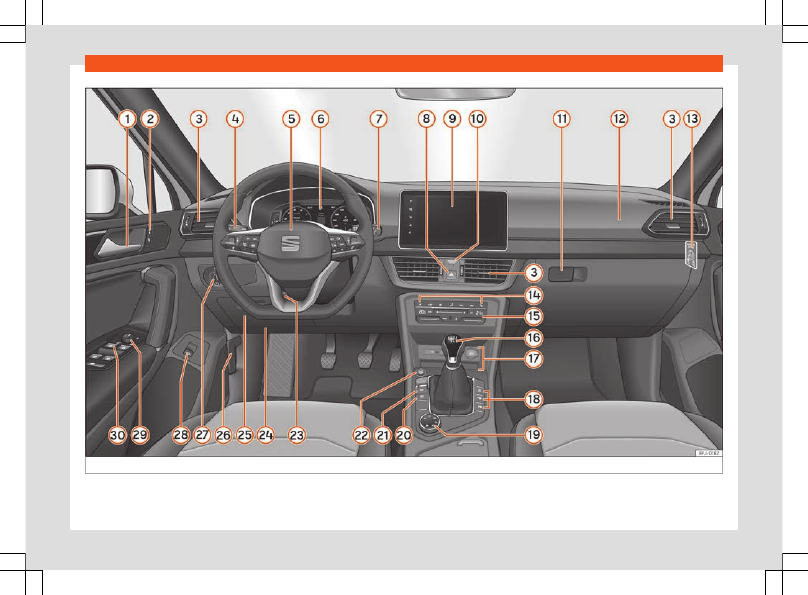

Fig. 53

Instruments and controls.

Controls and displays

Operation

Controls and displays

Interior view

Overview

Door handle
Central locking switch

. . . . . . . . . . . . . . .

Air vents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

162

Control lever for:

–

Turn signals and main beam
headlights

. . . . . . . . . . . . . . . . . . . . . . . . . .

118

–

Cruise control (GRA)

. . . . . . . . . . . . . . .

248

–

Speed limiter

. . . . . . . . . . . . . . . . . . . . . . .

250

–

Driver assistance systems

. . . . . . . . .

Steering wheel with horn and

–

Driver airbag

. . . . . . . . . . . . . . . . . . . . . . .

–

On-board computer controls

. . . . .

–

Controls for radio, telephone,
navigation and speech dialogue
system

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

195

–

Paddle levers for tiptronic gear-
shift (automatic gearbox)

. . . . . . . . .

231

Digital dashboard (SEAT Digital
Cockpit)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Control lever for:

–

Windscreen wipers and washer

. . .

124

–

Wipe and wash system

. . . . . . . . . . . .

124

Hazard warning lights

. . . . . . . . . . . . . . . .

121

Infotainment system

. . . . . . . . . . . . . . . . .

195

Front passenger airbag disconnec-
tion display

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Glove compartment

. . . . . . . . . . . . . . . . .

152

Front passenger airbag

. . . . . . . . . . . . . .

Switch for switching off the front
passenger airbag

. . . . . . . . . . . . . . . . . . . .

Thermal seat controls

. . . . . . . . . . . . . . .

163

Depending on the equipment, con-
trols for:

–

Manual AC

. . . . . . . . . . . . . . . . . . . . . . . . .

160

–

Automatic AC (Climatronic)

. . . . . . .

158

Gear lever for:

–

Manual gearbox

. . . . . . . . . . . . . . . . . . .

228

–

Automatic gearbox

. . . . . . . . . . . . . . . .

229

Area for:

–

USB type-C port

. . . . . . . . . . . . . . . . . . .

217

–

12 volt socket

. . . . . . . . . . . . . . . . . . . . . . .

155

–

Connectivity Box

. . . . . . . . . . . . . . . . . . .

215

–

Storage compartment

. . . . . . . . . . . . .

151

Depending on the equipment, but-
tons for:

–

Start-Stop system

. . . . . . . . . . . . . . . . .

226

–

Parking aid system (Park As-
sist)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

282

–

Park Pilot system

. . . . . . . . . . . . . . . . . . .

289

–

Peripheral view system (Top View
Camera)

. . . . . . . . . . . . . . . . . . . . . . . . . . .

298

–

S-Boost driving profile

. . . . . . . . . . . . .

240

–

E-Mode operating mode

. . . . . . . . . .

224

Rotating control (Driving Experience
button) for driving profiles

. . . . . . . . . . .

238

Auto Hold switch

. . . . . . . . . . . . . . . . . . . . .

277

Electronic parking brake switch

. . . . .

275

Start-up push button (Keyless Ac-
cess closing and start-up sys-
tem)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

218

Steering column adjustment lev-
er

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Location of the knee airbag

. . . . . . . . .

Storage compartment / fuse box

. . .

Bonnet lock release

. . . . . . . . . . . . . . . . . .

338

Headlight switch

. . . . . . . . . . . . . . . . . . . . .

115

Button to open rear lid

. . . . . . . . . . . . . . .

107

Control for the electric adjustment
of the exterior mirrors

. . . . . . . . . . . . . . . .

127

Electric windows

. . . . . . . . . . . . . . . . . . . . .

110

Note

●

Some of the equipment listed in this sec-

tion is only fitted on certain models or are
optional extras.

●

The arrangement of controls on right-

hand drive models may be slightly different

Operation

from the layout shown in

›››

page 64

. How-

ever, the symbols used to identify the con-
trols are the same.

Instruments and warn-
ing/control lamps

Instrument panel

Introduction

After switching the engine on with a 12-volt
battery that is heavily discharged or newly
changed some system settings (such as the
time, the date, the personalised comfort set-
tings and the programming) might be altered
or deleted. Check and correct these settings
once the battery is sufficiently charged.

WARNING

Any distraction may lead to an accident,
with the risk of injury.

●

Do not operate the instrument panel con-

trols when driving.

●

To reduce the risk of accident and injury,

only make adjustments to the instructions
on the screen of the instrument panel and
to the instructions on the screen of the Info-
tainment system when the vehicle is sta-
tionary.

Instruments and warning/control lamps

Digital dashboard (SEAT Digital Cockpit)

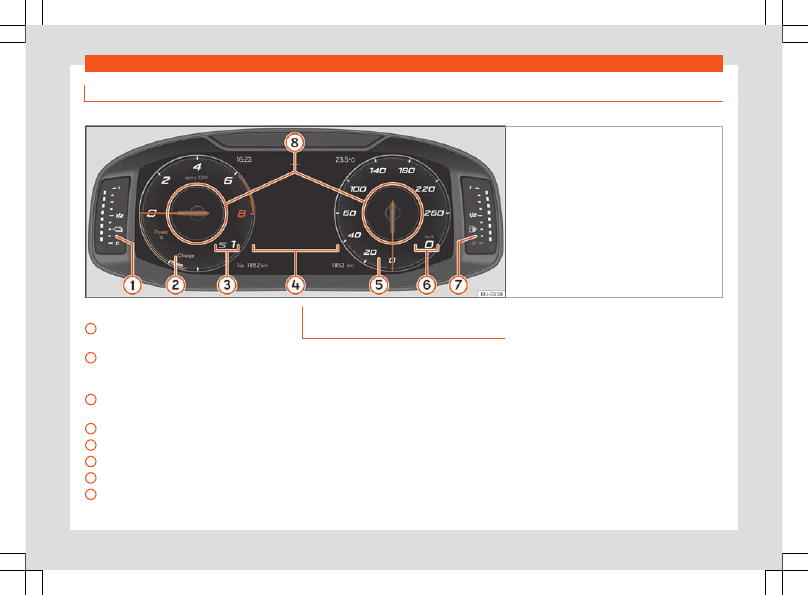

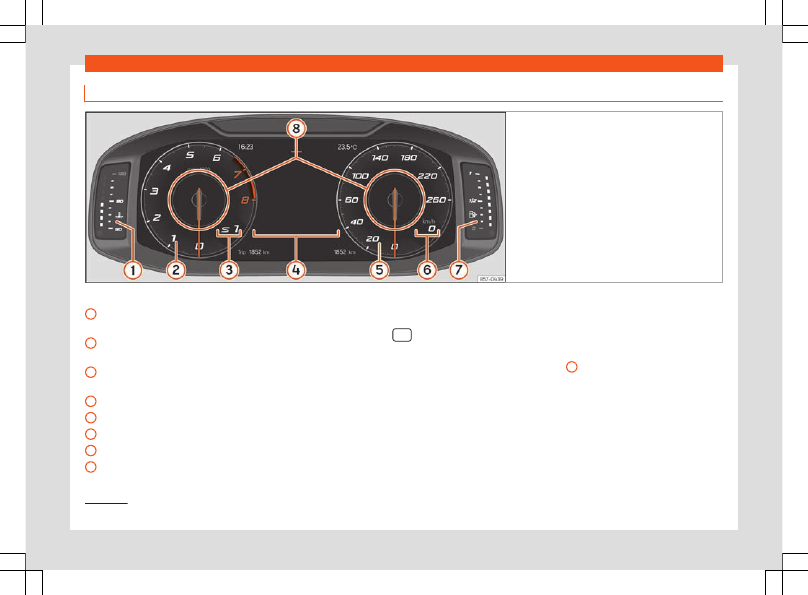

Fig. 54

SEAT Digital Cockpit on the instrument

panel (classic view).

Details of the instruments:

Engine coolant temperature display

›››

page 81

Revolution counter

. Revolutions per mi-

nute the engine is running

›››

page 79

Gear engaged or position of the selec-
tor lever currently selected
Screen display

›››

page 70

Speedometer
Digital speed display
Fuel gauge

›››

page 80

Information Profile

›››

page 67

The Digital SEAT Cockpit is an instrument
panel digital with monochrome screen in col-
our high resolution. It has a 3 views accessi-
ble using the button



of the multifunction

steering wheel. By selecting different infor-
mation profiles, indications other than the
classic circular instruments can be displayed,
such as navigation data, multimedia informa-
tion or travel data.

The 3 views are:

●

Classic

●

Dynamic

●

Navigation

All views will display information on the
screen about audio, phone, travel data, vehi-
cle status, navigation

and driving aids

In all views the information displayed in

Infor-

mation profiles

can be customised

›››

Fig. 54

Information profiles

Using the

INSTRUMENT CLUSTER

option, you

can choose between the different options for
displaying the information to be displayed in
the SEAT Digital Cockpit (select



> View >

Instrument cluster

OR:



> Interior

Depending on the version.

Operation

settings > Infotainment > Instrument
cluster

Classic View

The revolutions per minute and speedometer
needles appear along the entire length

›››

Fig. 54

View 1, 2, 3 or AUTOMATIC

Personalisation of the information that ap-
pears in the Digital SEAT Cockpit. Only 2 of
these items of information can be displayed
at the same time, but the user chooses which
to display, and in what order, by moving the
finger vertically over the dials.

Depending on the version, the Views can be
memorised by exiting the menu or keeping
the

View

button pressed.

●

Consumption

. Graphic representation of

the current consumption and digital display
of the average consumption.

●

Audio

. Digital display of the current audio

playback.

●

Altitude

. Digital display of the current alti-

tude above sea level.

●

Compass

. Digital display of the compass.

●

Information about the final destination

Digital display of the remaining travelling
time, distance to the destination and the esti-
mated time of arrival.

●

Operating range

. Digital display of the re-

maining range.

●

Travel time

●

Route guidance

●

Journey

. Digital display of the distance

travelled.

●

Assist systems

. Graphic representation of

different assistance systems.

●

Traffic signs

. Display of traffic signs detec-

ted.

●

Navigation

. Graphical representation of

the navigation with arrows.

It may vary based on the features, the num-
ber and the contents of the selectable infor-
mation profiles.

Pre-set information depending on the selected

“Driving mode”.

Instruments and warning/control lamps

Digital dashboard (SEAT Digital Cockpit)

Valid for: hybrid vehicles

Fig. 55

SEAT Digital Cockpit on the instrument

panel (classic view).

Details of the instruments

›››

Fig. 55

Battery charge level indicator

›››

page 80

Rev counter and Powermeter

. Revolu-

tions per minute the engine is running

›››

page 79

Gear engaged or position of the selec-
tor lever currently selected
Screen display

›››

page 70

Speedometer
Digital speed display
Fuel gauge

›››

page 80

Information Profile

›››

page 67

Navigation map in the SEAT Digital
Cockpit

Depending on the features, the SEAT Digital
Cockpit can display a detailed map. To do
this, select the

Navigation

option in the

menu on the instrument panel

›››

page 71

Depending on the features or the navigation
map, it can be shown in the SEAT Digital
Cockpit or on the infotainment system or on
both at the same time. If it is displayed only in
the infotainment system, the SEAT Digital
Cockpit will only display the arrows for ma-
noeuvres.

Transfer of navigation map

The map is transferred from the infotainment
system to the SEAT Digital Cockpit and vice
versa using the map transfer button.

Using the right thumbwheel of the multifunc-
tion steering wheel, in the

Navigation

menu,

you can transfer the map back to the info-
tainment system.

Operation

Status display

Possible indications on the instrument
panel display

Different pieces of information can be dis-
played on the screen of the instrument panel,
depending on the features of the vehicle.

●

Doors, bonnet and rear lid open

●

Warning and information messages

●

Odometer

●

Time

›››

page 79

●

Indications of the radio and navigation sys-

tem

●

Indications of the phone

●

Outside temperature

●

Indications of the compass

●

Selector lever positions

●

Gear-change recommendation

›››

page 236

●

Combined range (hybrid vehicles)

›››

page 71

●

Display of travel data (multifunction dis-

play) and menus for different settings

›››

page 71

●

Service interval display

›››

page 82

●

Speed warning

›››

page 72

●

Speed warning for winter tyres

●

Start-Stop system status display

›››

page 226

●

Signs detected by the traffic signal detec-

tion system

›››

page 75

●

Active cylinder management (ACT®) status

indication

›››

page 242

●

Low consumption driving



●

Identifying letters on engine (LDM)

●

Driver assistance system display

›››

page 244

●

Doors, bonnet and rear lid open

When the vehicle is unlocked and while driv-
ing, the instrument panel display shows if any
of the doors, the bonnet or rear lid are
opened and, in some cases, it is also indica-
ted by an audible warning. The display may
vary according to the type of instrument pan-
el fitted.

Selector lever positions (DSG® dual clutch
gearbox)

The current position of the selector lever is
shown on the side of the lever and on the in-
strument panel display. When the lever is in
the

D/S

position or in the Tiptronic position, in

some cases, the gear engaged in each case
is shown on the instrument panel display .

Outside temperature indicator

If the outside temperature is lower than ap-
proximately +4 °C (+39 °F), the “ice crystal

symbol”



on the outside temperature dis-

play also lights up. This symbol remains lit un-
til the outside temperature exceeds +6 °C
(+43 °F)

›››

When the vehicle is stationary, when the aux-
iliary heater is switched on or when driving at
very low speeds, the outside temperature in-
dicated may be higher than the actual tem-
perature due to the heat produced by the en-
gine.

The margin of measurement ranges from
-45 °C (-49 °F) to +76 °C (+169 °F).

Gear-change recommendation

While driving, the instrument panel of certain
vehicles may indicate a gear recommenda-
tion for saving fuel

›››

page 236

Odometer

The

odometer

registers the total distance

travelled by the car.

The

partial odometer

(

trip

) shows the dis-

tance travelled since the last time it was reset
to zero.

●

Set the odometer to zero via the Infotain-

ment system or the multifunction steering
wheel

›››

page 72

Instruments and warning/control lamps

Combined operating range display



(hybrid vehicles)

The value shown is calculated and updated
according to the driving style. Therefore, the
range can vary even when the fuel tank is full
and the high-voltage battery is fully charged.

Range can be increased by reducing or
switching off comfort consumers, e.g. air con-
ditioning or seat heating.

Speed warning for winter tyres

If the maximum speed set is exceeded, this is
displayed on the instrument panel

›››

page 71

The speed warning can be set in the infotain-
ment system using the infotainment button



> Settings > Tyres

;



> Exterior

settings > tyres

›››

page 91

Indications of the compass

Depending on the equipment, when the igni-
tion is on, the instrument panel display indi-
cates the direction in which you are driving
with a symbol, e.g. NW for Northwest.

When the Infotainment system is on and there
is no route guidance active, the graphic rep-
resentation of a compass is also shown.

Low consumption driving



Depending on the equipment, when the vehi-
cle is moving



is displayed on the instru-

ment cluster display when the vehicle is in an
economical consumption status due to active
cylinder management (ACT®)

›››

page 242

Legal text about the property rights and
copyrights of the instrument cluster.

WARNING

Even when the outside temperature is high-
er than freezing temperature, some roads
and bridges could be frozen.

●

The “ice crystal symbol” indicates that

there may be a risk of freezing.

●

At outside temperatures above +4 °C

(+39 °F), there may be ice even when the
“ice crystal symbol” is not on.

●

The outside temperature sensor takes a

guideline measurement.

Note

●

There are different instrument panels and

therefore the versions and instructions on
the display may vary. In the case of dis-
plays without warning or information texts,
faults are indicated exclusively by the con-
trol warning lamps.

●

Some indications on the instrument panel

screen may be concealed by a sudden
event, e.g. an incoming call.

●

Depending on the equipment, some set-

tings and instructions can be carried out or

displayed on the infotainment system as
well.

●

If there are several warnings at the same

time, the symbols will be displayed one af-
ter the other for a few seconds. The sym-
bols will stay on until you remove the
cause.

●

If when switching on the ignition warnings

are shown about existing faults, it might not
be possible to change the settings or show
the information as described. In this case,
go to a specialised workshop and request a
repair.

Instrument panel menus

The number of menus and information items
available will depend on the vehicle’s elec-
tronics and features.

A specialised workshop can programme or
modify additional functions, according to the
vehicle equipment. SEAT recommends visiting
a SEAT dealership for this.

Some menu options can only be read when
the vehicle is stationary.

■

Driving data

›››

page 72

■

Assist systems.

■

Front Assist On/Off

›››

page 251

■

ACC (only display)

›››

page 254

■

Lane Assist On/Off

›››

page 262

Operation

■

Side Assist On/Off

›››

page 268

■

Navigation.

■

Audio.

■

Telephone.

■

Vehicle status.

›››

page 73

Service Menu

In the Service menu various settings can be
adjusted depending on the features.

Open the Service menu

To open up the

Service

menu, select the

Range

information profile while in the

Driv-

ing data

menu, and keep the



key press-

ed on the multifunction steering wheel for ap-
proximately 4 seconds. When it is released,
the

Service

menu will be displayed. Now

you can browse through the menu using the
keys on the multifunction steering wheel as
usual.

Restart the service interval display

Select the

Service

menu and follow the in-

structions on the screen of the instrument
panel.

Restart the oil service

Select the

Restore Oil service

menu and

follow the instructions on the instrument pan-
el display.

Reset driving data

Select the

Reset trip

menu and follow the

instructions on the instrument panel display
to reset the value.

Identifying letters on engine (LDM)

Select the menu

Engine code

. The identify-

ing letters of the engine will be shown on the
instrument cluster display at the bottom left.

Setting the clock

Select the

Time

menu and set the correct

time by turning the right thumbwheel of the
multifunction steering wheel.

Driving data indicator (multifunc-
tion display)

The display of the travel data (multifunction
display) shows different values about the
journey and the consumption.

Change from one display to another

●

Turn the right thumbwheel of the multifunc-

tion steering wheel

›››

page 83

Changing memory

●

While in

Travel data > General infor-

mation

press



on the multi-function steer-

ing wheel to switch between the 3 memo-
ries

Since start:

The memory is deleted if

the journey is interrupted for more than 2
hours.

Since refuelling:

Display and stor-

age of the journey data and the con-
sumption values collected. When refuel-
ling, the memory is deleted.

Long-term:

This memory contains trav-

el data up to a maximum of 19 hours and
59 minutes or 99 hours and 59 minutes,
or up to a maximum of 1999.9 km or
9999.9 km. When one of these values is
exceeded (varies depending on the ver-
sion of the instrument panel), the memo-
ry is deleted.

Delete journey data presets

●

Select the memory that you wish to erase.

–

This will show all data on the display at the

same time: distance travelled, average con-
sumption, average speed and autonomy.

Instruments and warning/control lamps

●

Keep the



button on the multi-function

steering wheel pressed for approximately 2
seconds.

Select the instructions

In the Infotainment system, in the menu Vehi-
cle settings, you can display different travel
data

›››

page 91

Current consumption:

The current

fuel consumption display operates
throughout the journey, in litres/100 km;
and with the engine running and the ve-
hicle stopped, in litres/hour.

Average consumption:

The average

fuel consumption is displayed after driv-
ing for approximately 300 metres.

Travelling time:

This indicates the

hours (h) and minutes (min) since the ig-
nition was switched on.

Range:

Approximate distance in km that

can still be travelled if the same driving
style is maintained.

AdBlue range or



Approximate

distance in km that can still be travelled
with the current level of the AdBlue®
tank with the same driving style. The in-
dication appears from a range of less
than 2,400 km and cannot be deactiva-
ted.

–

Distance:

Distance covered in km (m)

after switching on the ignition.

Average speed:

The average speed

will be shown after driving for approxi-
mately 100 metres.

Digital speed display:

Current

speed displayed in digital format.

Eco tips:

Recommendations messag-

es are shown to reduce consumption
through good driving practices, e.g.

Air

conditioning on: close the win-
dow.

Setting a speed warning

●

Select the display

Warning at ---

km/h

Speed warning at ---

mph

●

Press the



button on the multi-function

steering wheel to memorise the current
speed and activate the warning.

●

Activate:

set the desired speed within 5

seconds by rotating the wheel on the multi-
function steering wheel. Next, press the



button again or wait several seconds. The
speed is stored and the warning activated.

●

Deactivate:

press the



button. The stored

speed is deleted.

The warning can be adjusted for speeds be-
tween 30 km/h (18 mph) and 250 km/h
(155 mph).

–

Display

Oil temperature

The engine reaches its operating tempera-
ture when, under normal driving conditions,
the oil temperature is between

80°C

(176°F)

and

120°C

(248°F). If a great effort is required

from the engine and the outside temperature
is high, the engine oil temperature may in-
crease. This does not present any problem as
long as the warning lamps





›››

page 341

do not appear on the display.

Warning and information messages
(Vehicle status)

The system runs a check on certain compo-
nents and functions when the ignition is
switched on and while the vehicle is moving.
Faults are displayed on the instrument cluster
display as red and yellow warning symbols
accompanied by messages and, depending
on the case, even an audible warning

›››

page 85

. The representation of the mes-

sages and symbols may vary depending on
the version of the instrument panel.

Existing faults can also be checked manually.
To do so, open the menu

Vehicle status

Vehicle

›››

page 71

Not available in all countries.

Operation

Priority 1 warning (red)

The symbol lights up or flashes (in part ac-
companied by audible warnings).



Stop

driving!

Danger! Check the fault and elimi-

nate the cause. If necessary, seek professio-
nal assistance.

Priority 2 warning (yellow)

The symbol lights up or flashes (in part ac-
companied by audible warnings). Operating
faults or the lack of operating fluids can
cause damage to the vehicle or a fault.
Check the faulty function as soon as possible.
If necessary, seek professional assistance.

Information message

It provides information about processes in the
vehicle.

Driver alert system (break recom-
mendation)

Fig. 56

On the instrument panel display: driver

alert system symbol.

The Fatigue detection informs the driver when
their driving behaviour shows signs of fatigue.

Function and operation

Fatigue detection determines the driving be-
haviour of the driver when starting a journey,
making a calculation of tiredness. This is con-
stantly compared with the current driving be-
haviour. If the system detects that the driver is
tired, an audible warning is given with a
sound and an optic warning is shown with a
symbol and complementary message on the
instrument panel display

›››

Fig. 56

. The mes-

sage on the instrument panel display is
shown for approximately 5 seconds, and de-
pending on the case, is repeated. The system
stores the last message displayed.

The message on the instrument panel display
can be switched off by pressing the



button

on the multi-function steering wheel

›››

page 83

The message can be recalled to the instru-
ment panel display using the multifunction
display

›››

page 72

Conditions of operation

Driving behaviour is only calculated on
speeds above about 65 km/h (40 mph) up to
around 200 km/h (125 mph).

Switching on and off

Fatigue detection can be activated or deacti-
vated in the infotainment system using the
function button



> Driver assistance > Fa-

tigue detector

›››

page 91

. A mark indi-

cates that the adjustment has been activa-
ted.

System limitations

The Fatigue detection has certain limitations
inherent to the system. The following condi-
tions can limit the Fatigue detection or pre-
vent it from functioning.

●

At speeds below 65 km/h (40 mph)

●

At speeds above 200 km/h (125 mph)

●

When cornering

●

On roads in poor condition

Instruments and warning/control lamps

●

In unfavourable weather conditions

●

When a sporty driving style is employed

●

In the event of a serious distraction to the

driver

Fatigue detection will be restored when the
vehicle is stopped for more than 15 minutes,
when the ignition is switched off or when the
driver has unbuckled their seat belt and
opened the door.

In the event of slow driving during a long peri-
od of time (below 65 km/h, 40 mph) the sys-
tem automatically re-establishes the tired-
ness calculation. When driving at a faster
speed the driving behaviour will be recalcula-
ted.

WARNING

Do not let the comfort afforded by the Fati-
gue detection system tempt you into taking
any risks when driving. Take regular breaks,
sufficient in length when making long jour-
neys.

●

The driver always assumes the responsi-

bility of driving to their full capacity.

●

Never drive if you are tired.

●

The system does not detect the tiredness

of the driver in all circumstances. Consult
the information in the section

›››

page 74,

System limitations

●

In some situations, the system may incor-

rectly interpret an intended driving ma-
noeuvre as driver tiredness.

●

No warning is given in the event of the ef-

fect called microsleep!

●

Please observe the indications on the in-

strument panel and act as is necessary.

Note

●

Fatigue detection has been developed

for driving on motorways and well paved
roads only.

●

If there is a fault in the system, have it

checked by a specialised workshop.

Road signs detection system

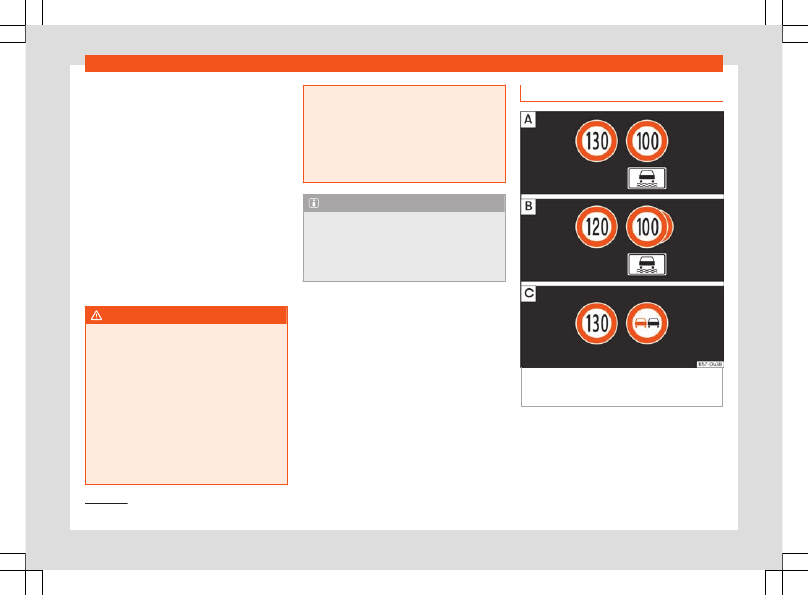

Fig. 57

On the instrument panel display: ex-

amples of speed limits or overtaking prohibi-

tions with their respective additional signs.

The traffic sign detection system records the
standard traffic signs in front of the vehicle
with a camera located on the base of the in-
terior mirror and provides information about
speed limits and overtaking prohibitions.

System available depending on the country.

Content .. 2 3 4 5 ..
