Infotainment system

Disconnecting

●

In Android Auto™ mode, press the

SEAT/Exit

icon to access the Full Link main menu.

●

Press



to interrupt the active connection.

Special characteristics

During an active Android Auto™ connection,
the following characteristics are applicable:

●

An active Android Auto™ device can be

connected at the same time via Bluetooth®
(HFP profile) with the infotainment system.

●

It is possible to use the phone’s functions

through Android Auto™. If the Android Auto™
device is connected at the same time via
Bluetooth® with the infotainment system, the
telephone function of the infotainment can
also be used.

●

An active Android Auto™ device

cannot

used as a multimedia device in the Media
main menu.

●

It is

not

possible to use the built-in naviga-

tion system and the Android Auto™ navigation
system at the same time. The last route star-
ted interrupts the one that was previously ac-
tive.

●

On the instrument panel screen you can

view data from the Telephone and Media
mode.

●

With the multifunction steering wheel you

can accept or reject incoming calls, as well
as end an ongoing telephone conversation.

voice control

●

Press



briefly to start voice control using

the infotainment system.

●

Press and hold this button to start voice

control (Google Assistant) on the connected
smartphone.

Note

●

The availability of technologies depends

on the country and may vary.

●

You will find information about technical

requirements, compatible mobile phone
devices, certified applications and their
availability on the SEAT (www.seat.com)
and Android Auto™ websites, or at SEAT
dealerships.

MirrorLink®

Requirements for MirrorLink®

In order to use MirrorLink™, the following re-
quirements must be met:

●

The mobile device must be compatible with

MirrorLink™.

●

The mobile phone device must be connec-

ted to the infotainment system via a USB con-
nection that is suitable for data transmission.

●

The USB cable used must be an original ca-

ble provided by the mobile phone device
manufacturer.

●

Depending on the mobile phone device

used, a Car-Mode application that is suitable
for using MirrorLink® must be installed.

Establish connection

When you first connect a mobile phone de-
vice, follow the instructions on the infotain-
ment system screen and on the mobile phone
device.

The requirements must be met to use Mirror-
Link™.

Launch MirrorLink®:

●

Press



Full Link

to access the Full Link

main menu.

●

Press to establish the connection with the

mobile phone device.

Disconnecting

●

In the MirrorLink® mode, press the

APP

icon

to access the Full Link main menu.

●

Press



to interrupt the active connection.

Special characteristics

During an active MirrorLink® connection, the
following characteristics are applicable:

●

An active MirrorLink® device can be con-

nected to the infotainment system at the
same time via Bluetooth®.

●

If the MirrorLink® device is connected to the

infotainment system via Bluetooth®, the

190

Data transfer

telephone function of the infotainment sys-
tem can be used.

●

You cannot use an active MirrorLink® de-

vice as a multimedia device in the Media
main menu.

●

On the instrument panel screen you can

view data from the Telephone mode.

●

The instrument panel screen does not dis-

play any indication to turn or the Media
mode.

●

With the multifunction steering wheel you

can accept or reject incoming calls, as well
as end an ongoing telephone conversation.

Function buttons

Function buttons and their function:

Return the Full Link main menu. Here you

can end the MirrorLink® connection,
connect another mobile phone device or
select another technology.
Press to close the open apps. Then press
the apps to be closed or the

Close all

function button to close all the open ap-
plications.
Press to display the mobile phone device
screen on the infotainment system
screen.
To open the MirrorLink® settings.

APP







Note

You will find information about technical re-
quirements, compatible mobile phone de-
vices, certified applications and their avail-
ability on the SEAT (www.seat.com) and
MirrorLink® websites, or at SEAT dealer-
ships.

WLAN access point

Introduction

Not available for model: Media System

The infotainment system can be used to
share a WLAN connection with up to 8 devi-
ces

›››

page 191, Configuration for sharing

a connection over WLAN

The infotainment system can also use the
WLAN hotspot of an external device to pro-
vide Internet to the devices connected to the
hotspot (WLAN client)

›››

page 192

Note

●

Data transmission may incur charges.

Due to the high volume of data exchanged,
SEAT recommends the use of a flat rate tar-
iff for data transmission. Mobile phone op-
erators can provide the relevant informa-
tion.

●

The exchange of data packages may

generate additional costs, depending on

your mobile phone rate, particularly if you
are abroad (for example, roaming rates).

Configuration for sharing a con-
nection over WLAN

Establishing the connection with the wire-
less network (WLAN)

●

Press the



Settings

button.

●

Activate the wireless network. To do this,

press the function button

Wi-Fi > Infotain-

ment system as hotspot

●

Activate the wireless network (WLAN) on the

device that is to be connected. If necessary,
refer to the manufacturer’s instruction man-
ual.

●

Activate the mobile device assignment in

the infotainment system. To do this, press the
function button

Enable as hotspot

and

check the checkbox.

●

Enter and confirm the network key dis-

played on the device.

The following adjustments can also be made
in the

Infotainment system as hotspot

menu:

●

Security level:

WPA2 encryption automati-

cally generates a network key.

191

Infotainment system

●

Network key:

Network key automatically

generated. Press the function button to man-
ually change the network key. The network
key must have a minimum of 8 characters
and a maximum of 63.

●

SSID:

WLAN Network name (maximum of 32

characters).

The wireless (WLAN) connection is establish-
ed. To complete the connection, it may be
necessary to enter other data into the device.

Repeat this process to connect other devices.

There is also the option of scanning the QR
code by connecting the device directly to the
infotainment system’s Wi-Fi network without
having to enter the password: select

Settings

> Wi-Fi > Quick connection to infotainment
system

Wi-Fi Protected Setup (WPS)

This depends on the equipment and the coun-

try in question.

Wi-Fi Protected Setup

can be used to create

a ciphered local wireless network quickly and
simply.

●

Establish the connection with the wireless

network (WLAN).

●

Press the WPS button on the WLAN router

until the warning light on the router starts
flashing. If the WLAN router does not support

WPS the network must be configured man-
ually.

●

OR:

Press and hold the WLAN button on the

WLAN router until the WLAN light on the router
starts flashing.

●

Press the WPS button on the WLAN device.

The wireless (WLAN) connection is establish-
ed.

Repeat this process to connect other devices.

Configure Internet access

The infotainment system can use the WLAN
hotspot of an external device to establish an
Internet connection.

Establishing the connection with the wire-
less network (WLAN)

●

Activate and share a wireless hotspot with

Internet on the external device. Refer to the
manufacturer’s instruction manual.

●

Press the



Settings

button;

access

the

Media

and press the

Settings

menu.

●

Press the

Wi-Fi > Connect to Wi-Fi

and put a check in the checkbox.

●

Press the

Search for Wi-Fi

button and se-

lect the device you want from the list.

●

If necessary, enter the network key of the

device in the infotainment system and con-
firm with

Manual settings:

●

To manually enter the network settings of

an external (WLAN) device.

The wireless (WLAN) connection is establish-
ed. To complete the connection, it may be
necessary to enter other data into the device.

Note

Due to the large number of devices on the
market, it is not possible to guarantee fault-
free operation of all functions.

192

Infotainment operation

Infotainment operation

voice control

Introduction

Voice control works both online and offline. In
online mode, commands are recorded more
accurately, as more data is available.

Voice control understands questions and ex-
pressions without having to learn commands.
Commands can be formulated freely and
can be colloquial. You will find suggested in-
fotainment commands in the



Help

menu.

Functions are reduced in offline mode.

Loud noises inside or outside the vehicle can
cause malfunctions, as well as confusing
phrases and answers.

Languages available depending on the
market

Online and offline:

German, American Eng-

lish, British English, French, Italian, Spanish,
Czech, Dutch, Polish, Portuguese, Swedish,
Danish and Norwegian. These languages
have advanced functions such as Online
Commands, air conditioning control and nat-
ural interaction (e.g. “I’m cold” turns on the
heater), etc.

The other languages of the infotainment sys-
tem

do not

offer Online Commands, air con-

ditioning control or natural interaction.

Requirements

●

Online and offline:

voice control with the

corresponding infotainment installed in the
vehicle.

●

Online

current SEAT CONNECT Plus con-

tract active.

Note

●

Voice control only recognises commands

in the language that is set in the infotain-
ment system.

●

Test the voice control with the vehicle

stopped before starting to move to famili-
arise yourself with its operation.

●

Additional information and examples can

be found in the menu



Help > Voice con-

trol

●

The online voice search will be faster and

more reliable if the privacy setting “Use lo-
cation” is selected and you consent to the
use of location data in the app on your mo-
bile device.

Activation word and commands

Voice control activation words

Voice control starts when the infotainment
recognises the activation word.

If you have connected the voice control via
the wake word, the connected infotainment
responds with

an audible signal.

It then

scans the words spoken after the wake word.

You can also ask the voice control questions
after the wake word, without waiting for the
audible signal, or interrupt speech with a new
command.

Connect and disconnect the activation
word

●

Press



Settings > Voice control > Acti-

vate/deactivate wake word

Activation word:

Hola Hola

Tips

To help the voice control recognise com-
mands reliably:

●

Pronounce clearly. Confusing commands

are not recognised. Speak in a normal tone of
voice. Speak a little louder if you are driving
at high speed.

●

Avoid outside noises. Open windows and

doors can interfere with voice control.

●

Avoid other secondary noises, such as con-

versations in the vehicle. Do not direct the air
flow from the outlets towards the microphone
or the interior lining of the roof.

●

Do not make long pauses.

193

Infotainment system



Voice control is active and recognises the

words pronounced.

Note

●

When the activation word is disconnec-

ted, the infotainment system cannot be ac-
tivated by means of the activation word.
Voice control is still available via the



button on the multifunction steering wheel.

●

Availability depends on the country and

equipment.

Start and stop voice control

Depending on the equipment, you can start
voice control in different ways.

Start voice control

●

Voice control activation:

say the word that

activates voice control.

●

Multifunction steering wheel:

press the

voice control button



In some cases you can also start voice con-
trol of the connected mobile phone device,
by pressing and holding the voice control
button.

Manually ending voice control

Voice control can be cancelled with the

Can-

cel

command.

●

Multifunction steering wheel:

press the

voice control button



twice in a row, or a

long press.

The voice control ends automatically

you use infotainment functions, if the parking
system is activated or if there is an incoming
call.

194

Infotainment operation

Radio mode

Introduction

Fig. 158

Schematic representation: Radio view

In Radio mode you can tune in the available
radio stations in different frequency bands
and memorise your favourites on the preset
buttons to access them quickly.

The types of reception and frequency bands
available depend on the equipment and the
country. In certain countries, frequency
bands may stop broadcasting or not be
available again.

Access the RADIO menu

●

Press





›››

Fig. 158

Access the settings

●

Press





Online functions in Radio mode

Online functions in Radio mode are only
available under the following conditions:

●

SEAT CONNECT or SEAT CONNECT Plus

equipment.

●

You have an active SEAT CONNECT user

account.

●

Add the vehicle is assigned to your user ac-

count.

●

You have a corresponding data package

acquired from the In-Car store or have a data
volume for your own mobile phone device via
Wi-Fi access point.

Note

●

For streaming services you need to have

an account with the provider in question.

●

Radio stations are responsible for the

content of the information they transmit.
Additional electrical equipment connected
to the vehicle can cause interference in the
reception of the radio signal and noise in
the speakers.

195

Infotainment system

●

Foil or metal-coated stickers attached to

the windows may affect reception on vehi-
cles with a window aerial.

Radio equipment and symbols

The functions, as well as the types of recep-
tion and frequency bands available depend
on the equipment and the country.

●

AM tuner.

●

Dual FM receiver (diversity antenna).

●

Summarised FM station list.

●

Fusion of DAB and FM stations into one list.

●

Fusion of all stations stored in preset but-

tons into one list. Maximum 36 favourite sta-
tions.

●

Station logos.

●

DAB presentation (slideshow). Images that

are emitted sequentially.

●

Internet radio.

Universal symbols in Radio mode

To select the desired AM frequency
band.

To select the desired FM/DAB fre-

quency band.

To select the type of Internet

radio reception.

FM/DAB

Online radio

Next to the name of the station, monitor-
ing of active traffic information stations
(TP).

Symbols on the FM/DAB frequency band

To display the frequency band for man-
ual selection of the FM frequency. Only
possible when the summary station list is
disconnected.
DAB not available.
DAB stations support presentations (sli-
deshow).

Symbols on the AM frequency band

Manually updating the station list.
To display the frequency band for man-
ual selection of the AM frequency.

Menus in Internet radio mode

Show station selection.
Open text search.
Show the last online radio stations
heard.
Show the 100 most played radio stations
and podcasts.
Show available online radio podcasts.

Show online radio stations, grouped by
country.
Show online radio stations by the de-
sired language.

























Show online radio stations whose pro-
gramme belongs to the desired musical
genre.

Selecting, tuning and saving a sta-
tion

Select the frequency band

Before selecting a station you have to select
a frequency band or a type of reception. Dif-
ferent stations are available depending on
the frequency band selected or the type of
reception.

The types of reception and frequency bands
available depend on the equipment and the
country.

●

Select the frequency band or type of re-

ception: AM, FM/DAB, FM (for devices that do
not have DAB), Internet radio.

Search and select a station

You can select radio stations in different
ways. The options vary depending on the fre-
quency band and the type of reception.

Select via the frequency band (AM and
FM)

●

Activate the frequency band.



196

Infotainment operation

●

Click on the cursor, scroll through the fre-

quency band and release it when you reach
the frequency band you want.

●

OR:

press on a point on the frequency

band. The cursor will automatically jump to
the corresponding frequency.

The station of the set frequency is tuned.

Select from the station list (AM and
FM/DAB)

The station list shows the stations that are
currently tunable. In the AM frequency band,
you may have to update the station list if you
are no longer in the area where you last ac-
cessed the station list. In the FM/DAB fre-
quency band, the station list is automatically
updated.

●

Open the station list

●

Press the station you want.

The selected station is tuned. In the case of
FM/DAB and if the station is available, the
best quality reception is automatically selec-
ted.

Search and filter stations (Internet radio)

In Online Radio mode, stations can be filtered
by categories and can be searched by text.

●

Open the station list.

●

Select the category by which the stations

are to be filtered.

●

OR:

press



to start the text search. The in-

put field is displayed.

●

Enter the name of the station you want. The

list of the stations found is updated while en-
tering the text.

●

Press the station you want.

The selected station is tuned.

Search in SCAN mode (AM and FM/DAB)

In SCAN mode the stations are automatically
tuned in a sequential manner and each of
them is played for approx. 5 seconds.

●

To start the SCAN mode press

SCAN

SCAN mode starts and the station currently
tuned in is shown on the screen. Next to it is a
SCAN function button.

●

To select a station press SCAN.

SCAN mode stops and the station is tuned.
The SCAN function button is hidden.

Storing the station on the preset buttons

You can store up to 36 stations of different
frequency bands and reception types as fa-
vourites using the preset buttons.

●

Tune the station you want.

●

Access the preset buttons.

●

Press the preset button and keep it pressed

until the station is stored.

●

OR:

press the station on the station list and

keep it pressed. The preset buttons are dis-
played.

●

Press the preset button.

The station is stored in the selected preset
button.

If a station was already stored in the preset
button, it is overwritten with the new station.

Special functions in Radio mode

Traffic information (TP)

The TP function monitors the announcements
of a station with traffic information and auto-
matically reproduces them in the Radio mode
or in the multimedia playback that is active.
To do this, you have to be able to tune into a
station with traffic information.

Some stations without their own traffic infor-
mation support the TP function by broad-
casting traffic information from other stations
(EON).

In the AM frequency band or in the Multime-
dia mode, a station with traffic information in
the background is automatically tuned while
it is possible to tune into a station with traffic
information.

197

Infotainment system

If no station with traffic information can be
tuned in, the device automatically searches
for stations with tunable traffic information.

Stations with traffic information are not avail-
able in all countries.

Activating and deactivating the TP func-
tion

●

In Radio mode or Multimedia mode, press

Settings > Traffic station (TP)

Online radio

Online radio is a type of reception for Internet
radio stations and podcasts that are inde-
pendent of AM, FM and DAB. Thanks to Inter-
net transmission, reception is not limited to
the region.

Online radio is only available through the In-
ternet connection of the active infotainment
system. The use of online radio can generate
expenses due to the transmission of data
from the Internet.

●

In Online radio mode, press and set the au-

dio quality to high or low to tune the online ra-
dio.

Station logos

In the case of some frequency bands, station
logos may already be pre-installed in the in-
fotainment system.

If in the FM/DAB frequency band settings the

automatic selection of station logos

is ac-

tivated, station logos are automatically as-
signed to the stations.

In the Online radio mode, the infotainment
system accesses the station logos of the on-
line database and automatically assigns
them to the stations

Assign station logos manually

●

In FM/DAB mode, press

Station logos

●

Press on the



icon and then select the

station to which a station logo is to be as-
signed.

●

Select the station logo. If desired, repeat

the same process with other stations.

●

, via the menu

Settings > Station logos

198

Infotainment operation

Media Mode

Introduction

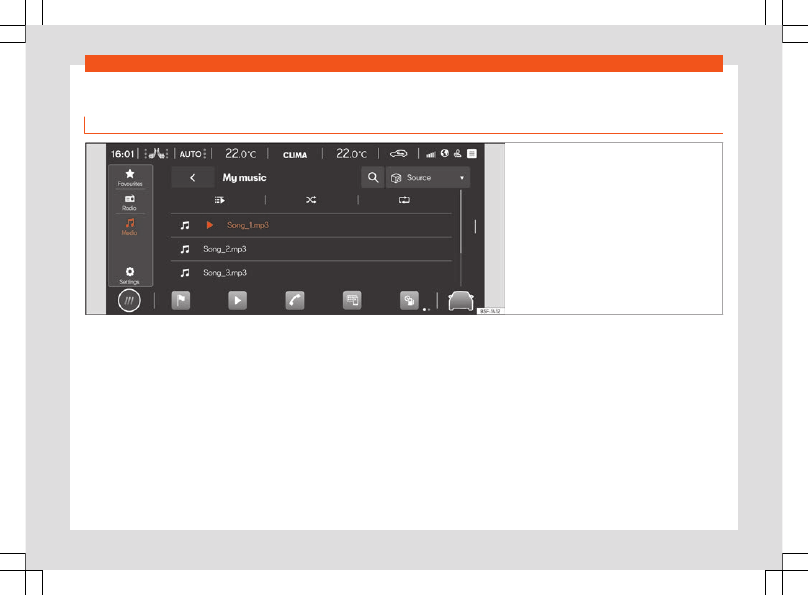

Fig. 159

Schematic representation: Multimedia

view

In Media mode you can play multimedia files
from data media and streaming services
through the infotainment system.

Depending on the equipment, the following
data media can be used:

●

USB storage support (for example, a USB

stick, a mobile phone connected via USB).

●

Bluetooth® device (for example, a mobile

phone or a tablet).

Depending on the equipment, the following
types of multimedia files can be played:

●

Audio files.

●

Video files (depends on the system).

You can also use streaming services. The
availability of streaming services depends on
the equipment and the country.

To use streaming services you need to have
your own user account in the streaming serv-
ice in question.

Access the MEDIA menu

●

Press





›››

Fig. 159

Access the settings

●

Press





Limitations and indications of data media

Data media may not work if they have been
exposed to high temperatures or have been
damaged. Please bear in mind the manufac-
turer’s indications.

Quality differences between data media pro-
duced by different manufacturers can cause
multimedia playback malfunctions.

Incorrect configuration on a data media may
cause the data media to be unreadable.

Playlists only specify a playback order and
refer to the storage location of the multime-
dia files within the folder structure. In a

199

Infotainment system

playlist there are no multimedia files saved.
To play a playlist, multimedia files have to be
found in the storage places of the data media
to which the playlist refers.

Note

SEAT assumes no liability for any deteriora-
tion or loss of files on data storage devices.

Features of the multimedia equip-
ment and symbols

Audio, multimedia and connectivity:

●

Multimedia playback and control via Blue-

tooth®.

●

Audio playback in these formats: AAC,

ALAC, AVI, FLAC, MP3, MP4, WMA.

●

Video playback in these formats: MPEG-1

and MPEG-2 (.mpg, .mpeg), ISO MPEG4, DivX
3, 4 and 5 Xvid (.avi), ISO MPEG4 H.264
(.mp4, .m4v, .mov), Windows Media Video 10
(.wmv, .asf).

●

Playlists on any type of device.

●

Multimedia streaming (online).

●

Multimedia search.

Universal symbols in Media mode

To start playback.
To pause playback.





To change to the previous title.
To change to the next title.
Repeat the current track.
Repeat all titles.
To activate the shuffle playback order.
To display the favourites list.
Add multimedia file as favourite.
Top right: Select multimedia source.
Access the settings.
Open the search.
To return to the top folder of the multi-
media source.

Select and play a multimedia
source

Select multimedia source

Before playing multimedia files you must first
connect a multimedia source.

To use streaming services you must be con-
nected to the Internet.

●

Connect an external multimedia source.

●

Select the connected media source to be

used for playback.























Playing audio and video files

You can search and play multimedia files
from an available multimedia source in differ-
ent ways.

Search in the folder structure

Multimedia files can be catalogued by cate-
gories (for example, album, artist, title). In

media

this category view is always dis-

played. The classic folder structure of individ-
ual USB data media is also found in

My me-

dia

Activate the folder structure.
The folder structure of the selected mul-
timedia source is displayed. When

media

is selected, the categories (mu-

sic, videos, playlists) and connected
multimedia sources are displayed first.
Search for the title you want in the folder
structure.

OR:

press



to start the text search. The

input field is displayed.
Enter the name of the desired title. The
list of the titles found is updated while
entering the text.
Press the desired title.
If at the beginning of the playback your
selection is in a folder of a multimedia
source, the multimedia files that are in it
are also added to the playback.

200

Infotainment operation

If a playlist is played, all available titles
in the playlist are added to the play-
back.
Close your selection with



Select favourites

In favourites you can save titles, music gen-
res, artists and albums individually for play-
back.

●

Access favourites



●

Press the favourite you want.

Depending on your selection, all the titles be-
longing to the favourite are added to the
playback.

Configure streaming services

Depending on the equipment you can use
streaming services directly through the info-
tainment system. For this you need to have a
premium user account of the streaming serv-
ice in question and you have to log in with it in
the infotainment system. You also need to be
connected to the Internet.

Select



Streaming

as the multimedia

source.
A list of available streaming services is
displayed.

Select the streaming service you want.
Follow the steps indicated by the info-
tainment system.
The streaming service is added to the list
of multimedia sources as a new function
button.

Save favourites

Only multimedia files in

My media

of the info-

tainment system can be saved as favourites.
You can save up to a maximum of 30 titles, al-
bums, artists and music genres individually as
favourites.

Start playback.
Access favourites.
Tap a favourite that is not assigned.

OR:

press on an existing favourite and

old for approx. 3 seconds.
Select from the selection list: Title, Al-
bum, Artist, Music genres, Playlist.

The selection is saved instead of the previ-
ously selected favourite. If the favourite was
already assigned, the previously saved fa-
vourite is overwritten.

The selectable options in the selection list
depend on the data attached to the multime-

2.
3.

1.
2.
3.

dia file. If the music genre is not indicated in
the music files, for example, you cannot save
the music genre as favourite.

If a video file is playing, only that video can
be saved as favourite.

Playing entertainment content in
the infotainment system

Depending on the infotainment system, vid-
eos can be played.

Video mode

When in video mode, a video can be played
on the infotainment screen if this is stored on
a data media, in

My media

or is sourced from

a streaming service. In this case, the video
sound is played through the vehicle's speak-
ers.

The image is only displayed if the vehicle is
stopped. When the vehicle is in motion, the in-
fotainment screen turns off. The sound of the
video can still be heard.

A stable Internet connection is required for
playback from a streaming service. In this
case, telephony costs may be generated.

201

Infotainment system

Navigation

Introduction

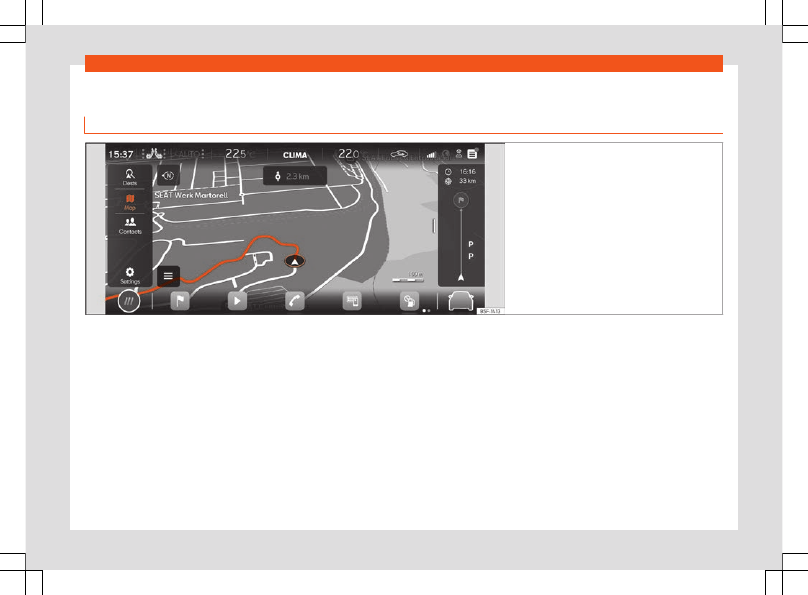

Fig. 160

Schematic representation: Navigation

view

A global satellite system determines the cur-
rent position of the vehicle and the sensors
mounted on the vehicle analyse the routes
taken. All measured values and possible traf-
fic events are compared with the available
maps to allow optimal navigation to the des-
tination.

Navigation announcements and graphic rep-
resentations will guide you to your destina-
tion.

Navigation management is carried out on the
screen.

Depending on the country, some functions of
the infotainment system will not be available

on the screen when travelling above a certain
speed. It is not a malfunction, but is due to
compliance with legislation.

Navigation announcements

Navigation announcements are acoustic indi-
cations for driving referred to the current
route.

The type and frequency of navigation an-
nouncements depend on the driving situation,
for example, starting the guide to the destina-
tion, driving on the motorway or on a round-
about and the settings.

If the exact destination cannot be reached
because, for example, it is in a non-digitised
area, indications relating to the address and
the distance to the destination are displayed
on the screen.

During dynamic route guidance, you will re-
ceive information about reported traffic con-
gestion on the route. An additional navigation
announcement is provided if the route is re-
calculated due to traffic congestion.

While a navigation announcement is playing,
its volume can be adjusted. The following
navigation announcements provided will be
played with the newly adjusted volume.

202

Infotainment operation

Limitations during navigation

If the infotainment system cannot receive da-
ta from GPS satellites, for example, in a tunnel
or in an underground garage, navigation con-
tinues using the vehicle's sensors.

In areas that are not digitised or are only par-
tially digitised on the infotainment memory,
the infotainment system will still attempt to
provide route guidance.

In the case of missing or incomplete naviga-
tion data, it may not be possible to determine
the exact position of the vehicle. This may
mean that navigation is not as precise as usu-
al.

Roads and streets are subject to constant
change (e.g. new roads, road works, roads
closed to traffic, changes to street names
and building numbers). If the navigation data
is obsolete, this may lead to errors or inaccur-
acies during the route guidance.

Managing the navigation map

To allow an optimal view, you can also man-
age the navigation map with additional finger
movements.

Move the map

(tip: use your index finger).

●

Move the map with your finger.

Zoom in the view

(tip: use your index finger).

●

To increase the view in a certain position,

double-click on the map.

Zoom out the view

(tip: use your index and

middle fingers).

●

Press on the map with both fingers at the

same time.

Change view

(tip: use your index finger).

●

Press twice on the map and keep your fin-

ger pressed on the screen.

●

To zoom out the view of the map, move your

finger upwards. To zoom in the view of the
map, move your finger downwards.

Change view

(tip: use your index and middle

fingers).

●

Press on the map with both fingers at the

same time and keep them pressed.

●

To zoom out the view of the map, move one

finger towards the other. To zoom in the view
of the map, move one finger away from the
other.

Tilt the view

(tip: use your index and middle

fingers).

●

Press on the map with both fingers at the

same time and horizontal to each other, keep
them pressed.

●

To tilt the view of the map forward, move

your fingers upwards. To tilt the view of the
map backward, move your fingers down-
wards.

Rotate view

(tip: use your index and middle

fingers).

●

Press on the map with both fingers at the

same time and keep them pressed.

●

To rotate the map view, turn your fingers

clockwise anticlockwise.

Saved data

The infotainment system saves certain data,
for example, frequent routes and position da-
ta, to make the entry of the destination more
agile and optimise the route guidance.

Delete saved data

●

Press

Settings > Basic function settings >

Delete

and then

WARNING

Select the settings, enter the destination
and the modifications for navigation only
with the vehicle at a standstill.

Note

●

If a detour is passed during route guid-

ance, navigation may recalculate the
route.

●

The quality of the navigation recommen-

dations given by the Infotainment system
depends on the navigation data available
and any reported traffic congestions.

203

Infotainment system

●

Navigation announcements are not emit-

ted if the sound is muted in the infotainment
system.

Navigation functions and symbols

Navigation

Navigation functions depend on the equip-
ment and country.

Functions

●

Entering destination and route calculation

(offline and online).

●

Displaying two navigation maps at the

same time (display and instrument cluster).

●

Update of online maps.

●

Predictive navigation.

●

3D urban maps.

●

Online traffic information

●

Dynamic POIs (points of interest)

Symbols on the map

The buttons and indications depend on the
settings and the current driving situation.

Symbols for traffic events and points of inter-
est (POIs) are displayed on the map, for ex-
ample, petrol stations, train stations or inter-
esting stopovers, provided navigation has
such data

›››

page 207

Current position
Search for destinations.
Destinations along the route.
Final destination
Home address
Work address
Favourite destinations
Additional window with more options.
Additional window with route options.
Centre the map on the current position.
Change view: 2D oriented to the north,
or 2D oriented to the direction of travel,
or 3D to the direction of travel.
Information about the current route
guidance.
Map scale.

Symbols in the additional window

●

To open the additional window, press



Repeat the last navigation announce-
ment.
Volume of navigation announcements.
Map lighting in Automatic, Day or Night
mode.
Offer new guidance routes.
360° electric range indicator (hybrid ve-
hicles)



































Other symbols

Entering the detailed destination for an
address.
Search for destinations.
Frequent destinations.
Last destinations.
Favourite destinations
Back

Symbols in the route details

Current position.
Destination of the current guidance.

POI symbols (points of interest)

POIs (points of interest) are shown on the
map, provided the navigation has said data.

Click on the desired POI (point of interest) to
start a route guidance

›››

page 205

Petrol station.
Parking lot.
Tourist information offices.
Train station.
Restaurant.

Traffic information.

POIs (points of interest) are shown on the
map, provided the navigation has said data

›››

page 207



























204

Infotainment operation

Click on a traffic event to open an additional
window with further details

›››

page 207

Slow traffic.

Traffic jam.

Accident.

Broken down vehicle.

Slippery surface (ice or snow).

Road closed to traffic.

Slippery road hazard.

Danger.

Road works.

Strong wind.

Reduced visibility.

Navigation data

The Infotainment system is equipped with a
built-in navigation data memory. Depending
on the country, the necessary navigation da-
ta may already be pre-installed.

To provide correct route guidance and make
the most of the functions offered, the infotain-
ment system should be updated on a regular
basis.























Using obsolete data may lead to errors dur-
ing navigation. Current routes cannot be
traced or the route guidances will lead to
mistaken destinations.

Ensure navigation data is updated at all
times.

Online updating of navigation data

The navigation data of the regions through
which you travel frequently is automatically
updated in the background if the Internet
connection is established and the privacy
settings are valid.

●

With the ignition switched on, the naviga-

tion data is updated automatically.

Manual update of navigation data

Current navigation data for large regions, for
example Western Europe, can be downloa-
ded from www.seat.com and stored on USB
data devices. Navigation through USB data
devices is not possible.

●

Download the navigation data to a USB da-

ta device.

●

Turn on the ignition of the vehicle.

●

Connect the USB data device to the info-

tainment system. Navigation data is automat-
ically updated in the background.

The map version is displayed in



Settings >

System information

WARNING

If you update the navigation data manually
while driving, it may cause accidents with
serious injuries.

●

Update the navigation data only with the

vehicle at a standstill.

Note

Automatic update of the navigation data is
subject to the privacy settings. In “Incogni-
to” mode, no update is carried out.

Start route guidance

Depending on the country and equipment,
different functions are available to enter des-
tinations.

The different functions for entering destina-
tions are found in the navigation main menu.

Opening the Navigation main menu

●

Press



Navigation

Select the destination and start naviga-
tion

Press



Select the desired destination. You can
chose from



Frequent destinations



Last destinations

and



Favourite

destinations

1.
2.

205

Seat Leon (2022 year). Manual in english - page 12
