Factory settings

All the configurations in the

Lights & visi-

bility

sub-menu will be reset to the factory

settings.

Tourist light

Headlamp adjustment for countries in which
vehicles are driven on the other side of the
road. When the mark is activated, the head-
lamps of a left-hand drive vehicle are adjus-
ted for driving on the left. This function must
only be used for a short period.

Personal convenience settings

When two people use a vehicle, SEAT recom-
mends that each person always uses “their”
own remote control key. When the ignition is
switched off, or the vehicle is locked, the per-
sonal convenience settings are stored and
automatically allocated to the vehicle key.

The values of the personalised convenience
settings of the following menu options are al-
located to the vehicle key:

■

Parking heating

■

Configuration

■

Time

■

Language

■

Units

■

Convenience settings

■

Door unlock (individual opening, Auto
Lock)

■

Convenience handling of windows

■

Rear vision mirror adjustment

■

Lights & visibility settings

■

Coming home and leaving home

■

Footwell light

■

Convenience turn signals

The stored settings are automatically activa-
ted, at the latest when the ignition is switched
on. Please refer to the information and tips re-
lating to the seat memory

›››

page 135

Warning and information messages
(Vehicle status)

The system runs a check on certain compo-
nents and functions when the ignition is
switched on and while the vehicle is moving.
Faults displayed on the instrument panel as
red and yellow warning symbols accompa-

nied with messages and, depending on the
case, even an audible warning

›››

page 87

The representation of the messages and
symbols may vary depending on the version
of the instrument panel.

Existing faults can also be checked manually.
To do so, open the menu

Vehicle status

Vehicle

›››

Priority 1 warning (red)

The symbol lights up or flashes (in part ac-
companied by audible warnings).



Stop

driving!

Danger! Check the fault and elimi-

nate the cause. If necessary, seek professio-
nal assistance.

Priority 2 warning (yellow)

The symbol lights up or flashes (in part ac-
companied by audible warnings). Operating
faults or the lack of operating fluids can
cause damage to the vehicle or a fault.
Check the faulty function as soon as possible.
If necessary, seek professional assistance.

Information message

It provides information about processes in the
vehicle.

Instruments and warning/control lamps

Driver alert system (break recom-
mendation)

Fig. 76

On the instrument panel display: driver

alert system symbol.

The Fatigue detection informs the driver when
their driving behaviour shows signs of fatigue.

Function and operation

Fatigue detection determines the driving be-
haviour of the driver when starting a journey,
making a calculation of tiredness. This is con-
stantly compared with the current driving be-
haviour. If the system detects that the driver is
tired, an audible warning is given with a
sound and an optic warning is shown with a
symbol and complementary message on the
instrument panel display

›››

Fig. 76

. The mes-

sage on the instrument panel display is
shown for approximately 5 seconds, and de-
pending on the case, is repeated. The system
stores the last message displayed.

The message on the instrument panel display
can be switched off by pressing the



button on the windscreen wiper lever or the
button



on the multi function steering wheel

›››

page 85

The message can be recalled to the instru-
ment panel display using the multifunction
display

›››

Conditions of operation

Driving behaviour is only calculated on
speeds above about 65 km/h (40 mph) up to
around 200 km/h (125 mph).

Switching on and off

The system can be switched on or off in the

Assistants

menu. A mark indicates that the

adjustment has been activated.

System limitations

The Fatigue detection has certain limitations
inherent to the system. The following condi-
tions can limit the Fatigue detection or pre-
vent it from functioning.

●

At speeds below 65 km/h (40 mph)

●

At speeds above 200 km/h (125 mph)

●

When cornering

●

On roads in poor condition

●

In unfavourable weather conditions

●

When a sporty driving style is employed

●

In the event of a serious distraction to the

driver

Fatigue detection will be restored when the
vehicle is stopped for more than 15 minutes,
when the ignition is switched off or when the
driver has unbuckled their seat belt and
opened the door.

In the event of slow driving during a long peri-
od of time (below 65 km/h, 40 mph) the sys-
tem automatically re-establishes the tired-
ness calculation. When driving at a faster
speed the driving behaviour will be recalcula-
ted.

WARNING

Do not let the comfort afforded by the Fati-
gue detection system tempt you into taking
any risks when driving. Take regular breaks,
sufficient in length when making long jour-
neys.

●

The driver always assumes the responsi-

bility of driving to their full capacity.

●

Never drive if you are tired.

●

The system does not detect the tiredness

of the driver in all circumstances. Consult
the information in the section

›››

page 77,

System limitations

●

In some situations, the system may incor-

rectly interpret an intended driving ma-
noeuvre as driver tiredness.

●

No warning is given in the event of the ef-

fect called microsleep!

Operation

●

Please observe the indications on the in-

strument panel and act as is necessary.

Note

●

Fatigue detection has been developed

for driving on motorways and well paved
roads only.

●

If there is a fault in the system, have it

checked by a specialised workshop.

Road signs detection system

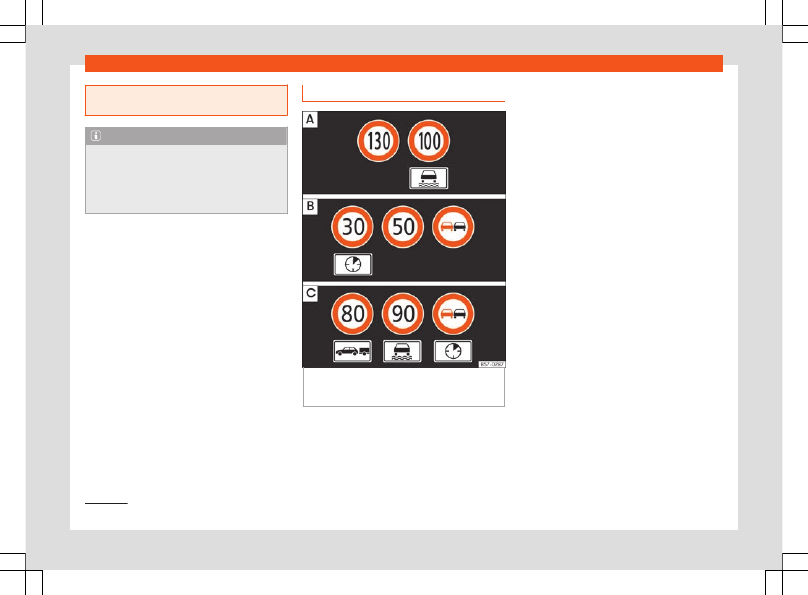

Fig. 77

On the instrument panel display: ex-

amples of speed limits or overtaking prohibi-

tions with their respective additional signs.

The traffic sign detection system records the
standard traffic signs in front of the vehicle
with a camera located on the base of the in-
terior mirror and provides information about
speed limits and overtaking prohibitions.

Within its limitations, the system also displays
additional signals, such as time-specific pro-
hibitions, signs for vehicles towing trailers

›››

page 301

or limitations that only apply in

the event of rain. Even on journeys without
signs, the system may display any applicable
speed limits.

Applicable countries

At the time of printing this instruction manual,
the road signs detection system worked in the
following countries:

Germany, Andorra, Austria, Belgium, Vatican
City, Denmark, Spain, Finland, France, Ire-
land, Italy, Liechtenstein, Luxembourg, Mona-
co, Norway, Netherlands, Poland, Portugal,
United Kingdom, Czech Republic, San Marino,
Sweden, Switzerland.

Road sign detection system messages:

Error: Sign Assist

●

System fault. Have the system checked by

a specialised workshop.

Sign Assist: Clean the windscreen!

●

The windscreen is dirty in the area of the

camera. Clean the windscreen.

System available depending on the country.

Instruments and warning/control lamps

Sign Assist: only partly available
at the moment.

●

The navigator does not transmit data. Con-

nect the navigator and insert the navigation
data media.

●

OR:

road sign detection is not supported in

the country where the vehicle is currently
driving.

Switching on and off

●

Connect or disconnect the assist system in

the

Settings

menu in the SEAT information

system

›››

page 74

●

OR:

press the button for the driver assis-

tance systems on the main beam lever

›››

page 86

Display of traffic signs

Speed limits or overtaking prohibitions to-
gether with the corresponding additional
signs are shown on the instrument panel dis-
play. Depending on the navigation system in-
stalled in the vehicle, traffic signs will be
shown as above and also in the navigation
system's map display.

When the traffic sign detection system is con-
nected, a camera located on the base of the
interior rear-view mirror records the traffic
signs in front of the vehicle. After checking
and evaluating the information from the cam-
era, the navigation system and the current
vehicle data, up to three valid road signs are

displayed,

›››

Fig. 77



with their additional

signs.

●

First:

The sign that is currently valid for the

driver is shown in the left side of the screen
For example, a maximum speed limit of

130

km/h

(

100

mph

)

›››

Fig. 77



●

Second:

A sign valid only in certain circum-

stances, e.g.

100

km/h

(

mph

) is shown sec-

ond, together with the additional rain sign.

●

Additional sign:

If the windscreen wiper is

working while you are driving, the signal with
the additional rain sign will be shown first, on
the left, as it is the one that is applicable at
the time.

●

Third:

A sign valid only with restrictions, e.g.

No overtaking at certain times, will be dis-
played in third place

›››

Fig. 77



The permanent display on the instrument
panel screen is shown as you pass the real
traffic signs.

The signs for entering and leaving towns acti-
vate the display of the usual speed limits for
that country on roads in populated areas and
national highways, even if the speed is not
limited by an actual traffic sign.

The end of a prohibition or limitation is not
displayed.

If you exceed the speed limits shown, a warn-
ing will not appear. The system does not rec-

ognise residential street signs. The current le-
gal provisions apply.

Trailer mode

Connect or disconnect the secondary dis-
play for speed limits and overtaking bans that
apply to trailers (trailer mode) in the

Set-

tings

menu in the SEAT information system

›››

Limited operation

The traffic sign detection system has certain
limitations. The following cases may lead the
system to operate with limitations or not at
all:

●

In the case of poor visibility, e.g. in snow,

rain, fog or intense mist.

●

In cases of dazzling, e.g. caused by head-

on traffic or by the sun.

●

When driving at high speeds.

●

If the camera is covered or dirty.

●

If the traffic signs are out of the camera's

field of vision.

●

If the traffic signs are partially or totally

covered, e.g. by trees, snow, dirt or other vehi-
cles.

●

In the case of traffic signs that do not fulfil

the regulations.

●

In the case of damaged or bent traffic

signs.

Operation

●

In the case of variable messages on over-

head or gantry signs (LED-based variable
traffic signs or other lighting units).

●

If the maps on the navigation system are

not up-to-date.

●

In the case of adhesives affixed to vehicles

that depict traffic signs, e.g. speed limits on
lorries.

WARNING

The technology in the traffic sign detection
system cannot change the limits imposed
by the laws of physics and only works with-
in the system's limits. Do not let the extra
convenience afforded by the traffic sign
detection system tempt you into taking any
risks when driving. The system is not a re-
placement for driver awareness.

●

Adapt your speed and driving style to suit

visibility, weather, road and traffic condi-
tions.

●

Poor visibility, darkness, snow, rain and

fog may lead to the system failing to dis-
play traffic signs or not displaying them
correctly.

●

If the camera's field of vision is dirty, cov-

ered or damaged, system operation may
be impaired.

WARNING

The driving recommendations and traffic
indications shown on the traffic sign detec-

tion system may differ from the actual cur-
rent traffic situation.

●

The system may not detect or correctly

show all the traffic signs.

●

Traffic signs and traffic regulations have

priority over the recommendations and dis-
plays provided by the system.

WARNING

If messages are ignored, the vehicle may
stall in traffic and cause accidents and se-
vere injuries.

●

Never ignore the messages displayed.

●

Stop the vehicle at the next opportunity

and in a safe place.

Note

To avoid affecting the correct operation of
the system, take the following points into
consideration:

●

Regularly clean the area of vision of the

camera and keep it in a clean state, without
snow or ice.

●

Do not cover the field of vision of the

camera.

●

Always replace damaged or worn blades

when required to avoid lines on the cam-
era's field of vision.

●

Check that the windscreen is not dam-

aged in the area of the camera's field of vi-
sion.

●

The use of outdated maps on the naviga-

tion system may cause the system to show
traffic signs incorrectly.

●

In the waypoints mode of the navigation

system, the traffic sign detection system is
only partly available.

●

Failure to heed the control lamps and

corresponding text messages when they
light up may result in damage to the vehi-
cle.

Time

●

Press the



›››

to select the hour

or minute display.

●

To continue setting, press the





›››

button. Hold button down to

scroll through the numbers quickly.

●

Press the



button again to end the clock

setting.

Revolution counter

The rev counter indicates the number of en-
gine revolutions per minute.

Together with the gear-change indicator, the
rev counter offers you the possibility of using
the engine of your vehicle at a suitable
speed.

Instruments and warning/control lamps

The beginning of the red zone of the rev
counter indicates the maximum speed in any
gear after running-in and with the engine hot.
However, it is advisable to change up a gear
or move the selector lever to

(or lift your

foot off the accelerator) before the needle
reaches the red zone

›››

We recommend that you avoid high revs and
that you follow the recommendations on the
gear-change indicator. Consult the addition-
al information in

›››

page 253, Selecting the

optimal gear

CAUTION

●

To prevent damage to the engine, the rev

counter needle should only remain in the
red zone for a short period of time.

●

When the engine is cold, avoid high revs

and heavy acceleration and do not make
the engine work hard.

For the sake of the environment

Changing up a gear early will help you to
save fuel and minimise emissions and en-
gine noise.

Fuel gauge

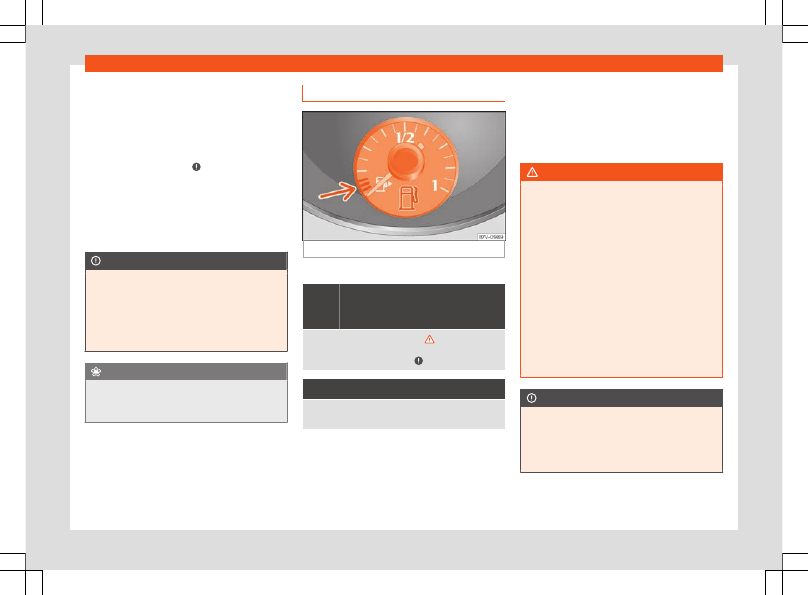

Fig. 78

On the instrument panel: fuel gauge.

Control lamps



It lights up.
Gauge position in the red mark
(arrow)

›››

Fig. 78

The fuel tank is almost empty

›››

. The fuel tank re-

serve has been consumed

›››

page 357

Refuel as soon as possible

›››



It lights up

The fuel tank is not properly closed.
Stop the vehicle and close the tank flap correctly.

The display only works when the ignition is
switched on.

The fuel range is displayed on the instrument
panel.

You can consult the tank capacity of your ve-
hicle in the

›››

page 357

section.

When the control lamp lights up



the addi-

tional petrol powered heating and the addi-
tional heater are automatically switched off.

WARNING

When driving with low fuel, the vehicle may
stall in traffic and cause accidents and se-
vere injuries.

●

If the fuel tank level is too low, fuel could

reach the engine irregularly, particularly
when driving up or down slopes.

●

The steering system and the driver assis-

tance systems and brakes do not work
when the engine is running irregularly or
switches off due to lack of fuel or an irregu-
lar supply thereof.

●

SEAT recommends always refuelling

when the tank is approximately one quarter
full, to prevent the vehicle from stopping
due to a lack of fuel.

CAUTION

Never run the fuel tank completely dry. An
irregular fuel supply can cause misfiring
and unburnt fuel could enter the exhaust
system. The catalytic converter or the par-
ticulate filter may get damaged!

Operation

Note

The small arrow on the fuel gauge next to
the fuel pump symbol points out towards
the side of the vehicle with the fuel tank
flap.

Engine coolant temperature indica-
tor.

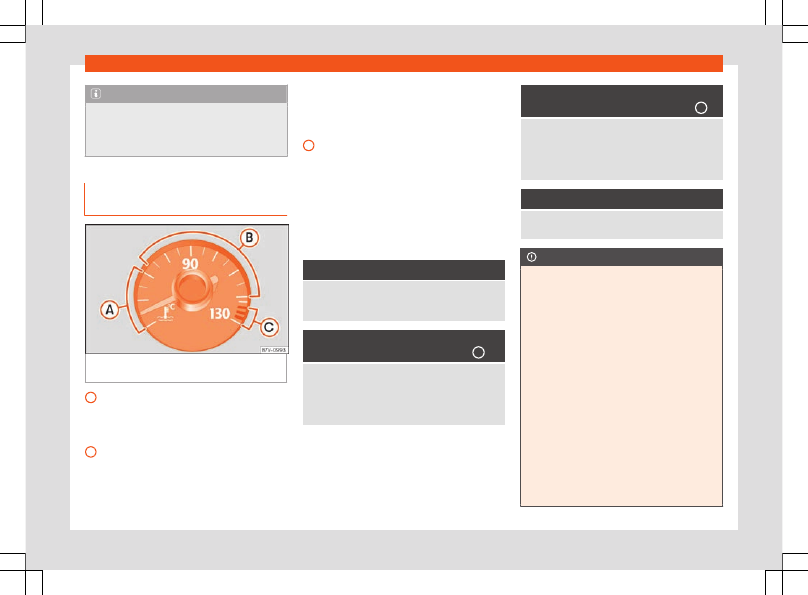

Fig. 79

Instrument panel: engine coolant tem-

perature indicator.

Cool zone.

The engine has not reached

operating temperature yet. Avoid high
speeds and stressing the engine if it has
not reached operating temperature.

Normal zone.

At high outside tempera-

tures and when the engine is subject to

high forces, the needle may move consid-
erably to the right. This is no cause for
concern, provided the control lamp does
not light up



Warning area.

When the engine is work-

ing hard, especially at high outside tem-
peratures, the needle may move into the
warning area.

The coolant temperature gauge only works
when the ignition is switched on.

Control and warning lamp



It lights up red

Engine coolant system faulty.



Do not continue driving.

Seek specialist assis-

tance.



It lights up red
Indicator in the normal area

Insufficient engine coolant level.

Check the engine coolant when the engine has
cooled and, if it is low, refill with engine coolant

›››

page 321

Even if the coolant level is correct, there is a fault.



It lights up red

Indicator in the warning zone

Excessive engine coolant temperature.



Stop the vehicle!

Stop the vehicle safely as soon

as possible. Switch off the engine and wait for it to
cool down and for the needle to return to the normal

area. Check the engine coolant level

›››

page 321



Flashes red

Engine coolant system faulty.

Seek specialist assistance.

CAUTION

●

To ensure a long useful life for the engine,

avoid high revs, driving at high speed and
making the engine work hard for approxi-
mately the first 15 minutes when the engine
is cold. The phase until the engine is warm
also depends on the outside temperature. If
necessary, use the engine oil temperature
as a guide

›››

●

Additional lights and other accessories in

front of the air inlet reduce the cooling ef-
fect of the coolant. At high outside temper-
atures and high engine loads, there is a risk
of the engine overheating.

●

The front spoiler also ensures proper dis-

tribution of the cooling air when the vehicle
is moving. If the spoiler is damaged this can
reduce the cooling effect, which could
cause the engine to overheat. Seek spe-
cialist assistance.

Instruments and warning/control lamps

Compass

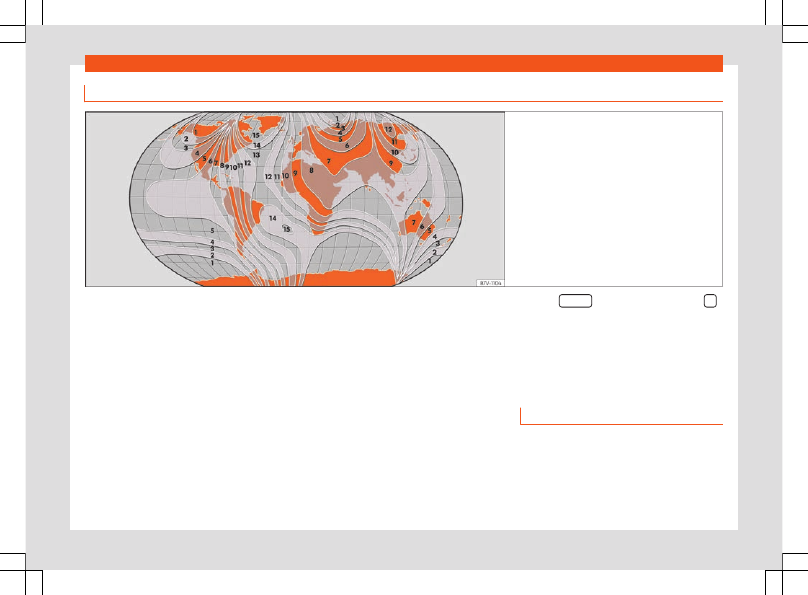

Fig. 80

Magnetic zones

The compass does not require calibration in
vehicles for which the navigation system was
mounted at the factory. The option

compass

disappears.

The compass in vehicles in which the naviga-
tion system was not mounted at the factory,
is permanently and automatically calibrated.
If electronic or metal accessories (mobile
phone, television) are subsequently mounted
in the vehicle, the compass should be recali-
brated manually.

Adjusting the magnetic zone

●

Switch the ignition on.

●

Select the

Settings

menu followed by the

option

Compass

and

Zone

●

Select the magnetic zone corresponding to

the position of the vehicle

›››

Fig. 80

●

Adjust and confirm the magnetic zone

(

1-15

Calibrating compass

To calibrate the compass you must be in one
of the valid magnetic zones with sufficient
space to be able to trace a circumference
with the vehicle.

●

Switch the ignition on.

●

Select the

Settings

menu followed by the

option

Compass

and

Calibrate

●

Confirm the message

Turn through a

full circle to calibrate the compass

with key



on the wiper lever or key



on the multifunction steering wheel and then
turn through a full circle at around 10 km/h (6
mph).

When the corresponding cardinal point is dis-
played, the calibration is complete.

Service intervals

The service interval indication is shown on the
instrument panel display.

SEAT distinguishes between services

with

en-

gine oil change (e.g. Oil change service) and
services

without

engine oil change (e.g. In-

spection).

Operation

In vehicles with

Services established by

time or mileage

, the service intervals are al-

ready pre-defined.

In vehicles with

LongLife Service

, the inter-

vals are determined individually. Thanks to
technological progress, maintenance work
has been greatly reduced. Because of the
technology used by SEAT, with this service
you only need to change the oil when the ve-
hicle so requires. To calculate this variation
(max. 2 years), the vehicle's conditions of use
and individual driving styles are considered.
The advance warning first appears 20 days
before the date established for the corre-
sponding service. The kilometres (miles) re-
maining until the next service are always
rounded up to the nearest 100 km (miles) and
the time is given in complete days. The cur-
rent service message cannot be viewed until
500 km after the last service. Prior to this, on-
ly lines are visible on the display.

Inspection reminder

If a service or an inspection has to be carried
out soon, a

service reminder

will be dis-

played when the ignition is switched on.

vehicles without text messages

, a spanner

symbol



is displayed on the instrument

panel and a figure given in

. The number of

kilometres shown is the maximum number
that may be driven until the next service. After
a few seconds, the display mode changes. A
clock symbol appears and the number of

days until the next service appointment is
due.

vehicles with text messages

Service in

--- km (miles) or --- days

is displayed

on the instrument panel.

Service due

After

the service date

, an audible warning is

given when the ignition is switched on and the
spanner displayed on the screen



flashes

for a few seconds. In

vehicles with text mes-

sages

, the following will be displayed on the

instrument panel:

Service now

Consult a service notification

With the ignition switched on, the engine off
and the vehicle at a standstill, the current

service notification

can be read:

●

Press the



button on the instrument panel

several times until the spanner symbol



displayed.

●

OR:

select the

Settings > Service

menu.

●

Select the

Info

option.

When the

service date has past

, a minus

sign is displayed in front of the number of kilo-
metres or days. In

vehicles with text messag-

the following is displayed:

Service ---

km (miles) or --- days ago

Resetting service interval display

If the service was not carried out by a SEAT
dealership, the display can be reset as fol-
lows:

Vehicles with text messages

●

Select the menu

Settings> Service

●

Select the

Reset

option.

●

Confirm with key



on the multifunction

steering wheel when required by the system.

Vehicles without text messages

●

Switch the ignition off.

●

Press and hold the





›››

but-

ton.

●

Switch ignition back on.

●

Release key





and, within the next 20

seconds, press key



›››

Do not

restart the indicator between the

service intervals, otherwise the information
displayed will be incorrect.

If the oil change service is reset manually, the
service interval display changes to a fixed
service interval, also in vehicles with

Flexible

oil change service

Note

●

The service message disappears after a

few seconds, when the engine is started or
when



button is pressed on the wiper

Instruments and warning/control lamps

lever, or the



button on the multifunction

steering wheel.

●

In vehicles with the LongLife system in

which the battery has been disconnected
for a long period of time, it is not possible to
calculate the date of the next service.
Therefore the service interval display may
not be correct. In this case, bear in mind the
maximum service intervals permitted

›››

page 337

●

If you reset the display manually, the next

service interval will be indicated as in vehi-
cles with fixed service intervals. For this
reason we recommend that the service in-
terval display be reset by a SEAT author-
ised Dealer.

Using the instrument panel

Introduction

With the ignition switched on, it is possible to
read the different functions of the display by
scrolling through the menus.

In vehicles with multifunction steering wheel,
the multifunction display can only be operat-
ed with the steering wheel buttons.

Some menu options can only be read when
the vehicle is at a standstill.

WARNING

Distracting the driver in any way can lead
to an accident and cause injuries.

●

Never use the menus on the instrument

panel display while the vehicle is in motion.

Note

After loading or changing the 12-volt bat-
tery, check the system settings. If the pow-
er supply is interrupted, the system settings
might be incorrect or deleted.

Operation using the multifunction
steering wheel

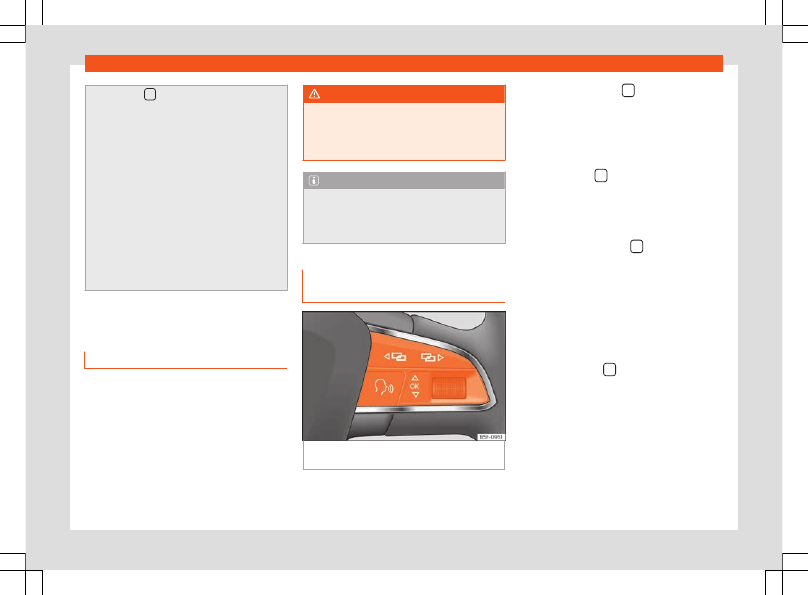

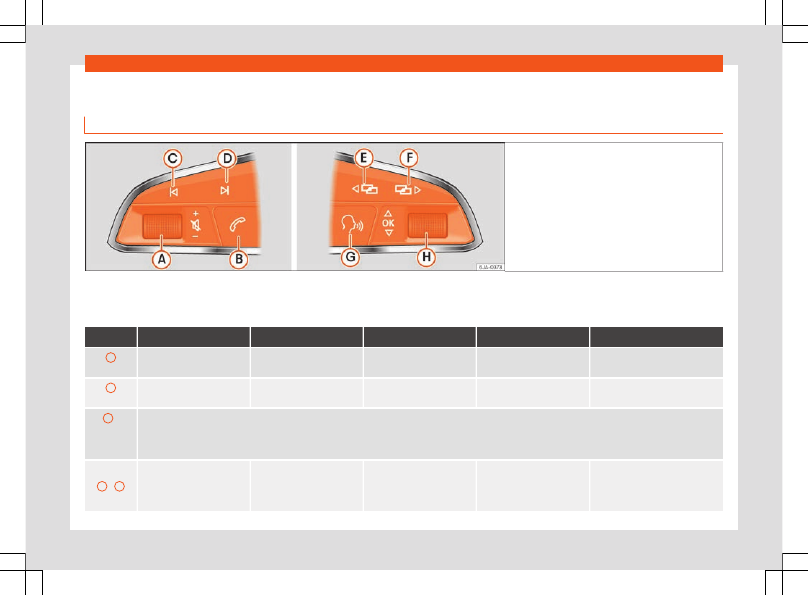

Fig. 81

Multifunction steering wheel: buttons

for using the instrument panel menus.

As long as a priority 1

›››

page 76

warning is

active, it will not be possible to access any
menu. Some warnings can be confirmed and

hidden with the button



of the multifunction

steering wheel

›››

Select a menu or an informative display

●

Switch the ignition on.

●

If a message or vehicle symbol is displayed,

press the button



›››

; if necessary,

several times.

●

Use the







›››

to switch be-

tween menus.

●

To open the menu or the information dis-

played, press the button



›››

or wait

a few seconds until the menu or the informa-
tive display opens automatically.

Changing menu settings

●

In the menu displayed, turn the right thumb-

wheel of the multifunction steering wheel

›››

until the desired option of the menu

is highlighted. The option appears framed.

●

Press the button



›››

to make the

required modifications. A mark indicates that
the system or function is activated.

Back to menu selection

Press the







›››

button.

Operation

Operation with the wiper lever

Fig. 82

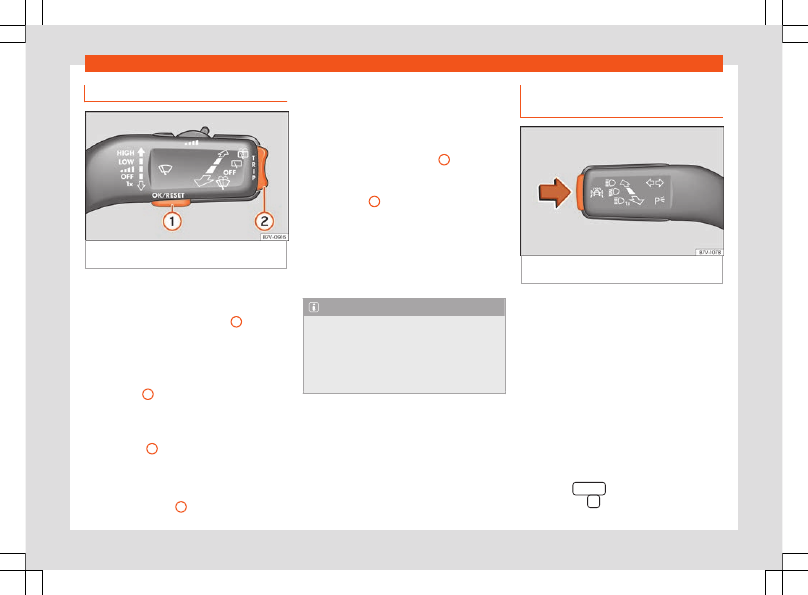

Wiper lever: buttons for using the in-

strument panel menus.

As long as a priority 1

›››

page 76

warning is

active, it will not be possible to access any
menu. Some warnings can be confirmed and
hidden with the button

›››

Fig. 82

Select a menu or an informative display

●

Switch the ignition on.

●

If a message or vehicle symbol is displayed,

press button

; if necessary, several times.

●

To display the menus

›››

page 70, Instrument panel

or to re-

turn to the selection of menus from a menu or
from an informative display, hold down the
rocker button

●

To change from one menu to another, press

the upper or lower part of the rocker switch.

●

To open the menu or the informative display

shown, press button

or wait a few seconds

until the menu or the informative display
opens automatically.

Changing menu settings

●

In the menu displayed, press the upper or

lower part of the rocker switch

until the re-

quired menu option is checked. The option
appears framed.

●

Press button

to make the required modi-

fications. A mark indicates that the system or
function is activated.

Back to menu selection

Select

Back

on the corresponding menu to

exit.

Note

If when switching on the ignition warnings
are shown about existing faults, it might not
be possible to change the settings or show
the information as described. In this case,
go to a specialised workshop and request a
repair.

Button for the driver assistance
systems

Fig. 83

On the turn signal and main beam lev-

er: button for driver assistance systems.

With the turn signal and main beam headlight
lever button, you can activate or deactivate
the driver assistance systems displayed in the

Assistance systems

menu .

Activate or deactivate a driver assistance
system

●

Briefly press the

›››

Fig. 83

button to open

the

Assistants

menu.

●

Select the driver assistance system and ac-

tivate or deactivate it

›››

page 85

. A mark in-

dicates that driver assistance system is
switched on.

●

Afterwards, mark or confirm the selection

with button



on the windscreen wiper

lever or button



on the multifunction steer-

ing wheel .

Instruments and warning/control lamps

Control lamps

Control and warning lamps

The control and warning lamps are indicators
of warnings

›››

, faults or certain functions.

Some control and warning lamps come on
when the ignition is switched on, and switch
off when the engine starts running, or while
driving.

Depending on the model, additional text
messages may be viewed on the instrument
panel display. These may be purely informa-
tive or they may be advising of the need for
action

›››

Depending upon the equipment fitted in the
vehicle, instead of a warning lamp, some-
times a symbol may be displayed on the in-
strument panel.

When certain control and warning lamps are
lit, an audible warning is also heard.

Red warning lamps



Parking brake engaged

anomaly in the

brake system

›››



Fault in the steering system

›››

page 254



Driver or passenger has not fastened seat
belt

›››

page 15



Engine cooling fluid

›››

page 82



Engine oil pressure

›››

page 319



Alternator abnormality

›››

page 326



Press the foot brake

›››

›››

page 248

›››

page 269



Open or not properly closed door

›››

page 104



Open or not properly closed rear lid

›››

page 108

Yellow warning lamps



Front brake pads worn

›››



Fault in ESC or disconnection caused by
the system;

ESC or ASR in operation

›››

page 287



ASR manually deactivated

›››

page 287



Fault in the ABS

›››

page 287



Electronic parking brake faulty

›››



Rear fog light switched on

›››



Fault in the emission control system

›››

page 314



Fault in the petrol engine management

›››

page 314



Particulate filter blocked

›››

page 314



Fault in the steering system

›››

page 254



Tyre pressure monitor system

›››

page 334



Fuel tank almost empty

›››

page 81



Fault in airbag system and seat belt ten-
sioners

›››

page 24





Front passenger front airbag disabled

›››

page 24



Fault in the lighting of the vehicle

›››



Low engine oil level

›››

page 319



Fuel tank flap is open

›››

page 81



Lane assist warning (Lane Assist)

›››

page 274



Windscreen cleaning fluid too low

›››

page 324

Green indicator lamps



Turn lights or emergency lights on

›››



Press the foot brake

›››

page 248



Speed regulator

›››

page 262

;

Adap-

tive Cruise Control (ACC)

›››

page 269



Lane assist active (Lane Assist) warning

›››

page 274

Operation

Blue indicator lamps



Main beam on or flasher on

›››

Other warning lamps



Main beam assist (Light Assist)

›››
