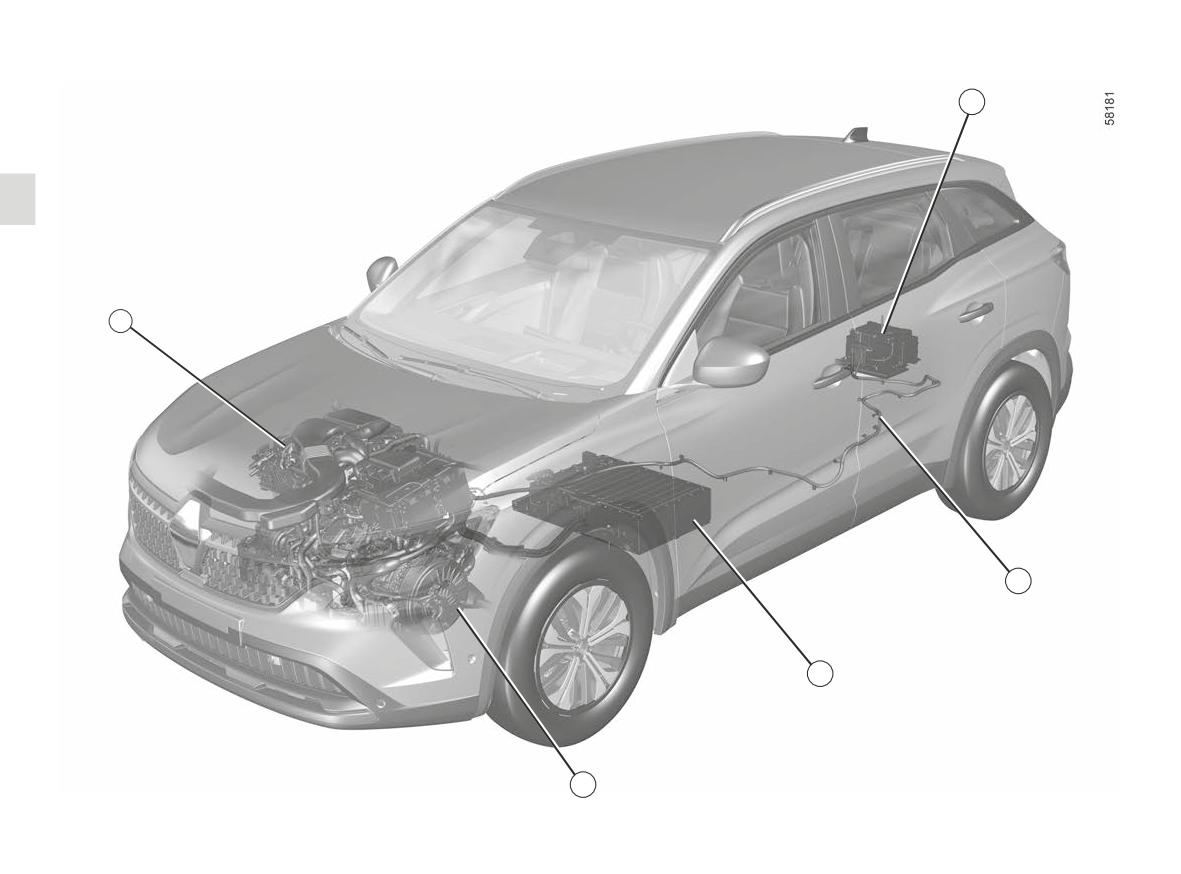

E-TECH FULL HYBRID VEHICLE SYSTEM: introduction (1/6)

1 “12 Volt” battery

2 Orange electrical power cables

1

3 “400 V” traction battery

4 Electric motor

5 Combustion engine

5

2

3

4

1.2

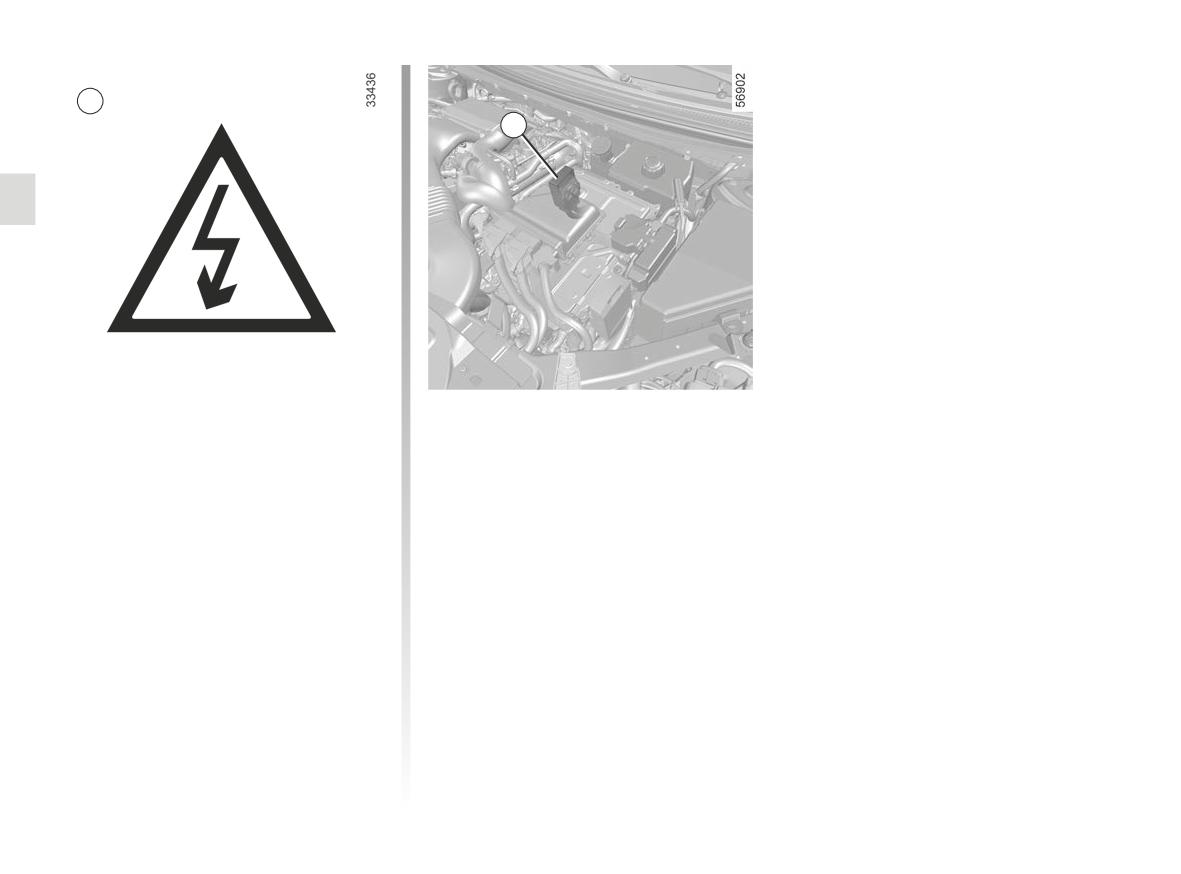

E-TECH FULL HYBRID VEHICLE SYSTEM: introduction (3/6)

A

6

The A symbol denotes the electrical el-

“400 volt” electrical circuit

ements of your vehicle which may pres-

The “400 V” electrical circuit is denoted

ent health risks.

by orange cables 6 and parts bearing

the ṑ symbol.

1.4

E-TECH FULL HYBRID VEHICLE SYSTEM: introduction (5/6)

Note: a combination of different flows

E

E

is possible (e.g. combining flow E and

flow G means that the combustion

engine and the electric motor are being

B

F

used to move the vehicle).

The colour of the wheels C varies ac-

C

G

G

cording to the engine used to move the

vehicle:

D

- blue: electric motor;

- white: combustion engine;

- blue and white: electric motor and

combustion engine.

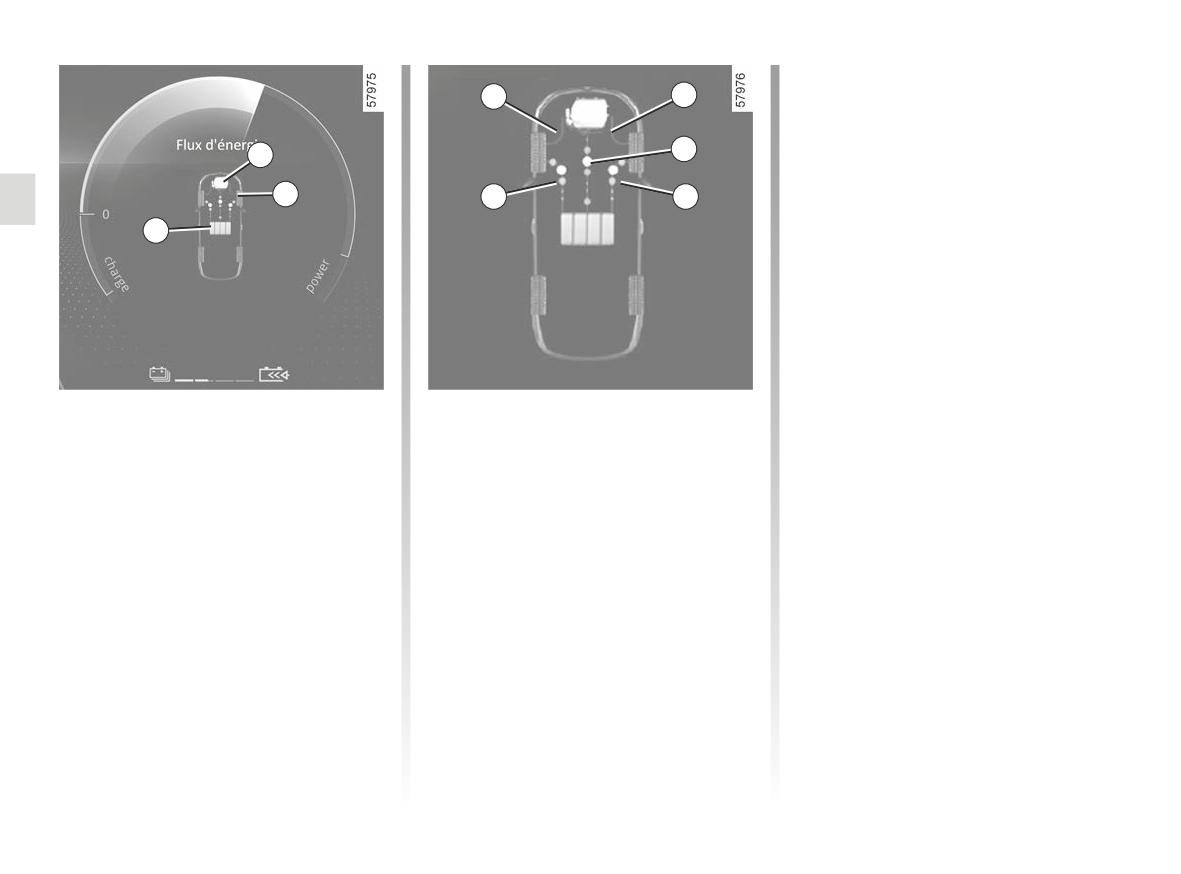

Energy flow

Flow E “Combustion engine trac-

tion”

Depending on the driving mode se-

lected, the various energy flows are

The combustion engine is used to move

shown on the instrument panel.

the vehicle.

These are energy flows between:

Flow F “Energy production”

- B: the combustion engine;

The combustion engine recharges the

traction battery.

- C: the wheels;

Flow G “Electric traction”

- D: the electrical assembly (with the

traction battery and electric motor).

The electrical assembly is used to move

the vehicle. The flow G goes from the

The colour of the flows varies:

traction battery to the wheels (traction),

- blue: electrical energy;

but also from the wheels to the traction

- white: energy produced by the com-

battery (regenerative braking).

bustion engine.

1.6

E-TECH FULL HYBRID VEHICLE SYSTEM: introduction (6/6)

Note: when the traction battery level is

low, the vehicle automatically switches

to hybrid mode and the combustion

warning light

engine starts: the 7



disappears from the instrument panel

to confirm.

7

H

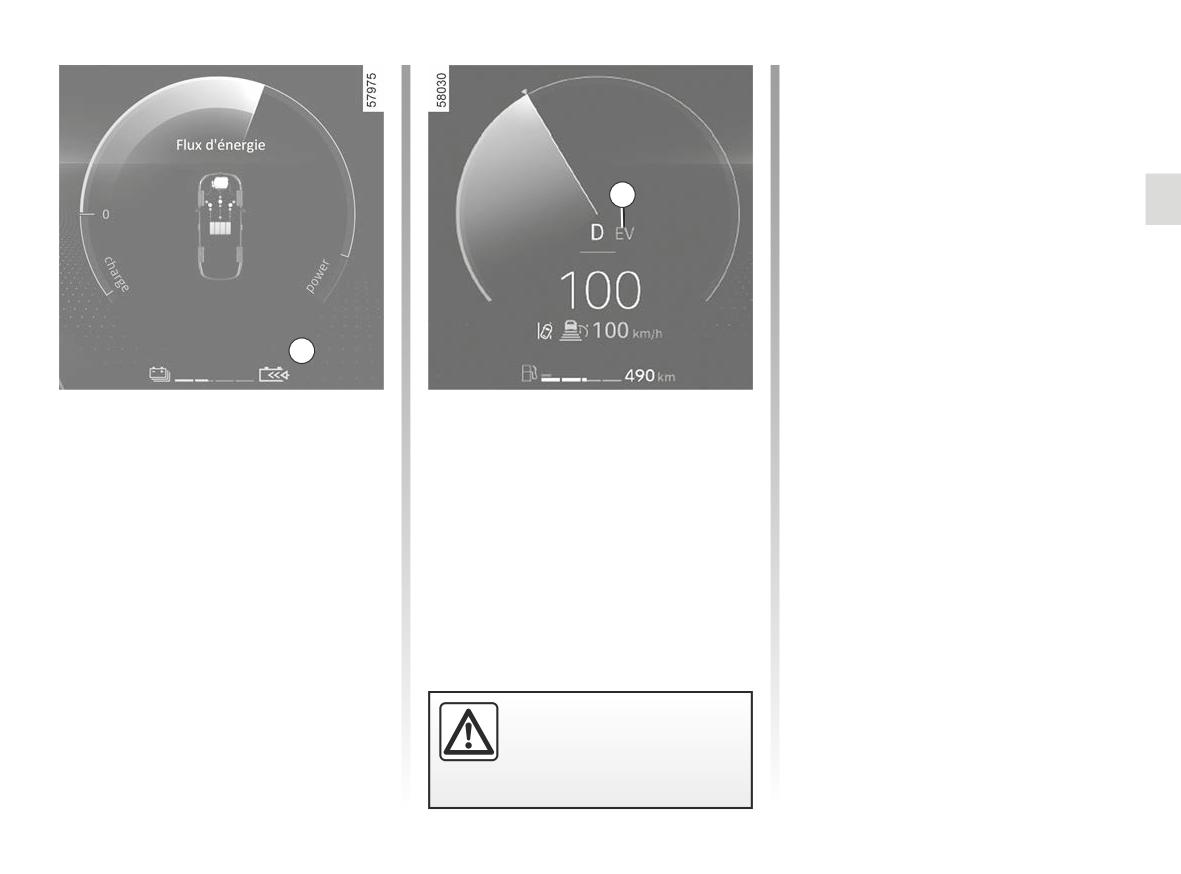

Regenerative braking level warning

All-electric driving mode

light H

When you lift your foot off the acceler-

The 7

 warning light is displayed

ator pedal or when you press on the

on the instrument panel to inform you

brake pedal, the electric motor and/or

that the E-Tech full hybrid system is

the regenerative braking system con-

using only the electrical assembly to

vert(s) the energy produced by the ve-

power the vehicle movement.

hicle deceleration into electric energy.

For more information ➥ 2.19.

This is used to slow down the vehicle

and recharge the traction battery.

The engine brake should

under no circumstances be

used as a substitute for the

brake pedal.

1.7

MILD HYBRID ADVANCED VEHICLE SYSTEM: introduction (2/2)

1

E

1

E

2

2

D

D

F

3

3

F

B

C

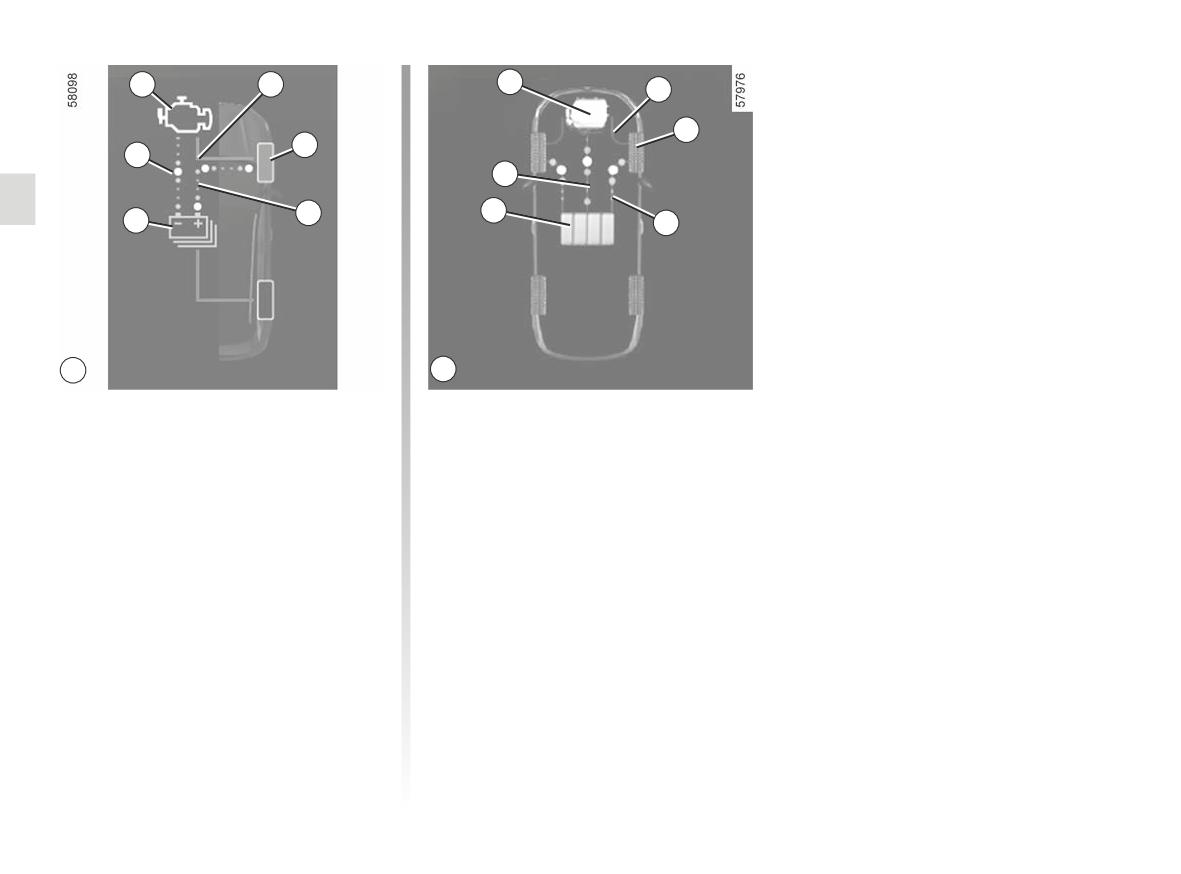

Energy flow

Flow D “Energy production”

(vehicles fitted with a secondary

The combustion engine will recharge

“48 Volt” battery)

the secondary “48 Volt” battery.

Different energy flows are shown on the

Flow E “Combustion engine trac-

instrument panel (graphic B or C).

tion”

These are energy flows between:

The combustion engine is used to move

- 1: the combustion engine;

the vehicle.

- 2: the wheels;

F “Regenerative braking” flow

– 3: the secondary “48 Volt” battery.

The flow F goes from the wheels to the

secondary “48 Volt” battery.

1.10

CARD: general information (3/3)

5

A

7

8

6

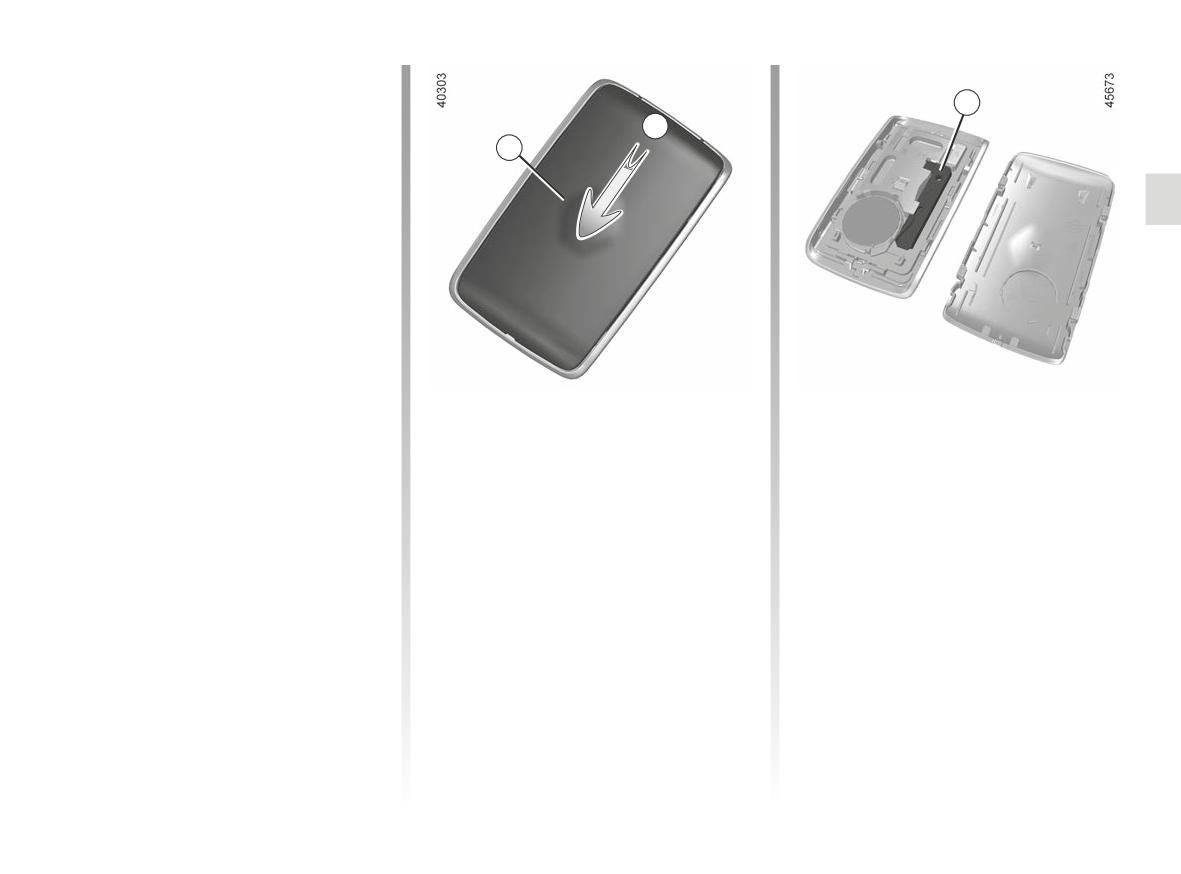

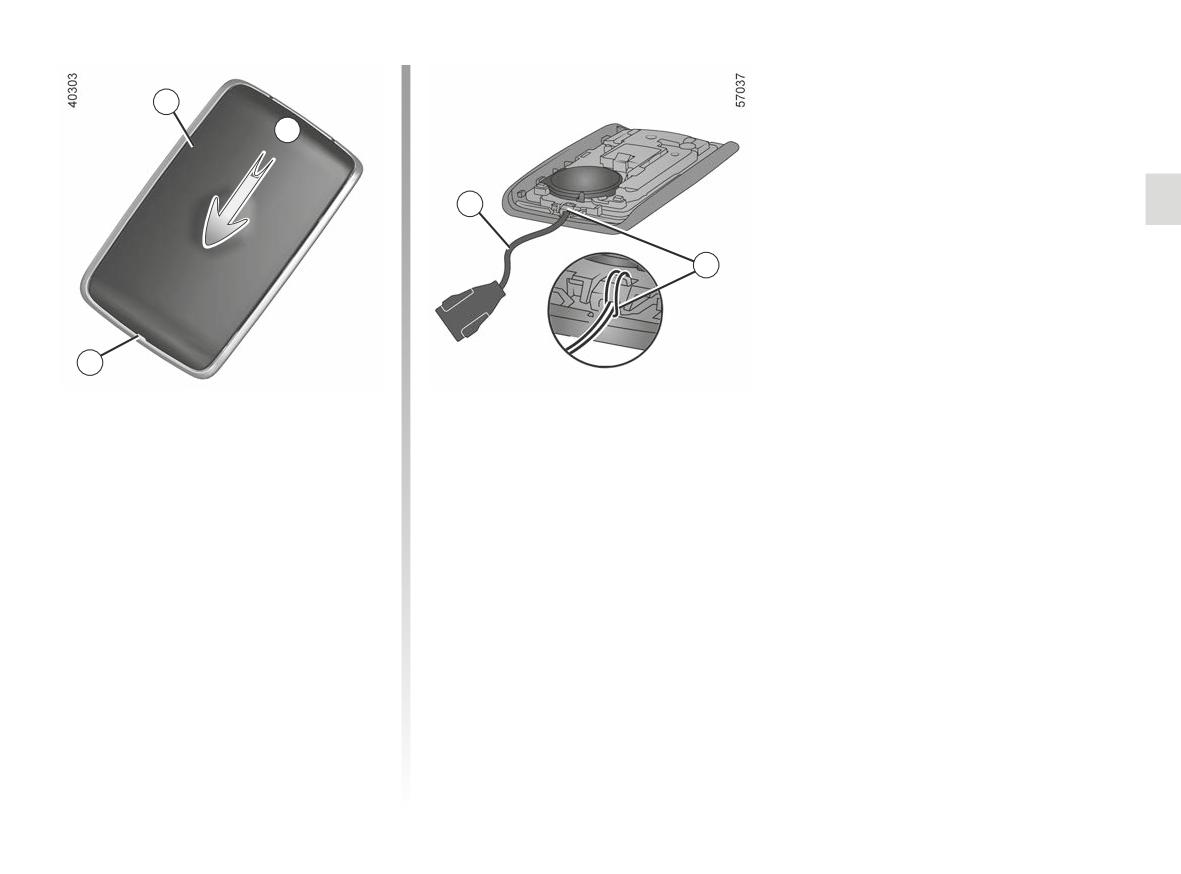

Fitting a strap 7

Insert the strap into the 8 component

and pass the end of the strap through

Slide the rear casing 5 downwards

the buckle.

while pressing on zone A.

Position the strap at the 6 opening and

close the cartridge.

Note: check that the diameter of the 7

strap cord fits the 6 opening.

1.15

CARD: use (2/4)

3

1

2

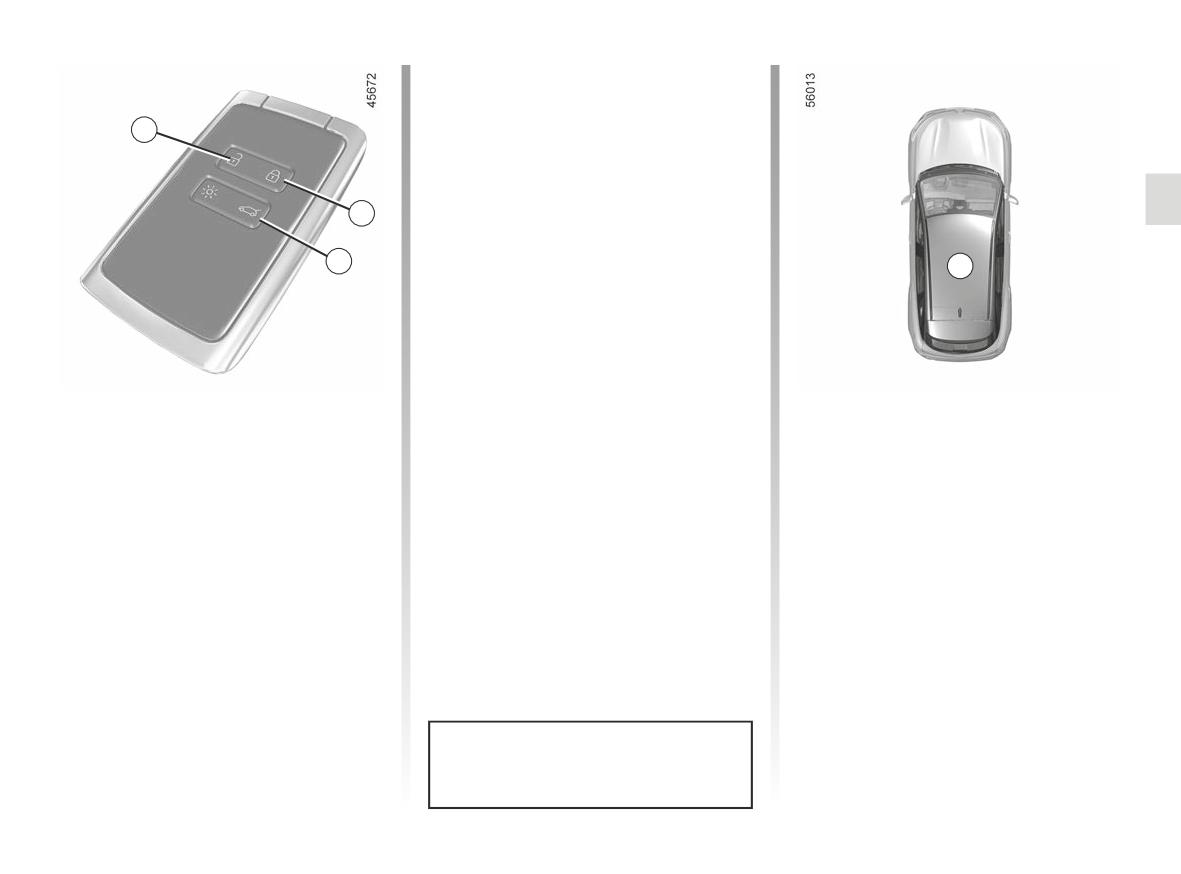

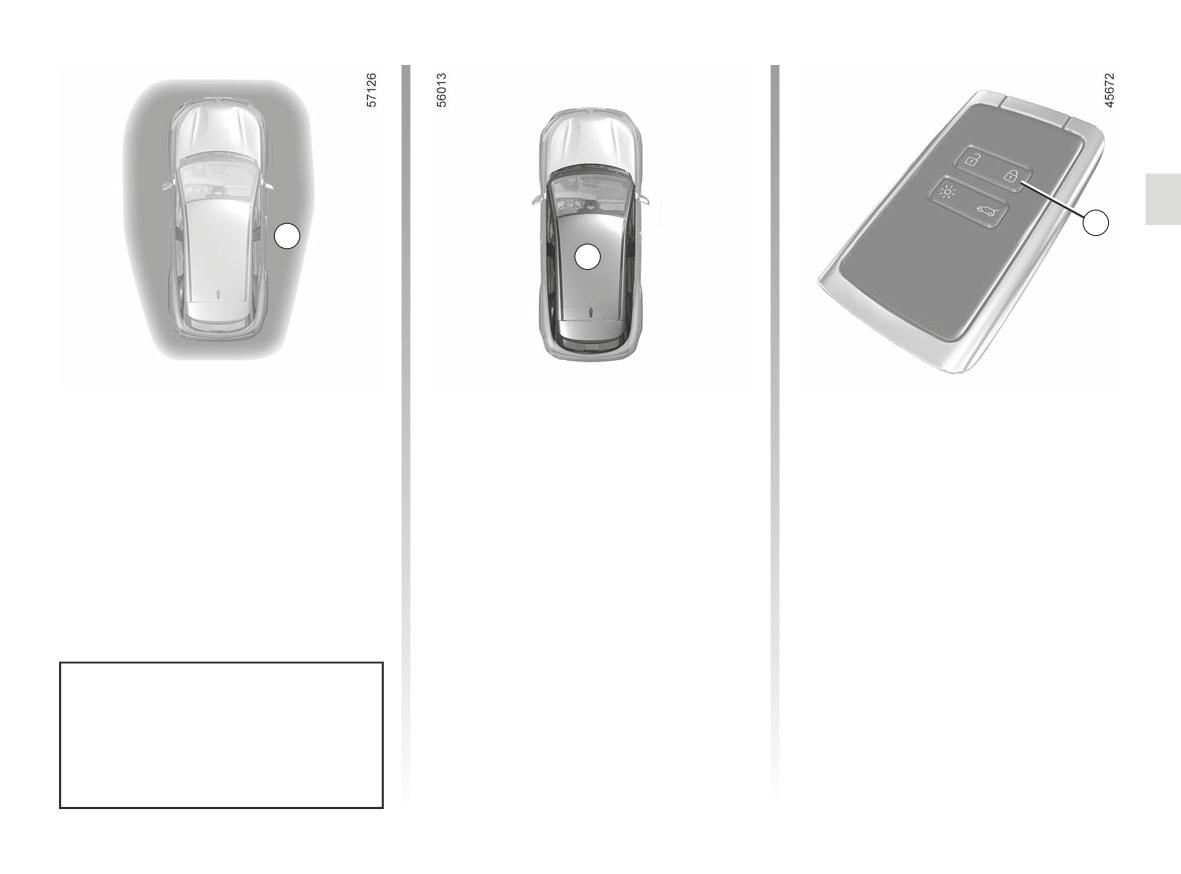

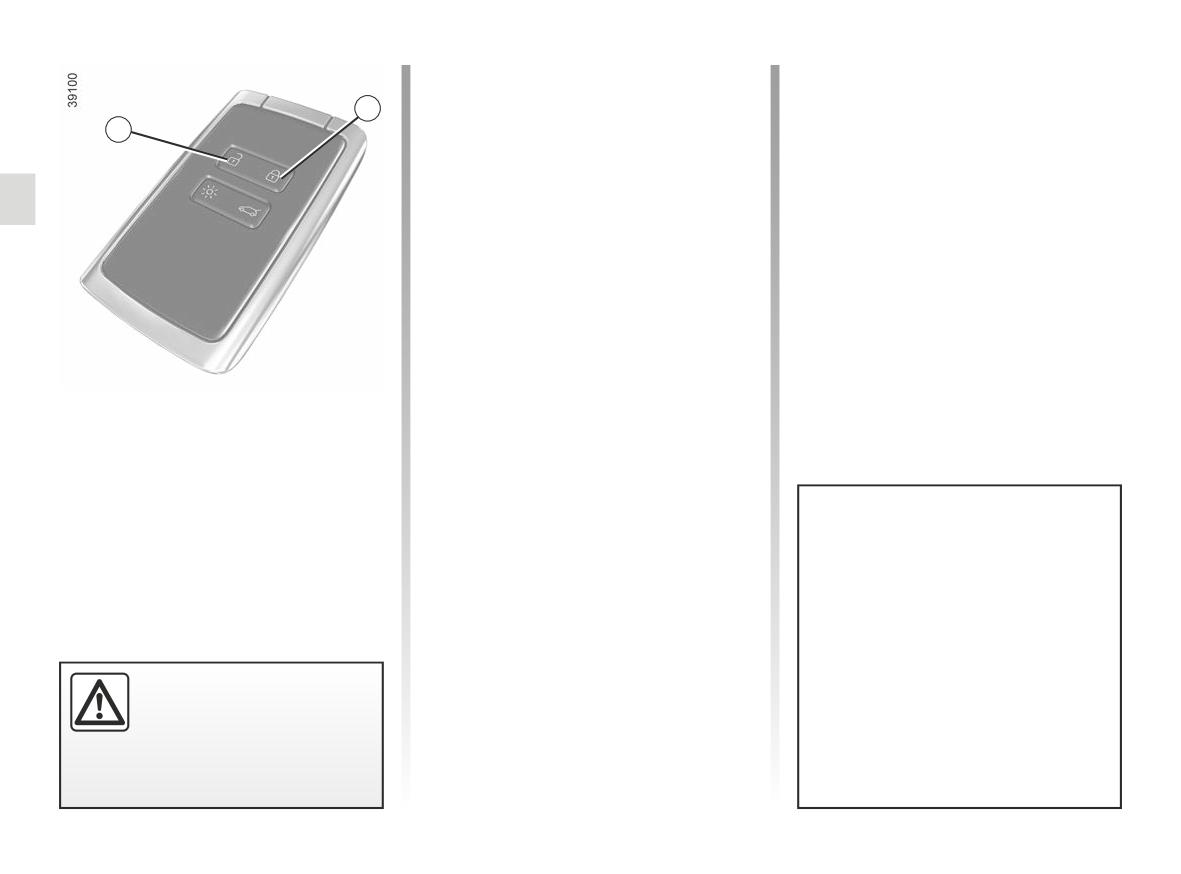

Hands-free unlocking, when

Hands-free locking when

If the card has been within the detection

area 1 for approximately 15 minutes,

approaching the vehicle;

moving away from the

remote locking is disabled. To lock the

With the card in the access zone 1 the

vehicle

vehicle, press button 3 on the card.

vehicle will unlock. Unlocking is indi-

With the card on you, doors and lug-

The vehicle cannot be remotely locked

cated by one flash of the hazard warn-

gage compartment door closed, move

if the card is within the area 2.

ing lights and the indicator lights.

away from the vehicle: it will lock auto-

matically once you have left the access

zone 1.

Note: the distance at which the vehicle

locks depends on the surroundings.

To indicate that the vehicle has been

locked, the hazard warning lights

flash twice and then light up for ap-

Depending on the vehicle, the door

proximately four seconds, and a beep

mirrors fold in/out automatically

sounds in confirmation.

when the vehicle is locked/unlocked

➥ 1.96.

1.17

CARD: use (3/4)

Special features of the

Special features relating to

unlocking system

locking in “hands-free” mode

Under certain circumstances, approach

After locking in “hands-free” mode, you

unlocking is deactivated:

have to wait approximately three sec-

onds before being able to unlock the

- after eight days of no use of the vehi-

vehicle again. During these

three sec-

cle;

onds, the door handles can be tried to

- if the card remains close to the 2

make sure that the vehicle is locked

4

area of the vehicle for approximately

properly.

five minutes after the vehicle has

Note: if a door or the boot is open or not

been locked;

properly shut, locking is not carried out.

- after several passes in the vicinity of

A beep sounds and the hazard warning

the 2 area of the vehicle and without

lights and side repeaters do not flash.

the door being unlocked.

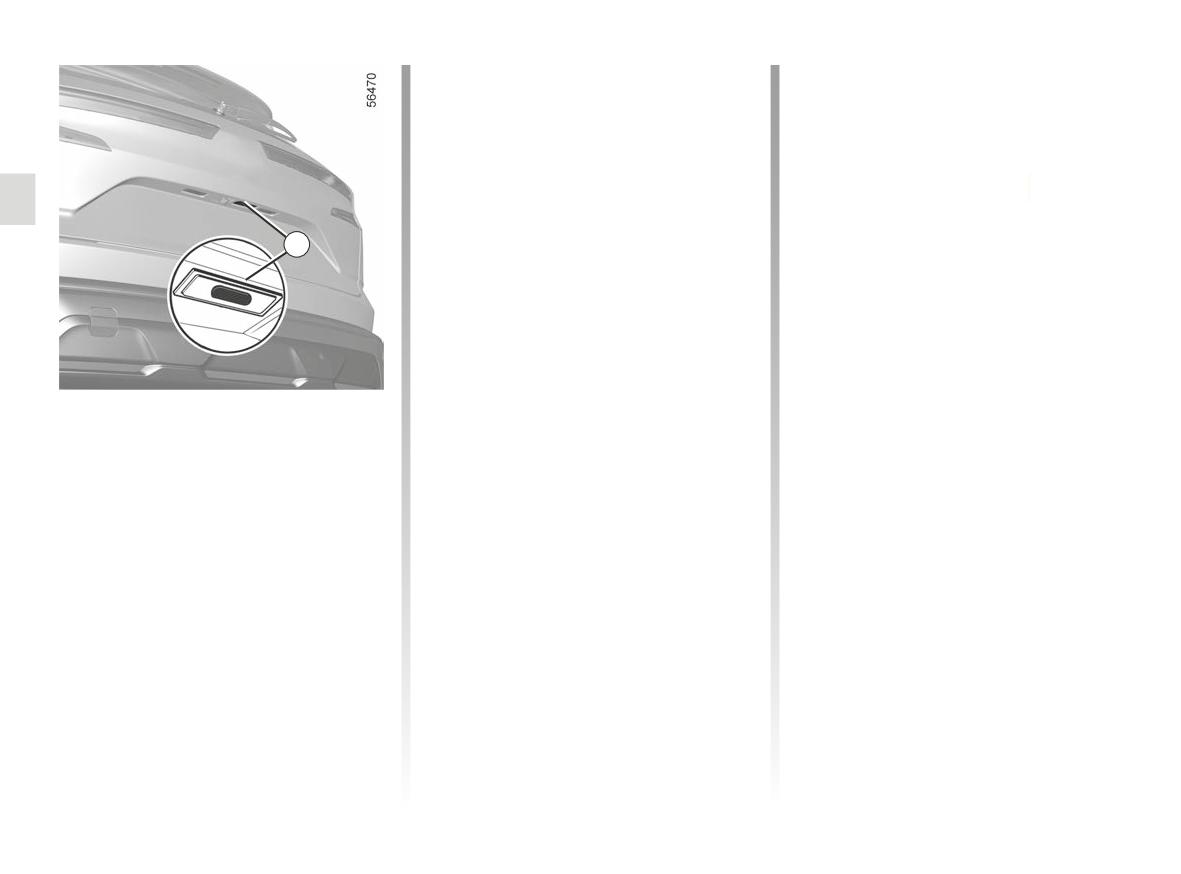

Press the luggage compartment open-

“Hands-free” unlocking

ing button 4 or use the card as a remote

by opening the luggage

control (see following pages) to unlock

compartment

the vehicle and reactivate hands-free

mode.

With the card in the area 1 and the ve-

hicle locked, pressing the 4 button un-

locks the entire vehicle.

The hazard warning lights flash twice

to indicate that the vehicle is unlocked

and, depending on the vehicle, the door

mirrors automatically fold out.

1.18

CARD: use (4/4)

Pressing the 5 button again closes the

motorised tailgate but does not lock the

vehicle. To lock the vehicle, press the 3

6

button.

Locking using the card

With the doors and boot closed, press

3

button 3: the vehicle locks.

The hazard warning lights flash twice

to indicate that the vehicle is locked

5

2

and, depending on the vehicle, the door

mirrors automatically fold in.

Pressing and holding the 3 button locks

the vehicle and enables the closure of

the front and rear windows (depending

on the vehicle).

Using the card as a remote

Note:

If, while the engine is running, a door

- the maximum distance at which the

is opened and closed, and the card is

control

vehicle locks depends on the sur-

no longer in the zone 2, the message

Unlocking with the card

roundings;

“Keycard Not Detected” indicates that

Press button 6. The hazard lights and

- if a door or the boot is open or not

the card is not inside the vehicle. This

side repeaters flash once to indicate

properly shut, locking is not carried

will, for example, prevent you from driv-

that the doors have unlocked and, on

out. A beep sounds and the hazard

ing away after dropping off a passenger

some vehicles, the door mirrors fold out

warning lights and side repeaters do

who has kept the card on them.

automatically.

not flash.

The warning disappears when the card

Pressing and holding the 6 button un-

is detected again.

locks the vehicle and enables opening

of the front and rear windows (depend-

Locking/unlocking only the

ing on the vehicle). In the case of a vehi-

boot

cle equipped with a motorised tailgate,

In the case of a vehicle equipped with a

pressing the 5 button once unlocks the

manual (non-motorised) tailgate, press

vehicle and opens the tailgate.

the 5 button to lock/unlock the luggage

The card buttons are deactivated

compartment only.

when the engine is running.

1.19

“HANDS-FREE” CARD: deadlocking

To activate deadlocking

2

Press button 2 twice in quick succes-

1

sion.

Locking is confirmed by two slow

flashes and three quick flashes of

the hazard warning lights and indicator

lights.

Depending on the vehicle, the door mir-

rors fold in automatically when the vehi-

cle is locked ➥ 1.96.

To deactivate deadlocking

Press button 1 once.

If the vehicle is equipped with a dead-

The hazard warning lights flash once

locking function, this allows you to lock

to indicate that the doors have been un-

the opening elements and to prevent

locked.

the doors from being unlocked using

the interior handles (for example, by

breaking the window and then trying to

open the door from the inside).

Depending on the vehicle, you may

have a digital key that offers all the

functions of the card. However, if a

card has been left inside the vehi-

cle and the doors have been locked

with a digital key, all of the card’s

Never use deadlocking if

functions will be inhibited.

someone is still inside the

For further information, please refer

vehicle.

to the “Digital key” section ➥ 1.21.

1.20

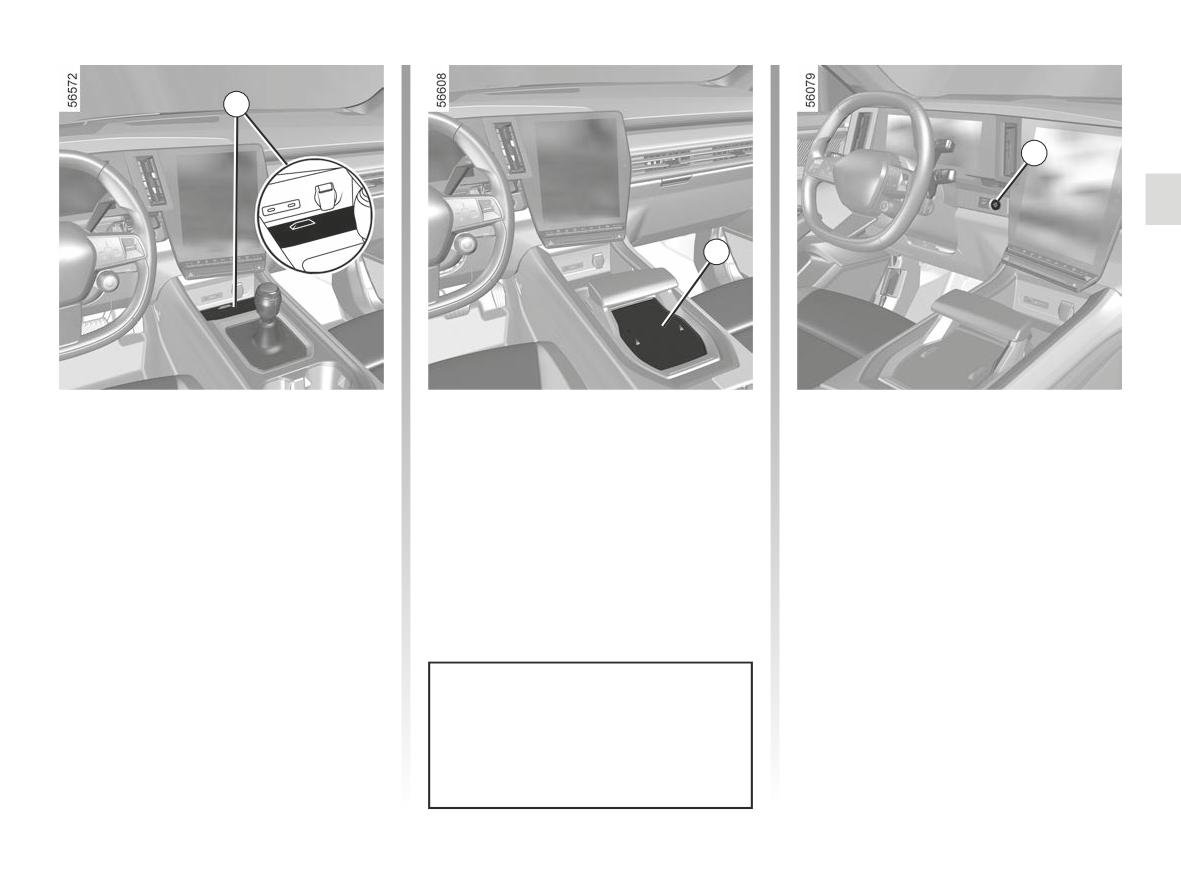

DIGITAL KEY (3/4)

1

3

2

Starting, stopping the engine

To start/stop the engine, the system

If the smartphone is no longer in the

checks that the smartphone is present

passenger compartment when you try

Upon first use and each time a new

in the placement area 1 or 2 before al-

to switch the engine off, a message

smartphone is used, it is necessary to

lowing the engine to be started.

is displayed on the instrument panel:

calibrate your digital key with your ve-

press and hold the engine start/stop

hicle.

For more information, please refer to

button for more than two seconds 3.

the information on “Starting, stopping

To do this, activate Bluetooth® on your

the engine” ➥ 2.3.

If the smartphone is no longer in the

smartphone then follow the procedure

passenger compartment, make sure

from the manufacturer’s application.

The smartphone must remain in the ve-

you can retrieve it before pressing and

hicle throughout the journey.

When calibrating, the smartphone must

holding. Without a smartphone or card,

be placed in the placement area 1 or 2.

you will not be able to start the vehicle

again.

It is necessary to place the smart-

phone in the placement area in

order to start and stop the engine

and when calibrating.

1.23

OPENING AND CLOSING THE DOORS (1/2)

3

1

2

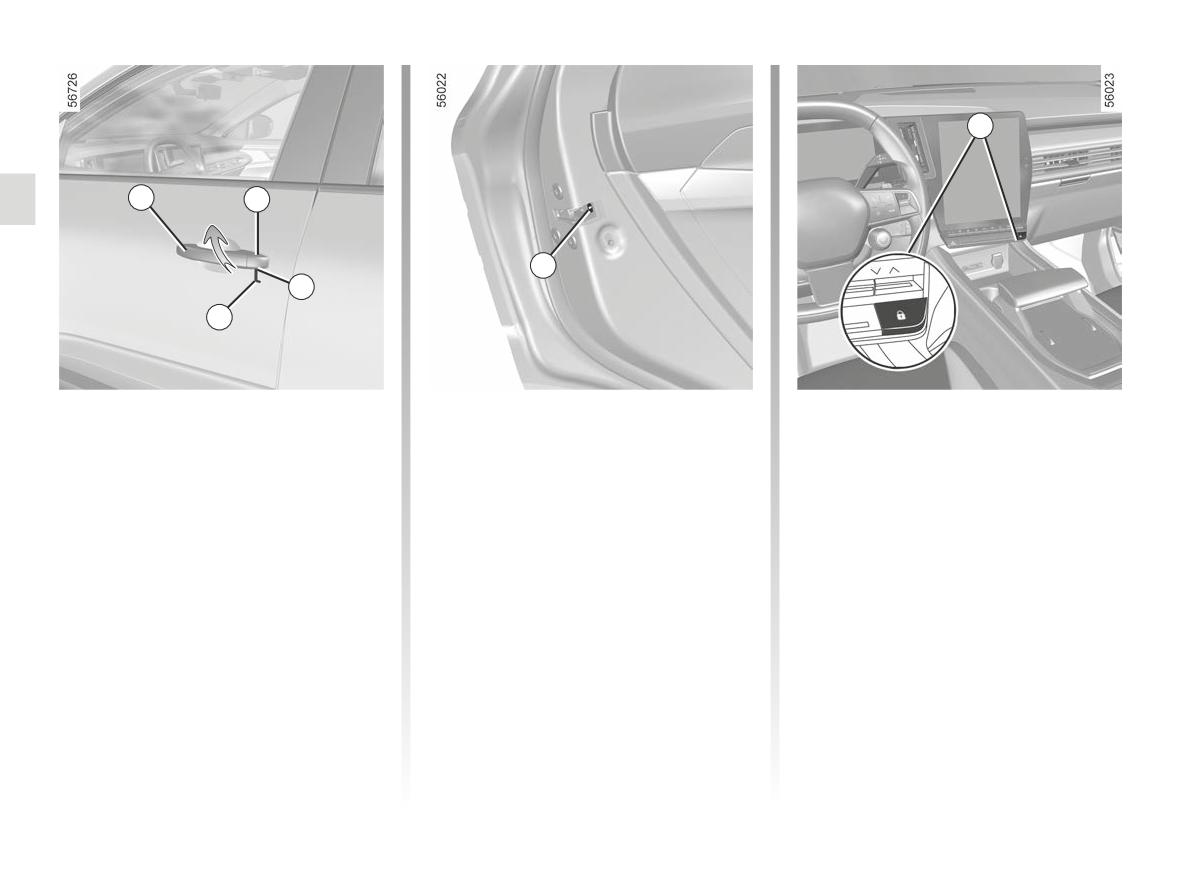

Opening the doors from the

Rear doors

Opening from the inside

outside

With the doors unlocked or the card on

Pull handle 3.

you, hold the 2 handle and pull towards

Front doors

Depending on the vehicle, it may be

you.

necessary to pull handle 3 twice: the

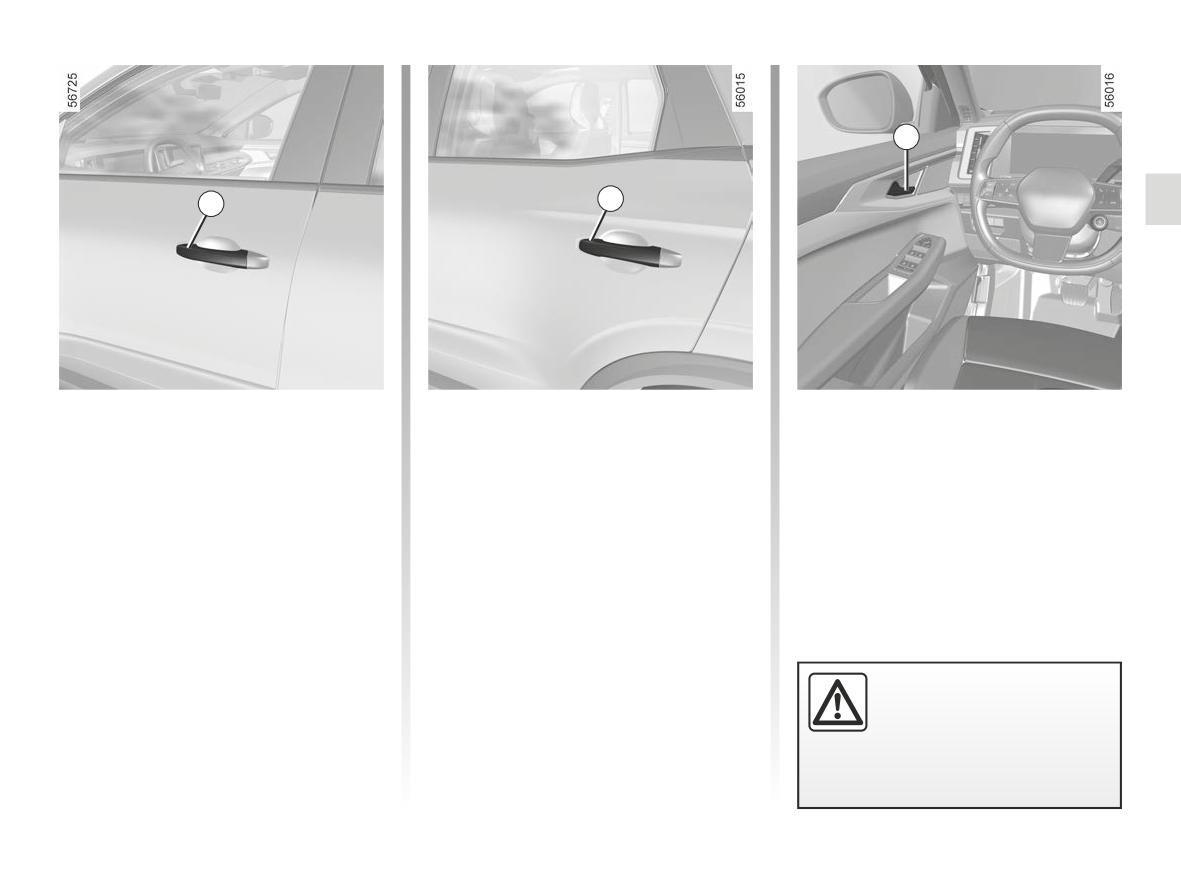

With the doors unlocked or the card on

first time to unlock the door, the second

you, hold the 1 handle and pull towards

time to open it.

you.

As a safety precaution,

the doors should only be

opened or closed when the

vehicle is stationary.

1.25

OPENING AND CLOSING THE DOORS (2/2)

Lights-on reminder buzzer

If you have switched off the ignition

and left the lights switched on, a re-

minder buzzer will sound when a door

is opened.

Driver’s responsibility

Door/tailgate open buzzer

when parking or stopping

When the vehicle is stationary, the

the vehicle



warning light appears on the

Never leave an animal,

instrument panel accompanied by a

child or adult who is not self-suffi-

4

warning light indicating which of the

cient alone on your vehicle, even for

opening elements (door(s), luggage

a short time.

compartment) are open or incorrectly

They may pose a risk to themselves

closed.

or to others by starting the engine,

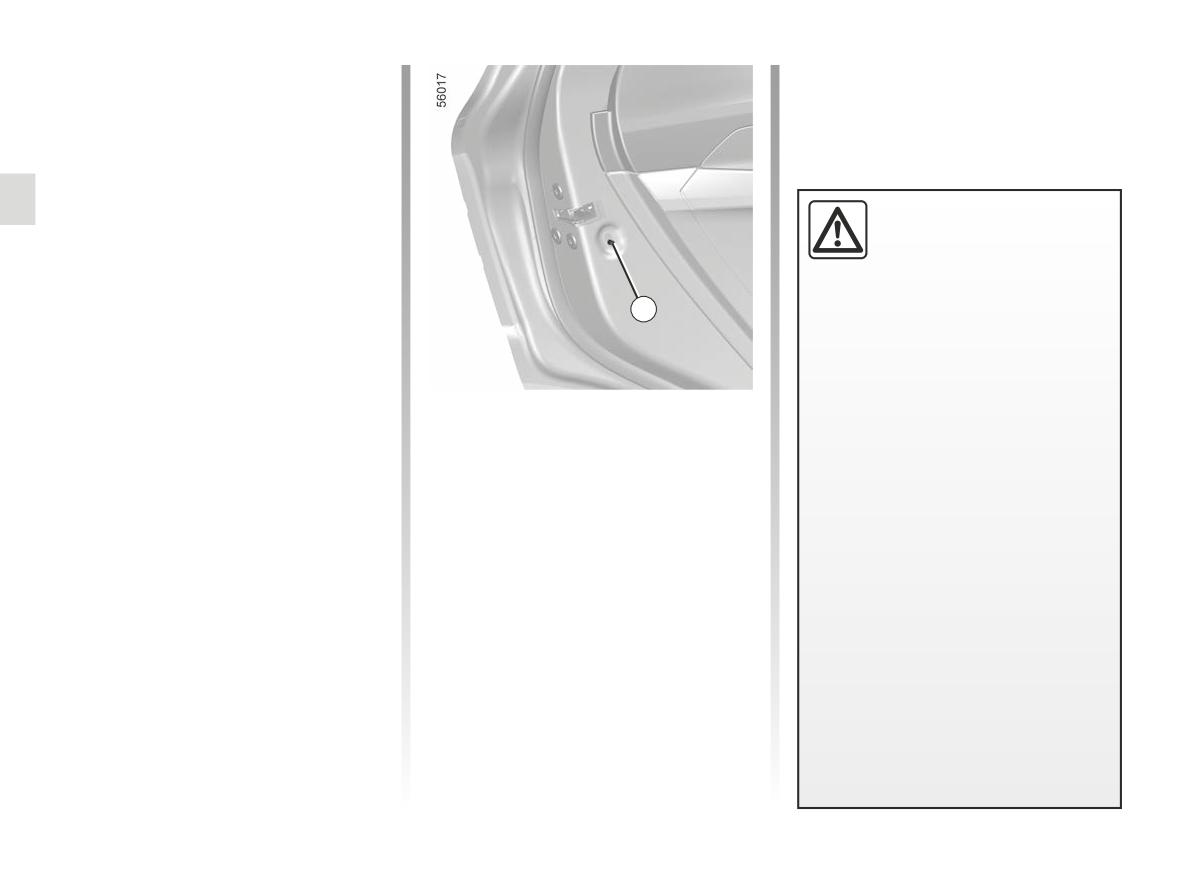

Child safety

activating equipment such as the

Once the vehicle reaches a speed

Move lever 4 and check from the inside

electric windows or locking the

of approximately 6 mph (10 km/h), a

that the doors are securely locked, to

doors.

warning light indicates if the door(s)

or luggage compartment are open

prevent the rear doors being opened

Also, in hot and/or sunny weather,

or not properly closed, along with the

from the inside.

please remember that the tempera-

message “WARNING: Boot Open” or

ture inside the passenger compart-

“WARNING: Door Open” and a beep

ment increases very quickly.

will sound for around 40 seconds or

RISK OF DEATH OR SERIOUS

until the door/luggage compartment is

INJURY.

closed.

1.26

LOCKING, UNLOCKING THE DOORS (1/3)

If the remote control or,

depending on the vehicle, the

2

card does not work

A

1

In some cases, the radio frequency

remote control or the card may not

work:

-

card or radio frequency remote con-

trol battery worn or run flat, vehicle

battery flat etc;

-

use of appliances operating on the

same frequency as the card (mobile

phone, etc.);

-

the vehicle is located in a high elec-

tromagnetic radiation zone;

It is then possible:

The card’s built-in key

-

vehicle locked using a digital key

➥ 1.21.

- to use the radio frequency remote

The 2 integrated key can be used to

control or the emergency key inte-

lock or unlock the driver’s door when

grated into the card (depending on

the card is not working.

the vehicle) to unlock the driver’s

door;

Access with key 2

- to use the interior door locking/un-

Slide the rear casing 1 downwards

locking control (refer to the following

while pressing on zone A.

pages);

- depending on the vehicle, to us the

digital key or a card other than that

left in the vehicle. For further infor-

mation, please refer to the “Digital

key” section ➥ 1.21.

1.27

LOCKING, UNLOCKING THE DOORS (2/3)

6

3

B

5

4

2

Using the key integrated in

Locking the doors manually

Interior locking/unlocking

the card

Turn screw 5 with the door open (using

door control

- Pull handle 3;

the end of the key) and close the door.

Switch 6 controls the doors, the boot

This means that the doors are then

and the fuel filler flap simultaneously.

- press the cover B on the driver’s

door down;

locked from the outside.

If a door or the tailgate is open or not

closed properly, the doors and tailgate

- insert the end of the key 2 in the

The doors may then only be opened

lock/unlock quickly.

notch 4 at the bottom of the cover B;

from the inside or by using the key in

the driver’s door.

If transporting an object with the tail-

- rotate it upwards to remove the

gate open, you can still lock the doors:

cover B;

with the engine stopped, press and

- insert the key 2 into the lock of the

hold switch 6 to lock the other doors.

driver’s door, lock or unlock.

Once you are inside the vehicle, put the

key back in its casing in the card.

1.28

AUTOMATIC LOCKING WHEN DRIVING

NB: if a door is opened or closed, it

Operating faults

will automatically lock again when the

If you experience an operating fault

vehicle reaches a speed of 6 mph (10

(no central locking, the indicator light 1

km/h).

does not light up when trying to lock the

doors and luggage compartment etc.),

1

Activating/deactivating the

make sure that central locking has not

function

been deactivated by mistake and check

that the doors and luggage compart-

To activate: with the vehicle station-

ment are properly closed. If they are

ary and the engine running, press the 1

properly closed, contact an approved

switch for at least five seconds until a

dealer.

beep sounds.

To deactivate: with the vehicle station-

ary and the engine running, press the 1

switch for at least five seconds until you

hear two beeps.

Operating principle

The function can also be activated and

After the vehicle is started, the system

deactivated via the multimedia screen

automatically locks the doors when you

(depending on the vehicle). ➥ 1.91.

are driving at approximately 6 mph (10

km/h) and over.

The door can be unlocked:

- by pressing the central door unlock-

ing switch 1;

- at a standstill, by opening a front

Driver’s responsibility

door from inside the vehicle.

If you decide to keep the

doors locked when you are

driving, remember that it

may be more difficult for those as-

sisting you to gain access to the pas-

senger compartment in the event of

an emergency.

1.30

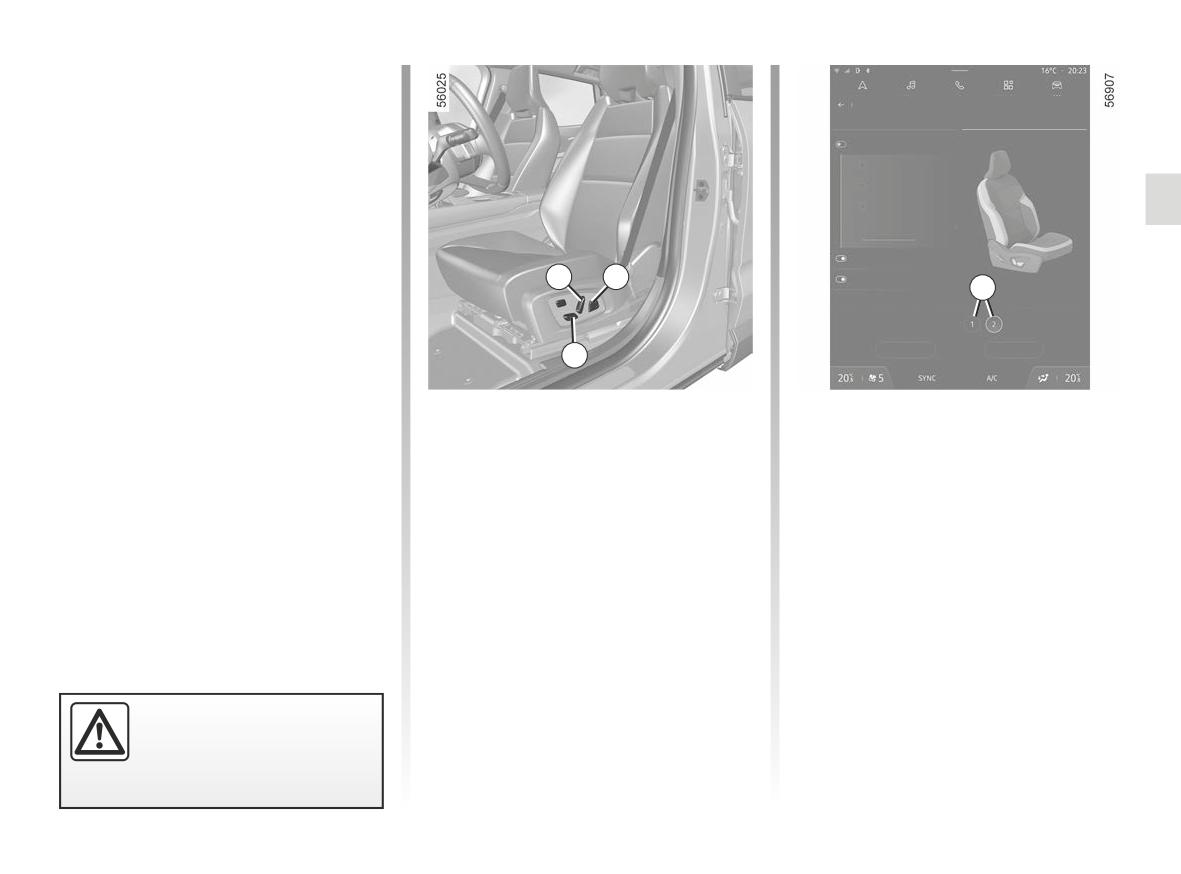

FRONT SEATS WITH MANUAL CONTROL

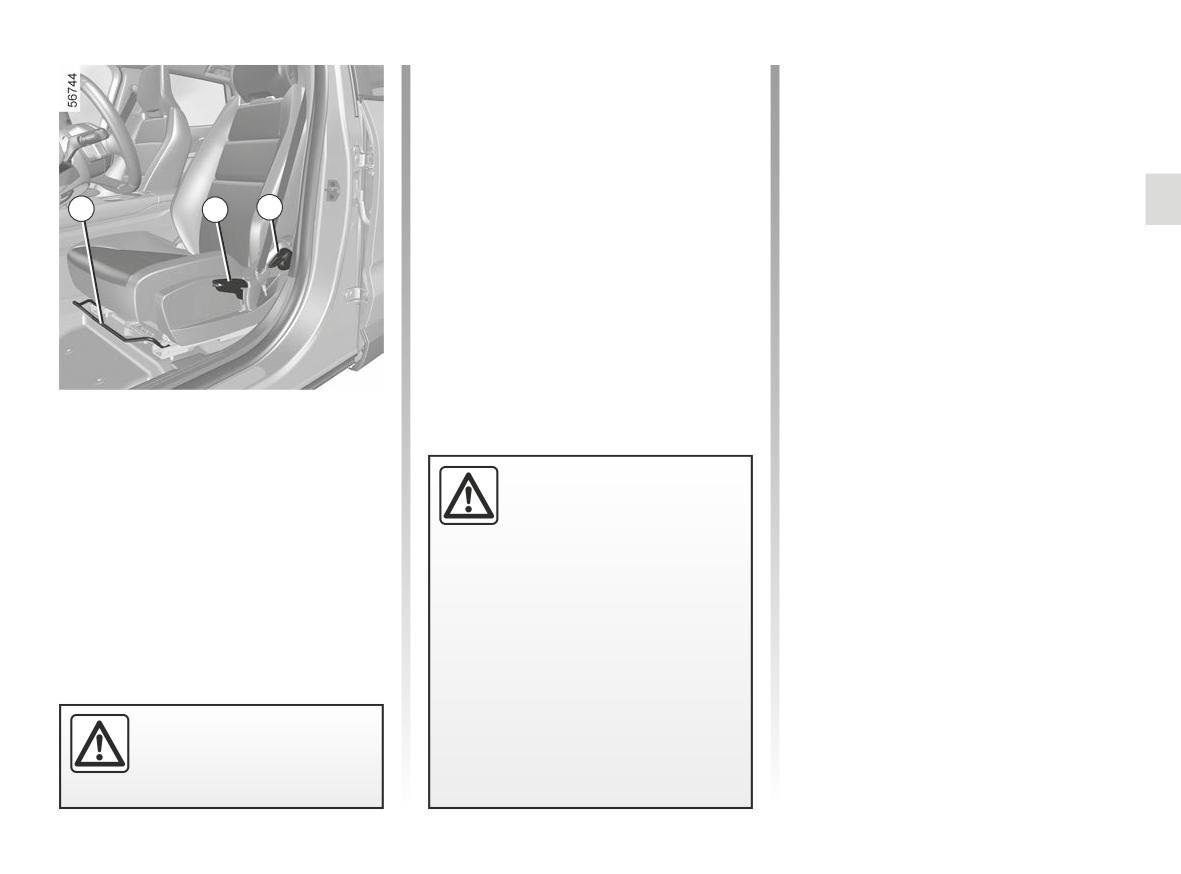

To raise or lower the seat

Heated seats

base

(depending on the vehicle)

(depending on the vehicle)

With the ignition on, you can activate

the heated seats via the multimedia

Move lever 2 as many times as neces-

screen:

sary upwards or downwards.

- pressing the

ð

pictogram on the

1

2

3

To tilt the seatback

required seat for the first time ac-

tivates the heating system at maxi-

Lift handle 3 and tilt the seatback to the

mum power. Three integrated switch

desired position. Release the handle at

warning lights come on;

the desired position and make sure that

- a second press decreases the heat-

it is locked.

ing to medium power. Two integrated

warning lights come on;

- a third press decreases the heating

to minimum power. One integrated

warning light comes on;

To move the seat forwards or

- a fourth press turns the heating off.

back

In order to avoid unnecessary energy

Lift handle 1 to release. Release the

consumption, the heated passenger

For safety reasons, carry

handle at the desired position and

seat can be deactivated automatically

out any adjustments while

make sure that it is locked.

in the absence of an occupant.

the vehicle is stationary.

We would advise you not

Operating faults

to recline the seatbacks too far to

When an operating fault is detected,

ensure that the effectiveness of the

the warning lights on the pictogram for

seat belts is not reduced.

the seat concerned will flash.

Nothing should be placed on the

Consult an approved dealer.

floor area in front of the driver as

such objects may slide under the

pedal during braking manoeuvres,

After making adjustments,

thus obstructing its use.

make sure that the seat-

backs are correctly locked

in place.

1.31

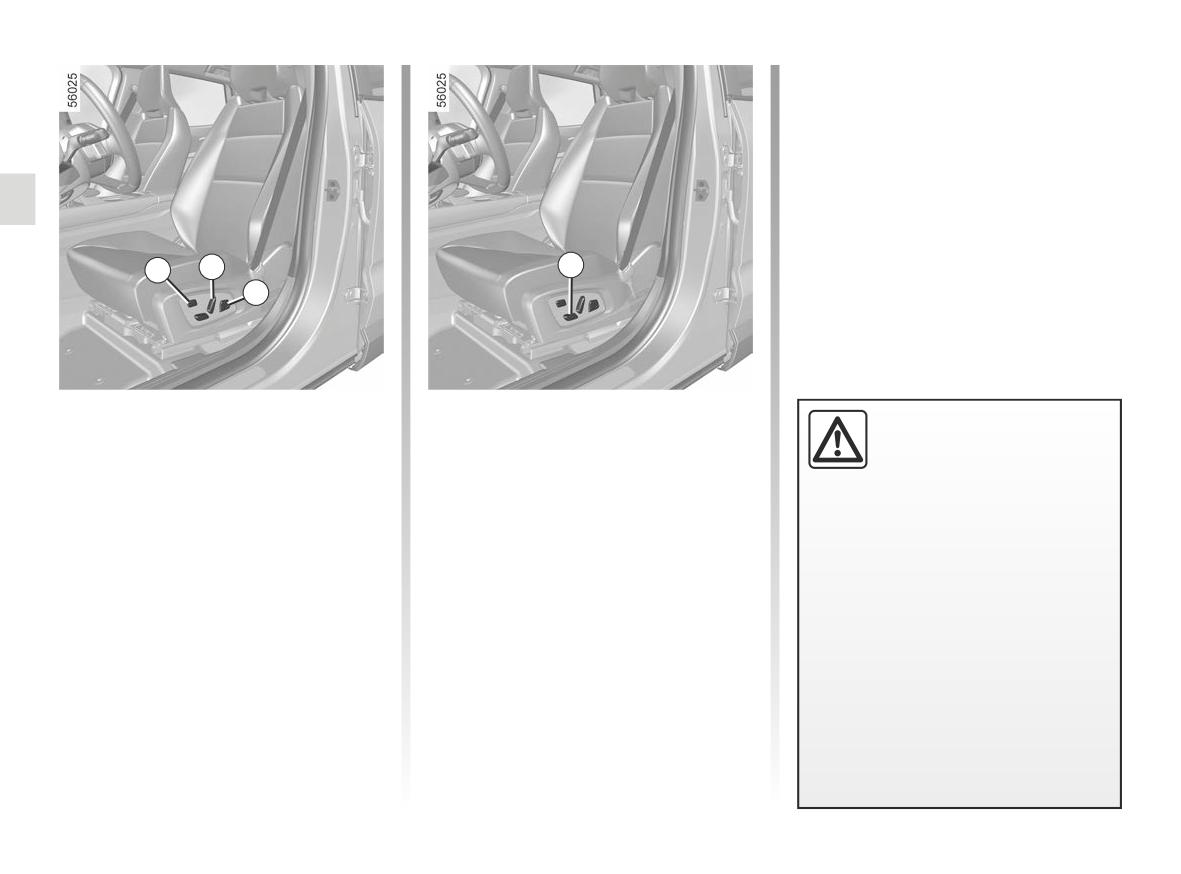

FRONT SEATS WITH ELECTRIC CONTROLS (1/2)

2

4

1

3

On vehicles that are equipped, the

Adjusting the seat position

For safety reasons, carry

switch 1 can be used to access the

To move the seat forwards or back

out any adjustments while

“Seats” menu on the multimedia screen

Move switch 4 forwards or backwards.

the vehicle is stationary.

(see following pages).

To raise or lower the seat base

We would advise you not

Move the back of switch 4 up or down.

to recline the seatbacks too far to

Adjusting the seatback

ensure that the effectiveness of the

To tilt the seatback, move the top of

seat belts is not reduced.

switch 2 forwards or backwards.

Nothing should be placed on the

floor (area in front of driver) as such

Adjusting the lumbar support

objects may slide under the pedal

during braking manoeuvres, thus

on the driver’s seat

obstructing its use.

Move the switch 3 forwards, back-

wards, up or down.

1.32

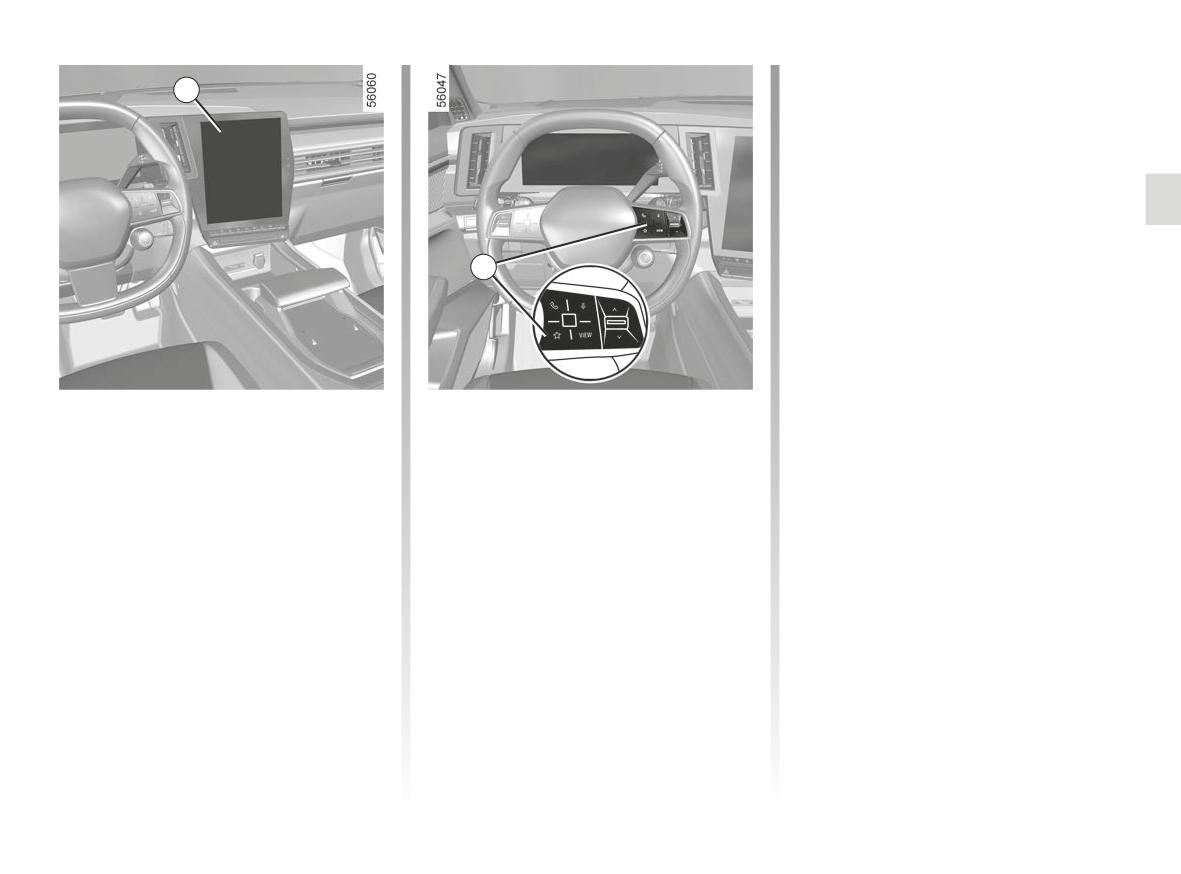

FRONT SEATS WITH ELECTRIC CONTROLS (2/2)

“Favourites” function

5

Depending on the vehicle, by pressing

the steering wheel control 6, you can

activate the heated seats according to

the stored use settings that you have

previously defined.

For more information on programming

this function, please refer to the multi-

media instructions.

6

Operating faults

If an operating fault is detected, the

warning lights of the pictogram for the

seat concerned will flash on the multi-

- a third press decreases the heating

media screen 5.

Heated seats

to minimum power. One integrated

Consult an approved dealer.

With the ignition on, you can activate

warning light comes on;

the heated seats via the multimedia

screen 5:

- a fourth press turns the heating off.

In order to avoid unnecessary energy

- pressing the

ð pictogram on the

consumption, the heated passenger

required seat for the first time acti-

seat can be deactivated automatically

vates the heating system at maxi-

in the absence of an occupant.

mum power. Three warning lights

appear as part of the pictogram;

- a second press decreases the heat-

ing to medium power. Two integrated

warning lights come on;

1.33

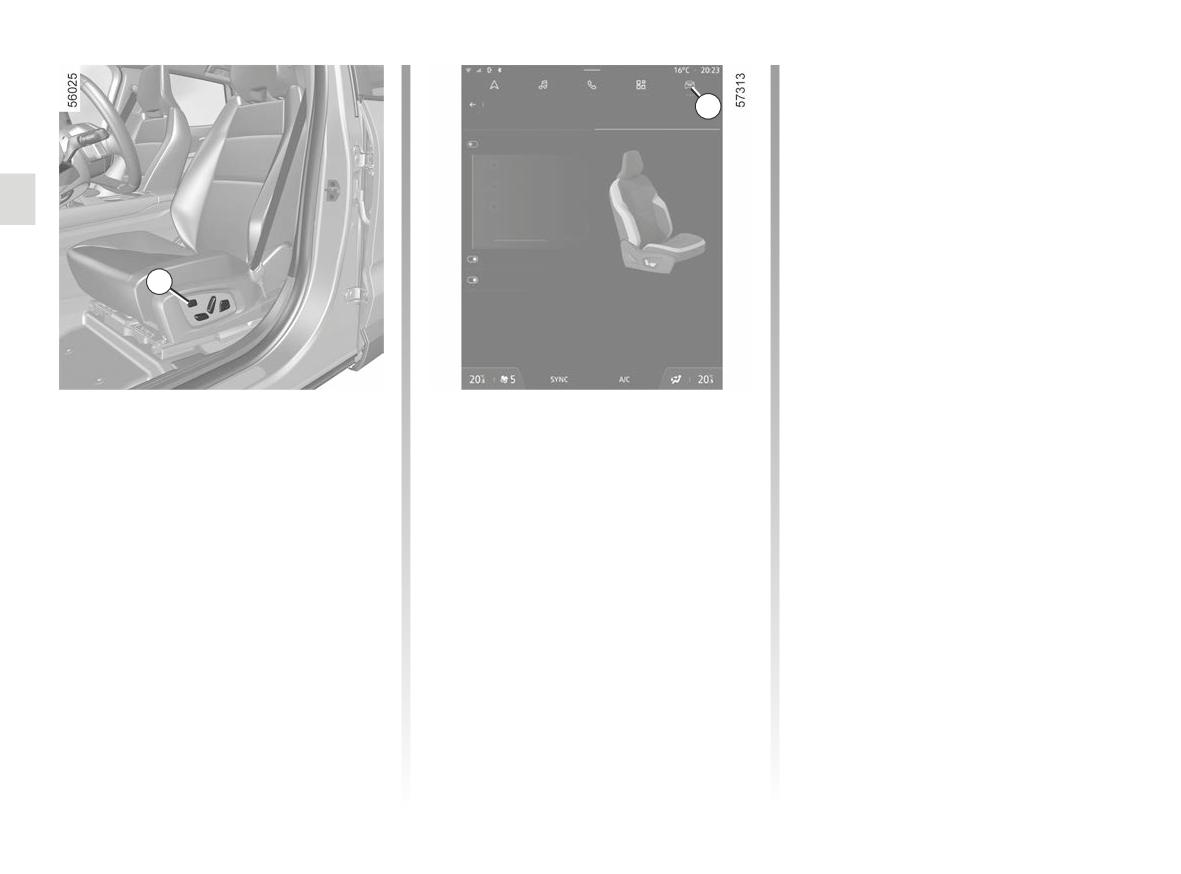

FRONT SEATS: functions (1/2)

Settings

Seats

2

Refer to the multimedia instructions for

Driver

information on accessing the settings.

Massage

You can activate or deactivate the fol-

Lumbar

lowing elements:

Relaxing

- easy driver/passenger access;

Dynamic

Intensity

- visual feedback of current move-

ment.

Seat Easy access

Visual feedback

Note: if the user profile is “Guest”, the

1

automatic adjustment functions will not

be available.

Easy driver/passenger access

When this function is activated, the seat

A number of seat functions are availa-

With the ignition on, from the multime-

automatically moves back when the

ble from the multifunction screen, de-

dia screen select “Vehicle” 7, “Seats”

driver and/or passenger leaves the ve-

pending on the vehicle.

world, then “Massage”.

hicle, and returns to its position the next

On equipped vehicles, the switch 1 pro-

Browse the “Driver” menu to:

time the vehicle starts.

vides direct access to the “Seats” menu

- select the massage type (“Lumbar”,

Note:

on the multimedia screen.

“Relaxing”, “Dynamic”);

- deactivate this function when fitting

- adjust the intensity;

a child seat in the front passenger

Massage seats

seat;

- activate/deactivate the massage

(depending on the vehicle)

seat.

- the function is deactivated if one of

You can activate the “Massage” func-

the adjustment buttons is pressed

Press and hold the 1 switch of the seat

tion on the driver’s seat or the front pas-

while the seat is moving.

on which you would like to activate the

senger seat.

“Massage” function, according to the

defined parameters.

1.34

FRONT SEATS: functions (2/2)

Position

It is possible to save the driving posi-

Seats

Driver

Passenger

tion for the driver’s seat and/or passen-

Massage

ger seat.

Lumbar

The driving position includes the set-

Relax

tings for the seat base, seatback, door

Dynamic

mirrors and head-up display (depend-

Intensity

ing on vehicle equipment).

Seat Easy access

The driving position can be stored and

3

4

Visual feedback

recalled by pressing the buttons:

6

- by changing the user profile;

Seat position

- by pressing the “Recall” button for

Save

Recall

5

the driver’s seat;

- by pressing the 6 buttons for the pas-

Storing your driving position

Recalling the driving position

senger seat.

- Adjust the driver seat using

For more information on storing the

switches 3, 4 and 5 (refer to previous

driving position, please refer to the mul-

page);

timedia instructions.

- adjust the door mirrors.

Note: recall of the stored driving po-

Refer to the multimedia instructions for

sition is interrupted if one of the seat

information on accessing the stored

adjustment buttons is pressed during

driving position.

recall.

The positions of the exterior rear view

mirrors when driving forwards, in re-

verse and of the driver seat are saved.

For safety reasons, carry

out any adjustments when

the vehicle is stationary.

1.35

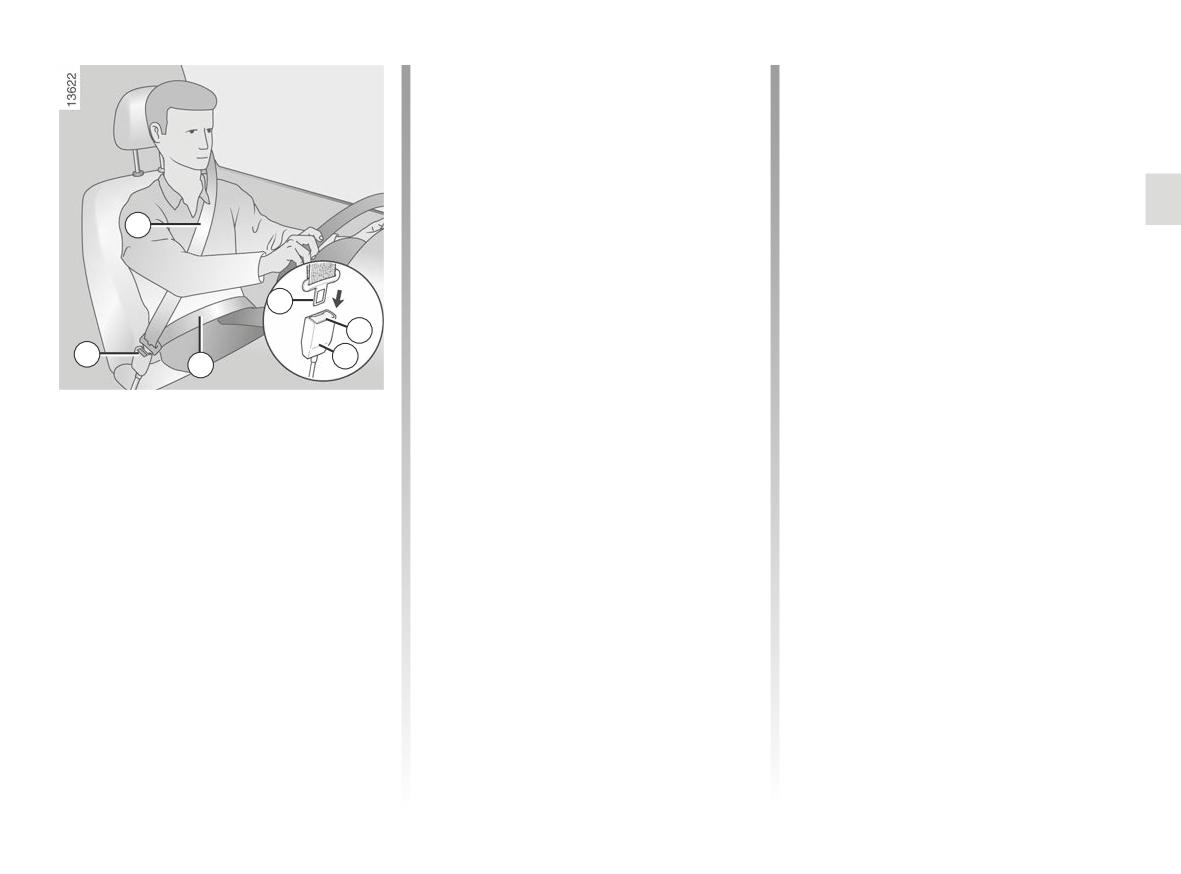

SEAT BELTS (2/5)

- move the chest strap 1 as close as

Locking

possible to the base of the neck with-

Unwind the belt slowly and smoothly

out it actually resting against it (if

and ensure that buckle 3 locks into

necessary, adjust the height of the

catch 5 (check that it is locked by pull-

seat belt if available) and make sure

ing on buckle 3).

that the chest strap 1 is in contact

with the shoulder;

If the belt jams, allow it to return slightly

before attempting to unwind it again.

1

- position the lap belt 2 so that it lies

flat on the thighs and against the

If your seat belt is completely jammed,

pelvis.

pull slowly, but firmly, so that just over

3 cm unwinds. Allow it to return slightly

The belt should be worn so that it is

3

before attempting to unwind it again.

as close as possible to your body, i.e.:

4

avoid wearing heavy clothing or keep-

If there is still a problem, contact an ap-

5

5

ing bulky objects under the belts, etc.

proved dealer.

2

Adjusting the seat belts

Unlocking

For correct adjustment and positioning

Press button 4 and the seat belt will be

of the seat belts at all seats:

rewound by the inertia reel. Guide the

- adjust the seats (seat position and

belt.

seatback angle, if available);

- sit with your back firmly against the

seatback;

1.37

SEAT BELTS (3/5)

It is accompanied by the 6 symbol which

ß

Driver’s seat belt reminder

appears for approximately 60 seconds

and, depending on the vehicle, front

each time one of the rear seat belts is

passenger seat belt reminder

fastened or unfastened.

This appears on the central display

When the vehicle speed reaches or ex-

when the ignition is switched on and

ceeds 12 mph (20 km/h), if one of the

if the driver’s and/or front passenger’s

rear seat belts is or becomes unfas-

seat belt(s) (if the passenger seat is

tened during the journey:

6

occupied) is not fastened. Depending

on the vehicle, if the seat is occupied

- the

ß

warning light flashes on

and one of these seat belts is not fas-

the central display;

tened or becomes unfastened while

and

the vehicle is moving at a speed over

approximately 12 mph (20 km/h), the

- a beep is emitted for 30 to 120 sec-

onds (depending on the version);

ß warning light flashes and a beep

and

sounds for approximately 120 seconds.

Understanding the graphic 6:

- indicator green: seatbelt fastened;

- the 6 graphic is displayed for at least

Note: an object placed on the passen-

- indicator in red: the seat is occupied

60 seconds and the symbol for the

ger seat may activate the warning light

and the seat belt is not fastened;

seat concerned changes to red.

in some cases, depending on the ve-

- indicator grey: seat not occupied.

hicle.

Always make sure that the rear pas-

Depending on the vehicle, the

ß

sengers are properly fastened and that

Rear seat belt reminder (depending

warning light on the central display also

the number of fastened seat belts in-

on the vehicle)

appears when the ignition is switched

dicated corresponds to the number of

The graphic 6 appears on the in-

rear seats occupied.

on, if a rear seat is occupied and the

strument panel when the ignition is

Note: an object placed on the passen-

seat belt is not fastened. When the ve-

switched on. This informs the driver of

ger seat may activate the warning light

hicle speed is less than approximately

the fastening status of each of the rear

in some cases, depending on the ve-

seat belts every time:

12 mph (20 km/h), the

ß warning

hicle.

- the ignition is switched on;

light on the central display appears

- a door is opened;

when a rear seat belt is unfastened.

- fastening or unfastening of a rear

seat belt.

1.38

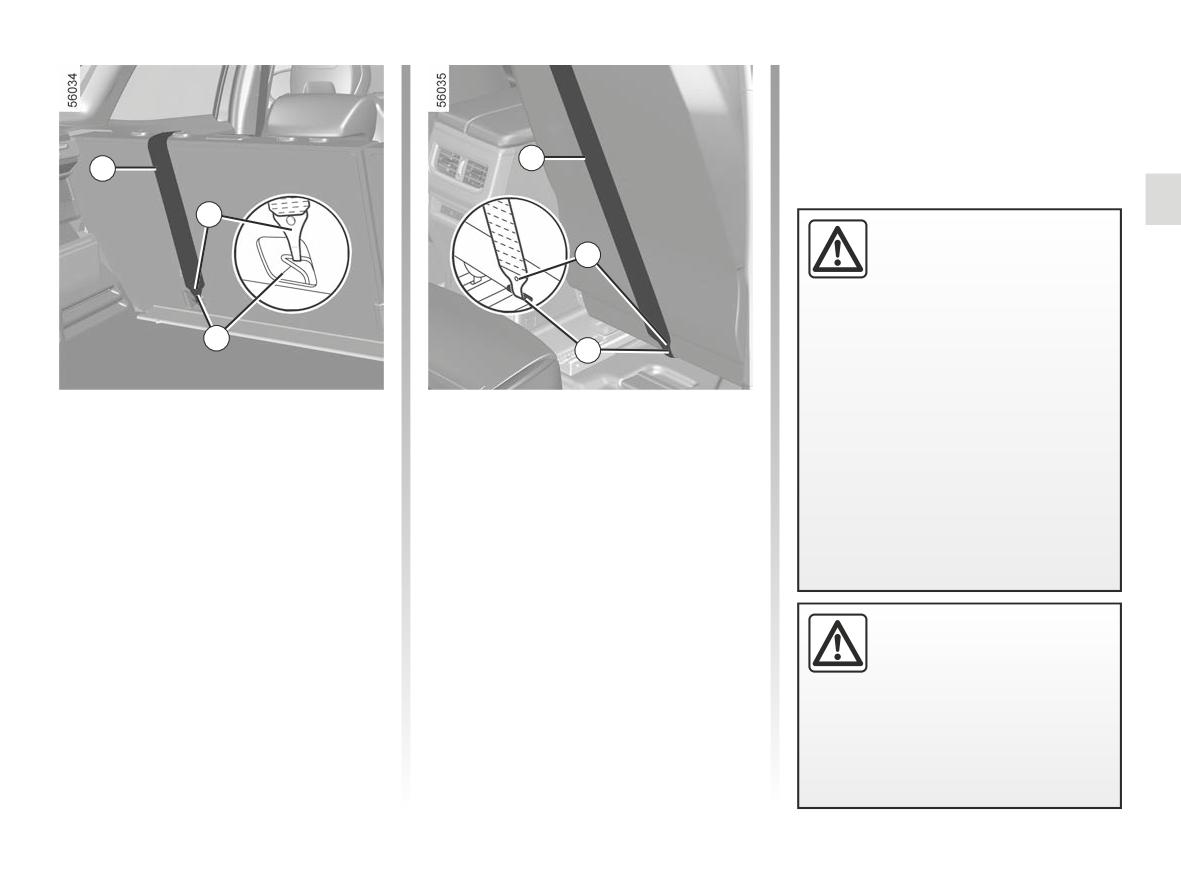

SEAT BELTS (4/5)

7

9

9

8

10

11

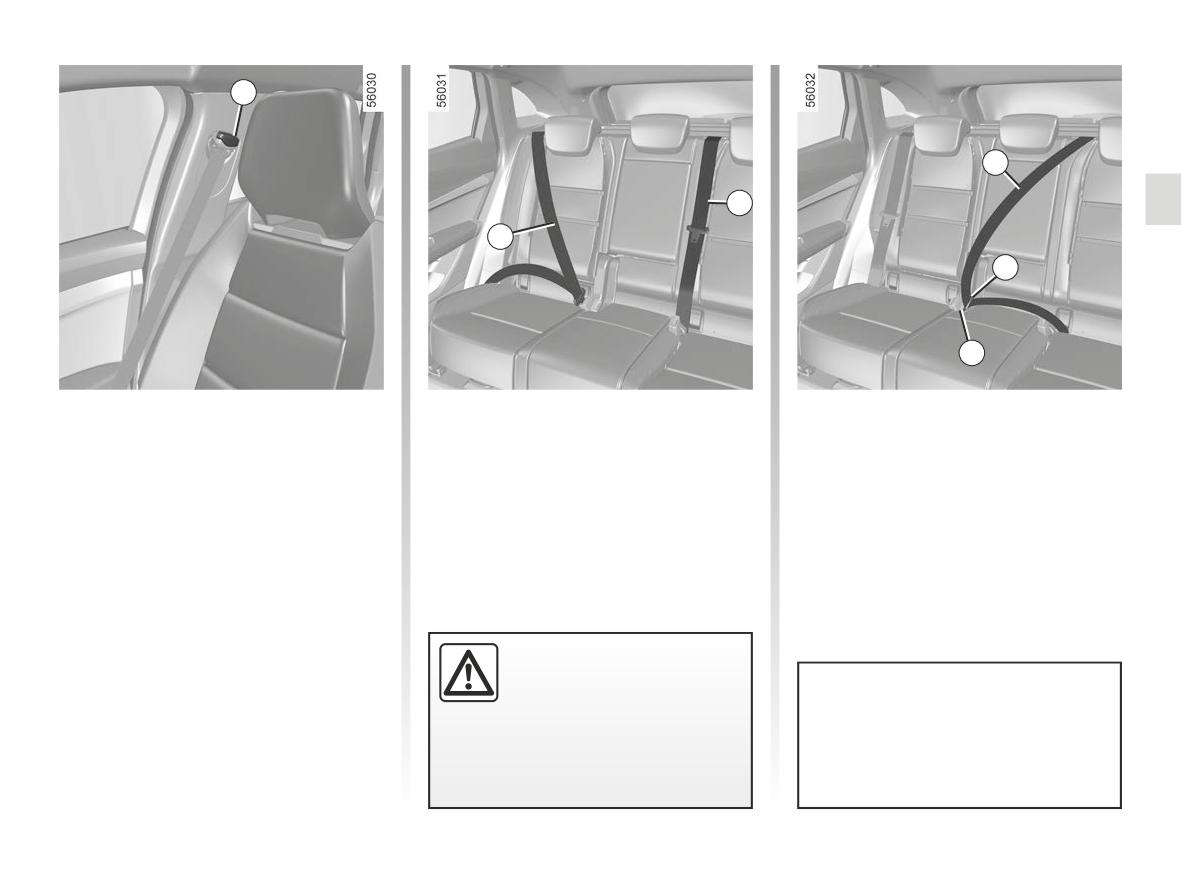

Adjusting the height of the

Rear side seat belts 8

Rear centre seat belt 9

front seat belts

The belts are locked, unlocked and

Slowly unwind belt 9.

Use button 7 to adjust the seat belt

adjusted in the same way as the front

Fasten the tongue

10 in the red

height so that the shoulder strap is worn

belts.

buckle 11.

as shown previously. Press the button 7

and raise or lower the seat belt. Make

sure that the seat belt is locked in posi-

tion correctly after you have adjusted it.

Check that the rear seat

belts are positioned and

operating correctly each

Ensure that you always leave the

time the rear bench seat is

tongue 10 fastened in the buckle 11

moved.

even if no passenger is present in

the centre seat.

1.39

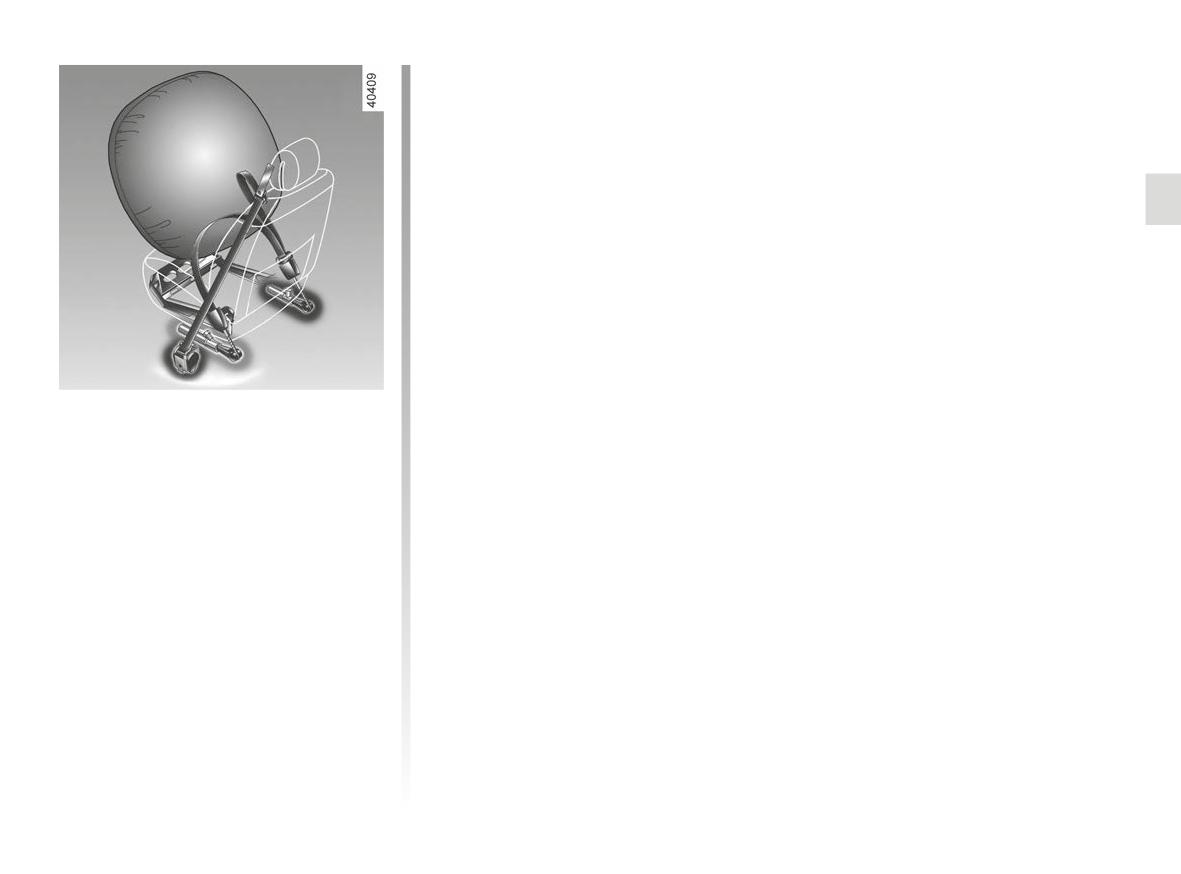

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (1/6)

Depending on the vehicle, they will con-

- Have the entire restraint

sist of:

system checked following

- seat belt inertia reel pretension-

an accident.

ers;

- No operation whatso-

- central seat belt pretensioners;

ever is permitted on any part

- chest-level load limiters;

of the system (pretensioners,

airbags, computers, wiring) and

- airbags driver and passenger

the system components must not

front.

be reused on any other vehicle,

These systems are designed to act in-

even if identical.

dependently or together when the vehi-

- Only qualified personnel from our

cle is subjected to a frontal impact.

2

Network may work on the airbags;

Depending on the severity of the

otherwise the system may trigger

1

impact, the system can trigger:

accidentally and cause injury.

- seat belt locking;

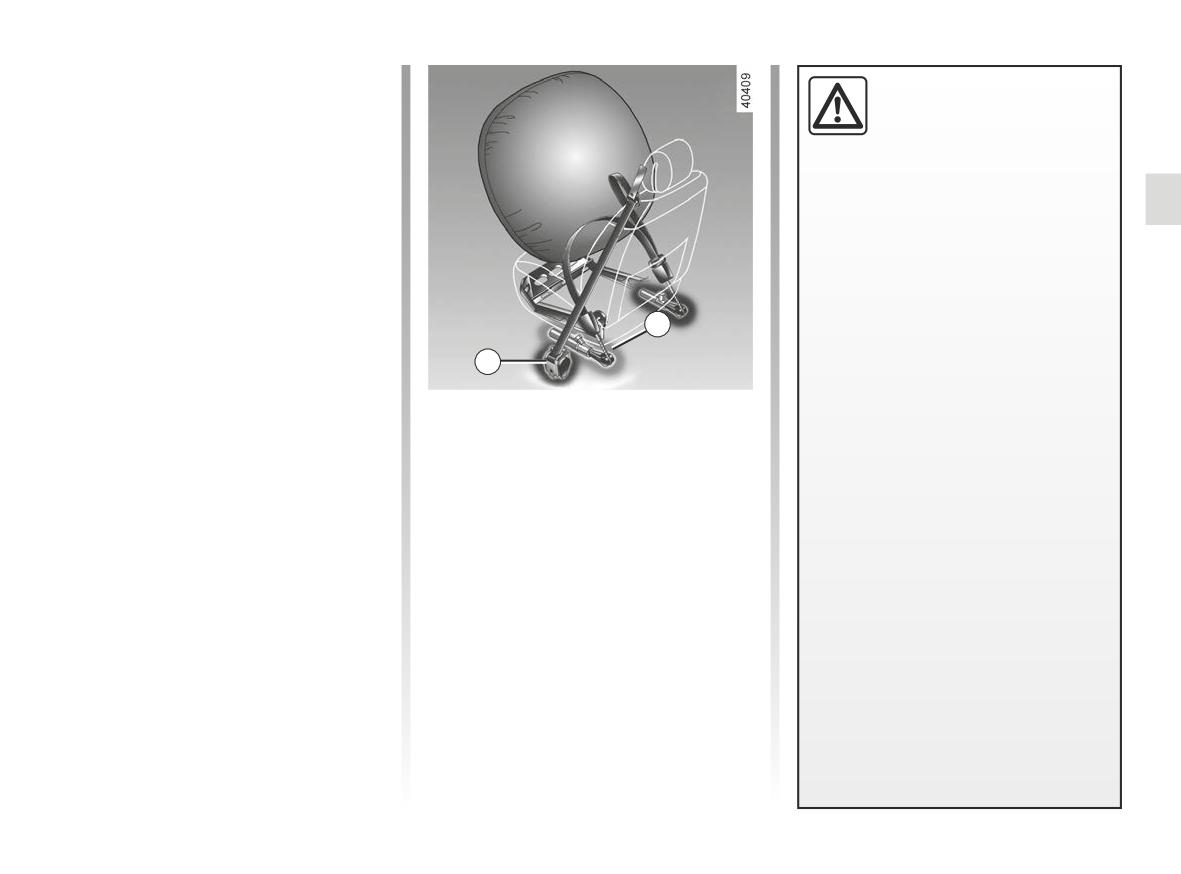

Pretensioners

- The electric trigger system may

only be tested by a specially

- the seat belt inertia reel pretensioner

The pretensioners hold the seat belt

trained technician using special

(which engages to correct seat belt

against the body, holding the occupant

equipment.

slack);

more securely against the seat, thus in-

creasing the seat belt’s efficiency.

- When the vehicle is scrapped,

- lap seat belt pretensioners to hold

contact an approved dealer for

the occupant in their seat;

In the event of a severe frontal impact

disposal of the pretensioner and

and if the ignition is switched on, the

- the front airbag.

airbags gas generators.

system may engage the following de-

pending on the force of the impact:

- the seat belt inertia reel preten-

sioner 1 which instantly retracts the

seat belt;

- the lap seat belt inertia reel preten-

sioner 2 on the front seats.

1.41

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (3/6)

Operating faults

å

This warning light comes on

when the engine is started and then

goes out after approximately three sec-

onds.

If it does not come on when the ignition

is switched on or if it stays on, there is a

fault in the system.

Contact your approved Dealer as soon

as possible.

Your protection will be reduced until this

fault is rectified.

Operation

This system is only operational when

the ignition is switched on.

In a severe frontal impact, the airbags

inflate rapidly, cushioning the impact

of the driver's head and chest against

the steering wheel and of the front pas-

senger against the dashboard. The air

bags then deflate immediately so that

the passengers are not in any way hin-

dered from leaving the vehicle.

1.43

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (4/6)

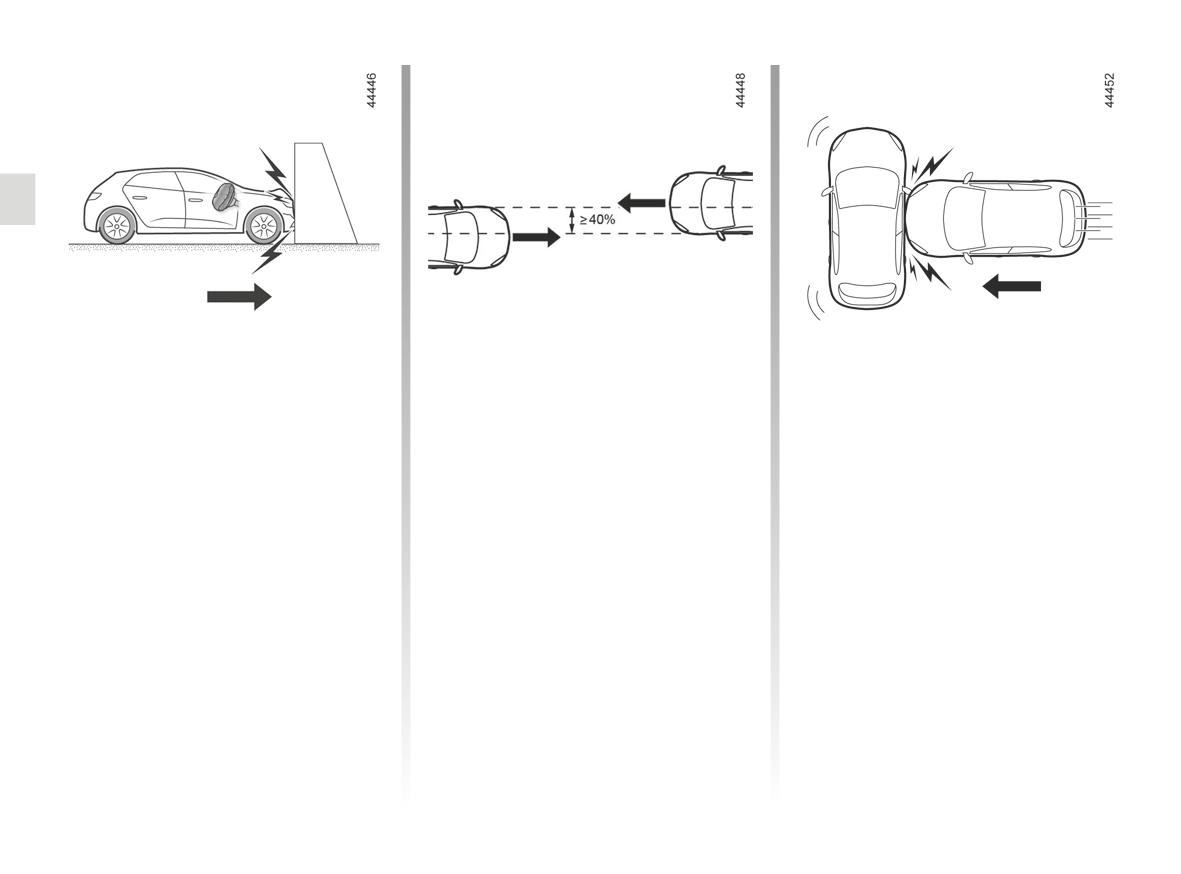

The following conditions will trigger

In a frontal impact with another vehi-

In a side impact with another vehicle

the pretensioners or airbags.

cle of an equivalent or higher category,

of an equivalent or higher category, at

with an impact area equal to or greater

an impact speed equal to or greater

In a frontal impact against a rigid

than 40%, where the speed of both ve-

than 31 mph (50 km/h).

(non-deformable) surface at an impact

hicles is equal to or greater than 25 mph

speed equal to or greater than 16 mph

(40 km/h).

(25 km/h).

1.44

METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (5/6)

In the following examples, the pre-

In the following examples, there is a

- side impact to the front or rear of the

tensioners or the airbags could op-

risk that pretensioners orairbags may

vehicle;

erate:

not be triggered:

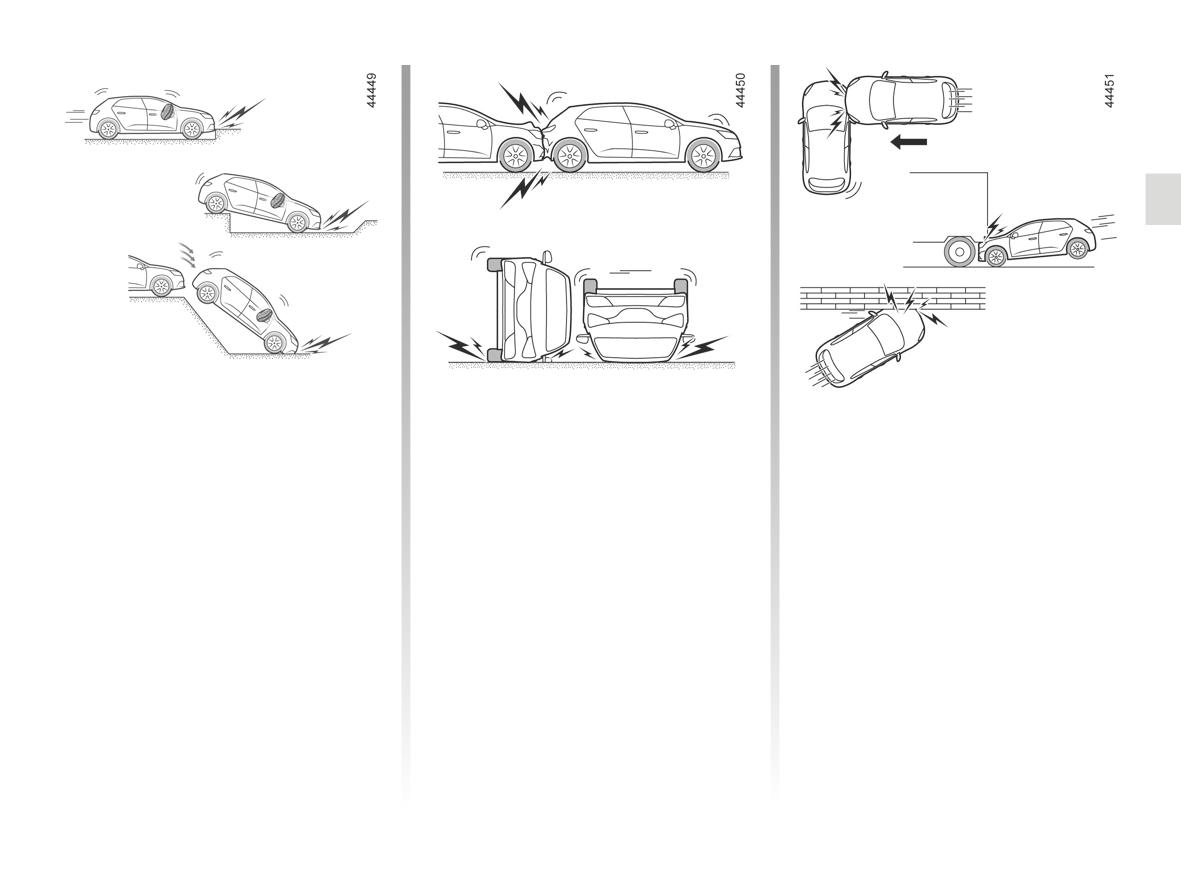

- frontal impact, under the tail of a

- impact under vehicle such as pave-

- rear impact, however severe;

lorry;

ment;

– the vehicle overturning;

- frontal impact against an obstacle

- potholes;

with a sharp angle;

- drop or hard landing;

- ...

- stones;

– ...

1.45

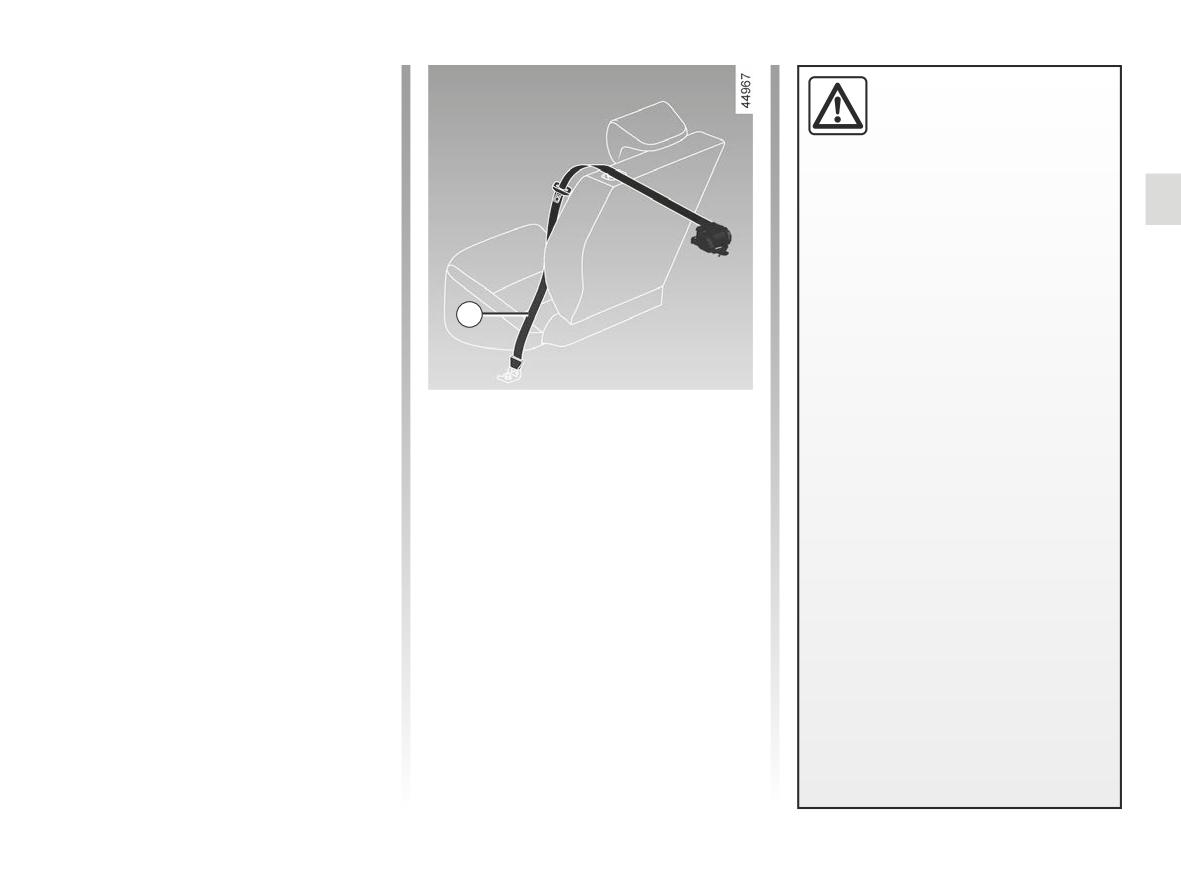

METHODS OF RESTRAINT IN ADDITION TO THE REAR SEAT BELTS

Depending on the vehicle, they will con-

- Have the entire restraint

sist of:

system checked following

- side seat belt inertia reel preten-

an accident.

sioners;

- No operation whatso-

- chest force limiters.

ever is permitted on any part

These systems are designed to act in-

of the system (pretensioners,

dependently or together when the vehi-

airbags, computers, wiring) and

cle is subjected to a frontal impact.

the system components must not

be reused on any other vehicle,

Depending on the severity of the

even if identical.

impact, the system can trigger:

1

- Only qualified personnel from our

- seat belt locking;

Network may work on the airbags;

- the seat belt inertia reel pretensioner

otherwise the system may trigger

(which engages to correct seat belt

accidentally and cause injury.

slack).

Side seat belt pretensioners

- The electric trigger system may

only be tested by a specially

The pretensioners hold the seat belt

Force limiter

trained technician using special

against the body, holding the occupant

equipment.

Above a certain severity of impact, this

more securely against the seat, thus in-

mechanism is used to limit the force of

creasing the seat belt’s efficiency.

- When the vehicle is scrapped,

the belt against the body so that it is at

contact an approved dealer for

With the ignition on, following a signif-

an acceptable level.

disposal of the pretensioner and

icant frontal impact and depending on

airbags gas generators.

the severity of the impact, the system

may trigger the seat belt inertia reel

pretensioner 1, which instantly retracts

the seat belt.

1.47

CHILD SAFETY: choosing a child seat

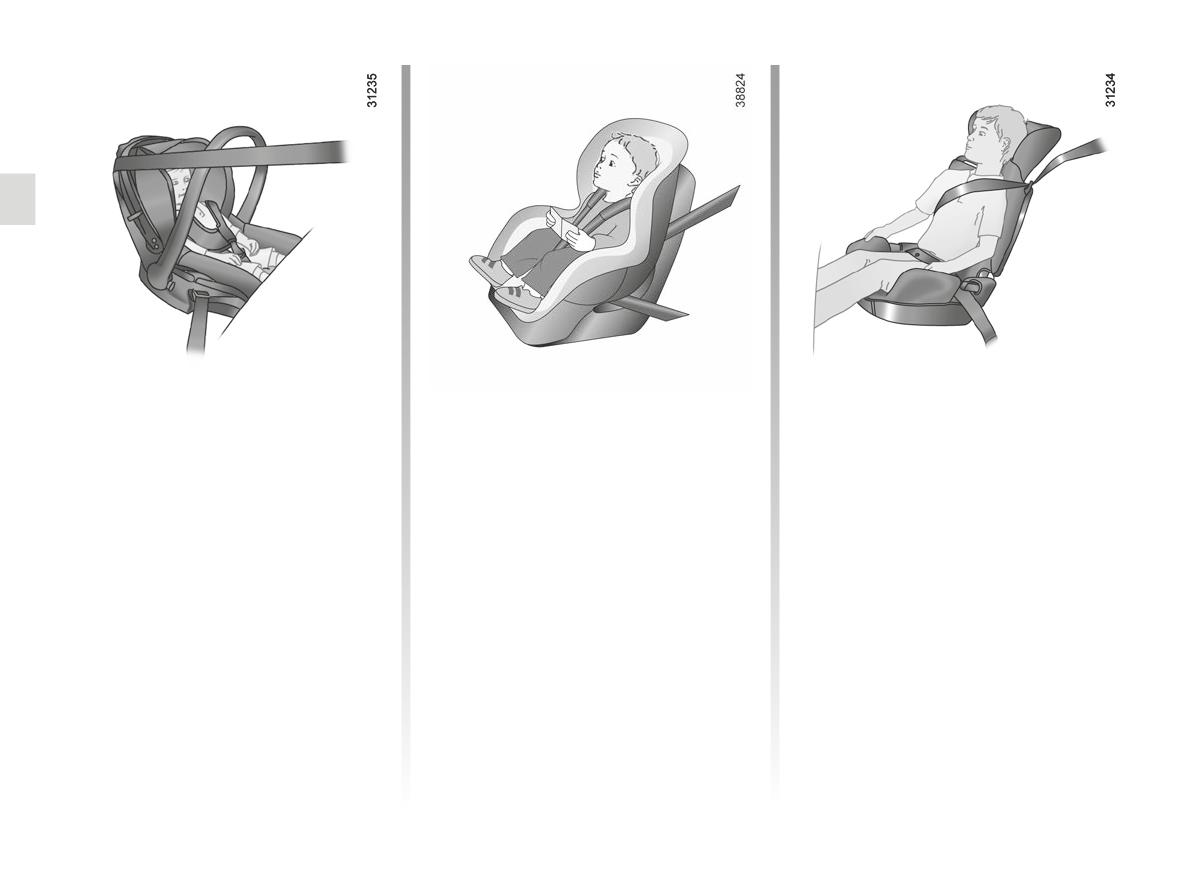

Rear-facing child seats

Forward-facing child seats

Booster cushions

A baby’s head is, proportionally, heavier

Up to 18 kg or 4 years, the child may

From 15 kg or 4 years, the child can

than that of an adult and its neck is very

travel on a forward-facing seat. Choose

travel using a booster seat, which will

fragile. Transport the child in this po-

your seat according the child’s size:

enable the seat belt to be adapted

sition for as long as possible (until the

their head and abdomen are the areas

to suit his/her size and shape. The

age of 2 at the very least). It supports

which must be most protected. A for-

booster seat cushion must be fitted with

both the head and the neck.

ward-facing child seat which is firmly

guides to position the seat belt on the

attached to the vehicle will reduce the

child’s thighs rather than the stomach.

Choose a bucket type seat for best side

risk of impact to the head. Ensure your

It is recommended that you use a seat-

protection and change it as soon as the

child travels in a forward-facing seat

back fitted with a belt strap guide which

child’s head is higher than the shell.

with a harness for as long as their size

can be adjusted in terms of height to

permits.

position the seat belt in the centre of the

shoulder. It must never rest on the neck

Choose a bucket type seat for optimum

or on the arm.

side protection.

Choose a bucket type seat for optimum

side protection.

1.52

CHILD SAFETY: choosing a child seat mounting (1/3)

There are two ways of attaching child

Attachment via the seat belt

seats: via the seat belt or using the

The seat belt must be adjusted to

ISOFIX system.

ensure that it is effective in the event of

harsh braking or an impact.

Ensure that the strap paths indicated

by the child seat manufacturer are re-

spected.

Always check that the seat belt is cor-

rectly fastened by pulling it up, then

pulling it out fully whilst pressing on the

child seat.

Check that the seat is correctly held by

moving it from side to side and back

to front: the seat should remain firmly

fixed.

The seat belt must never

Check that the child seat has not been

be twisted or the tension

installed at an angle and that it is not

relieved. Never pass the

resting against a window.

shoulder strap under the

arm or behind the back.

Check that the seat belt has not

been damaged by sharp edges.

If the seat belt does not operate nor-

mally, it will not protect the child.

Do not use the child seat

Consult an approved dealer. Do not

if it may unfasten the seat

use this seat until the seat belt has

belt restraining it: the base

been repaired.

of the seat must not rest on

the buckle and/or catch of the seat

belt.

1.53

CHILD SAFETY: choosing a child seat mounting (2/3)

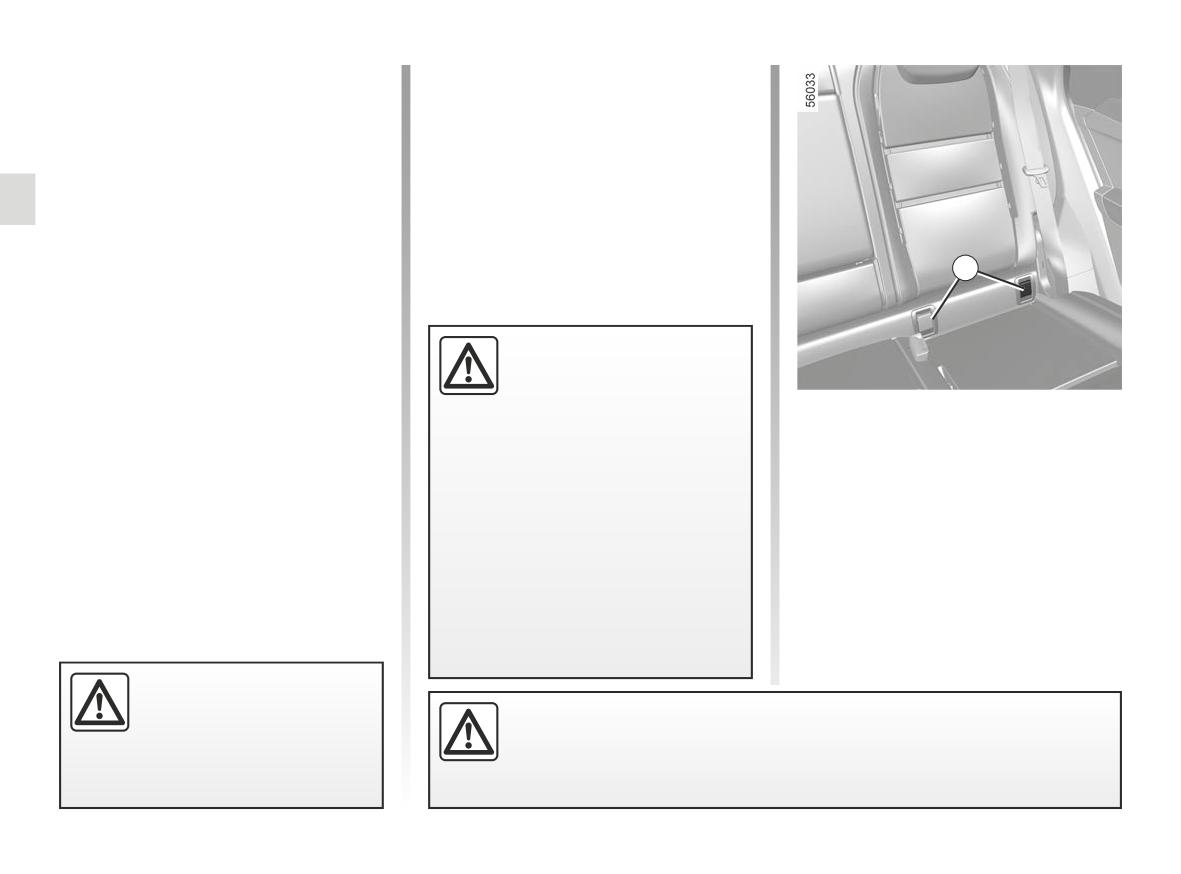

Attachment using the ISOFIX

Attach the child seat with the ISOFIX

system

locks, if these are provided. The ISOFIX

system allows quick, easy, safe fitting.

Approved child seats ISOFIX are stand-

ardised in accordance with current reg-

The ISOFIX system consists of two

ulations if any of the four cases below

rings and, in some cases, a third ring.

applies:

- ISOFIXuniversal 3-point forward-fac-

ing seat;

- ISOFIXsemi-universal 2-point seat;

- specific;

1

- i-Size which has either:

- a strap which attaches to the third

ring of the seat concerned;

- or a strut that rests on the vehi-

The ISOFIX anchorage

cle floor, compatible with the ap-

points have been exclu-

proved seat i-Size, the role of

sively designed for child

seats with the ISOFIX

The two rings 1 are located between the

which is to prevent the child seat

system. Never fit a different type of

seatback and the seat base of the seat

from moving in the event of a col-

lision.

child seat, seat belt or other objects

and are identified by a

 symbol.

to these anchorage points.

In the latter three cases check that your

Check that nothing is obstructing

child seat can be installed by consulting

the anchorage points.

the list of compatible vehicles.

If your vehicle has been involved in

a road accident, have the ISOFIX

anchorage points checked and re-

place your child seat.

No modifications may be

made to the component

Before using an ISOFIX child seat that you purchased for another vehi-

parts of the restraint system

cle, check that its installation is authorised. Consult the list of vehicles

(seat belts, ISOFIX and

which can be fitted with the seat from the equipment manufacturer.

seats and their mountings) originally

fitted.

1.54

CHILD SAFETY: choosing a child seat mounting (3/3)

2

2

3

The ISOFIX anchorage

3

points have been exclu-

sively designed for child

seats with the ISOFIX

system. Never fit a different type of

child seat, seat belt or other objects

4

4

to these anchorage points.

Check that nothing is obstructing

Attachment using the ISOFIX

Front passenger seat

the anchorage points.

system (continued)

Attach the 3 hook of the upper strap 2 to

If your vehicle has been involved in

The third ring 4 is used to attach the

the ring 4 marked with the  symbol.

a road accident, have the ISOFIX

upper strap 2 on some child seats.

anchorage points checked and re-

All seats

place your child seat.

Rear seats

Pull the upper strap 2 so that the back

The upper strap 2 should be positioned

of the child seat comes into contact with

between the seatback and the rear

the back of the vehicle seat.

parcel shelf. To do so, remove the rear

parcel shelf ➥ 3.35.

Attach the 3 hook on one of the 4 rings

Check that the seatback

of the forward-facing child

marked with the  symbol.

seat is in contact with the

back of the vehicle seat.

In this case, the child seat may not

always rest on the base of the vehi-

cle seat.

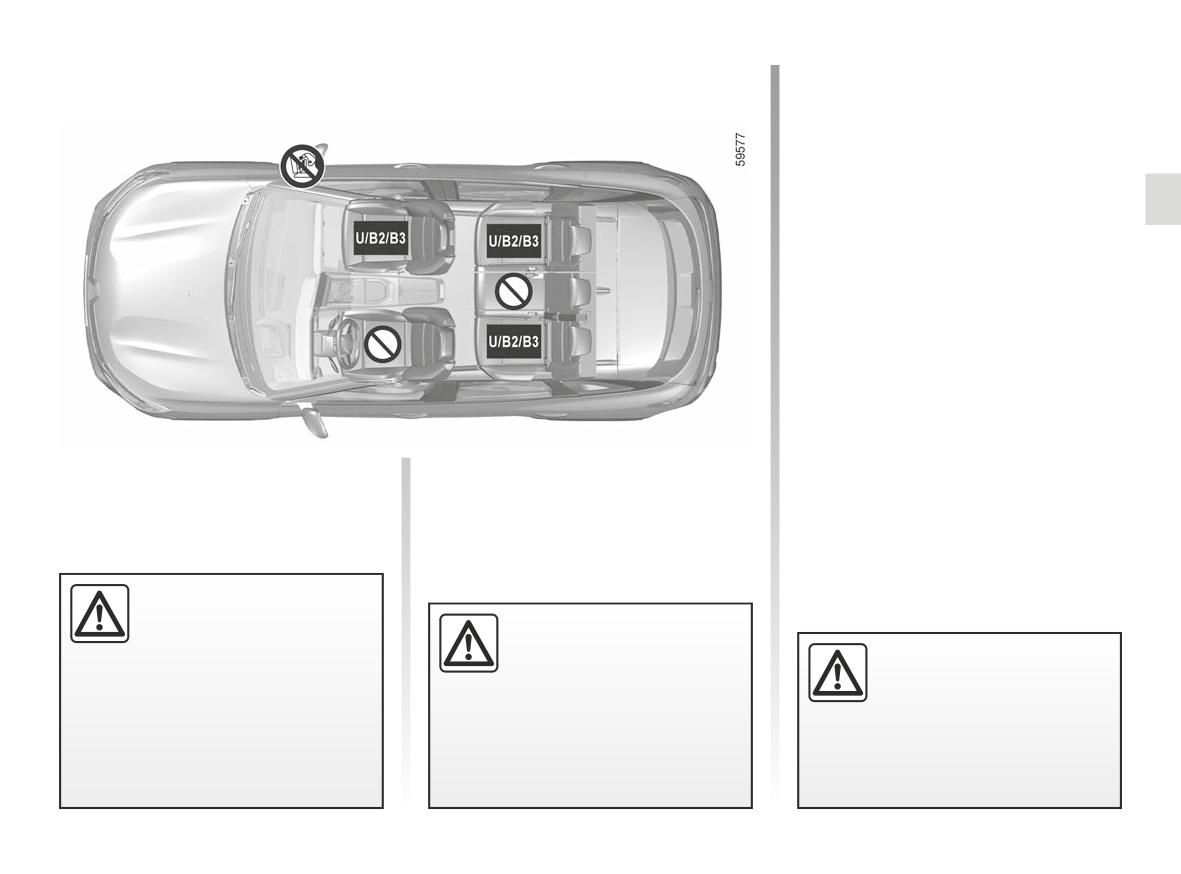

1.55

CHILD SAFETY: fitting a child seat, general information (1/2)

Some seats are not suitable for fitting

The types of child seat indicated may

After installing the child seat, when this

child seats. The diagram on the follow-

not be available. Before using a differ-

is possible, you can move the vehi-

ing page shows you how to attach a

ent child seat, check with the manufac-

cle seat forward if necessary (so as to

child seat.

turer that it can be fitted.

leave enough space in the rear seats

for passengers or other child seats).

In the front seat

For a rear-facing child seat, do not let

The laws concerning children travel-

it touch the dashboard or move it to the

ling in the front passenger seat differ in

furthest forward position.

every country. Consult the legislation in

Do not change other settings after in-

Fit the child seat in a rear

force and follow the indications on the

stalling the child seat.

diagram on the following page.

seat wherever possible.

Before fitting a child seat in this seat (if

Make sure the child seat or

authorised):

the child’s feet do not pre-

vent the front seat from locking cor-

- lower the seat belt as far as possible;

rectly. ➥ 1.31.

- move the seat as far back as possi-

Check that when installing the child

ble;

seat in the vehicle it is not at risk of

- gently tilt the seatback away from

coming loose from its base.

vertical (approximately 25°);

If you have to remove the headrest,

- on equipped vehicles, raise the seat

check that it is correctly stored so

base as far as possible.

that it does not come loose under

harsh braking or impact.

Always fully raise the seat headrest so

that it does not interfere with the child

Always attach the child seat to the

seat ➥ 1.98.

vehicle even if it is not in use so that

it does not come loose under harsh

braking or impact.

RISK OF DEATH OR

SERIOUS INJURY: before

fitting a rear-facing child

seat in this seat, make sure

that the front passenger airbag has

been deactivated. ➥ 1.65.

1.56

CHILD SAFETY: fitting a child seat, general information (2/2)

In the rear side seat

Always remove the headrest from the

Installing a booster seat (group 2

rear seat on which the child seat is

or 3)

A carrycot can be installed across the

positioned. ➥ 3.31. If necessary, posi-

vehicle and will take up at least two

Check the operation (rolling up) of the

tion the rear seat as far back as pos-

seats. Position the child with his or her

seat belt ➥ 1.36.

sible. This must be done before fitting

feet nearest the door.

the child seat. Check that the child seat

Adjust the seat belt by positioning:

Move the front seat as far forward as

is resting against the back of the rear

- the chest strap on the child’s shoul-

possible to install a rear-facing child

seat.

der without touching the neck;

seat, then move back the seat in front

as far as it will go, although without al-

- the lap strap so that it lies flat on the

lowing it to come into contact with the

thighs and against the pelvis.

child seat.

If necessary, adjust the position of the

For the safety of the child in the for-

vehicle seat.

ward-facing position:

- move the relevant seat backwards

as far as possible;

- move the seat in front of the child

forwards, and set the position of the

Fitting a seat ISOFIX in

seatback to avoid contact between

the rear-left seat means

the seat and the child’s legs.

the middle seat cannot be

used. The central seat belt

will no longer be either accessible or

useable.

A child seat with floor sup-

Fit the child seat in a rear

ports must never be in-

seat wherever possible.

stalled on the rear centre

To install an ISOFIX seat in

Ensure that the child seat

seat.

this seat, unbuckle the seat

or the child’s feet do not

RISK OF DEATH OR SERIOUS

belt by hand before engaging the

prevent the front seat from

INJURY.

bolts.

locking correctly. ➥ 3.32 or

➥ 1.31.

1.57

CHILD SEATS: attachment by seat belt (1/4)

The table below contains the same information as the diagrams on the following pages (fixed bench seat version and

sliding bench seat version) in order to comply with current regulations.

Front passenger seat

Rear centre

Rear centre

Rear side

seat on the

seat on the

Type of child seat

Weight of the child

With airbag

With airbag

seats

fixed bench

sliding bench

disabled

activated

version

seat version

Carrycot

fitted

across the vehicle

< 10 kg

X

X

U (2)

X

X

Group 0

Rear-facing shell

seat

< 10 kg and < 13 kg

U (1) (5)

X

U (3)

U (3) (6)

X

Groups 0 or 0 +

Shell seat/rear-facing

< 13 kg and 9 to 18

seat

U (1) (5)

X

U (3)

U (3) (6)

X

kg

Groups 0+ and 1

Forward-facing seat

9 to 18 kg

X

U (5)

U (3) (4)

U (4) (6)

X

Group 1

Booster seat

15 to 25 kg and 22 to

U, B2, B3

X

U, B2, B3 (5)

U (4)

X

Groups 2 and 3

36 kg

(3) (4)

(1) RISK OF DEATH OR SERIOUS INJURY: before fitting a rear-facing child seat in this seat, make sure that the front

passenger airbag has been deactivated. ➥ 1.65.

1.58

CHILD SEATS: attachment by seat belt (3/4)

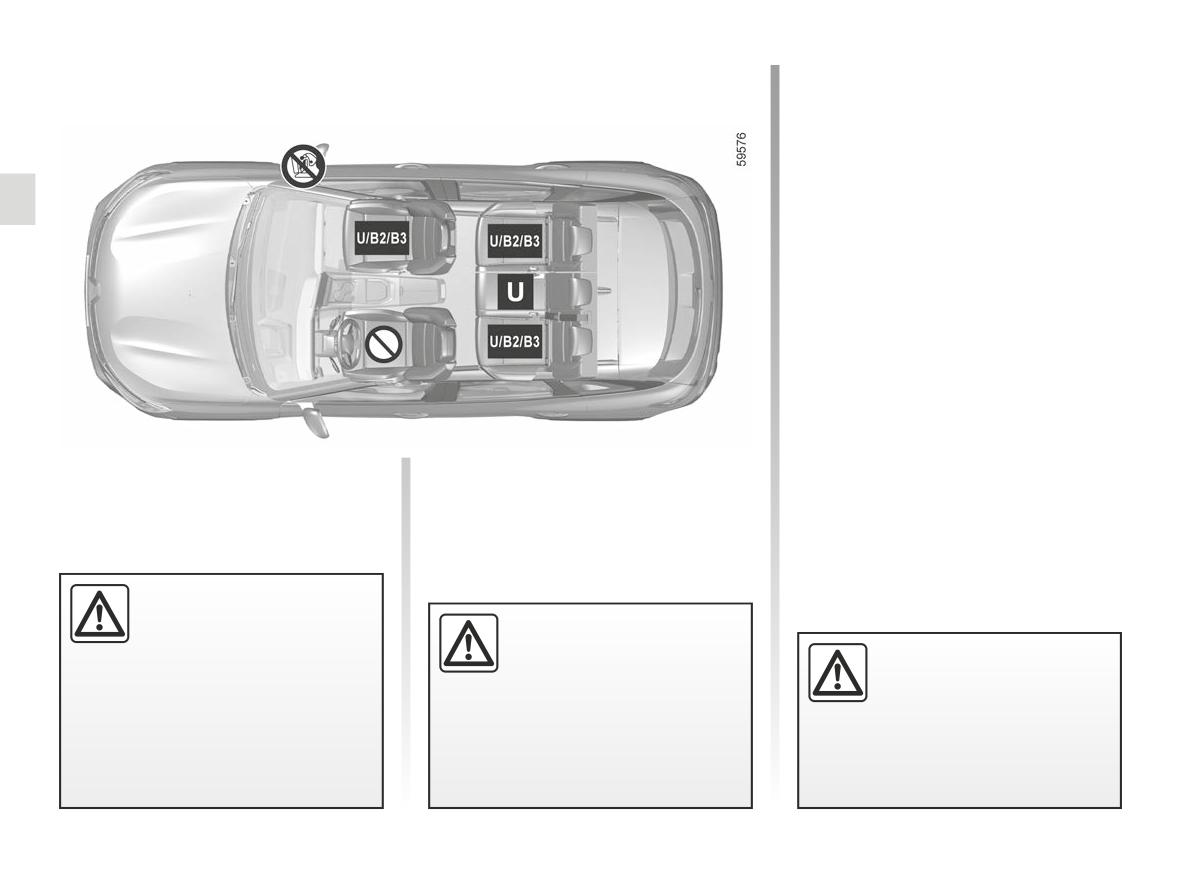

Fitting diagram for the fixed bench seat version

³

Check the status of the airbag

before fitting a child seat or allowing a

passenger to use the seat.

Seat not suitable for fitting

²

child seats.

Child seat attached using the belt

¬

Seat which allows a child seat

with “Universal” approval to be attached

by a seat belt.

B2: seat allowing a “B2” approved child

seat to be installed.

Child seat attached using the belt

B3: seat allowing a “B3” approved child

seat to be installed.

Child seat attached using the belt

Check that your child is

always strapped in and that

Using a child safety system

the belt or safety harness

which is not approved for

used is correctly set and ad-

RISK OF DEATH OR

this vehicle will not correctly

justed ➥ 1.36.

SERIOUS INJURY: before

protect the baby or child.

fitting a rear-facing child

If necessary, adjust the seat position

They risk serious or even fatal injury.

seat in this seat, make sure

accordingly.

that the front passenger airbag has

been deactivated. ➥ 1.65.

1.60

CHILD SEATS: attachment by seat belt (4/4)

Fitting diagram for the sliding bench seat version

³

Check the status of the airbag

before fitting a child seat or allowing a

passenger to use the seat.

Seat not suitable for fitting

²

child seats.

Child seat attached using the belt

¬

Seat which allows a child seat

with “Universal” approval to be attached

by a seat belt.

B2: seat allowing a “B2” approved child

seat to be installed.

Child seat attached using the belt

B3: seat allowing a “B3” approved child

seat to be installed.

Child seat attached using the belt

Check that your child is

always strapped in and that

Using a child safety system

the belt or safety harness

which is not approved for

used is correctly set and ad-

RISK OF DEATH OR

this vehicle will not correctly

justed ➥ 1.36.

SERIOUS INJURY: before

protect the baby or child.

fitting a rear-facing child

If necessary, adjust the seat position

They risk serious or even fatal injury.

seat in this seat, make sure

accordingly.

that the front passenger airbag has

been deactivated. ➥ 1.65.

1.61

CHILD SEATS: attachment using the ISOFIX SYSTEM (1/3)

The table below summarises the information already shown on the diagram on the following pages, to ensure the appli-

cable regulations are respected.

Front passenger seat

Weight of

Seat size

Rear side

Rear centre

Type of child seat

Without airbag

the child

ISOFIX

With airbag

seats

seat

or with airbag

activated

deactivated

Carrycot fitted across

the vehicle

< 10 kg

L1 [F], L2 [G]

X

X

IL (1)

X

Group 0

Rear-facing shell

seat

< 13 kg

R1 [E]

IL (2) (5)

X

IL (3)

X

Groups 0 or 0 +

Shell seat/rear-facing

< 13 kg and 9 to

seat

R3 [C], R2 [D]

IL (2) (5)

X

IL (3)

X

18 kg

Groups 0+ and 1

Forward-facing seat

F3 [A], F2 [B],

9 to 18 kg

X

IUF - IL (2)

IUF - IL (3) (4)

X

Group 1

F2X [B1]

Booster seat

15 to 25 kg and

[B2, B3]

X

IUF - IL (2)

IUF - IL (3) (4)

X

Group 2

22 to 36 kg

Seat i-Size

i-U (2) (5)

i-UF (2)

i-U (3) (4)

X

1.62

CHILD SEATS: attachment using the ISOFIX SYSTEM (3/3)

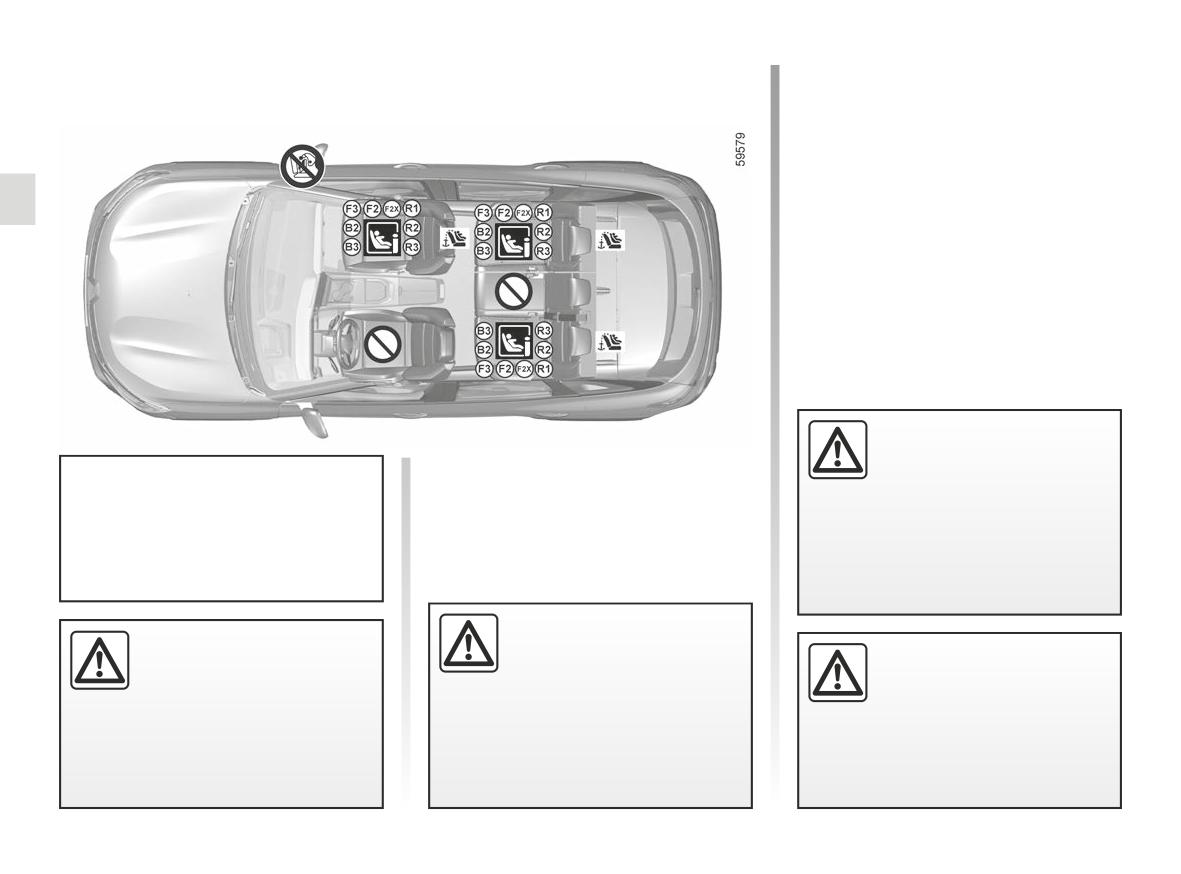

Fitting diagram

Child seat fitted using the ISOFIX

mounting



Seat which allows an ISOFIX

child seat to be fitted.

±

The rear seats are fitted with

an anchorage point which allows a

forward-facing ISOFIX child seat with

universal approval to be attached. The

anchoring points are located on the

passenger seatback for the front seat

and on the bench seatback for the rear

seats.

Fit the child seat in a rear

seat wherever possible.

Seat which does not allow a

²

To install an ISOFIX seat in

child seat to be fitted.

For the front passenger seat, the

this seat, unbuckle the seat

use of a child seat with a floor sup-

belt by hand before engaging the

port is recommended to avoid trig-

bolts.

gering the seat belt warning signal.

RISK OF DEATH OR

Using a child safety system

SERIOUS INJURY:

Fitting a seat ISOFIX in

which is not approved for

before fitting a rear facing

the rear-left seat means

this vehicle will not correctly

child seat on the front pas-

the middle seat cannot be

protect the baby or child.

senger seat, check that the airbag

used. The central seat belt

They risk serious or even fatal injury.

has been deactivated ➥ 1.65.

will no longer be either accessible or

useable.

1.64

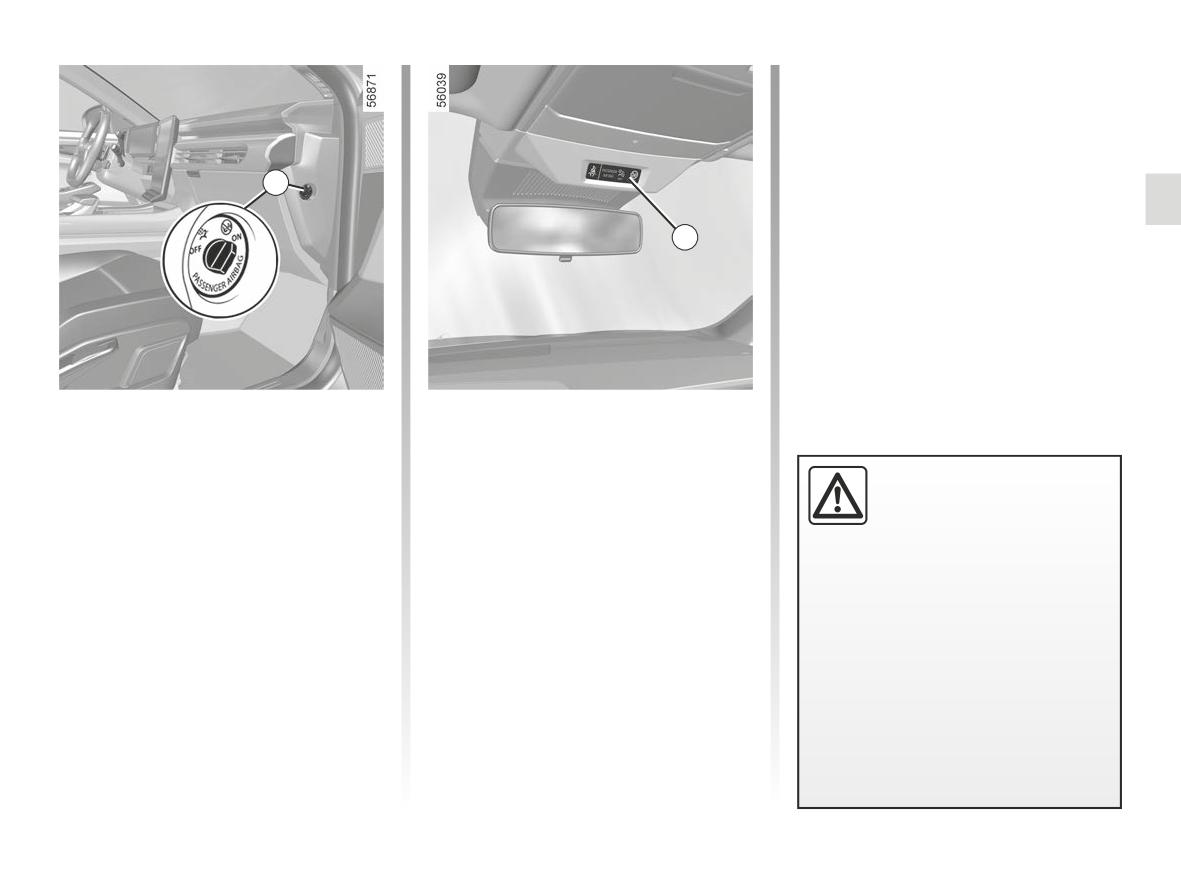

CHILD SAFETY: deactivating, activating front passenger AIRBAG (1/3)

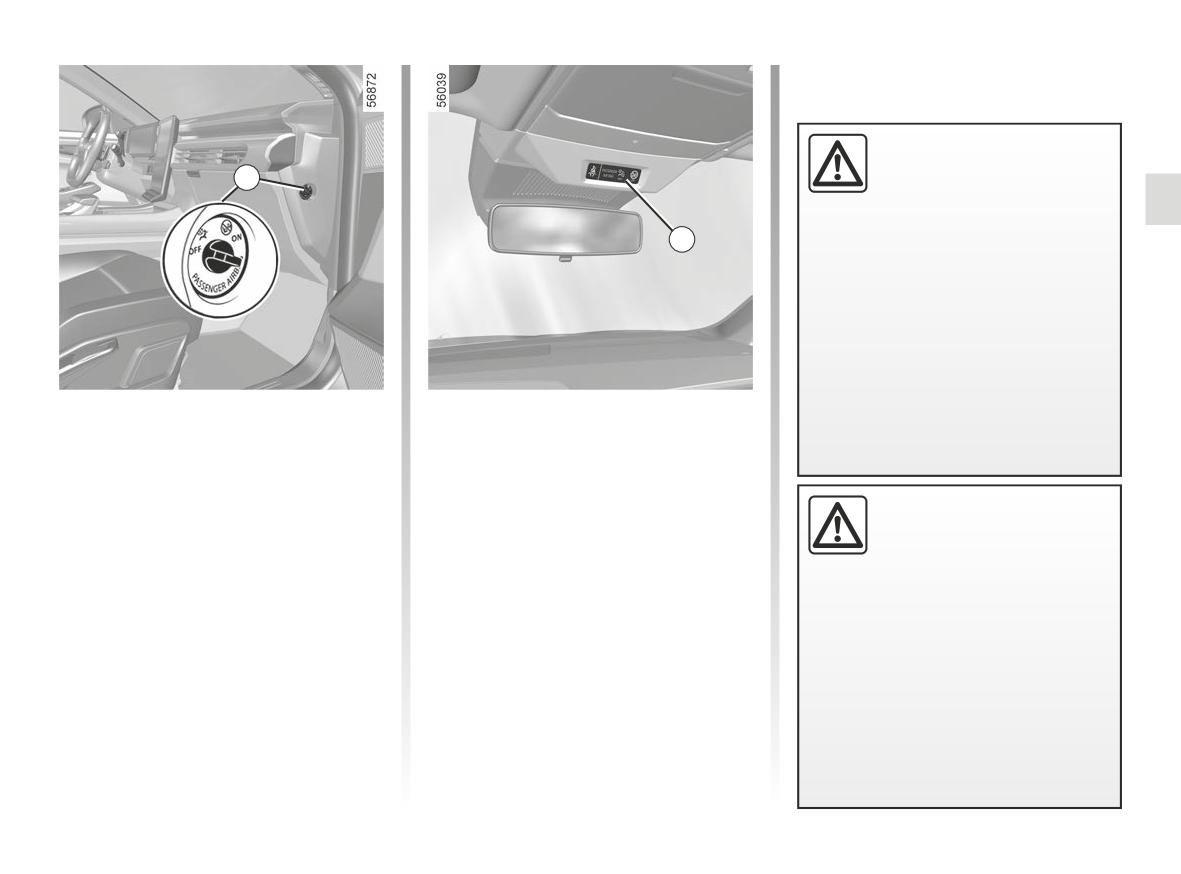

The passenger airbag may

only be activated or deacti-

1

vated when the vehicle is

stationary with the igni-

tion off.

2

If it is interfered with when the ve-

hicle is being driven, indicator lights

å and© will come on.

Switch the ignition off then on again

to reset the airbag in accordance

with the lock position.

Deactivating the front

To deactivate the airbag: with the

vehicle stationary and the ignition

passenger airbag

switched off, push and turn lock 1 to

Before installing a child seat on the

the OFF position.

front passenger seat:

When the ignition is switched on, it is

DANGER

- check that the child seat can be in-

essential to check that the warning

stalled on this seat;

Since operation of the front

light

¹

is illuminated on the dis-

passenger airbag is not

- it is essential to deactivate the

play 2.

compatible with the po-

airbagfor a rear-facing child seat.

sition of a rear-facing child seat,

This light remains permanently lit to

NEVER fit a rear-facing child re-

let you know that you can fit a child

straint system in a seat protected

seat.

by an ACTIVATED front AIRBAG.

This can lead to the DEATH of the

CHILD or SERIOUS INJURY.

1.65

CHILD SAFETY: deactivating, activating front passenger AIRBAG (2/3)

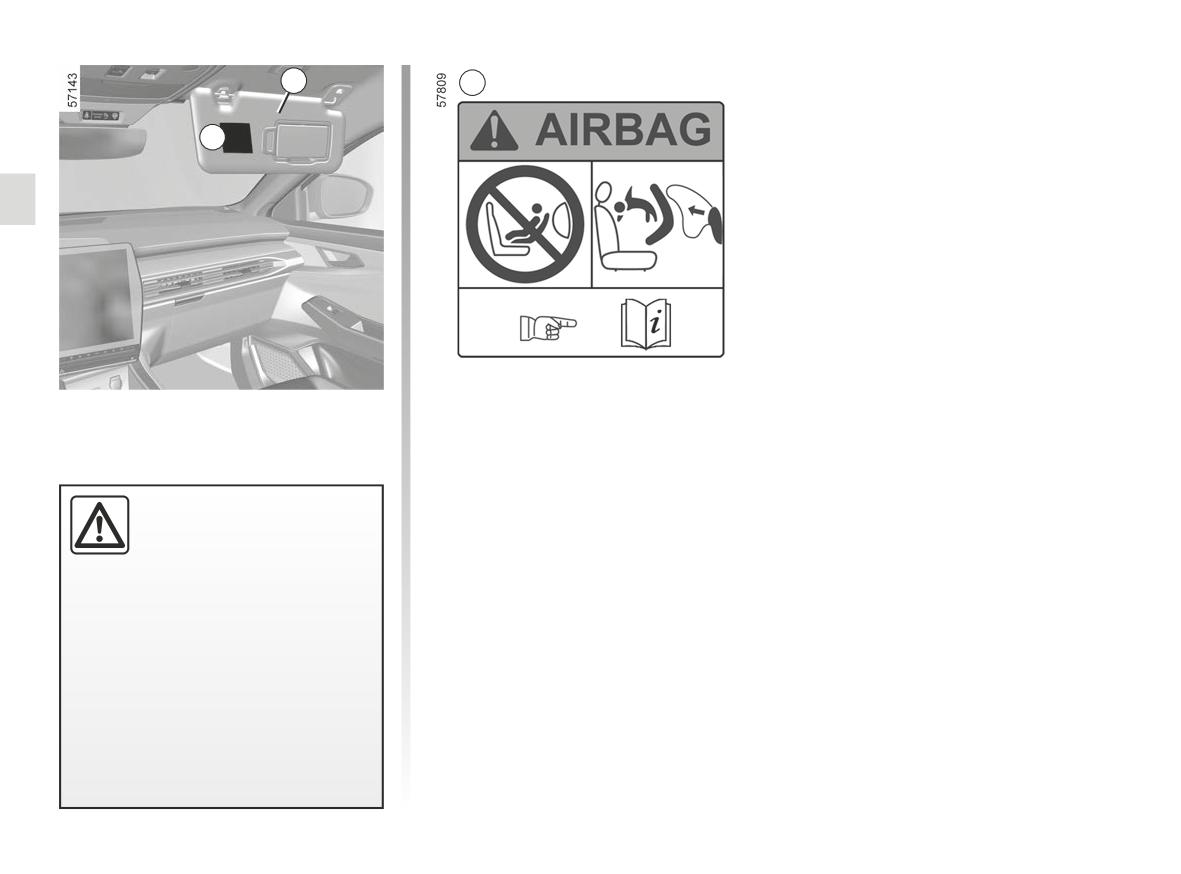

3

A

A

The markings on the dashboard and

labels A on each side of the passen-

ger sun visor 3 (example: label shown

above) remind you of these instruc-

tions.

DANGER

Since operation of the front

passenger airbag is not

compatible with the po-

sition of a rear-facing child seat,

NEVER fit a rear-facing child re-

straint system in a seat protected

by an ACTIVATED front AIRBAG.

This can lead to the DEATH of the

CHILD or SERIOUS INJURY.

1.66

CHILD SAFETY: deactivating, activating front passenger AIRBAG (3/3)

Operating faults

It is forbidden to fit a rear-facing child

seat to the front passenger seat if the

airbag activation/deactivation system is

faulty.

1

Allowing any other passenger to sit in

that seat is not recommended.

2

Contact your approved dealer as soon

as possible.

Activating the front

To restart the airbag: vehicle

stopped, ignition switched off, press

passenger airbag

and turn the lock to 1 position ON.

You should reactivate the airbag as

When the ignition is switched on, you

The passenger airbag may

soon as you remove the child seat from

only be activated or deacti-

the front passenger seat to ensure the

must check that the

¹

warning

vated when the vehicle is

protection of the front passenger in the

light is off and that the

 warning

stationary with the igni-

event of an impact.

light comes on the display 2 after each

tion off.

start-up for around 60 seconds.

If it is interfered with when the ve-

hicle is being driven, indicator lights

The front passenger airbag is activated.

å and© will come on.

Switch the ignition off then on again

to reset the airbag in accordance

with the lock position.

1.67

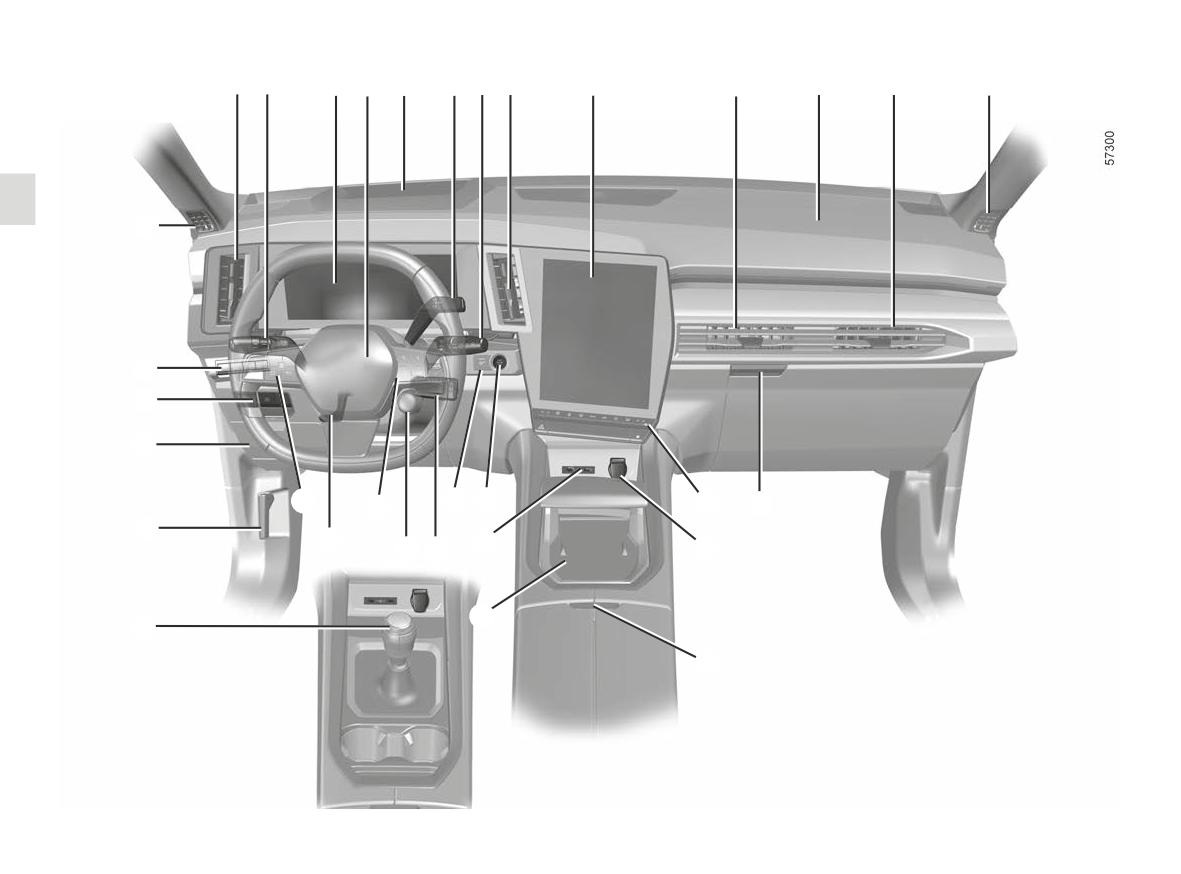

DRIVING POSITION: LEFT-HAND DRIVE (1/2)

1

2

3

4

5

6 7

8

9

8

1

0

1

11

11

29

28

27

24

19

18

13

12

22

26

23

17

21

20

14

16

25

15

1.68

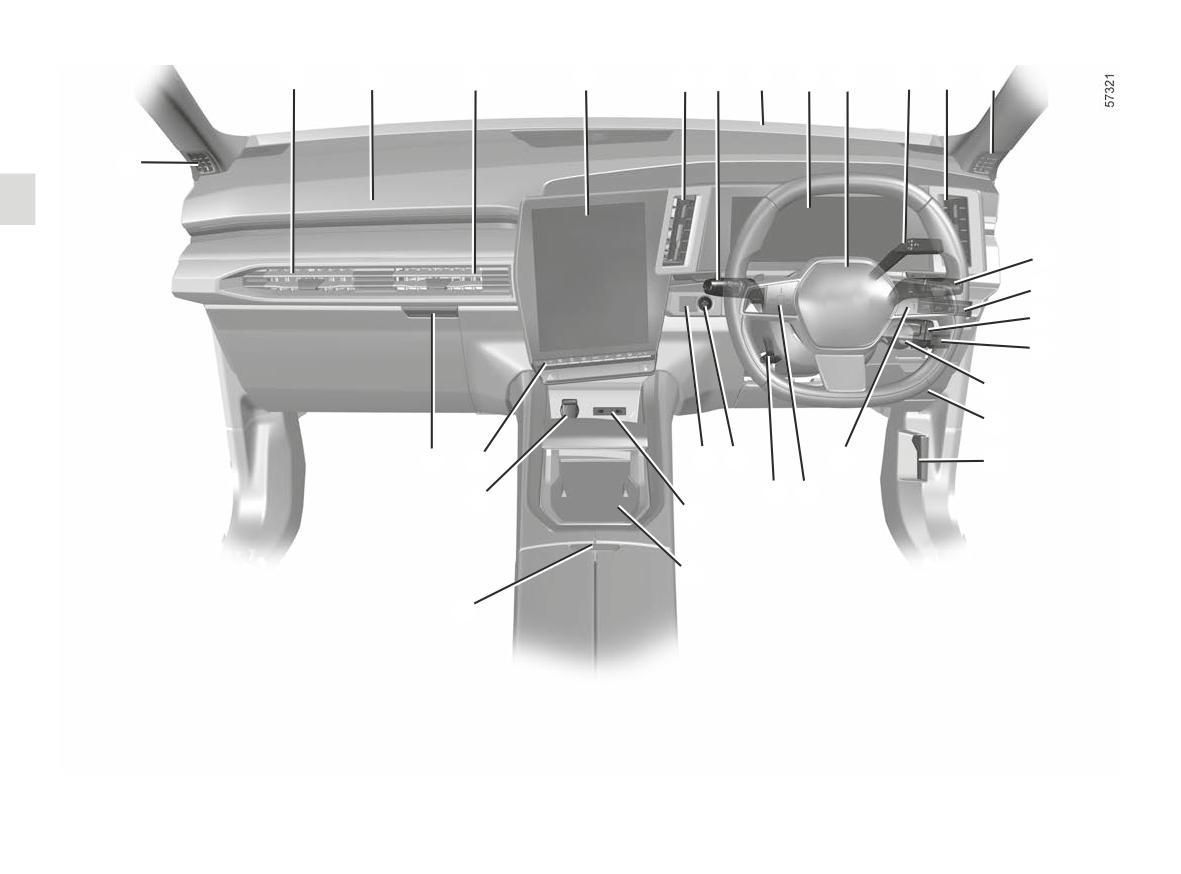

DRIVER’S POSITION RIGHT-HAND DRIVE (1/2)

1

2

3

4

3

5

6

7

8

9

1

10

10

11

12

13

14

15

16

28

27

22

21

18

17

20

19

26

23

24

25

1.70

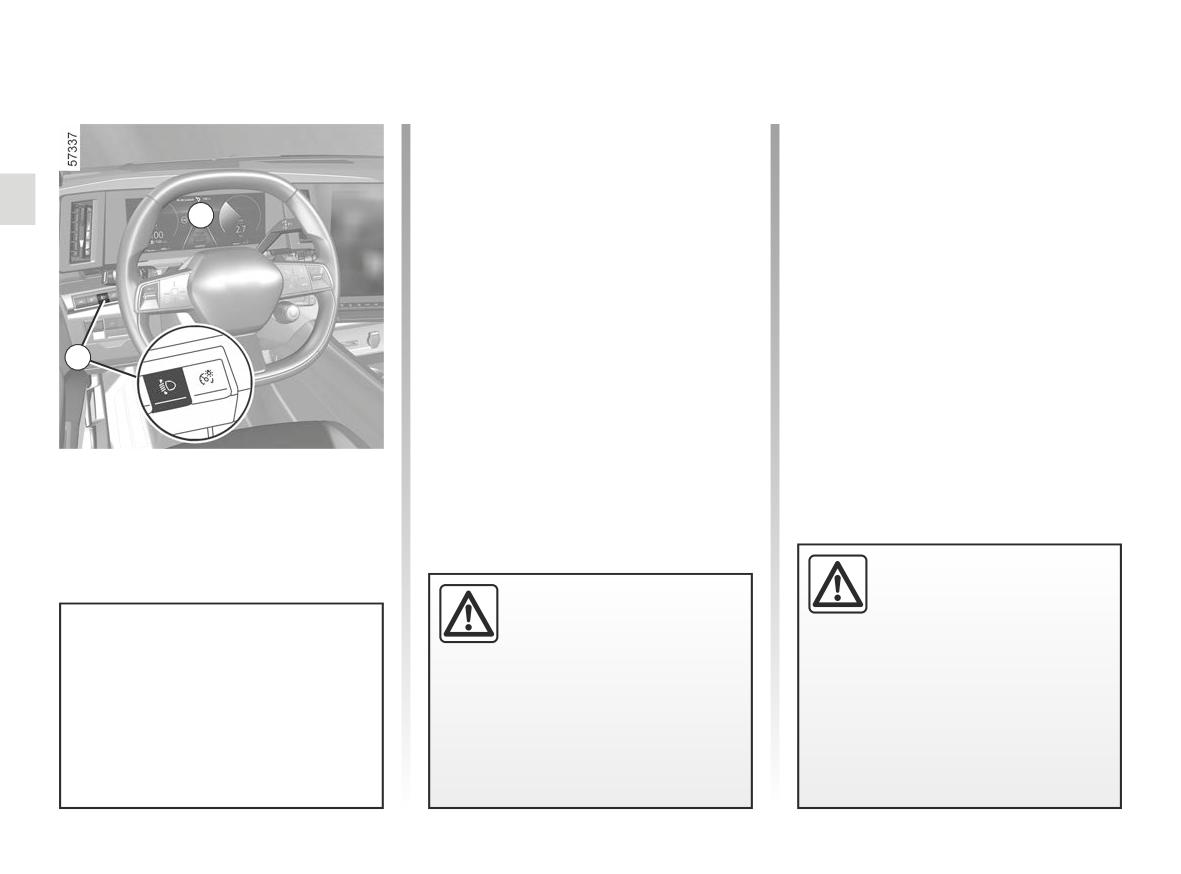

WARNING LIGHTS (1/6)

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

In some cases, the appearance of a

warning light is accompanied by a mes-

-tale light

sage on the instrument panel.

Bad weather warning light



Side light warning light

➥ 1.100

A

š

Headlight fault warning light



Main beam headlight tell-

Adaptive vision

á

tale

Handbrake or electronic



Dipped beam headlight tell-

parking brake warning light

k

tale

➥ 2.22

Rear fog lights tell-tale

“AUTOHOLD” system warn-

1





ing light ➥ 2.26

Automatic main beam head-

Automatic wiping function





light indicator light ➥ 1.100

warning light

Left-hand direction indicator

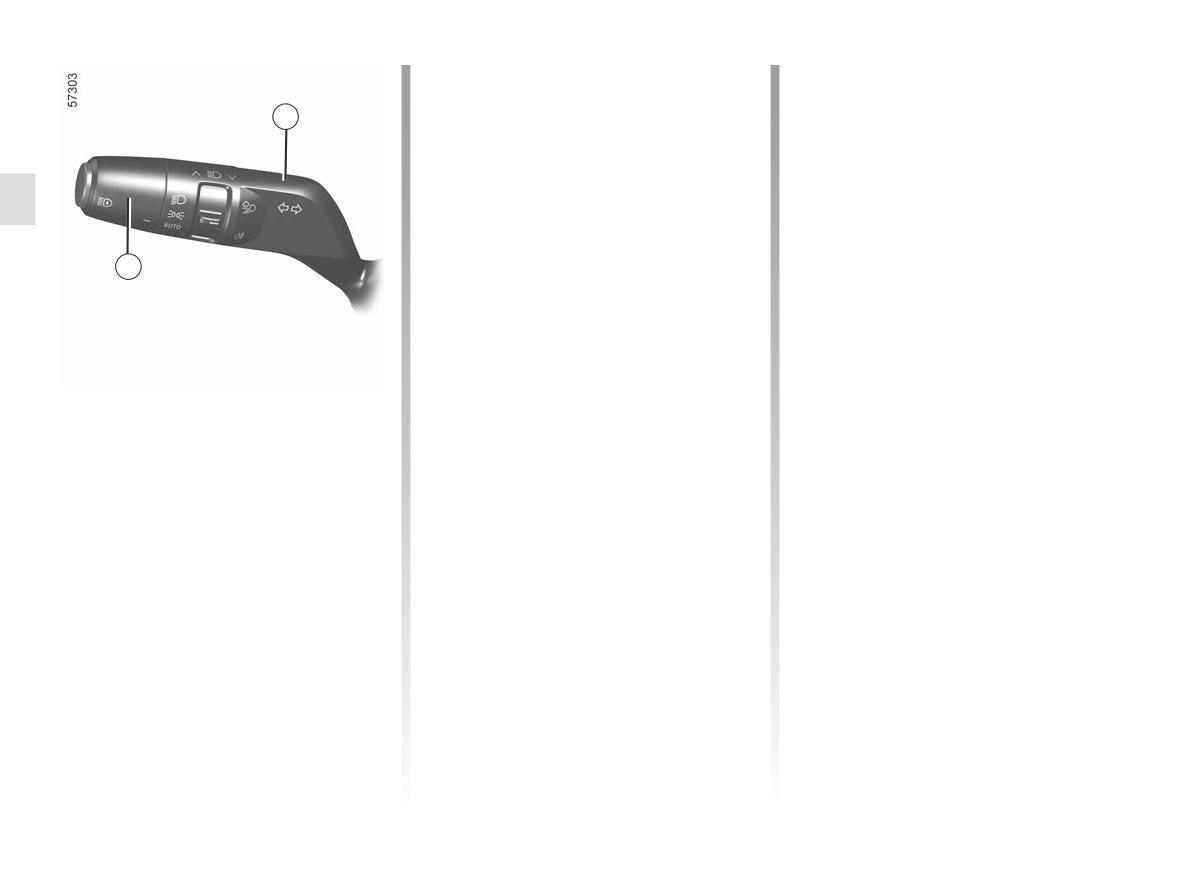

Instrument panel A: lights up when

-

tell-tale

the driver’s door is opened. Press the 1

switch as many times as required to

adjust the brightness.

If no lights or sounds are ap-

parent, this indicates a fault

For your safety, the warning

in the instrument panel. This

light® requires you to

indicates that it is essential

stop immediately as soon

to stop immediately (as soon as traf-

Warning light

©

means you

as traffic conditions allow.

fic conditions allow). Ensure that the

should drive very carefully to an

Switch off the engine and do not re-

vehicle is correctly immobilised and

authorised dealer as soon as

start it. Call an approved Dealer.

contact an approved Dealer.

possible. If you fail to follow this

recommendation, you risk damag-

ing your vehicle.

1.72

WARNING LIGHTS (6/6)

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

Traction battery fault warn-

Electric operating mode





ing light

warning light

If it appears, accompanied by the

It is displayed when only the electric

©

warning light, this indicates a

motor and traction battery are power-

B

fault related to the operation of the trac-

ing the movement of the vehicle ➥ 1.2.

tion battery. Contact your approved

Electric motor fault warning

Dealer straight away.



light

Traction battery gauge indi-

When it comes on, this indicates a fault



cator light

with the electrotechnical system linked

This appears in yellow when the trac-

to the electric motor. Contact your ap-

tion battery charge level has reached

proved Dealer straight away.

the reserve threshold ➥ 1.78.

On display B

Passenger Airbag ON



➥ 1.65

Passenger Airbag OFF

¹

➥ 1.65

The

®

warning light

Seat belt reminder warning

ß

requires you to stop imme-

lights ➥ 1.36

diately, for your own safety,

as soon as traffic conditions

Warning light

©

means you

allow. Switch off the engine and

should drive very carefully to an

do not restart it. Call an approved

authorised dealer as soon as

Dealer.

possible. Failing to follow this rec-

ommendation may result in damage

to your vehicle.

1.77

DISPLAYS AND INDICATORS (1/5)

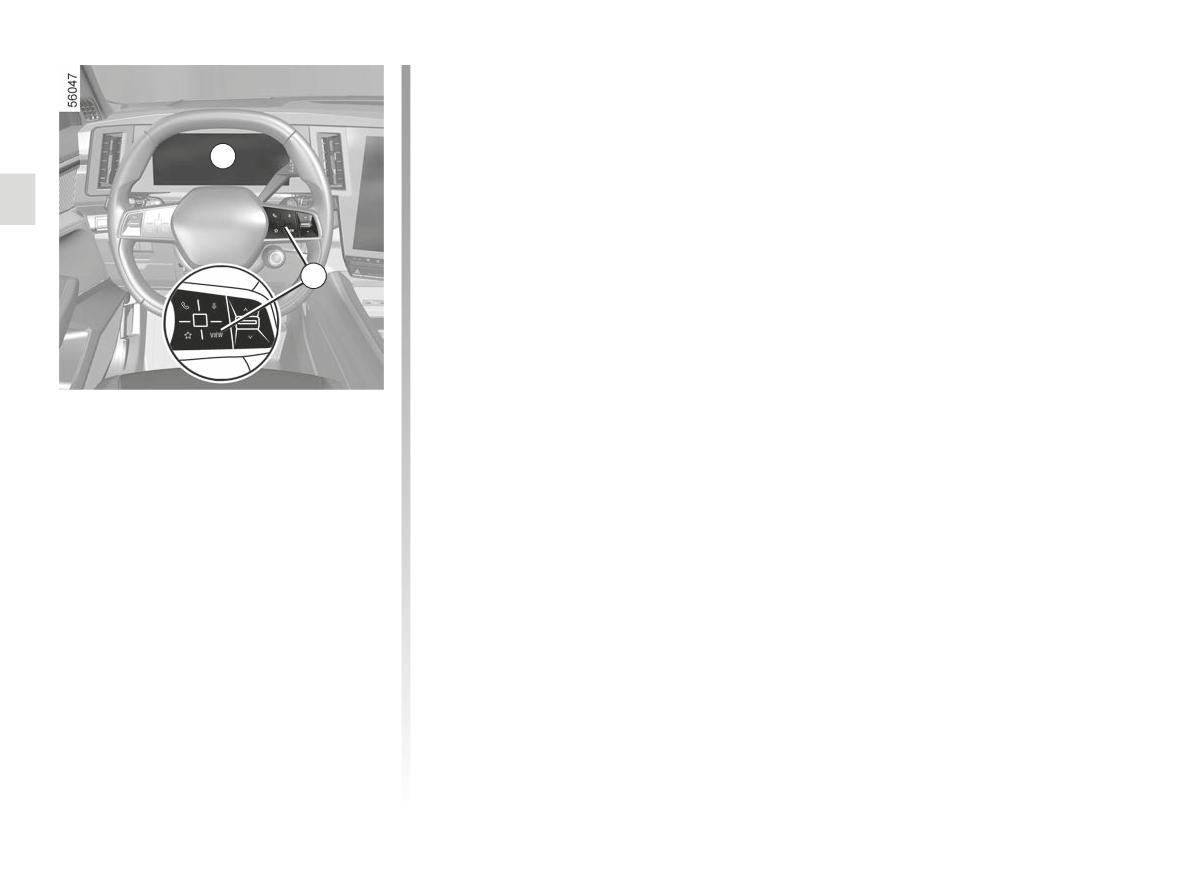

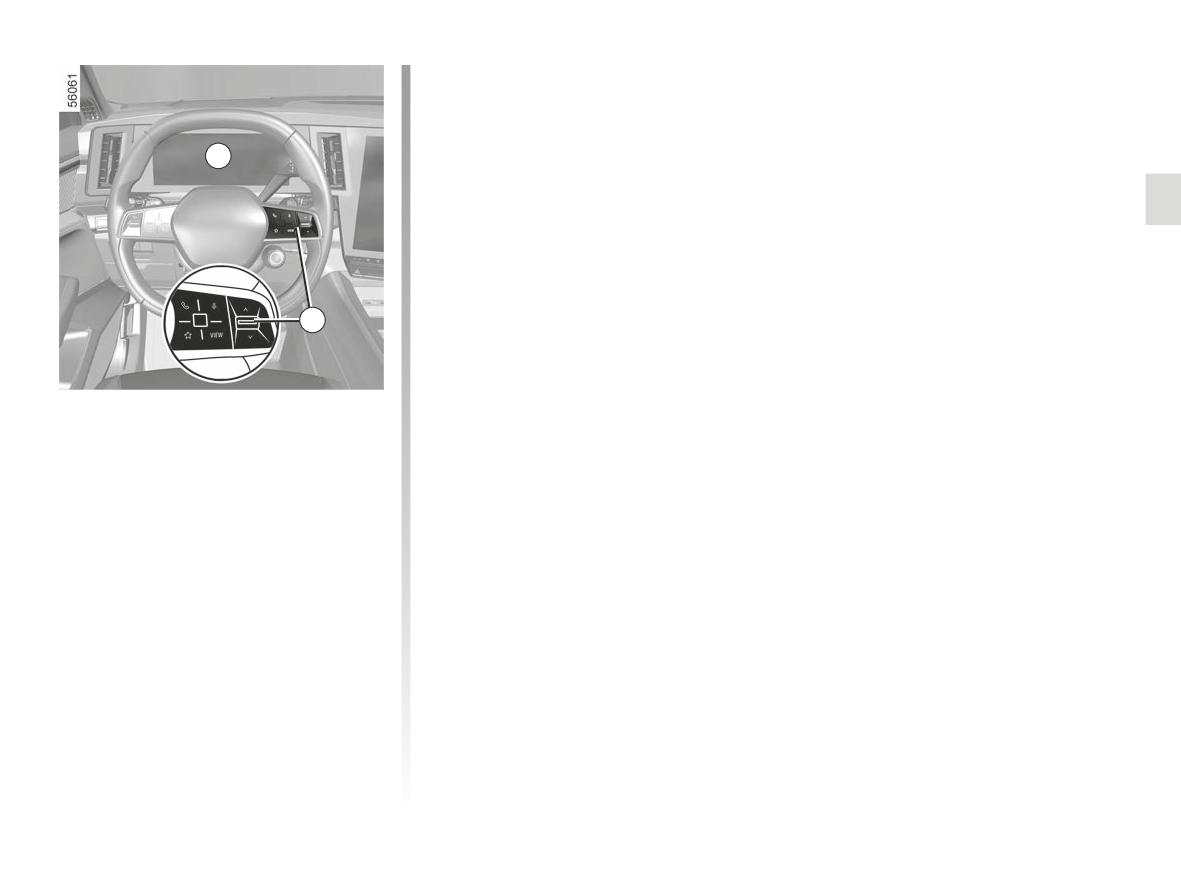

Selection of views

Depending on the vehicle, browse

using the control 1 to select the various

views on the instrument panel A.

A

Several views are proposed:

- classic;

- navigation;

- realistic scene;

1

- minimal.

Instrument panel

lights up when the driver’s door is

opened. In some cases, the appear-

ance of a warning light is accompanied

by a message.

Depending on the vehicle, you can cus-

tomise your instrument panel with the

content and colours of your choice.

1.78

DISPLAYS AND INDICATORS (2/5)

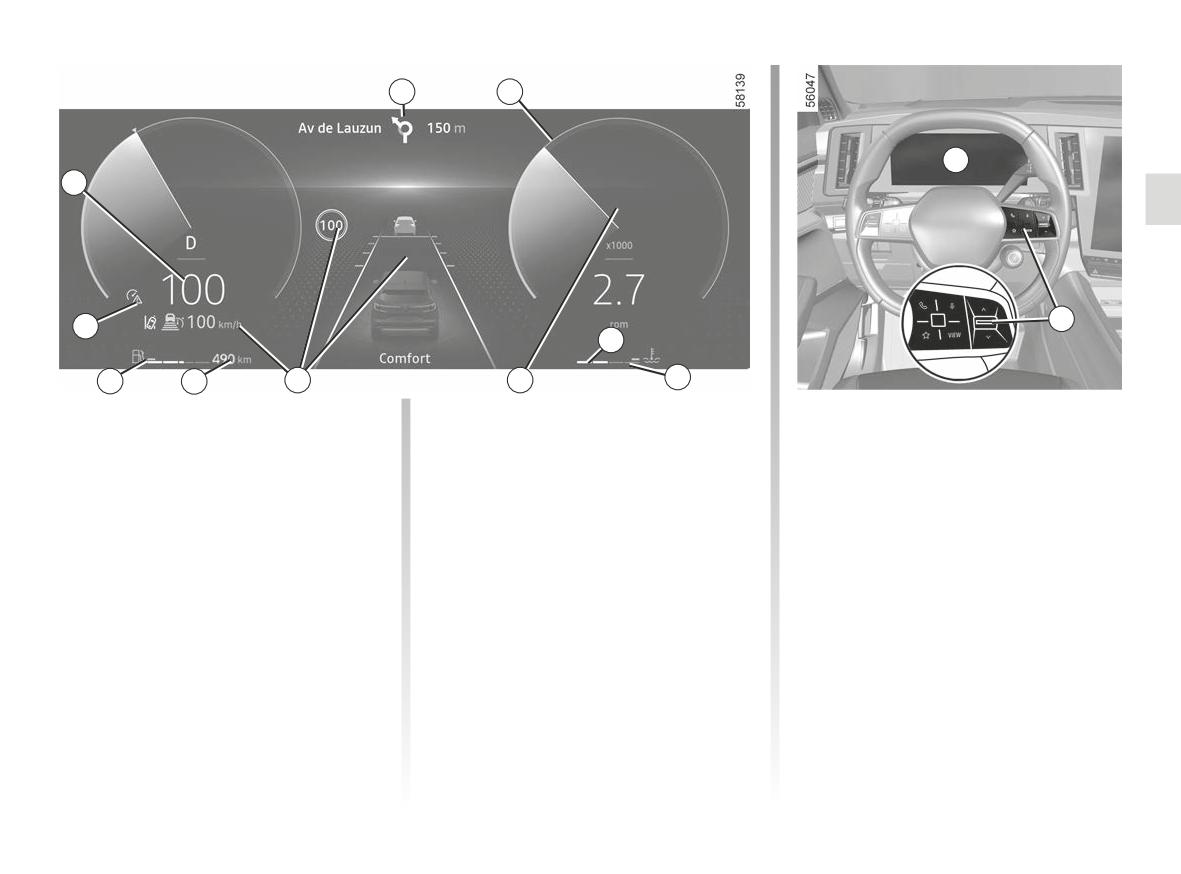

3

4

A

2

12

11

6

10

9

8

7

5

Speedometer 2

Fuel gauge 10

Information area 7

If the level is at the minimum, the inte-

Depending on the vehicle, browse

Information on the navigation in

using the control 12 to select the vari-

progress 3

grated

 warning light appears in

ous widgets on the instrument panel A:

orange, accompanied by a beep. Fill up

- trip computer information (odometer,

Rev counter 4

as soon as possible.

warning messages, etc.);

- multimedia information (compass,

Coolant temperature indicator 6

Overspeed buzzer 11

audio source currently playing, etc.);

In normal use, the 6 indicator should be

Depending on the vehicle and country,

- ...

located on the left-hand side of the 5

zone. Under “intensive” operating con-

the



warning light is displayed

Information on driving aids 8

ditions, the needle may approach this

and a beep sounds. This beep sounds

zone. This is not serious unless the

as soon as the vehicle is travelling at

Estimated mileage with remaining

over 75 mph (120 km/h).

fuel 9

warning light

û comes on accom-

This warning light remains lit for as long

panied by a message on the instrument

as the vehicle is travelling at over

panel and a beep.

74 mph (120 km/h).

1.79

DISPLAYS AND INDICATORS (3/5)

14

13

15

16

17

Special features of the

Regenerative braking level warning

light 16 ➥ 2.19

E-Tech full hybrid version

Traction battery charge level 17

Electric operating mode warning

light 13

It is displayed when only the traction

battery is powering movement of the

vehicle.

Power meter 14

The power meter gives the driver a re-

al-time view of the vehicle’s energy

consumption ➥ 2.29.

Current power indicator 15

1.80

DISPLAYS AND INDICATORS (4/5)

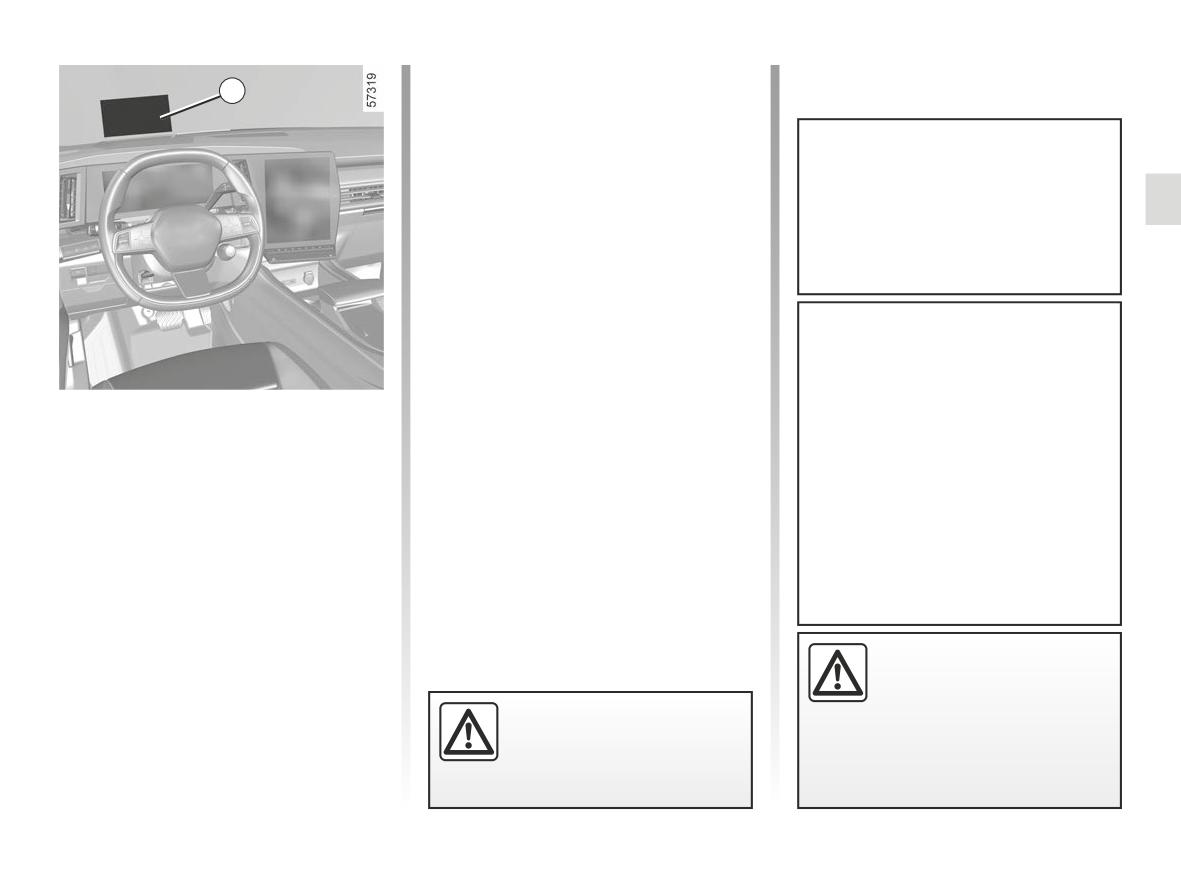

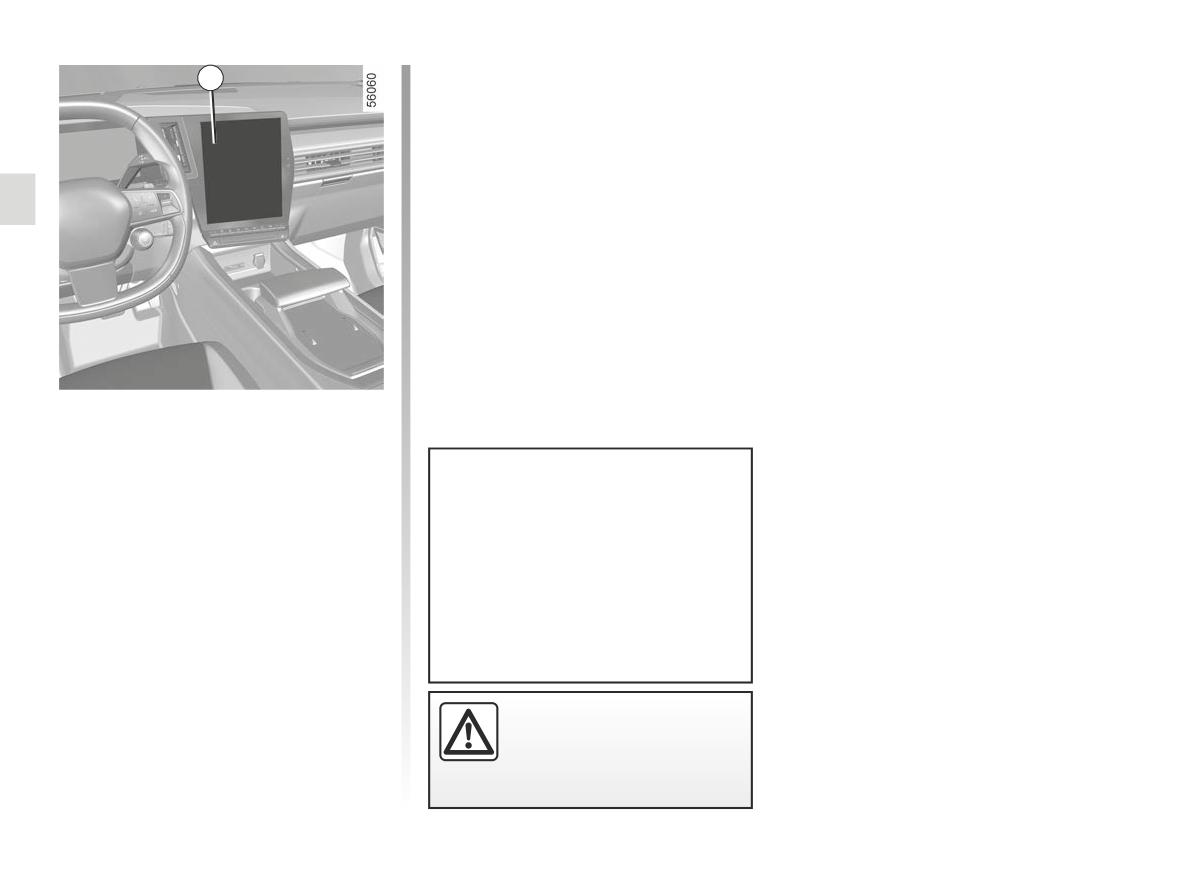

Refer to the multimedia instructions to

18

access the head-up display settings.

Adjusting the display information

height

Do not use solvents, detergents or

Depending on your driving position, you

an abrasive cloth to clean the pro-

can raise or lower the information on

tective film.

the display. You can also slightly rotate

the projected image.

Only use a microfibre wipe.

Adjusting the display brightness

The brightness varies automatically

according to the light level outside the

vehicle. Once the lights are switched

Good information visibility can be af-

on, it is possible to manually adjust the

fected by:

brightness.

Head-up display 18

- the seat position;

The display details driving and navi-

- the presence of an object placed

gation information from the instrument

on the dashboard opening;

panel and the multimedia screen. The

- the polarisation of some spectacle

information is projected onto the wind-

lenses;

screen.

- extreme weather conditions (rain,

If fitted to the vehicle, this is activated

snow, very strong sunlight, etc.).

when the engine is started and is deac-

tivated when the engine is switched off.

Refer to the information dis-

played on the instrument

panel in case of conflicting

For safety reasons, carry

information between the

out any adjustments when

panel and the head-up display/mul-

the vehicle is stationary.

timedia screen.

1.81
