Renault Zoe (2018 year). Instruction - part 5





1.66

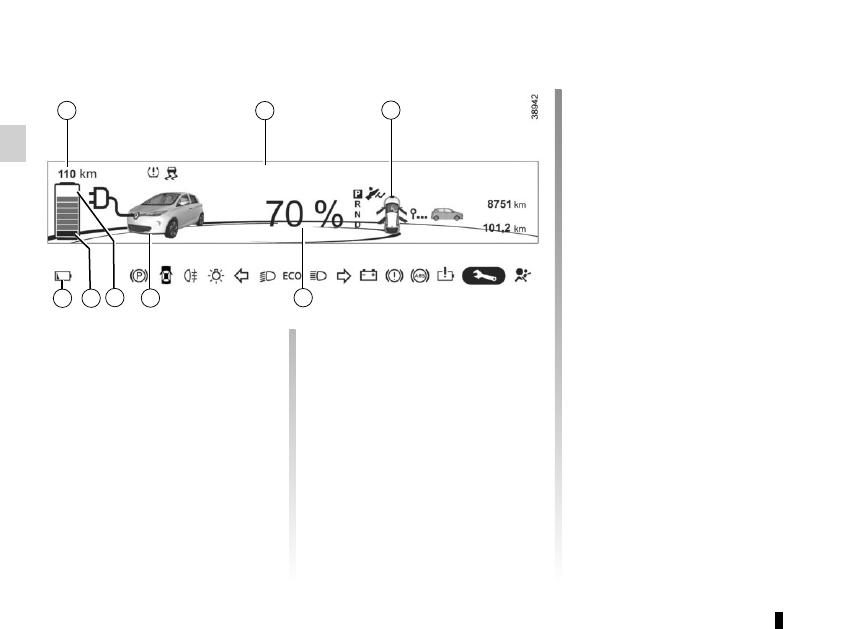

DISPLAYS AND INDICATORS

(2/2)

The presence and operation of the display and indicators DEPENDS ON THE LEVEL OF EQUIPMENT AND THE COUNTRY.

9

11

Estimated range 7

Remaining charge time 8

from about 95% charge, the remaining

charge time is no longer displayed.

Opening element warning

light 9

Shows when a door or the tailgate is

open or not closed properly.

7

Charge level 12

The gauge indicates the level of energy

remaining.

Reserve level 13
This indicates that the traction battery

is at approximately 12% charge. The
warning light 14

 comes on, along

with a beep. The charge level 12 and

range 7 turn orange.

To optimise your range, please see the

information on “Recommendations:

saving energy” in Section 2.

Immobilisation threshold imminent

When the battery reaches less than 6%

charge, a beep comes on and the warn-
ing light 14

 flashes on and off.

When the charge level reaches 5%, the

range value is no longer displayed.

Motor performance gradually de-

creases until the vehicle comes to a

stop.

Refer to the information on “Towing” in

Section 5.

Traction battery charge

load 10

Charging cable “Plugged In”

warning light 11

This comes on when the charging cord

is plugged into the vehicle.

13 12

14

Time remaining : 02:30

8

10

1.67

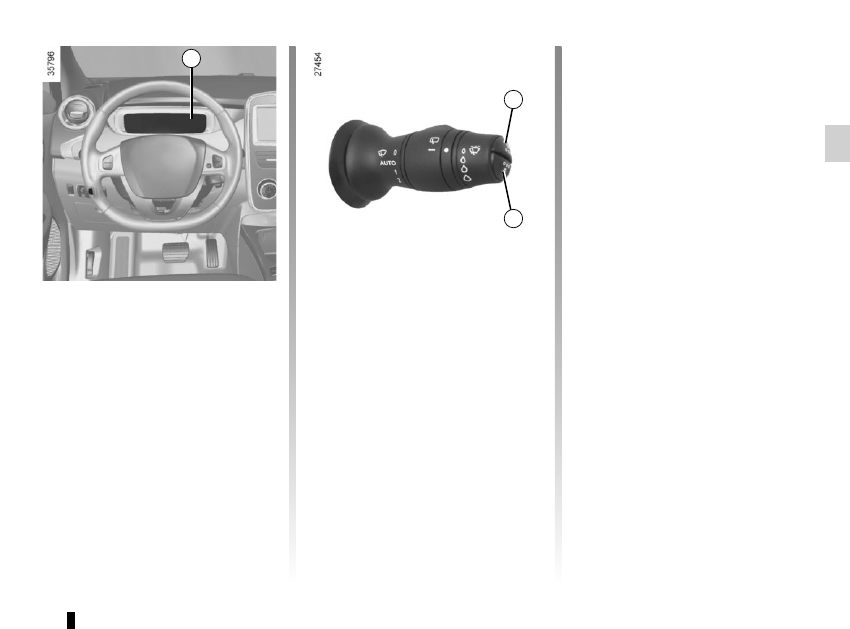

TRIP COMPUTER: general information

(1/2)

Trip computer 1

Depending on the vehicle, this includes

the following functions:
– distance travelled;

– journey parameters;

– information messages;

– operating fault messages (con-

nected to the warning light

©

);

–  warning messages (connected to the

®

 warning light).

All these functions are described on the

following pages.

Display selection keys 2

and 3

Scroll through the following information

upwards (key 2) or downwards (key 3

by pressing briefly and successively

(the display depends on the vehicle

equipment and country).
a)  total mileage and trip mileage re-

corder;

b) journey parameters:

–

current energy consumption;

–

total energy consumption and

distance travelled since the last

reset;

–

average energy consumption and

average speed.

c) service interval;

d) tyre pressure reset;

e) trip log, operating faults and informa-

tion message readout;

f)  depending on the vehicle and only

when stopped, settings customisa-

tion menu:

–

clock;

–

language;

–

automatic locking of the doors

while driving;

–

rear windscreen wiping in reverse

gear;

–

switching off the instrument panel

when charging;

g) depending on the vehicle and only

when stopped, programming menu:

–

charging; activation and setting

the start time;

–

Air conditioning; activation and

setting the start time.

3

2

1

1.68

TRIP COMPUTER: general information

(2/2)

Trip mileage resetting

With “trip mileage recorder” selected on

the display, press the button 2 or 3 until

the mileage recorder resets to zero.

Resetting the journey

parameters (reset button)

with the display showing one of the

journey parameters, press button 2 or 3

until the display is reset.

Automatic resetting of the

journey parameters

Resetting occurs automatically when

the maximum value of any of the pa-

rameters is exceeded.

Reading energy consumption

values

Some vehicle equipment items con-

sume energy: the energy consumed

by the vehicle may therefore differ from

the energy consumed on the electric

counter.

Interpreting some of the

values displayed after

resetting

The values showing average energy

consumption and average speed will

become more stable and reliable the

further you have travelled since the last

time the Reset button was pressed.

3

2

Some on-board computer infor-

mation appears on the navigation

system display.
Resetting the mileage recorder, the

trip settings, etc. is done simulta-

neously on the on-board computer

and the navigation system.

Resetting the estimated

range

After a full recharge of the traction bat-

tery, you can select two types of reset-

ting: manual or automatic.

Manual reset

With one of the trip parameters se-

lected on the display, press and hold

one of buttons 2 or 3 to reset the range.

Automatic reset

The range is automatically reset at the

end of a full recharge of the traction

battery to a value calculated based on

the energy consumption over the last

125 miles (200 km).

1.69

ON-BOARD COMPUTER: trip settings

(1/3)

Examples of selections

Interpreting the display selected

a) Total mileage and trip mileage recorder.

101778 km

    112.4 km

Totals

b) Journey parameters.

20 kWh

Energy consumed since the last reset.

522 km

Distance travelled since the last reset.

Averages

From last reset.

14,6 kWh/100km

Average energy consumption.

The value is displayed after having travelled at least 400 metres since

the last reset.

48 km/h

Average speed since the last reset.

The value is displayed after driving 400 metres.

Direct consump’n

Current energy consumption.

12 kW

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

1.70

ON-BOARD COMPUTER: trip settings

(2/3)

Examples of selections

Interpreting the display selected

Service  in

c) Service interval.

Distance remaining until the next service (displayed in miles/kilome-

tres), then when the service nears, several scenarios are possible:

–

distance/time remaining less than 900 miles (1,500 km) or one

month: the message “Service  in” is displayed accompanied by the

distance or time;

– imminent service: the message “Schedule a service” is displayed,

accompanied by the nearest term (distance or time);

–

mileage before service equal to 0 km/miles or service date

reached: the message “Carry out service” is displayed accompa-
nied by warning light

©

.

The vehicle requires a service as soon as possible.

1,210 miles

or 3 months

Resetting the display after the service in accordance with the maintenance schedule.

The service interval must only be reset after a service which complies with the recommendations in the maintenance schedule.
Special note: To reset the service interval, press and hold one of the display reset buttons for approximately 10 seconds until

the display shows the mileage permanently.

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

1.71

ON-BOARD COMPUTER: trip settings

(3/3)

The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.

Examples of selections

Interpreting the display selected

LEARNING THE  TYRE

PRESSURE

d) Reset the tyre pressure.

Please refer to the information on the “Tyre pressure loss warning” in

Section 2.

Passenger airbag off

e) Trip log.

Successive display:
–

information messages;

–

operating fault messages.

1.72

TRIP COMPUTER AND WARNING SYSTEM: information messages

Examples of messages

Interpreting the display selected

«Disconnect cable to start up»

Indicates that the charging cord is still plugged into the vehicle.

«Please insert keycard»

Indicates that the cardRENAULT is not in the reader.

«Steering wheel not locked»

Indicates that the steering column has not been locked.

«Apply brakes»

Follow these instructions: risk of damage to the motor.

«Check  connections»

Unplug, then plug in the vehicle.

If the message still shows, this may be caused by the external charging conditions

or by the home installation.

«Check charging post»

Indicates a possible electrical fault or a defective charging cable: change the charg-

ing terminal or location or have the cable checked.

«Power cut while charging»

Indicates an electrical fault while charging. Restart charging.

If this does not work, have the electrical installation checked.

«Charging refused no contract»

Charging prohibited by your battery rental organisation. Rectify the situation.

These can help in the vehicle starting phase, or give information about a selection or a driving status.

Examples of information messages are given in the following pages.

1.73

TRIP COMPUTER AND WARNING SYSTEM: operating fault messages

These appear with the

©

 warning light and mean that you should drive very carefully to an authorised dealer as

soon as possible. If you fail to follow this recommendation, you risk damaging your vehicle.
They disappear when the display selection key is pressed or after several seconds and are stored in the computer log. The

©



warning light stays on. Examples of operating fault messages are given in the following pages.

Examples of messages

Interpreting the display selected

«Check airbag»

Indicates a fault in the restraint system in addition to the seat belts. In the event of an

accident, it is possible that they may not be triggered.

«Elec. System to check»

Indicates a fault on one of the pedal sensors or in the 12 V battery management

system.

«Check braking system»

Indicates wear or the need to check the braking system.

«Vehicle plug to be checked»

Indicates overheating at the vehicle-side charging socket. Wait for about 20 minutes

and try again. If this does not work, contact an authorised dealer.

«Elec. System to check»

Indicates a fault in the traction system.

«Always charging»

Indicates a fault on the traction battery recharge system.

1.74

TRIP COMPUTER AND WARNING SYSTEM: warning message

These appear with the warning light

û

  and require you to stop immediately, for your own safety, as soon as traffic

conditions allow. Stop your engine and do not restart it. Contact an Authorised Dealer.

Examples of warning messages are given in the following pages. Note: the messages appear on the display either individually

or alternately (when there are several messages to be displayed), and may be accompanied by a warning light and/or a beep.

Examples of messages

Interpreting the display selected

«Braking system fault»

Indicates a fault in the braking system.

«Power steering fault»

Indicates a fault in the steering.

«Electrical motor fault»

Indicates that the vehicle is losing power.

«Electrical fault danger»

Indicates a fault in the electric system.

“ PUNCTURE “

Indicates that at least one wheel is punctured or severely underinflated.

1.75

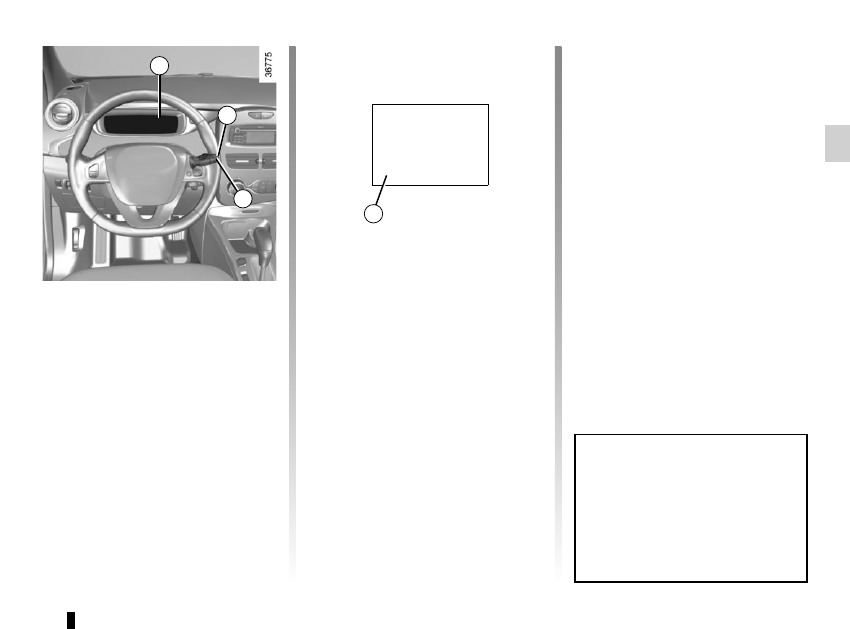

CLOCK AND EXTERIOR TEMPERATURE

(1/2)

–  the minutes flash - press buttons 1

and 2 to set the minutes;

–  hold down button 1 or 2 to confirm

the minutes setting. Your settings are

now saved.

Resetting the clock A

To access the display 3 for setting the

time:
– press button 1 or 2 a few times to

obtain the menu “Time settings”.

Wait for a few seconds.

–  hold down button 1 or 2 - the hours

flash;

– press buttons 1 and 2 to set the hour;

–  hold down button 1 or 2 to confirm

the hour setting;

If the power supply is cut (battery

disconnected, supply wire cut, etc.),

the clock must be reset.
We recommend that you do not

adjust these settings while driving.

9°C 12:00

3

A

1

2

1.76

External temperature

indicator
As ice formation is related

to climatic exposure, local

air humidity and temperature, the

external temperature alone is not

sufficient to detect ice.

External temperature

indicator

Special note:
When the outside temperature is – 3°C

to + 3°C, the °C characters flash (sig-

nalling a risk of ice on the road).

B

End

Clock

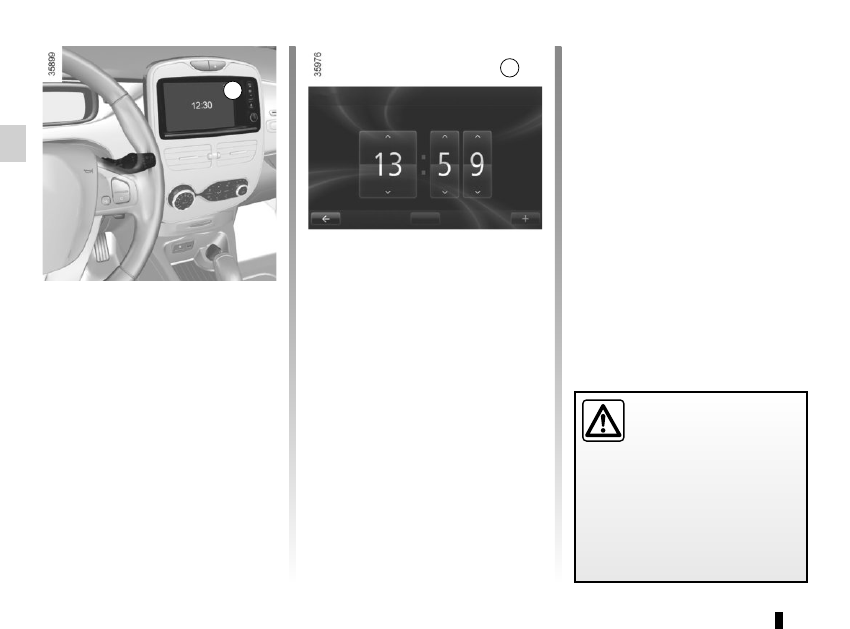

Resetting the clock B

The time setting is done automatically.

You may, however, change this.
On the display B, select “Menu”,

“System ” then “Time settings”.

Set the hours and minutes.

Then confirm your choice.

B

CLOCK AND EXTERIOR TEMPERATURE

(2/2)

1.77

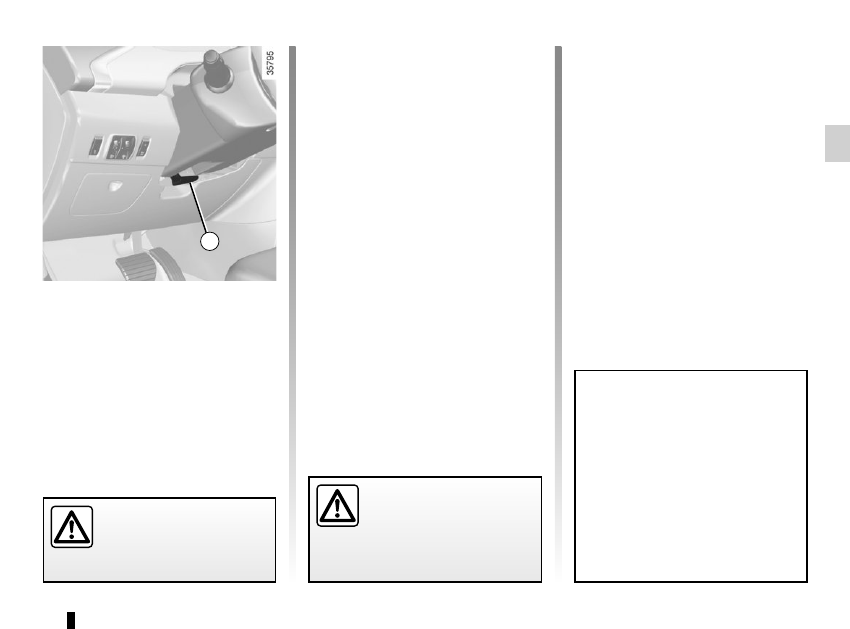

Height and reach adjustment

Pull lever 1 and move the steering

wheel to the required position.
Then, push the lever back fully, beyond

the point of resistance to lock the steer-

ing wheel.
Make sure that the steering wheel is

correctly locked.

Power-assisted steering

The variable power-assisted steering

system is equipped with an electronic

control system which alters the level of

assistance to suit the vehicle speed.
Steering is made easier during parking

manoeuvres (for added comfort) whilst

the force needed to steer increases

progressively as the speed rises (for

enhanced safety at high speeds).

STEERING WHEEL/POWER-ASSISTED STEERING

For safety reasons, only

adjust the steering wheel

when the vehicle is station-

ary.

1

Never switch off the igni-

tion when travelling down-

hill, and avoid doing so in

normal driving (assistance

is not provided).

Never leave the steering wheel on

full lock when the vehicle is station-

ary.
With the engine switched off, or if

there is a system fault, it is still pos-

sible to turn the steering wheel. The

force required will be greater.
A noise may be heard when the

steering wheel is moved quickly.

This is normal.

1.78

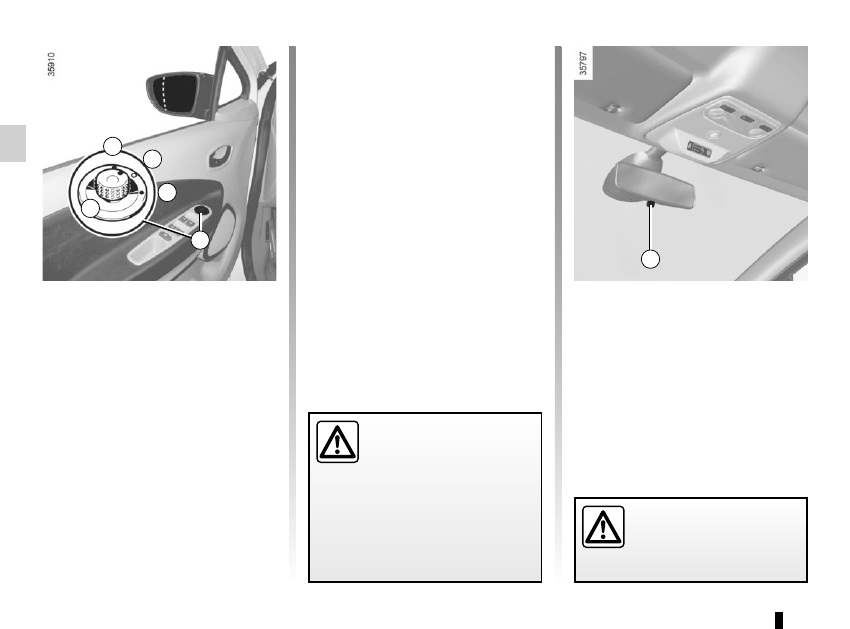

REAR-VIEW MIRRORS

Interior rear view mirror

Its position can be adjusted.
When driving at night, to avoid being

dazzled by the headlights of the vehicle

behind, depress the little lever located

behind rear view mirror 2.

Door mirrors with electrical

adjustment:

With the ignition on, turn button 1:
– position A to adjust the left-hand

door mirror;

– position C to adjust the right-hand

door mirror;

B is the inactive position.

B

A

C

1

2

Objects observed in the

door mirror glass are actu-

ally closer than they appear.
For your safety, take this

into account in order to correctly

assess the distance before any ma-

noeuvre.

For safety reasons, carry

out any adjustments when

the vehicle is stationary.

Heated door mirrors

When the engine is started, mirror de-

icing is activated with the rear screen

de-icing/demisting.

Folding door mirrors

Move button 1 to position D to fold the

door mirrors in. To reset them for dri-

ving, return to position B.
If you fold the door mirrors in manually

before resetting them to driving posi-

tion  B, you must first turn button 1 to

position D.

D

1.79

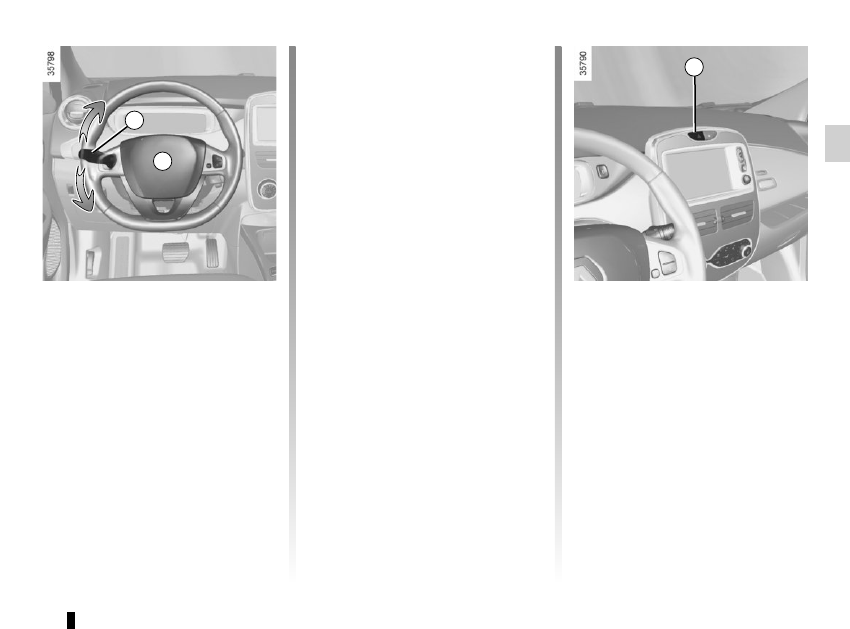

AUDIBLE AND VISUAL SIGNALS

Horn

Press steering wheel boss A.

Headlight flasher

Pull stalk 1 towards you to flash the

headlights.

é

Hazard warning lights

Press switch 2. This switch il-

luminates all four direction indicators

and the side-mounted indicator lights

simultaneously. It must only be used in

an emergency to warn drivers of other

vehicles that you have had to stop in

an area where stopping is prohibited or

unexpected or that you are obliged to

drive under special conditions.
Depending on the vehicle, the hazard

warning lights may come on automati-

cally under heavy deceleration. You can

switch them off by pressing switch 2.

Direction indicators

Move stalk 1 parallel to the steering

wheel and in the direction you are going

to turn it.

One-touch mode
When driving, it is possible that the

steering wheel may not be turned suf-

ficiently to return the stalk automatically

to its starting position.

In this case, briefly turn stalk 1 to the in-

termediate position, then release it: the

stalk returns to its original point and the

indicator light flashes three times.

A

2

1

1.80

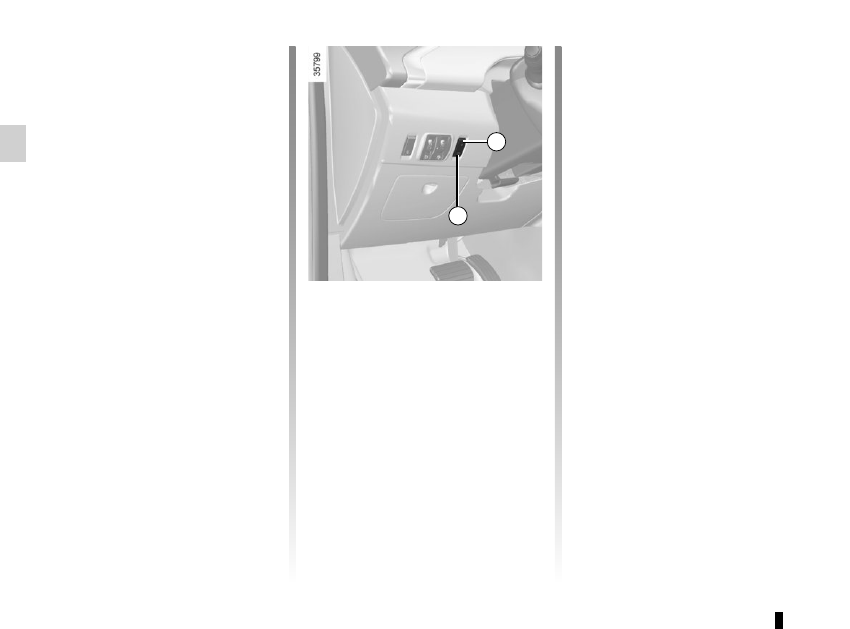

PEDESTRIAN HORN

Electric vehicles are particularly quiet.

This system enables you to warn

people of your presence – especially

pedestrians and cyclists.
The system is activated automatically

when the engine is started. The sound

triggers when the vehicle speed is be-

tween 1 and 20 mph.

Deactivating the system

With the engine running, press the

switch 1 to deactivate the function. The

warning light 2 in the switch 1 comes

on.

Activating the system

With the engine running, press the

switch  1 to activate the function. The

warning light 2 in the switch 1 goes out.

System activated:
– it goes on standby automatically

when the vehicle speed is above ap-

proximately 20 mph (30 km/h);

–  The system is activated automati-

cally when the vehicle is being driven

at a speed below approximately

20 mph (30 km/h).

2

Warning noise selection

–  Keep switch 1 pressed down.

The various sounds will be played in

succession;

–  release switch 1 on the sound of

your choice.

1

1.81

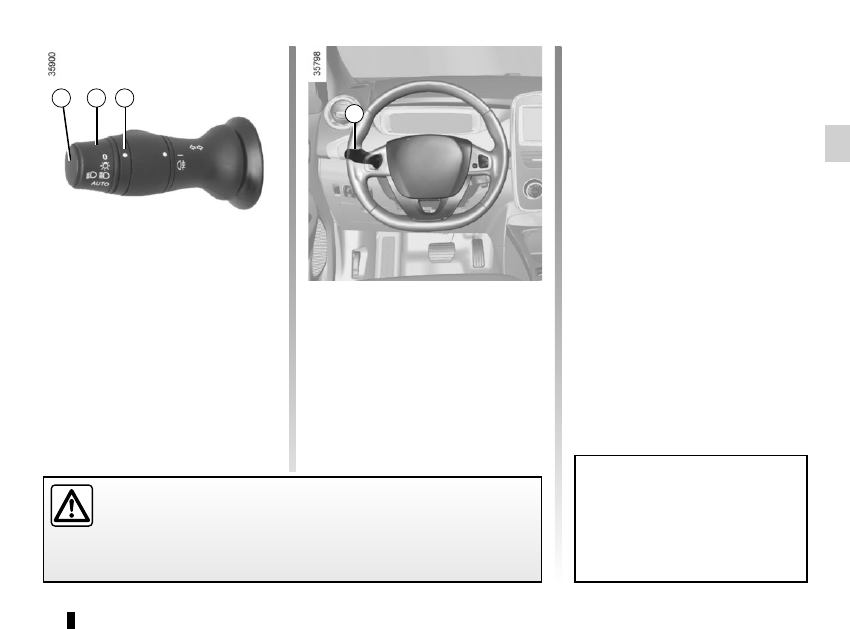

EXTERIOR LIGHTING AND SIGNALS

(1/3)

Before driving at night, check that the electrical equipment is operating

correctly and adjust the headlight beams (if your vehicle is not carrying

its normal load). As a general precaution, check that the lights are not ob-

scured (by dirt, mud, snow or objects being transported).

3

1

k

Dipped beam

headlights

Manual operation

Turn the ring 2 until the symbol is oppo-

site mark 3. This indicator light on the

instrument panel comes on.

Automatic operation

(depending on vehicle)

Turn ring 2 until the AUTO symbol is op-

posite mark 3: with the engine running,

the dipped beam headlights switch on

or off automatically depending on the

brightness of the light outside, without

any action on stalk 1.

2

If driving on the left in a left-hand

drive vehicle (or vice versa), drivers

must have the lights adjusted by an

authorised dealer for the duration of

the trip.

1

u

Side lights

Turn the ring 2 until the symbol

is opposite mark 3. This indicator light

on the instrument panel comes on.

Daytime running lights

The daytime running lights come on

automatically with no action on stalk 1

when the engine is started, and they go

off once the engine is switched off.















Content   ..  3  4  5  6   ..
