Renault Zoe (2018 year). Instruction - part 4

1.50

In the rear side seat
A carrycot can be installed across the

vehicle and will take up at least two

seats. Position the child with his or her

feet nearest the door.
Move the front seat as far forward as

possible to install a rear-facing child

seat, then move back the seat in front

as far as it will go, although without al-

lowing it to come into contact with the

child seat.
For the safety of the child in the for-

ward-facing seat, do not move the seat

in front back past the middle of the

runner, do not tilt the seatback too far

(maximum of 25°) and raise the seat as

much as possible.
Always remove the headrest from the

rear seat used for the child seat (see

“Rear headrests” in Section 3). If nec-

essary, position the rear seat as far

back as possible. This must be done

before fitting the child seat. Check that

the child seat is resting against the

back of the rear seat.

Make sure that the child

seat or the child’s feet do

not prevent the front seat

from locking correctly. Refer

to the information on the “Front seat”

in Section 1.

A child seat with a floor sup-

port must never be installed

on the rear centre seat.
RISK OF DEATH OR

SERIOUS INJURY.

Rear centre seat
Check that the belt is suitable for se-

curing your child seat. Consult an ap-

proved dealer.

CHILD SAFETY: fitting a child seat

(2/6)

When fitting a child seat

(Group 2 or 3 booster seat),

check that the seat belts op-

erate (wind) correctly: refer

to Section 1 “Rear seat belts”. If

necessary, adjust the position of the

vehicle seat.

1.51

²

 Seat not suitable for fitting child

seats.
Child seat attached using the belt

¬

Seat which allows a child seat

with “Universal” approval to be at-

tached by a seat belt.

−

Seat which only allows a rear-

facing standardised “Universal” seat to

be installed using a seat belt.

³

 Check the status of the air bag

before fitting a child seat or allowing a

passenger to use the seat.

RISK OF DEATH OR

SERIOUS INJURY: Before

fitting a child seat on the

front passenger seat, check

that the airbag has been deacti-

vated (refer to the information on

“Child safety: deactivating/activat-

ing the front passenger airbag” at

the end of the section).

Child seat attached using the ISOFIX

mounting

ü

 Seat which allows an ISOFIX

child seat to be fitted.

±

 The seats ISOFIX are fitted

with an anchorage point which allows

a forward-facing ISOFIX child seat with

“Universal” approval to be attached.

The anchorage points are located in the

boot for the rear seats, and on the seat

back for the front seat.
The size of the ISOFIX child seat is in-

dicated by a letter:
–  A, B and B1: for forward-facing seats

in group 1 (9 to 18 kg);

–  C and D: shell seat or rear-facing

seats in group 0+ (less than 13 kg)

or group 1 (9 to 18 kg);

–  E: rear-facing shell seats in group

0 (less than 10 kg) or 0+ (less than

13 kg);

–  F and G: carrycots in group 0 (less

than 10 kg).

Using a child safety system which is not approved for this vehicle will not

correctly protect the baby or child. They risk serious or even fatal injury.

CHILD SAFETY: fitting a child seat

(3/6)

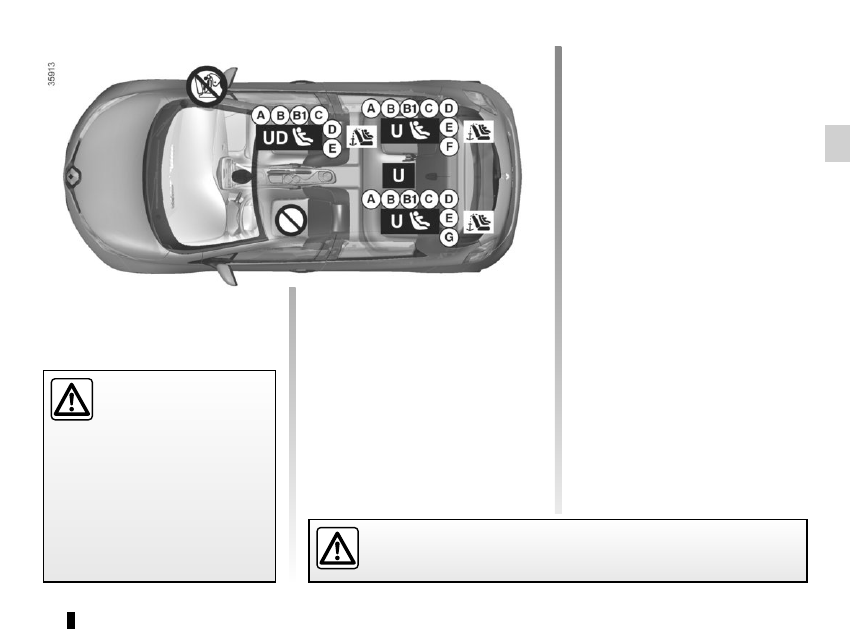

Visual installation of the five-door version

1.52

CHILD SAFETY: fitting a child seat

(4/6)

The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-

tions in force are respected.

Type of child seat

Weight of

the child

Seat size

Front passenger

seat (5) (1)

Rear side seats Rear centre seat

Carrycot fitted across the

vehicle

Group 0

< 10 kg

F, G

X

U - IL (2)

X

Rear-facing shell seat

Group 0 or 0+

< 10

kg and

< 13 kg

E

U - IL

U - IL (3)

U (3)

rear-facing seat

Group  0+ and 1

< 13 kg and 9 to

18 kg

C, D

U - IL

U - IL (3)

U (3)

Forward-facing seat

Group 1

9 to 18 kg

A, B, B1

IUF - IL

U - IUF - IL (4)

U (4)

Booster seat

Group 2 and 3

15 to 25 kg and

22 to 36 kg

-

X

U (4)

U (4)

X =  Seat not suitable for fitting child seats.

U =  Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.

IUF/IL =   On equipped vehicles, seat which allows an approved “Universal/semi-universal” or vehicle specific” child seat to be at-

tached using the ISOFIX system; check that it can be fitted.

(1) raise the seat to the maximum and position it as far back as possible, tilting the seatback slightly (approximately 25°).

(2)  A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest

the door.

(3)  Move the front seat as far forward as possible to install a rear-facing child seat, then move back the seat in front as far as it will

go, although without allowing it to come into contact with the child seat.

(4)  Forward-facing child seat; position the seatback of the child seat in contact with the seatback of the vehicle seat. Adjust the

headrest, or remove it if necessary. Do not push the front seat more than halfway back on its runners and do not recline the

seatback more than 25°.

(5) RISK OF DEATH OR SERIOUS INJURY: before installing a child seat on the front passenger seat, check that the

air bag has been deactivated (refer to “Child safety: front passenger air bag deactivation/activation” Section 1).

1.53

³

  Check the status of the airbag

before fitting a child seat or allowing a

passenger to use the seat.

Child seat fitted using the  ISOFIX

mounting

ü

 seat which allows an ISOFIX child

seat to be fitted.

±

 The passenger seat is fitted

with an anchorage point for attaching

a universal ISOFIX forward-facing child

seat. The anchorage point is on the

seatback.
The size of the ISOFIX child seat is in-

dicated by a letter:
–  A, B and B1: for forward-facing seats

in group 1 (9 to 18 kg);

–  C and D: shell seat or rear-facing

seats in group 0+ (less than 13 kg)

or group 1 (9 to 18 kg);

–  E: rear-facing shell seats in group 0

(less than 10 kg) or 0+ (less than

13 kg);

²

 Seat not suitable for fitting child

seats.
Child seat attached using the belt

−

  Seat which allows a rearfac-

ing seat with “universal” approval only

to be attached with a seat belt.

Using a child safety system which is not approved for this vehicle will not

correctly protect the baby or child. They risk serious or even fatal injury.

RISK OF DEATH OR

SERIOUS INJURY: Before

installing a child seat on the

front passenger seat, check

that the airbag has been deacti-

vated (please refer to “Child safety:

front passenger airbag deactivation

and activation” in Section 1).

CHILD SAFETY: fitting a child seat

(5/6)

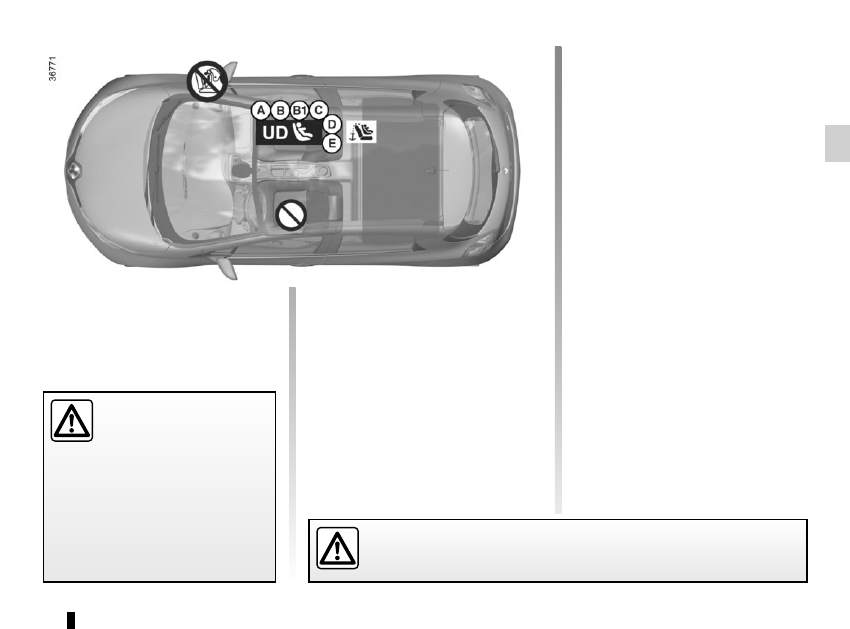

View of the utility version installation

1.54

Utility version

Type of child seat

Weight of

the child

Seat size ISOFIX

Front passenger

seat (1) (2)

Rear-facing shell

seat

Groups 0 or 0 +

< 10 kg and

< 13 kg

E

U - IL

Shell seat/rear-facing

seat

Groups 0+ and 1

< 13 kg and 9 to

18 kg

C, D

U - IL

Forward-facing seat

Group 1

9 to 18 kg

A, B, B1

IUF - IL

Booster seat

Groups 2 and 3

15 to 25 kg and

22 to 36 kg

–

X

(1) RISK OF DEATH OR SERIOUS INJURY: Before installing a child

seat on the front passenger seat, check that the airbag has been deacti-

vated (please refer to “Child safety: front passenger airbag deactivation

and activation” in Section 1).

The table below summarises the information already shown on the diagram on

the previous page, to ensure the regulations in force are respected.

U  =  Seat which allows a child seat with

“Universal” approval to be installed

using a seat belt; check that it can

be fitted.

UD =  Seat which only allows a rear-

facing standardised “Universal”

seat to be installed using a seat

belt.

IUF/IL =   On equipped vehicles, seat

which allows an approved

“Universal/semi-universal” or

“vehicle specific” child seat to

be attached using the ISOFIX

system; check that it can be

fitted.

(2)  Raise the seat to the maximum and

position it as far back as possible,

tilting the seatback slightly (approxi-

mately 25°).

CHILD SAFETY: fitting a child seat

(6/6)

1.55

CHILD SAFETY: deactivating, activating the front passenger airbag

(1/3)

Deactivating the front

passenger airbags

(on equipped vehicles)
You must deactivate the devices in ad-

dition to the front passenger seat belt

before fitting a child seat in the front

passenger seat.

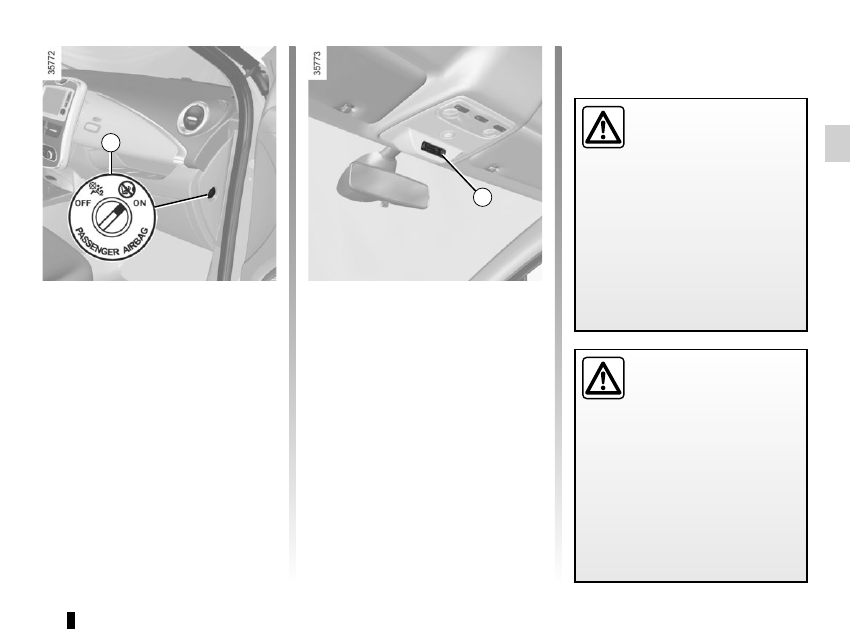

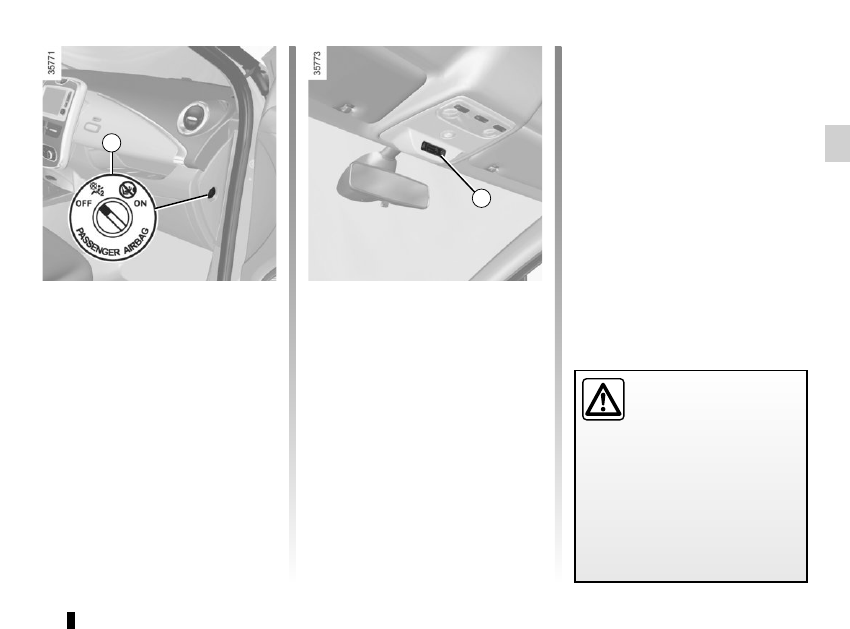

To deactivate the  airbags : when the

vehicle is stationary, push and turn

lock 1 to position OFF.
With the ignition on, you must check

that the

]

 warning light on the cen-

tral display 2 is well lit and, (depend-

ing on the vehicle), that the message

“airbag passenger deactivated” is dis-

played.
This light remains permanently lit to

let you know that you can fit a child

seat.

1

2

The passenger air bag must

only be deactivated or acti-

vated with the ignition off.

If it is interfered with when

the vehicle is being driven, indicator

lights

å

 and

©

 will come

on.

Switch the ignition off then on again

to reset the air bag in accordance

with the lock.

1.56

3

CHILD SAFETY: deactivating, activating the front passenger airbag

(2/3)

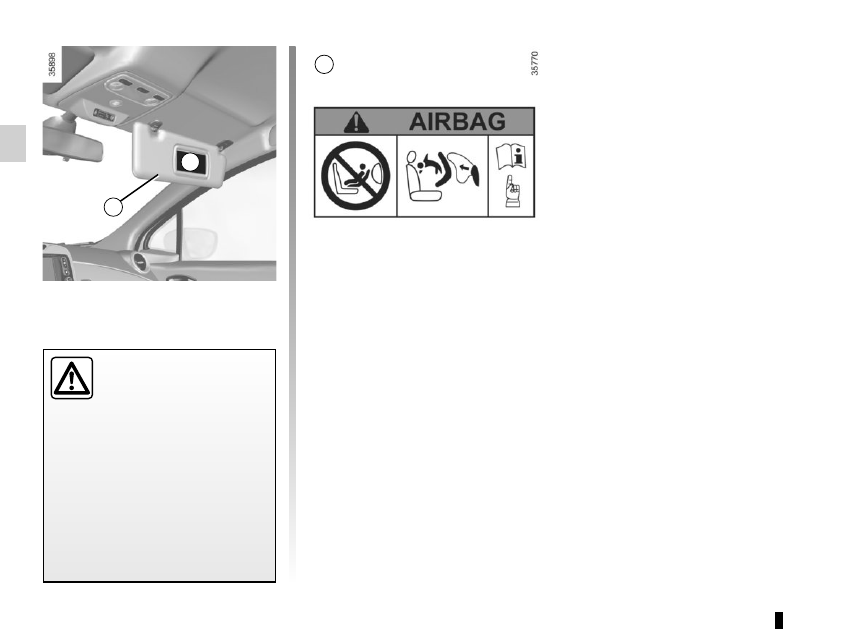

The markings on the dashboard and

labels  A on each side of the passen-

ger sun visor 3 (example: label shown

above) remind you of these instruc-

tions.

A

A

DANGER
Since operation of the front

passenger airbag is not

compatible with the position

of a rear-facing child seat, NEVER

fit a restraint system for a rear-fac-

ing child in a seat protected by an

ACTIVATED front AIRBAG. This

can cause the CHILD’S DEATH or

SERIOUS INJURY.

1.57

CHILD SAFETY: deactivating, activating the front passenger airbag

(3/3)

Activating the front

passenger air bags

You should reactivate the airbags as

soon as you remove the child seat from

the front passenger seat to ensure the

protection of the front passenger in the

event of an impact.
To reactivate the  airbags : when the

vehicle is stationary, push and turn

lock 1 to position ON.
With the ignition switched on, you must

check on the display 2 that the warning

light

]

 is out and that the warning

light



 comes on after each start-

up for around 60 seconds.

The front passenger seat belt additional

restraint systems are activated.

Operating faults

It is forbidden to fit a rear-facing child

seat to the front passenger seat if the

airbags activation/deactivation system

is faulty.
Allowing any other passenger to sit in

that seat is not recommended.
Contact your approved dealer as soon

as possible.

The passenger airbag must

only be deactivated or acti-

vated when the vehicle is

stationary.

If it is interfered with when the ve-

hicle is being driven, indicator lights

å

 and

©

 will come on.

Switch the ignition off then on again

to reset the airbag in accordance

with the lock position.

1

2

DANGER
Since operation of the front

passenger airbag is not

compatible with the position

of a rear-facing child seat, NEVER

fit a restraint system for a rear-fac-

ing child in a seat protected by an

ACTIVATED front AIRBAG. This

can cause the CHILD’S DEATH or

SERIOUS INJURY.

1.58

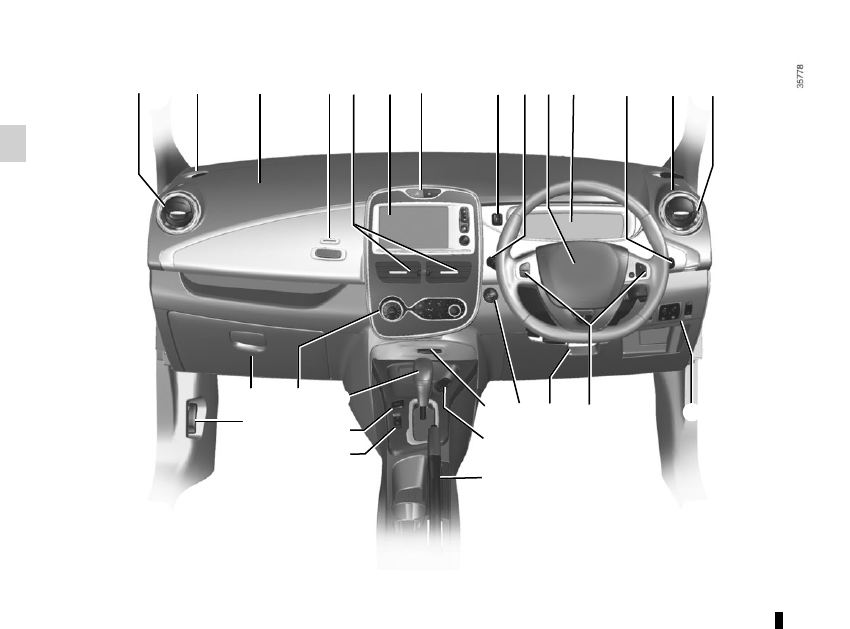

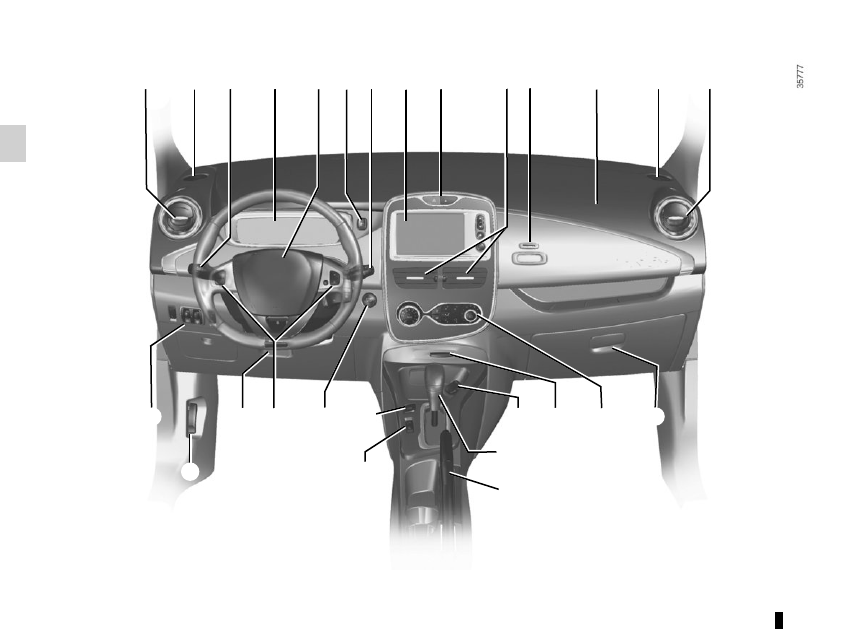

DRIVING POSITION: LEFT-HAND DRIVE

(1/2)

1

2

3

4

5

7

12

2

1

13

14

16

19

15

18

21

24

23 22

25

20

8

9

10

6

17

11

1.59

DRIVING POSITION: LEFT-HAND DRIVE

(2/2)

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

1  Side air vent.
2  Side window demister outlet.
3 Stalk for:

–  direction indicator lights,
– exterior lights,
–  rear fog light.

4 Instrument panel.
5  Driver airbag and horn location.
6  Ambiance selection switch.
7 –

Windscreen wiper/washer stalk,

–

On-board computer information

readout control and vehicle set-

tings personalisation menu.

8  Multimedia touch screen or radio.

9 –

Central door locking/unlocking

controls.

  –  Hazard warning lights switch.
10  Centre air vents.
11 Fragrance diffuser.
12 Passenger airbag location.
13  Glovebox.
14  Air-conditioning control.
15 Card reader RENAULT.
16  Accessories socket.
17  Gear lever.
18 Handbrake.
19 Main switch for:

– speed limiter;

– cruise control.

20  ECO mode activation/deactivation

control.

21  Engine start/stop button.
22  Cruise control/speed limiter controls.
23  Control for adjusting steering wheel

height.

24   Bonnet release control.
25  Controls for:

–

unlocking the charging flap and

the charging socket;

–

headlight beam height remote ad-

justment;

–

lighting dimmer for control instru-

ments;

–

activation/deactivation and selec-

tion of pedestrian warning noise.

1.60

DRIVING POSITION: RIGHT-HAND DRIVE

(1/2)

2

3

10 11

19

1

8

2

13

20

12

14

5

15

1

23

7

18

9

21

22

24
25

6

16

17

4

1.61

DRIVING POSITION: RIGHT-HAND DRIVE

(2/2)

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

1  Side air vent.
2  Side window demister outlet.
3 Passenger airbag location.
4 Fragrance diffuser.
5   Centre air vents.
6  Multimedia touch screen or radio.
7 –

Central door locking/unlocking

controls.

  –  Hazard warning lights switch.
8  Ambiance selection switch.
9 Stalk:

–  direction indicator lights,
– exterior lights,
–  rear fog light.

10 Driver airbag and horn location.
11 Instrument  panel.

12 –   Windscreen wiper/washer stalk,

–

On-board computer information

readout control and vehicle set-

tings personalisation menu.

13  Controls for:

–

unlocking the charging flap and

the charging socket;

–

headlight beam height remote ad-

justment;

–

lighting dimmer for control instru-

ments;

–

activation/deactivation and selec-

tion of pedestrian warning noise.

14  Cruise control/speed limiter controls.
15  Control for adjusting steering wheel

height.

16  Engine start/stop button.

17 Card reader RENAULT.
18  Accessories socket.
19 Handbrake.
20 Main switch for:

– speed limiter;

– cruise control.

21  ECO mode activation/deactivation

control.

22  Gear lever.
23  Air-conditioning control.
24  Glovebox.
25   Bonnet release control.

1.62

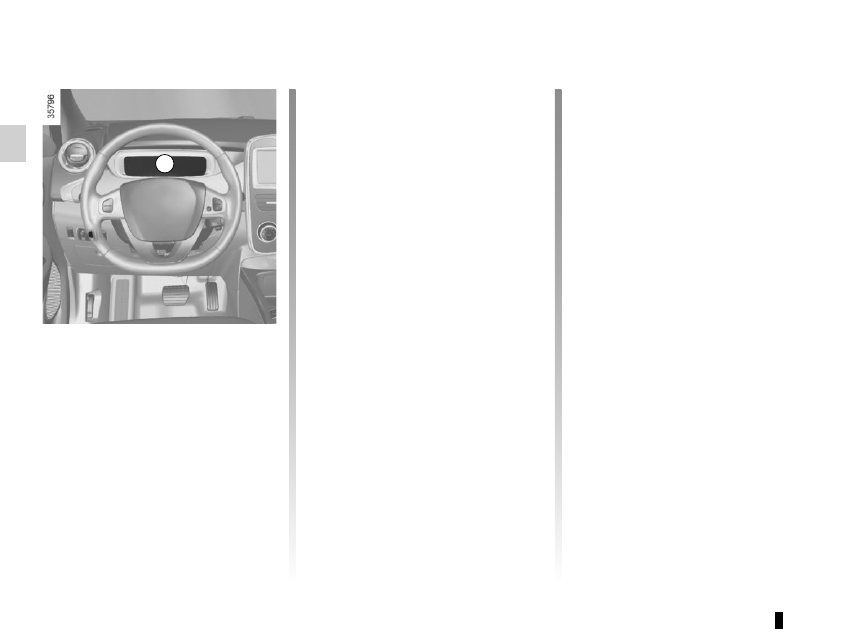

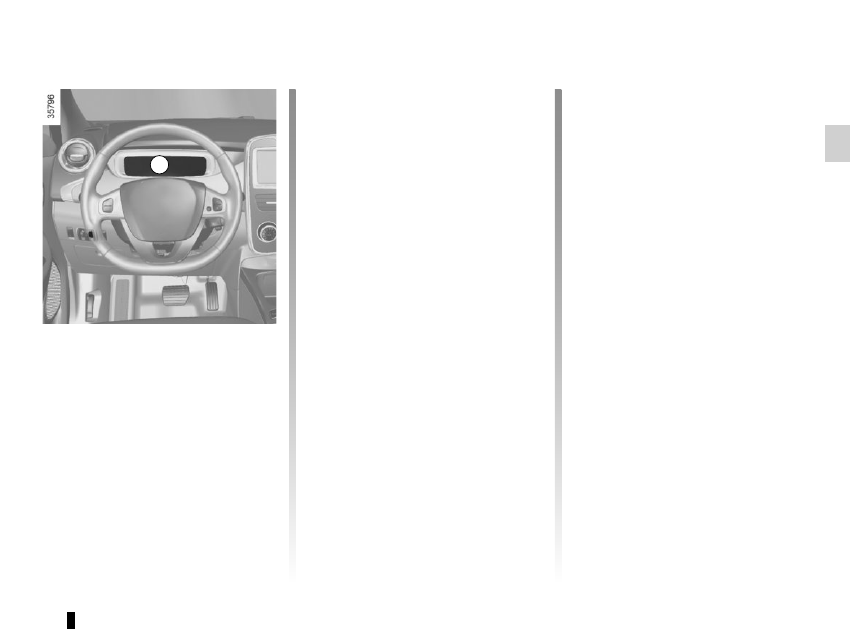

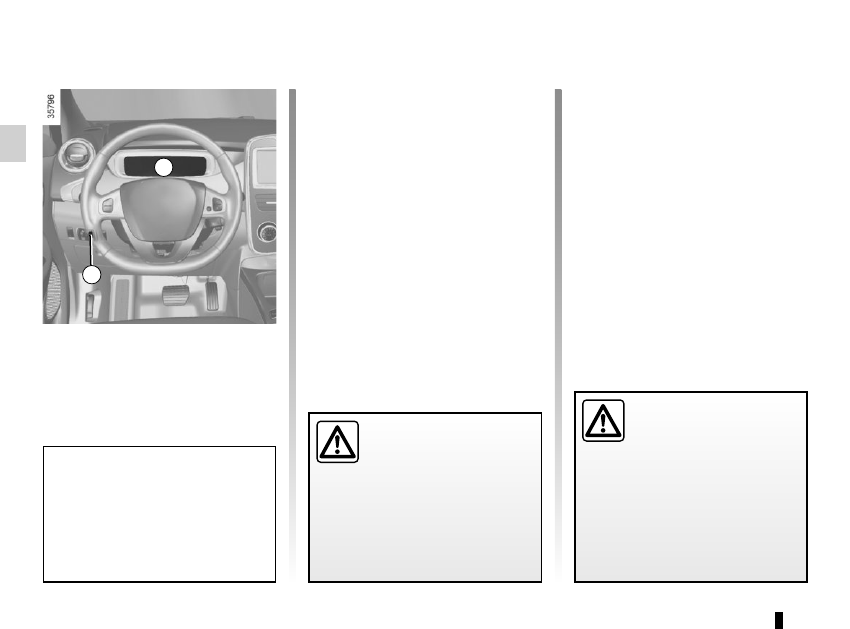

Instrument panel  A: lights up when

the headlamps are switched on. The

brightness can be adjusted by turning

the control knob 1.

In some cases, the appearance of a

warning light is accompanied by a mes-

sage.

WARNING LIGHTS

(1/3)

The

©

 warning light means

you should drive very carefully to

an approved dealer as soon as pos-

sible. If you fail to follow this recom-

mendation, you risk damaging your

vehicle.

A

å

Air bag warning light
This comes on when the igni-

tion is switched on and goes out after a

few seconds.

If it does not light up when the ignition

is switched on, or if it lights up when the

engine is running, it indicates a fault in

the system.

Contact your approved Dealer as soon

as possible.

}

Handbrake “on” warning

light

Please refer to “Handbrake” section in

Section 2.

u

Side light tell-tale light



á

Main beam headlight tell-tale

light

k

Dipped beam headlight tell-

tale light

f

Rear fog light tell-tale light

c

Left-hand direction indicator

tell-tale light

b

Right-hand direction indica-

tor tell-tale light

If no lights or sounds are ap-

parent, this indicates a fault

in the instrument panel. This

indicates that it is essential

to stop immediately (as soon as traf-

fic conditions allow). Ensure that the

vehicle is correctly immobilised and

contact an approved Dealer.

The

û

 warning light re-

quires you to stop immedi-

ately, for your own safety,

as soon as traffic conditions allow.

Switch off the engine and do not

restart it. Contact an Authorised

Dealer.

1

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

1.63

WARNING LIGHTS

(2/3)

û

STOP light

This lights up when the ignition

is switched on and goes out as soon as

the engine is started. It comes on with

other warning lights and/or messages,

and is accompanied by a beep.
It requires you to stop immediately, for

your own safety, as soon as traffic con-

ditions allow. Switch off the engine and

do not restart it.
Contact an approved Dealer.

D

Brake circuit fault warning

light

If it comes on during braking and is ac-

companied by the

û

 warning light

and a beep, it indicates that the fluid

level in the circuit is low or that there is

a braking system fault. Stop as soon as

traffic conditions allow and contact an

authorised dealer.

Ú

Secondary 12 V battery

charge warning light

If it comes on together with the

û



warning light and a beep, this means

that the electrical circuit is overcharged

or discharged.

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

©

Warning light

This lights up when the ignition

is switched on and goes out as soon as

the engine is started. It can light up in

conjunction with other warning lights

and/or messages on the instrument

panel.

It means you should drive very care-

fully to an approved dealer as soon as

possible. If you fail to follow this recom-

mendation, you risk damaging your ve-

hicle.

ß

Front seat belt reminder

warning light

It lights up on the central display when

the engine is started and, if the driv-

er’s seat belt is not fastened, the light

flashes and a beep sounds for about

two minutes when the vehicle reaches

a speed of approximately 12 mph

(20 km/h).

Р

Ï

Cruise control and

speed limiter indica-

tor lights
Refer to the information on “Cruise con-

trol/speed limiter” in Section 2.

A

1.64



Electrotechnical system

warning light

When the warning light comes on, this

indicates that the traction battery tem-

perature is too low or that the engine or

traction battery temperature is too high.

Opt for a calmer driving style.

The warning light can lead to a drop

in vehicle performance.
If it comes on when you start the vehi-

cle, this indicates a fault in the second-

ary 12 V battery.



Low traction battery level

warning light

It flashes when the traction battery

charge level has reached the reserve

threshold. Please see the informa-

tion on “Displays and indicators” in

Section 1.



 ECO mode function light

This lights up when the function is ac-

tivated.

WARNING LIGHTS

(3/3)



Electrotechnical system

warning light

If it lights up while driving, this means

there is an electrotechnical fault in the

“400 Volt” electrical circuit. Please see

an authorised dealer as soon as pos-

sible.



Electronic Stability Program

(ESC) and traction control

system warning light

There are several reasons for the warn-

ing light coming on: please refer to the

information on “Driver correction de-

vices and aids” in Section 2.



Tyre pressure loss warning
Please refer to the information

on the “Tyre pressure loss warning” in

Section 2.

ð

Seat heating indicator light

Refer to the information on the

“Front seats” in Section 1.

2

 Door(s) open warning light

x

Anti-lock braking warning

light

This lights up when the ignition is

switched on and goes out after a few

seconds.
If it does not go out after the ignition is

switched on, or lights up when driving,

there is a fault with the ABS. Braking

will then be as normal, without the ABS.

Contact an approved Dealer as soon as

possible.

The presence and operation of the warning lights DEPEND ON THE EQUIPMENT AND COUNTRY.

A

1.65

DISPLAYS AND INDICATORS

(1/2)

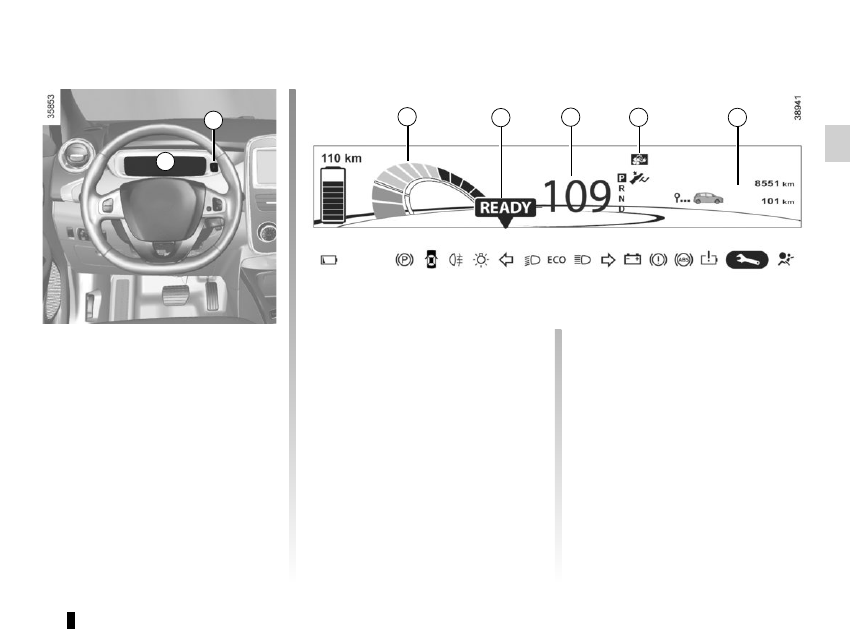

You may customise your instrument

panel  A with content and colours of

your choice.

Press the switch 1 repeatedly to obtain

the desired display.

Charge meter 2

Please refer to the information on the

“Charge meter” in Section 2.

The presence and operation of the display and indicators DEPENDS ON THE LEVEL OF EQUIPMENT AND THE COUNTRY.

Message indicating vehicle

ready for driving 3

The message READY comes on when

the engine is started.

Speedometer 4

Vehicle speed is limited to approxi-

mately 80 mph (135 km/h).

Indicator of charging

programming and/or air

conditioning 5

A

1

2

4

6

3

5

On-board computer display 6

Please refer to the information on the

“Trip computer: general information” in

Section 1.

Instrument panel in miles

It is possible to switch to km/h.

On the multimedia display, select

“Menu”, “System ”, “System settings ”,

“Set units ” and confirm. To return to the

previous mode, repeat the same opera-

tion.
