Filling with fuel

With the ignition off, insert the nozzle

and insert it fully before turning it on to

fill the fuel tank (risk of splashing).
Keep the nozzle in this position through-

out the entire filling operation.

When the pump cuts out automatically

at the end of the filling procedure, a

maximum of two further filling attempts

may be made, as there must be suffi-

cient space in the fuel tank to allow for

expansion.

Make sure that no water enters the fuel

tank during filling. The cover A and its

surround must remain clean.

FUEL TANK

(2/3)

Vehicle fitted with the Stop and

Start function
To fill up with fuel, the engine must

be stopped (and not on standby):

stop the engine (please refer to the

information on “Starting and stop-

ping the engine” in Section 2).

Persistent fuel odour

If you notice a persistent

fuel odour you should:

– stop the vehicle as soon as traf-

fic conditions allow and switch off

the ignition;

– switch on the hazard warning

lights and ask your passengers to

leave the vehicle and stay clear

of the traffic;

– contact an approved Dealer.

1.115

No modifications what-

soever are permitted on

any part of the fuel supply

system (electronic units,

wiring, fuel circuit, injectors, pro-

tective covers, etc.) as this may be

dangerous (unless undertaken by

qualified Network personnel).

FUEL TANK (3/3)

Running out of fuel on diesel

versions

Vehicles with key/remote control
– Put the ignition key in “On” posi-

tion M (please see the information on

the “Ignition switch” in Section 2) and

wait for a few minutes before start-

ing, to enable the fuel circuit to be

primed;

– turn the key to position D. If the

engine does not start, repeat the pro-

cedure.

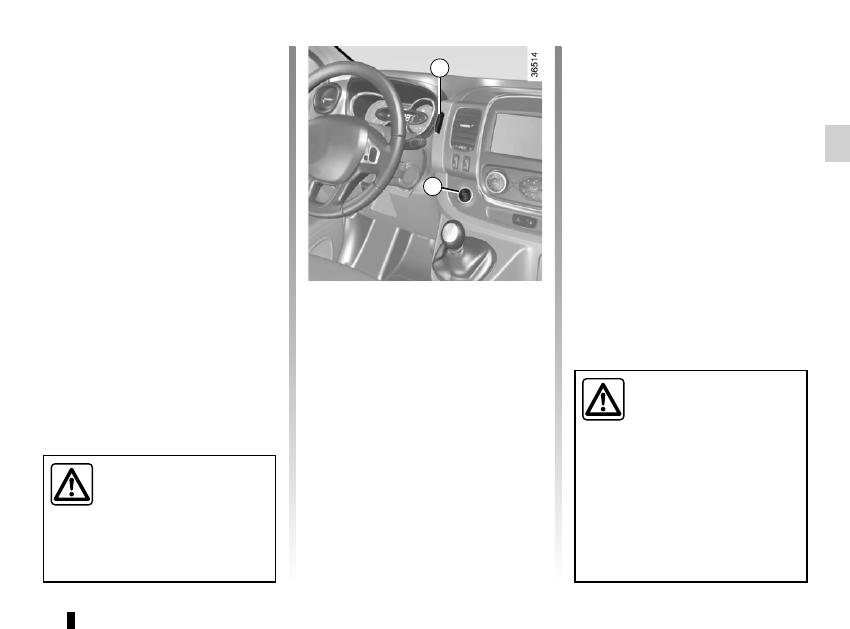

Vehicles with RENAULT card
Insert the RENAULT card into the 3

card reader. Press the start button 4

without pressing any of the pedals. Wait

a few minutes before starting. This will

enable the fuel circuit to be primed. If

the engine does not start, repeat the

procedure.

The engine may be hot

when working in close prox-

imity. In addition, the engine

cooling fan may come on at

any moment.
Risk of injury.

1.116

Please ensure that you comply with the

legislation of your country.
It is important to remember that failure

to respect regulations in force could

lead to legal action being taken against

the vehicle owner.

Operating principle

The use of additives reduces exhaust

emissions by transforming the pollut-

ants into water vapour and nitrogen.

Filling

Capacity of the fuel tank: 20 litres ap-

proximately.

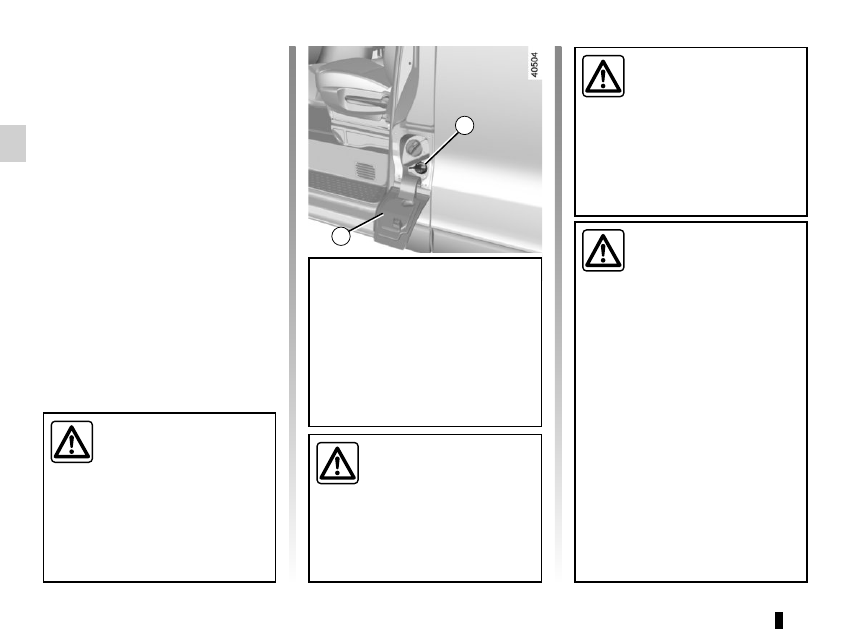

Open the front left door to open the

cover A. Unscrew the cap 1.

ADDITIVE TANK

(1/4)

Fuel filler cap: this is spe-

cific.

If you have to replace it,

make sure it is identical to

the original cap. Contact an appro-

ved Dealer. Do not wash the filler

area with a high pressure washer.

Vehicle fitted with the Stop and

Start function

To fill up with additive, the engine

must be stopped (and not on

standby): stop the engine (Please

See “Starting, stopping the engine”

in Section 2).

No work whatsoever is

permitted on any part of

the system. To prevent

damage, only qualified per-

sonnel from our network may work

on the system.

Topping up

After filling the additive

tank, check that the cap and

cover are closed, start the

engine and WAIT 10 seconds with

the vehicle stationary, engine

running before setting off again.

If this operation is not carried out,

the filling of the tank will not be

taken into account automatically

until after several dozens of minutes

of driving. The message “--- TOP UP

ADBLUE” and/or the warning lights

will continue to appear until the fill-

ing has been taken into account by

the system.

If the warning “XXXX

KM FAILURE TOP UP

ADBLUE” appears, fill the

additive tank and refer to

the filling instructions.

Risk of immobilisation of the

vehicle.

1.117

Additive quality

Use only additives which conform

to standard ISO 22241 and in accor-

dance with the label on the fuel filler

flap.

Average fuel consumption

A p p r o x i m a t e l y 8 0 7 m p g

(3.5 l/1,000 km) depending on the vehi-

cle and the driving style.

The additive must not come

into contact with eyes or

skin. If it does, wash the af-

fected area with plenty of

cold water. If necessary, consult a

doctor.

ADDITIVE TANK

(2/4)

Precautions for use

Always read the information on the ad-

ditive can.
Handle additives with care. They can

damage clothes, shoes, bodywork

components etc.
If the additive overflows, or contami-

nates any paintwork, clean the affected

area quickly with a damp cloth.
In extreme cold weather conditions

The vehicle is fitted with a system for

reheating the additive fluid that enables

you to drive in extreme cold weather

conditions.
Precautions when filling the tank

The additive fluid freezes below about

-10°C.

In this case, do not attempt filling when

the fluid is frozen.

It is therefore advisable to top up the

additive fluid or have it topped up by a

qualified professional as soon as the



warning light on the instrument

panel first comes on.

1.118

ADDITIVE TANK

(3/4)

Maintenance/Range

Warning lights and messages on the instrument panel

When the indicator lights described light up, this may be accompanied by a beep.

Indicator lights

Message

What to do?



comes on each

time the vehicle is started.

« ADBLUE LEVEL

LOW »

Fill or have an Approved Dealer fill or top up the additive tank.



comes on.

« ADBLUE TO FILL »



comes on.

« XXXX KM FAILURE

TOP UP ADBLUE »

Fill or have an Approved Dealer fill the additive tank as soon as possible.



comes on.

« 0KM FAILURE TOP

UP ADBLUE »

The engine will not start.

To restart, you must fill the additive tank yourself.

1.119

ADDITIVE TANK

(4/4)

System fault

The integrated indicator lights described below are accompanied by a beep.

Indicator lights

Message

Readings



and

come

on.

« CHECK ANTI- -

POLLUTION SYSTEM »

Indicates a fault in the system. Contact your approved dealer as soon

as possible.



and

come

on.

« XXXX KM FAILURE

ANTIPOLLUTION »

Indicates that in less than 682 miles (1100 km) it will become im-

possible to restart the vehicle. These warnings will be repeated

every 60 miles (100 km). Contact your approved dealer as soon as

possible.



and

come

on.

« 0KM FAILURE TOP

UP ADBLUE »

Indicates that after the ignition is switched off the vehicle will not re-

start. Call an approved Dealer.

2.1

Section 2: Driving

(Advice on use relating to fuel economy and the environment)

Running in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2

Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2

Starting, stopping the engine using the key/remote control unit . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.3

Starting/stopping the engine: vehicle with RENAULT card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.4

Stop and Start Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.7

Special features of diesel versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.10

Gear lever/Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.11

Driving advice, Eco-driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.12

Maintenance and antipollution advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.16

Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.17

Tyre pressure loss warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.18

Driver correction devices/aids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.21

Speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.26

Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.29

Overspeed function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.33

Fast idle speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.34

Parking distance control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.35

Reversing camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.37

2.2

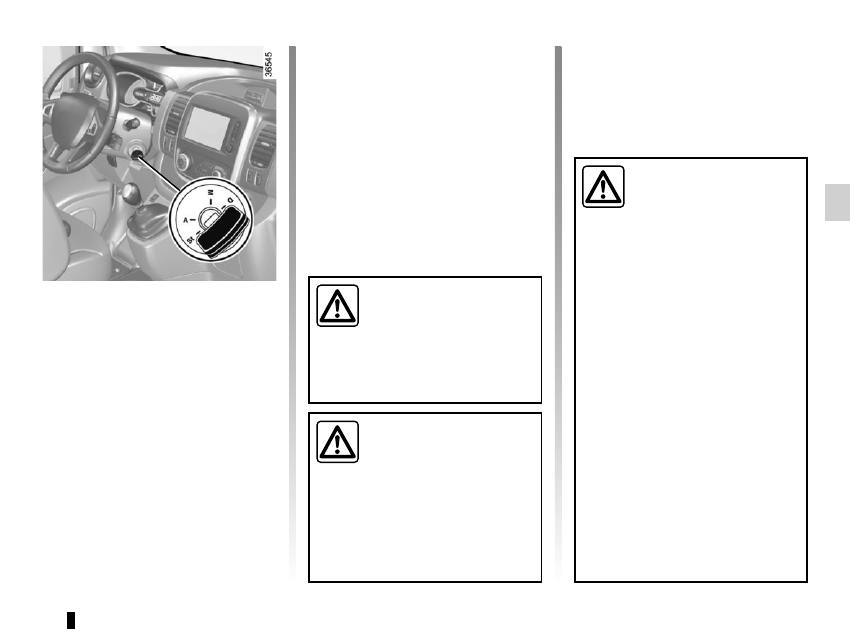

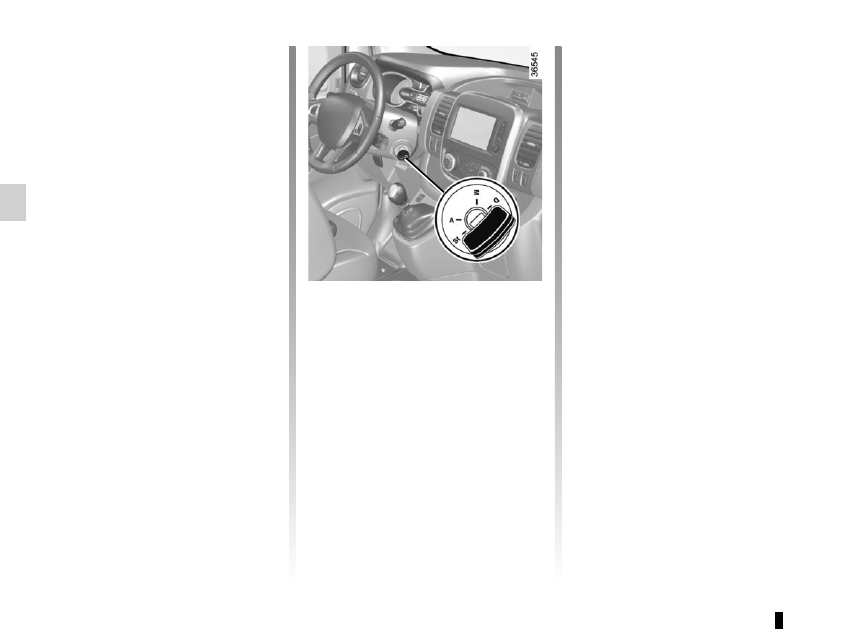

Ignition position M.

The ignition is switched on:

Start position D

If the engine fails to start at the first

attempt, the key must be turned back

before the starter can be activated

again. Release the key as soon as the

engine starts.
Note: on diesel versions, several sec-

onds may pass between turning the

key and the engine starting to allow for

engine preheating.

Off position S (steering lock

applied)

To lock: remove the key and turn the

steering wheel until the steering column

locks.
To unlock: turn the key and the steering

wheel slightly.

“Accessories” position A

When the ignition is switched off, any

accessories (radio, etc.) will continue to

function.

RUNNING IN/IGNITION SWITCH: vehicle with key

Diesel version

For the first 1,000 miles (1,500 km),

do not exceed 80 mph (130 km/h) in

the highest gear, or 2,500 rpm. After

completing this mileage you may drive

faster, although you may only expect

top performance after approximately

3,600 miles (6,000 km).
During the running in period, do not ac-

celerate hard while the engine is still

cold and do not let the engine over-rev.
Service intervals: refer to the

Maintenance Document for your vehi-

cle.

2.3

STARTING, STOPPING THE ENGINE: vehicle with key

Starting the engine

Turn the ignition key to the “Ignition on”

position M and hold this position until

the engine preheating warning light

goes out.

Turn the key to starter position D with-

out depressing the accelerator

pedal.
Release the key as soon as the engine

starts.

Stopping the engine

With the engine idling, turn the key to

the “Stop” position St.

Driver’s responsibility

when parking or stopping

the vehicle
Never leave an animal,

child or adult who is not self-suffi-

cient alone in your vehicle, even for

a short time.
They may pose a risk to themselves

or to others by starting the engine,

activating equipment such as the

electric windows or locking the

doors, for example.
Also, in hot and/or sunny weather,

please remember that the tempera-

ture inside the passenger compart-

ment increases very quickly.
RISK OF DEATH OR SERIOUS

INJURY.

Never start your vehicle

while freewheeling on a

gradient. Risk of non-ac-

tivation of power-assisted

steering.
There is a risk of accidents.

Never switch off the igni-

tion before the vehicle has

stopped completely. Once

the engine has stopped, the

brake servo, power-assisted steer-

ing, etc. and the passive safety de-

vices such as air bags and preten-

sioners will no longer operate.

2.4

STARTING, STOPPING THE ENGINE: vehicle with RENAULT CARD

(1/3)

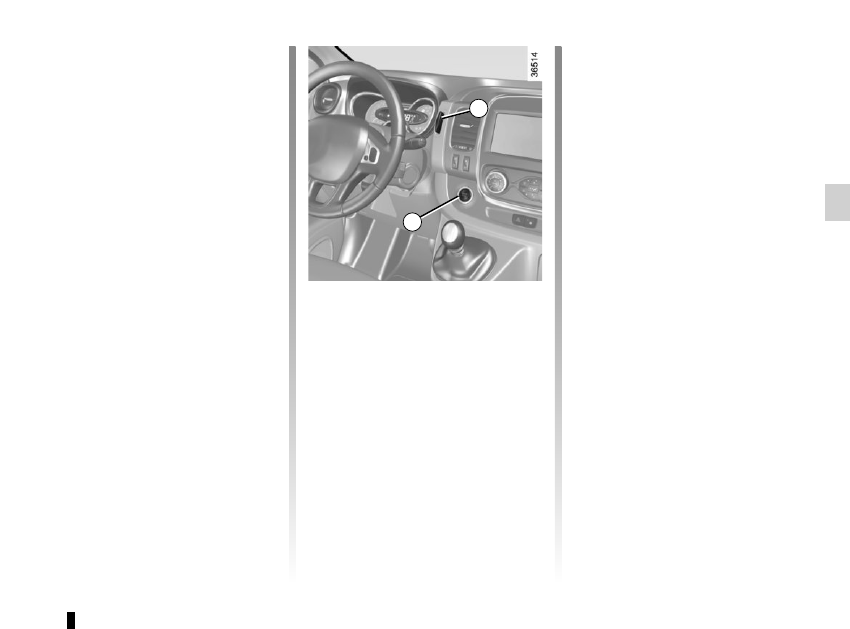

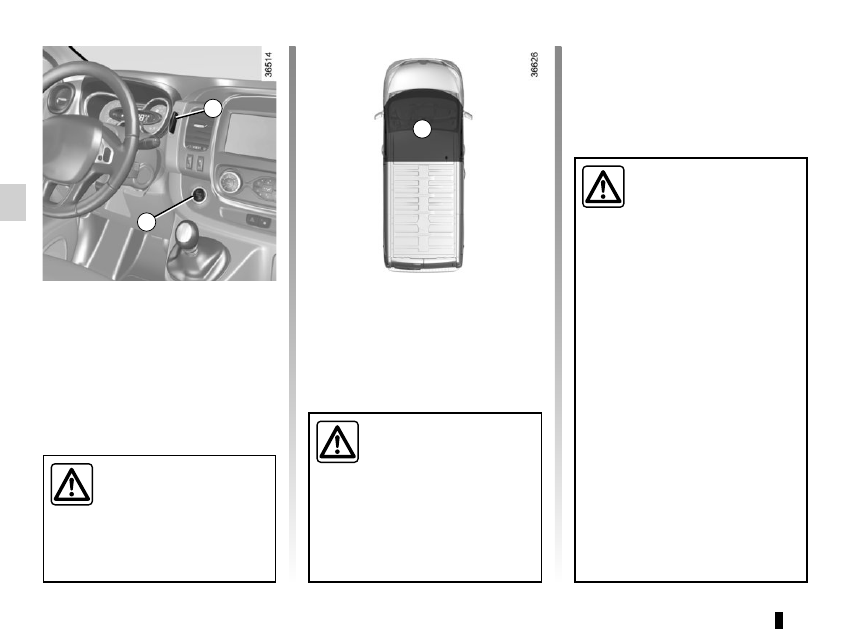

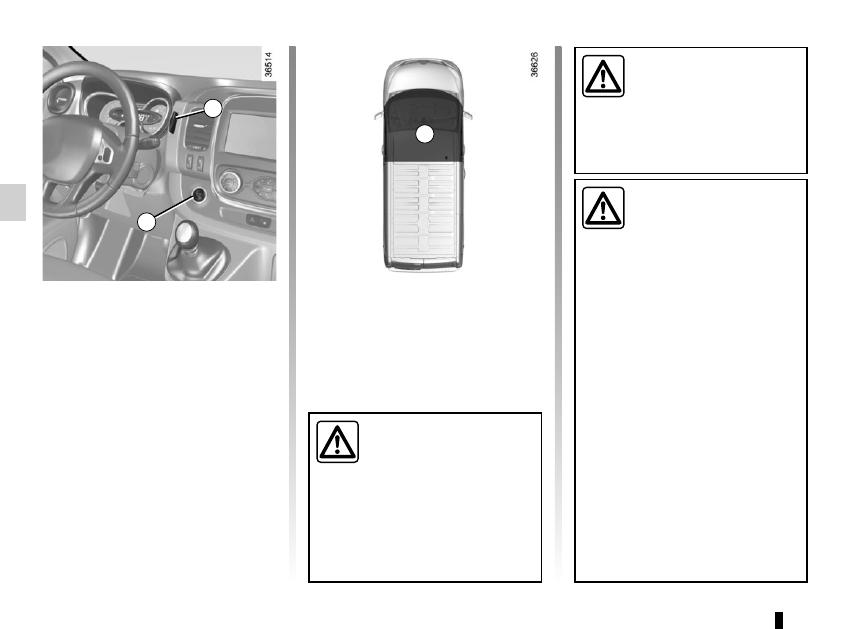

The RENAULT card must be inserted

in card reader 2 or in detection zone 3.
To start, depress the brake or clutch

pedal and press button 1. If a gear

is engaged, the vehicle may only be

started by depressing the clutch pedal.

Driver’s responsibility

when parking or stopping

the vehicle
Never leave an animal,

child or adult who is not self-suffi-

cient alone in your vehicle, even for

a short time.
They may pose a risk to themselves

or to others by starting the engine,

activating equipment such as the

electric windows or locking the

doors, for example.
Also, in hot and/or sunny weather,

please remember that the tempera-

ture inside the passenger compart-

ment increases very quickly.
RISK OF DEATH OR SERIOUS

INJURY.

Never start your vehicle

while freewheeling on a

gradient. Risk of non-ac-

tivation of power-assisted

steering.
There is a risk of accidents.

Never switch off the igni-

tion before the vehicle has

stopped completely. Once

the engine has stopped, the

brake servo, power-assisted steer-

ing, etc. and the passive safety de-

vices such as air bags and preten-

sioners will no longer operate.

2.5

STARTING, STOPPING THE ENGINE: vehicle with RENAULT CARD

(2/3)

Operating faults

In certain cases, the hands-free

RENAULT card may not work:
– when the RENAULT card battery is

drained, flat battery, etc.

– near to appliances operating on the

same frequency as the card (moni-

tor, mobile phone, video game, etc.);

– vehicle located in a high electromag-

netic radiation zone.

The message “PLEASE INSERT

KEYCARD” appears on the instrument

panel.
Insert the RENAULT card fully into card

reader 2.

Accessories function

(switching on the ignition)
Once you have gained access to your

vehicle, you may use some of its func-

tions (radio, navigation, wipers, etc.).
To use the other functions, with the

card in the passenger compartment or

inserted in the card reader 2, press the

button 1 without pressing the pedals.

Special features

– If one of starting conditions is not ap-

plied, the message “PRESS BRAKE

+ START” or “PRESS CLUTCH +

START” or “GEAR LEVER TO P” is

displayed on the instrument panel;

– in some cases, it will be necessary

to move the steering wheel whilst

pressing the start button 1 to help

unlock the steering column; the mes-

sage “TURN STEERINGWHEEL +

START” will warn you of this;

– in the event of starting the engine

in very low exterior temperatures

(lower than -10°C): hold down the

clutch pedal until the engine starts.

2.6

When you leave your vehi-

cle, especially if you have

your RENAULT card with

you, check that the engine

is completely switched off.

With the engine switched off, any ac-

cessories being used (radio, etc.) will

continue to function for approximately

10 minutes.
When the driver’s door is opened, the

accessories stop working.

Conditions for stopping the

engine

The vehicle must be at a standstill.
With the 2 card in the card reader or

in the detection zone 3, press button 1:

the engine stops. The steering column

is locked when the driver’s door is

opened or the vehicle is locked.
If the card is no longer in the pas-

senger compartment when you try to

switch the engine off, the message “NO

KEYCARD PRESS AND HOLD” ap-

pears on the instrument panel: press

button 1 for longer than 2 seconds.

STARTING, STOPPING THE ENGINE: vehicle with RENAULT CARD

(3/3)

Driver’s responsibility

when parking or stopping

the vehicle
Never leave an animal,

child or adult who is not self-suffi-

cient alone in your vehicle, even for

a short time.

They may pose a risk to themselves

or to others by starting the engine,

activating equipment such as the

electric windows or locking the

doors, for example.

Also, in hot and/or sunny weather,

please remember that the tempera-

ture inside the passenger compart-

ment increases very quickly.
RISK OF DEATH OR SERIOUS

INJURY.

Never switch off the igni-

tion before the vehicle has

stopped completely. Once

the engine has stopped, the

brake servo, power-assisted steer-

ing, etc. and the passive safety de-

vices such as air bags and preten-

sioners will no longer operate.

2.7

The warning light



is displayed on

the instrument panel to notify you that

the engine is on standby.
The vehicle equipment remain opera-

tional while the engine is stopped.
The engine will restart when you press

the clutch pedal and move into gear.

Special feature of the automatic

engine re-start
Under certain conditions, the engine

can restart on its own in order to guar-

antee your safety and comfort.

STOP AND START

function (1/3)

This system enables a reduced fuel

consumption and lower greenhouse

gas emissions.

The system is activated automatically

when the vehicle is started.

While driving, the system stops the

engine (standby) when the vehicle is

at a standstill (traffic jam, traffic lights,

etc).

System operating conditions

Engine standby is activated if:
– the vehicle has been driven since its

last stop;

– the gearbox is in neutral;
– the clutch pedal is released;

and

– the vehicle speed is less than ap-

proximately 1.86 mph (3 km/h).

This can occur especially when:

– the outdoor temperature is too low or

too high (less than around 0 °C or

higher than around 35 °C);

– the “Clear View” function is activated

(please see the information on “Air

conditioning” in Section 3);

– the battery is not sufficiently charged;

– the vehicle speed is above 3 mph

(5 km/h) (downhill slope etc.);

– repeated pressing on the brake

pedal or braking system require-

ment;

– the engine restart may be interrupted

if the clutch pedal is released too

quickly while a gear is engaged.

– ...

Before leaving the vehicle,

the engine must be stopped

and not put on standby

(please see the information

on “Starting, stopping the engine” in

Section 2).

Do not drive off when the

engine is on standby (warn-

ing light



is displayed

on the instrument panel).

If you get out of the vehicle, a beep

and the message “IGNITION OFF”

notifies you that the engine is on

standby and has not been switched

off.

2.8

STOP AND START

function (2/3)

Special cases

– For vehicles using a RENAULT card,

while the system is operating and

the engine is in standby (traffic jam,

traffic lights, etc.), if the driver gets

out of their seat or unfastens their

seatbelt and opens the driver's door,

the ignition will be switched off. To

restart and reactivate the Stop and

Start system, press the start button

(please refer to "Starting, stopping

the engine" in Section 2).

– In the event of the engine stalling,

if the system is operational, press

down the clutch pedal as far as it will

go to restart.

– the outdoor temperature is too low or

too high (less than around 0 °C or

higher than around 35 °C);

– the battery is not sufficiently charged;
– the difference between the vehicle

interior temperature and the auto-

matic climate control instruction is

too high;

– the “Clear View” function is activated

(please see the information on “Air

conditioning” in Section 3);

– the engine coolant temperature is

too low;

– automatic particle filter cleaning is

underway;

– the “Fast Idle Speed” function is acti-

vated (please refer to the information

on “Fast Idle Speed” in section 2);

– ...

Warning light



is displayed on the

instrument panel. This notifies you that

engine standby is not available.

To fill up with fuel, the engine must

be stopped (and not on standby):

stop the engine (please refer to the

information on “Starting and stop-

ping the engine” in Section 2).

Special features of vehicles with

remote control
Some of these conditions prevent the

engine from automatically restarting

upon opening:

– one of the doors for vehicles using a

key;

– the passenger side door for vehicles

using a RENAULT card.

Conditions preventing the

standby of the engine

Depending on the vehicle, certain con-

ditions prevent the system from using

the engine standby function, including

when:
–  reverse gear is engaged;
–  the bonnet is not locked;
–  for vehicles using a RENAULT card,

the driver’s side door is not closed;

– for vehicles using a RENAULT card,

the driver’s seat belt is not buckled;

2.9

Operating faults

When the message “CHECK STOP

AND START” appears on the instru-

ment panel and the integrated warn-

ing light 2 lights up on the switch 1, the

system is deactivated.
Please consult an authorised dealer.

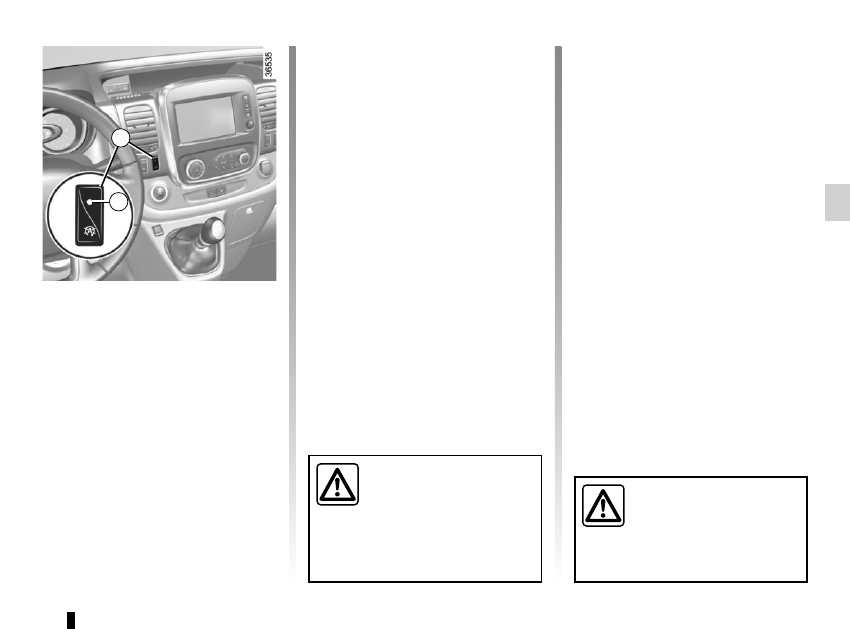

Deactivating, activating the

function

Press switch 1 to deactivate the func-

tion. The message “STOP AND START

DEACTIVATED” will appear on the in-

strument panel and the integrated

warning light 2 on the switch will light

up.
Pressing again will reactivate the

system. The message “STOP AND

START ACTIVATED” will appear on the

instrument panel and the integrated

warning light 2 on the switch 1 will go

out.

STOP AND START

function (3/3)

The system is automatically reacti-

vated each time the vehicle is started

(see “Starting, stopping the engine” in

Section 2).
Special note: engine on standby,

press switch 1 to automatically restart

the engine.

In the event of an emer-

gency, the engine can be

restarted by pressing on the

clutch pedal if the Stop and

Start function is activated.

Before leaving the vehicle,

the engine must be stopped

and not put on standby

(please see the information

on “Starting, stopping the engine” in

Section 2).

Renault Trafic (2018 year). Instruction - part 8
