Renault Scenic (2018 year). Instruction - part 4

1.50

CHILD SEATS: attachment by seat belt

(4/6)

Seven-seat version

Type of child seat

Weight of the child

Front passenger seat

Row 2 rear

side seats

Row 2 rear

centre seat

Row 3 rear

centre

seat (5)

Without airbag

or with airbag

deactivated

With airbag

activated

C a r r y c o t f i t t e d

across the vehicle

Group 0

< 10 kg

U (2)

Rear-facing shell

seat

Groups 0 or 0 +

< 10 kg and < 13 kg

U (1) (6)

U (3)

Shell seat/rear-facing

seat

Groups 0+ and 1

< 13 kg and 9 to 18

U (1) (6)

U (3)

Forward-facing seat

Group 1

9 to 18 kg

U (1) (6)

U (3) (4)

U (7)

Booster seat

Groups 2 and 3

15 to 25 kg and 22

to 36 kg

U (6)

U (3) (4)

(1) RISK OF DEATH OR SERIOUS INJURY: Before installing a child seat on the front passenger seat, check that

the airbag has been deactivated (please refer to “Child safety: front passenger airbag deactivation and activation” in

Section 1).

The table below summarises the information already shown in the diagram on the following pages, to ensure the appli-

cable regulations are respected.

1.51

CHILD SEATS: attachment by seat belt

(5/6)

X =  Seat not suitable for fitting child seats of this type.
U  = Seat which allows a child seat with “Universal” approval to be installed using a seat belt; check that it can be fitted.
(2)  A carrycot can be installed across the vehicle and will take up at least two seats. Position the child with his or her feet nearest

the door.

(3) If necessary, position the vehicle seat as far back as possible. Move the front seat as far forward as possible to install a rear-

facing child seat, then move back the seat in front as far as it will go, although without allowing it to come into contact with the

child seat.

(4) In all situations, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the

child seat. Please refer to the information on the “Rear headrests” in Section 3. Move the seat in front of the child forwards,

move the seatback forward to avoid contact between the seat and the child’s legs.

(5) Push the seat(s) in front of the child in a third row seat as far forward as possible.
(6) Raise the seat to the maximum and position it as far back as possible, tilting the seatback slightly (approximately 25°).

(7) RISK OF DEATH OR SERIOUS INJURY: a child seat with a floor support must never be fitted.

1.52

Check the status of the airbag

before fitting a child seat or allowing a

passenger to use the seat.

Seat not suitable for fitting

child seats.

Seat which allows a child seat

with “Universal” approval to be attached

by a seat belt.

Using a child safety system

which is not approved for

this vehicle will not correctly

protect the baby or child.

They risk serious or even fatal injury.

RISK OF DEATH OR

SERIOUS INJURY: before

installing a rear-facing child

seat in the front passen-

ger seat, make sure the airbag has

been deactivated (refer to the infor-

mation on “Child safety: front pas-

senger airbag deactivation/activa-

tion” in Section 1).

CHILD SEATS: attachment by seat belt

(6/6)

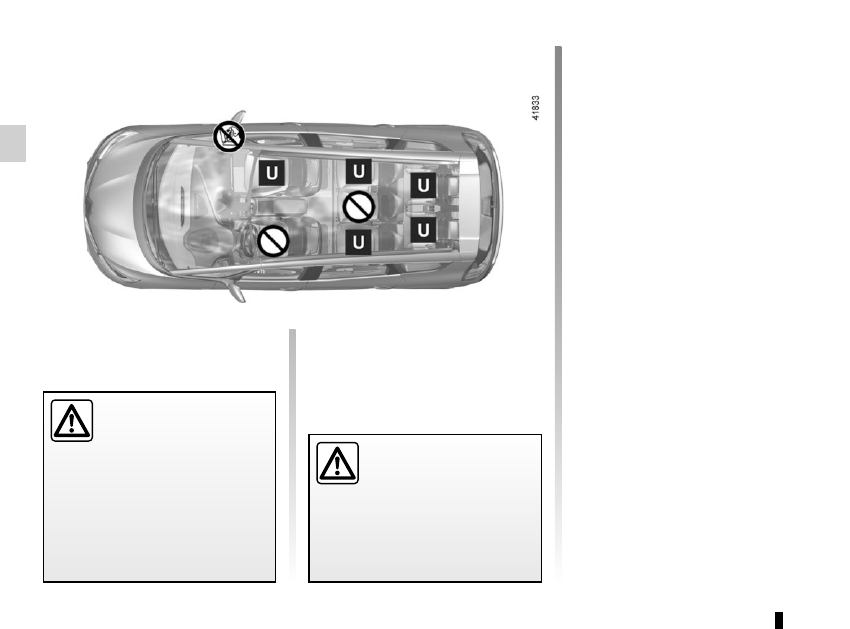

Installation diagram, 7-seater version

1.53

CHILD SEATS: attachment using the ISOFIX system

(1/6)



Seat which allows an ISOFIX

child seat to be fitted.

The rear seats are fitted with

an anchorage point which allows a

forward-facing ISOFIX child seat with

universal approval to be attached. The

anchorage points are located on the

backs of the rear seats.

Using a child safety system

which is not approved for

this vehicle will not correctly

protect the baby or child.

They risk serious or even fatal injury.

Seat which does not allow a

child seat to be fitted.

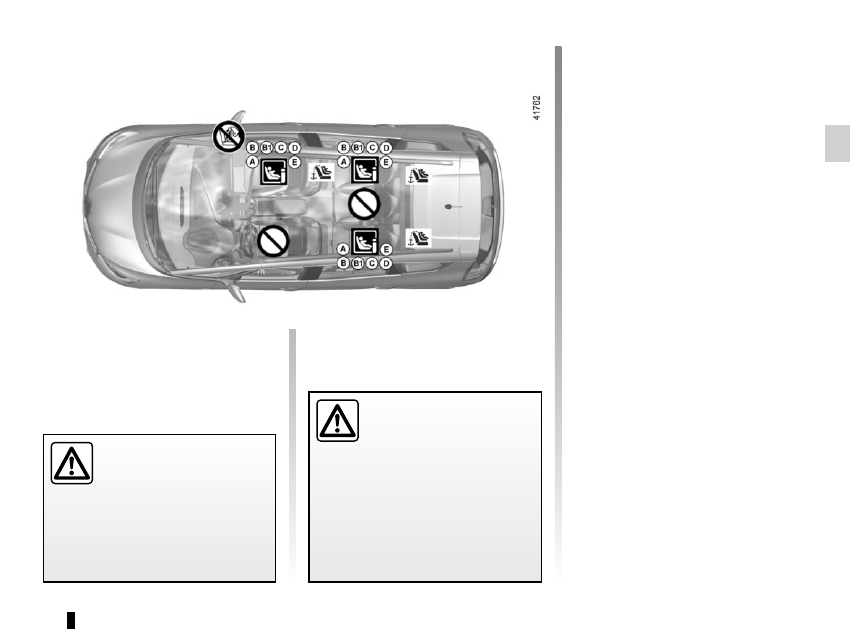

Visual installation of the five-seater version

RISK OF DEATH OR

SERIOUS INJURY: before

installing a rear-facing child

seat in the front passen-

ger seat, make sure the airbag has

been deactivated (refer to the infor-

mation on “Child safety: front pas-

senger airbag deactivation/activa-

tion” in Section 1).

1.54

CHILD SEATS: attachment using the ISOFIX system

(2/6)

Five-seater version

Type of child seat

Weight of

the child

Seat size

ISOFIX

Front passenger seat

Rear side

seats

Rear centre

seat

Without airbag

or with airbag

deactivated

With airbag

activated

Carrycot fitted across

the vehicle

Group 0

< 10 kg

F, G

Rear-facing shell

seat

Groups 0 or 0 +

< 10 kg and

< 13 kg

IL (1) (4)

IL (2)

Shell seat/rear-facing

seat

Groups 0+ and 1

< 13 kg and 9

to 18 kg

C, D

IL (1) (4)

IL (2)

Forward-facing seat

Group 1

9 to 18 kg

A, B, B1

IUF - IL (1) (4)

IUF - IL

(2) (3)

Booster seat

Groups 2 and 3

15 to 25 kg

and 22 to 36

IUF - IL (1)

IUF - IL

(2) (3)

Seat i-Size

i-U (1) (4)

i-U

The table below summarises the information already shown on the diagram on the previous page, to ensure the regula-

tions in force are respected.

1.55

X = Seat not suitable for fitting child seats ISOFIX.
IUF/IL = On equipped vehicles, seat which allows an approved “Universal/semi-universal” or “vehicle specific” child seat to be at-

tached using the ISOFIX system; check that it can be fitted.

i-U = Suitable for the i-Size restraint devices in the “universal” forward-facing and backward-facing category.

(1) Raise the seat to the maximum and position it as far back as possible, tilting the seatback slightly (approximately 25°).
(2) If necessary, position the vehicle seat as far back as possible. Move the front seat as far forward as possible to install a rear-

facing child seat, then move back the seat in front as far as it will go, although without allowing it to come into contact with the

child seat.

(3) In all situations, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the

child seat. Please refer to the information on the “Rear headrests” in Section 3. Move the seat in front of the child forwards,

move the seatback forward to avoid contact between the seat and the child’s legs.

The size of the ISOFIX child seat is indicated by a letter:
–  A, B and B1: for forward-facing seats in group 1 (9 to 18 kg);
–  C and D: shell seat or rear-facing seats in group 0+ (less than 13 kg) or group 1 (9 to 18 kg);
–  E: rear-facing shell seats in group 0 (less than 10 kg) or 0+ (less than 13 kg);
–  F and G: cots in group 0 (less than 10 kg).

CHILD SEATS: attachment using the ISOFIX system

(3/6)

(4) RISK OF DEATH OR SERIOUS INJURY: before installing a child seat in the front passenger seat, make sure the

airbag has been deactivated (refer to the information on “Child safety: deactivation, activation of the front passenger

airbag” in Section 1).

1.56

Seven-seat version

Type of child seat

Weight of

the child

Seat size

ISOFIX

Front passenger seat

Row 2 rear

side seats

Row 2 rear

centre seat

Row 3

rear seat

Without

airbag or

with airbag

deactivated

With airbag

activated

Carrycot fitted across

the vehicle

Group 0

< 10 kg

F, G

Rear-facing shell

seat

Groups 0 or 0 +

< 10 kg and

< 13 kg

IL (1) (4)

IL (2)

Shell seat/rear-facing

seat

Groups 0+ and 1

< 13 kg and 9

to 18 kg

C, D

IL (1) (4)

IL (2)

Forward-facing seat

Group 1

9 to 18 kg

A, B, B1

IUF - IL (1) (4)

IUF - IL (2) (3)

Booster seat

Groups 2 and 3

15 to 25 kg

and 22 to 36

IUF - IL (1)

IUF - IL (2) (3)

Seat i-Size

i-U (1) (4)

i-U

CHILD SEATS: attachment using the isofix system

(4/6)

The table below summarises the information already shown in the diagram on the following pages, to ensure the appli-

cable regulations are respected.

1.57

X = Seat not suitable for fitting child seats ISOFIX.
IUF/IL = On equipped vehicles, seat which allows an approved “Universal/semi-universal” or “vehicle specific” child seat to be at-

tached using the ISOFIX system; check that it can be fitted.

i-U = Suitable for the i-Size restraint devices in the “universal” forward-facing and backward-facing category.

facing child seat, then move back the seat in front as far as it will go, although without allowing it to come into contact with the

child seat.

(3) In all situations, remove the rear headrest of the seat on which the child seat is positioned. This must be done before fitting the

child seat. Please refer to the information on the “Rear headrests” in Section 3. Move the seat in front of the child forwards,

move the seatback forward to avoid contact between the seat and the child’s legs.

CHILD SEATS: attachment using the isofix system

(5/6)

(4) RISK OF DEATH OR SERIOUS INJURY: before installing a child seat in the front passenger seat, make sure the

airbag has been deactivated (refer to the information on “Child safety: deactivation, activation of the front passenger

airbag” in Section 1).

1.58

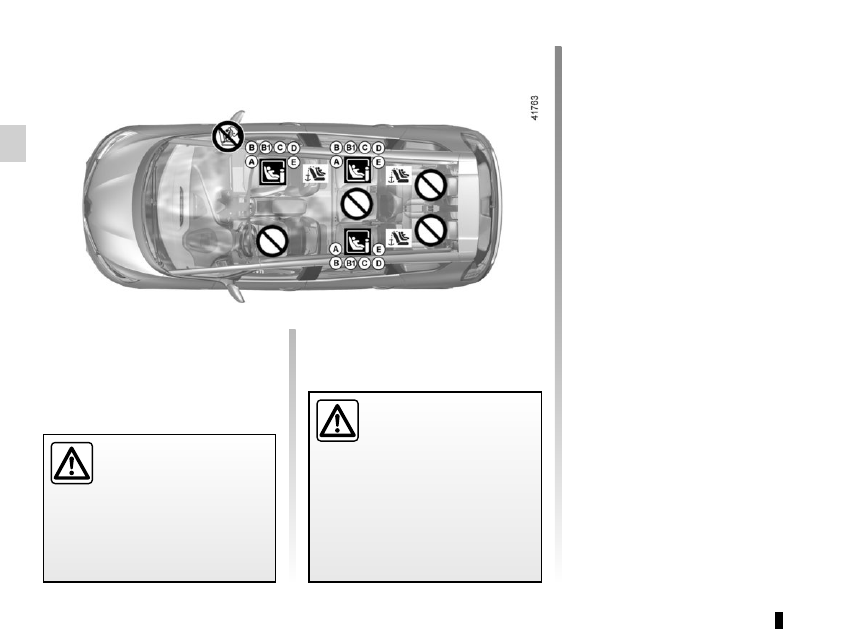

Visual installation of seven-seater version



Seat which allows an ISOFIX

child seat to be fitted.

The rear seats are fitted with

an anchorage point which allows a

forward-facing ISOFIX child seat with

universal approval to be attached. The

anchorage points are located on the

backs of the rear seats.

Using a child safety system

which is not approved for

this vehicle will not correctly

protect the baby or child.

They risk serious or even fatal injury.

Seat which does not allow a

child seat to be fitted.

CHILD SEATS: attachment using the isofix system

(6/6)

RISK OF DEATH OR

SERIOUS INJURY: before

installing a rear-facing child

seat in the front passen-

ger seat, make sure the airbag has

been deactivated (refer to the infor-

mation on “Child safety: front pas-

senger airbag deactivation/activa-

tion” in Section 1).

1.59

Deactivating the front

passenger airbag

The front passenger airbag

must only be activated or

deactivated when the vehi-

cle is stationary.

If it is interfered with when the ve-

hicle is being driven, indicator lights

and

will come on.

Switch the ignition off then on again

to reset the airbag in accordance

with the lock position.

CHILD SAFETY: deactivating, activating front passenger AIRBAG

(1/3)

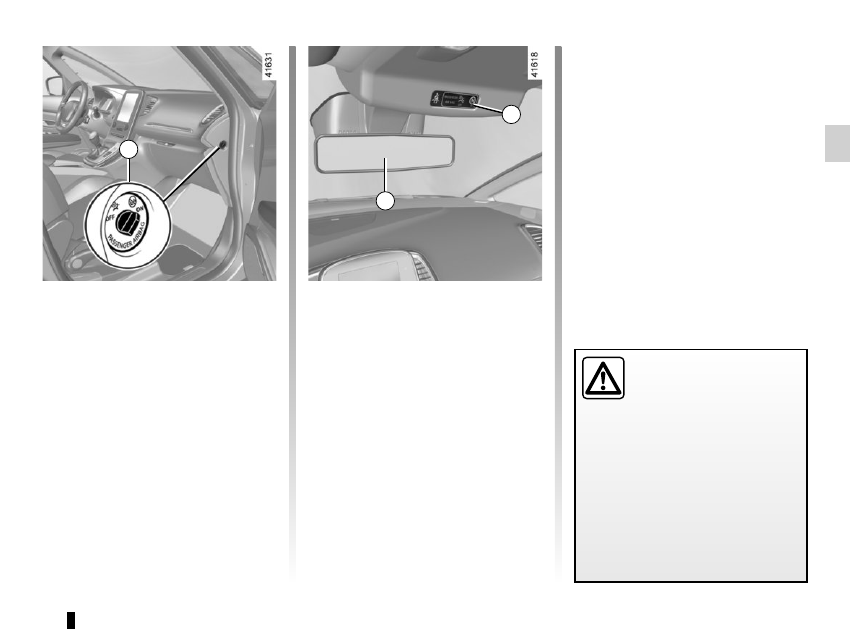

To deactivate the airbag: with the ve-

hicle stopped and the ignition off,

push and turn the lock 1 to the OFF po-

sition.
With the ignition on, it is essential to

check that the

warning light is

correctly lit on the display 2 or, depend-

ing on the vehicle, on the rear-view

mirror 3.
This light remains permanently lit to

let you know that you can fit a child

seat.

DANGER
Since operation of the front

passenger airbag is not

compatible with the po-

sition of a rear-facing child seat,

NEVER fit a rear-facing child re-

straint system in a seat protected

by an ACTIVATED front AIRBAG.

This can lead to the DEATH of the

CHILD or SERIOUS INJURY.

1.60

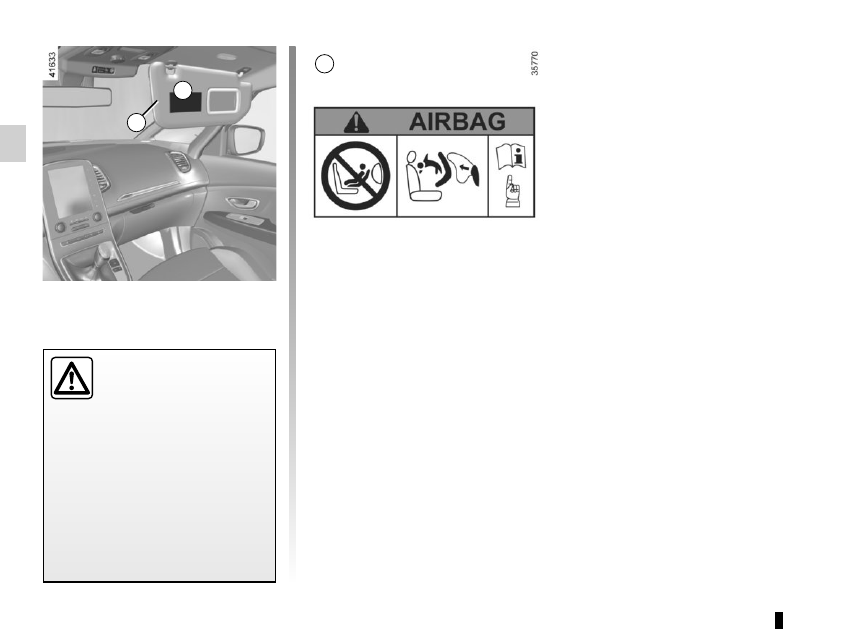

The markings on the dashboard and

labels A on each side of the passen-

ger sun visor 4 (example: label shown

above) remind you of these instruc-

tions.

CHILD SAFETY: deactivating, activating front passenger AIRBAG

(2/3)

DANGER
Since operation of the front

passenger airbag is not

compatible with the po-

sition of a rear-facing child seat,

NEVER fit a rear-facing child re-

straint system in a seat protected

by an ACTIVATED front AIRBAG.

This can lead to the DEATH of the

CHILD or SERIOUS INJURY.

1.61

CHILD SAFETY: deactivating, activating front passenger AIRBAG

(3/3)

Operating faults

It is forbidden to fit a rear-facing child

seat to the front passenger seat if the

airbags activation/deactivation system

is faulty.
Allowing any other passenger to sit in

that seat is not recommended.
Contact your approved dealer as soon

as possible.

Activating the front

passenger airbag

You should reactivate the airbag as

soon as you remove the child seat from

the front passenger seat to ensure the

protection of the front passenger in the

event of an impact.

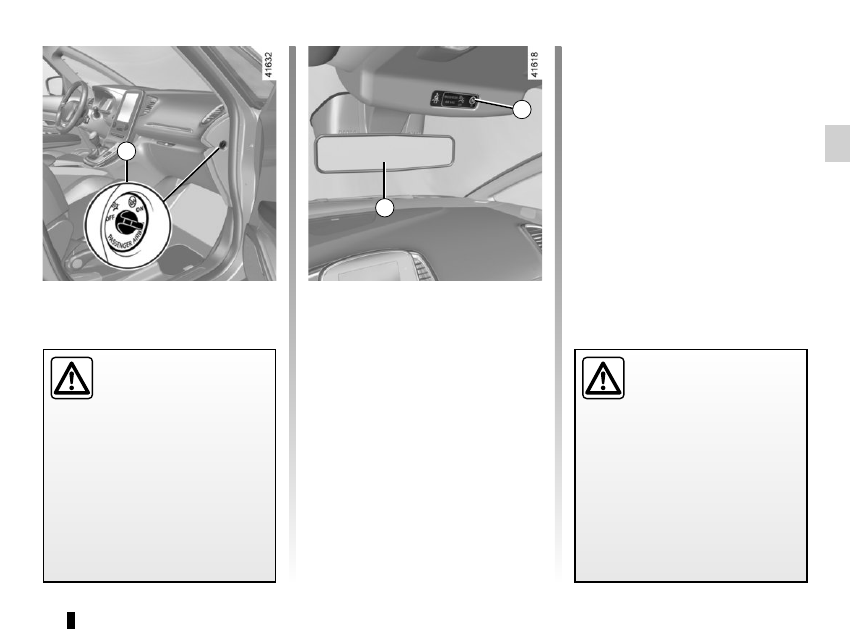

To reactivate the airbags : with the

vehicle at a standstill, and the igni-

tion off, push and turn lock 1 to the ON

position.

With the ignition on, it is essential to

check that the

]

warning light is

off and that the



light is lit on the

display 2 or, depending on the vehicle,

on the rear-view mirror 3 for around

1 minute after each time the engine is

started.
The front passenger seat belt additional

restraint systems are activated.

The front passenger airbag

must only be activated or

deactivated when the vehi-

cle is stationary.

If it is interfered with when the ve-

hicle is being driven, indicator lights

and

will come on.

Switch the ignition off then on again

to reset the airbag in accordance

with the lock position.

1.62

DRIVER’S POSITION, LEFT-HAND DRIVE

(1/2)

9 12

1.63

DRIVER’S POSITION, LEFT-HAND DRIVE

(2/2)

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

1 Air vent.

2 Demister outlet.

3 Stalk for:

– direction indicator lights;

– exterior lights;

– rear fog lights.

4 Steering wheel with driver’s Airbag

location, horn.

5 Instrument panel.

6 Head-up display.

7 Controls for:

–

on-board computer information

read-out and vehicle settings cus-

tomisation menu,

–

remote radio and navigation

system.

8 Steering column stalk for wind-

screen and rear screen wash/

wiper.

9 Heating or air conditioning con-

trols.

10 Multifunction touch-screen.

11 Multifunction screen controls:

–

screen activation/deactivation;

–

volume;

– welcome menu;

–

driving aids menu;

– settings.

12 Switches for:

– hazard warning lights;

–

electric door locking.

13 Passenger

Airbag location.

14 glove box or storage drawer.

15 Controls for:

–

front seat heating;

–

activation/deactivation, depend-

ing on the vehicle, of the ECO

mode;

–

activation/deactivation of the

parking distance control system;

–

activation/deactivation of the

function Stop and Start.

16 Assisted parking brake control.

17 Main switch for:

–

speed limiter;

–

cruise control;

–

adaptive cruise control.

18 Gearstick.

19 Accessories and multimedia sock-

ets.

20 Multi-Sense control.

21 Automatic gearbox gear display.

22 Handbrake.

23 Engine start/stop button (vehicles

with RENAULT card).

24 Ignition switch (vehicles with key).

25 Control for adjusting steering

wheel height and reach.

26 Cruise control/speed limiter and

adaptive cruise control controls.

28 Bonnet release control.

29 Controls for:

–

headlight beam height remote ad-

justment;

–

instrument panel lighting dimmer.

1.64

DRIVING POSITION: RIGHT-HAND DRIVE

(1/2)

11 12

1.65

DRIVING POSITION: RIGHT-HAND DRIVE

(2/2)

The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.

10 Head-up display.

11 Instrument panel.

12 Steering wheel with driver’s Airbag

location, horn.

13 Controls for:

–

on-board computer information

read-out and vehicle settings cus-

tomisation menu,

–

remote radio and navigation

system.

14 Steering column stalk for wind-

screen and rear screen wash/

wiper.

15 Controls for:

–

headlight beam height remote ad-

justment;

–

instrument panel lighting dimmer.

16 Ignition switch (vehicles with key).

17 Control for adjusting steering

wheel height and reach.

18 Engine start/stop button (vehicles

with RENAULT card).

19 Switches for:

– hazard warning lights;

–

electric door locking.

20 Assisted parking brake control.

21 Main switch for:

–

speed limiter;

–

cruise control;

–

adaptive cruise control.

22 Handbrake.

23 Accessories and multimedia sock-

ets.

24 Multi-Sense control.

25 Gearstick.

26 glove box or storage drawer.

27 Automatic gearbox gear display.

28 Bonnet release control.

1 Air vent.

2 Demister outlet.

3 Passenger

Airbag location.

4 Controls for:

–

front seat heating;

–

activation/deactivation, depend-

ing on the vehicle, of the ECO

mode;

–

activation/deactivation of the

parking distance control system;

–

activation/deactivation of the

function Stop and Start.

5 Heating or air conditioning con-

trols.

6 Multifunction touch-screen.

7 Multifunction screen controls:

–

screen activation/deactivation;

–

volume;

– welcome menu;

–

driving aids menu;

– settings.

8 Stalk:

– direction indicator lights;

– exterior lights;

– rear fog lights.

9 Cruise control/speed limiter and

adaptive cruise control controls.

Content .. 2 3 4 5 ..
