Renault Megane RS (2012 year). Instruction - part 13

wiper blades .........................................(up to the end of the DU)

wipers

blades .............................................(up to the end of the DU)

5.30

ENG_UD17365_2

Balais d’essuie-vitres (X95 - B95 - D95 - L38 - X38 - X32 - B32 - Renault)

ENG_NU_837-6_BDK95_Renault_5

Wipers (replacing blades)

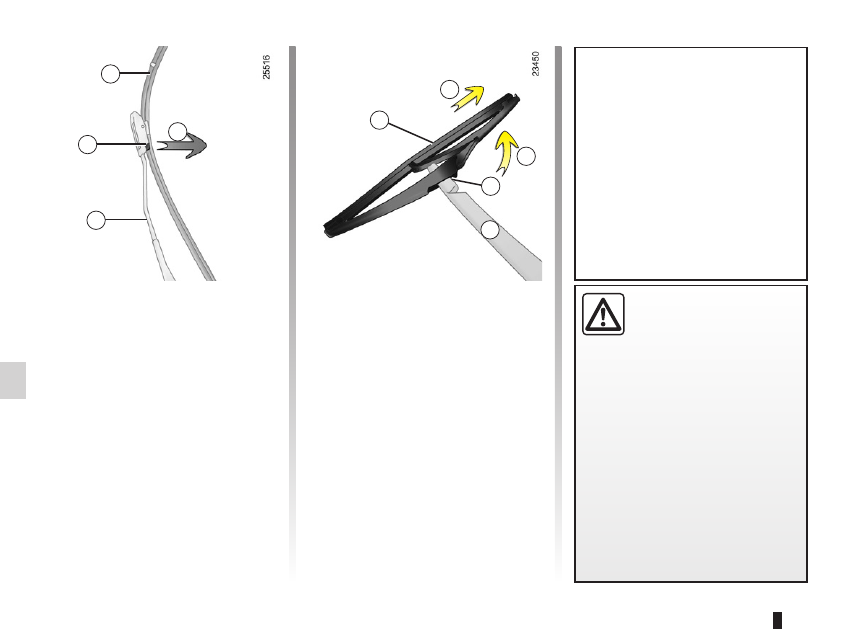

wInDscreen wIPer BlaDes

replacing windscreen wiper

blades 1

with the ignition on and engine

switched off, lower the windscreen

wiper stalk completely: they stop

slightly away from the bonnet.

Lift wiper arm 3, pull tab 2 (move-

ment A) and push the blade upwards.
to refit

Slide the blade along the arm until it

clips on. Make sure that the blade is

correctly locked in position. Return the

windscreen wiper stalk to the park po-

sition.

Check the condition of the wiper

blades. You are responsible for their

service life:

– clean the blades, windscreen and

rear screen regularly with soapy

water;

– do not use them when the wind-

screen or rear screen are dry;

– free them from the windscreen or

rear screen when they have not

been used for a long time.

rear screen wiper blade 4

– Lift wiper arm 6;
– pivot blade 4 until some resistance is

met (movement C);

– depending on the vehicle, press

tab 5, then remove the blade by pull-

ing it (movement B).

to refit
To refit the wiper blade, proceed in re-

verse order to removal. Make sure that

the blade is correctly locked in position.

– In frosty weather, make

sure that the wiper blades

are not stuck by ice (to

avoid the risk of the motor

overheating).

– Check the condition of the wiper

blades.

Replace the wiper blades as soon

as they begin to lose efficiency

(approximately once a year).

Whilst changing the blade, take care

not to drop the arm onto the window

after it has been removed as this

may break the window.

towing

breakdown ......................................(up to the end of the DU)

towing hitch...........................................(up to the end of the DU)

5.31

ENG_UD14787_2

Remorquage : dépannage (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_5

Towing

tOwIng: breakdown

(1/2)

Before towing, unlock the steering

column: with the clutch depressed,

engage

first gear (lever in position n

r for vehicles with automatic trans-

missions), insert the RENAULT card in

the card reader then press the engine

start button for

two seconds.

Reposition the lever to neutral (posi-

tion N for vehicles fitted with an auto-

matic gearbox)
The steering column unlocks, the ve-

hicle’s accessory functions are pow-

ered, and you can use the vehicle lights

(brake lights, hazard warning lights,

etc.). At night, the vehicle must be lit.
Once you have finished towing, press

the engine start button twice (risk of

running down the battery).

The speed specified by current legis-

lation for towing must always be ob-

served. If your vehicle is the towing

vehicle, do not exceed the maximum

towing weight for your vehicle (refer to

the information on “Weights” in Section

6).

towing a vehicle with an

automatic gearbox

With the engine switched off, the trans-

mission is no longer lubricated. It is

preferable to tow this type of vehicle on

a trailer or tow it with the front wheels

off the ground.
under exceptional circumstances,

you may tow the vehicle with all four

wheels on the ground, only going for-

ward, with the gear lever in the

n posi-

tion, and for a distance not exceeding

50 miles (80 km).

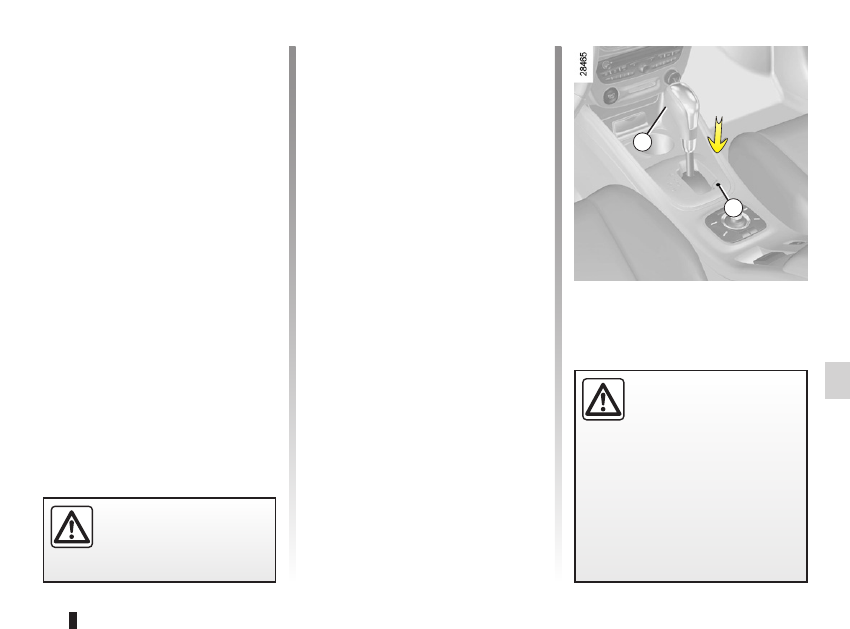

If the lever is stuck in

even though you are de-

pressing the brake pedal,

the lever can be released

manually. To do this, insert a rigid

rod in the hole 2, press the rod and

unlocking button 1 located on the

lever simultaneously.

Do not remove the

RENAULT card from the

reader when the vehicle is

being towed.

5.32

ENG_UD14787_2

Remorquage : dépannage (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_5

tOwIng: breakdown

(2/2)

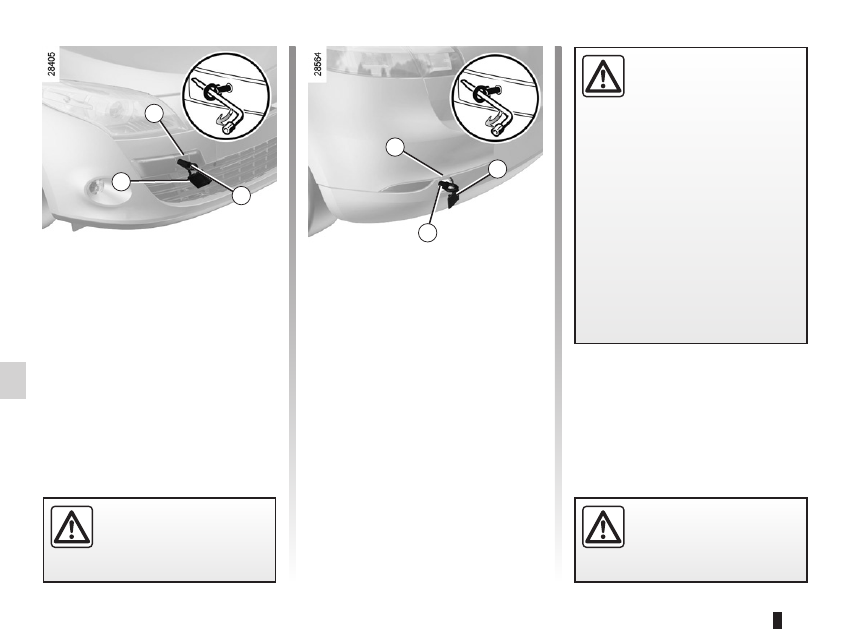

Only use:

– at the rear, towing point 5;
– at the front, towing hitch 4 (lo-

cated in the tool kit).

These towing points may only be used

for pulling the vehicle, never for lifting it

either directly or indirectly.

access to towing points

Unclip cover 3 or 6 by sliding a flat tool

(or the key integrated in the RENAULT

card) under the cover.
screw in towing hitch 7 fully: as

much as possible by hand at first, then

finish by tightening it using the wheel-

brace.
Use only towing hitch 7 and the wheel-

brace located under the luggage com-

partment carpet in the tool kit (refer

to the information on the “Tool kit” in

Section 5).

When the engine is

stopped, steering and brak-

ing assistance are not op-

erational.

Do not leave the tools unse-

cured inside the vehicle as

they may come loose under

braking.

– Use a rigid towing bar.

If a rope or cable is used

(where the law allows this),

the vehicle being towed

must be able to brake.

– A vehicle must not be towed if it is

not fit to be driven.

– Avoid accelerating or braking

suddenly when towing, as this

may result in damage being

caused to the vehicle.

– When towing a vehicle, it is ad-

visable not to exceed

30 mph

(50 km/h).

operating faults .....................................(up to the end of the DU)

faults

operating faults ...............................(up to the end of the DU)

5.33

ENG_UD17369_3

Anomalies de fonctionnement (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_5

Operating faults

OPeratIng Faults

(1/5)

the following advice will enable you to carry out quick, temporary repairs. For safety reasons you should always contact

an approved dealer as soon as possible.

using the renault card

POssIBle causes

what tO DO

The RENAULT card does not lock or

unlock the doors.

Card battery is flat.

Replace the battery. You can still lock/

unlock and start your vehicle (refer to the

information on “Locking/unlocking the

doors” in Section 1 and “Starting/Stopping

the engine” in Section 2).

Use of appliances operating on the

same frequency as the card (mobile

phone, etc.).

Stop using the equipment or use the in-

tegrated key (refer to the information on

“Locking/unlocking the doors” in Section 1).

Vehicle located in a high electromag-

netic radiation zone.
Vehicle battery flat.

Use the key integrated in the card (refer to

the information on “Locking/unlocking the

doors” in Section 1).

5.34

ENG_UD17369_3

Anomalies de fonctionnement (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_5

OPeratIng Faults

(2/5)

the starter is activated

POssIBle causes

what tO DO

The instrument panel indicator lights

are weak or fail to light up and the

starter does not turn.

Battery terminals not tight, battery

terminals disconnected or oxidised.

Retighten or reconnect the terminals, or

clean them if they are oxidised.

Discharged battery or not opera-

tional.

Connect another battery to the faulty bat-

tery. Refer to information on “Battery: trou-

bleshooting” in Section 5 or replace the bat-

tery if necessary.

Do not push the vehicle if the steering

column is locked.

The engine will not start.

Starting conditions are not fulfilled.

Refer to the information on “Starting/stop-

ping the engine” in Section 2.

The hands-free RENAULT card

does not work.

Insert the card in the card reader in order to

start the engine.

Refer to the information on “Starting/stop-

ping the engine” in Section 2.

The engine cannot be switched off.

Card not detected.

Insert the card in card reader.

Electronic fault.

Press the starter button quickly five times.

5.35

ENG_UD17369_3

Anomalies de fonctionnement (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_5

OPeratIng Faults

(3/5)

On the road

POssIBle causes

what tO DO

The steering column remains locked.

Steering wheel locked.

Move the steering wheel while pressing the

engine start button (refer to the information

on “Starting the engine” in Section 2).

Coolant boiling in the coolant reser-

voir.

Mechanical fault: damaged cylinder

head gasket.

Stop the engine.

Contact an approved dealer.

Smoke under the bonnet.

Short-circuit or cooling system leak.

Stop, switch off the ignition, stand away

from the vehicle and contact an approved

dealer.

The oil pressure warning light comes

on:

while cornering or braking

The level is too low.

Top up the engine oil level (refer to the in-

formation on “Engine oil level: topping up/

filling” in Section 4).

is slow to go out or remains lit

under acceleration

Loss of oil pressure.

Stop the vehicle and contact an approved

dealer.

White smoke from the exhaust.

This is not necessarily a fault. Smoke

may be caused by regeneration of the

particle filter.

Refer to the information on “Special fea-

tures of diesel versions” in Section 2.

5.36

ENG_UD17369_3

Anomalies de fonctionnement (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_5

OPeratIng Faults

(4/5)

On the road

POssIBle causes

what tO DO

Steering becomes heavy.

Assistance overheating.

Consult an approved dealer.

The engine overheats. The coolant

temperature indicator is in the warn-

ing zone and warning light

comes on.

Engine cooling fan not working.

Stop the vehicle, switch off the engine and

contact an approved dealer.

Coolant leaks.

Check the coolant reservoir: it should con-

tain fluid. If there is no coolant, consult an

approved dealer as soon as possible.

Vibrations.

Tyres not inflated to correct pres-

sures, incorrectly balanced or dam-

aged.

Check the tyre pressures: if this is not the

problem, have them checked by an ap-

proved dealer.

radiator: If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while

the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling

system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved

by our Technical Department may be used for this purpose.

5.37

ENG_UD17369_3

Anomalies de fonctionnement (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_5

OPeratIng Faults

(5/5)

electrical equipment

POssIBle causes

what tO DO

The wipers do not work.

Wiper blades stuck.

Free the blades before using the wipers.

Faulty electrical circuit.

Consult an approved dealer.

The wiper does not stop.

Faulty electrical controls.

Consult an approved dealer.

Direction indicators flashing more

quickly.

Blown bulb.

Front: contact an approved dealer.
Rear: replace the bulb.

The direction indicators do not work.

Faulty electrical circuit.

Consult an approved dealer.

The lights do not come on or go off.

Faulty electrical circuit or control.

Consult an approved dealer.

Traces of condensation in the lights.

Traces of condensation may be a nat-

ural phenomenon caused by varia-

tions in temperature.
In this situation, these traces soon dis-

appear when the lights are switched

on.

6.1

ENG_UD19032_7

Sommaire 6 (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_6

Section 6: Technical specifications

Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2

Engine identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.3

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5

Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.8

Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9

Towing weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9

Replacement parts and repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.10

Service sheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.11

Anticorrosion check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.17

6.2

ENG_UD14568_2

Plaques d’identification véhicule (X95 - B95 - D95 - K95 - Renault)

ENG_NU_837-6_BDK95_Renault_6

Vehicle identification plates

Vehicle identification plates

6 Technical specifications of vehicle.

7 Vehicle paint reference.

8 Equipment level.

9 Vehicle type.

10 Trim code.

11 Additional equipment specifica-

tion.

12 Fabrication number.

13 Interior trim code.

the information shown on the ve-

hicle identification plate should be

quoted on all correspondence or

orders.
Vehicle identification plate A

1 Vehicle type and chassis number.

depending on the vehicle, this

information is also given on

marking B.

2 Maximum permissible all-up

weight.

3 Total train weight (vehicle fully

loaded, with trailer).

4 Maximum permissible weight, front

axle.

5 Maximum permissible weight, rear

axle.

technical specifications .........................(up to the end of the DU)

vehicle identification plates ...................(up to the end of the DU)

6.3

ENG_UD11756_3

Plaques d’identification (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_6

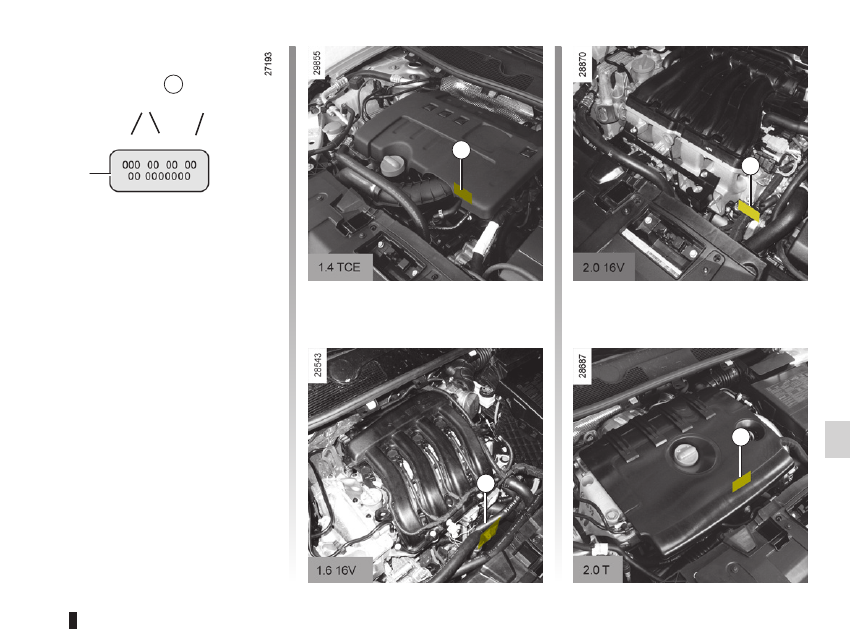

Engine identification plates

engine identification plates

(1/2)

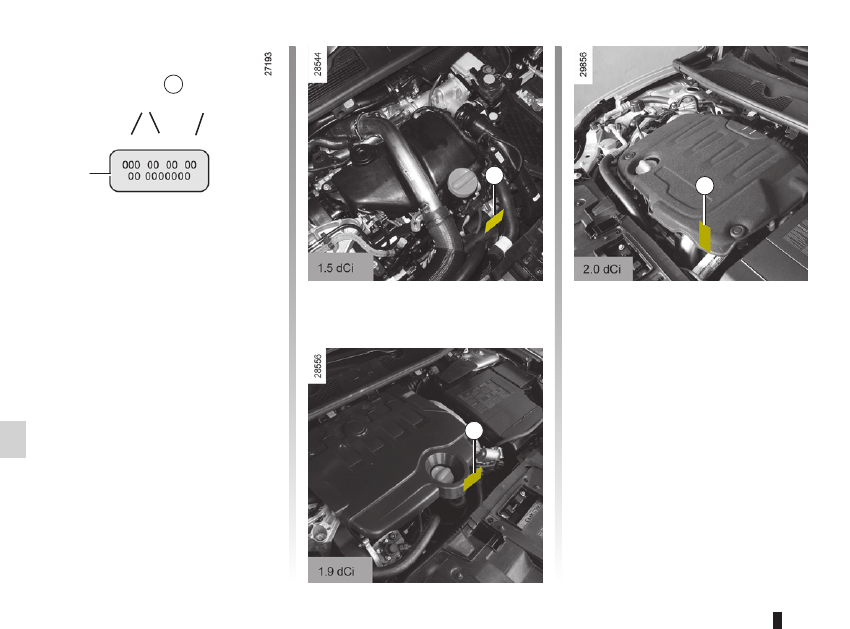

the information on the engine plate

(or label) C should be quoted on all

your correspondence or orders.

(Location varies depending on engine)

1 Engine type.

2 Engine suffix.

3 Engine number.

6.4

ENG_UD11756_3

Plaques d’identification (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_6

the information on the engine plate

(or label) C should be quoted on all

your correspondence or orders.

(Location varies depending on engine)

1 Engine type.

2 Engine suffix.

3 Engine number.

engine identification plates

(2/2)

technical specifications .........................(up to the end of the DU)

dimensions ...........................................(up to the end of the DU)

6.5

ENG_UD14419_4

Dimensions (en mètre) (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_6

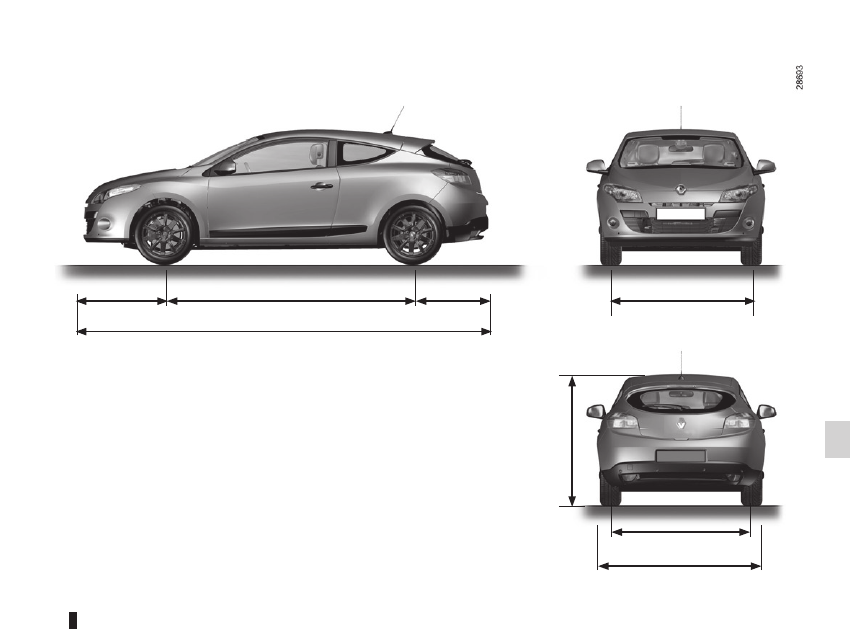

Dimensions

dimensions (in metres)

(1/3)

three door version

0.862

2.640

0.797

1.546

4.299

1.423*

1.547

1.785

* Unladen

6.6

ENG_UD14419_4

Dimensions (en mètre) (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_6

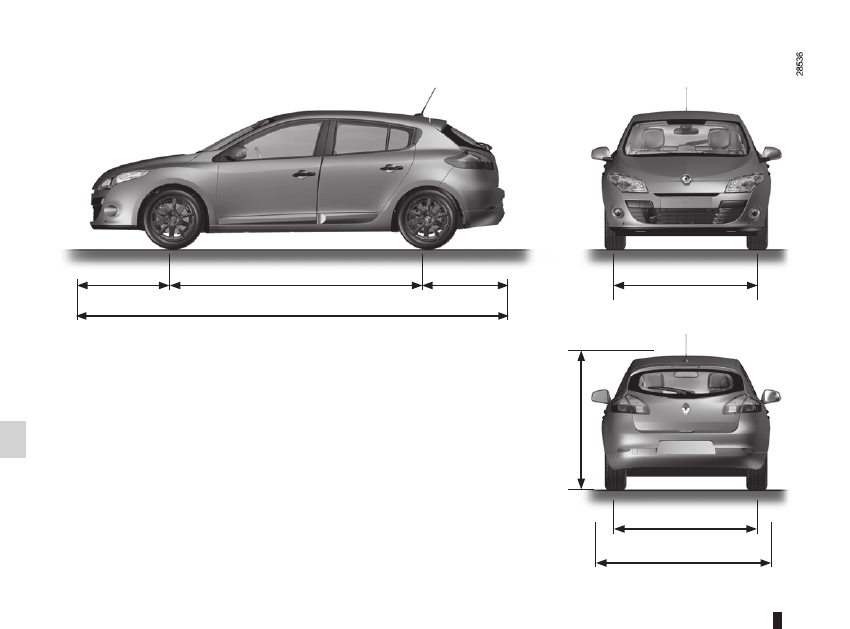

dimensions (in metres)

(2/3)

0.862

2.641

0.792

1.546

4.292

1.471*

* Unladen

1.547

1.808

five door version

6.7

ENG_UD14419_4

Dimensions (en mètre) (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_6

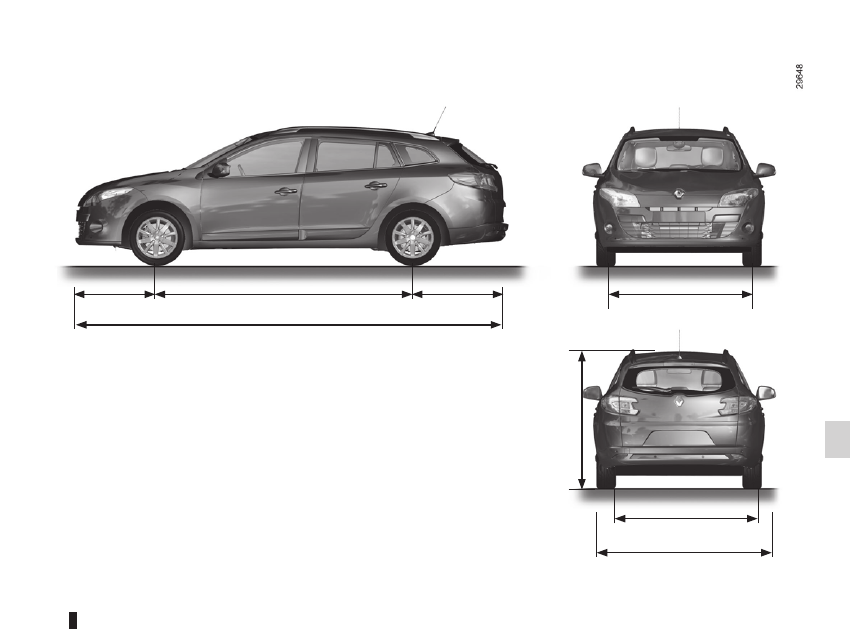

dimensions (in metres)

(3/3)

sport tourer versions

0.862

2.703

0.994

1.546

4.558

1.461*

* Unladen

1.547

1.766

6.8

ENG_UD12979_3

Caractéristiques moteurs (X95 - B95 - D95 - Renault)

ENG_NU_837-6_BDK95_Renault_6

Engine specifications

Versions

1.4 tce

1.6 16V

2.0 16V

2.0 t

1.5 dci

1.9 dci

2.0 dci

engine type

(see engine plate)

H4J Turbo

K4M

M4R

F4R Turbo

K9K

F9Q

M9R

cubic capacity (cc)

1,395

1,598

1,998

1,461

1,870

1,995

type of fuel

octane Rating

It is

essential that you use unleaded petrol of the octane

rating stated on the label inside the fuel filler flap.

If not available, for a limited time only, use unleaded fuel:
– with an octane rating of 91 for a label showing 95 or

98;

– with an octane rating of 87 for a label showing 91, 95

or 98.

Diesel

The label located in the fuel filler

flap indicates authorised fuels.

spark plugs

Only use the spark plugs specified for your vehicle’s

engine.

The type should be marked on a label affixed inside the

engine compartment. If it is not then contact your ap-

proved dealer.

Fitting spark plugs which are not to specification may

damage the engine.

engine specifications

Content .. 11 12 13 14 ..
