RENAULT cards: General information, use, deadlocking

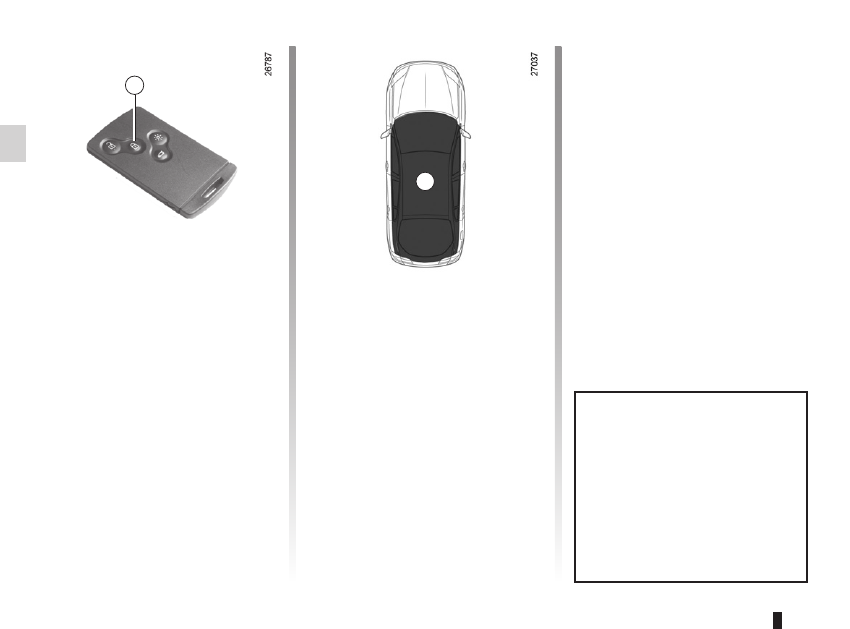

RENAULT card operating

range

This varies according to the surround-

ings. It is important to make sure when

handling the RENAULT card that you

do not lock or unlock the doors by inad-

vertently pressing the buttons.

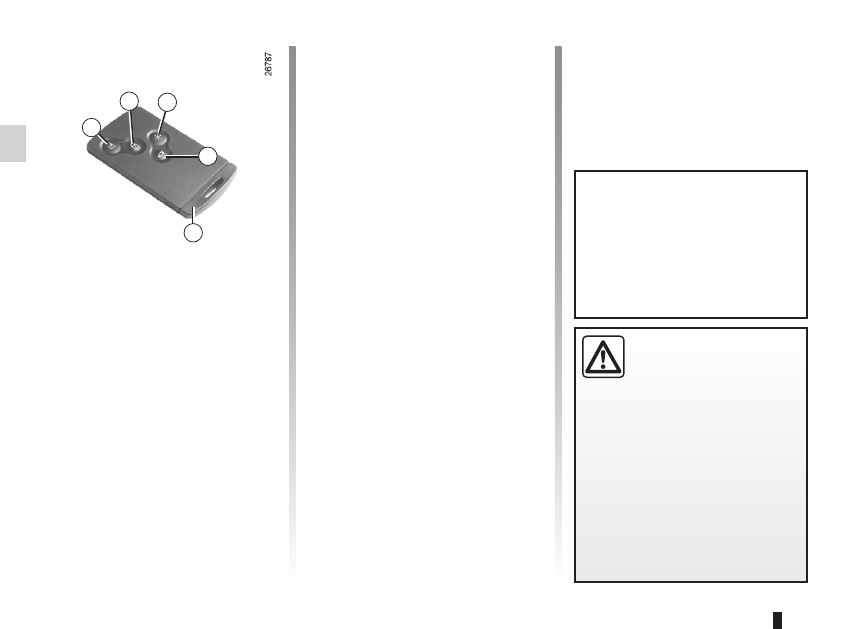

RENAULT cARds: general information

(1/2)

1 Unlocking the doors and tailgate.

2 Locking all doors and tailgate.

3 Switching on the lighting remotely.

4 Unlocking/locking the tailgate

5 Integrated key.

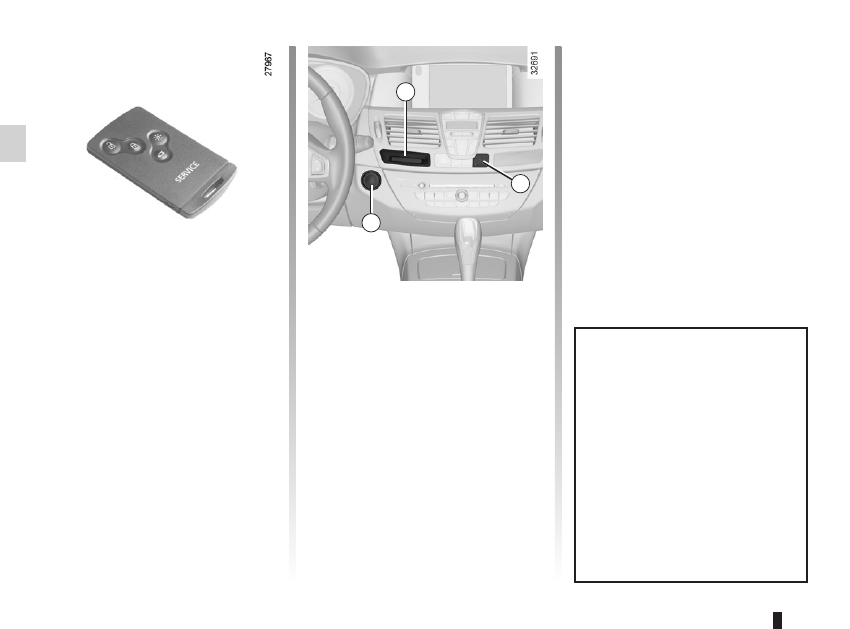

special note

The RENAULT “SERVICE” card, for ve-

hicles equipped with it, can be identi-

fied by the word “SERVICE” engraved

on the card. Refer to the information

on the “RENAULT SERVICE card” in

Section 1.

The RENAULT card is used

for:

– locking/unlocking the doors and tail-

gate (doors, tailgate) and the fuel

filler flap (see the following pages);

– switching on the vehicle lighting re-

motely (refer to the following pages);

– depending on the vehicle, automatic

remote closing of windows and sun-

roof, refer to the information on “One-

touch electric windows: remote con-

trol closing” and “Electric sunroof:

remote control closing” in Section 3;

– starting the engine; refer to the in-

formation on “Starting the engine” in

Section 2.

Battery life

Make sure that the correct battery type

is being used, and that the battery is in

good condition and inserted correctly.

Its service life is approximately two

years: replace it when the message

“Low card battery” appears on the in-

strument panel (refer to the informa-

tion on the “RENAULT card: Battery” in

Section 5).

driver’s responsibility

Never leave your vehicle

with the RENAULT card

inside and never leave a

child (or a pet) unsupervised, even

for a short while.

They may pose a risk to themselves

or to others by starting the engine,

activating equipment such as the

electric windows or by locking the

doors.

Risk of serious injury.

When the battery is flat, you can

still lock/unlock and start your ve-

hicle. Refer to the information on

“Locking/unlocking the doors” in

Section 1 and “Starting the engine”

in Section 2.

1.3

ENG_UD20082_1

Carte RENAULT: généralités (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

RENAULT cARds: general information

(2/2)

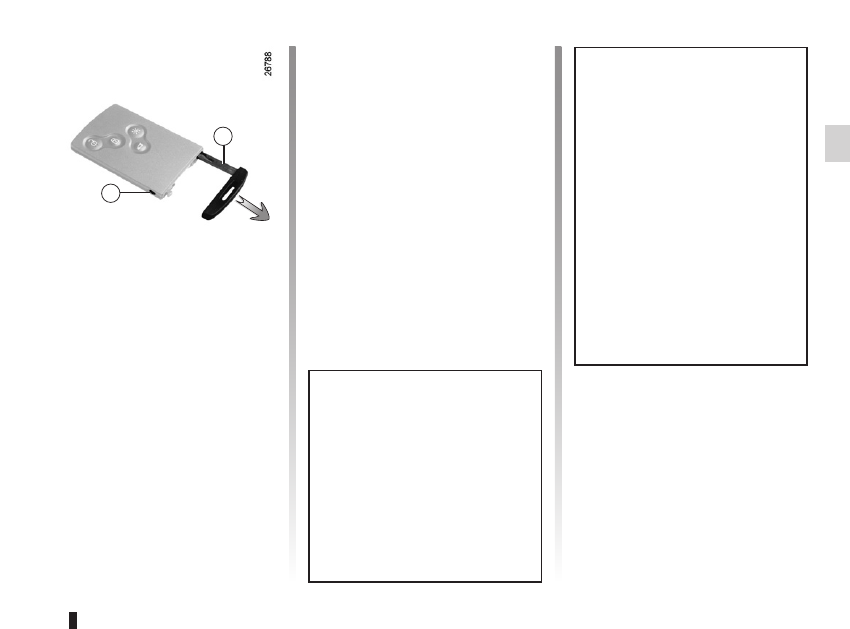

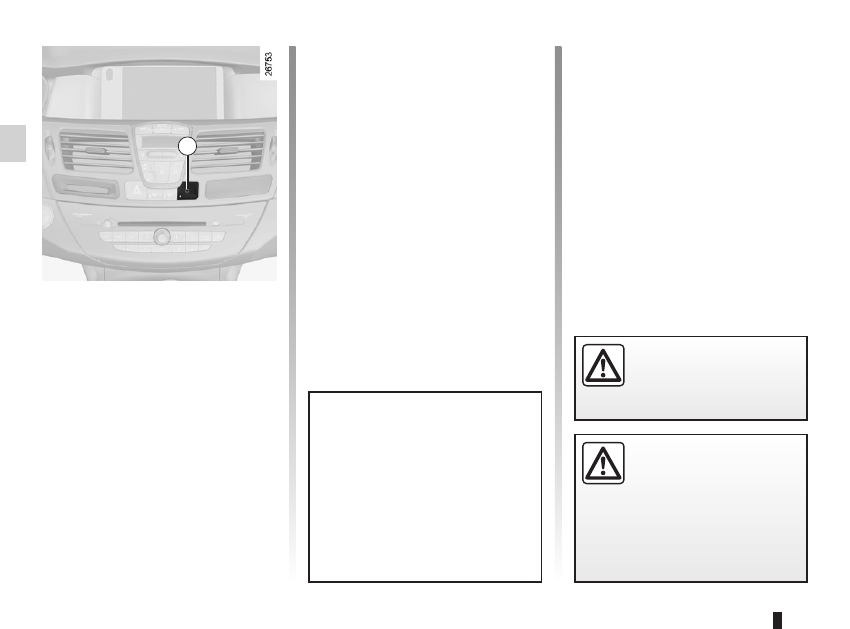

Access to key 5
Press button 6 and pull on key 5 then

release the button.

Using the key

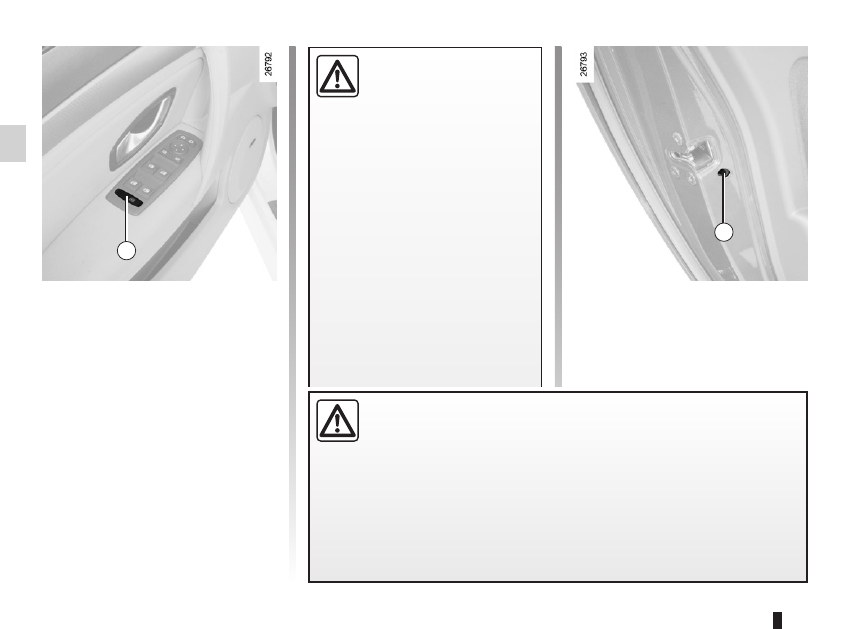

Refer to the information on “Locking/

unlocking the doors”.
Once you have accessed the vehicle

using the integrated key, replace it

in its housing in the RENAULT card,

then insert the RENAULT card into

the card reader to start the vehicle.

Integrated key 5

The integrated key is used to lock or

unlock the front left-hand door if the

RENAULT card does not work:
– when the RENAULT card battery is

drained, discharged battery, etc.

– use of devices using the same fre-

quency as the card;

– vehicle located in a high electromag-

netic radiation zone.

Replacement: need for an

additional RENAULT card
If you lose your RENAULT card or

require another, you can obtain one

from an approved dealer.
If a RENAULT card is replaced, it

will be necessary to take the vehi-

cle and

all of its RENAULT cards

to an approved dealer to initialise

the system.
You can use up to four RENAULT

cards per vehicle.

Advice
Avoid leaving the card in hot, cold or

humid areas.
Do not keep the RENAULT card in a

place where it could be bent or dam-

aged accidentally, such as in a back

pocket of a garment.

locking the doors ..................................(up to the end of the DU)

RENAULT card

use ..................................................(up to the end of the DU)

1.4

ENG_UD3133_1

Cartes RENAULT à télécommande : utilisation (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

REmOTE cONTROL RENAULT cARd: use

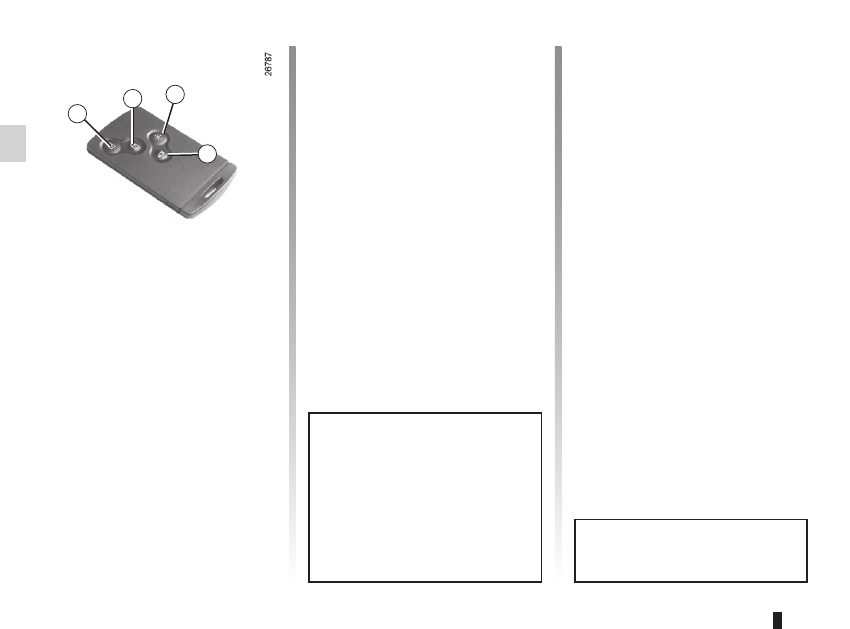

Unlocking the doors and fuel

filler flap

Press unlocking button 1.

The hazard warning lights

flash once

to indicate that the doors have been un-

locked.
special notes (for some countries):
– pressing button 1 unlocks only the

driver’s door and the fuel filler flap;

– pressing button 1 twice unlocks all of

the doors and the tailgate.

The card buttons are deactivated

when the engine is running.

Locking the doors and fuel

filler flap

Press the locking button 2.
The hazard warning lights

flash twice

to indicate that the doors have locked.

If a door or the luggage compartment

is open or not properly shut, or if a

RENAULT card is still in the reader,

the doors and luggage compartment

lock then quickly unlock and the hazard

warning lights

do not flash.

Unlocking/locking the

luggage compartment lid

only

Press button 4 to unlock or lock the tail-

gate.

distance lighting function

This can, for example, identify the ve-

hicle from a distance when parked in a

car park.
The dipped beam headlights, indicator

lights and interior lights come on for ap-

proximately 30 seconds when button 3

is pressed.
Note: pressing button 3 again switches

off the lighting.

RENAULT card non-detection

alarm

The message “card not detected” and

a beep will warn you if you open a door

with the engine running and the card is

not in the reader. The warning disap-

pears when the card is inserted in the

reader again.

The flashing status of the hazard

warning lights informs you of the ve-

hicle status:
–

one flash indicates that the vehi-

cle is completely unlocked;

–

two flashes indicates that the

vehicle is completely locked;

locking the doors ..................................(up to the end of the DU)

RENAULT card

use ..................................................(up to the end of the DU)

1.5

ENG_UD29078_7

Carte RENAULT mains libres : utilisation (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

“HANds-fREE” RENAULT cARd: usage

(1/4)

Use

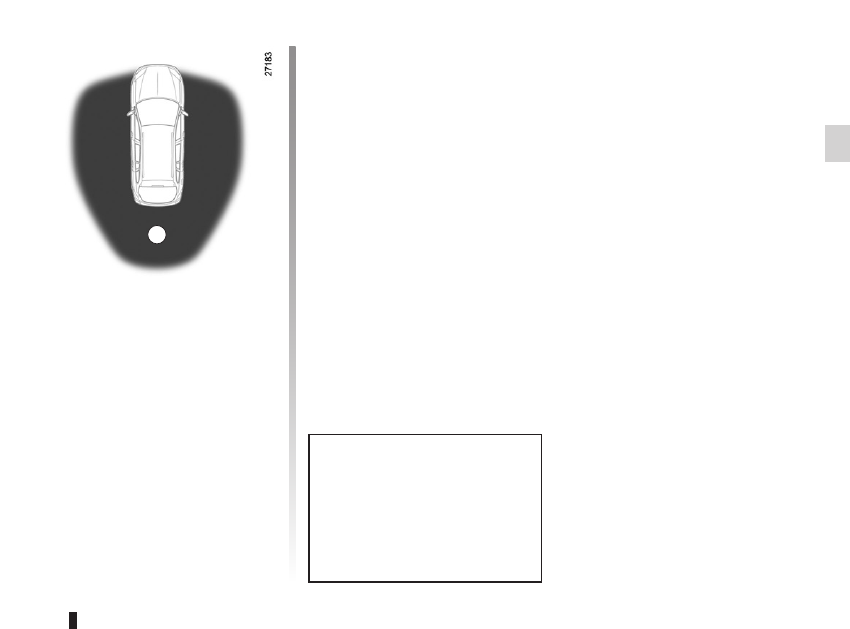

On equipped vehicles, in addition to

the functions of the above-mentioned

remote control RENAULT card, it can

be used to lock/unlock without using

the RENAULT card, when it is in access

zone 1.

Recommendations
Do not store the RENAULT card

anywhere it may come into con-

tact with other electronic equipment

(computer, PDA, phone, etc.) as this

could hinder its operation.

1.6

ENG_UD29078_7

Carte RENAULT mains libres : utilisation (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

“HANds-fREE” RENAULT cARd: usage

(2/4)

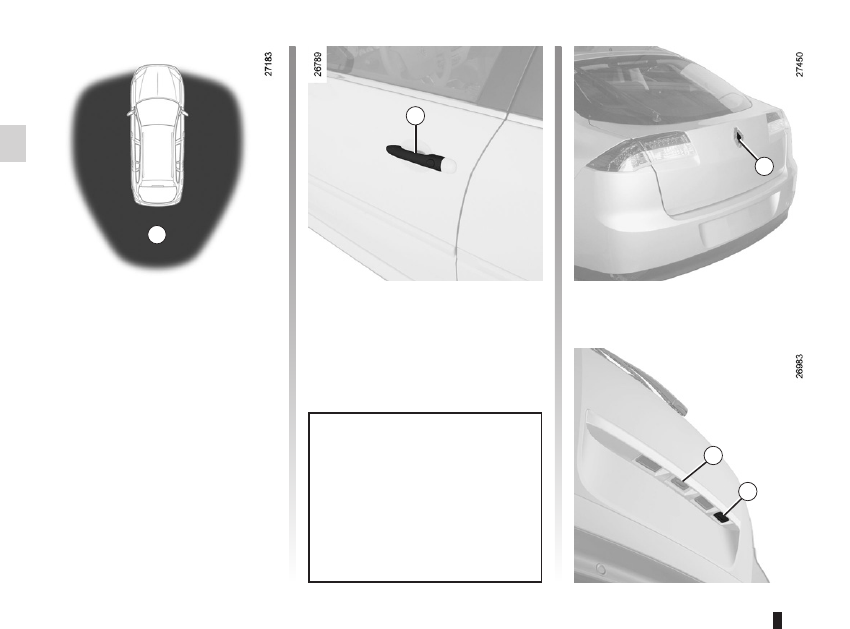

Unlocking the vehicle

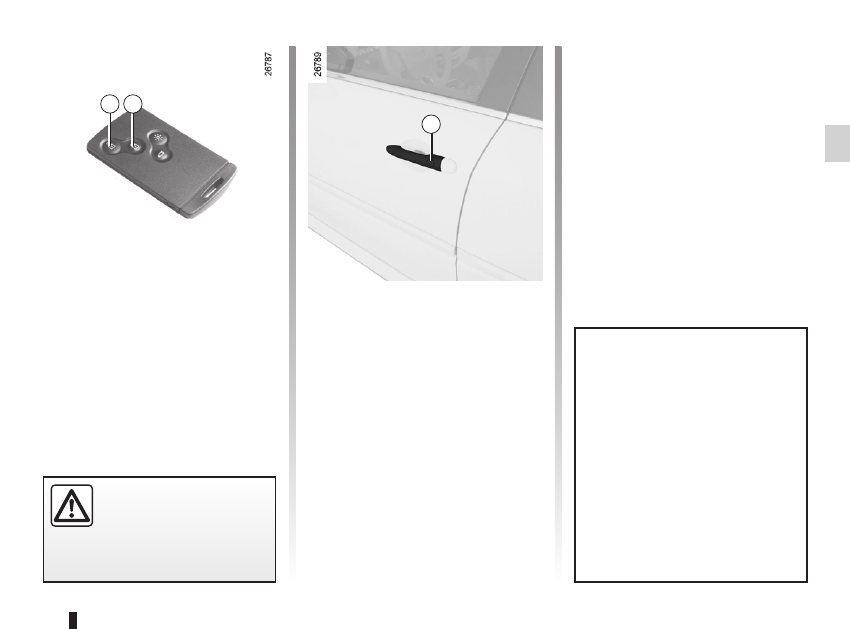

With the RENAULT card in zone 1,

place your hand on a door handle 2: the

vehicle will unlock.

In some cases (leaving the vehicle

parked for several days, for example),

you may need to pull handle 2 twice to

unlock the vehicle and open the door.
Pressing button 3 or 4 (if fitted to the

vehicle) also unlocks the entire vehicle.

The hazard warning lights

flash once

to indicate that the doors have been un-

locked.

After unlocking the vehicle or the

boot only using the buttons of the

RENAULT card, remote locking and

unlocking in hands-free mode are

deactivated.
To reactivate the hands-free mode:

restart the vehicle.

child safety.............................................................(current page)

children (safety) .....................................................(current page)

1.7

ENG_UD29078_7

Carte RENAULT mains libres : utilisation (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

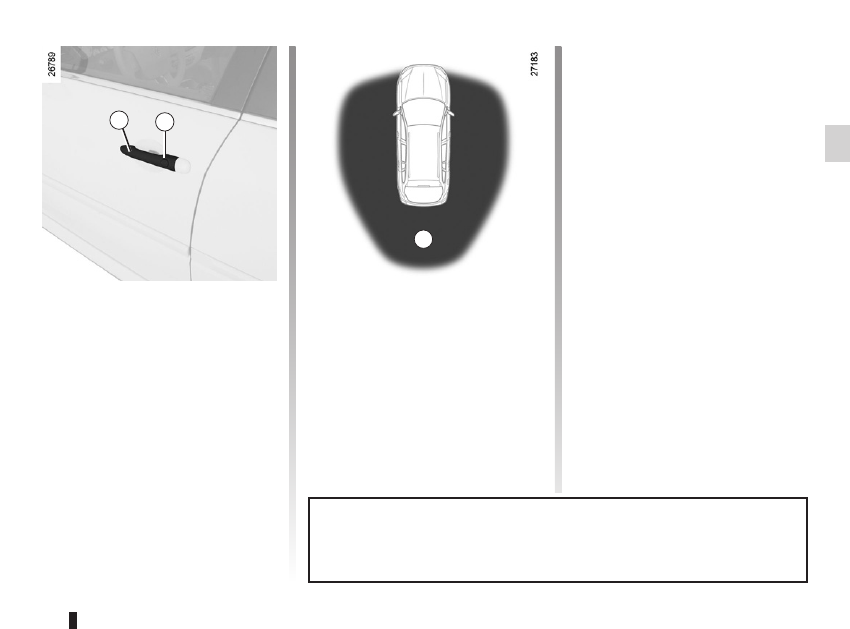

Locking the vehicle

There are three ways to lock the vehi-

cle: remotely, using button 5, or using

the RENAULT card.

Remote locking

With the RENAULT card on you, and

doors and tailgate closed, move away

from the vehicle: it will lock automati-

cally once you have left zone 1.
Note: the distance at which the vehicle

locks depends on the surroundings.

The hazard warning lights

flash twice

and a beep sounds to indicate that the

doors have locked.

This beep can be changed or switched

off. Consult an approved Dealer.

If a door or the tailgate is open or not

properly shut, or a card is in the passen-

ger compartment (or the card reader)

the vehicle will not lock. In this situa-

tion,

no beep sounds and the hazard

warning lights do not flash.

Locking using button 5
With the doors and tailgate closed,

press button 5 on the driver’s door

handle. The vehicle will lock. If a door

or the tailgate is open or not closed

properly, the vehicle will quickly lock/

unlock.
Note: the RENAULT card must be

within the vehicle’s access zone

(1 zone) to be able to use the button for

locking.
special note
If you wish to check that the doors are

locked after locking using button 5, you

have approximately

three seconds to

try the door handles without unlocking

them.
After this time, the “hands-free” mode

is activated once again and any move-

ment of a handle will unlock the vehicle.

“HANds-fREE” RENAULT cARd: usage

(3/4)

If the vehicle is fitted with remote window closing, locking the doors using button 5

also causes all the windows to close (please see the information on “Electric win-

dows; Electric sunroof” in Section 3).

1.8

ENG_UD29078_7

Carte RENAULT mains libres : utilisation (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

With the engine running, if, after

having opened and closed a door, the

card is no longer in the passenger com-

partment, the message “card not de-

tected” (accompanied by a beep when

the speed passes a certain level) warns

you that the card is no longer in the ve-

hicle. This prevents you driving away

after having dropped off a passenger

who has the card, for example.
The warning disappears when the card

is detected again.

Locking using the RENAULT card
With the doors and tailgate closed,

press button 6: the vehicle will lock.
The hazard warning lights

flash twice

to indicate that the doors have locked.
Note: the maximum distance at which

the vehicle locks depends on the sur-

roundings.

special features
The vehicle will not lock if:
– a door or the tailgate is open or not

properly closed;

– a card is still in zone 7 (or in the card

reader) and no other card is in the

external detection zone.

After locking/unlocking the vehicle

or the lug- gage compartment only

using the buttons on the RENAULT

card, remote locking and unlocking

in hands-free mode are deactivated.
To reactivate the “hands-free” mode:

restart the vehicle.

“HANds-fREE” RENAULT cARd: usage

(4/4)

central door locking ..............................(up to the end of the DU)

doors/tailgate ........................................(up to the end of the DU)

locking the doors ..................................(up to the end of the DU)

RENAULT card

use ..................................................(up to the end of the DU)

deadlocking the doors ...........................................(current page)

1.9

ENG_UD9623_2

Cartes RENAULT : super-condamnation (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

To deactivate deadlocking

Unlock the vehicle using button 1 on

the RENAULT card.
The hazard warning lights flash once to

indicate that the doors have been un-

locked.

Never use deadlocking if

someone is still inside the

vehicle.

To activate deadlocking

You can choose between two deadlock-

ing activation modes:
– press button 2 twice in quick succes-

sion;

– or, press the button on the driver’s

door handle 3 twice in quick succes-

sion.

The hazard warning lights flash

five

times to indicate locking.

If the vehicle is equipped with a dead-

locking function, this allows you to lock

the opening elements and to prevent

the doors from being unlocked using

the interior handles (for example, by

breaking the window and then trying to

open the door from the inside).

RENAULT cARd: deadlocking

Activating deadlocking also re-

motely closes the windows and/or

the electric sunroof, on equipped

vehicles.
After activating the deadlocking

function using button 2, remote

locking and unlocking in hands-free

mode are deactivated.
To reactivate the “hands-free” mode:

restart the vehicle.

locking the doors ..................................(up to the end of the DU)

RENAULT card

use ..................................................(up to the end of the DU)

1.10

ENG_UD20589_4

Carte RENAULT en mode restreint (X91 - B91 - K91 - D91 - Renault)

ENG_NU_936-5_BK91_Renault_1

RENAULT cARd “sERvIcE”

If the vehicle is equipped with this

card, it can be identified by the word

“SERVICE” engraved on the card.
In certain situations, you may wish to

entrust your vehicle to a third party

(parking valet, mechanic, etc.) whilst

restricting its operation.
The RENAULT SERVICE card enables

the vehicle to be locked but only allows

the driver's door to be unlocked and the

engine to be started.

Activation of the “SERVICE”

mode.

Insert the RENAULT SERVICE card

into card reader 1. All the vehicle open-

ing elements lock (except the driver’s

door).

Interior locking/unlocking switch 2

is deactivated while the vehicle is

in use with the RENAULT SERVICE

card.
Each vehicle only has one

RENAULT SERVICE card.
When using a RENAULT SERVICE

card, the other cards retain all their

functions.

deactivation of the

“SERVICE” mode.

There are two possibilities:
– Press a button on a RENAULT card

(not the RENAULT SERVICE card);

– start the engine with a RENAULT

card (not the RENAULT SERVICE

card). With the card in reader 1,

press button 3.

warning buzzer ......................................................(current page)

doors.....................................................(up to the end of the DU)

locking the doors ..................................(up to the end of the DU)

opening the doors .................................(up to the end of the DU)

closing the doors ..................................(up to the end of the DU)

1.11

ENG_UD20084_1

Ouverture et fermeture des portes (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

card reminder buzzer

A beep will let you know if you have left

the card in the reader when you open

the driver’s door, and the “Remove

card” message will appear on the in-

strument panel.

door/tailgate open buzzer

If a door (or tailgate) is open or not

properly closed, as soon as the vehi-

cle reaches a speed of approximately

6 mph (10 km/h), the message “tailgate

open” or “door open” (depending on

which is open) will appear on the instru-

ment panel accompanied by a warning

light.

Doors

OpENINg ANd cLOsINg THE dOORs

(1/2)

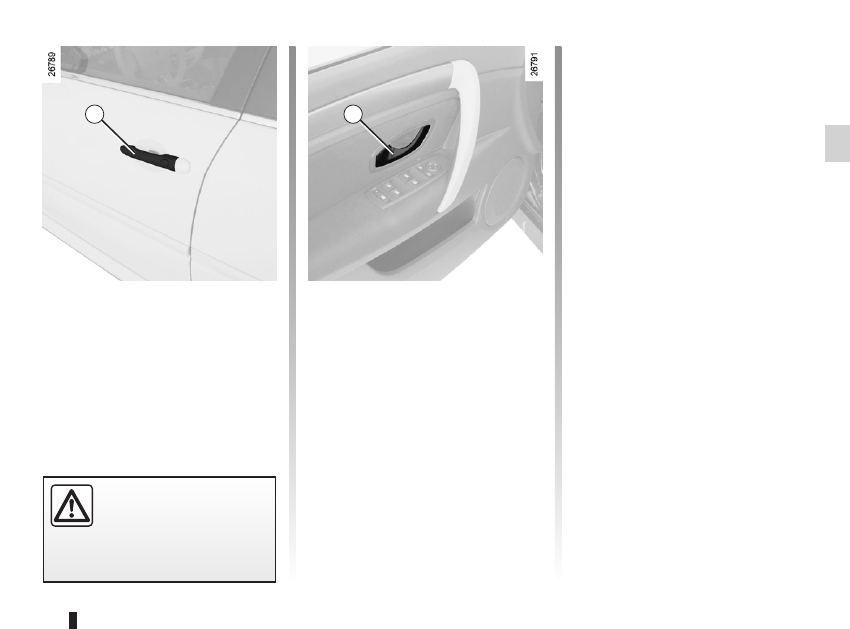

Opening the doors from the

outside

With the doors unlocked or “hands-free”

RENAULT card on you, hold handle 1

and pull it towards you.
In some cases, it may be necessary to

pull the handle twice to open the door.

Opening from the inside

Pull on the handle 2.
Note: the lights and accessories (radio

etc.) continue to work after the engine

is switched off. They stop as soon as

the driver’s door is opened.

Lights-on reminder buzzer

If you have switched off the ignition

and left the lights switched on, a re-

minder buzzer will sound when a door

is opened.

As a safety precaution,

the doors should only be

opened or closed when the

vehicle is stationary.

1.12

ENG_UD20084_1

Ouverture et fermeture des portes (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

OpENINg ANd cLOsINg THE dOORs

(2/2)

child safety

vehicle with switch 1

Press switch 1 to authorise

opening of the rear doors. If the vehicle

is equipped with electric rear windows,

this action will also authorise their use.

The indicator light in the switch lights up

to confirm that the locks have been ac-

tivated.
Note: in the event of a system fault, the

message “check child safety locks” is

displayed on the instrument panel: con-

sult an approved dealer.

vehicle with manual door locking

Move lever 2 and check from the inside

that the doors are securely locked, to

prevent the rear doors being opened

from the inside.

safety of rear occupants

The driver can authorise

operation of the rear doors

and, depending on the ve-

hicle, the electric windows by press-

ing switch 1 on the side with the il-

lustration.

Depending on the vehicle, in the

event of a fault:

– a beep sounds;

– a message is displayed on the in-

strument panel;

– the integrated indicator does not

light up.

If the battery has been discon-

nected, press switch 1 on the side

with the symbol, to lock the rear

doors.

driver’s responsibility when parking or stopping the vehicle

Never leave an animal, child or adult who is not self-sufficient alone on

your vehicle, even for a short time.

They may pose a risk to themselves or to others by starting the engine,

activating equipment such as the electric windows or by locking the doors.

Also, in hot and/or sunny weather, please remember that the temperature inside

the passenger compartment increases very quickly.
RIsK Of dEATH OR sERIOUs INJURY.

opening the doors .................................(up to the end of the DU)

closing the doors ..................................(up to the end of the DU)

unlocking the doors ..............................(up to the end of the DU)

central door locking ..............................(up to the end of the DU)

1.13

ENG_UD20085_1

Verrouillage/déverrouillage des ouvrants (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

LOcKINg/UNLOcKINg THE dOORs

(1/2)

Locking/unlocking the doors

from the outside

This is done using the RENAULT

card; refer to the information on the

“RENAULT card” in Section 1.
In certain cases, the RENAULT card

may not work:
– if the RENAULT card battery is weak,

flat, etc.

– if equipment operating on the same

frequency as the card (mobile

phones, etc.) is used;

– vehicle located in a high electromag-

netic radiation zone.

It is then possible:
– to use the key integrated into the

card to unlock the front left-hand

door;

– to lock each of the doors manually

(see the following page);

– to use the interior door locking/un-

locking control (refer to the following

pages).

Using the key integrated in

the RENAULT card

Pull out the integrated key (refer to the

“RENAULT card: general information”

section).

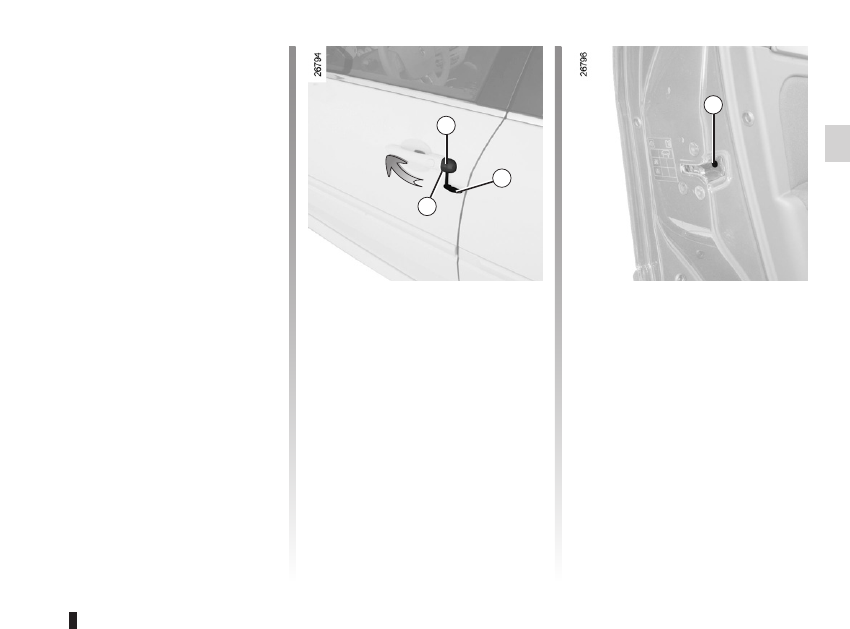

Remove cover A from the left-hand

door (using the end of key 2) in notch 1.
Move it upwards to remove cover A.
Insert the key 2 into the lock of the front

left-hand door and lock or unlock.

Locking the doors manually

Turn screw 3 with the door open (using

the end of the key) and close the door.
This means that the doors are then

locked from the outside.
The doors may then only be opened

from the inside or by using the key in

the front left-hand door.

1.14

ENG_UD20085_1

Verrouillage/déverrouillage des ouvrants (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

Locking the doors without

the RENAULT card

For example, in the event of a dis-

charged battery or the RENAULT card

temporarily not working, etc.
With the engine switched off and a

door or tailgate open, press and hold

switch 4 for more than five seconds.
When the door is closed, all the doors

and the tailgate will be locked.
The vehicle can only be unlocked from

outside when the RENAULT card is in

the vehicle's access zone.

doors and tailgate status

indicator light

When the ignition is on, the indicator

light integrated in switch 4 informs you

of the status of the doors and tailgate:
– light on, the doors and tailgate are

locked;

– light off, the doors and tailgate are

unlocked.

When you lock the doors, the indicator

light remains lit and then goes out.

LOcKINg/UNLOcKINg THE dOORs

(2/2)

Interior locking/unlocking

door control

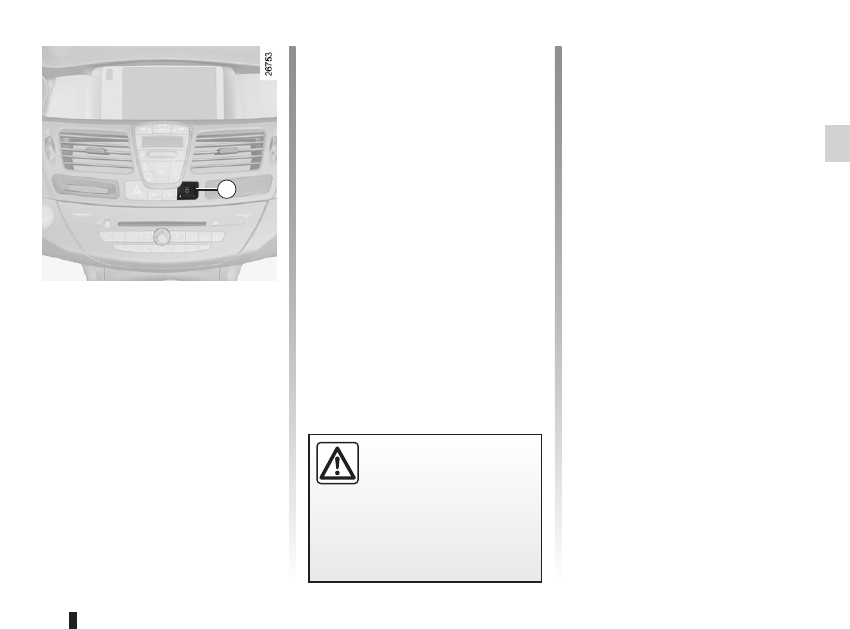

Switch 4 controls the doors, tailgate

and, depending on the vehicle, the fuel

filler flap simultaneously.

If a door or the tailgate is open or not

closed properly, the doors and tailgate

lock/unlock quickly.
If transporting an object with the tail-

gate open, you can still lock the doors:

with the engine stopped, press and

hold switch 4 for more than five sec-

onds to lock the other doors.

Never leave your vehicle

with the RENAULT card

inside.

After locking/unlocking the vehicle

or the luggage compartment only

using the buttons on the RENAULT

card, remote locking and unlocking

in hands-free mode are deactivated.
To reactivate the hands-free mode:

restart the vehicle.

driver’s responsibility
If you decide to keep the

doors locked when you are

driving, remember that it

may be more difficult for those as-

sisting you to gain access to the

passenger compartment in the

event of an emergency.

RENAULT ANTI-INTRUDER DEVICE (RAID) (up to the end of the DU)

central door locking ..............................(up to the end of the DU)

doors.....................................................(up to the end of the DU)

locking the doors ..................................(up to the end of the DU)

1.15

ENG_UD23632_3

Condamnation automatique des ouvrants en roulage (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

Automatic locking of opening elements when driving

AUTOmATIc LOcKINg WHEN dRIvINg

Activating/deactivating the

function

Refer to the information on the “Vehicle

settings personalisation menu” in

Section 1; “Automatic locking of the

doors while driving” function:

: function activated

: function deactivated.

Operating principle

After the vehicle is started, the system

automatically locks the doors when

you are driving at approximately 6 mph

(10 km/h) and over.
The door can be unlocked:
– by pressing the door unlocking

button 1.

– by opening a front door (vehicle sta-

tionary).

Note: if a door is opened or closed,

it will automatically lock again when

the vehicle reaches a speed of 6 mph

(10 km/h).

Operating faults

If you experience an operating fault (no

automatic locking, the indicator light in-

corporated in button 1 does not light up

when trying to lock the doors and tail-

gate, etc.), firstly check that the doors

and tailgate are properly closed. If they

are closed correctly, contact an ap-

proved dealer.

driver’s responsibility
If you decide to keep the

doors locked when you are

driving, remember that it

may be more difficult for those as-

sisting you to gain access to the

passenger compartment in the

event of an emergency.

headrest................................................(up to the end of the DU)

front seats

adjustment ......................................(up to the end of the DU)

adjusting your driving position ..............(up to the end of the DU)

1.16

ENG_UD18801_8

Appuis-tête avant (B74 - K74 - X81 - J81 - X91 - B91 - K91 - D91 - X95 - B95 - D95 - J95 - R95 - Renault)

ENG_NU_936-5_BK91_Renault_1

Headrests - Seats

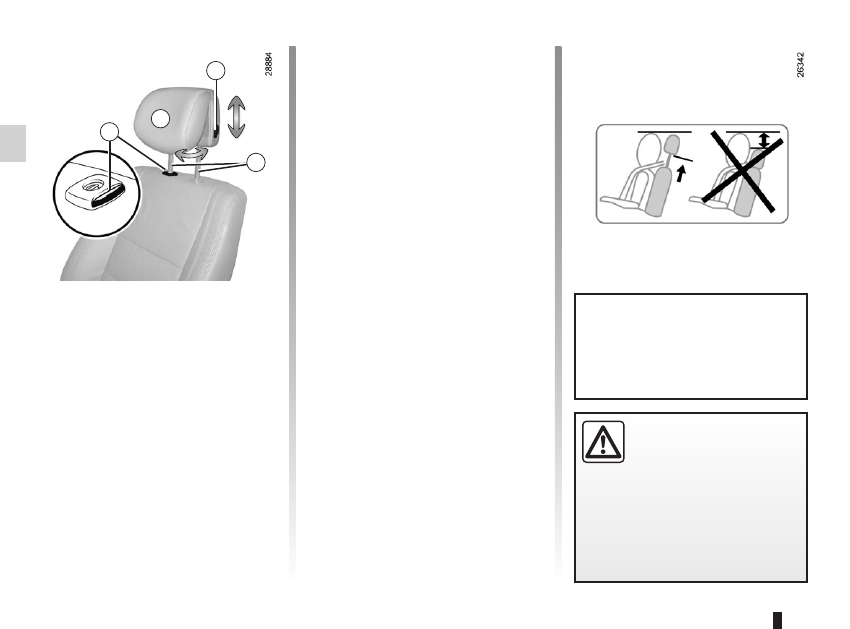

fRONT HEAdREsTs

To raise the headrest

Pull the headrest upwards to the de-

sired height.

To lower the headrest

Press button 2 and guide the headrest

down to the desired height.

To adjust the angle of the

headrest

Depending on the vehicle, tilt section A

towards or away from you to the re-

quired position.

To remove the headrest

Raise the headrest to its highest po-

sition (tilt the seatback backwards if

necessary). Press button 1 and lift the

headrest to release it.

To refit the headrest

Pull out the headrest rods 3 as far as

possible by pulling from the top. Take

care to ensure they are clean and cor-

rectly aligned and, if there are any prob-

lems, check that the notches are facing

forwards.

Insert the headrest rods into the holes

(tilt the seatback backwards if neces-

sary).

Lower the headrest until it locks, press

button 1 and lower the headrest as far

as possible.

Check that each headrest rod 3 is se-

curely locked in the seatback by trying

to pull them up or push them down.

The headrest is an impor-

tant safety component:

ensure that it is in place and

in the correct position. The

distance between your head and the

headrest and the distance between

the head and section A should be

as small as possible.

The three upper positions can

be manipulated without pressing

button 2. However, it is preferable to

press this button to lower the head-

rest.

front seat adjustment ............................(up to the end of the DU)

front seats

adjustment ......................................(up to the end of the DU)

front seats

with manual controls ........................................(current page)

1.17

ENG_UD27623_3

Sièges avant à commandes manuelles (X91 - B91 - K91 - Renault)

ENG_NU_936-5_BK91_Renault_1

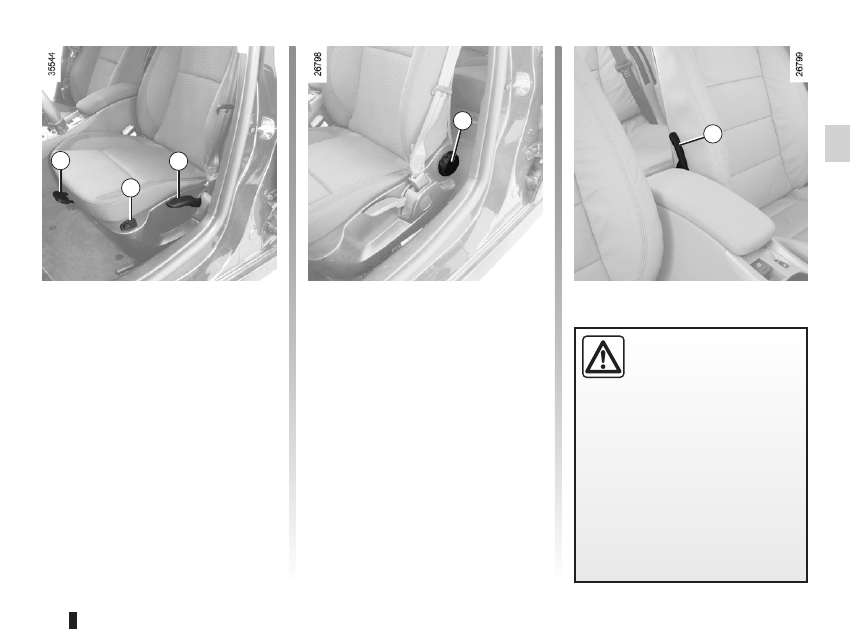

fRONT sEATs WITH mANUAL cONTROL

To move the seat forwards or

back

Lift handle 1 to release. Release the

handle at the desired position and

make sure that it is locked.

To tilt the seatback

Turn control knob 4 to the required po-

sition.

To adjust the lumbar support

on the driver’s seat

Lower handle 5 to increase the support

and lift to decrease it.

To raise or lower the seat

base

Move lever 3 as many times as neces-

sary upwards or downwards.

Heated seats

(depending on vehicle)

With the engine running, turn control 2

to either position

1, 2 or 3 (depending

on the temperature required). An in-

dicator light on the instrument panel

lights up once the front seat heating

system is operating.
The system, which has a thermostat,

decides whether or not the heating is

needed.

For safety reasons, make

these adjustments only

when the vehicle is station-

ary.

We would advise you not to recline

the seatbacks too far to ensure that

the effectiveness of the seat belts is

not reduced.
Nothing should be placed on the

floor (area in front of driver) as such

objects may slide under the pedal

during braking manoeuvres, thus

obstructing its use.

Content .. 1 2 ..
