Renault Fluence (2012 year). Instruction - part 4

1.47

ENG_UD13633_1

Poste de conduite direction à gauche (L38 - X38 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

DRIVINg pOsITION: LEFT-hAND DRIVE

(2/2)

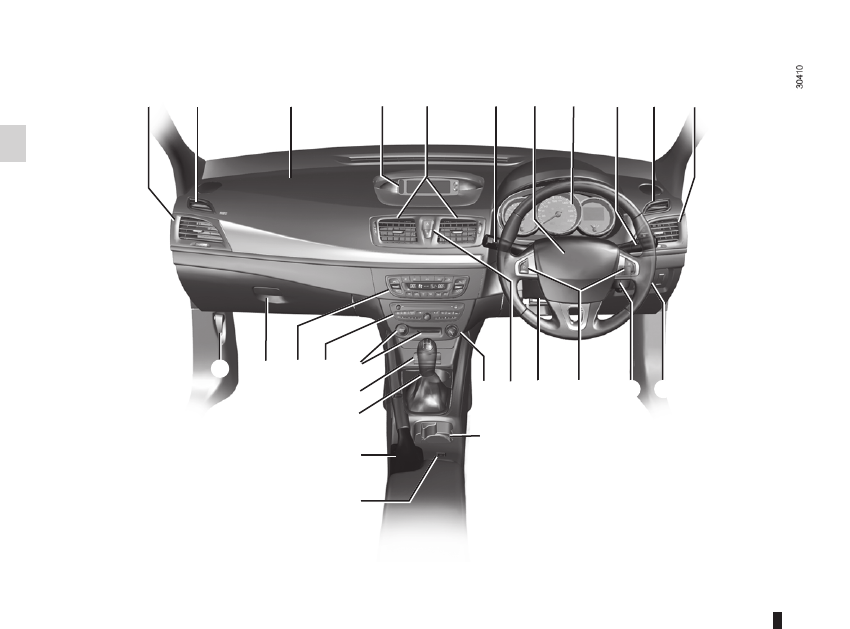

The equipment fitted, described below, DEpENDs ON ThE VERsION AND COUNTRY.

1  Side air vent.
2  Side window demister outlet.
3  Stalk for:

–  direction indicator lights,
–  exterior lights,
–  front fog lights,
–  rear fog light.

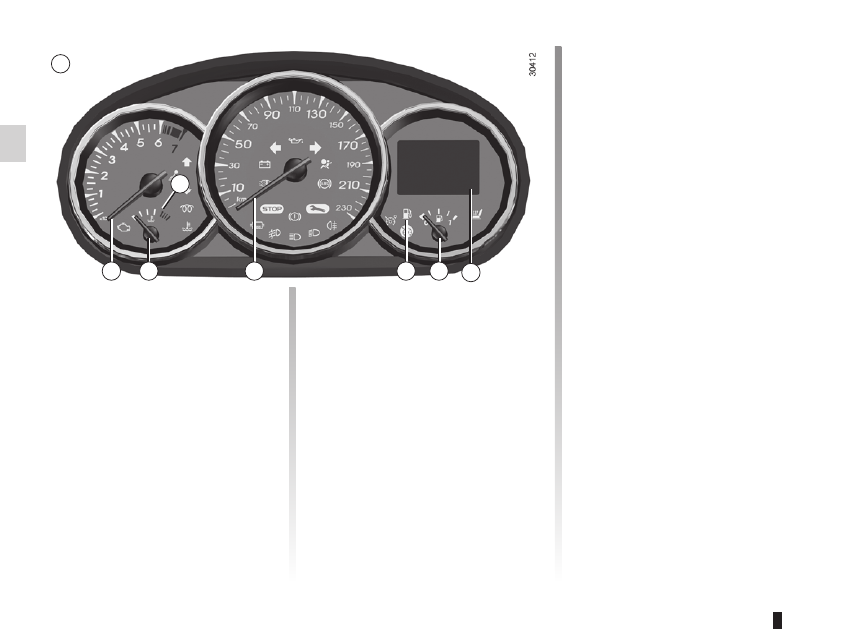

4  Instrument panel.
5  Driver’s air bag and horn location.
6  –   Stalk  for  windscreen  and  rear

screen wash/wipe,

–

Trip computer information readout

control and vehicle settings customi-

sation menu.

7 – Display (depending on the vehi-

cle) for time, temperature, radio

information, navigation system in-

formation, etc.

– Driver and front passenger seat

belt unfastened and passenger

air bag deactivated warning lights

8  Centre air vents.
9  Location for passenger air bag.
10  Side window demister outlet.
11  Side air vent.
12  Glove box.
13  Heating and ventilation controls.
14  Location  for  radio,  navigation

system, etc.

15  Cigar lighter.
16  Accessories socket.
17  Cup holder
18  Cruise control/speed limiter control.
19  Manual parking brake control.
20   Gear lever.

21 Engine start/stop control and

RENAULT card reader.

22 Central door locking/unlocking con-

trols and hazard warning lights

switch.

23  Key ignition switch
24  Cruise control/speed limiter controls
25  Control for adjusting steering wheel

height and reach.

26 Bonnet release.
27 Controls for:

– headlight beam height remote ad-

justment;

– lighting rheostat for control instru-

ments;

– activation/deactivation of the trac-

tion control.

– activation/deactivation of the

parking distance control system.

driver’s position ....................................(up to the end of the DU)

controls .................................................(up to the end of the DU)

dashboard.............................................(up to the end of the DU)

1.48

ENG_UD13634_1

Poste de conduite direction à droite (L38 - X38 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

DRIVINg pOsITION: RIghT-hAND DRIVE

(1/2)

1.49

ENG_UD13634_1

Poste de conduite direction à droite (L38 - X38 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

DRIVINg pOsITION: RIghT-hAND DRIVE

(2/2)

The equipment fitted, described below, DEpENDs ON ThE VERsION AND COUNTRY.

1  Side air vent.
2  Side window demister outlet.
3  Location for passenger air bag.
4  –   Display (depending on the vehi-

cle) for time, temperature, radio

information, navigation system in-

formation, etc.

– Driver and front passenger seat

belt unfastened and passenger

air bag deactivated warning lights

5 Centre air vents.
6 Stalk for:

–  direction indicator lights,
–  exterior lights,
–  front fog lights,
–  rear fog light.

7 Location for driver’s air bag and

horn.

8 Instrument panel.

9 – Steering column stalk for wind-

screen and rear screen wash/

wipe,

–

Trip computer information readout

control and vehicle settings customi-

sation menu.

10  Side window demister outlet.
11  Side air vent.
12  Controls for:

– headlight beam height remote ad-

justment;

– lighting rheostat for control instru-

ments;

– activation/deactivation of the trac-

tion control.

– activation/deactivation of the

parking distance control system.

13 Key ignition switch.
14 Cruise control/speed limiter con-

trols.

15 Control for adjusting steering wheel

height and reach.

16 Central door locking/unlocking con-

trols and hazard warning lights

switch.

17   Cigar lighter.
18   Cup holder
19   Cruise  control/speed  limiter  main

control.

20   Electronic parking brake control.
21   Gear lever.
22   Accessories socket.
23   Engine  start/stop  control  and

RENAULT card reader.

24 Location for radio, navigation

system, etc.

25   Heating and ventilation controls.
26   Glove box.
27    Bonnet release.

instrument panel ...................................(up to the end of the DU)

warning lights........................................(up to the end of the DU)

driver’s position ....................................(up to the end of the DU)

trip computer and warning system........(up to the end of the DU)

indicators:

instrument panel .............................(up to the end of the DU)

display ..................................................(up to the end of the DU)

operating faults .....................................(up to the end of the DU)

control instruments ...............................(up to the end of the DU)

indicators ...............................................................(current page)

lights:

fog lights ..........................................................(current page)

lights:

dipped beam headlights ...................................(current page)

lights:

direction indicators ...........................................(current page)

lights:

main beam headlights ......................................(current page)

handbrake..............................................................(current page)

1.50

ENG_UD27258_6

Témoins lumineux (L38 - X38 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

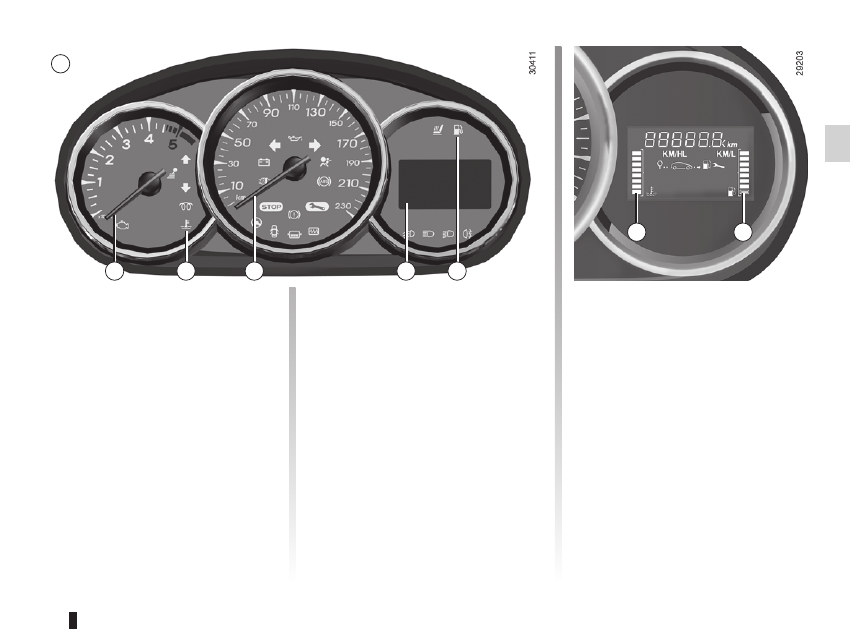

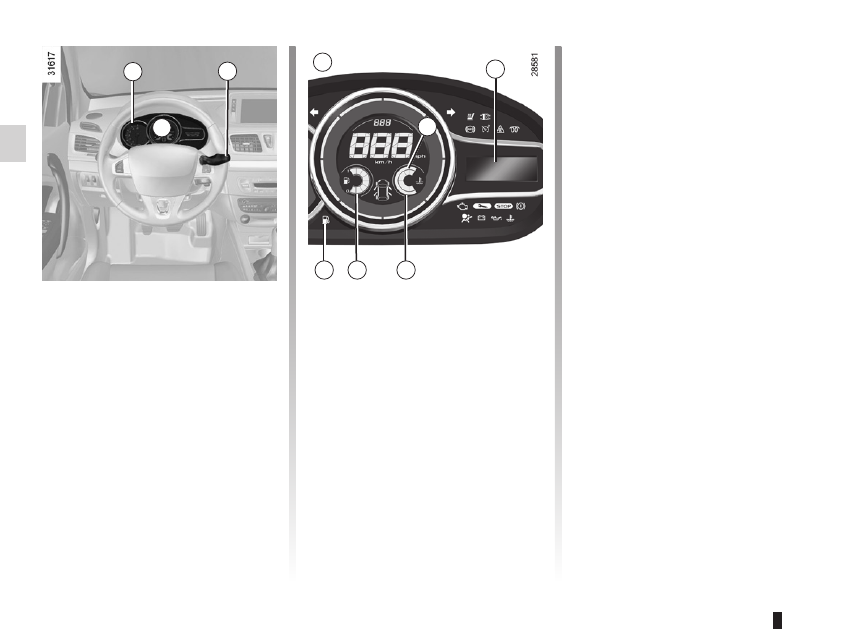

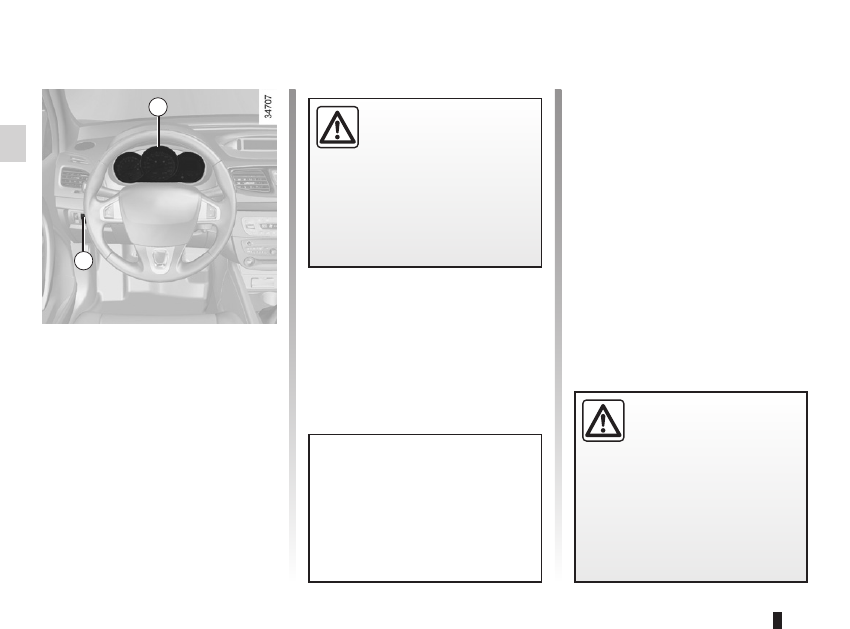

Instrument panel A: lights up when

the ignition is switched on. The bright-

ness can be adjusted by turning control

knob 1.

In some cases, the appearance of a

warning light is accompanied by a mes-

sage.

Warning lights

WARNINg LIghTs

(1/4)

The

warning light means

you should

drive very carefully to

an approved dealer as soon as pos-

sible. If you fail to follow this recom-

mendation, you risk damaging your

vehicle.

side light tell-tale light

Dipped beam headlight tell-

tale light

Main beam headlight tell-tale

light

Front fog light tell-tale light

Rear fog light tell-tale light

Left-hand direction indicator

tell-tale light

Right-hand direction indica-

tor tell-tale light

If no lights or sounds are ap-

parent, this indicates a fault

in the instrument panel. This

indicates that it is essential

to stop immediately (as soon as traf-

fic conditions allow). Ensure that the

vehicle is correctly immobilised and

contact an approved Dealer.

Warning light

re-

quires you to stop immedi-

ately, for your own safety,

as soon as traffic conditions allow.

Switch off the engine and do not re-

start it. Contact an approved Dealer.

The presence and operation of the warning lights DEpEND ON ThE EQUIpMENT AND COUNTRY.

ABS .......................................................................(current page)

air bag....................................................................(current page)

variable power-assisted steering ...........................(current page)

1.51

ENG_UD27258_6

Témoins lumineux (L38 - X38 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

WARNINg LIghTs

(2/4)

Battery charge warning light

If it comes on together with the

warning light and a beep, it in-

dicates that the electrical circuit is over-

charged or undercharged.

Warning light

This lights up when the ignition

is switched on and goes out as soon as

the engine is started. It can light up in

conjunction with other indicator lights

and/or messages on the instrument

panel.

It means you should

drive very care-

fully to an approved dealer as soon as

possible. If you fail to follow this recom-

mendation, you risk damaging your ve-

hicle.

sTOp light

This lights up when the ignition

is switched on and goes out as soon as

the engine is started. It comes on with

other warning lights and/or messages,

and is accompanied by a beep.
It requires you to stop immediately, for

your own safety, as soon as traffic con-

ditions allow. Switch off the engine and

do not restart it.
Contact an approved Dealer.

Brake circuit fault warning

light

If it comes on during braking and is ac-

companied by the

warning light

and a beep, it indicates that the fluid

level in the circuit is low or that there is

a braking system fault. Stop as soon as

traffic conditions allow and contact an

approved Dealer.

Oil pressure warning light
If it comes on when you are

driving accompanied by the

warning light and a beep, it is essential

to stop and switch off the ignition. Check

the oil level (refer to the information on

the “Engine oil level” in Section 4). If

the level is correct, the light has come

on for another reason; consult an ap-

proved dealer.

Engine coolant temperature

warning light

This lights up when the ignition is

switched on and goes out when the

engine is started. If it comes on when

you are driving accompanied by the

warning light and a beep, it is

essential to stop and switch off the ig-

nition.
Check the coolant level (refer to the in-

formation on “Levels” in Section 4). If

the level is correct, the light has come

on for another reason; consult an ap-

proved dealer.

The presence and operation of the warning lights DEpEND ON ThE EQUIpMENT AND COUNTRY.

warning buzzer ......................................................(current page)

battery....................................................................(current page)

seat belts ...............................................................(current page)

filter

particle filter .....................................................(current page)

engine oil ...............................................................(current page)

speed limiter ..........................................................(current page)

cruise control .........................................................(current page)

fuel

filling .................................................................(current page)

1.52

ENG_UD27258_6

Témoins lumineux (L38 - X38 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

WARNINg LIghTs

(3/4)

Î Ï

Cruise control and

speed limiter indica-

tor lights
Refer to the information on “Cruise con-

trol/speed limiter” in Section 2.

power steering indicator

light

This comes on when the ignition is

switched on and goes out after a few

seconds. If this warning light remains

on, it indicates a system fault. Stop

as soon as traffic conditions allow and

contact an approved dealer.

Door status warning light

If it lights up with the ignition on, a

door or the tailgate is open or not prop-

erly closed.



Driving correction device

warning light

Refer to information on “Driver correc-

tion devices and aids” in Section 2.

Not used

The presence and operation of the warning lights DEpEND ON ThE EQUIpMENT AND COUNTRY.

preheating warning light

(diesel version)

This should come on when the igni-

tion is switched on. It indicates that the

heater plugs are in operation. This goes

out as soon as the engine starts.

heated seats operating indi-

cator

This indicates that one of the heated

seats is in operation.

Air bag warning light

This comes on when the igni-

tion is switched on and goes out after a

few seconds.

If it does not light up when the ignition

is switched on, or comes on when the

engine is running, there is a fault in the

system.

Contact your approved Dealer as soon

as possible.

1.53

ENG_UD27258_6

Témoins lumineux (L38 - X38 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

Anti-lock braking warning

light

This lights up when the ignition is

switched on and goes out after a few

seconds.
If it does not go out after the ignition is

switched on, or lights up when driving,

there is a fault with the ABS. Braking

will then be as normal, without the ABS.

Contact an approved Dealer as soon as

possible.

Water in the diesel filter

warning light

If it comes on when you are driving, it

indicates the presence of water in the

diesel. Contact your approved dealer

as soon as possible.

}

Not used

Electronic fault warning light

If it comes on when driving, it

indicates an electronic or electrical fault

or, for diesel versions, the presence of

water in the diesel fuel.

Contact your approved Dealer as soon

as possible.

Toxic Fume Filter system

Warning Light

This lights up when the ignition is

switched on and goes out when the

engine is started.

– If it lights up continuously, consult

your approved Dealer as soon as

possible;

– if it flashes, reduce the engine speed

until the light stops flashing. Contact

your approved Dealer as soon as

possible.

Refer to the information on

“Antipollution, fuel economy and driv-

ing” in Section 2.

WARNINg LIghTs

(4/4)

The presence and operation of the warning lights DEpEND ON ThE EQUIpMENT AND COUNTRY.

Fuel economy indica-

tor lights

This lights up to advise you to change

to a higher gear (up arrow) or lower

gear (down arrow).

Depending on the vehicle, this flashes

when the engine is started to indicate

that a gear is engaged: select neutral

or depress the clutch.

Low fuel level warning light

This comes on when the igni-

tion is switched on and goes out after a

few seconds. If it comes on when driv-

ing accompanied by a beep, fill up with

fuel as soon as possible. There is only

approximately 30 miles (50 km) worth

of fuel left after the warning light first

comes on.

Front seat belt reminder

warning light

It lights up on the central display when

the engine is started and, if the driv-

er’s seat belt is not fastened, the light

flashes and a beep sounds for about

two minutes when the vehicle reaches

a speed of approximately 12 mph

(20 km/h).

indicators:

instrument panel .............................(up to the end of the DU)

display ..................................................(up to the end of the DU)

instrument panel ...................................(up to the end of the DU)

fuel level ................................................................(current page)

coolant ...................................................................(current page)

control instruments ...............................(up to the end of the DU)

levels:

fuel ...................................................................(current page)

levels:

coolant .............................................................(current page)

1.54

ENG_UD27176_4

Afficheurs et indicateurs (L38 - X38 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

Instrument panel: displays and indicators

DIspLAYs AND INDICATORs

(1/4)

Instrument panel A

Rev counter 1

(rpm x 1,000)
Coolant temperature indicator 2
In normal use, the needle should be

positioned before zone 3. Under “inten-

sive” operating conditions, the needle

may approach this zone. This is not se-

rious unless the

warning light

comes on, accompanied by a message

on the instrument panel and a beep.

speedometer 4

(km or miles per hour)
Fuel level gauge 6
If the minimum level is reached, warn-

ing light 5 comes on and a beep

sounds. Fill up as soon as possible.

There is only approximately 30 miles

(50 km) worth of fuel left after the warn-

ing light first comes on.

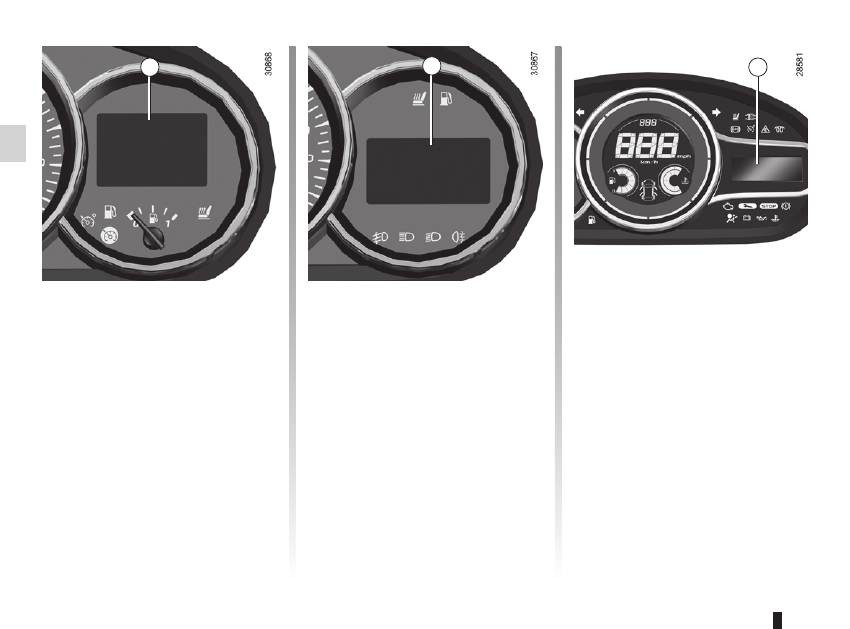

Multifunction display 7
Engine oil level low warning. When

the engine is started, display 7 alerts

the driver when the oil level is at its min-

imum. Refer to the information on the

“Engine oil level” in Section 4.

The location of the displays and indi-

cators varies depending on the vehi-

cle’s instrument panel. There are three

types of instrument panel (instrument

panel A, B and C) detailed below.

1.55

ENG_UD27176_4

Afficheurs et indicateurs (L38 - X38 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

DIspLAYs AND INDICATORs

(2/4)

Instrument panel B

Rev counter 8

(rpm x 1,000)
speedometer 10

(km or miles per hour)
Multifunction display 11
Engine oil level low warning. When

the engine is started, display 11 alerts

the driver when the oil level is at its min-

imum. Refer to the information on the

“Engine oil level” in Section 4.

Fuel gauge 14
If the minimum level is reached, warn-

ing light 12 comes on and a beep

sounds. Fill up as soon as possible.

There is only approximately 30 miles

(50 km) worth of fuel left after the warn-

ing light first comes on.

Coolant temperature indicator 13

(depending on the vehicle)
Under normal operating conditions, in-

dicator 13 must be positioned before

the last three squares. Under “inten-

sive” operating conditions, the needle

may approach this zone.
This is not serious unless the

warning light comes on, accompanied

by warning light 9, a message on the

instrument panel and a beep.

1.56

ENG_UD27176_4

Afficheurs et indicateurs (L38 - X38 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

DIspLAYs AND INDICATORs

(3/4)

Instrument panel C

Rev counter 15 (rpm × 1,000)

Fuel gauge 19

If the minimum level is reached, warn-

ing light 20 comes on and a beep

sounds. Fill up as soon as possible.

There is only approximately 30 miles

(50 km) worth of fuel left after the warn-

ing light first comes on.

Coolant temperature indicator 18

In normal use, indicator 18 should be

before area D. Under severe condi-

tions, the needle may enter this area.

This is not serious unless the

warning light comes on, accompanied

by a message on the instrument panel

and a beep.
Trip computer and warning system
Refer to the information on the “Trip

computer and warning system” in

Section 1.

Engine oil level low warning
When the engine is started, display 17

alerts the driver when the oil level is at

its minimum. Refer to the information

on the “Engine oil level” in Section 4.
The first time the warning appears, it

can be cleared by pressing one of the

buttons on the end of stalk 16.
Subsequent warnings will disappear

automatically after 30 seconds.

1.57

ENG_UD27176_4

Afficheurs et indicateurs (L38 - X38 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

Instrument panel in miles

(option to switch to km/h)

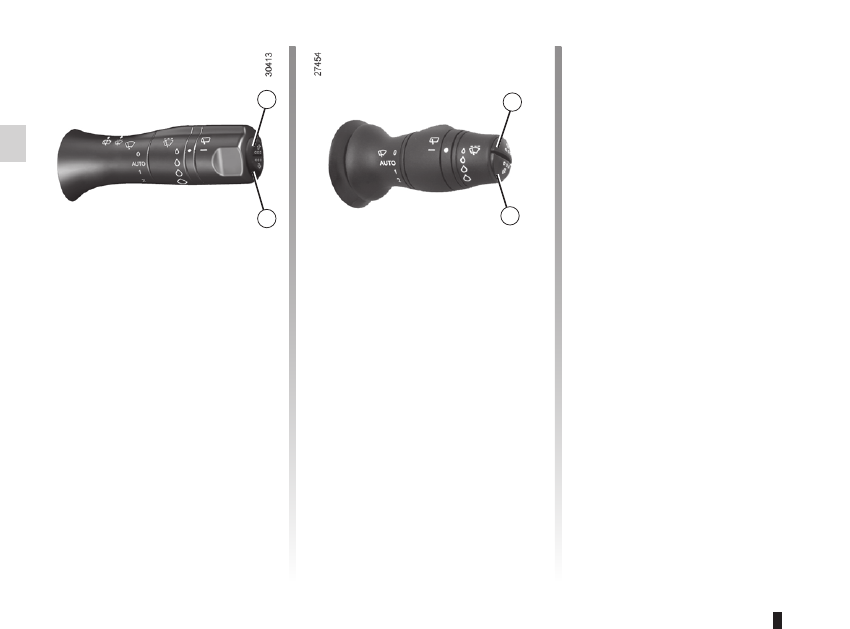

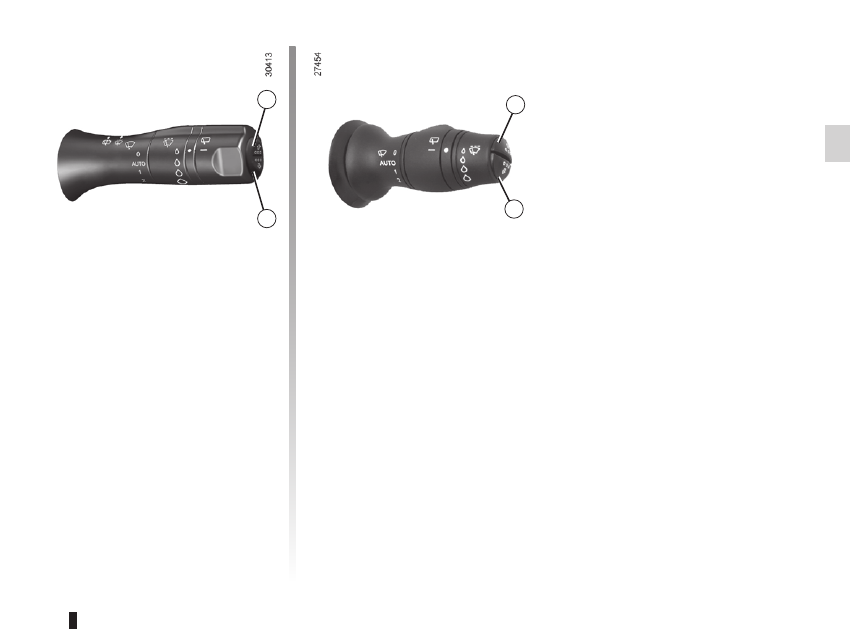

– With the ignition off, press one of

the buttons 23 or 24 at the end of

stalk 16 and start button 22;

– the speedometer unit indicator

flashes for approximately ten sec-

onds, then the new unit is displayed:

release button 23 or 24 when the unit

stops flashing.

To return to the previous mode, repeat

the same operation.
Note: once the battery is switched off,

the trip computer and warning system

automatically returns to the original unit

of measurement.

DIspLAYs AND INDICATORs

(4/4)

speedometer 21 (kph or mph)

Overspeed buzzer

Depending on the vehicle and coun-

try, a buzzer sounds for approximately

10 seconds every 40 seconds, as long

as the vehicle is travelling in excess of

72 mph (120 km/h).

control instruments ...............................(up to the end of the DU)

indicators:

instrument panel .............................(up to the end of the DU)

trip computer and warning system........(up to the end of the DU)

instrument panel ...................................(up to the end of the DU)

warning lights........................................(up to the end of the DU)

instrument panel messages..................(up to the end of the DU)

1.58

ENG_UD25556_5

Ordinateur de bord : généralités (L38 - X38 - X32 - B32 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

on-board computer

TRIp COMpUTER: general information

(1/3)

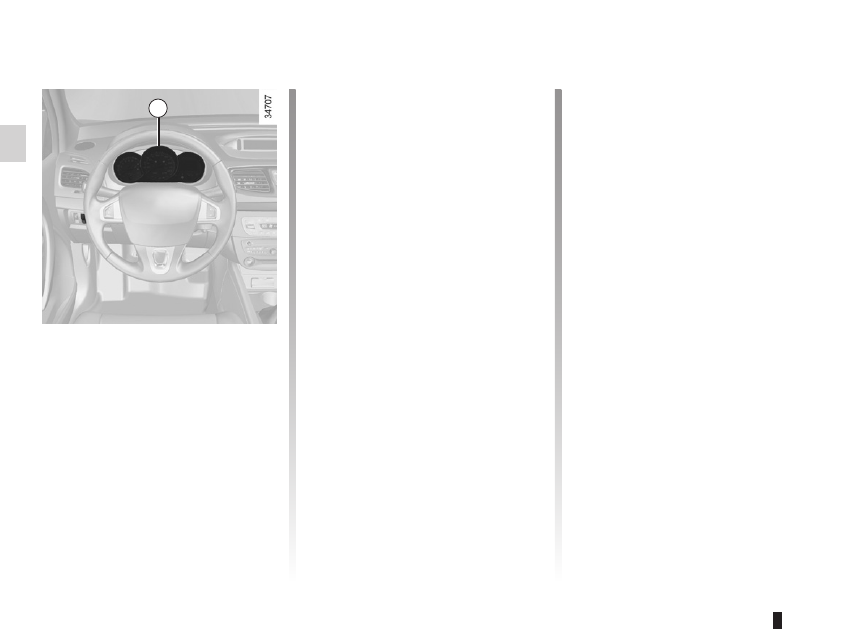

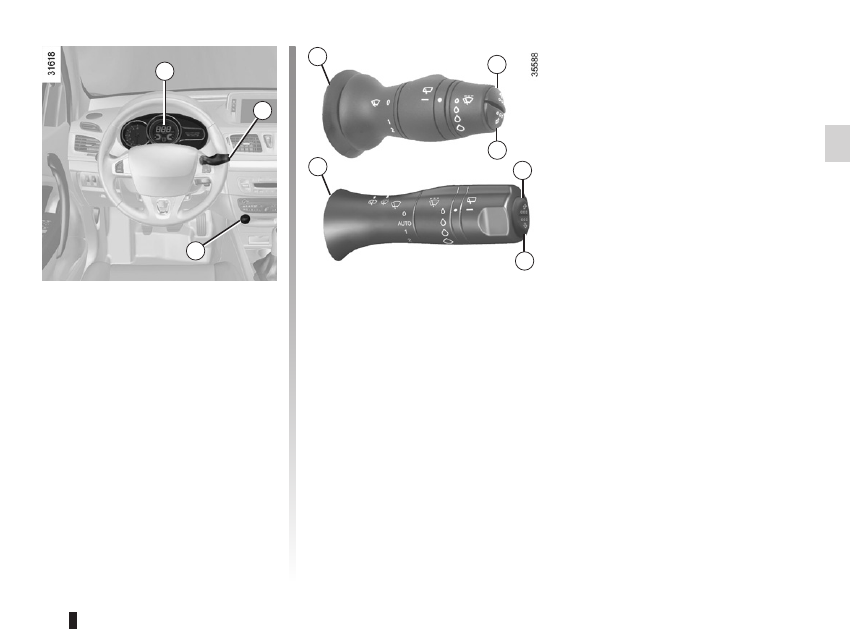

Trip computer 1, 2 or 3

Depending on the vehicle, this includes

the following functions:
– distance travelled;

– journey parameters;

– information messages;

– operating fault messages (con-

nected to the warning light

);

– warning messages (connected to the

warning light);

– vehicle settings customisation menu.
All these functions are described on the

following pages.

1.59

ENG_UD25556_5

Ordinateur de bord : généralités (L38 - X38 - X32 - B32 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

Display selection keys 4

and 5

Scroll through the following information

upwards (key 4) or downwards (key 5)

by pressing briefly and successively

(the display depends on the vehicle

equipment and country).
a) total mileage and trip mileage re-

corder;

b) journey parameters:

– fuel used;

– average fuel consumption;

– current fuel consumption;

– estimated range;

– distance travelled;

– average speed;

c) oil change interval;
d) tyre pressure monitor;
e) vehicle settings customisation menu;
f) trip log, operating faults and informa-

tion message readout.

TRIp COMpUTER: general information

(2/3)

1.60

ENG_UD25556_5

Ordinateur de bord : généralités (L38 - X38 - X32 - B32 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

TRIp COMpUTER: general information

(3/3)

Trip mileage resetting

With “trip mileage recorder” selected on

the display, press button 4 or 5 until the

mileage recorder resets to zero.

Resetting the journey

parameters (reset button)

With the display showing one of the

journey parameters, press button 4 or 5

until the display is reset.

Interpreting some of the

values displayed after

resetting

The values showing average fuel con-

sumption, range and average speed

will become more stable and reliable

the further you travel after pressing the

reset button.

For the first few miles after pressing

the reset key you will notice that the

range increases as you travel. This

range takes into account the average

fuel consumption since the last time the

reset button was pressed. Therefore,

the average fuel consumption may de-

crease when:
– the vehicle stops accelerating;
– the engine reaches its operating

temperature (if the engine was cold

when the reset key was pressed);

– when driving from an urban area

onto the open road.

Automatic resetting of the

journey parameters

Resetting occurs automatically when

the maximum value of any of the pa-

rameters is exceeded.

1.61

ENG_UD25557_2

Ordinateur de bord : paramètres de voyage (L38 - X38 - X32 - B32 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

TRIp COMpUTER: trip settings

(1/5)

The display of information shown below DEpENDs ON ThE VEhICLE EQUIpMENT AND COUNTRY.

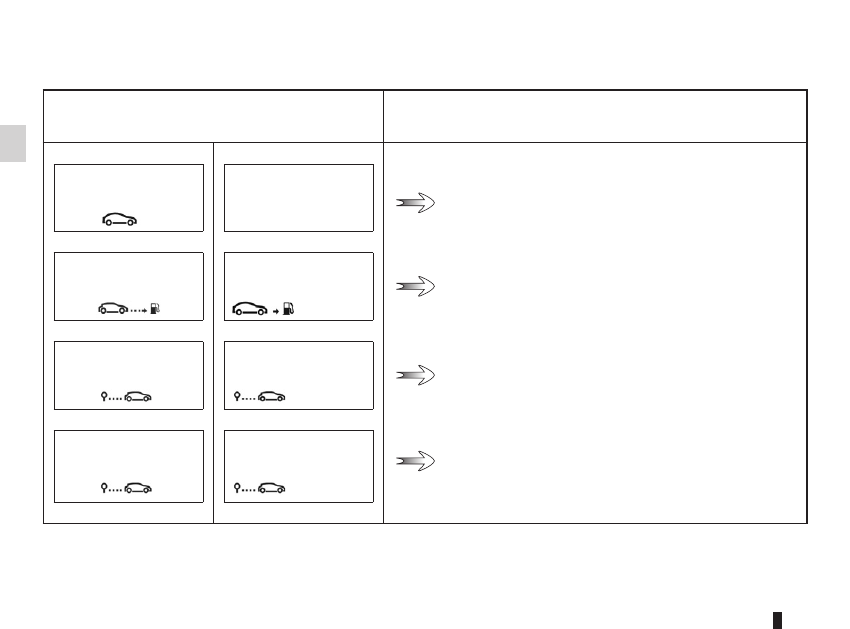

Examples of selections

Interpreting the display selected

101668 KM

112. 4 KM

a) Total mileage and trip mileage recorder.

FUEL USED

Fuel used

b) Journey parameters.

Fuel used.

Fuel consumed since the last reset.

8.5 L

20 L

AVERAGE

Average

Average fuel consumption since the last reset.
The value is displayed after having travelled at least

400 metres since the last reset.

7.2 L/100

1.62

ENG_UD25557_2

Ordinateur de bord : paramètres de voyage (L38 - X38 - X32 - B32 - Renault)

ENG_NU_891_892-7_L38-B32_Renault_1

TRIp COMpUTER: trip settings

(2/5)

The display of information shown below DEpENDs ON ThE VEhICLE EQUIpMENT AND COUNTRY.

Examples of selections

Interpreting the display selected

CURRENT

Current

Current fuel consumption.

This value is displayed above a speed of approximately

18 mph (30 km/h).

9.4 L/100

Estimated range with remaining fuel.

This range takes into account the average fuel consumption

since the last time the reset button was pressed. The value

is displayed after driving 400 metres.

RANGE

Range

541 km

Distance travelled since the last reset.

DISTANCE

Distance

52.2 km

359 km

Average speed since the last reset.

The value is displayed after driving 400 metres.

AVERAGE

Average

89.6 km/h

Content .. 2 3 4 5 ..
