Renault Clio Sport Tourer (2016 year). Instruction - part 14

5.34

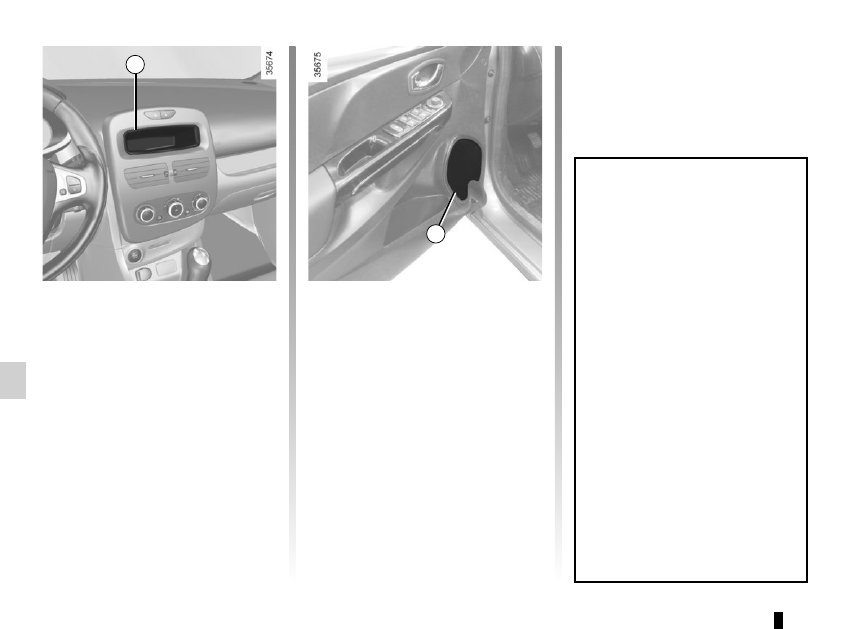

Radio location 1

Unclip the blanking cover. The aerial, +

and – supply and speaker wire connec-

tions are located behind it.

Door speakers 2

To install any equipment, please con-

sult an authorised dealer.

FITTING A RADIO

– In all cases, it is very important to

follow the manufacturer’s instruc-

tions carefully.

– The specifications of the brack-

ets and wires (available from our

network) vary depending on the

equipment level of your vehicle

and the type of radio.

Consult an approved Dealer to

find out the correct part number.

– No work may be carried out on

the vehicle’s electrical or radio

circuits, except by approved

dealers: an incorrectly connected

system may result in damage

being caused to the electrical

equipment and/or the compo-

nents connected to it.

5.35

ACCESSORIES

Electrical and electronic accessories

Before installing this type of accessory (particularly for transmitters/receivers: frequency bandwidth, power level, po-

sition of the aerial, etc.), make sure it is compatible with your vehicle. You can get advice from an authorised dealer.

Connect accessories with a maximum power of 120 Watts only. Fire hazard. When several accessory sockets are

used at the same time, the total power of the connected accessories must not exceed 180 watts.

No work may be carried out on the vehicle’s electrical or radio circuits, except by authorised dealers: an incorrectly connected

system may result in damage being caused to the electrical equipment and/or the components connected to it.

If the vehicle is fitted with any aftermarket electrical equipment, make sure that the installation is correctly protected by a fuse.

Establish the rating and position of this fuse.

Using the diagnostic socket

The use of electronic accessories on the diagnostic socket may cause serious disturbance to the vehicle’s electronic systems.

For your safety we recommend that you use only electronic accessories approved by the manufacturer, consult an Approved

Dealer. Serious accident risk.

Use of transmitting/receiving devices (telephones, CB equipment etc.).

Telephones and CB equipment with integrated aerials may cause interference to the electronic systems originally fitted to the

vehicle: it is advisable only to use equipment with an external aerial. Furthermore, we remind you of the need to conform

to the legislation in force concerning the use of such equipment.

Fitting aftermarket accessories

If you wish to install accessories on the vehicle: please contact an authorised dealer. Also, to ensure the correct operation of

your vehicle, and to avoid any risk to your safety, we recommend that you use only accessories specifically designed for your

vehicle, which are the only accessories for which the manufacturer will provide a warranty.

If you are using an anti-theft device, only attach it to the brake pedal.

Obstructions to the driver

On the driver’s side, only use mats suitable for the vehicle, attached with the pre-fitted components, and check the fitting regu-

larly. Do not lay one mat on top of another. There is a risk of wedging the pedals.

5.36

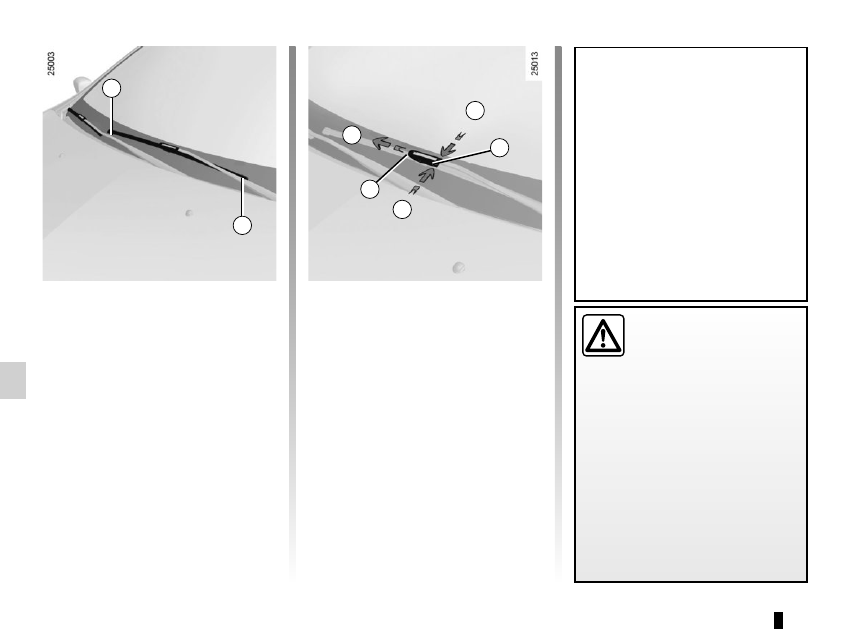

Lower tab 3, by pressing on either

side A.
Then push the blade forwards B, to re-

lease hook 4.

To refit

To refit the wiper blade, proceed in re-

verse order to removal. Make sure that

the blade is correctly locked in position.

Replacing windscreen wiper

blades 1

– With the ignition off, lift wiper arm 2;
– turn blade 1.

WINDSCREEN WIPER BLADES

(1/2)

– In frosty weather, make

sure that the wiper blades

are not stuck by ice (to

avoid the risk of the motor

overheating).

–

Check the condition of the wiper

blades.

Replace the wiper blades as soon

as they begin to lose efficiency

(approximately once a year).

Whilst changing the blade, take care

not to drop the arm onto the window

after it has been removed as this

may break the window.

Check the condition of the wiper

blades. You are responsible for their

service life:
– clean the blades, windscreen and

rear screen regularly with soapy

water;

– do not use them when the wind-

screen or rear screen are dry;

– free them from the windscreen or

rear screen when they have not

been used for a long time.

5.37

To refit

To refit the wiper blade, proceed in re-

verse order to removal. Make sure that

the blade is correctly locked in position.

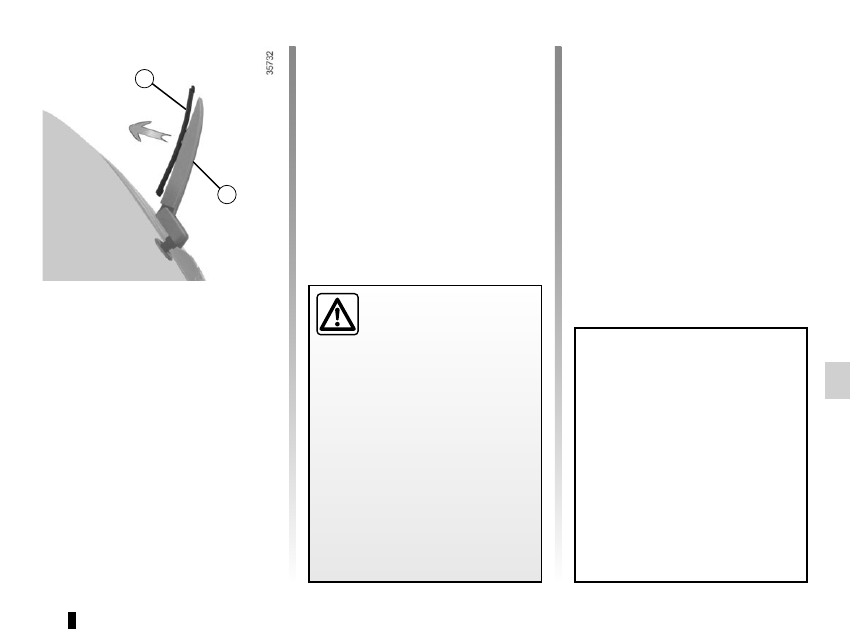

Rear screen wiper blade 5

– With the ignition off, lift wiper arm 6;
– release the blade 5 by pulling it.

WINDSCREEN WIPER BLADES

(2/2)

– In frosty weather, make

sure that the wiper blades

are not stuck by ice (to

avoid the risk of the motor

overheating).

–

Check the condition of the wiper

blades.

Replace the wiper blades as soon

as they begin to lose efficiency

(approximately once a year).

Whilst changing the blade, take care

not to drop the arm onto the window

after it has been removed as this

may break the window.

Check the condition of the wiper

blades. You are responsible for their

service life:
– clean the blades, windscreen and

rear screen regularly with soapy

water;

– do not use them when the wind-

screen or rear screen are dry;

– free them from the windscreen or

rear screen when they have not

been used for a long time.

5.38

TOWING: breakdown recovery

(1/2)

Before towing, unlock the steering

column: with the clutch depressed,

engage first gear (lever in position N

or R for vehicles with automatic gear-

boxes), insert the RENAULT card in the

card reader, then press the engine start

button for two seconds.
Reposition the lever to neutral (posi-

tion N for vehicles fitted with an auto-

matic gearbox).
The column is unlocked, the acces-

sory functions are supplied: the vehi-

cle lights can be used (indicators, brake

lights etc.). At night the vehicle must

have its lights on.
Once you have finished towing, press

the engine start button twice (risk of

running down the battery).

The speed specified by current legis-

lation for towing must always be ob-

served. If your vehicle is the towing

vehicle, do not exceed the maximum

towing weight for your vehicle (refer to

the information on “Weights” in Section

6).

Towing a vehicle with an

automatic gearbox

With the engine switched off, the trans-

mission is no longer lubricated. It is

preferable to tow this type of vehicle on

a trailer or tow it with the front wheels

off the ground.
Under exceptional circumstances, you

may tow the vehicle with all four wheels

on the ground, only going forward, with

the gear lever in the neutral N position,

and for a distance not exceeding

30 miles (50 km).

Do not remove the

RENAULT card from the

reader when the vehicle is

being towed.

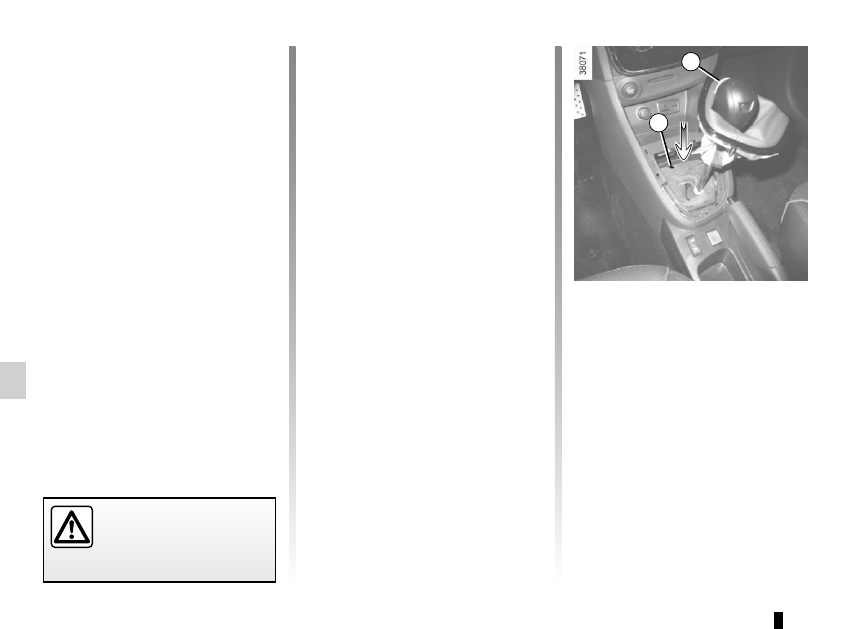

If the lever is stuck in P, even though

you are depressing the brake pedal, the

lever can be released manually. To do

this, release the base of the lever, then

use a tool (rigid rod) in the slot 1 and si-

multaneously press button 2 to unlock

the lever.
Contact an authorised dealer as soon

as possible.

5.39

TOWING: breakdown recovery

(2/2)

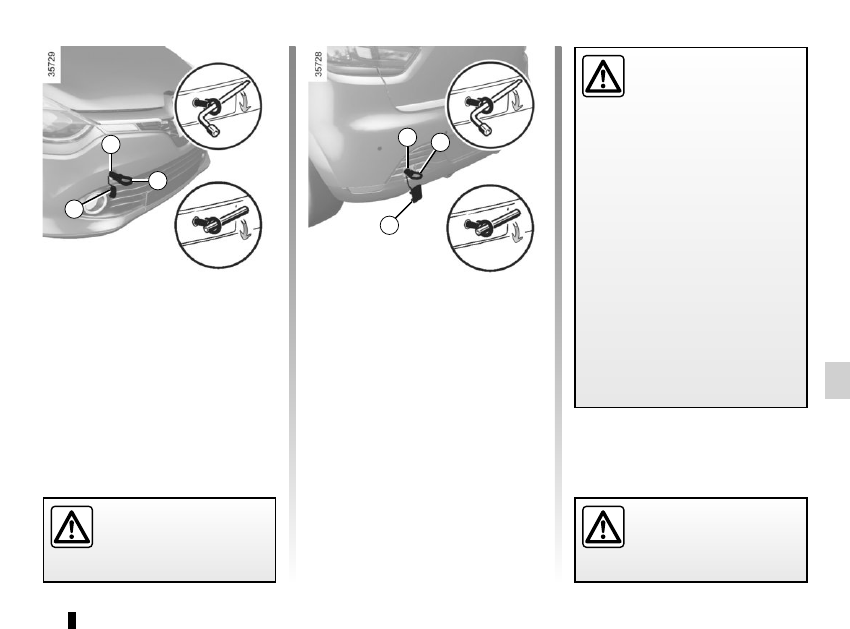

Only use the front 2 and rear 5 towing

points

(never use the drive shafts or any other

part of the vehicle).
These towing points may only be used

for towing: never use them for lifting the

vehicle directly or indirectly.

Access to towing points

Unclip cover 4 or 6 by sliding a flat tool

(or the key integrated in the RENAULT

card) under the cover.
Tighten towing hitch 3 fully: as much

as possible by hand at first, then finish

tightening it using the wheelbrace or,

depending on the vehicle, the lever.
Only use the towing eye 3 and the

wheelbrace located under the lug-

gage compartment carpet in the tool kit

(please refer to the information under

“Tools” in Section 5).

When the engine is

stopped, steering and brak-

ing assistance are not op-

erational.

Do not leave the tools unse-

cured inside the vehicle as

they may come loose under

braking.

– Use a rigid towing bar.

If a rope or cable is used

(where the law allows this),

the vehicle being towed

must be able to brake.

– A vehicle must not be towed if it is

not fit to be driven.

– Avoid accelerating or braking

suddenly when towing, as this

may result in damage being

caused to the vehicle.

– When towing a vehicle, it is ad-

visable not to exceed 30 mph

(50 km/h).

– Do not push the vehicle if the

steering column is locked.

5.40

OPERATING FAULTS

(1/6)

The following advice will enable you to carry out quick, temporary repairs. For safety reasons you should always contact

an approved Dealer as soon as possible.

Using the RENAULT card

POSSIBLE CAUSES

WHAT TO DO

The RENAULT card does not lock or

unlock the doors.

Card battery is flat.

Replace the battery. You can still lock/

unlock and start your vehicle (refer to the in-

formation on “Locking, unlocking the open-

ing elements” in Section 1 and “Starting,

stopping the engine” in Section 2).

Use of appliances operating on the

same frequency as the card (mobile

phone, etc.).

Stop using the equipment or use the in-

tegrated key (refer to the information on

“Locking, unlocking the opening elements”

in Section 1).

Vehicle located in a high electromag-

netic radiation zone.
Vehicle battery flat.

Use the key integrated in the card (refer to

the information on “Locking, unlocking the

opening elements” in Section 1).

The vehicle is started.

With the engine running, the card’s locking/

unlocking device is blocked. Turn off the ig-

nition.

5.41

OPERATING FAULTS

(2/6)

The starter is activated

POSSIBLE CAUSES

WHAT TO DO

The instrument panel indicator lights are

weak or fail to light up and the starter

does not turn.

Battery terminals not tight,

battery terminals discon-

nected or oxidised.

Retighten or reconnect the terminals, or clean them if

they are oxidised.

Discharged battery or not

operational.

Connect another battery to the faulty battery. Refer to

information on “Battery: troubleshooting” in Section 5

or replace the battery if necessary.

Do not push the vehicle if the steering column is

locked.

Faulty circuit.

Consult an approved dealer.

The engine will not start.

Starting conditions are not

fulfilled.

Please refer to the information on “Starting, stopping

the engine” in Section 2.

The RENAULT “hands-free”

card does not work.

Insert the card in the card reader in order to start the

engine.

Please refer to the information on “Starting, stopping

the engine” in Section 2.

The engine cannot be switched off.

Card not detected.

Insert the card in card reader.

Electronic fault.

Press the starter button quickly five times.

The steering column remains locked.

Steering wheel locked.

Move the steering wheel while pressing the engine

start button (please refer to Section 2 “Starting, stop-

ping the engine”).

Faulty circuit.

Consult an approved dealer.

5.42

OPERATING FAULTS

(3/6)

On the road

POSSIBLE CAUSES

WHAT TO DO

Vibrations.

Tyres not inflated to correct pres-

sures, incorrectly balanced or dam-

aged.

Check the tyre pressures: if this is not the

problem, have them checked by an ap-

proved Dealer.

White smoke from the exhaust.

In the diesel version, this is necessar-

ily a fault. Smoke may be caused by

particle filter regeneration.

Please refer to the information on “Special

features of diesel versions” in Section 2.

Smoke under the bonnet.

Short-circuit or cooling system leak.

Stop, switch off the ignition, stand away

from the vehicle and contact an approved

dealer.

The oil pressure warning light comes

on:

while cornering or braking

The level is too low.

Top up the engine oil level (refer to the in-

formation on “Engine oil level: topping up,

filling” in Section 4).

is slow to go out or remains lit

under acceleration

Loss of oil pressure.

Stop the vehicle and contact an approved

Dealer.

5.43

OPERATING FAULTS

(4/6)

On the road

POSSIBLE CAUSES

WHAT TO DO

Steering becomes heavy.

Assistance overheating.

Consult an approved dealer.

The engine is overheating. The cool-

ant temperature indicator is in the

warning zone and warning light

comes on.

Engine cooling fan not working.

Stop the vehicle, switch off the engine and

contact an approved dealer.

Coolant leaks.

Check the coolant reservoir: it should con-

tain fluid. If there is no coolant, consult an

approved dealer as soon as possible.

Coolant boiling in the coolant reser-

voir.

Mechanical fault: damaged cylinder

head gasket.

Stop the engine.

Contact an approved dealer.

Radiator: If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while

the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling

system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved

by our Technical Department may be used for this purpose.

5.44

OPERATING FAULTS

(5/6)

Electrical equipment

POSSIBLE CAUSES

WHAT TO DO

The wipers do not work.

Wiper blades stuck.

Free the blades before using the wipers.

Faulty electrical circuit.

Consult an approved dealer.

Fuse damaged.

Replace the fuse, refer to the information

on “Fuses”.

The wiper does not stop.

Faulty electrical controls.

Consult an approved dealer.

Direction indicators flashing more

quickly.

Blown bulb.

See information on “Headlights: changing

bulbs” or “Rear and side lights: changing

bulbs”.

The direction indicators do not work.

Faulty electrical circuit or control.

Consult an approved dealer.

Fuse damaged.

Replace the fuse, refer to the information

on “Fuses”.

The lights do not come on or go off.

Faulty electrical circuit or control.

Consult an approved dealer.

Fuse damaged.

Replace the fuse, refer to the information

on “Fuses”.

5.45

OPERATING FAULTS

(6/6)

Electrical equipment

POSSIBLE CAUSES

WHAT TO DO

Traces of condensation in the lights.

Traces of condensation may be a nat-

ural phenomenon caused by varia-

tions in temperature.
In this case, the traces will disappear

slowly once the lights are switched

on.

The front seat belt reminder light

comes on when the seat belts are

fastened.

An object is stuck between the floor

and the seat and is disrupting the op-

eration of the sensor.

Remove all objects from underneath the

front seats.

6.2

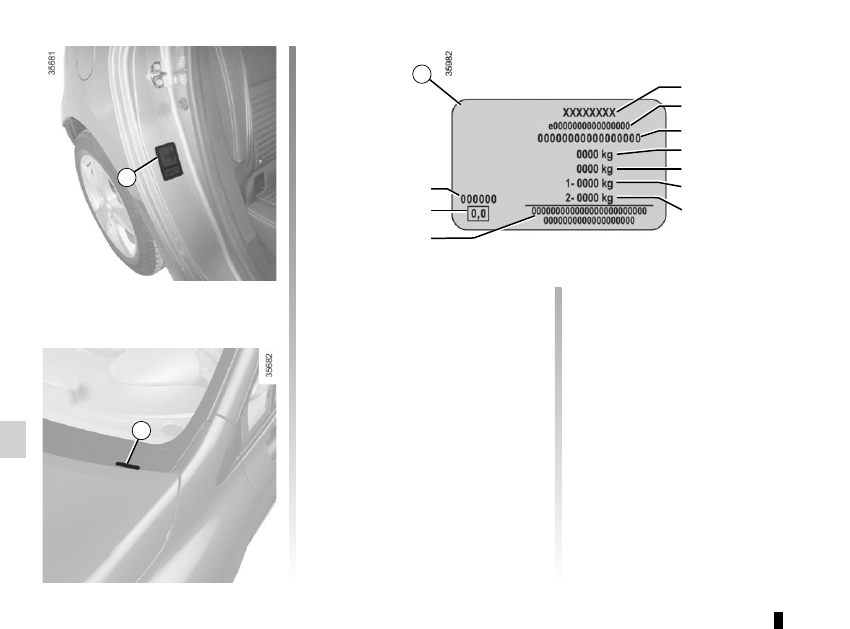

VEHICLE IDENTIFICATION PLATES

The information shown on the ve-

hicle identification plate should be

quoted on all correspondence or

orders.
The presence and location of the in-

formation depends on the vehicle.

Vehicle identification plate A

1 Manufacturer name.

2 EC design number or approval

number.

3 Identification number.

Depending on the vehicle, this

information is also given on

marking B.

4 MAM (Maximum Authorised

Mass).

5 GTW (Gross train weight: vehicle

fully loaded, with trailer).

6 MPAW (Maximim Permissible

Weight) for front axle.

7 MPAW on rear axle.

8 Reserved for related or additional

entries.

9 Diesel exhaust emissions.

10 Paint reference (colour code).

1
2
3
4

6.3

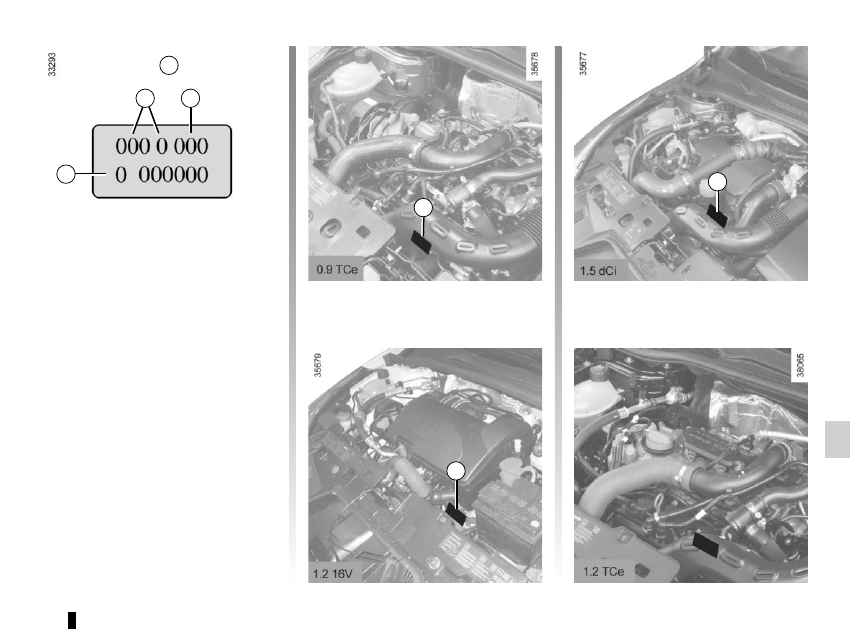

Please quote the information on the

engine plate or label A in all corre-

spondence or orders.

(Location varies depending on engine)

1 Engine type.

2 Engine suffix.

3 Engine number.

ENGINE IDENTIFICATION PLATES

6.4

1,448*

1,509

0,853

2,589

0,621

4,063

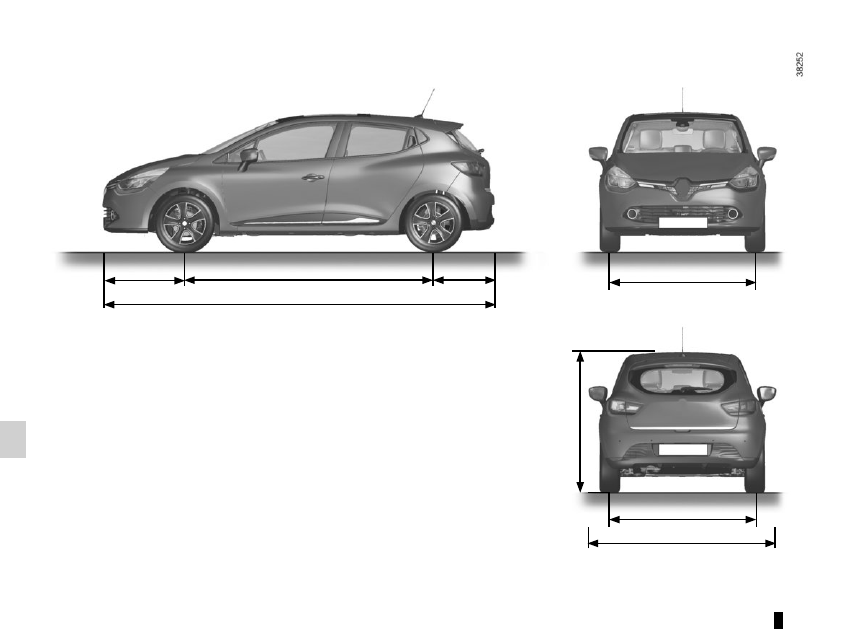

DIMENSIONS (in metres)

(1/2)

1,512

1,945

* unladen

Five-door version

6.5

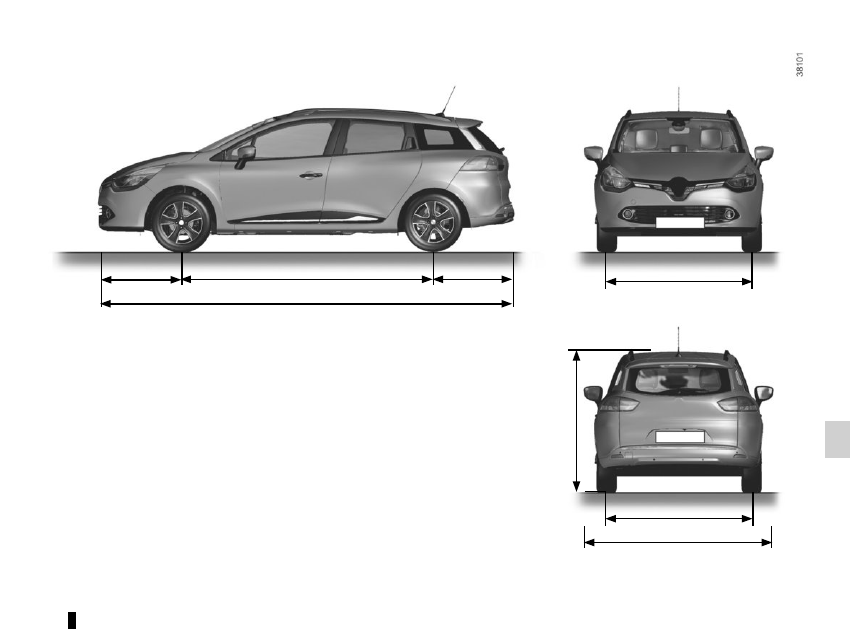

DIMENSIONS (in metres)

(2/2)

* unladen

Estate version

1,509

0,853

2,589

0,825

4,267

1,512

1,945

1,445*

Content .. 12 13 14 15 ..
