This symbol indicates that the vents are

closed. Moving the control to this

direction will close the vents.

This symbol indicates that the vents are

open. Moving the control to this direc-

tion will open the vents.

Adjust the air flow direction of the vents by moving

the centre knob (up/down, left/right) until the de-

sired position is achieved.

WARNING

•

The heater and air conditioner operate only

when the engine is running.

•

Never leave children or adults who would nor-

mally require the support of others alone in

the vehicle. Pets should not be left alone ei-

ther. They could unknowingly activate

switches or controls, or move the vehicle, and

inadvertently become involved in a serious ac-

cident and injure themselves. On hot, sunny

days, temperatures in a closed vehicle could

quickly become high enough to cause severe

or possibly fatal injuries to people or animals.

•

Do not use the recirculation mode for long

periods as it may cause the interior air to be-

come stale and the windows to fog up.

•

Do not adjust the heating and air conditioning

controls while driving so that full attention may

be given to vehicle operation.

The heater and air conditioner operate when the

engine is running. The air blower will operate even if

the engine is turned off and the ignition switch is

placed in the ON position.
NOTE

•

Condensation forms inside the air condition-

ing unit when the air conditioner (where fit-

ted) is running, and is safely discharged un-

derneath your vehicle.
Traces of water on the ground are therefore

normal.

•

Odours from inside and outside the vehicle

can build up in the air conditioner unit. Odour

can enter the passenger compartment

through the vents.

•

When parking, set the heater and air condi-

tioner controls to turn off air recirculation to

allow fresh air into the passenger compart-

ment. This should help reduce odours inside

the vehicle.

HEATER AND AIR CONDITIONER

Display screen, heater and air conditioner, and audio system

4-21

OPERATING TIPS (models with

automatic air conditioner)

When the engine coolant temperature and outside

air temperature are low, the air flow from the foot

outlets may not operate. However, this is not a mal-

function. After the coolant temperature warms up,

the air flow from the foot outlets will operate nor-

mally.

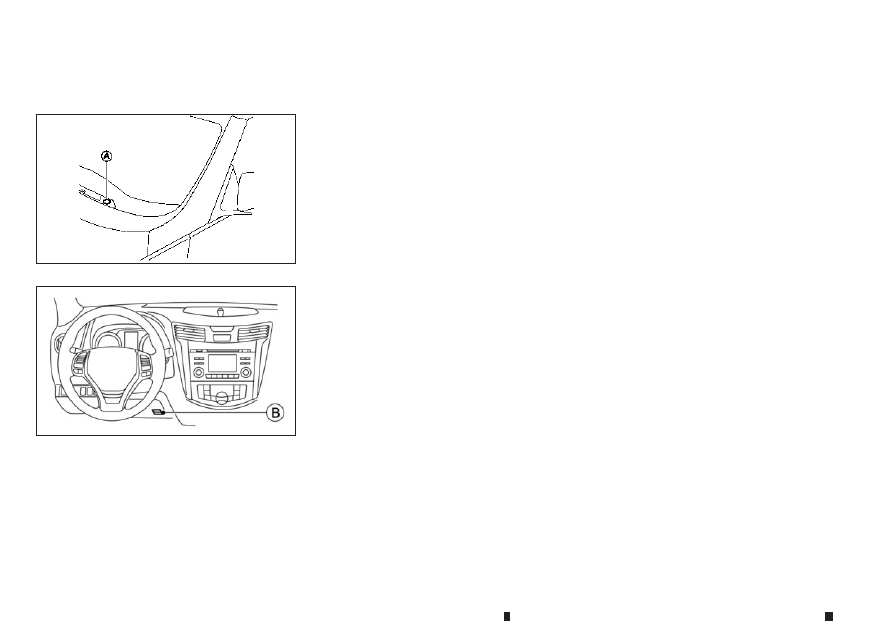

The sensors

A and

B , located on the instrument

panel, help maintain a constant temperature. Do not

put anything on or around the sensors.

SAA2324Z

NAA1865

4-22

Display screen, heater and air conditioner, and audio system

MANUAL AIR CONDITIONER AND

HEATER (Type A)

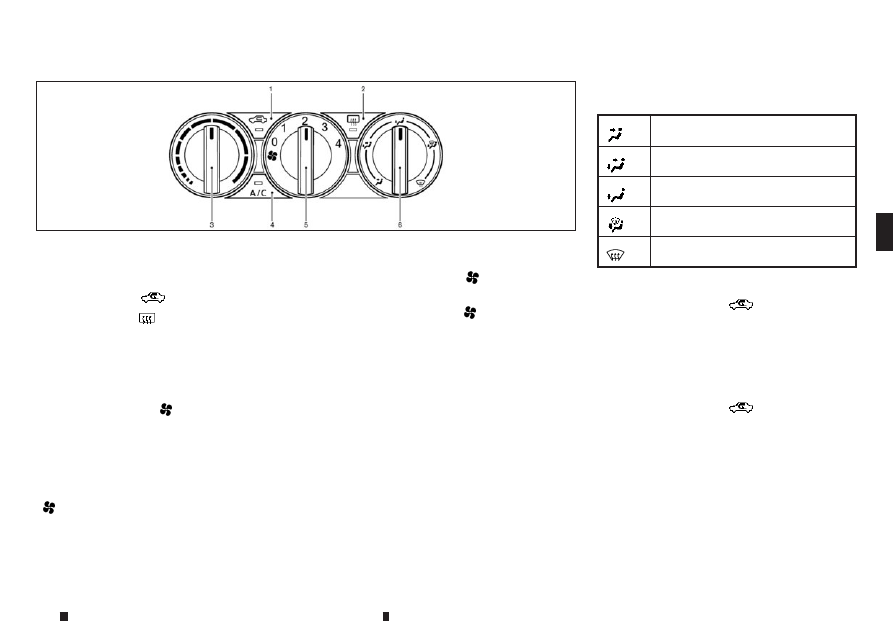

1. Air recirculation

button

2. Rear defogger

button (See “Defogger

switch (where fitted)” in the “2. Instruments

and controls” section.) (where fitted)

3. Temperature control dial
4. A/C (air conditioner) button
5. Fan speed control

dial

6. Air flow control dial

Controls

Turning system on/off:
To turn on the system, turn the fan speed control

dial out of the <0> position. Turn the dial

counter clockwise to the <0> position to turn off the

system.

Fan speed control:
Turn the fan speed control

dial clockwise to

increase the fan speed.
Turn the fan speed control

dial anticlockwise

to decrease the fan speed.
Temperature control:
Turn the temperature control dial to set the desired

temperature. Turn the dial between the middle and

the right position to select the hot temperature. Turn

the dial between the middle and the left position to

select the cool temperature.

Air flow control:
This dial allows you to select the air flow outlets.

—

Air flows from centre and side vents.

—

Air flows from centre and side vents

and foot outlets.

—

Air flows mainly from the foot outlets.

—

Air flows from the defogger and foot

outlets.

—

Air flows mainly from the defogger

outlets.

Outside air circulation:
Push the air recirculation

button. (The indica-

tor light will turn off.) The air flow is drawn from out-

side the vehicle.
Select the outside air circulation mode for normal

heating or air conditioning operation.
Air recirculation:
Push the air recirculation

button. (The indica-

tor light will illuminate.)
The air flow is recirculated inside the vehicle.
A/C (Air Conditioner) operation:
Push the A/C button to turn on or off the air condi-

tioner. When the air conditioner is on, the A/C indi-

cator light on the button illuminates.

JVH0928XZ

Display screen, heater and air conditioner, and audio system

4-23

Heater operation

Heating:
This mode is used to direct heated air from the foot

outlets.
1. Push the air recirculation

button for normal

heating. (The indicator light will turn off.)

2. Turn the air flow control dial to the

position.

3. Turn the fan speed control

dial to the de-

sired position.

4. Turn the temperature control dial to the desired

position between the middle and the hot (right)

position.

Ventilation:
This mode directs outside air from the side and

centre vents.
1. Push the air recirculation

button. (The indi-

cator light will turn off.)

2. Turn the air flow control dial to the

position.

3. Turn the fan speed control

dial to the de-

sired position.

4. Turn the temperature control dial to the desired

position.

Defrosting or defogging:
This mode directs the air to the defogger outlets to

defrost/defog the windows.
1. Turn the air flow control dial to the

position.

2. Push the air recirculation

button. (The indi-

cator light will turn off.)

3. Turn the fan speed control

dial to the de-

sired position.

4. Turn the temperature control dial to the desired

position between the middle and the hot (right)

position.

•

To remove frost from the windscreen quickly,

turn the temperature control dial to the maximum

position and the fan speed control

dial to

the maximum position.

•

If it is difficult to defog the windscreen, turn the

A/C button on.

Bi-level heating:
This mode directs cool air from the side and centre

vents and warm air from the foot outlets. When the

temperature control dial is turned to the maximum

hot or cool position, the air between the vents and

the foot outlets is the same temperature.
1. Push the air recirculation

button. (The indi-

cator light will turn off.)

2. Turn the air flow control dial to the

position.

3. Turn the fan speed control

dial to the de-

sired position.

4. Turn the temperature control dial to the desired

position.

Heating and defogging:
This mode heats the interior and defogs the win-

dows.
1. Push the air recirculation

button. (The indi-

cator light will turn off.)

2. Turn the air flow control dial to the

position.

3. Turn the fan speed control dial to the desired

position.

4. Turn the temperature control dial to the maximum

hot (right) position.

Air conditioner operation

The air conditioner system should be operated for

approximately 10 minutes at least once a month.

This helps prevent damage to the air conditioner

system due to the lack of lubrication.
Cooling:
This mode is used to cool and dehumidify the air.
1. Push the air recirculation

button. (The indi-

cator light will turn off.)

2. Turn the air flow control dial to the

position.

3. Turn the fan speed control dial to the desired

position.

4. Push the A/C button on. (The A/C indicator light

will illuminate.)

5. Turn the temperature control dial to the desired

position between the middle and the cool (left)

position.

4-24

Display screen, heater and air conditioner, and audio system

A visible mist may be seen coming from the vents in

hot, humid conditions as the air is cooled rapidly.

This does not indicate a malfunction.

•

For quick cooling when the outside temperature

is high, push the air recirculation

button.

(The indicator light will turn on.) Be sure to return

the air recirculation

button to turn off for

normal cooling.

Dehumidified heating:
This mode is used to heat and dehumidify the air.
1. Push the air recirculation

button. (The indi-

cator light will turn off.)

2. Turn the air flow control dial to the

position.

3. Turn the fan speed control

dial to the de-

sired position.

4. Push the A/C button on. (The A/C indicator light

will illuminate.)

5. Turn the temperature control dial to the desired

position between the middle and the hot (right)

position.

Dehumidified defogging:
This mode is used to defog the windows and dehu-

midify the air.
1. Push the air recirculation

button. (The indi-

cator light will turn off.)

2. Turn the air flow control dial to the

position.

3. Turn the fan speed control

dial to the de-

sired position.

4. Push the A/C button on. (The A/C indicator light

will illuminate.)

5. Turn the temperature control dial to the desired

position.

Display screen, heater and air conditioner, and audio system

4-25

MANUAL AIR CONDITIONER AND

HEATER (Type B)

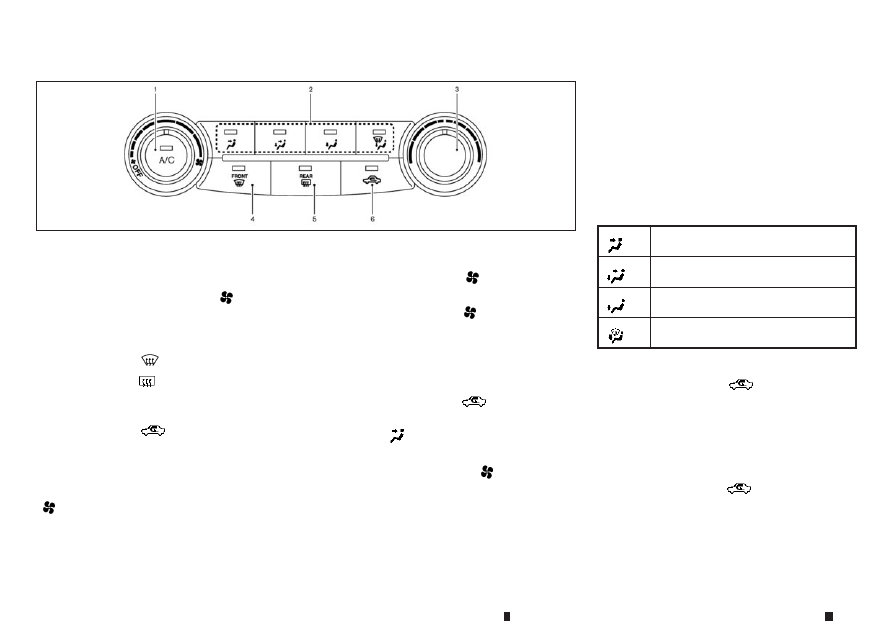

1. A/C button/Fan speed control

dial

2. Air flow control buttons
3. Temperature control dial
4. Front defogger

button

5. Rear defogger

button (See “Defogger

switch (where fitted)” in the “2. Instruments

and controls” section.) (where fitted)

6. Air recirculation

button

Controls

Turning system on/off:
To turn on the system, turn the fan speed control

dial out of the <OFF> position. Turn the dial

anticlockwise to the <OFF> position to turn off the

system.

Fan speed control:
Turn the fan speed control

dial clockwise to

increase the fan speed.
Turn the fan speed control

dial anticlockwise

to decrease the fan speed.
Ventilation:
This mode directs outside air from the side and

centre vents.
1. Push the air recirculation

button. (The indi-

cator light will turn off.)

2. Push the

button. (The indicator light will

turn on.)

3. Turn the fan speed control

dial to the de-

sired position.

4. Turn the temperature control dial to the desired

position.

Temperature control:
Turn the temperature control dial to set the desired

temperature. Turn the dial between the middle and

the right position to select the hot temperature. Turn

the dial between the middle and the left position to

select the cool temperature.
Air flow control:
Push one of the air flow control buttons to select the

air flow outlets.

—

Air flows mainly from centre and side

vents.

—

Air flows mainly from centre and side

vents and foot outlets.

—

Air flows mainly from the foot outlet

and partly from the defogger.

—

Air flows mainly from the defogger and

foot outlets.

Outside air circulation:
Push the air recirculation

button. (The indica-

tor light will turn off.) The air flow is drawn from out-

side the vehicle.
Select the outside air circulation mode for normal

heating or air conditioning operation.
Air recirculation:
Push the air recirculation

button on. (The indi-

cator light will illuminate.)
The air will recirculate inside the vehicle.

JVH0888XZ

4-26

Display screen, heater and air conditioner, and audio system

A/C (Air Conditioner) operation:
Push the A/C button to turn on or off the air condi-

tioner. When the air conditioner is on, the A/C indi-

cator light on the button illuminates.

Heater operation

Heating:
This mode is used to direct heated air from the foot

outlets.
1. Push the air recirculation

button for normal

heating. (The indicator light will turn off.)

2. Push the

button. (The indicator light will

turn on.)

3. Turn the fan speed control

dial to the de-

sired position.

4. Turn the temperature control dial to the desired

position between the middle and the hot (right)

position.

Defrosting or defogging:
This mode directs the air to the defogger outlets to

defrost/defog the windows.
1. Turn the fan speed control

dial to the de-

sired position.

2. Push the front defogger

button. (The indi-

cator lights on the front defogger

button

and the A/C button will turn on.) Then the air

recirculation indicator light will turn off.

3. Turn the temperature control dial to the desired

position between the middle and the hot (right)

position.
To remove frost from the windscreen quickly,

turn the temperature control dial to the maximum

hot (right) position and the fan speed control

dial to the maximum position. For the best

bi-level heating performance, do not select the

air recirculation mode. For the best defogging

performance, do not select the air recirculation

mode.

Bi-level heating:
This mode directs cool air from the side/centre vents

and warm air from the foot outlets. (When the tem-

perature control dial is turned to the maximum hot

(right) or cool (left) position, the temperatures from

the side/centre vents and the foot outlets will be the

same.)
1. Push the air recirculation

button. (The indi-

cator light will turn off.)

2. Push the

button. (The indicator light will

turn on.)

3. Turn the fan speed control

dial to the de-

sired position.

4. Turn the temperature control dial to the desired

position.

Heating and defogging:
This mode heats the interior and defogs the win-

dows.
1. Push the air recirculation

button. (The indi-

cator light will turn off.)

2. Push the

button. (The indicator light will

turn on.)

3. Turn the fan speed control

dial to the de-

sired position.

4. Turn the temperature control dial to the maximum

hot (right) position.

Air conditioner operation

The air conditioner system should be operated for

approximately 10 minutes at least once a month.

This helps prevent damage to the air conditioner

system due to the lack of lubrication.
Cooling:
This mode is used to cool and dehumidify the air.
1. Push the air recirculation

button. (The indi-

cator light will turn off.)

2. Push the

button. (The indicator light will

turn on.)

3. Turn the fan speed control

dial to the de-

sired position.

4. Push the A/C button. (The indicator light will turn

on.)

Display screen, heater and air conditioner, and audio system

4-27

5. Turn the temperature control dial to the desired

position between the middle and the cool (left)

position.

A visible mist may be seen coming from the vents in

hot, humid conditions as the air is cooled rapidly.

This does not indicate a malfunction.

•

For quick cooling when the outside temperature

is high, push the air recirculation

button.

(The indicator light will turn on.) Be sure to return

the air recirculation

button to turn off for

normal cooling.

Dehumidified heating:
This mode is used to heat and dehumidify the air.
1. Push the air recirculation

button. (The indi-

cator light will turn off.)

2. Push the

button. (The indicator light will

turn on.)

3. Turn the fan speed control

dial to the de-

sired position.

4. Push the A/C button. (The indicator light will turn

on.)

5. Turn the temperature control dial to the desired

position between the middle and the hot (right)

position.

Dehumidified defogging:
This mode is used to defog the windows and dehu-

midify the air.
1. Push the front defogger

button. (The indi-

cator lights on the front defogger

button

and the A/C button will turn on.) Then the air

recirculation indicator light will turn off.

2. Turn the fan speed control

dial to the de-

sired position.

3. Turn the temperature control dial to the desired

position.

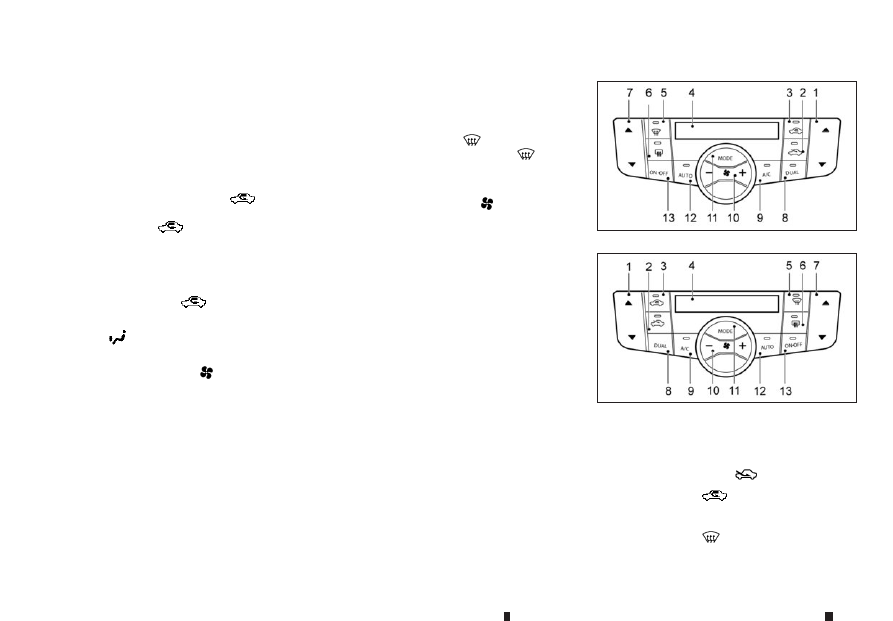

AUTOMATIC AIR CONDITIONER

1. Temperature control buttons (left side seat)
2. Outside air circulation

button

3. Air recirculation

button

4. Display screen
5. Front defogger

button

NAA1868

Left hand drive

NAA1877

Right hand drive

4-28

Display screen, heater and air conditioner, and audio system

6. Rear defogger

button (See “Defogger

switch (where fitted)” in the “2. Instruments

and controls” section.)

7. Temperature control buttons (right side seat)
8. <DUAL> (zone control ON/OFF) button
9. A/C (Air Conditioner) button
10. Fan speed control

button

11. <MODE> button
12. <AUTO> button
13. <ON·OFF> button

Automatic operation (AUTO)

The <AUTO> mode may be used year-round as the

system automatically controls the air conditioner to

a constant temperature, air flow distribution and fan

speed after the desired temperature is set manually.
To turn the heater and air conditioner on or off, push

the <ON·OFF> button.
Cooling and dehumidified heating:
1. Push the <AUTO> button (the <AUTO> indica-

tor light will illuminate).

2. If the A/C indicator light is not illuminated, push

the A/C button (the A/C indicator light will illumi-

nate).

3. Push the temperature control buttons (

and

) to set the desired temperature.

•

When the <DUAL> indicator light is not illu-

minated, pushing the <DUAL> button (the

<DUAL> indicator light will illuminate) allows

the user to independently change the driver

and passenger side temperatures with the

corresponding temperature control buttons

(

and

•

To cancel the separate temperature setting,

push the <DUAL> button (the <DUAL> indi-

cator light will turn off) and the driver’s side

temperature setting will be applied to both

the driver and passenger sides.

4. Push either the outside air circulation

but-

ton or the air recirculation

button (the but-

ton with an indicator light illuminated) for approxi-

mately 2 seconds to switch to the automatic air

intake control mode (the indicator light will blink

twice).

A visible mist may be seen coming from the vents in

hot, humid conditions as the air is cooled rapidly.

This does not indicate a malfunction.
Heating (A/C off):
1. Push the <AUTO> button (the <AUTO> indica-

tor light will illuminate).

2. If the A/C indicator light is illuminated, push the

A/C button (the A/C indicator light will turn off).

3. Push the temperature control buttons (

and

) to set the desired temperature.

•

When the <DUAL> indicator light is not illu-

minated, pushing the <DUAL> button (the

<DUAL> indicator light will illuminate) allows

the user to independently change the driver

and passenger side temperatures with the

corresponding temperature control buttons

(

and

•

To cancel the separate temperature setting,

push the <DUAL> button (the <DUAL> indi-

cator light will turn off) and the driver’s side

temperature setting will be applied to both

the driver and passenger sides.

•

Do not set the temperature lower than the out-

side air temperature. Doing so may cause the

temperature to not be controlled properly.

•

If the windows fog up, use dehumidified heating

instead of the A/C off heating.

Dehumidified defrosting/defogging:
1. Push the front defogger

button (the

indicator light will illuminate).

2. Push the temperature control buttons (

and

) to set the desired temperature.

•

To quickly remove frost from the outside surface

of the windscreen, set the temperature control

and the fan speed to the maximum levels.

•

After the windscreen is cleared, push the

<AUTO> button to return to the <AUTO> mode.

•

When the front defogger

button is pushed,

the air conditioner will automatically turn on,

sensing the outside air temperature to defog the

windscreen. For the best defogging perfor-

mance, do not select the air recirculation mode.

Display screen, heater and air conditioner, and audio system

4-29

•

Do not set the temperature too low when the

front defogger mode is on (the

indicator

light is illuminated), because doing so may fog

up the windscreen.

Manual operation

The manual mode can be used to control the heater

and air conditioner to your desired settings.
Fan speed control:
Push the fan speed control

button ( + side or

− side) to manually control the fan speed.
Air flow control:
Push the <MODE> button to select the desired

mode:

—

Air flows from the centre and side

vents.

—

Air flows from the centre and side

vents and foot outlets.

—

Air flows mainly from the foot outlets

—

Air flows from the front defogger

outlets and foot outlets.

Temperature control:
Push the temperature control buttons (

and

) to set the desired temperature.

•

When the <DUAL> indicator light is not illumi-

nated, pushing the <DUAL> button (the <DUAL>

indicator light will illuminate) allows the user to

independently change the driver and passenger

side temperatures with the corresponding tem-

perature control buttons (

and

•

To cancel the separate temperature setting, push

the <DUAL> button (the <DUAL> indicator light

will turn off) and the driver’s side temperature

setting will be applied to both the driver and pas-

senger sides.

Outside air circulation:
Push the outside air circulation button to draw the

air flow from outside the vehicle. (The

indica-

tor light will illuminate.)
Air recirculation:
Push the air recirculation

button to circulate

the air flow inside the vehicle. (The

indicator

light will illuminate.)
Automatic air intake control:
Push either the outside air circulation

or the air

recirculation

button (the button with an indica-

tor light illuminated) for approximately 2 seconds.

The

indicator light will blink twice, and

the air intake will then be controlled automatically.

When the automatic control is set, the system auto-

matically alternates between the outside air circula-

tion

and the air recirculation

modes (the

indicator light of the active mode will illuminate).

To turn system on/off

To turn off the heater and air conditioner, push the

<ON·OFF> button.

SERVICING AIR CONDITIONER

WARNING

The air conditioner system contains refrigerant

under high pressure. To avoid personal injury,

any air conditioner service should be done only

by an experienced technician with the proper

equipment.
The air conditioner system in your vehicle is charged

with a refrigerant designed with the environment in

mind.

This refrigerant will not harm the earth’s ozone

layer. However, it may contribute in a small part to

global warming.
Special charging equipment and lubricant are re-

quired when servicing your vehicle’s air conditioner.

Using improper refrigerants or lubricants will cause

severe damage to the air conditioner system. (See

“Recommended fluids/lubricants and capacities” in

the “9. Technical information” section.)
An approved dealer or qualified workshop will be

able to service your environmentally friendly air con-

ditioner system.

4-30

Display screen, heater and air conditioner, and audio system

Air conditioner filter

The air conditioner system is equipped with an air

conditioner filter which collects and neutralises dirt,

pollen, dust, etc. To make sure that the air condi-

tioner heats, defogs and ventilates efficiently, re-

place the filter in accordance with the specified

maintenance intervals listed in the separate mainte-

nance booklet. To replace the filter, contact an ap-

proved dealer or qualified workshop.
The filter should be replaced if the air flow decreases

significantly or if windows fog up easily when oper-

ating the heater or air conditioner.

AUDIO OPERATION PRECAUTIONS

WARNING

Do not adjust the audio system while driving so

that full attention may be given to vehicle opera-

tion.

Radio

•

Radio reception is affected by station signal

strength, distance from radio transmitter, build-

ings, bridges, mountains and other external influ-

ences. Intermittent changes in reception quality

normally are caused by these external influences.

•

Using a mobile phone in or near the vehicle may

influence radio reception quality.

Compact Disc (CD) player

•

During cold weather or rainy days, the player

may malfunction due to the humidity. If this oc-

curs, remove the CD from CD player and dehu-

midify or ventilate the player completely.

•

The player may skip while driving on rough roads.

SAA0480

AUDIO SYSTEM (where fitted)

Display screen, heater and air conditioner, and audio system

4-31

•

The CD player sometimes may not function when

the passenger compartment temperature is ex-

tremely high. Lower the temperature before use.

•

Do not expose the CD to direct sunlight.

•

CDs that are of poor quality, or are dirty,

scratched, covered with fingerprints, or that have

pin holes may not work properly.

•

The following CDs may not work properly.
– Copy control compact discs (CCCD)
– Recordable compact discs (CD-R)
– Rewritable compact discs (CD-RW)

•

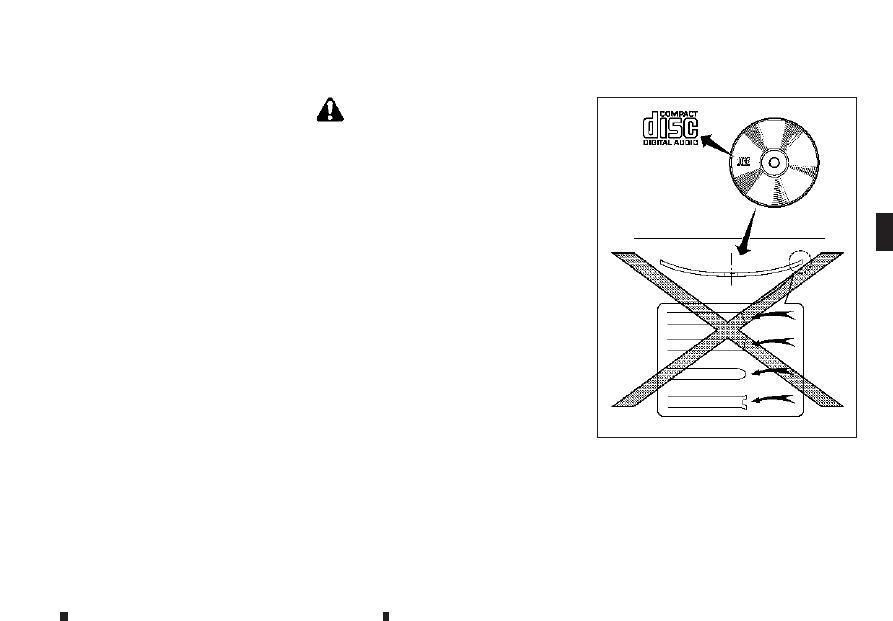

Do not use the following CDs as they may cause

the CD player to malfunction.
– 8 cm (3.1 in) discs
– CDs that are not round
– CDs with a paper label
– CDs that are warped, scratched or have un-

usual edges.

•

This audio system can only play prerecorded

CDs. It has no capabilities to record or burn

CDs.

USB (Universal Serial Bus) Connection

Port

WARNING

Do not connect, disconnect or operate the USB

device while driving. Doing so can be a distrac-

tion. If distracted you could lose control of your

vehicle and cause an accident or serious injury.
CAUTION

•

Do not force the USB device into the USB

port. Inserting the USB device tilted or up-

side-down into the port may damage the port.

Make sure that the USB device is connected

correctly into the USB port.

•

Do not grab the USB port cover (where fitted)

when pulling the USB device out of the port.

This could damage the port and the cover.

•

Do not leave the USB cable in a place where

it can be pulled unintentionally. Pulling the

cable may damage the port.

The vehicle is not equipped with a USB device.

USB devices should be purchased separately as

necessary.
This system cannot be used to format USB devices.

To format a USB device, use a personal computer.
In some areas, the USB device for the front seats

plays only sound without images for regulatory rea-

sons, even when the vehicle is parked.

This system supports various USB memory devices,

USB hard drives and iPod players. Some USB de-

vices may not be supported by this system.

•

Partitioned USB devices may not play correctly.

•

Some characters used in other languages (Chi-

nese, Japanese, etc.) may not appear properly in

the display. Using English language characters

with a USB device is recommended.

General notes for USB use:
Refer to your device manufacturer’s owner informa-

tion regarding the proper use and care of the de-

vice.
Notes for iPod use:
iPod is a trademark of Apple Inc., registered in the

U.S. and other countries.

•

Improperly plugging in the iPod may cause a

checkmark to be displayed on and off (flicker-

ing). Always make sure that the iPod is con-

nected properly.

•

An iPod nano (1st Generation) may remain in

fast forward or rewind mode if it is connected

during a seek operation. In this case, please

manually reset the iPod.

•

An iPod nano (2nd Generation) will continue to

fast-forward or rewind if it is disconnected dur-

ing a seek operation.

•

An incorrect song title may appear when the Play

Mode is changed while using an iPod nano (2nd

Generation).

4-32

Display screen, heater and air conditioner, and audio system

•

Audiobooks may not play in the same order as

they appear on an iPod.

•

Large video files cause slow responses in an

iPod. The vehicle centre display may momen-

tarily black out, but will soon recover.

•

If an iPod automatically selects large video files

while in the shuffle mode, the vehicle centre dis-

play may momentarily black out, but will soon

recover.

Bluetooth® audio player (where fitted)

•

Some Bluetooth® audio devices may not be

used with this system. For detailed information

about Bluetooth® audio devices that are avail-

able for use with this system, contact an ap-

proved dealer or qualified workshop.

•

Before using a Bluetooth® audio system, the ini-

tial registration process for the audio device is

necessary.

•

Operation of the Bluetooth® audio system may

vary depending on the audio device that is con-

nected. Confirm the operation procedure before

use.

•

The playback of Bluetooth® audio will be paused

under the following conditions. The playback will

be resumed after the following conditions are

completed.
– while using a hands-free phone
– while checking a connection with a mobile

phone

•

The in-vehicle antenna for Bluetooth® communi-

cation is built in the system. Do not place the

Bluetooth® audio device in an area surrounded

by metal, far away from the system or in a narrow

space where the device closely contacts the

body or the seat. Otherwise, sound degradation

or connection interference may occur.

•

While a Bluetooth® audio device is connected

through the Bluetooth® wireless connection, the

battery power of the device may discharge

quicker than usual.

•

This system is compatible with the Bluetooth®

AV profile (A2DP and AVRCP).

Bluetooth® is a trademark

owned by Bluetooth SIG, Inc.,

and licensed to Visteon Cor-

poration and Robert Bosch

GmbH.

Compact Disc (CD)/USB device with

MP3/WMA/AAC (where fitted)

Terms:

•

MP3 — MP3 is short for Moving Pictures Ex-

perts Group Audio Layer 3. MP3 is the most well

known compressed digital audio file format. This

format allows for near “CD quality” sound, but at

a fraction of the size of normal audio files. MP3

conversion of an audio track from CD can re-

duce the file size by approximately 10:1 ratio

(Sampling: 44.1 kHz, Bit rate: 128 kbps) with

virtually no perceptible loss in quality. MP3 com-

pression removes the redundant and irrelevant

parts of a sound signal that the human ear

doesn’t hear.

•

WMA — Windows Media Audio (WMA) is a

compressed audio format created by Microsoft

as an alternative to MP3. The WMA codec offers

greater file compression than the MP3 codec,

enabling storage of more digital audio tracks in

the same amount of space when compared to

MP3s at the same level of quality.

•

AAC (where fitted) — Advanced Audio Coding

(AAC) is a compressed audio format. AAC of-

fers greater file compression than MP3 and en-

ables music file creation and storage at the same

quality as MP3.

•

Bit rate — Bit rate denotes the number of bits

per second used by a digital music files. The size

and quality of a compressed digital audio file is

determined by the bit rate used when encoding

the file.

•

Sampling frequency — Sampling frequency is

the rate at which the samples of a signal are con-

verted from analog to digital (A/D conversion)

per second.

•

Multisession — Multisession is one of the meth-

ods for writing data to media. Writing data once

to the media is called a single session, and writ-

ing more than once is called a multisession.

Display screen, heater and air conditioner, and audio system

4-33

•

ID3/WMA Tag — The ID3/WMA tag is the part

of the encoded MP3 or WMA file that contains

information about the digital music file such as

song title, artist, album title, encoding bit rate,

track time duration, etc. ID3 tag information is

displayed on the Album/Artist/Track title line on

the display.

Windows® and Windows Media® are

registered trademarks and/or trademarks of

Microsoft Corporation in the United States of

America and/or other countries.

A Root folder

B Folder

C MP3/WMA

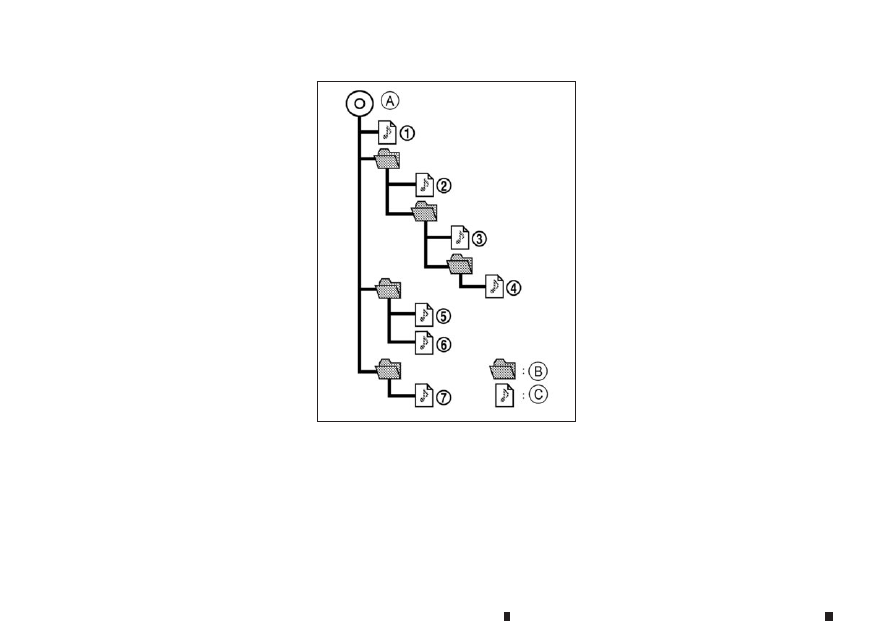

Playback order:
Music playback order of the CD with MP3/WMA/

AAC (where fitted) is as illustrated above.

•

The folder names of folders not containing MP3/

WMA files are not shown in the display.

•

If there is a file in the top level of the disc,

FOLDER is displayed.

•

The playback order is the order in which the files

were written by the writing software, so the files

might not play in the desired order.

NAA984

4-34

Display screen, heater and air conditioner, and audio system

ANTENNA
Roof antenna

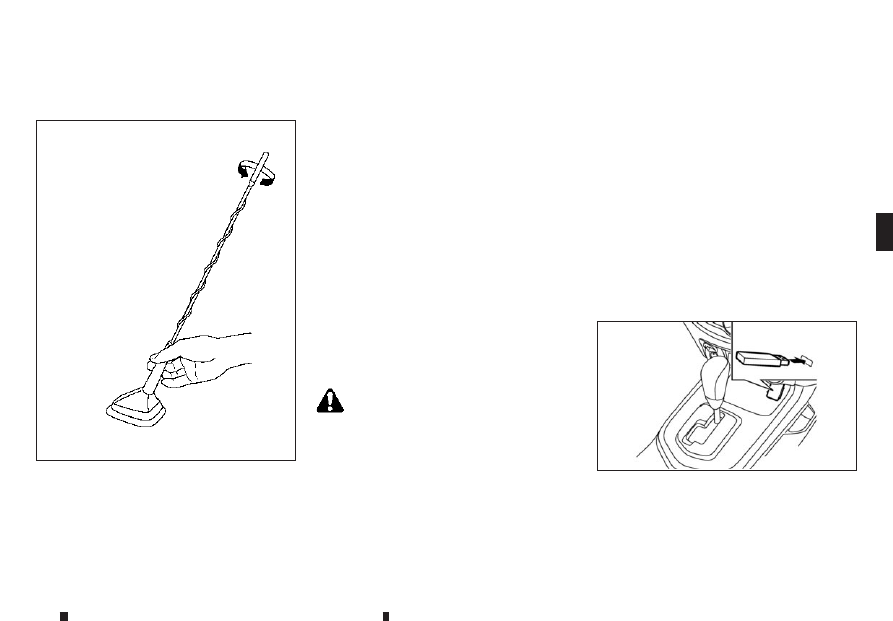

The antenna can be removed if necessary.
Hold the bottom of the antenna and remove by turn-

ing anticlockwise.
To install the antenna, turn the antenna clockwise

and tighten.

CAUTION
To avoid damaging or deforming the antenna, be

sure to remove the antenna under the following

conditions.

•

The vehicle enters an automatic car wash.

•

The vehicle enters a garage with a low ceiling.

•

The vehicle is covered with a car cover.

Pillar antenna

Adjust the antenna length for the best reception. A

fully extended antenna is usually best for distant re-

ception.
CAUTION
To prevent damage, be sure that the antenna is

retracted before the vehicle enters an automatic

car wash.

USB (Universal Serial Bus) connection

port

WARNING

Do not connect, disconnect or operate the USB

device while driving. Doing so can be a distrac-

tion. If distracted you could lose control of your

vehicle and cause an accident or serious injury.

CAUTION

•

Do not force the USB device into the USB

port. Inserting the USB device tilted or up-

side-down into the port may damage the port.

Make sure that the USB device is connected

correctly into the USB port.

•

Do not grab the USB port cover (where fitted)

when pulling the USB device out of the port.

This could damage the port and the cover.

•

Do not leave the USB cable in a place where

it can be pulled unintentionally. Pulling the

cable may damage the port.

Refer to your device manufacturer’s owner informa-

tion regarding the proper use and care of the de-

vice.

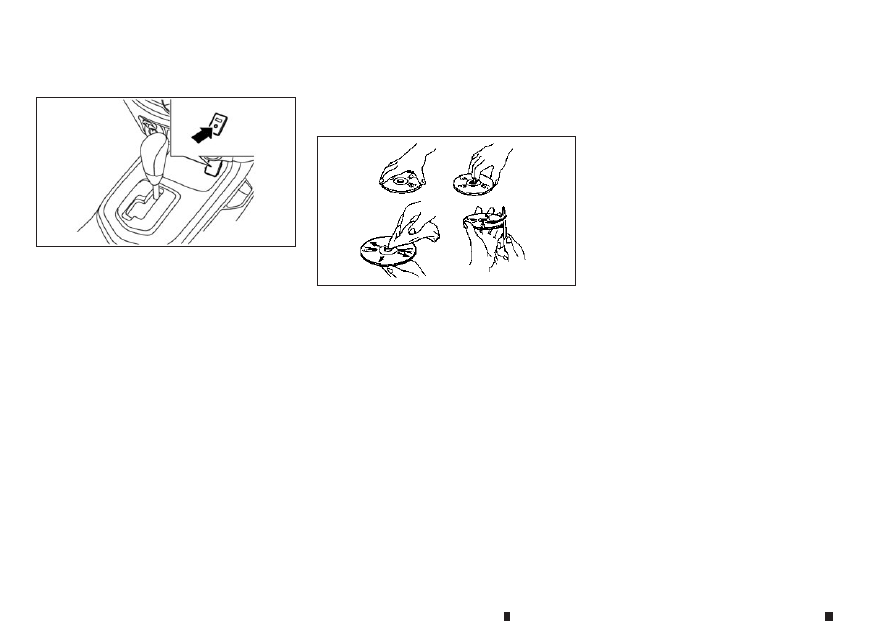

The USB port is located on the lower part of the

instrument panel. Insert USB devices or iPod con-

nectors into this port.

JVH0666X

JVH1109XZ

Display screen, heater and air conditioner, and audio system

4-35

AUX (Auxiliary) INPUT JACK

The AUX input jack is located on the lower part of

the instrument panel. Compatible audio devices,

such as some MP3 players, can be connected to

the system through the AUX input jack.
Before connecting a device to a jack, turn off the

power of the portable device.
With a compatible device connected to the jack,

push the corresponding button (depends on the au-

dio system) repeatedly until the display switches to

the AUX mode.
RENAULT strongly recommends using a stereo mini

plug cable when connecting your music device to

the audio system. Music may not play properly when

a monaural cable is used.

CD/USB MEMORY CARE AND

CLEANING
CD

•

Handle a disc by its edges. Never touch the sur-

face of the disc. Do not bend the disc.

•

Always place the discs in the storage case when

they are not being used.

•

To clean a disc, wipe the surface from the centre

to the outer edge using a clean, soft cloth. Do

not wipe the disc using a circular motion.
Do not use a conventional record cleaner or al-

cohol intended for industrial use.

•

A new disc may be rough on the inner and outer

edges. Remove the rough edges by rubbing the

inner and outer edges with the side of a pen or

pencil as illustrated.

USB memory

•

Do not place heavy objects on the USB memory.

•

Do not store the USB memory in highly humid

locations.

•

Do not expose the USB memory to direct sun-

light.

•

Do not spill any liquids on the USB memory.

Refer to the USB memory Owner’s Manual for de-

tails.

JVH1110XZ

SAA0451Z

4-36

Display screen, heater and air conditioner, and audio system

Content .. 8 9 10 11 ..
