Renault Alaskan (2017 year). Instruction - part 8

WARNING

•

The bonnet must be closed and latched se-

curely before driving. Failure to do so could

cause the bonnet to fly open and result in an

accident.

•

Never open the bonnet if steam or smoke is

coming from the engine compartment to

avoid injury.

OPENING BONNET

1. Pull the bonnet lock release handle

➀

located

below the instrument panel until the bonnet

springs up.

2. Locate the lever

➁

in between the bonnet and

grille and push the lever with your fingertips.

3. Raise the bonnet.
4. Remove the support rod and insert it into the slot

➂

Hold the coated parts

A when removing or re-

setting the support rod. Avoid direct contact with

the metal parts, as they may be hot immediately

after the engine has been stopped.

CLOSING BONNET

1. While supporting the bonnet, return the support

rod to its original position.

2. Slowly lower the bonnet to about 20 to 30 cm (8

to 12 in) above the bonnet lock, then let it drop.

3. Make sure it is securely latched.

NIC3101

BONNET

Pre-driving checks and adjustments

3-17

WARNING

•

Fuel is extremely flammable and highly explo-

sive under certain conditions. You could be

burned or seriously injured if it is misused or

mishandled. Always stop the engine and do

not smoke or allow open flames or sparks

near the vehicle when refuelling.

•

Fuel may be under pressure. Turn the cap a

half of a turn, and wait for any “hissing” sound

to stop to prevent fuel from spraying out and

possibly causing personal injury. Then remove

the cap.

•

Use only an original equipment type fuel filler

cap as a replacement. It has a built-in safety

valve needed for proper operation of the fuel

system and emission control system. An in-

correct cap can result in a serious malfunc-

tion and possible injury.

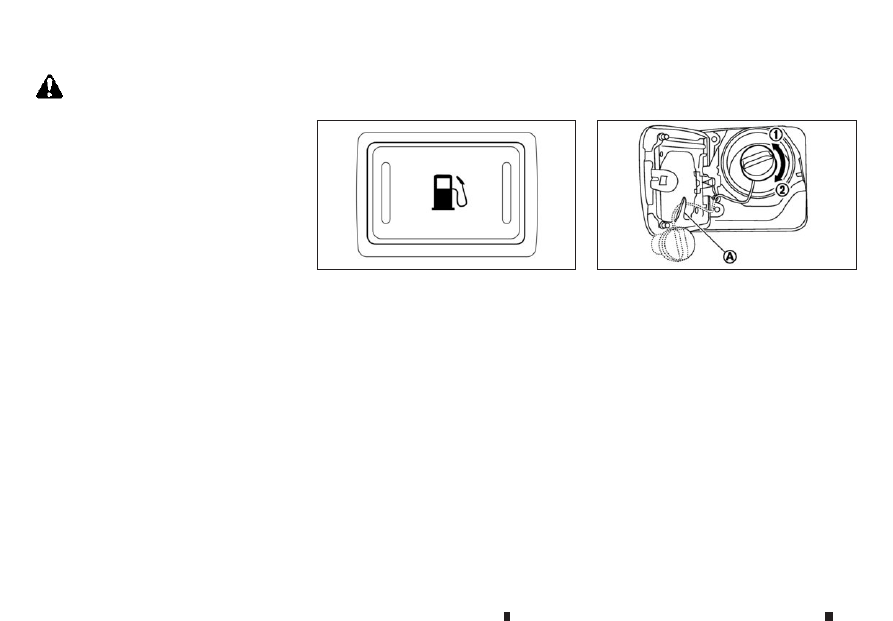

OPENING FUEL FILLER LID
Fuel filler lid opener switch

To open the fuel filler lid, push the fuel filler lid opener

switch located on the lower side of the instrument

panel.
To lock the fuel filler lid, close the lid until it securely

locks.

FUEL FILLER CAP
Type A

The fuel filler cap is a ratcheting type. Turn the cap

anticlockwise

➀

to remove. Tighten the cap clock-

wise

➁

until ratchet clicks, more than twice, after

refuelling.
Put the fuel filler cap on the cap holder

A while

refuelling.
CAUTION
If fuel is spilled on the vehicle body, flush it away

with water to avoid paint damage.

NIC2736

JVP0211XZ

FUEL FILLER LID AND CAP

3-18

Pre-driving checks and adjustments

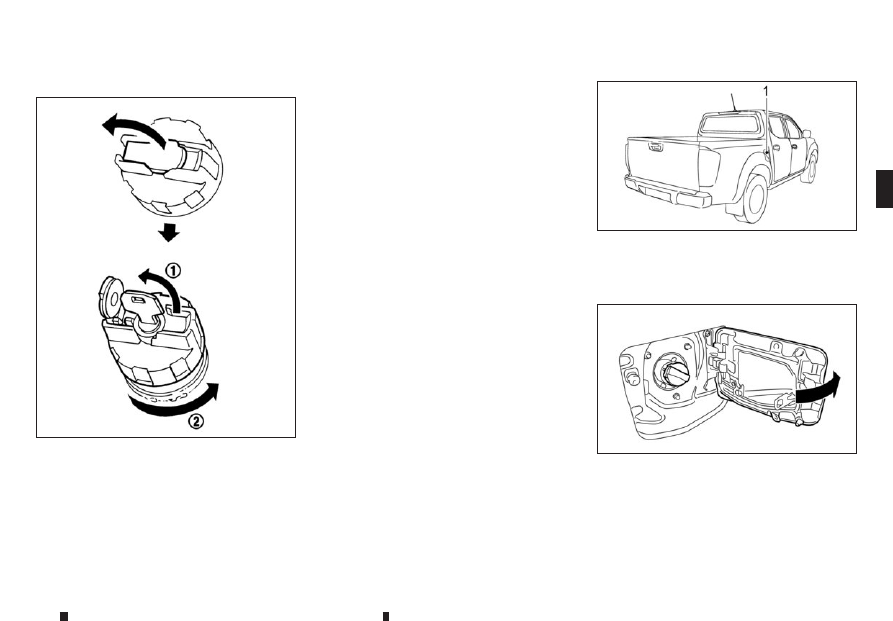

Type B

To open the fuel filler cap, turn the key anticlockwise

➀

Turn the fuel filler cap anticlockwise

➁

after the

cap is unlocked.

The fuel filler cap is a screw-on ratcheting type.

After refuelling, tighten the cap clockwise until more

than 2 ratcheting clicks are heard. The fuel filler cap

locks automatically when it is tightened.

The AdBlue® filler lid

➀

is located on the right

hand side of the vehicle.

OPENING AdBlue® FILLER LID

To open the AdBlue® filler lid, push the AdBlue®

filler lid slightly and release.
To close the AdBlue® filler lid, close the lid until it

securely locks in place.

JVP0370XZ

NDI1684

NDI1646

AdBlue® FILLER LID AND CAP

Pre-driving checks and adjustments

3-19

LOCKING AdBlue® FILLER LID

The AdBlue® filler lid is locked and unlocked using

the Keyless Entry System, see “Remote Control Key

system (where fitted)” earlier in this section for addi-

tional details.

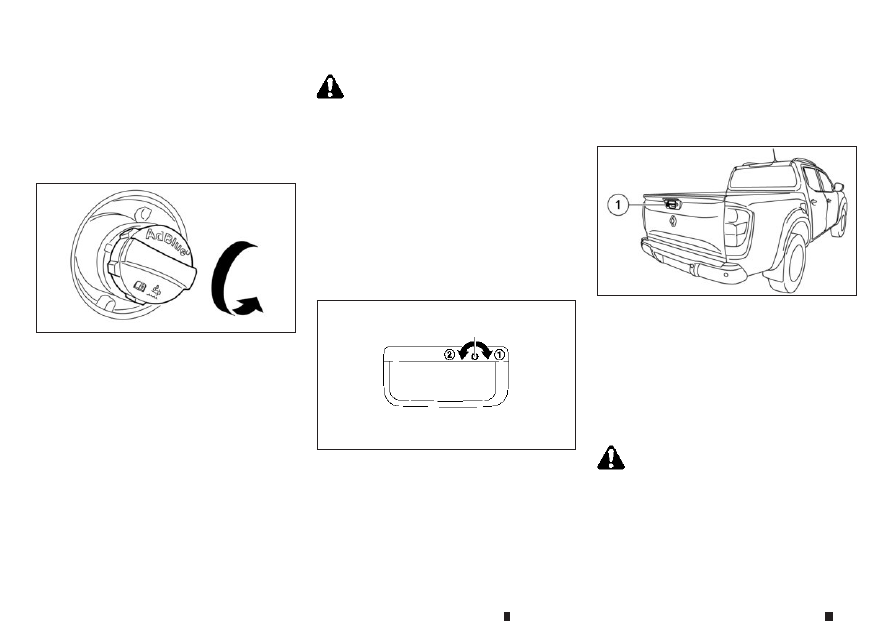

AdBlue® FILLER CAP

The AdBlue® filler cap is a non-ratcheting type. Turn

the cap anticlockwise

➀

to remove. Tighten the

cap clockwise

➁

until tight.

CAUTION
If AdBlue® is spilled on the vehicle body, flush it

away with water to avoid paint damage.

WARNING

•

While driving, never allow anyone to ride in

the cargo area. Abrupt braking or stopping

could lead to personal injury or death.

•

Do not drive the vehicle with the tailgate down.

•

Properly secure all cargo with ropes or straps

to help prevent it from sliding or shifting. In a

sudden stop or collision, unsecured cargo

could cause personal injury.

TAILGATE
Locking or unlocking tailgate

(where fitted)

To lock the tailgate, insert the key to the tailgate key

cylinder and turn the key clockwise

➀

To unlock the tailgate, turn the key anticlockwise

➁

For Remote Control Key equipped models, see

“Mechanical key” earlier in this section for removing

the mechanical key.

Opening the tailgate

To open the tailgate, pull the tailgate handle

➀

and

lower the tailgate. The support wires will hold the

gate open.

•

The weight of the cargo load must be evenly dis-

tributed over both the front and the rear axles.

•

All cargo should be securely fastened with ropes

or straps to prevent it from shifting or sliding

within the vehicle.

WARNING

•

Do not drive the vehicle with the tailgate down.

•

While driving, never allow anyone to ride in

the cargo area. Abrupt braking or stopping

could lead to personal injury or death.

NDI1647

SPA2696Z

NPA1529

CARGO BED (where fitted)

3-20

Pre-driving checks and adjustments

Closing the tailgate

When closing the tailgate, make sure that the latches

or levers are securely locked.

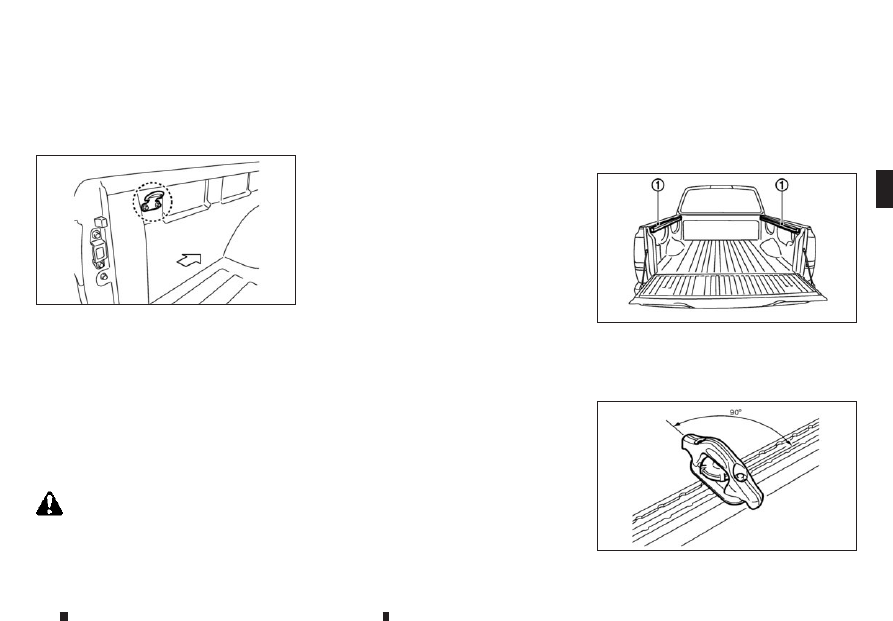

TIE DOWN HOOKS (where fitted)

For your convenience, four tie down hooks are

placed on the inside of the cargo bed. These may be

used to help secure cargo loaded into the cargo

bed.

•

The weight of the cargo load must be evenly dis-

tributed over both the front and rear axles.

•

All cargo should be securely fastened with ropes

or straps to prevent it from shifting or sliding

within the vehicle.

C-CHANNEL SYSTEM (where fitted)

WARNING

•

Properly install and tighten the tie-down cleats

into the C-Channel system. Also, do not at-

tach any rope or straps directly to the chan-

nel. Failure to properly install the tie-down

cleats or attaching ropes or straps directly to

the channel can cause the cargo to become

unsecured. In a sudden stop or collision, un-

secured cargo could cause personal injury.

•

Properly secure all cargo with ropes or straps

to help prevent it from sliding or shifting. In a

sudden stop or collision, unsecured cargo

could cause personal injury.

•

Do not place cargo higher than the seatbacks.

In a sudden stop or collision, unsecured cargo

could cause personal injury.

•

Overloading not only can shorten the life of

your vehicle and the tyre, but can also cause

unsafe vehicle handling and longer braking

distances. This may cause a premature tyre

failure which could result in a serious acci-

dent and personal injury. Failures caused by

overloading are not covered by the vehicle’s

warranty.

•

Do not install accessories over the gap be-

tween the front and rear side channels. Doing

so could affect the rear structure in certain

rear impacts, which could result in serious

injury.

The C-Channel system allows you to move tie-down

clamps in the bed to the best location to secure a

load.
The tie-down cleats must be installed so the clamp

is properly seated in the notches in the rail. If the tie-

down cleat is not seated in the notches, it will not be

properly tightened. The bolt in the centre of the cleat

must be securely tightened.
Check the tightness of the tie-down cleat periodi-

cally during a trip to make sure the centre bolt has

not become loose.

➀

Side channels

Install the tie-down cleat as follows:
1. Loosen the centre bolt completely.

JVP0314XZ

JVP0357XZ

JVP0358XZ

Pre-driving checks and adjustments

3-21

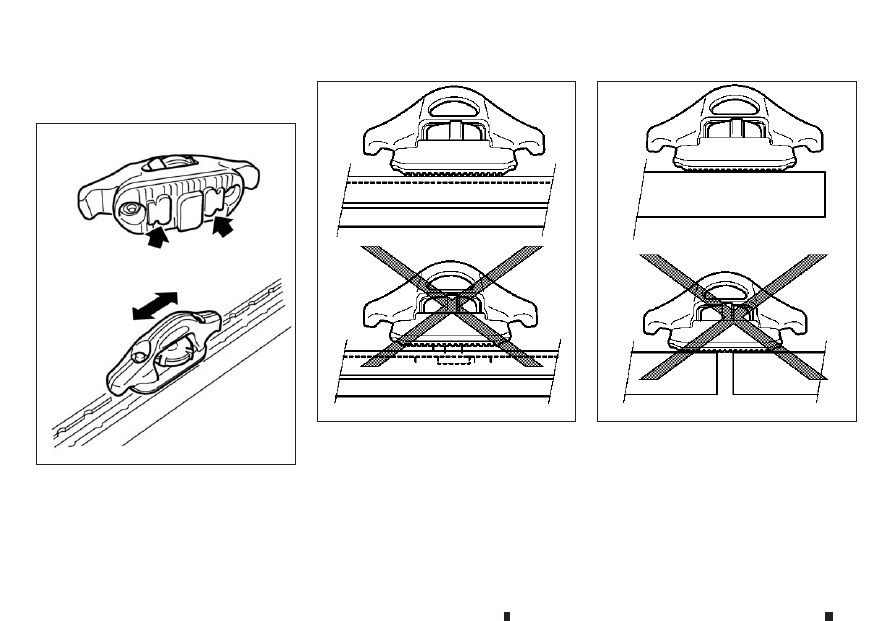

2. Insert the cleat into the channel perpendicular to

the channel as shown. Then rotate the cleat

clockwise 90º and slide it to desired location.

3. Position the cleat so the nubs on the bottom fully

seat into the channel detents.

4. There should be no gap between the bottom of

the cleat and the top of the channel. Securely

tighten the centre bolt.

JVP0359XZ

JVP0360XZ

JVP0362XZ

3-22

Pre-driving checks and adjustments

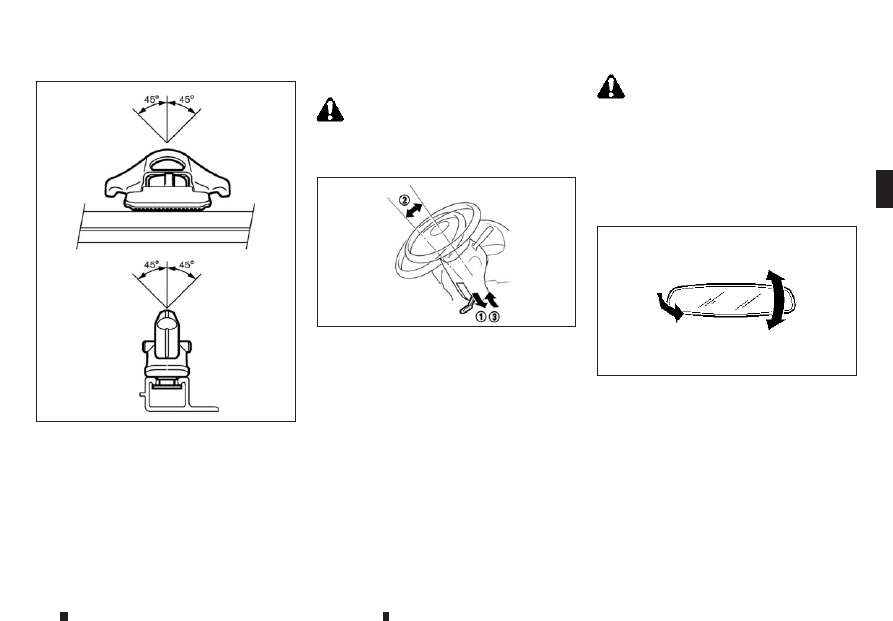

CAUTION

•

Install only one cleat per section of channel.

•

Applying loads at angles to the cleats that are

greater than 45° or loads greater than 90 kg

(200 lb) may cause damage to the channel or

the bed.

STEERING WHEEL ADJUSTMENT

WARNING

Never adjust the steering wheel while driving so

that full attention may be given to vehicle opera-

tion.

Pull the lock lever down

➀

and adjust the steering

wheel up or down

➁

until the desired position is

achieved.
Push the lock lever back

➂

firmly to lock the steer-

ing wheel in place.

WARNING

Adjust the position of all mirrors before driving.

Do not adjust the mirror positions while driving

so that full attention may be given to vehicle op-

eration.

INSIDE REARVIEW MIRROR

While holding the inside rearview mirror, adjust the

mirror angles until the desired position is achieved.

JVP0361XZ

SPA2225Z

SPA2447Z

STEERING WHEEL

MIRRORS

Pre-driving checks and adjustments

3-23

Manual anti-glare type

Pull the adjusting lever

➀

when the glare from the

headlights of the vehicle behind you obstructs your

vision at night.
Push the adjusting lever

➁

during the day for the

best rearward visibility.

Automatic anti-glare type

The inside rearview mirror is designed so that it

automatically changes reflection according to the

intensity of the headlights of the vehicle following

you.
The anti-glare system will be automatically turned on

when you push the ignition switch to the ON posi-

tion.
When the system is turned on, the indicator light

B will illuminate and excessive glare from the head-

lights of the vehicle behind you will be reduced.
Push the

switch

A for 3 seconds to make the

inside rearview mirror operate normally and the indi-

cator light will turn off. Push the

switch again

for 3 seconds to turn the system on.
Do not hang any objects on the mirror or apply

glass cleaner. Doing so will reduce the sensitivity

of the sensor

C , resulting in improper opera-

tion.

Automatic anti-glare type with Reversing

Camera (where fitted)

For further details about the reversing camera

A , see “Reversing Camera (where fitted)” in the

“4. Display screen, heater and air conditioner, and

audio system” section.
The inside rearview mirror is designed so that it

automatically changes reflection according to the

intensity of the headlights of the vehicle following

you.
The anti-glare system will be automatically turned on

when you push the ignition switch to the ON posi-

tion.
When the system is turned on, the indicator light

B will illuminate and excessive glare from the head-

lights of the vehicle behind you will be reduced.
Push the

button

C to turn the system on or

off

SPA2143Z

SPA2162Z

NPA1097

3-24

Pre-driving checks and adjustments

Do not hang any objects on the mirror or apply

glass cleaner. Doing so will reduce the sensitivity

of the sensor

C , resulting in improper opera-

tion.

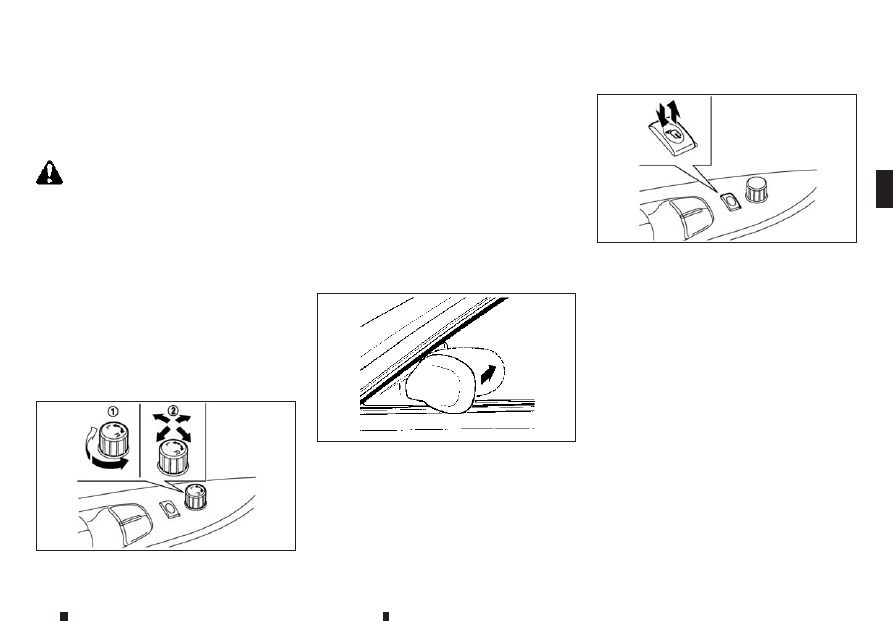

OUTSIDE REARVIEW MIRRORS

WARNING

•

Never touch the outside rearview mirrors

while they are in motion. Doing so may pinch

your fingers or damage the mirror.

•

Never drive the vehicle with the outside rear-

view mirrors folded. This reduces rear view

visibility and may lead to an accident.

•

Objects viewed in the outside mirror are

closer than they appear (where fitted).

•

The picture dimensions and distance in the

outside mirrors are not real.

Adjusting

Remote control type:

The outside rearview mirror remote control operates

when the ignition switch is in the ACC or ON posi-

tion.
1. Turn the switch to select the left <L> or right <R>

mirror

➀

2. Adjust each mirror by pushing the switch until

the desired position is achieved

➁

Defogging (where fitted)

The outside rearview mirrors will be heated when

the rear window defogger switch is operated.

Folding

Manual type:

Fold the outside rearview mirror by pushing it to-

ward the rear of the vehicle.

Remote control type:

The outside rearview mirror remote control operates

when the ignition switch is in the ACC or ON posi-

tion.
The outside rearview mirrors automatically fold when

the outside rearview mirror folding switch is pushed

in. To unfold, push to the switch again.
CAUTION
Continuously performing the fold/unfold opera-

tion of the outside rearview mirror may cause the

switch to stop the operation.

JVP0326XZ

SPA1829Z

JVP0327XZ

Pre-driving checks and adjustments

3-25

VANITY MIRROR (where fitted)

To use the front vanity mirror, pull down the sun

visor and pull up the cover.

WARNING

•

Never drive the vehicle with the parking brake

applied. The brake will overheat and fail to

operate and will lead to an accident.

•

Never release the parking brake from outside

the vehicle. If the vehicle moves, it will be

impossible to push the brake pedal and will

lead to an accident.

•

Never use the shift lever in place of the park-

ing brake. When parking, be sure the parking

brake is fully applied.

•

To help avoid risk of injury or death through

unintended operation of the vehicle and/or its

systems, do not leave children, people who

require the assistance of others, or pets unat-

tended in your vehicle. Additionally, the tem-

perature inside a closed vehicle on a warm

day can quickly become high enough to cause

a significant risk of injury or death to people

and pets.

To apply the parking brake, pull the parking brake

lever up

➀

To release the parking brake, depress and hold the

foot brake pedal. Pull up the parking brake lever

slightly, push the button

➁

and lower the lever com-

pletely

➂

Before driving, be sure that the brake warning light

has turned off.

SIC3869Z

SPA2110Z

PARKING BRAKE

3-26

Pre-driving checks and adjustments

NOTE

Pre-driving checks and adjustments

3-27

Display screen, heater and air conditioner,

and audio system

Display screen, heater and air conditioner,

and audio system

Safety precautions ................................................... 4-2

Centre multi-function control panel (models with

navigation system) ................................................... 4-2

How to use touch screen display ........................ 4-3

How to use brightness control/display on·off

button................................................................. 4-3

How to use <ENTER>/Scroll dial........................ 4-3

How to use BACK button ................................... 4-4

Vehicle information and settings (models with

navigation system) ................................................... 4-4

How to use INFO button..................................... 4-4

How to use <SETUP> button.............................. 4-4

Reversing Camera (where fitted).............................. 4-7

How to read the displayed lines .......................... 4-8

Difference between predictive and actual

distances............................................................ 4-8

How to adjust the screen .................................... 4-10

Operating tips..................................................... 4-10

360° Camera (where fitted) ..................................... 4-11

Operation ........................................................... 4-14

Guide lines ......................................................... 4-15

Difference between predictive and actual

distances............................................................ 4-17

How to adjust the screen view ............................ 4-19

Operating tips..................................................... 4-19

Vents....................................................................... 4-20

Centre vents....................................................... 4-20

Side vents .......................................................... 4-20

Rear vents (where fitted)..................................... 4-20

Heater and air conditioner........................................ 4-21

Operating tips (models with automatic air

conditioner) ........................................................ 4-22

Manual air conditioner and heater (Type A) ......... 4-23

Manual air conditioner and heater (Type B) ......... 4-26

Automatic air conditioner .................................... 4-28

Servicing air conditioner ..................................... 4-30

Audio system (where fitted)...................................... 4-31

Audio operation precautions ............................... 4-31

Antenna.............................................................. 4-35

USB (Universal Serial Bus) connection port ........ 4-35

AUX (Auxiliary) input jack .................................... 4-36

CD/USB memory care and cleaning ................... 4-36

FM AM radio with compact disc (CD) player

(Type A) .................................................................. 4-37

Audio main operation .......................................... 4-38

Radio operation .................................................. 4-38

SETUP button .................................................... 4-39

Compact Disc (CD) operation ............................ 4-41

AUX (Auxiliary) socket......................................... 4-43

USB (Universal Serial Bus) connection port

(where fitted) ...................................................... 4-43

iPod player operation (where fitted)..................... 4-45

Bluetooth® operation.......................................... 4-46

FM-AM radio with compact disc (CD) player

(Type B) .................................................................. 4-52

Audio main operation .......................................... 4-52

Touchscreen Navigation (where fitted) ..................... 4-57

Steering wheel switch for audio control (where

fitted)....................................................................... 4-58

Audio control ...................................................... 4-58

Phone control buttons......................................... 4-58

Bluetooth® Hands-Free Phone System (without

navigation system and colour display)....................... 4-59

Bluetooth® mobile phone feature........................ 4-59

Hands-free telephone control.............................. 4-61

Steering wheel switches (where fitted)................ 4-64

Bluetooth® Hands-Free Phone System (with

navigation system) ................................................... 4-65

Regulatory information ........................................ 4-65

Control buttons and microphone......................... 4-66

Pairing procedure ............................................... 4-66

Phonebook ......................................................... 4-67

Making a call ...................................................... 4-67

Receiving a call................................................... 4-67

During a call ....................................................... 4-67

Ending a call....................................................... 4-67

Bluetooth® settings............................................ 4-67

Telephone setup................................................. 4-68

WARNING

•

Do not adjust the heater and air conditioner

controls or audio controls while driving so that

full attention may be given to vehicle opera-

tion.

•

If you noticed any foreign objects entering the

system hardware, spilled liquid on the sys-

tem, or noticed smoke or fumes coming out

from the system, or any other unusual opera-

tion is observed, stop using the system imme-

diately and contact the nearest approved

dealer or qualified workshop. Ignoring such

conditions may lead to an accident, fire or

electric shock.

•

Do not disassemble or modify this system. If

you do, it may lead to an accident, fire, or

electric shock.

CAUTION
Do not use the system when the engine is not

running for extended periods of time to prevent

battery discharge.

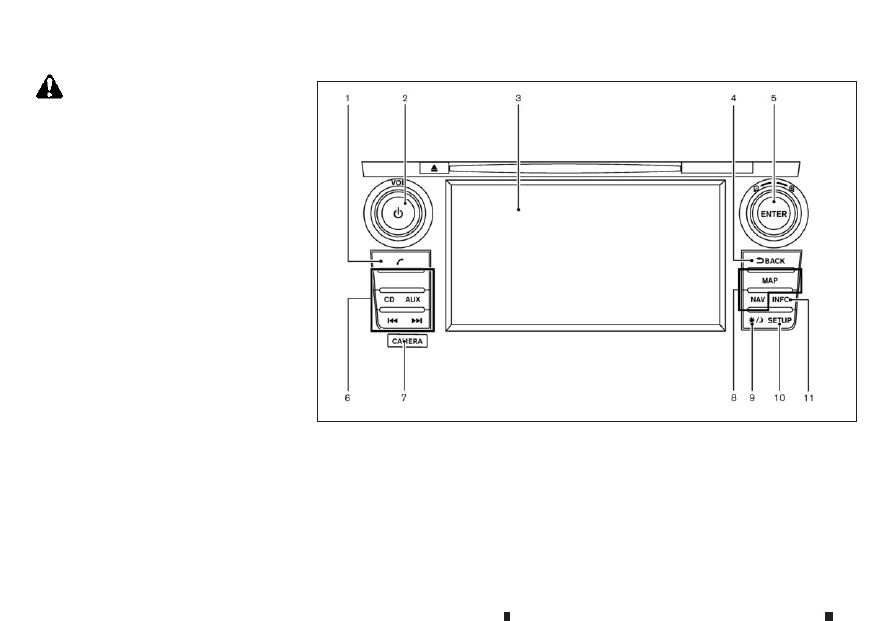

1. Phone button (P. 4-65)
2. Power/VOL (volume) dial
3. Display screen (P. 4-3)
4. <BACK> button (P. 4-4)
5. <ENTER>/Scroll dial (P. 4-3)
6. Audio control buttons

7. <CAMERA> button (P. 4-7)
8. For navigation system control buttons refer to

the separate Navigation System Owner’s

Manual.

9. Brightness control/display ON·OFF button

(P. 4-3)

10. <SETUP> button (P. 4-4)

JVH1073X

SAFETY PRECAUTIONS

CENTRE MULTI-FUNCTION CONTROL PANEL (models with navigation

system)

4-2

Display screen, heater and air conditioner, and audio system

11. <INFO> button (P. 4-4)

HOW TO USE TOUCH SCREEN

DISPLAY

WARNING

•

The glass display screen may break if it is hit

with a hard or sharp object. If the glass screen

breaks, do not touch it. Doing so could result

in an injury.

•

To clean the display, never use a rough cloth,

alcohol, benzine, thinner or any kind of sol-

vent or paper towel with a chemical cleaning

agent. They will scratch or deteriorate the

panel.

•

Do not splash any liquid such as water or car

fragrance on the display. Contact with liquid

will cause the system to malfunction.

To help ensure safe driving, some functions cannot

be operated while driving.
The on-screen functions that are not available while

driving will be “greyed out” or muted.
Park the vehicle in a safe location and then operate

the navigation system.
CAUTION

•

ALWAYS give your full attention to driving.

•

Avoid using vehicle features that could dis-

tract you. If distracted, you could lose control

of your vehicle and cause an accident.

Touch screen operation

Selecting items:
Touch an item to select. For example, to select the

[Treble] key, touch the [Treble] key on the screen.

Touch the up or down arrows

➀

on the screen to

display the previous or the next page.
Adjusting items:
Touch the [+] or [-]

➁

key to adjust the settings of

an item.
Entering characters:
Touch the letter or number key on the keyboard

screen. Options below are available when inputting

characters.

•

[123/ABC]:
Changes the keyboard between numbers and

letters.

•

[Space]:
Inserts a space.

•

[Delete]:
Deletes the last entered character with one

touch. Touch and hold the [Delete] key to delete

all of the characters.

•

[OK]:
Completes the character input.

Touch screen maintenance

To clean the display screen, use a dry, soft cloth. If

additional cleaning is necessary, use a small amount

of neutral detergent with a soft cloth. Never spray

the screen with water or detergent. Dampen the

cloth first and then wipe the screen.

HOW TO USE BRIGHTNESS

CONTROL/DISPLAY ON·OFF

BUTTON

Push the brightness control/display on/off <

button to change the display brightness between

day mode and night mode. While the mode is being

displayed, the brightness can be adjusted using the

scroll dial.
Push and hold the brightness control/display on/off

> button for more than 2 seconds to turn the

display off. Push the button again to turn the display

on.

HOW TO USE /SCROLL DIAL

Turn the <ENTER>/Scroll dial to select items on the

screen and to adjust the levels of setting items. Push

the dial to confirm the selected item or setting.

JVH0881XZ

Display screen, heater and air conditioner, and audio system

4-3

HOW TO USE BACK BUTTON

Push the <BACK> button to return to the previous

screen.

Vehicle information can be checked and various set-

tings can be adjusted on the display.
NOTE
Designs and items displayed on the screen may

vary depending on the models and specifications.

HOW TO USE INFO BUTTON

Push the <INFO> button to display the following

menu items on the display screen.
Available items:

•

[Traffic Messages]

•

[Eco Score]

[Traffic Messages] (where fitted)

Traffic Messages can be displayed on the display

screen when available. Refer to the separate Navi-

gation System Owner’s Manual for details.

[Eco Score] (where fitted)

The [Eco Score] feature analyses driving behaviour

and provides an overall score. Refer to the separate

Navigation System Owner’s Manual for details.

HOW TO USE BUTTON

Designs and items displayed on the screen may

vary depending on the models and specifications.
Push the <SETUP> button to view and adjust the

following setting items.
Available items:

•

[Audio]

•

[System]
– [Display]
– [Clock]
– [Language]
– [Camera Settings]
– [Temperature Unit]
– [Touch Click]
– [Beep Tones]
– [Factory Settings]

JVH0647XZ

Example

VEHICLE INFORMATION AND SETTINGS (models with navigation system)

4-4

Display screen, heater and air conditioner, and audio system

Content .. 6 7 8 9 ..
