30

GENERAL

30 - 3

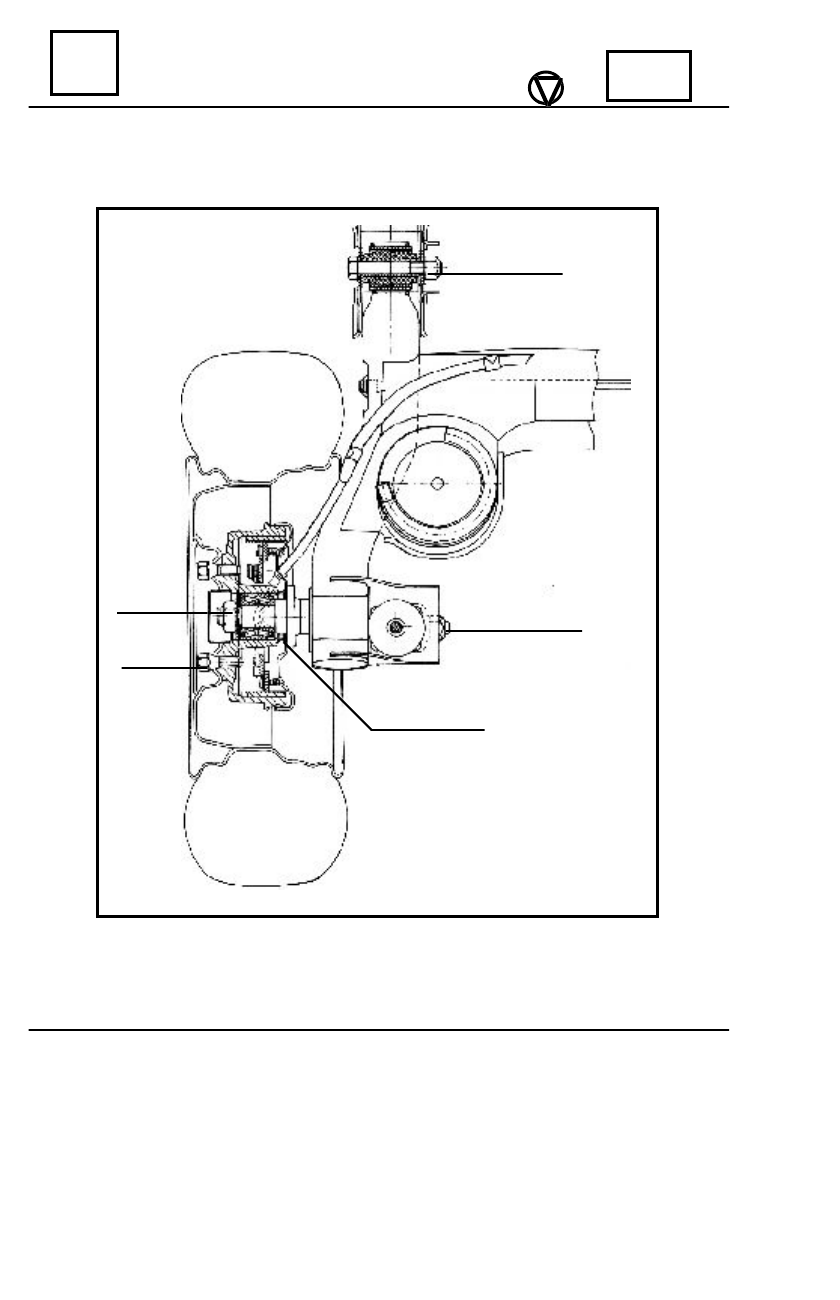

TIGHTENING MOMENTS  (daNm)

FRONT HALF AXLE

FRONT

AXLE

1,45

8

3,2

12

30

GENERAL

30 - 4

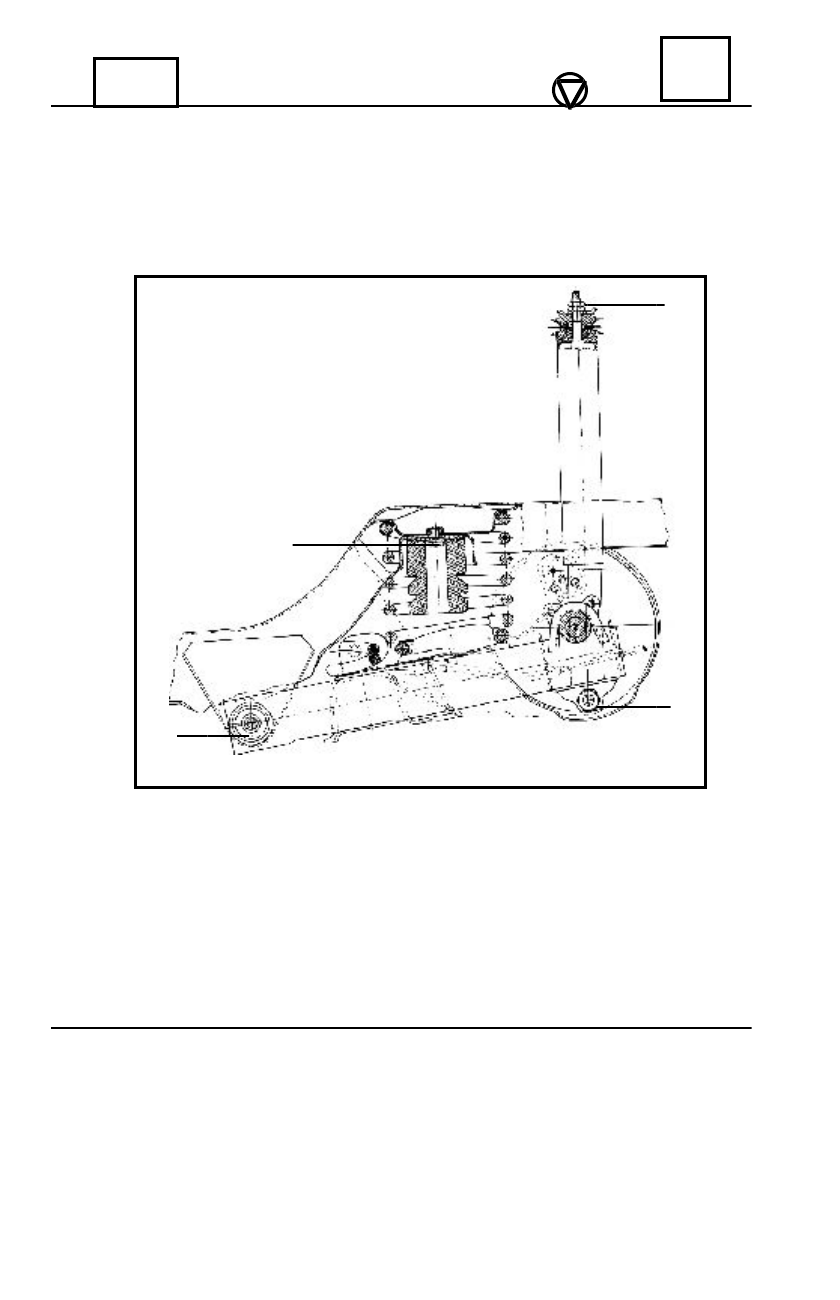

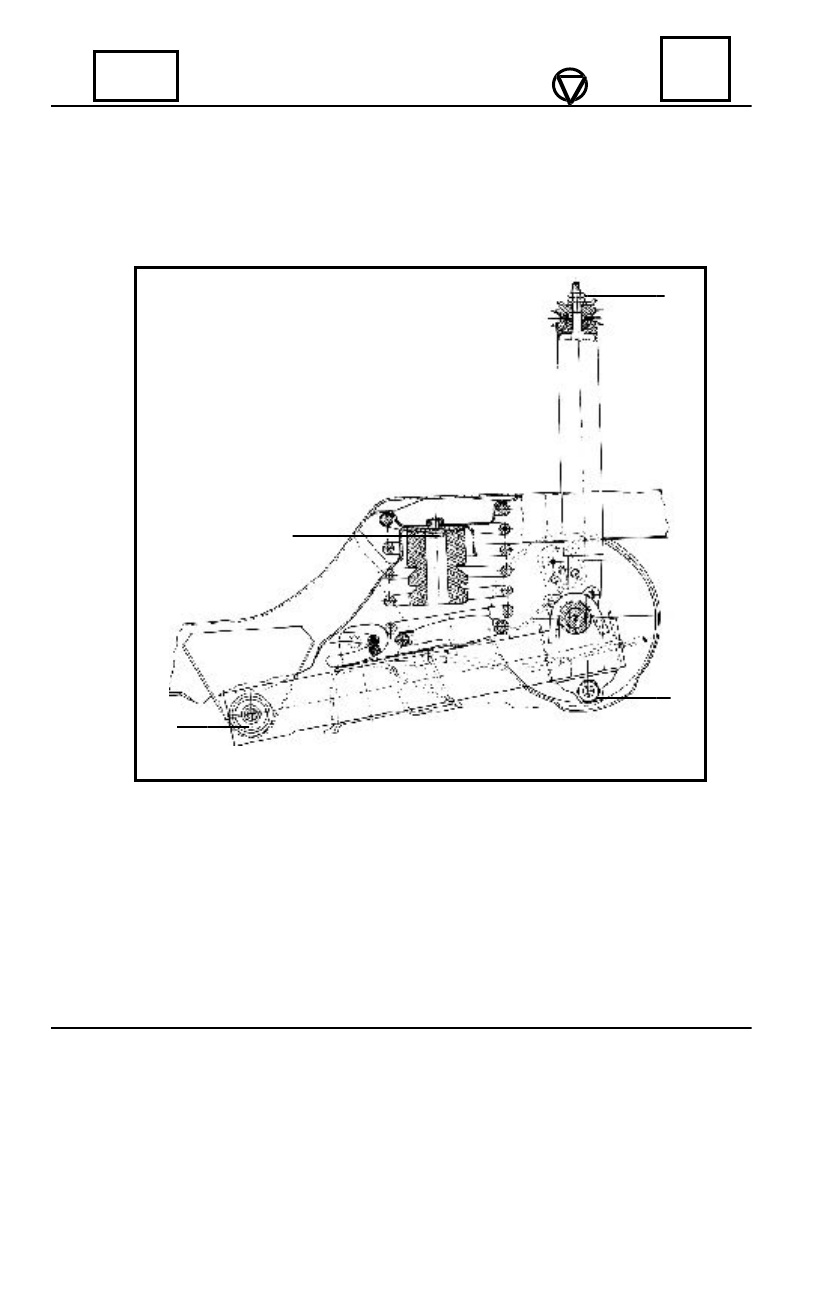

TIGHTENING MOMENTS  (daNm)

REAR AXLE

REAR

AXLE

8,5

3,2

7,5

16

12

30

GENERAL

30 - 5

TIGHTENING MOMENTS  (daNm)

REAR AXLE

REAR
AXLE

1,45

8

3,2

12

30

GENERAL

30 - 6

  COMPOSITION AND DIMENSIONS OF THE MAIN BRAKING

SYSTEM ELEMENTS

Front brake

Brake caliper bore diameter

F

54 mm

Aerated brake disk diameter

F 235 mm

The axial run out of the disk measured at Æ215

0,1 mm

Brake disk maximum thickness

20 mm

Brake disk minimum thickness

19 mm

Braking pad thickness (support included)

14 mm

Minimal brake pad thickness (support included)

7 mm

Rear brake

Wheel braking cylinder bore diameter

F

22 mm

New drum diameter

F 228 mm

Drum diameter after grinding

F 229 mm

Shoe braking lining width

40 mm

Braking lining thickness

5 mm

Minimal accepted braking lining height above rivets

0,5 mm

Master brake pump cylinder

Bore diameter

20,6 mm

Pump maximum stroke

32   mm

Brake fluid reservoir

Without level alert sensor

Pressure limiter

For parallel circuit

Servobrake master vac 7”

177,8 mm
