ENGINE E7J-A-2/60

10

10 - 16

ENGINE AND LOWER ENGINE UNITS

The amount of oil to be introduced in the

engine is 2.7 liters - without replacing the oil-
filter - or 2.9 liters, after replacing the filter.

The minimum oil pressure at 80

o

 is:

-in the idle mode                1 bar
-at 4000 rot/min                 3 bar

The oil pump belongs to the “gearwheel”

type.

Take off the cap and also the clapper of

the oil-pump.

To check:
   * play A (mm):

    - min. 0.110

        - max. 0.294

* play B (mm):

- min. 0.02
- max. 0.86.

C

AUTION

!

Protect the distribution and alternator belt in order to avoid water-

or cleaning substance projection on them.

OIL PUMP

* TO BE ADJUSTED TO TH E GAUGE

CHARASTERISTICS

ENGINE  E7J-A-2/60

10

10 - 17

ENGINE AND LOWER ENGINE UNITS

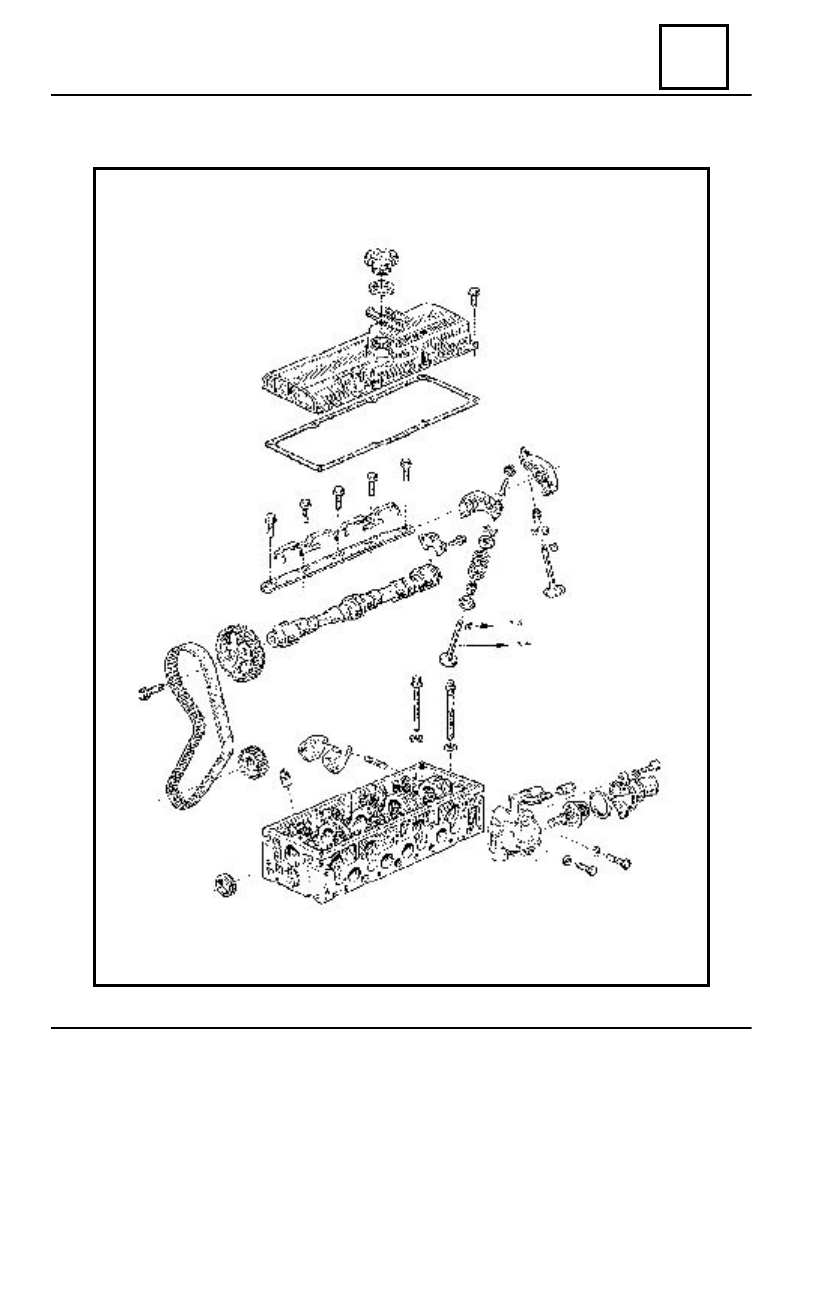

DISMOUNTING AND RE-MOUNTING

THE CYLINDER HEAD

RECOVERY ENGINE

ENGINE E7J-A-2/60

10

10 - 18

ENGINE AND LOWER ENGINE UNITS

D

ISMO UNTING

 The oil and the cooling fluid are empties.
 To be taken off:

-the electric connections;
-the alternator and its belt;

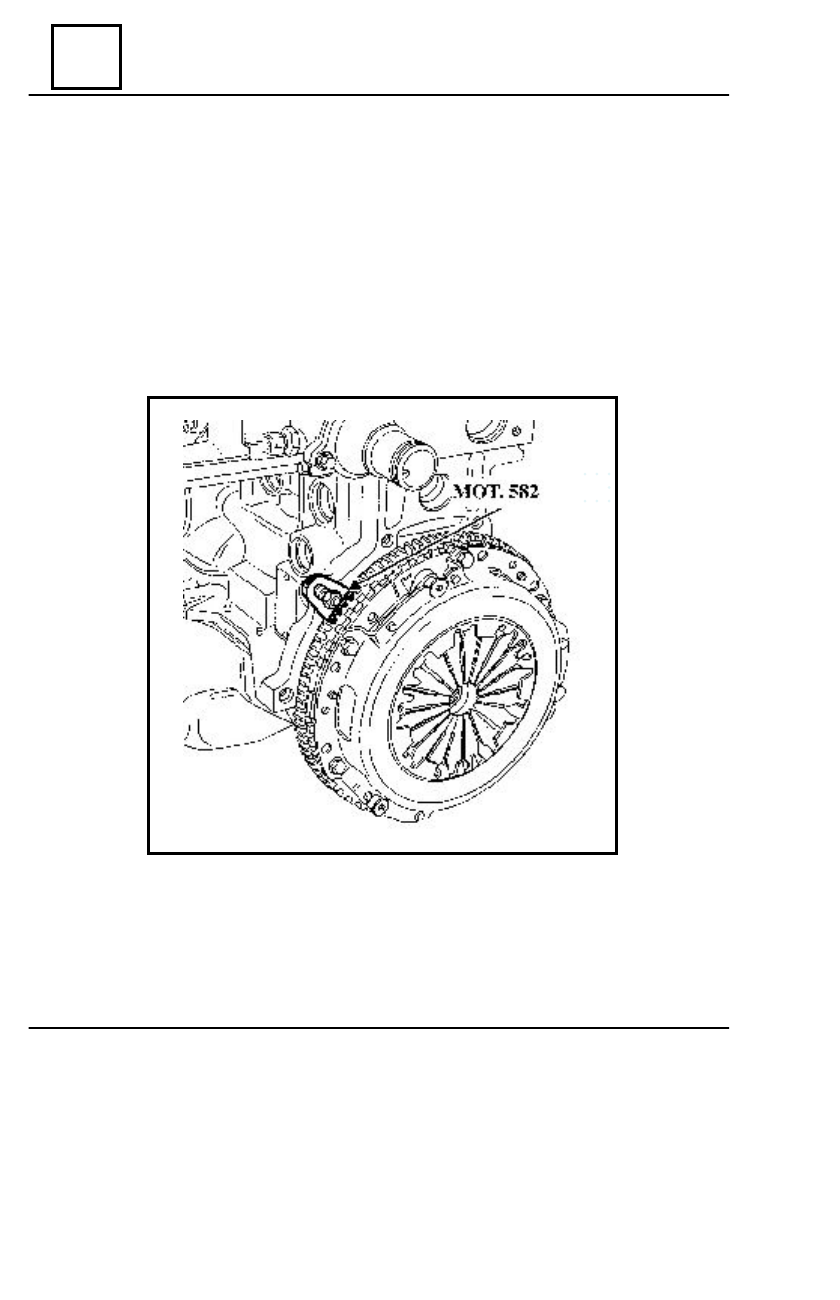

-the pulley of the crankshaft (in order to do that, the flywheel is blocked with the

MOT 582 device)

  -the protection cap of the distribution belt

RECOVERY ENGINE

 CYLINDER HEAD

ENGINE  E7J-A-2/60

10

10 - 19

ENGINE AND LOWER ENGINE UNITS

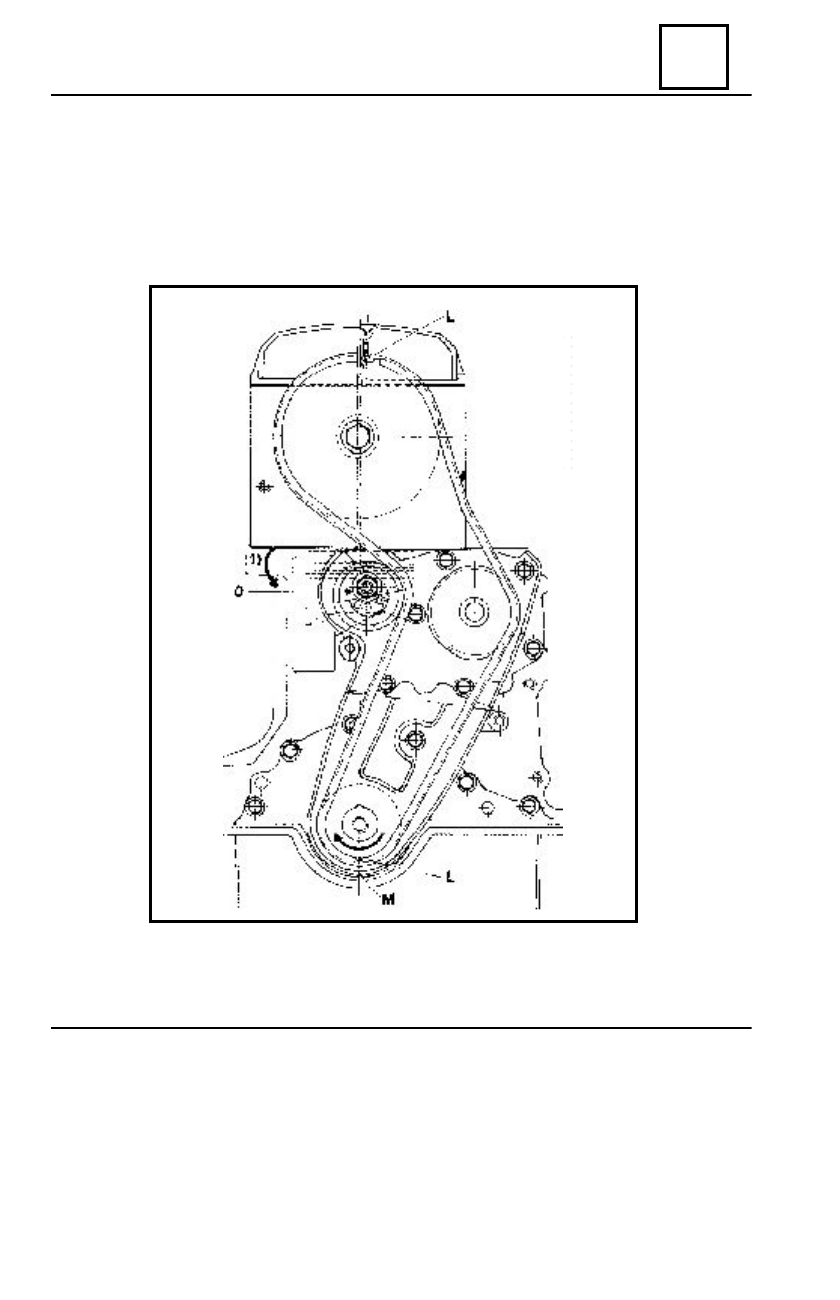

The engine is brought to the tuning point,  by aligning the line-up mark on the crankshaft

pinion L with the fixed marks M (the L mark is held with the cams upwards).

The screw-nut of the stretching runner is undone, then the belt is taken off.

(1) The stretching direction of the stretcher.
