CARRIAGE BODY INSIDE TRIMS

71  - 7

DISMOUNTING

Dismount :

- dashboard (see chapter 57);
- driving post cross beam (see chapter 42);
- central console (see chapter 58);
- distributor of the air ventilation climate maintenance RACV (see chapter 61);
- attaching screw of the steering column support on the driving post cross-beam;
- pedals support (see chapter 37);
- partially the floor carpet ( in the noise absorbent covering area).

Detach the noise absorbent (2) from the cowl panel clips (1).

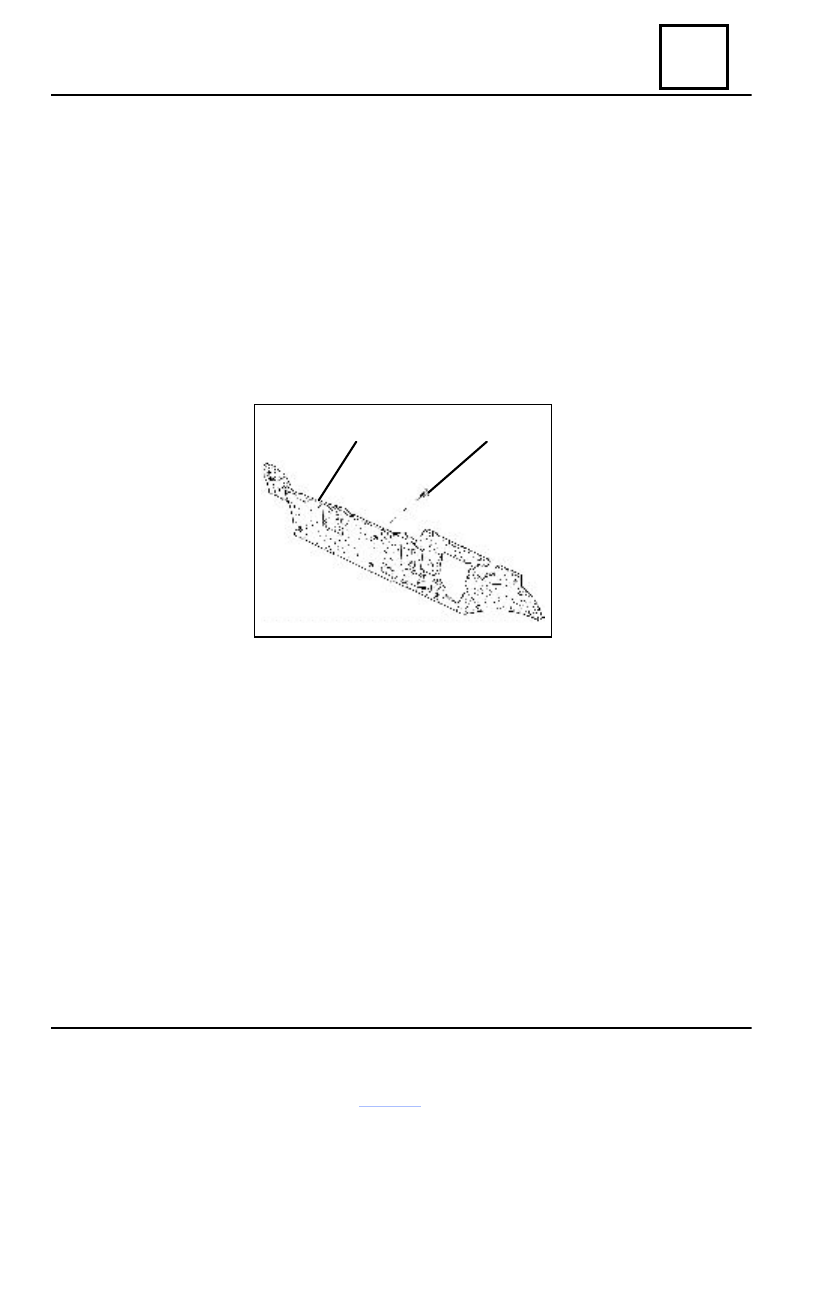

Cowl panel noise absorbent

REMOUNTING

Perform in the reverse order the dismounting operations.
A maximum 3 daN clips attaching effort is necessary for the noise absorbent attach-

ment clips.

2

1

CARRIAGE BODY INSIDE TRIMS

71

71  - 8

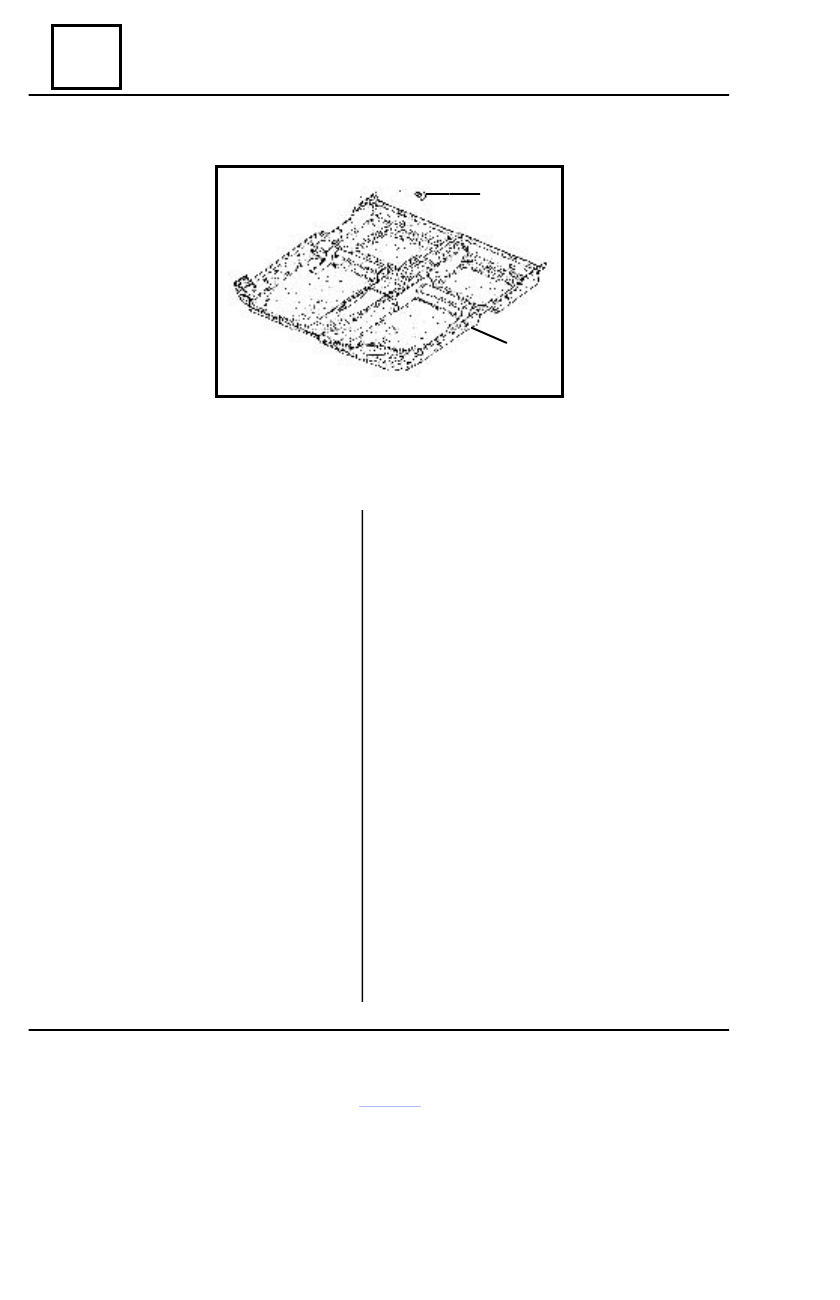

1 – cockpit carpet
2 – clip

DISMOUNTING

Dismount :

- front seats (see chapter 78);
- rear bench seat (see chapter 78);
- front seat belts lockers (see chap-

ter 59)

- central console (see chapter 58);
- distributor of the air ventilation/cli-

mate maintenance RACV (see chapter 61);

- front safety belts at lower part;
- acceleration pedal limiter.

Detach from clips the cockpit carpet (1).

REMOUNTING

Perform the dismounting operations in the

reverse order.

The clips attaching is to be  performed with

a maximum force of 3 daN.

Cockpit carpet

1

2

72

72   - 1

LATERAL OPENINGS TRIMS

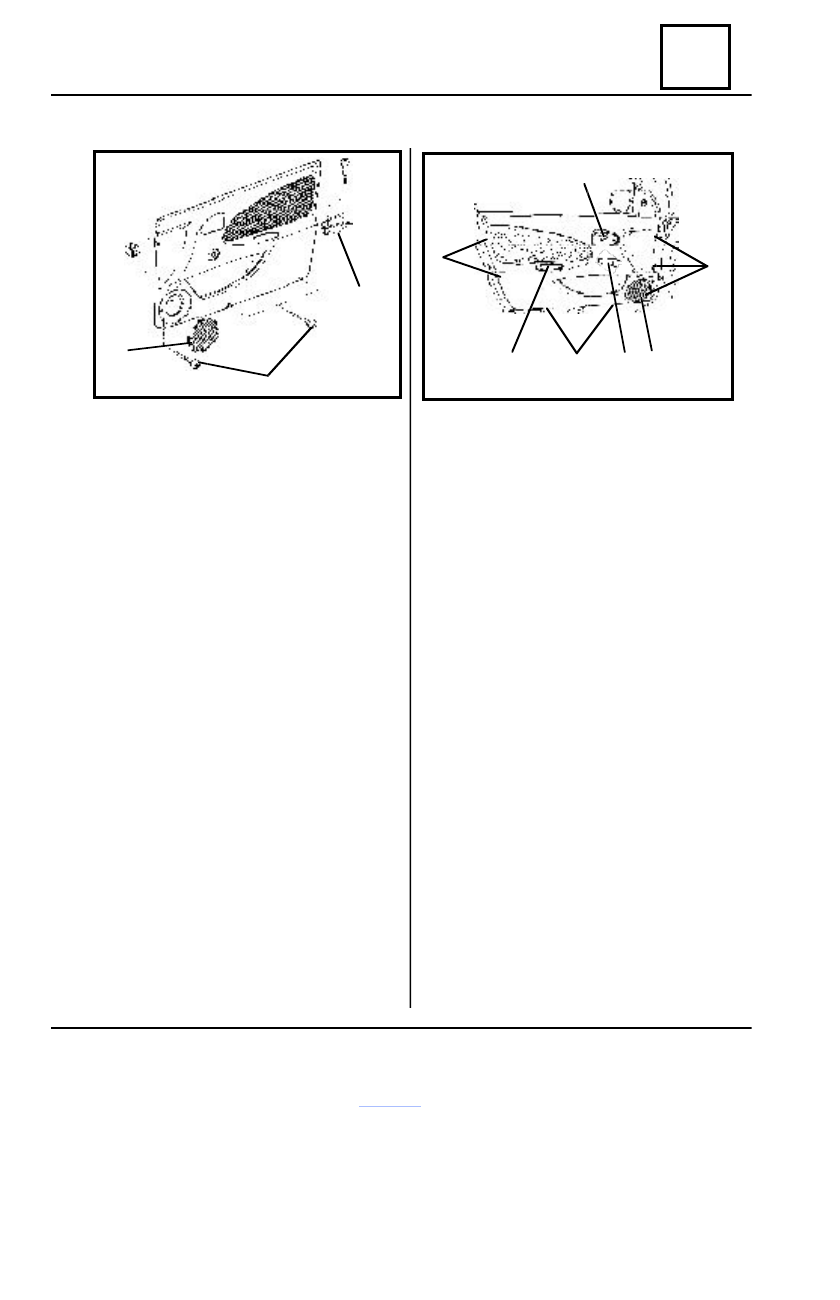

Front door panel

DISMOUNTING

Disconnect the battery.
Dismount:

- window regulator crank (A) for glass

lifting, that is mounted by clips attachment on
the window regulator axle ( in case of the
vehicles provided with glass hand-drive lifting);

- attachment screw of the opening

mechanism from inside (B), consequently the
mechanism.

- locking handle (C) attached by  screw.

Rotate the speaker grill (D) counter clock-

wise direction and extract it from the front door
panel.

Dismount the four attachment screws of the

speaker on the door panel.

Disconnect the front door speaker

connector.

Dismount the attachment screws (1) of the

door panel on the caisson.

D

C

1

1

C

D

1

2

B

A

Detach from clips the door panel in points

(2) .

REMOUNTING

Perform in the reverse order the dismounting

operations taking into account the following
recommendations:

- check the integrity of the deflective

panel and of the continuos layer of Romtix
1502 P sealing material on the front door
caisson;

- for the mounting of the inside opening

mechanism, the opening control rod will be
placed in the position where the assembled plate
with electric control is blocked;

- after mounting, check the operation of

the inside opening mechanism and its alignment
with the front door panel;

- check the operation of the front door

speaker.

72

72  - 2

LATERAL OPENINGS TRIMS

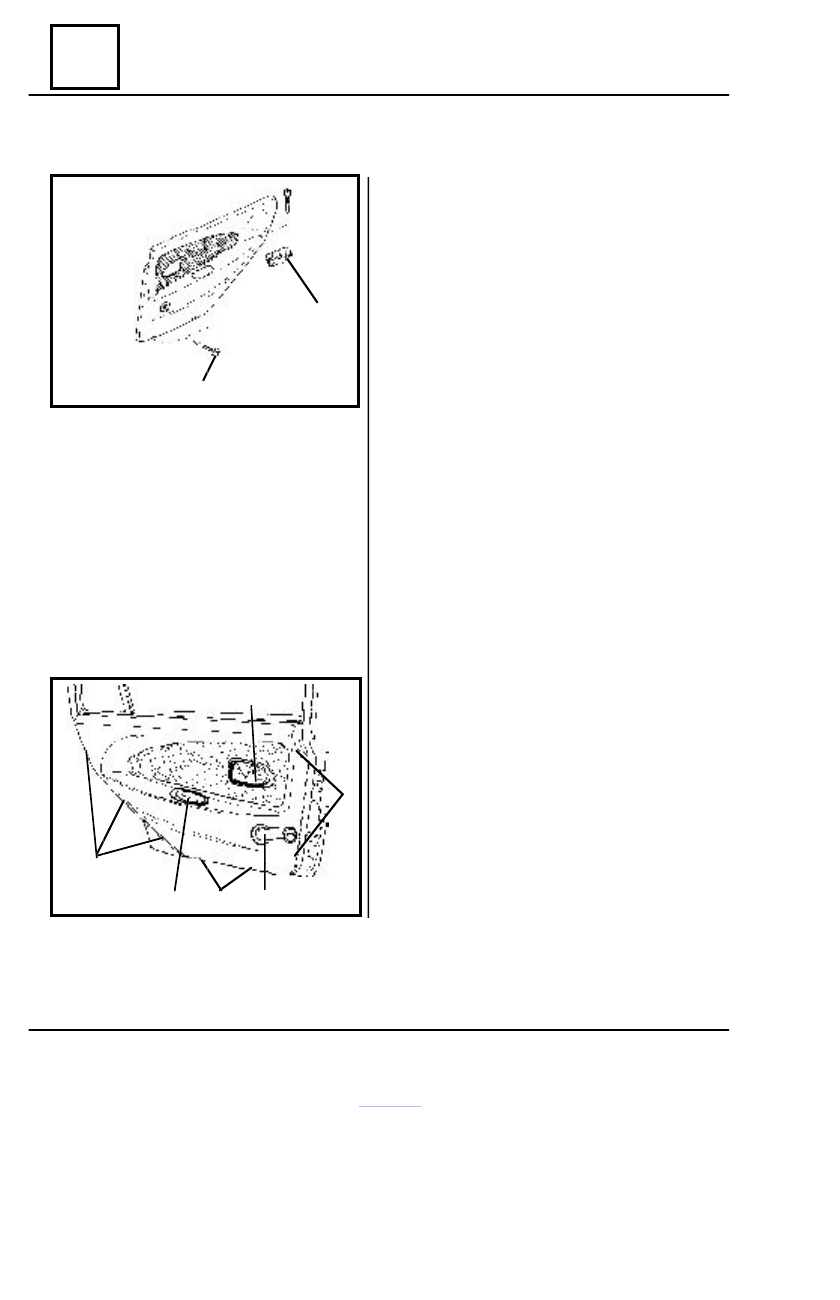

Rear door panel

1

C

B

1

A

2

C

2

DISMOUNTING

Dismount :

- window regulator crank (A) for glass

lifting  that is mounted by clips attachment on
the window regulator axle.

- attachment screw of the inside opening

mechanism (B), consequently, the mechanism;

- locking handle (C) attached by  screw;
- attachment screws (1) of the rear door

panel on the caisson;

Detach from clips the rear door panel from

points (2).

REMOUNTING

Perform the dismounting operations in the

reverse order, taking into consideration the
followings recommendations:

- check the integrity of the deflective panel

and of the continuos sealant material layer
Romtix 1502 P on the door caisson outliner;

- for the mounting of the inside opening

mechanism, the opening control rod will be
placed in the position where the assembled plate
with electric control is unblocked.

- after mounting, check the operation of

the inside opening mechanism and its alignment
with the rear door panel.
