CARRIAGE BODY INSIDE TRIMS

71  - 3

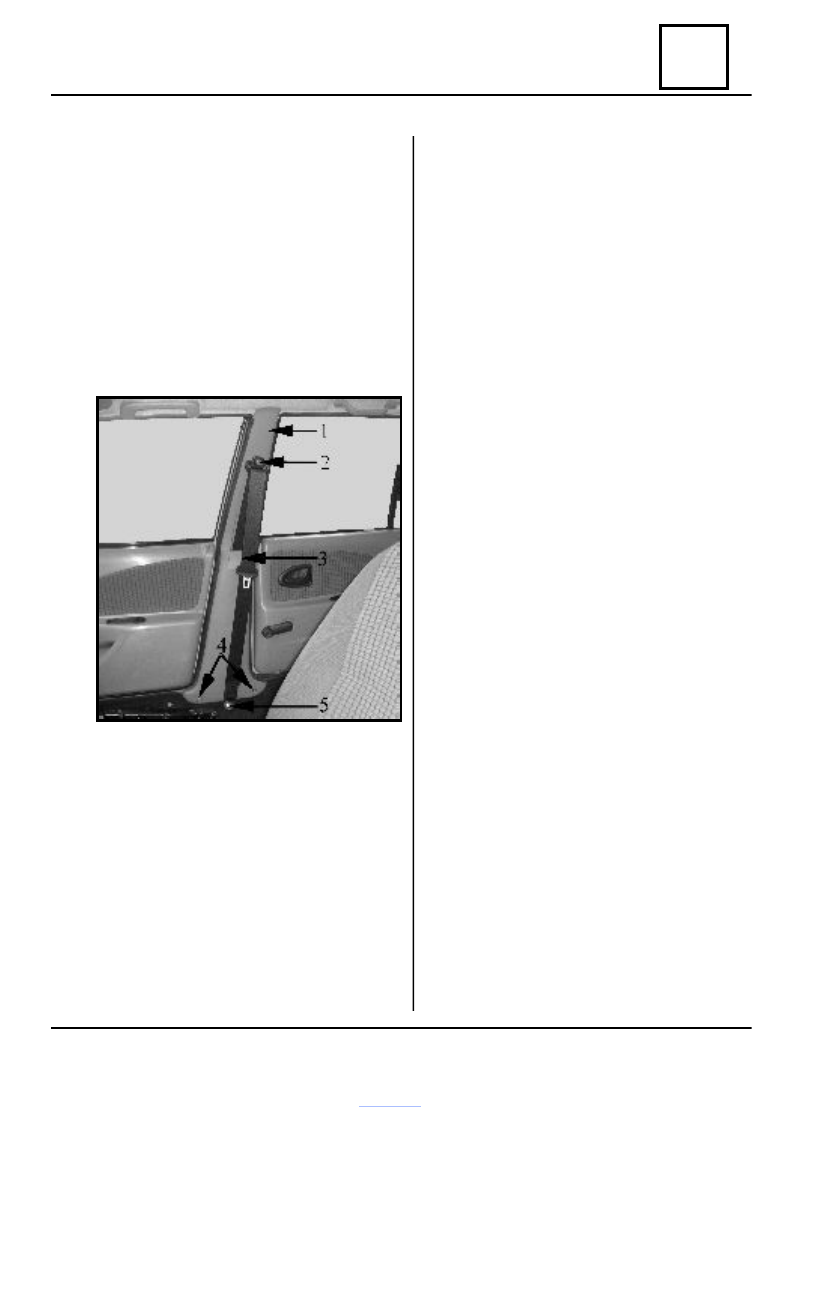

Middle pillar trim

DISMOUNTING

Move the front seat to enable operator

access to the front pillar.

Dismount:

- partially the front/rear door gaskets

(in the contact areas with middle pillar trim);

- attachment screws (2) and (5) of the

front belt on the middle pillar at upper part,
consequently, at lower part;

- attachment screws (3) and (4) of the

middle pillar trim on the side frame lining.

Release the middle pillar trim (1).

REMOUNTING

Perform the dismounting operations in

the reverse order.

The tightening moment of the belt attach-

ment screws is of 2,7 daNm, and the one of
the attachment screws of the middle pillar
trim is of 0,12 daNm.

CARRIAGE BODY INSIDE TRIMS

71

71  - 4

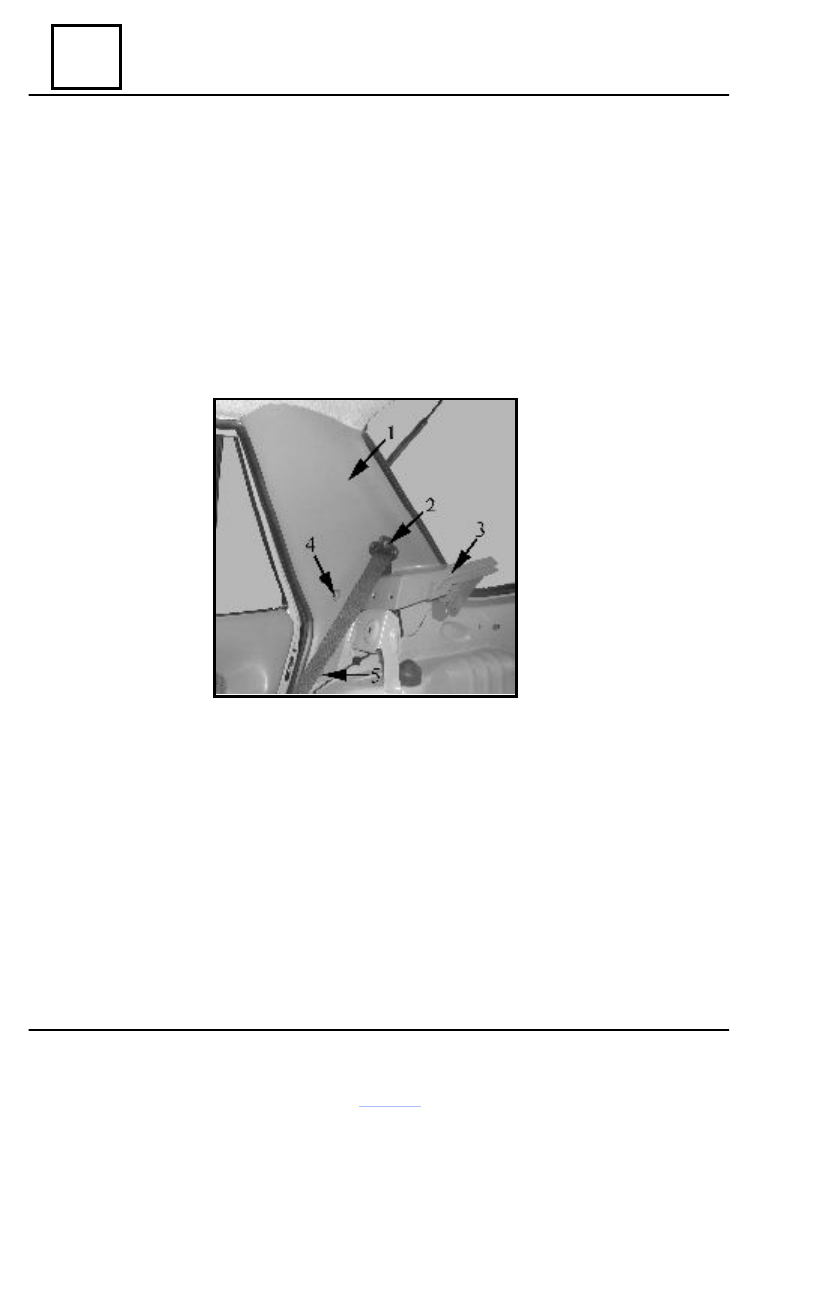

Rear quarter panel trim

DISMOUNTING

Dismount:

- rear quarter panel ornament;
- partially the rear door sealing gasket in the contact area with the rear quarter panel

trim;

- rear table;
- table support (see chapter 74);
- attachment screw(2) of the rear belt on the upper part;
- attachment screws (4) and (5) of the rear quarter panel trim to the side frame lining.

Detach from clips the rear quarter panel trim (1).

REMOUNTING

Perform the dismounting operations in the reverse order.
The tightening moment of the belt attachment screw is of 2,7 daNm.

71

CARRIAGE BODY INSIDE TRIMS

71  - 5

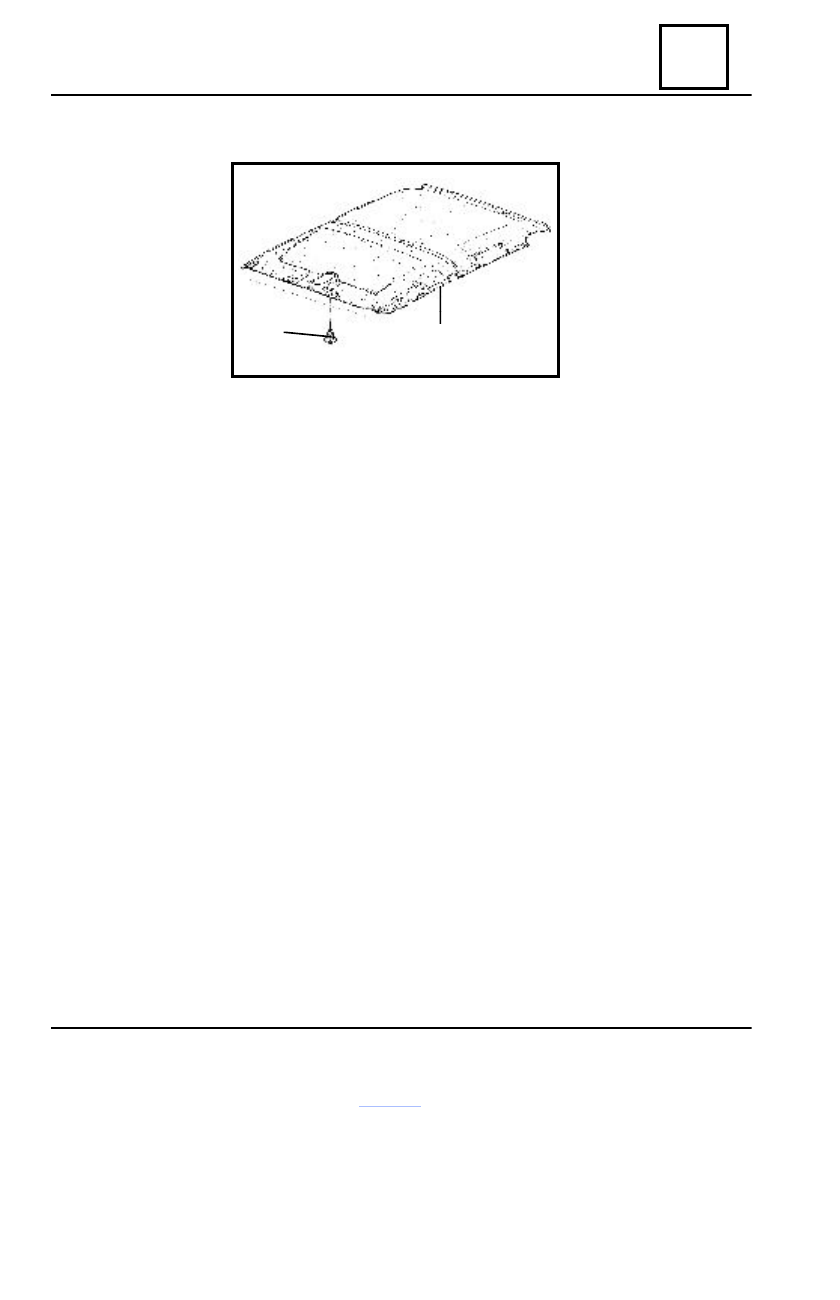

1 – roof lining
2 - clips

DISMOUNTING

Detach from clips the ceiling lamp and disconnect it (see chapter 81);
Dismount:

- turn handles (see chapter 58);
- sun visors (see chapter 58);
- upper front pillar trims;
- volumetric sensors (for vehicles provided with alarm);
- middle pillar trims;
- rear quarter panel trims.

Detach from clips the roof lining (1).

REMOUNTING

Perform the dismounting operations in the reverse order.

Roof lining

2

1

CARRIAGE BODY INSIDE TRIMS

71

71  - 6

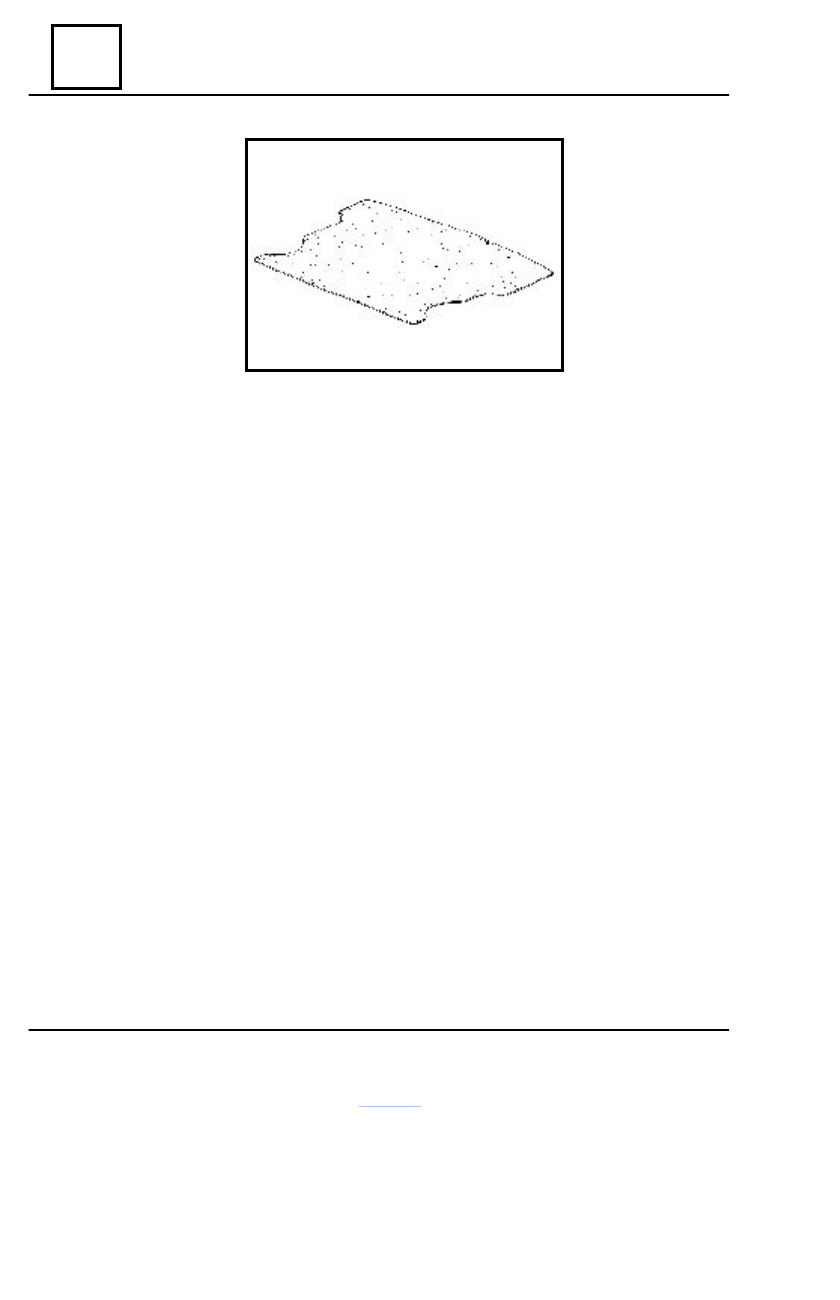

Trunk carpet

DISMOUNTING

Unstuck the trunk carpet from the self-adhesive tapes placed on the rear floor.

REMOUNTING

Perform the dismounting operations in the reverse order.
