GLASSES

REPLACEMENT HATCHBACK

GLASS

Disconnect:

- battery
- supply and mass connectors of the

hatchback defrosting.

Remove the glass together with the gas-

ket, by pushing it from the inside of the ve-
hicle.

Clean the gasket and place the glass in its

new gasket.

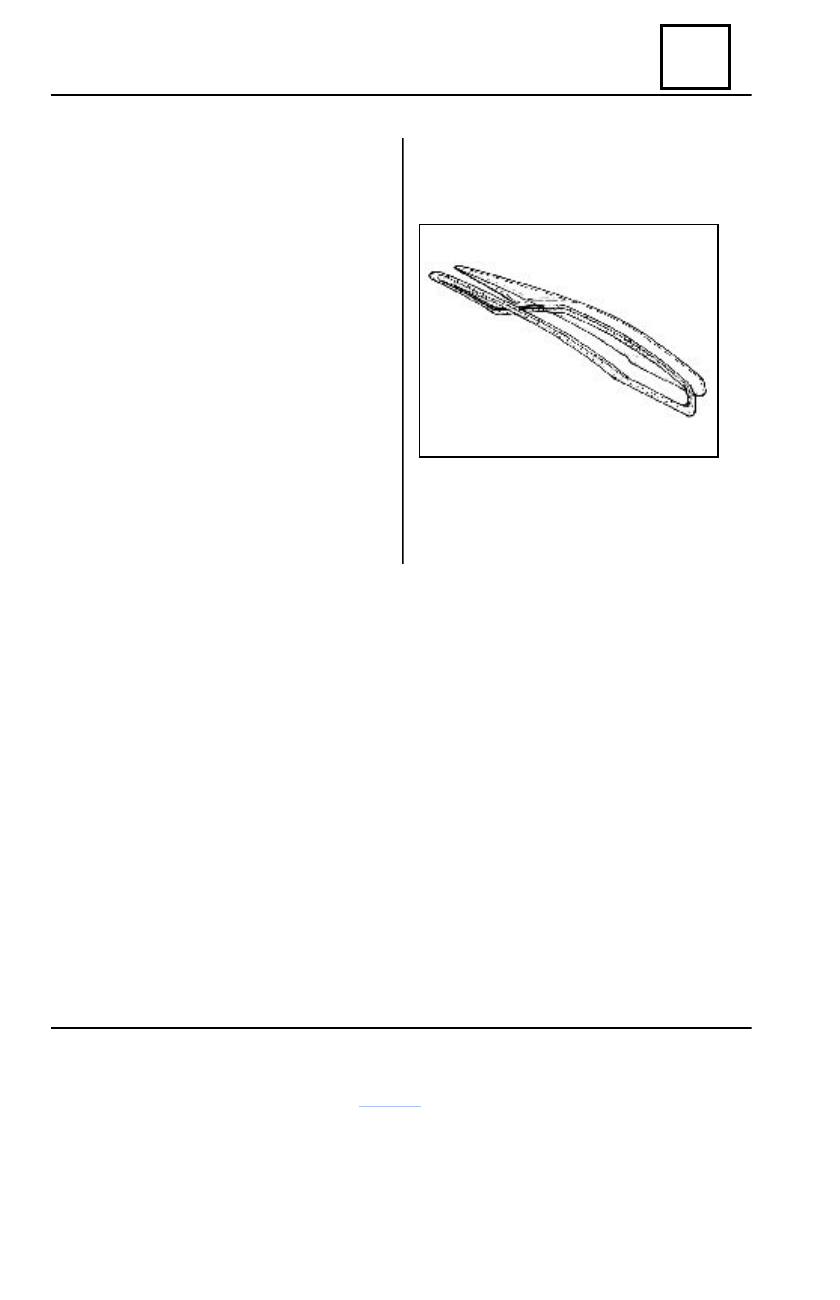

Hatchback glass

WINDSCREEN AND HATCHBACK

GLASS REPLACEMENT

The replacement of these glasses is per-

formed in case they are broken, when they
are not according to the required overall di-
mensions or when they have manufacturing
defects (image distortions, cracks, etc).

The mounting of the hatchback glass – gas-

ket assembly, is performed in the same way with
the windscreen mounting.

54

54  - 4

GLASSES

1

DISMOUNTING

Dismount:

- front door panel (see chapter 72);
- front door deflector panel;
- inner and outside wiper;

Bring the glass up to the P=85 mm position.
Dismount the attachment screws of  the glass support on the regulator glider and then remove

the glass (1) together with the glass support.

Release the glass from its support.

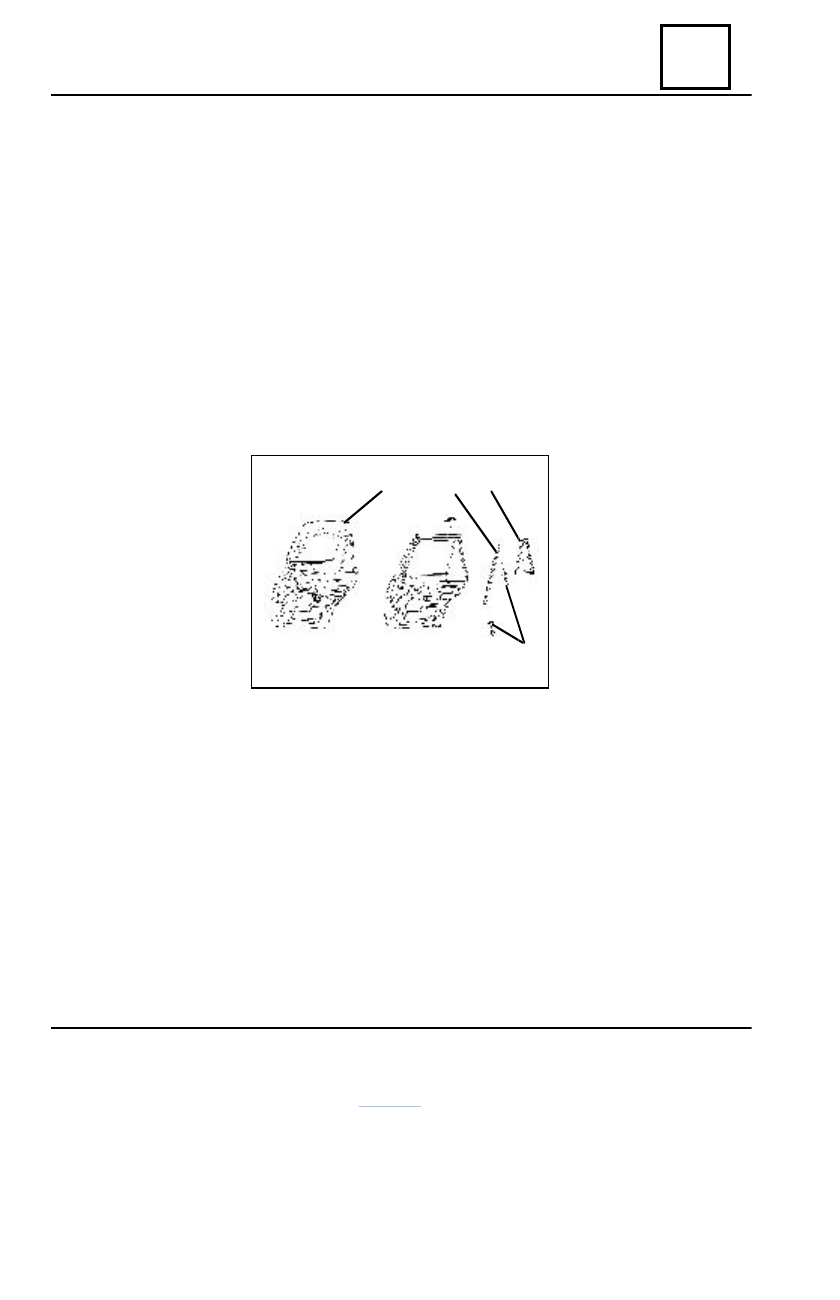

Front door glasses

REMOUNTING

Perform in the reverse order the dismounting operations, observing the followings:

- place the glass, previously fitted in the glass support, and attach it on the glider.
- check the regulator operation by lifting and lowering the glass.
- check the continuity of the  Romtix 1502 P sealant material layer, on which the front

door deflector panel is stacked.

54

54   - 5

GLASSES

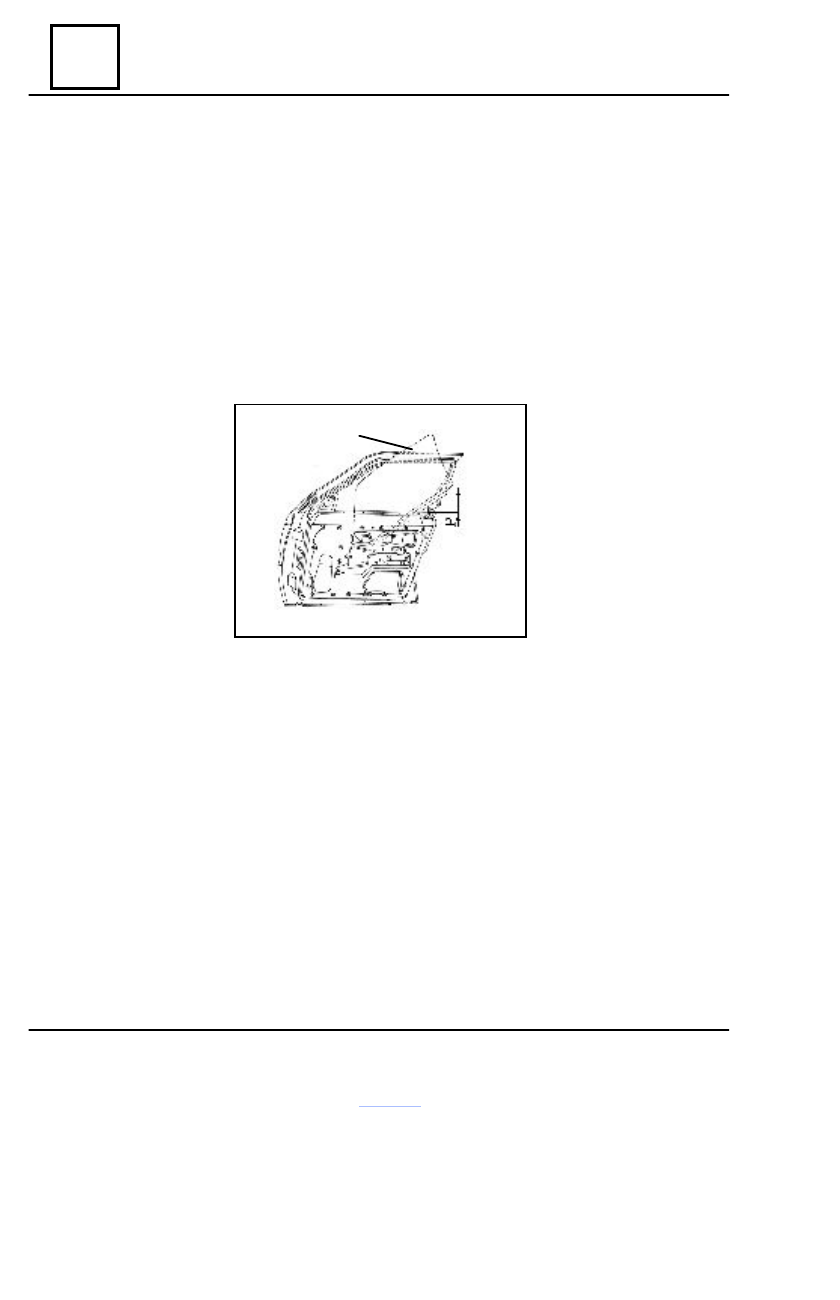

Rear door glasses

3

4

2

1

DISMOUNTING

Dismount:

- rear door panel (see chapter 72);
- rear door deflector panel;
- glass outside wiper by means of a screwdriver.

Lower the glass in the minimal position, so that through the technological opening, the screws

attaching the  glass support on the regulator glider, to be dismounted.

Remove the glass  (1) together with the glass support.
Release the glass from its support.
Dismount:

- screws (3) attaching the glider to the glass.
- the fix glass.

REMOUNTING

Perform the dismounting operations in the reverse order, observing the followings:

- position in  the glass support, the fix glass, on which the glass gasket has been previously

mounted.

- place the glass in the frame ( on which the  glass support has been previously mounted)

and fix it on the glider by means of the screws;

- check the regulator operation by glass lifting and lowering.
- check the positioning and then the waterproofing in the fix glass area.
- in case water penetration is occurring in the fix glass area, pierce the water draining holes

and put sealing material on the fix glass gasket, using Terodicht Scwartz sealant material.

OUTSIDE PROTECTIONS

55

55 - 1

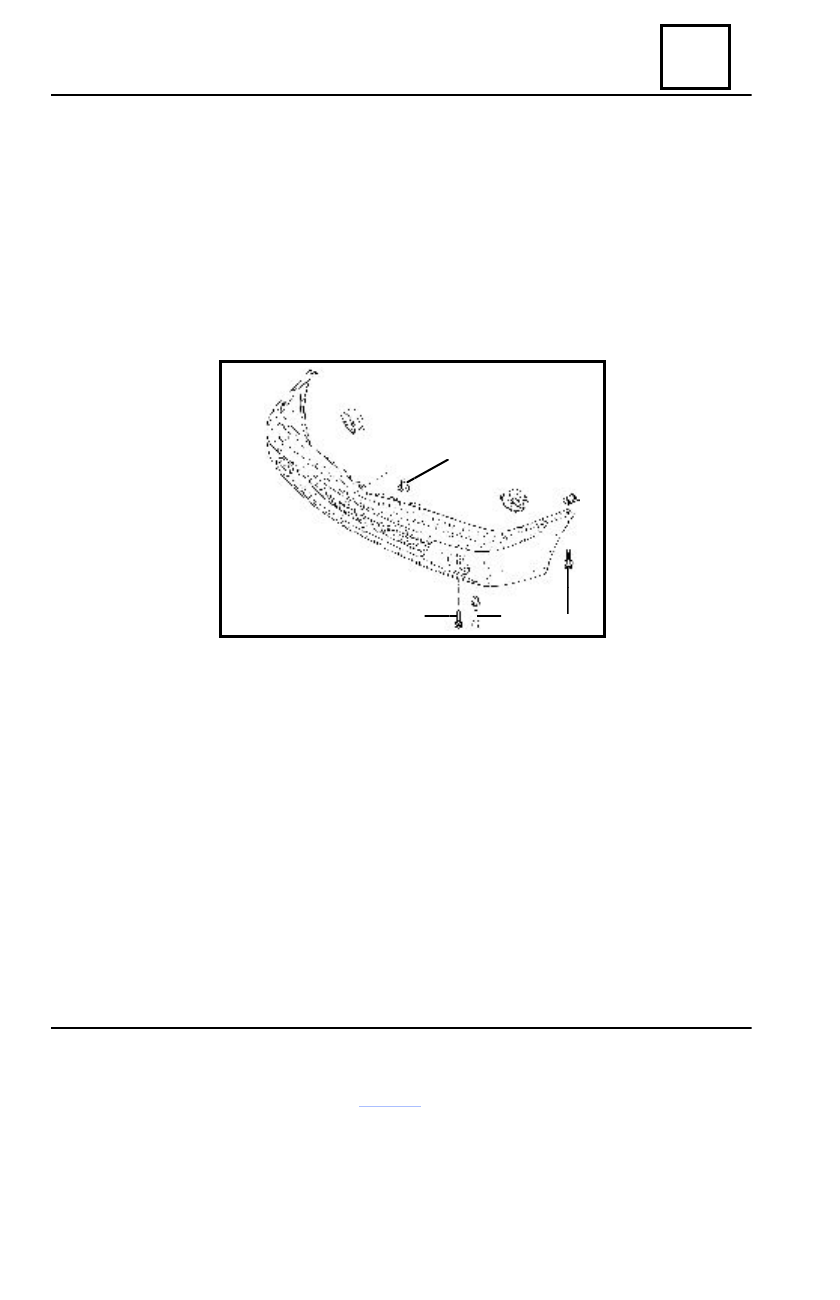

Front bumper

DISMOUNTING

Dismount the front grill.
Lift the vehicle by means of a two-column elevator.
Disconnect the projector lamps connectors.
Dismount:

- bumper attachment screws (1) on power train frame;
- bumper attachment screws (2) on the front anti-shock cross member;
- bumper attachment screws (3) on the front wing attachment side supports.

Release the bumper from its sustaining clips (4)

REMOUNTING

Perform the dismounting operations in  the reverse order.
Front bumper attachment screws are to be tighten to the required moment of 4 Nm, and the

fairing attachment screws to the required moment of 1.4 Nm.
