Dacia Solenza (engine E7J). Manual - part 105





51

51  - 2

MECHANISMS OF LATERAL OPENINGS

1

2

13

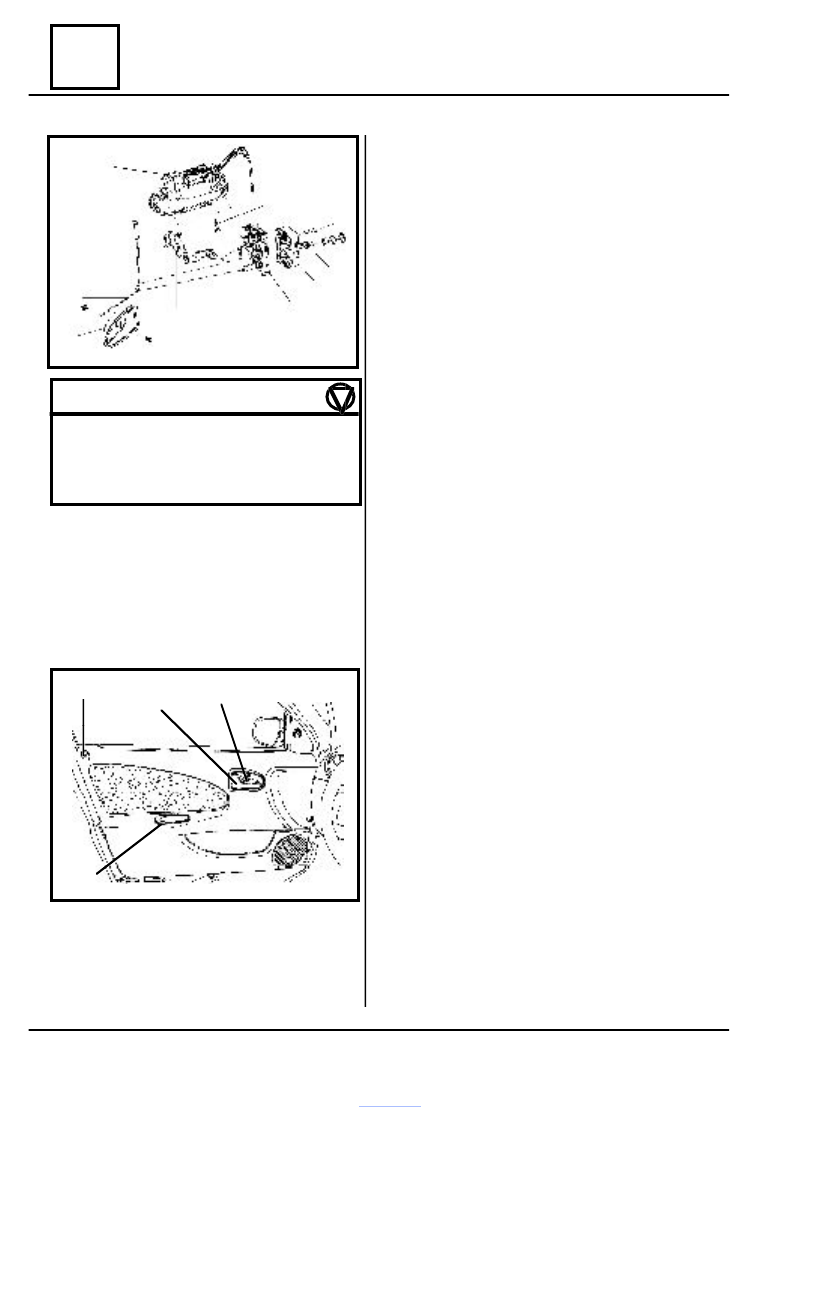

Front door-opening mechanism with manual control

TIGHTENING MOMENTS (daNm)

Attachment screw of assembled box

1.1

Mechanism bolt

5

Attachment screw of outside
opening mechanism

0.5

DISMOUNTING

- window lifting crank, by detaching it

from the crank axle.

- attachment screw (2) of the inside

opening mechanism (1);

- closing handle (13);

- front door panel (see chapter 72);
- front door deflective panel.

Detach:

- lock fork (12) from the latch.
- opening control rod of the door (4);

Detach from  clips the  blocking rod.
Dismount the attachment screws (6) of the

assembled box (5) from the front door caisson.

Remove the manual control latch (7)

through the technological opening from the front
door caisson.

Dismount:

- attachment screws (9) of the outside

opening mechanism (8) on the door external
panel;

- mechanism bolt (11);

REMOUNTING

Perform the dismounting operations in the

reverse order, taking into account the follow-
ing recommendation:

- for blocking control mounting, the

blocking rod (3) will be  placed in  the position
where the latch is blocked.

- for the latch mounting, the connecting

fork (11) of the outside opening mechanism
will be fixed on the existing ball joint on the
lock;

- all springs, rivets and elements that are

in movement are to be lubricated with UM 185
Li2 grease;

- for the latch attachment screws ,

product Fixamed M28 is to be used;

- front door deflective panel is to be fixed

on the caisson by means of a sealing material
Romtix 1502 P;

- adjustment of the front door closing is

to be performed by means of the mechanism
bolt (11), that is to be tighten to the required
moment of  5 daNm.

3

8

12

2

7

5

11

6

9

10

1

4

3

51

51   - 3

MECHANISMS OF LATERAL OPENINGS

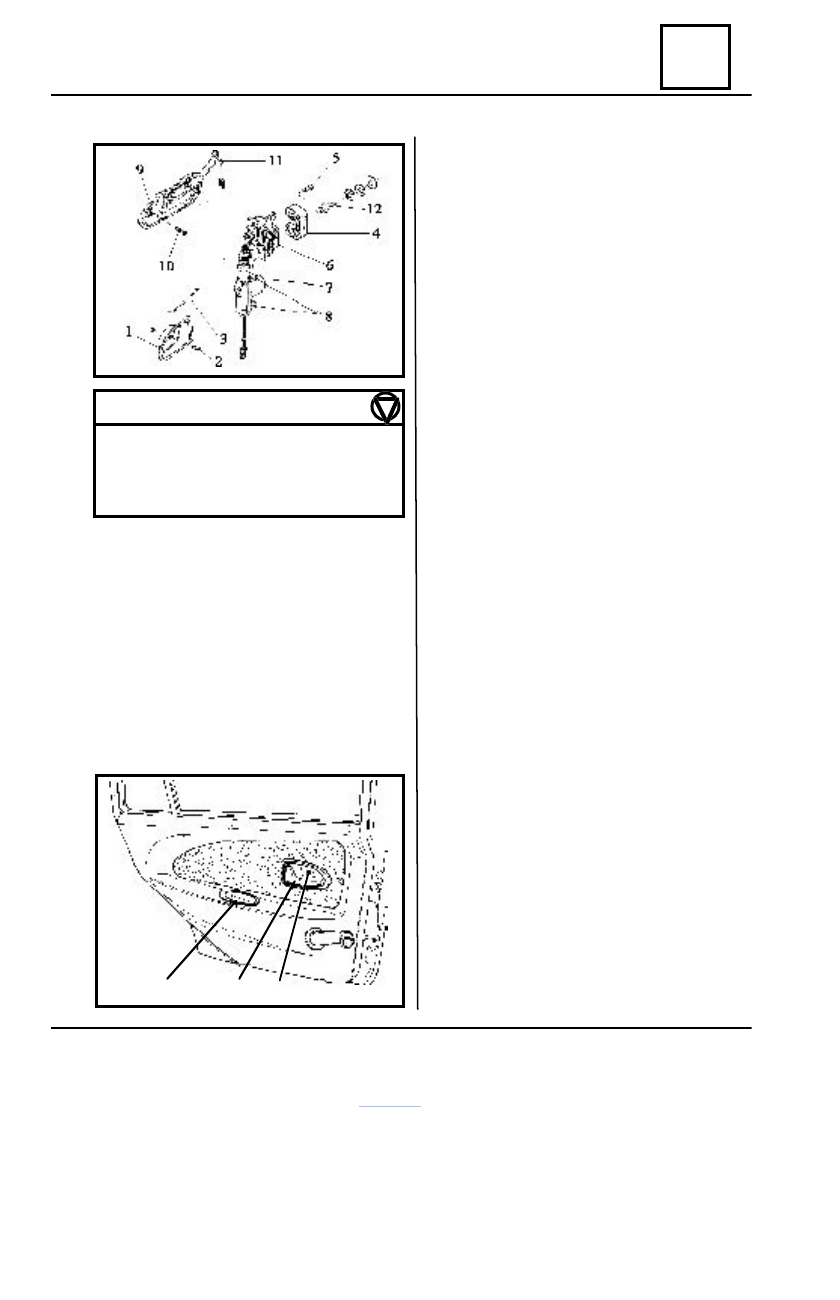

Rear door-opening mechanism with electric control

TIGHTENING MOMENTS (daNm)

Attachment screw of assembled box

1.1

Mechanism bolt

5

Attachment screw of outside
opening mechanism

0.5

DISMOUNTING

Disconnect the battery (for the vehicles

equipped with central locking mechanism).

Dismount:

- window lifting crank, by clips-

detaching it from the crank axle
- attachment screw (2) of the inside opening
mechanism (1);

- closing handle (13);
- front door panel (see chapter 72);
- rear door deflective panel.

Disconnect the actuator  connector. (8)
Remove the opening control rod of the door

(3);

Dismount the attachment screws (5) of the

assembled box (4) from the rear door caisson.

Remove the electric control latch (6)

through the technological opening from the rear
door caisson.

Dismount:

- attachment screws (10) of the outside

opening mechanism (9) on the door external
panel;

- mechanism bolt (12);
- screws (8) attaching the actuator (7)

to the electric control latch (6).

REMOUNTING

Perform the dismounting operations in the

reverse order, taking into account the follow-
ing recommendation:

- actuator attachment on the latch is to

be performed so that its acting stroke is of
minim 18 mm;

- for the rear door latch mounting, the

connecting fork  (11) of the outside opening
mechanism will be  fixed on the existing ball
joint on the lock;

- all springs, rivets and elements that are

in movement are to be lubricated with UM
185 Li2 grease;

- for the latch attachment screws to the

electric control, product Fixamed M28 is to
be used;

- rear door deflective panel is to be fixed

on the caisson by means of a sealing material
Romtix 1502 P;

- adjustment of the doors closing is to

be performed by means of the mechanism bolt
(12), that is to be tighten to the required
moment of  5 daNm.

1 3

2

1

51

51  - 4

MECHANISMS OF LATERAL OPENINGS

1 2

2

1

3

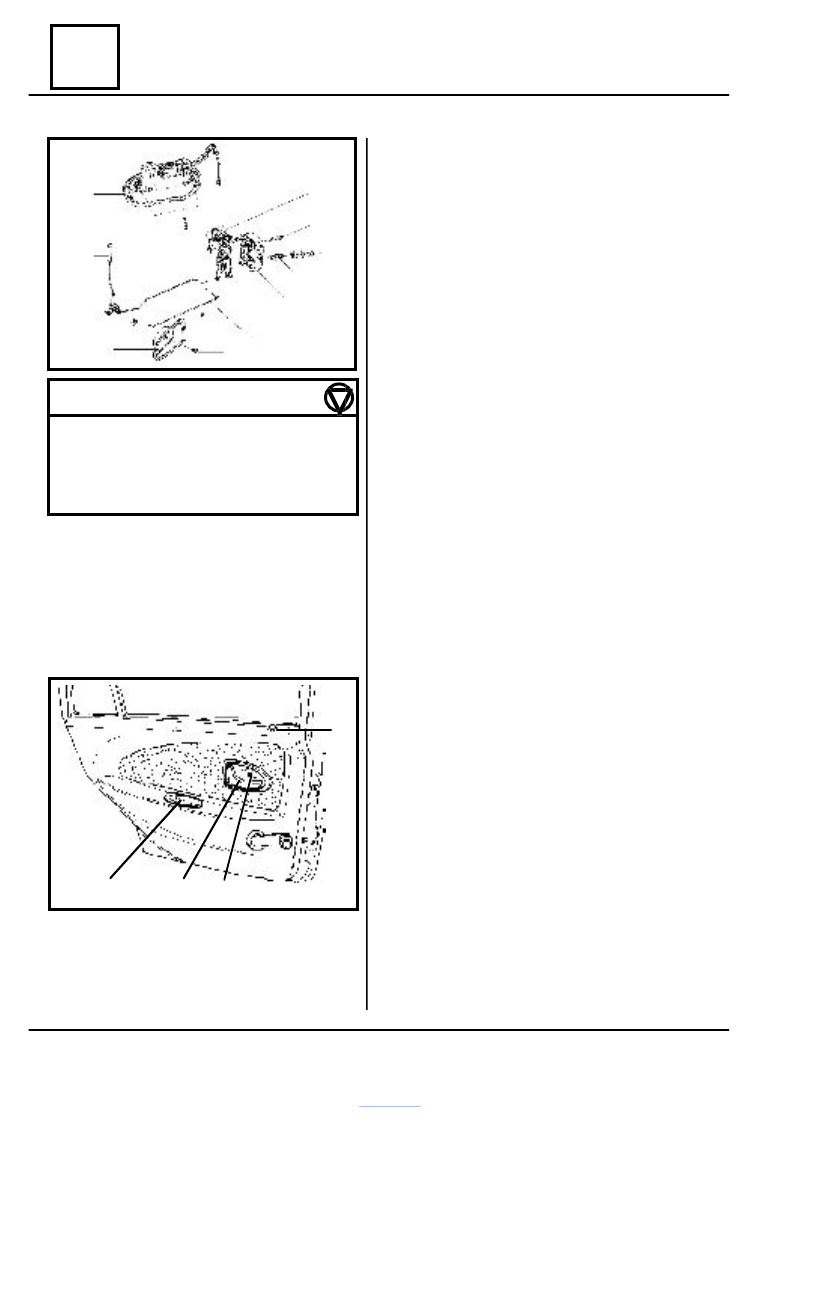

Rear door-opening mechanism with manual control

 TIGHTENING MOMENTS (daNm)

Attachment screw of assembled box

1.1

Mechanism bolt

5

Attachment screw of outside
opening mechanism

0.5

DISMOUNTING

Dismount:

- window lifting crank, by clips-detaching

it from the crank axle

- attachment screw (2) of the inside

opening mechanism (1);

- closing handle (12);

- front door panel (see chapter 72);
- rear door deflective panel.

Detach from clips the blocking control rod

of the rear door (3);

Dismount the fork (10) of the outside

opening mechanism from the rear door latch.

Dismount:

- rear door blocking control rod from the

latch;

- ear door inside opening rod (4) from

the latch;

- attachment screws (6) of the assembled

box (5) from the door  .

Remove the rear door manual control latch

(7) through the technological opening from the
door caisson.

Dismount:

- attachment screws (9) of the outside

opening mechanism (8) on the rear door external
panel;

- mechanism bolt (11);

REMOUNTING

Perform the dismounting operations in the

reverse order, taking into account the following
recommendation:

- for mounting the blocking control. the

blocking rod will be placed in the position where
the latch is blocked.

- mount the assembly  in such way that

free arm is to be introduced on the control rod,
then the blocking rod will be introduce through
the technological opening of the door caisson;

- all springs, rivets and elements that are

in movement are to be lubricated with UM 185
Li2 grease;

- for the latch attachment screws to the

electric control, product Fixamed M28 is to
be used;

- rear door deflective panel is to be fixed

on the caisson by means of a sealing material
Romtix 1502 P;

-     adjustment of the doors closing is to

be performed by means of the mechanism bolt
(12), that is to be tighten to the required moment
of 5 daNm.

11

9

8

10

7

6

2

5

4

3

1

51

51   - 5

MECHANISMS OF LATERAL OPENINGS

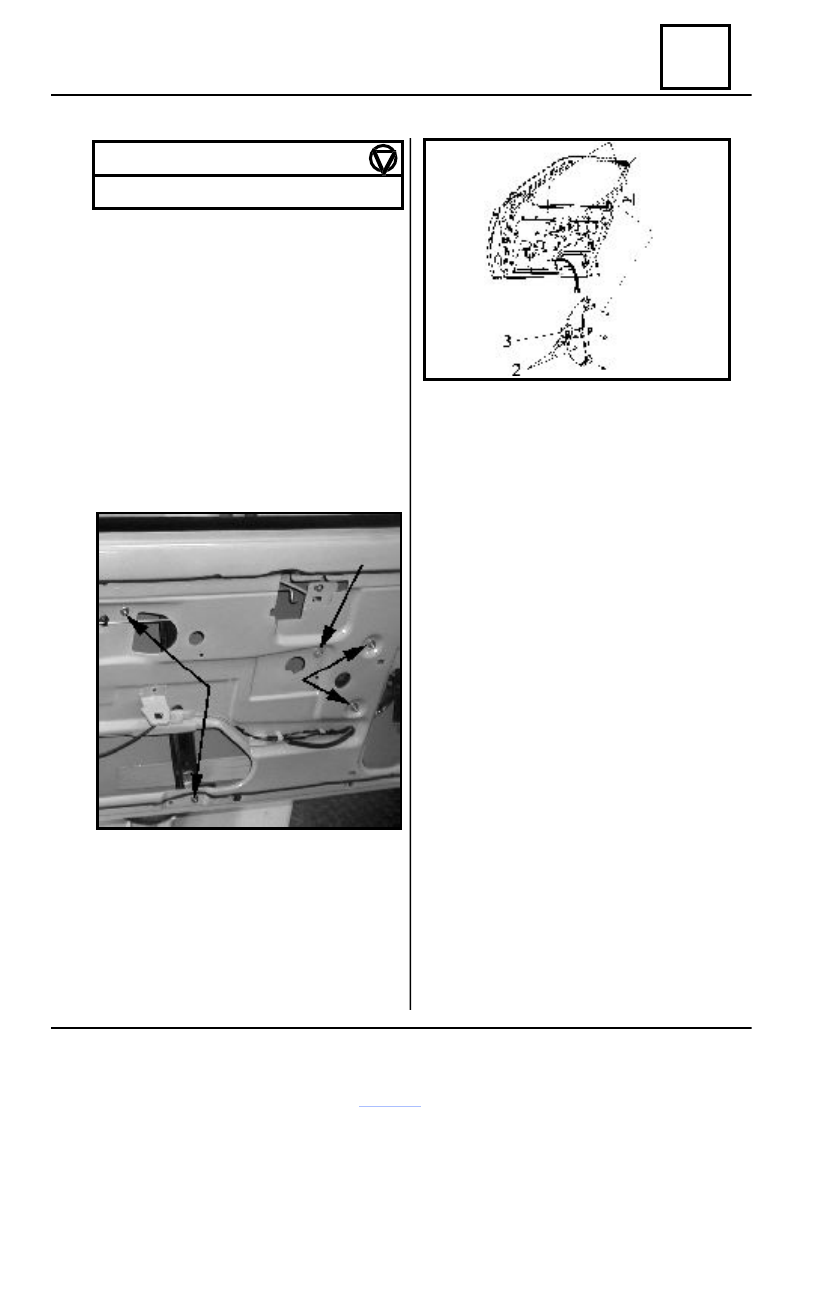

Front door electric window regulator

Crank attachment screws and nuts    0.7

DISMOUNTING

Disconnect the battery.
Bring the glass at the position P = 85 mm.
Dismount:

- front door panel (see chapter 72);
- front door deflective panel.

Remove the glass outside wiper.
Disconnect the windows regulator supply

connector.

Dismount:

- screws attaching glass bottom on the

crank glider and then remove the glass (together
with the glass bottom);

REMOUNTING

Perform the dismounting operations in  the

reverse order, taking into account the following
recommendations:

- crank is to be introduced in the caisson

through the technological opening and is to be
attached in the window regulator area on the
caisson;

- attach the crank at the lower and upper

part;

- introduce the glass, previously mounted

with the glass bottom and attach it to the glider;

- check the crank operation by lifting and

lowering the glass, after having connected the
crank connector and the battery;

- mount the front door deflective and the

door panel, after the sealant material layer
integrity has been checked.

TIGHTENING MOMENTS(daNm)

- crank attachment nuts (1) to the lower

and upper part on the door caisson;

- attachment screw (2) and nuts (3) of

the crank regulator on the door caisson.

3

1

2
