Renault Magnum engine. Manual - part 113

5 / 6

Remove the camshaft

 (1).

Use tool 8264.

Use lifting tackle.

Remove bearing half-shells.

Remove lower half-bearings

 (1).

Tools
Specific tools

Illustration

RENAULT

TRUCKS part N°

Designation

Manufacturer's

reference N°

Manufacturer's code N°

Scale

Qty

5000261380

CONTROL

1

1

5000260834

PULLER

2

1

5000260857

PULLER

2

1

6 / 6

7409998264

LIFTING TOOL

(CAMSHAFT)

2

1

1 / 1

Camshaft, inspection

On the camshaft, inspect:

 * Coaxiality,

 * Cam lift,

 * Bearings out-of-round diameter,

 * Bearing half-shells.
For values, see "Technical data" chapter.

See pages .

1 / 3

Camshaft bearings, replacement

Remove the camshaft.

See pages .

If one of the bearings is damaged, all bearings must be replaced.

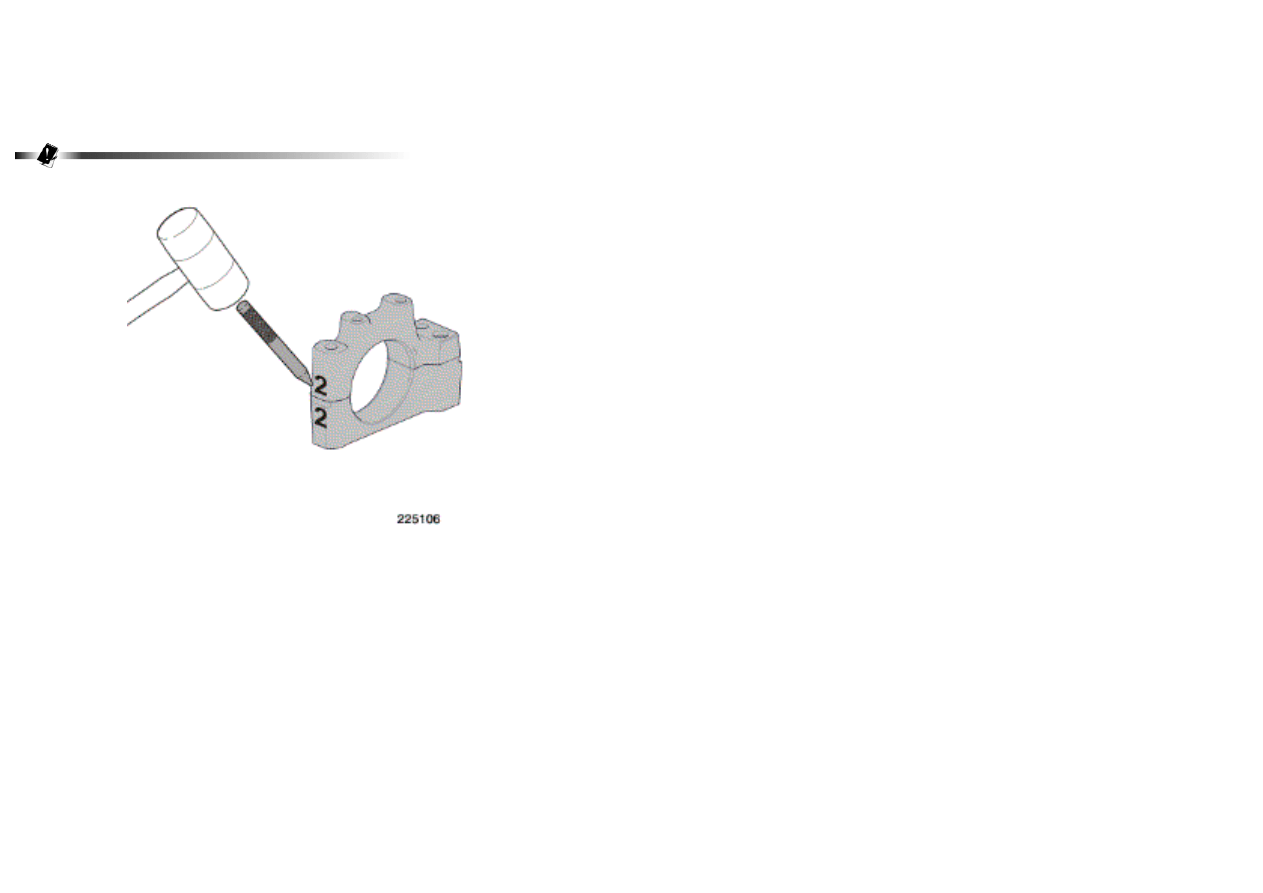

Locate new bearings in pairs.
