Renault Magnum engine. Manual - part 68

1 / 1

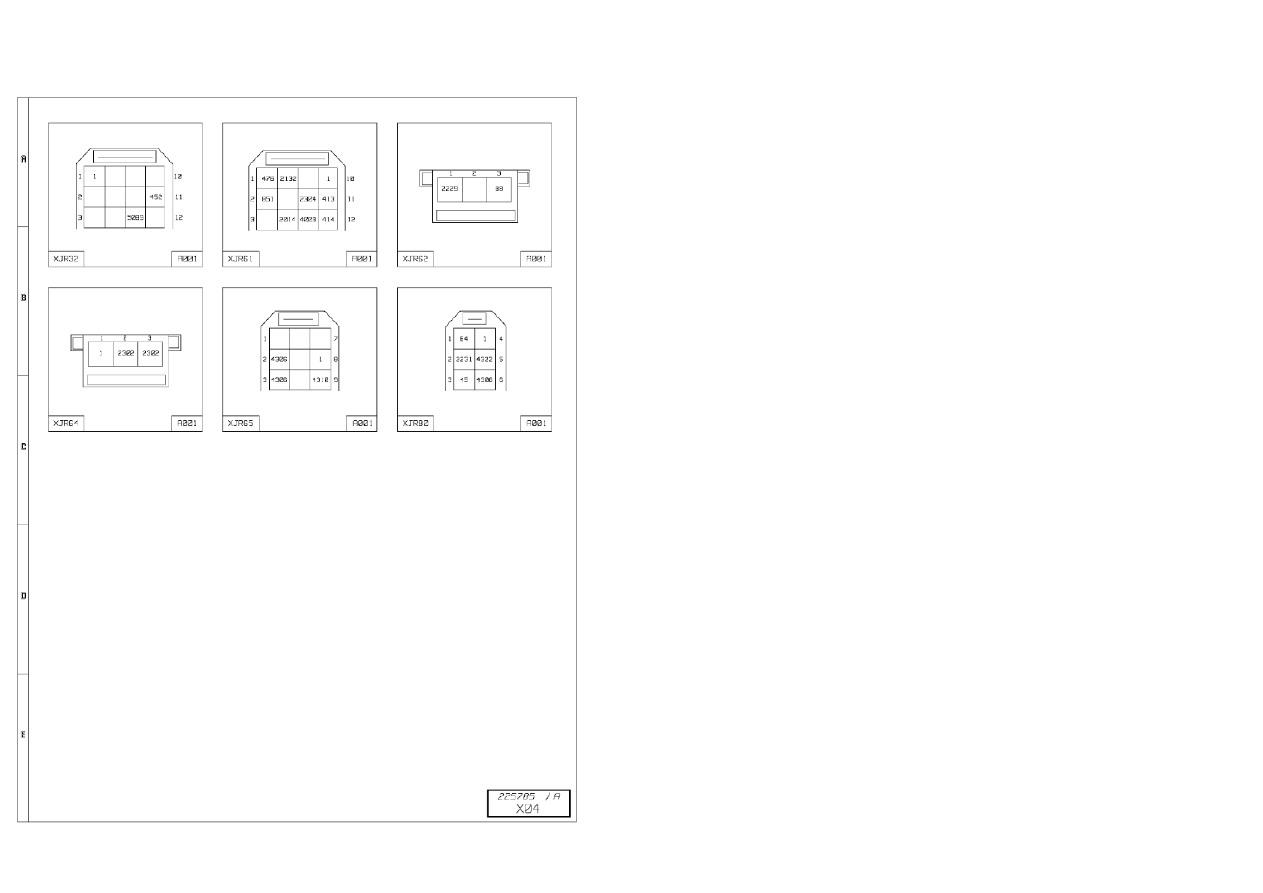

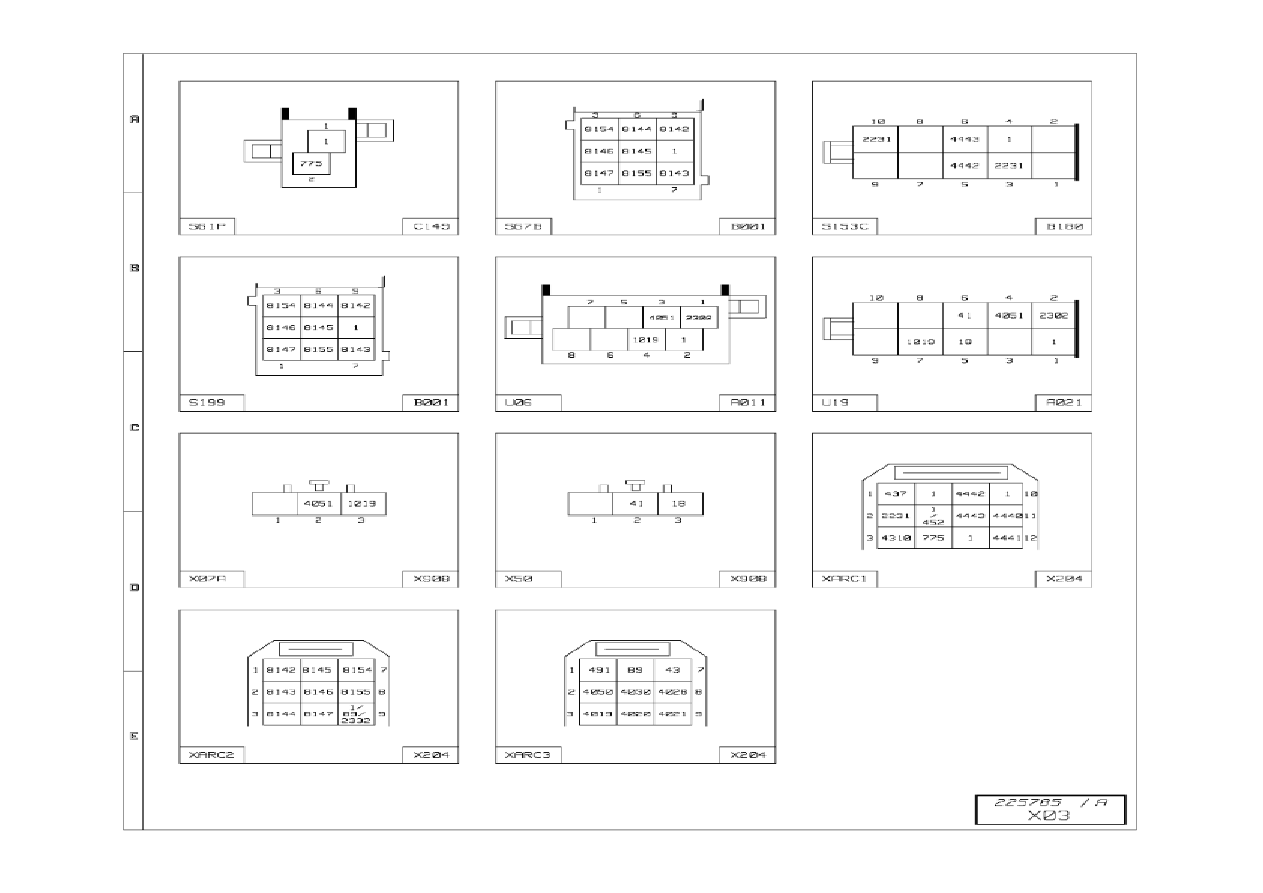

Cab rear wiring harness (3/4)

1 / 2

Cab rear wiring harness (3/4)

Code

Function

Connectors

Colour

Number

of tracks

C149

Driver's seatbelt not buckled sensor

S61P

GR

2

B001

Air suspension remote control

S67B

Y

9

B180

Sun-roof opening / closing control

(on cab rear control console)

S153C

SB

10

B001

Air suspension remote control

S199

Y

9

A011

Voltage converter (24V / 12V)

for information technology pack

U06

W

8

A021

Voltage converter (24 / 12V - 15A)

U19

SB

10

X908

12 Volts power supply socket

X07A

W

3

X908

12 Volts power supply socket

X50

SB

3

X204

Link-up connector between 2 wiring harnesses

XARC1

GN

12

X204

Link-up connector between 2 wiring harnesses

XARC2

Y

9

X204

Link-up connector between 2 wiring harnesses

XARC3

NL

9

Cab rear wiring harness (3/4)

2 / 2

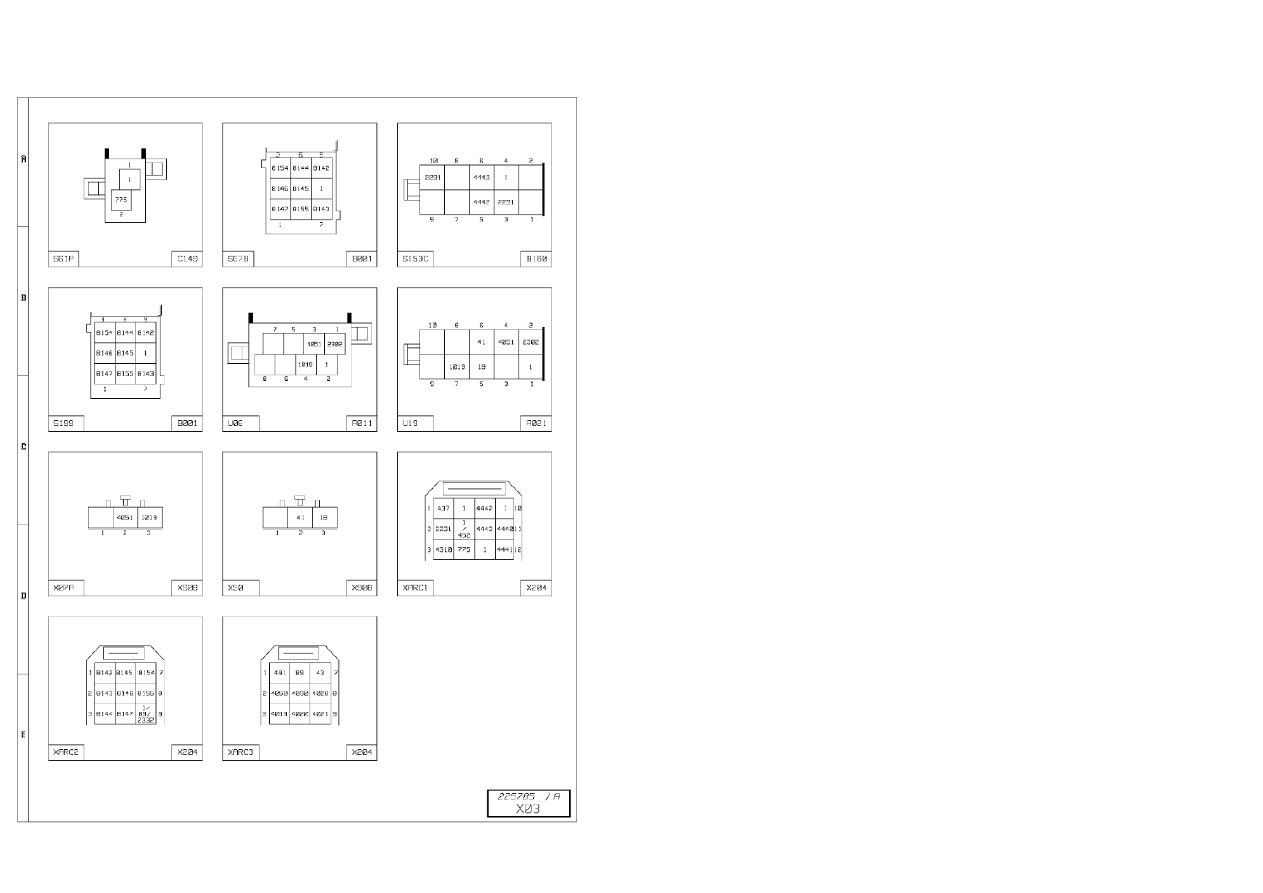

1 / 1

Cab rear wiring harness (4/4)
