Renault Magnum engine. Manual - part 66

1 / 2

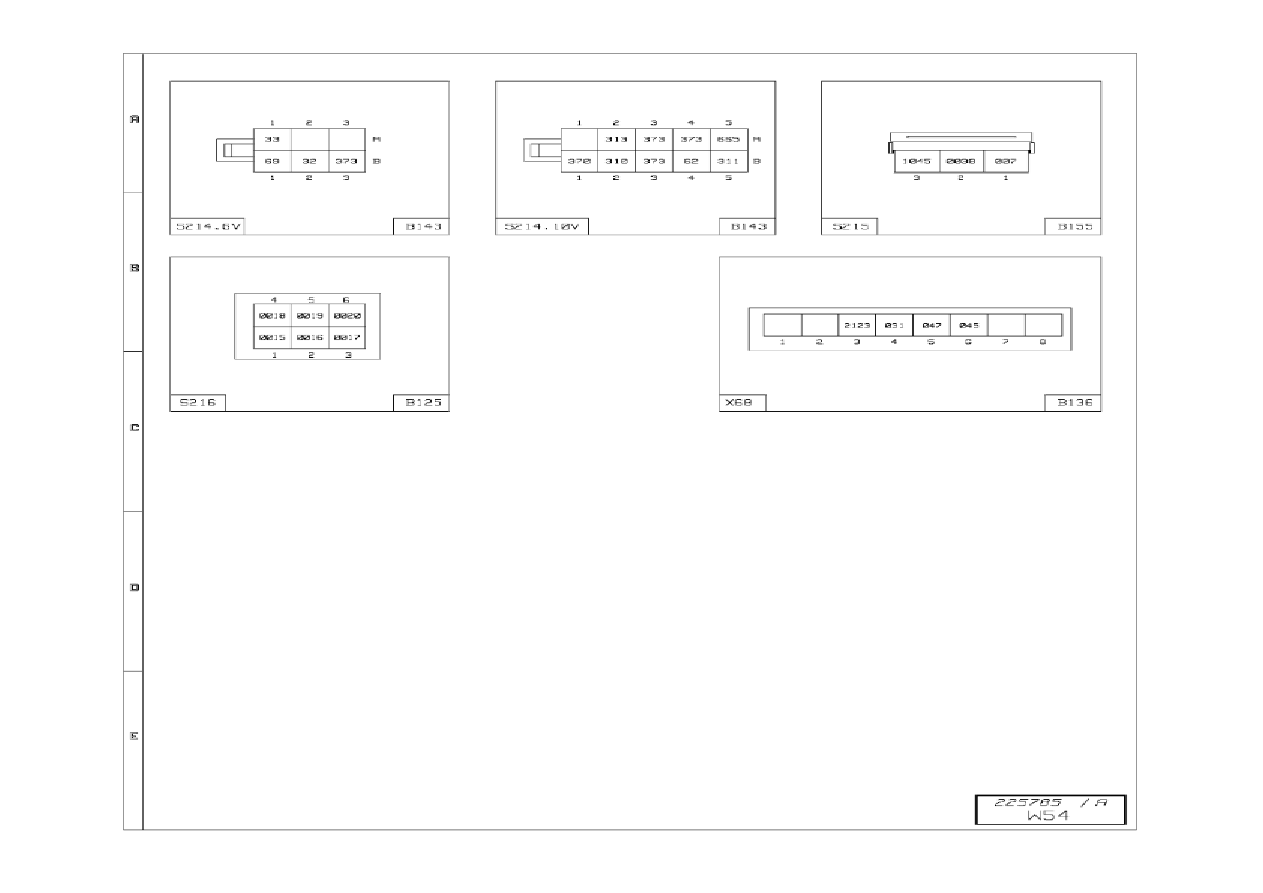

Steering column wiring harness

Code

Function

Connectors

Colour

Number

of tracks

B143

Steering wheel fingertip controls N° 1

S214.6V

SB

6

B143

Steering wheel fingertip controls N° 1

S214.10V

SB

10

B155

Electric or hydraulic retarder control

S215

SB

3

B125

Radio set control

S216

SB

6

B136

Cruise control and engine speed

regulator adjustment control

X68

SB

8

Steering column wiring harness

2 / 2

1 / 1

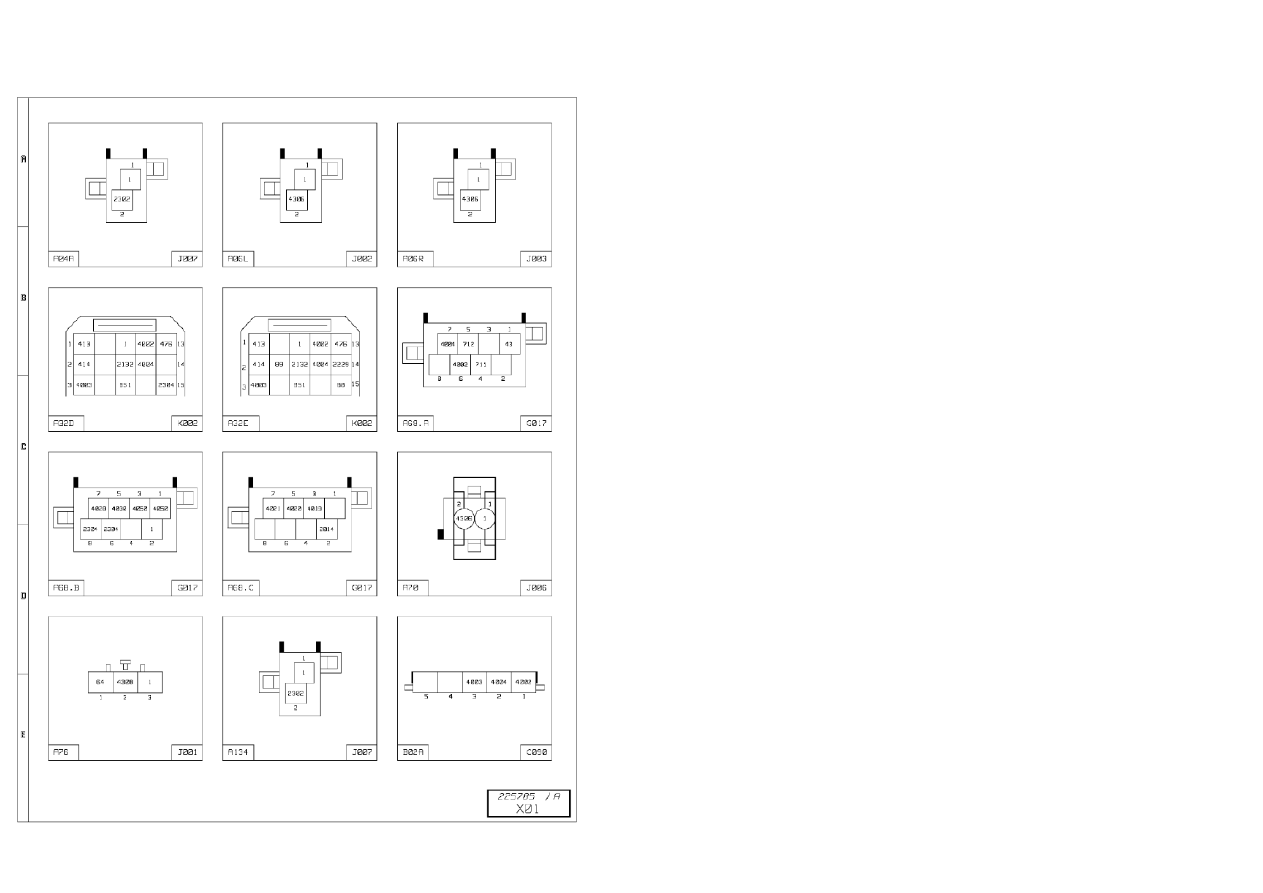

Cab rear wiring harness (1/4)

1 / 2

Cab rear wiring harness (1/4)

Code

Function

Connectors

Colour

Number

of tracks

J007

Refrigerator

A04A

SB

2

J002

RH heated seat unit

A06L

SB

2

J003

LH heated seat unit

A06R

SB

2

K002

Air/air add-on heater

A32D

NL

15

K002

Air/air add-on heater

A32E

VO

15

G017

Cab temperature regulation ECU

A68.A

R

8

G017

Cab temperature regulation ECU

A68.B

GR

8

G017

Cab temperature regulation ECU

A68.C

W

8

J006

Refrigerated compartment

A70

SB

2

J001

Cigar lighter

A76

W

3

J007

Refrigerator

A134

SB

2

C090

Add-on heater temperature sensor

B02A

SB

5

Cab rear wiring harness (1/4)
