Renault Magnum engine. Manual - part 52

3 / 3

1 / 4

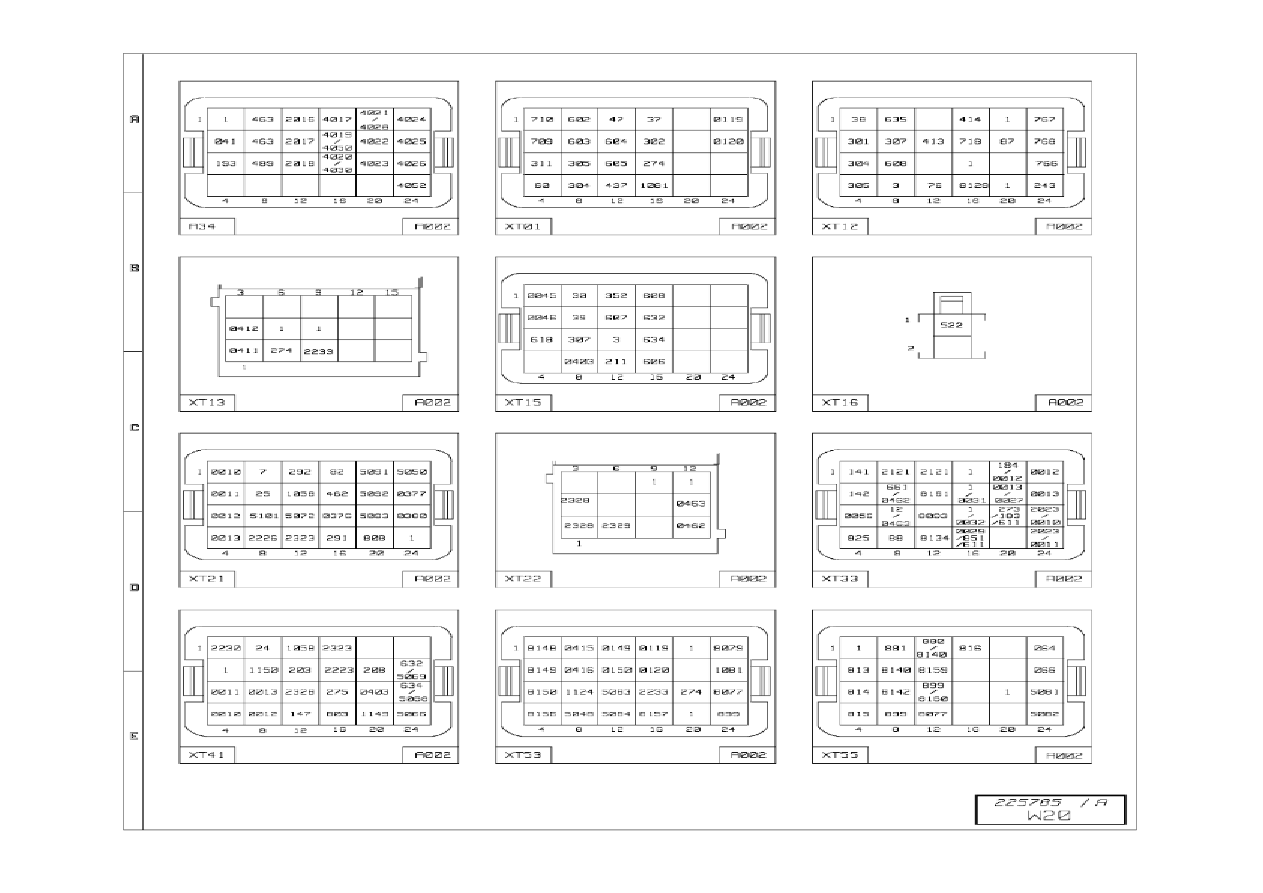

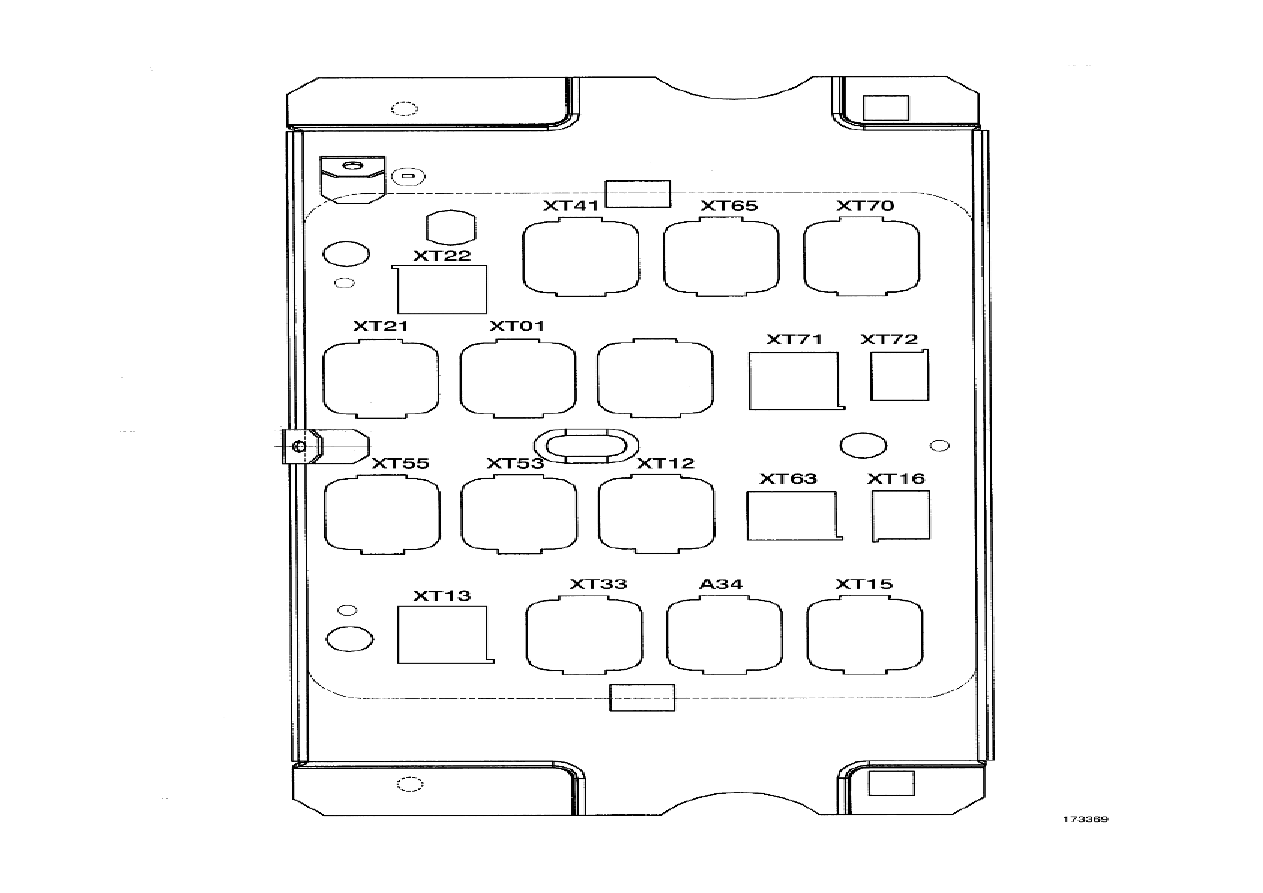

Chassis / cab connection

Connector

item N°

Function name

Colour

Number

of ways

A34

Air conditioning equipment wiring harness

R

24

XT01

Front end equipment wiring harness

BL

24

XT12

Rear line wiring harness

GN

24

XT13

Piloted axles equipment wiring harness

W

15

XT15

Trailer sockets wiring harness

GR

24

XT16

Trailer sockets wiring harness

SB

2

XT21

Power unit equipment wiring harness

NL

24

XT22

Rear line wiring harness

W

12

XT33

Hydraulic retarder equipment

Y

24

XT41

RH front module equipment wiring harness

Y

24

XT53

"EBS - ESP" equipment wiring harness

BL

24

XT55

Air suspension equipment wiring harness

NL

24

XT63

Independent heating equipment

Y

12

XT65

Front end equipment wiring harness

R

24

XT70

Front end equipment wiring harness

GR

24

XT71

Front end equipment wiring harness

VO

15

XT72

Cab tilting equipment

SB

2

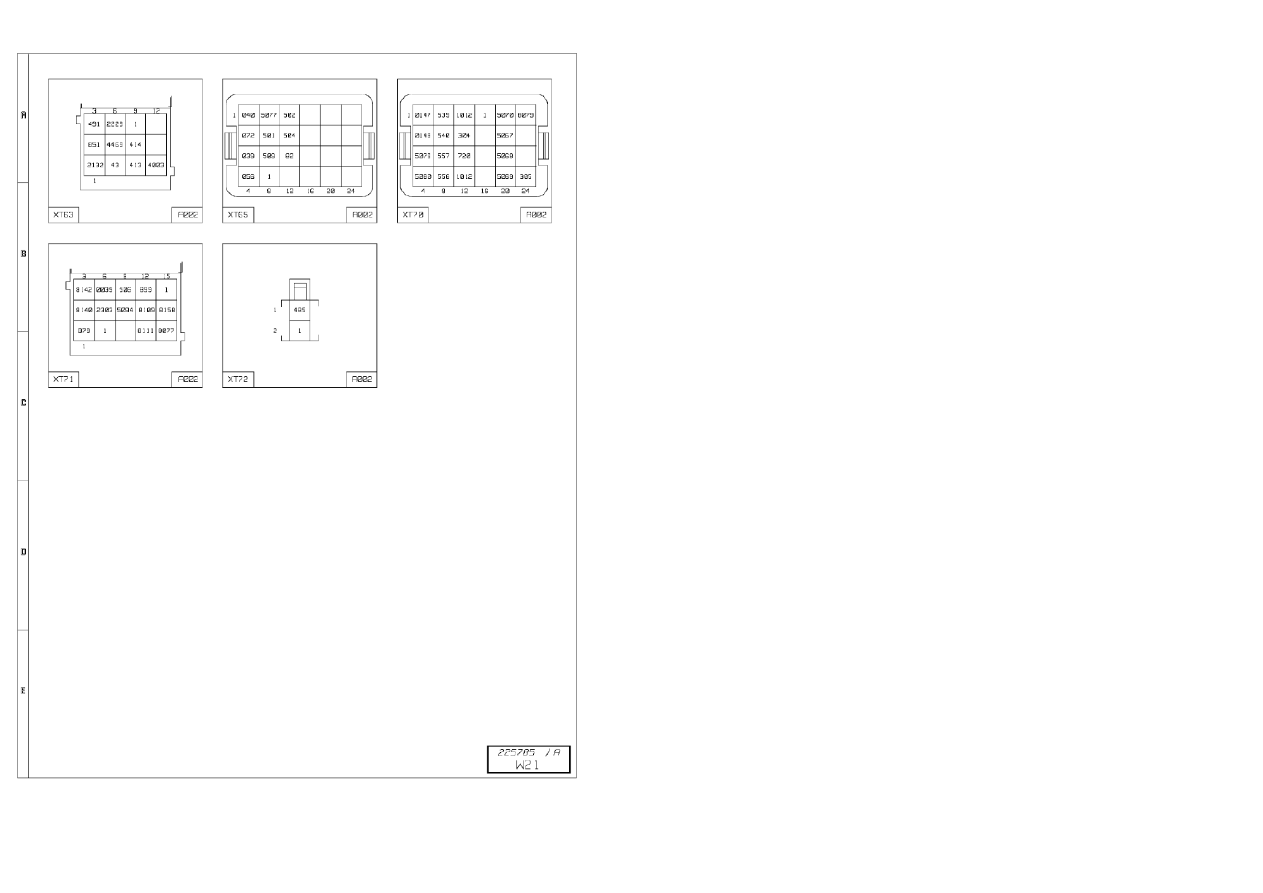

Chassis / cab connection

2 / 4

3 / 4
