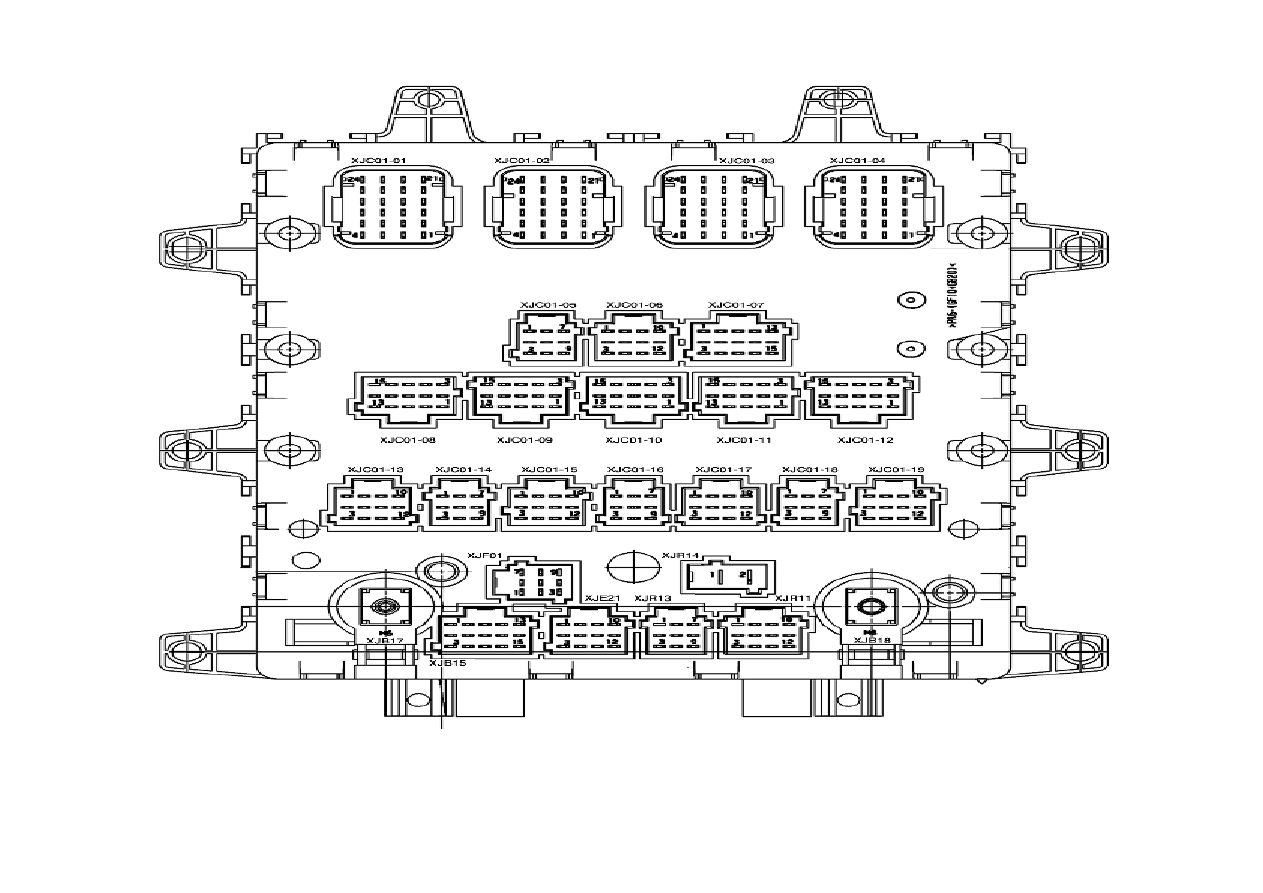

Electrical distribution box -Face B connectors

Connector

item N°

Function name

Colour

Number

of ways

XJB15

Battery compartment wiring harness

VO

15

XJC01_01

Dashboard wiring harness

Y

24

XJC01_02

Dashboard wiring harness

GN

24

XJC01_03

Dashboard wiring harness

Y

24

XJC01_04

Dashboard wiring harness

GN

24

XJC01_05

Dashboard wiring harness

Y

09

XJC01_06

Dashboard wiring harness

NL

12

XJC01_07

Dashboard wiring harness

VO

15

XJC01_08

Dashboard wiring harness

LVO

15

XJC01_09

Dashboard wiring harness

LBL

15

XJC01_10

Dashboard wiring harness

NL

15

XJC01_11

Dashboard wiring harness

LVO

15

XJC01_12

Dashboard wiring harness

BL

15

XJC01_13

Dashboard wiring harness

BL

12

XJC01_14

Dashboard wiring harness

NL

09

XJC01_15

Dashboard wiring harness

LVO

12

XJC01_16

Dashboard wiring harness

LBL

09

XJC01_17

Dashboard wiring harness

LBL

12

XJC01_18

Dashboard wiring harness

Y

09

XJC01_19

Dashboard wiring harness

LVO

12

XJE21

Power unit equipment wiring harness

GN

12

XJF01

Front signalling and lighting wiring harness

Y

09

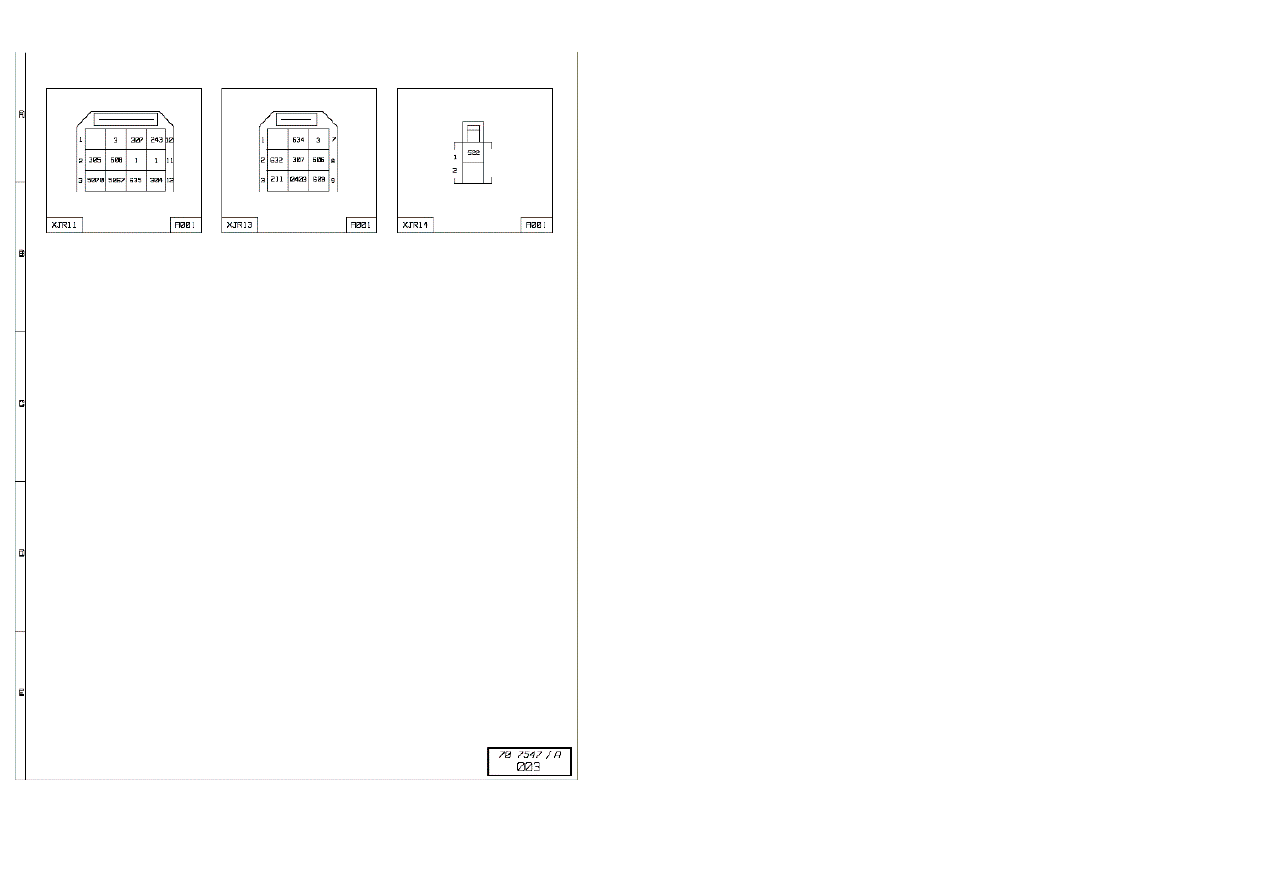

XJR11

Rear line wiring harness

NL

12

XJR13

Trailer sockets wiring harness

NL

09

XJR14

Trailer sockets wiring harness

SB

02

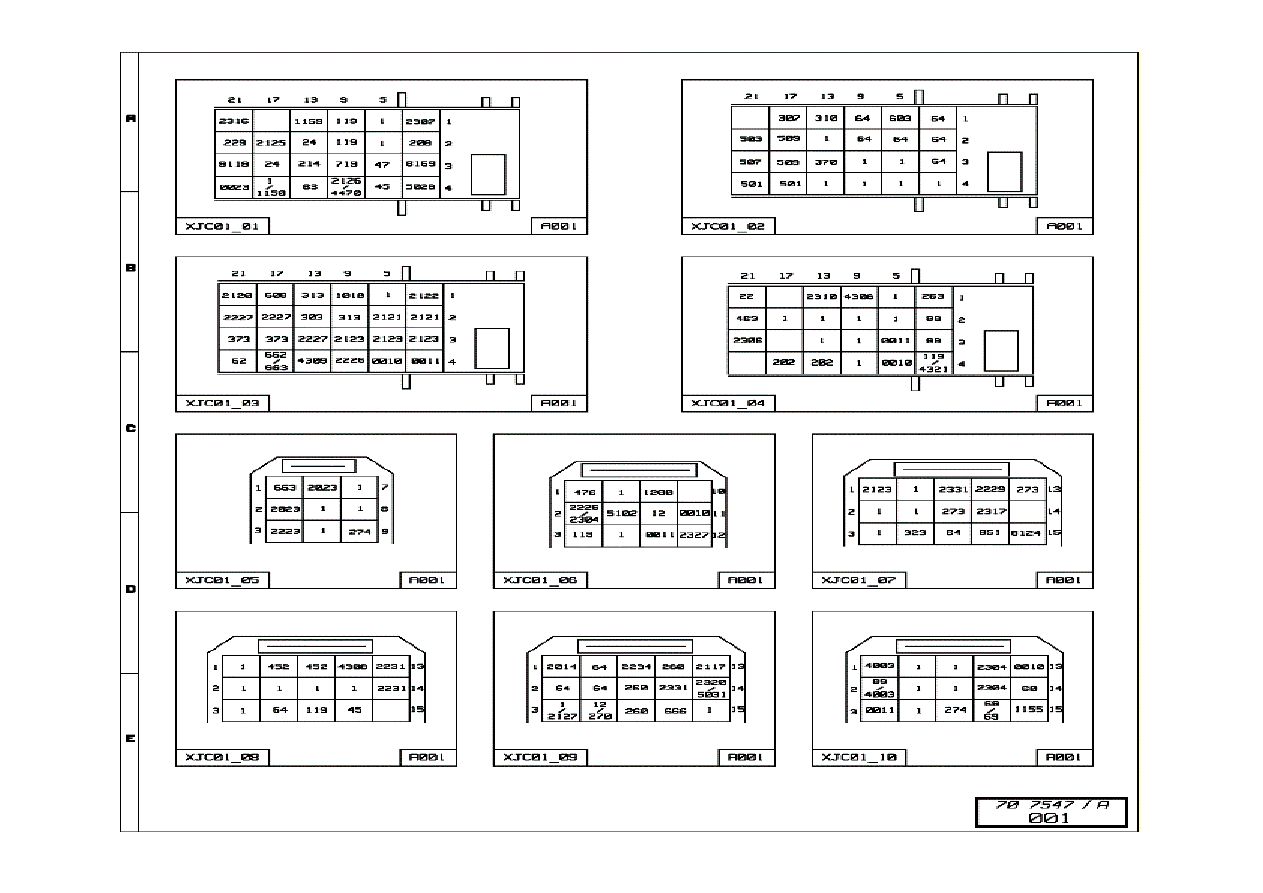

Electrical distribution box -Face B connectors
