MECHANICAL COMPONENT CONTROLS

External gear control

JH3 or JR5 or ND0

37A

Engine compartment

Position the gear change lever on the gearbox in 4th
gear engaged position.

Refit the cables in their respective sleeve stops.

Note:

the gear change cable can be identified by an
« N » mark stamped on the cable sleeve stop,

37A

-

64

MECHANICAL COMPONENT CONTROLS

External gear control

JH3 or JR5 or ND0

37A

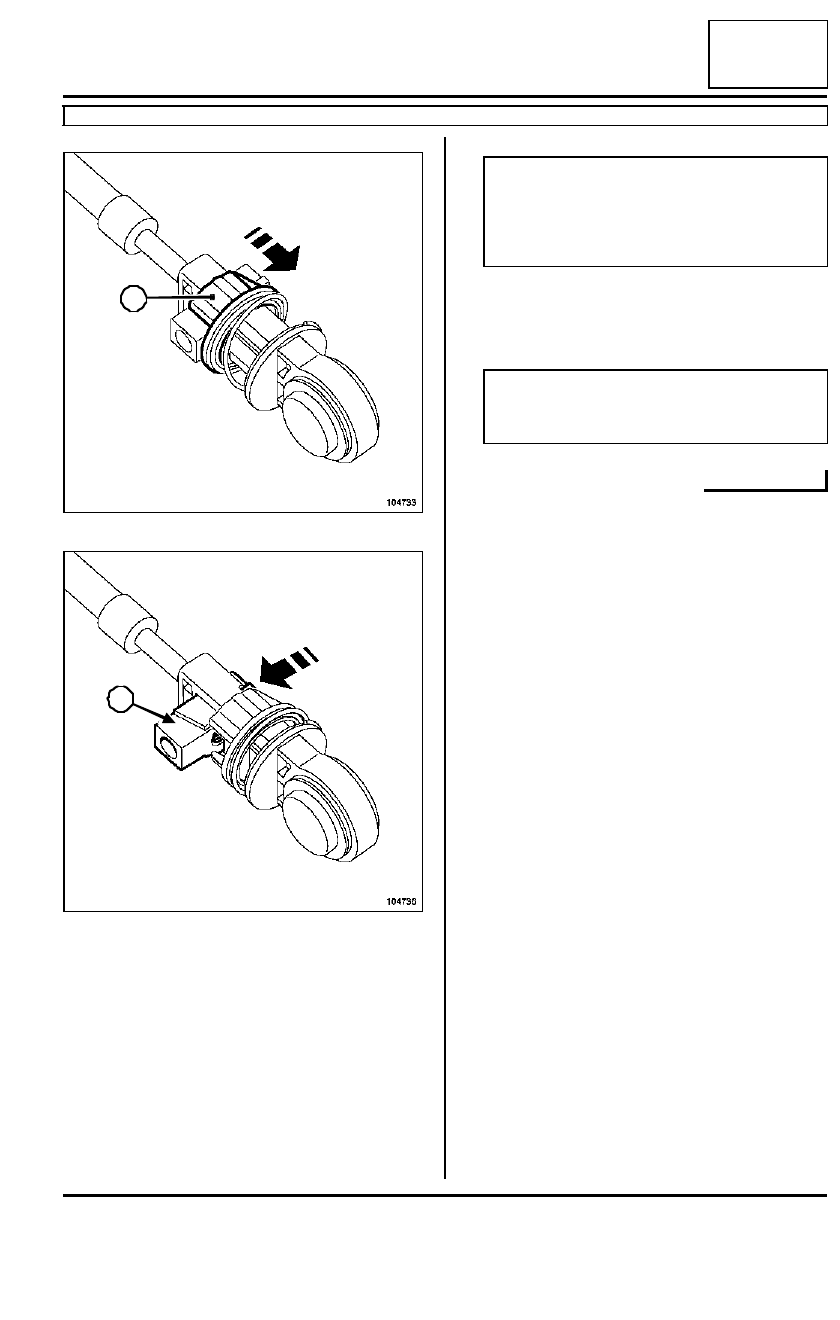

Slide the part (12) into place, compressing the spring
on the selector cable.

Unlock the adjustment mechanism by sliding the
catch (13) sideways.

Adjust the length of the cable.

Fit the selector cable on the gear lever ball joint.

Lock the adjustment mechanism by pushing the
catch (13) back to its original position.

Fit the selector cable on the lever ball joint.

Check that all the gears engage correctly before
starting the engine.

104733

104736

12

13

WARNING

When the complete external control unit is
replace, it is imperative to remove the adjustment
shim from the gear lever after the cables have
been adjusted and fitted.

WARNING

Connect the battery; carry out the necessary pro-
gramming (Section Electrical equipment).

37B

-

1

AUTOMATIC PARKING BRAKE

Introduction

37B

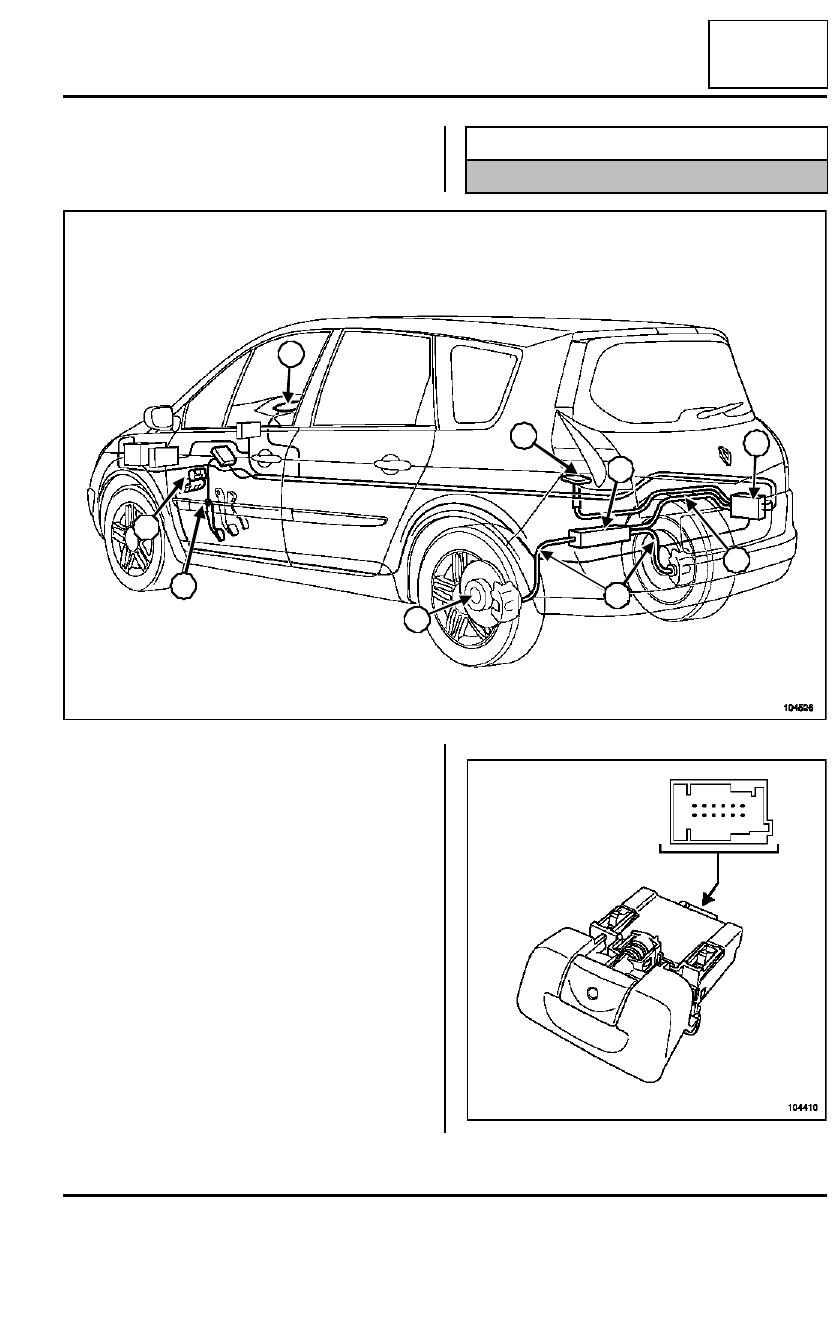

The automatic parking brake consists of the following
components:

- the catch (1), this replaces the handbrake lever. It is

located on the dashboard, next to the steering wheel,

- the clutch pedal position sensor (2),

- the wheel speed sensors (3),

- the control unit (4) for the short Scenic, (9) for the long

Scenic,

- the instrument panel warning lights (5),

- an emergency parking brake cable control (6) (ma-

nual), located in the spare wheel compartment in the
boot, underneath the carpet,

- the primary cable (7),

- the secondary cables (8).

Equipment required

Diagnostic tool

104526

6

5

4

9

3

2

1

8

7

104410

37B

-

2

AUTOMATIC PARKING BRAKE

Introduction

37B

The unit consists of two main components:

- a locking control component, called a catch,

- a release control button, with a red warning light indi-

cating the status of the parking brake.

To apply the automatic parking brake, pull the catch.

To release the automatic parking brake, pull the catch
and press the button.

In the event of battery failure, the emergency parking
brake cable control can be used to release the automa-
tic parking brake. It is located in the spare wheel com-
partment in the boot. To use this emergency handle,
the guard must be removed.

Each time the emergency cable handle is used, the
fault generated must be cleared using the Diagnostic
tool.

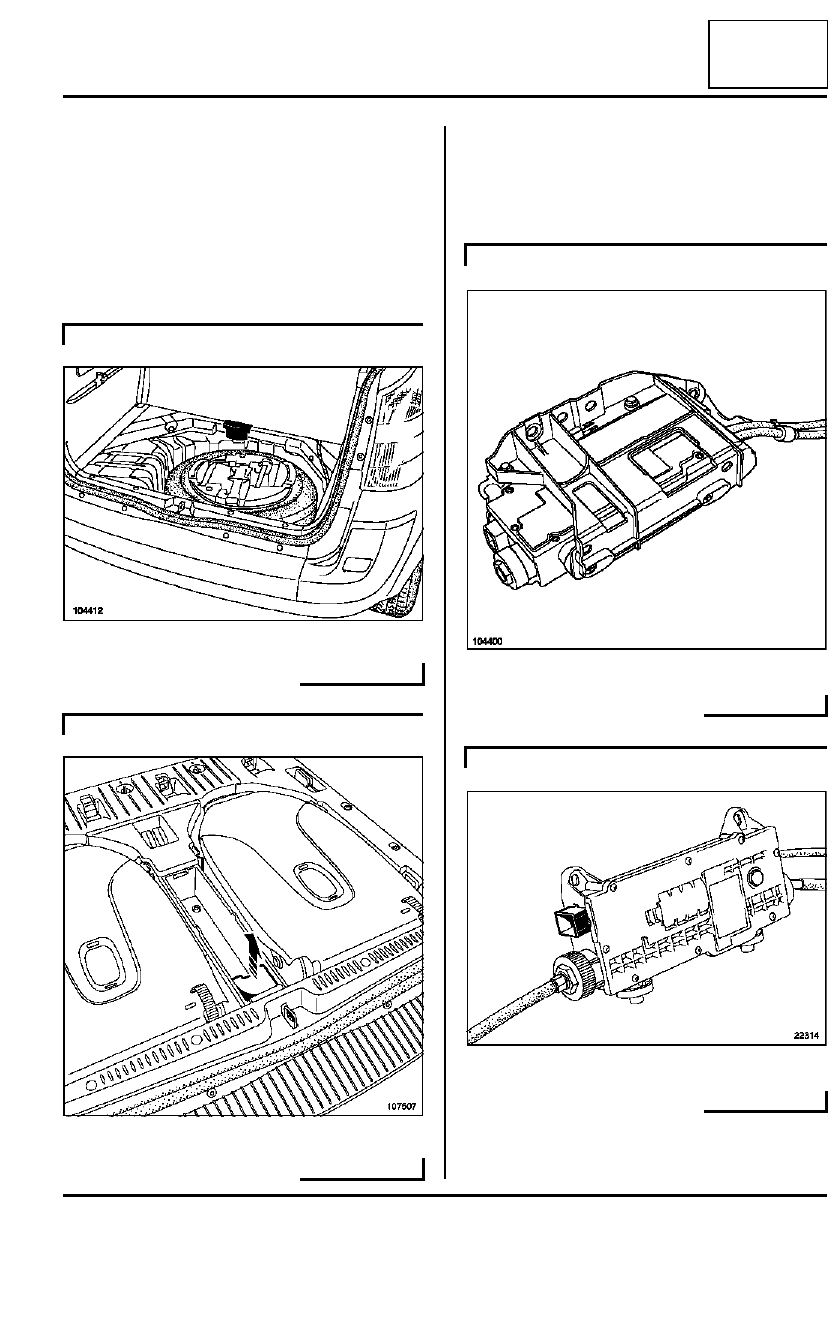

STANDARD CHASSIS

104412

LONG CHASSIS

107507

STANDARD CHASSIS

104400

LONG CHASSIS

22314
