37A

-

35

MECHANICAL COMPONENT CONTROLS

Clutch control: Description

RIGHT-HAND DRIVE or LEFT-HAND DRIVE

37A

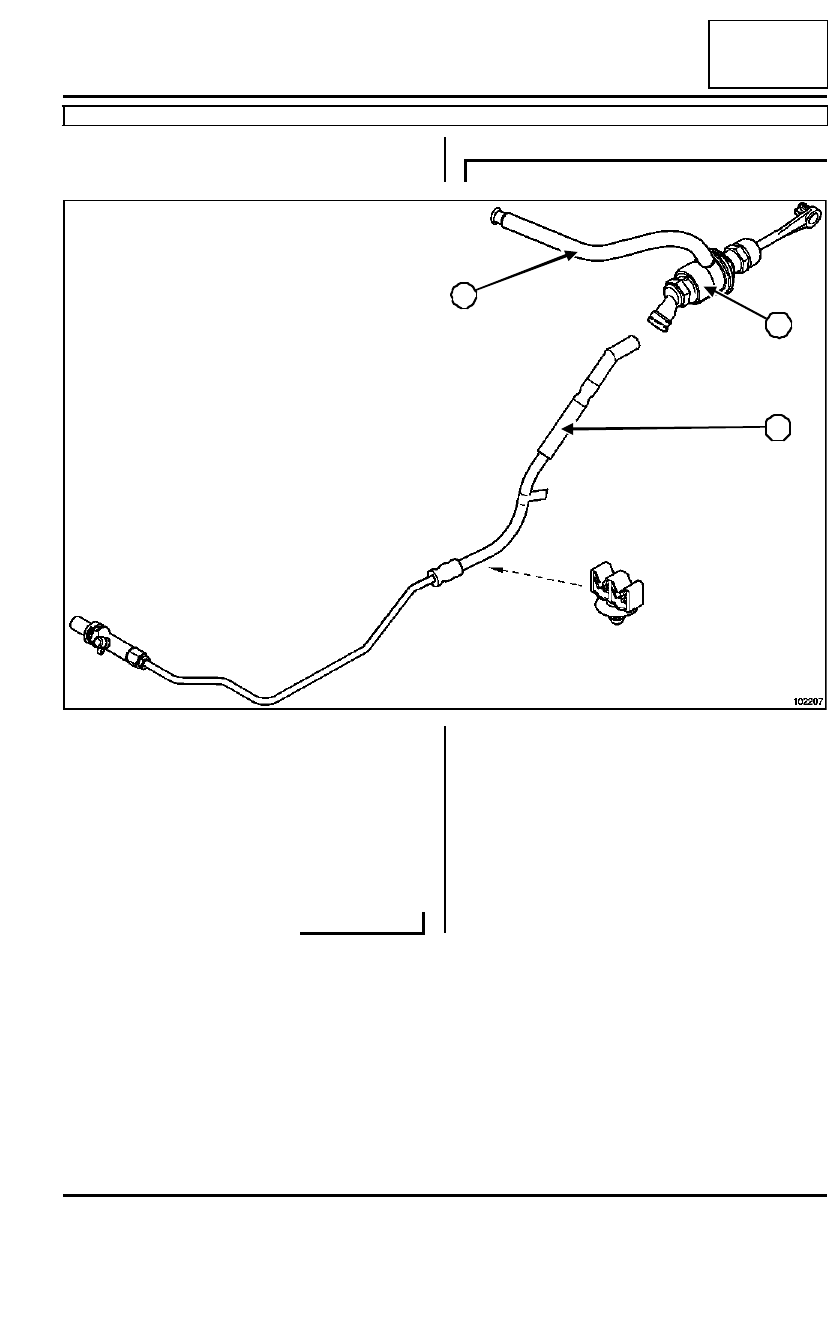

LEFT-HAND DRIVE

102207

3

2

1

(1)

Master cylinder supply pipe
(engine compartment)

(2)

Master cylinder (engine com-
partment / passenger compart-
ment connection)

(3)

Slave cylinder supply pipe
(engine compartment)

37A

-

36

MECHANICAL COMPONENT CONTROLS

Clutch control: Description

RIGHT-HAND DRIVE or LEFT-HAND DRIVE

37A

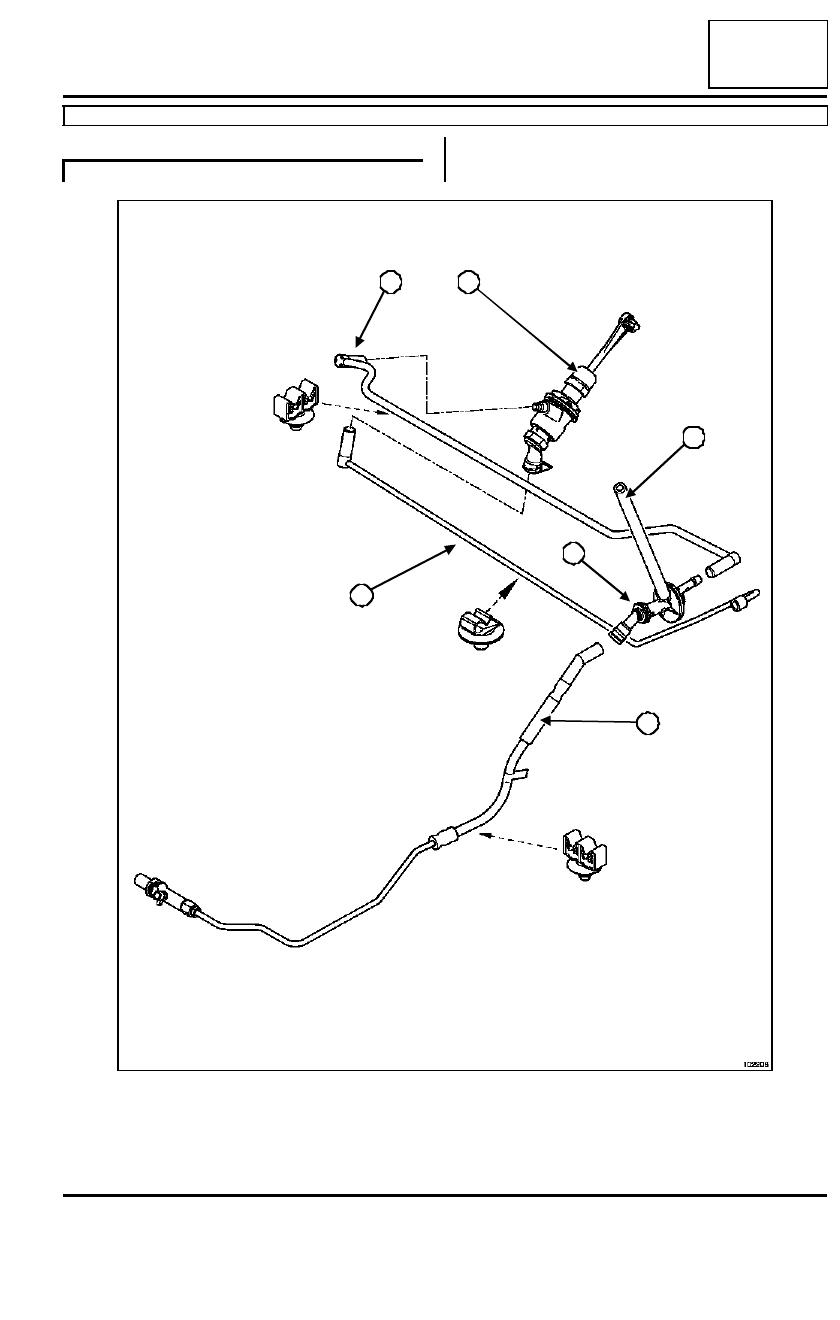

RIGHT-HAND DRIVE

102208

4

3

2

1

6

5

37A

-

37

MECHANICAL COMPONENT CONTROLS

Clutch control: Description

RIGHT-HAND DRIVE or LEFT-HAND DRIVE

37A

(1)

Master cylinder supply pipe
(engine compartment)

(2)

Master cylinder return (engine
compartment connection / pas-
senger compartment)

(3)

Master cylinder supply pipe
(passenger compartment)

(4)

Master cylinder (passenger
compartment)

(5)

Slave cylinder supply pipe (pas-
senger compartment)

(6)

Slave cylinder supply pipe
(engine compartment)

37A

-

38

MECHANICAL COMPONENT CONTROLS

Clutch master cylinder

JH3 or JR5 or ND0, and RIGHT-HAND DRIVE

37A

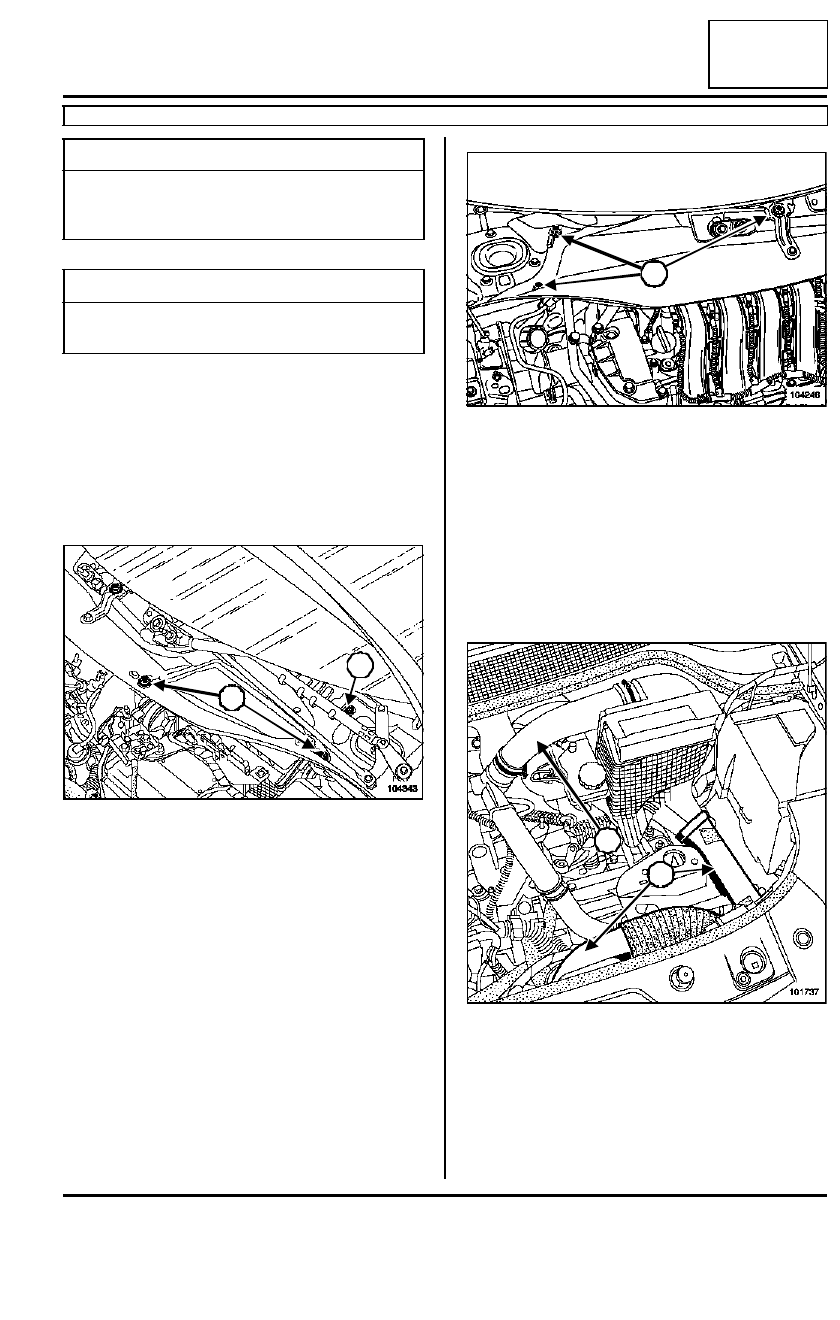

REMOVAL

Disconnect the battery, starting with the negative ter-
minal.

Remove:

- the engine covers,

- the cowl grille ( Wiping - WashingSection).

Remove:

- the two air filter access panel mounting bolts (1),

- the air filter access panel,

- the plenum chamber partition mounting bolt (2).

Remove:

- the plenum chamber partition mounting bolts (3),

- the plenum chamber partition,

- the battery,

- the battery tray,

- the computer and its support.

Remove:

- the air filter outlet duct (4),

- the air inlet sleeves (5),

- the air filter box.

Drain the brake fluid reservoir until the level is below
the master cylinder supply aperture.

Special tooling required

Emb. 1596

2 4  mm socket  for
removing/fitting clutch
master cylinder

Tightening torques

m

clutch pedal assembly
plate nuts

2.1 daNm

104343

2

1

104246

101737

3

3

4

5
