37A

-

31

MECHANICAL COMPONENT CONTROLS

Parking brake cables

AUTOMATIC PARKING BRAKE

37A

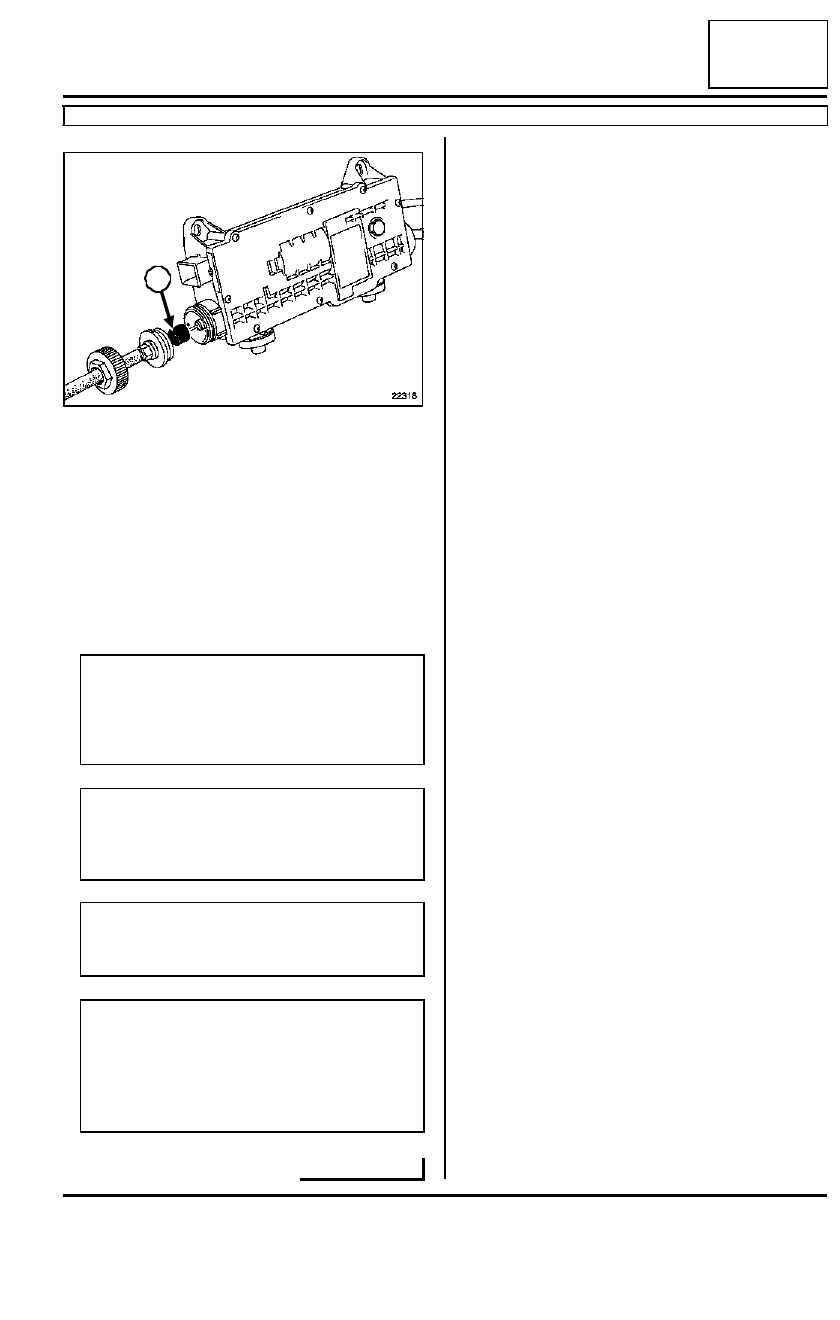

Attach the right-hand brake cable to the force sensor
cable.

Clip on the locking ring (14).

Check the condition of the O-ring.

Insert the lug (13) in the notch.

Torque tighten the right-hand plastic nut  (0.5
daNm).

Proceed in the reverse order to removal.

22318

IMPORTANT

Check that the brake cables are correctly fitted in
their housing. If they are not, remove the left-
hand parking brake cable. Refit it, tightening by
the correct number of turns: five turns.

WARNING

Connect the battery, starting with the positive ter-
minal; carry out the necessary programming
(Section Electrical equipment).

IMPORTANT

Carry out a complete check with the Diagnostic
tool, and clear any faults generated.

Note:

With the ignition on, release the automatic par-
king brake (pull the catch, push the button). The
automatic parking brake system locking function
emits a warning sound. The play compensation is
set automatically.

14

37A

-

32

MECHANICAL COMPONENT CONTROLS

Parking brake lever

37A

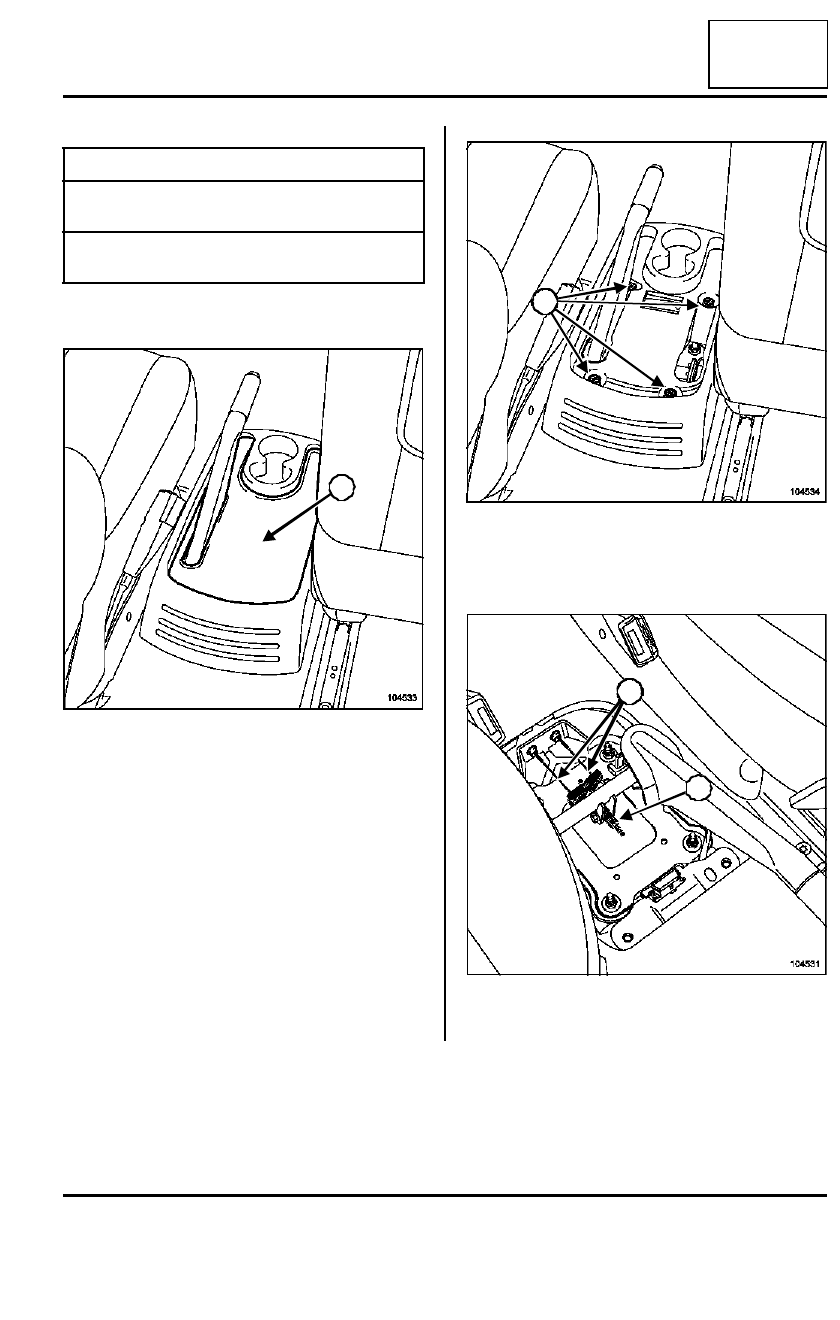

REMOVAL

Remove the centre console carpet (1).

Remove:

- the centre console mountings (2),

- the centre console.

Unscrew the adjusting nut (3).

Remove the parking brake control cables (4).

Tightening torques

m

parking brake  lever
mountings

0.8 daNm

centre console moun-
tings

0.2 daNm

104533

1

104534

104531

2

2

4

3

37A

-

33

MECHANICAL COMPONENT CONTROLS

Parking brake lever

37A

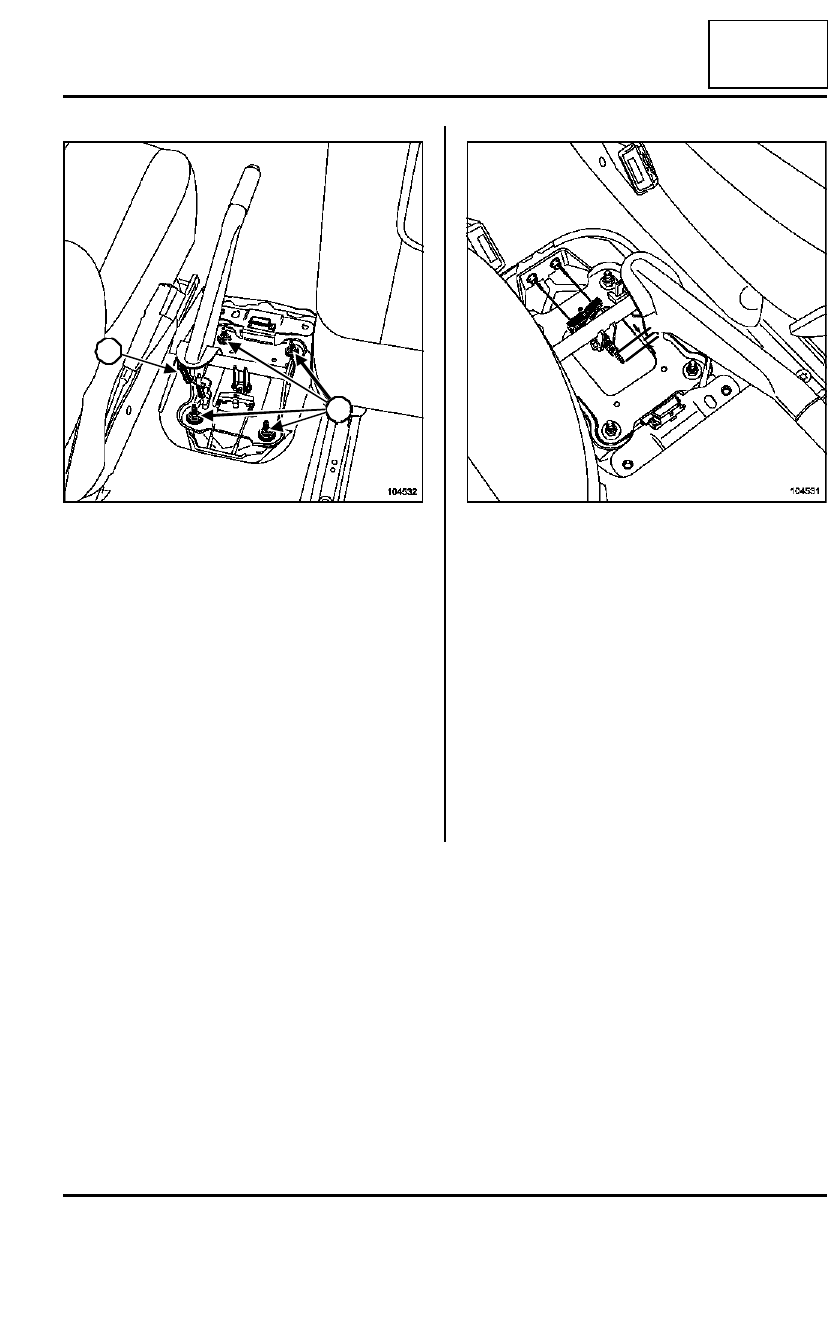

Disconnect the parking brake lever switch connector
(5).

Remove:

- the parking brake lever mountings (6),

- the parking brake lever.

REFITTING

Refit:

- the parking brake lever,

- the parking brake lever mountings.

Tighten to torque the parking brake lever moun-
tings (0.8 daNm).

Reconnect the parking brake lever switch connector.

Tighten the adjusting nut so that dimension (X)
equals 17 mm.

Tighten the adjusting nut so that the brake pads are
rubbing lightly against the brake discs.

Check the parking brake lever stroke.

Refit:

- the centre console,

- the centre console mountings,

- the centre console carpet.

Tighten to torque the centre console mountings
(0.2 daNm).

104532

6

6

5

104531

X

37A

-

34

MECHANICAL COMPONENT CONTROLS

Emergency brake assistance

37A

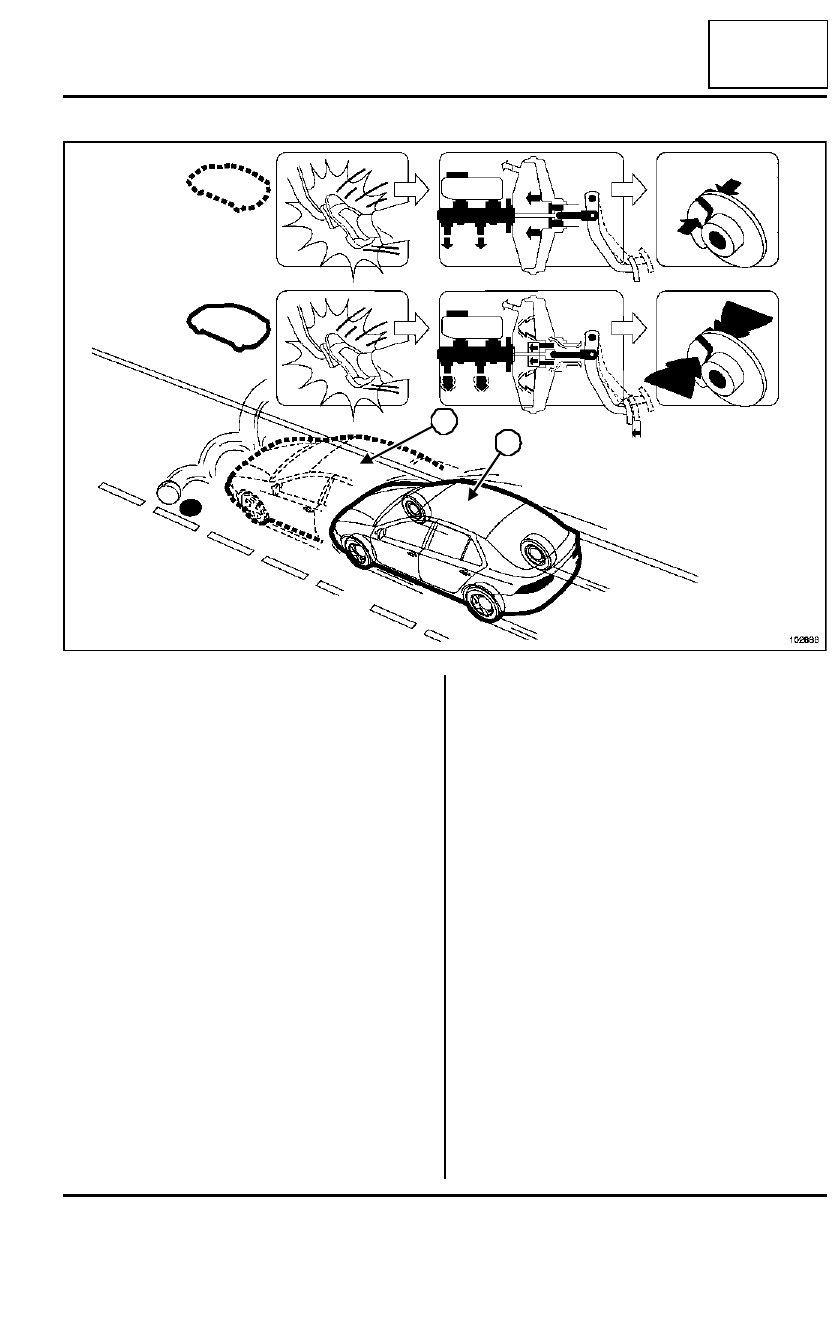

Emergency brake assist is a system which supple-
ments ABS.

OPERATING PRINCIPLE

Emergency brake assist enables the system to recogni-
se the situation and act immediately to provide the best
possible stopping distance.

Emergency braking is calculated according how quickly
the brake pedal is fully depressed; in this situation, bra-
king assistance instantaneously reaches maximum
power.

The system works conditionally for current braking sys-
tems.

The emergency brake assist is a mechanical system
built into the brake servo and completely independent
of any electronic component.

The brake servo is fitted with a magnet which reacts by
locking the control unit when the pedal is depressed
sharply.

102886

2

1

(1)

Without emergency brake assist

(2)

With emergency brake assist
