Renault Scenic 3 Chassis. Manual - part 31

37A

-

15

MECHANICAL COMPONENT CONTROLS

Brake pedal

LEFT-HAND DRIVE

37A

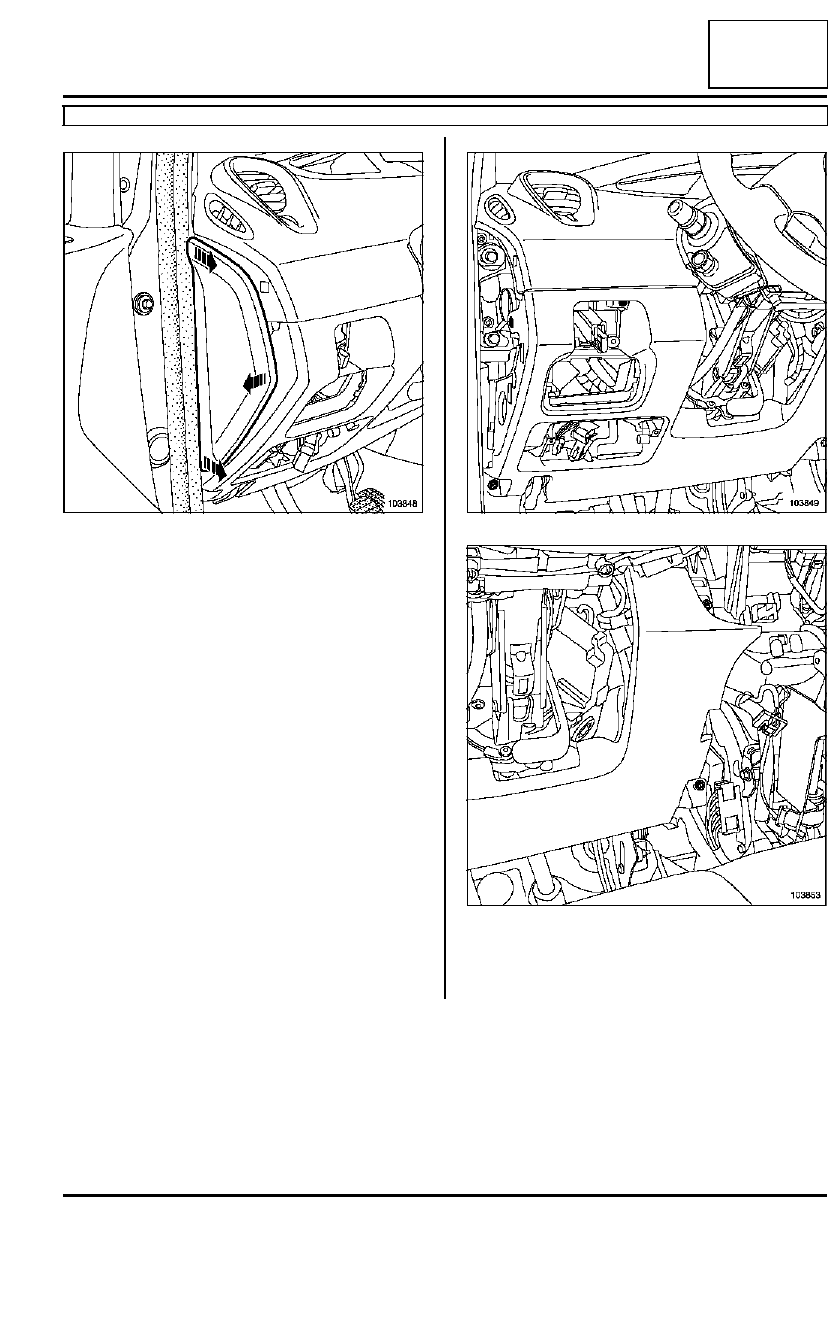

Unclip the front left-hand side panel.

Remove:

- the dashboard lower section mounting bolts,

- the lower section of the dashboard,

103848

103849

103853

37A

-

16

MECHANICAL COMPONENT CONTROLS

Brake pedal

LEFT-HAND DRIVE

37A

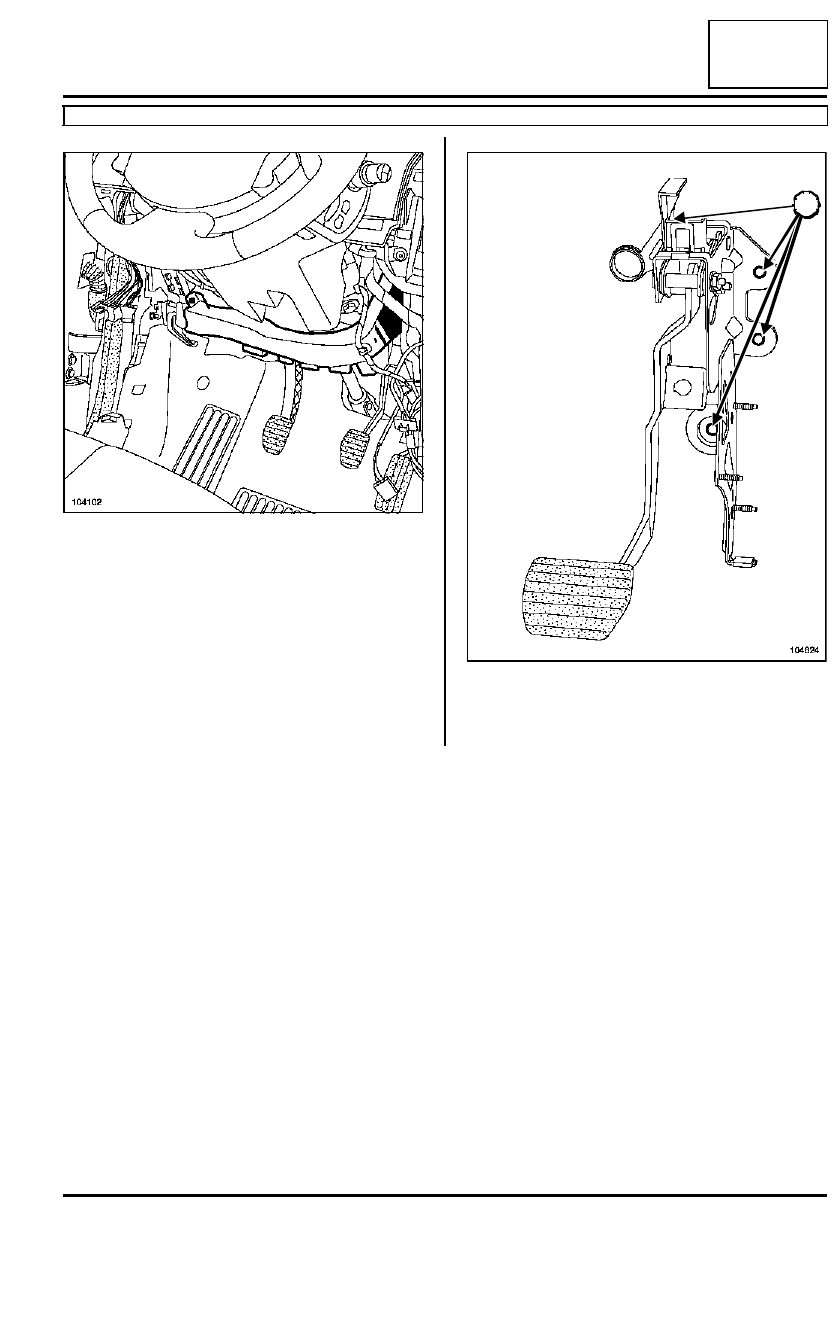

Remove:

- the air duct ,

- the linkage connecting the « brake pedal - bellcrank

rod ».

Disconnect the potentiometer from the accelerator
pedal.

Disconnect the brake light switch.

Turn the brake pedal brake light switch anticlockwise
a quarter of a turn.

104102

104824

19

18

37A

-

17

MECHANICAL COMPONENT CONTROLS

Brake pedal

LEFT-HAND DRIVE

37A

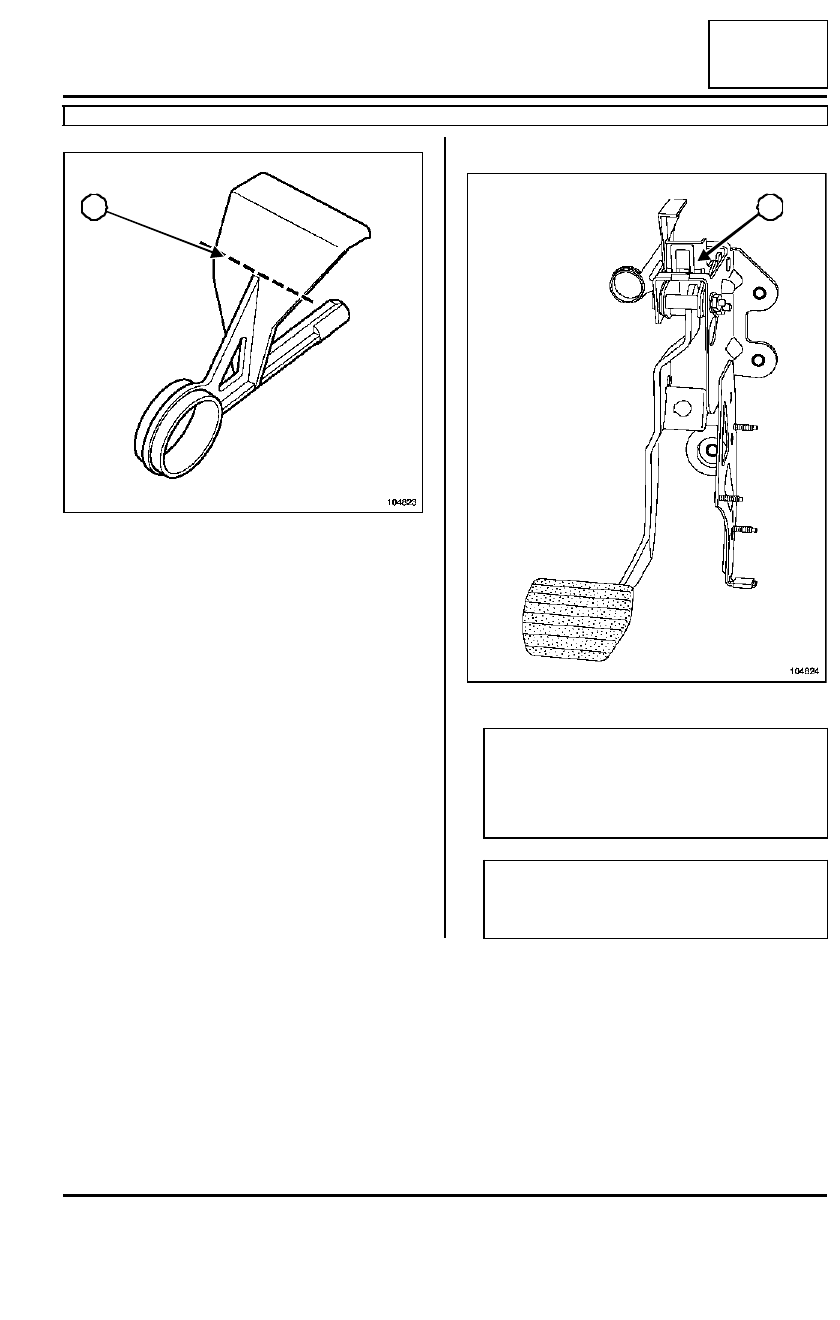

Cut the pin (19).

Insert the pin (Fre. 1752)moving from left to right
(when not replacing the pedal).

Remove:

- the brake pedal yoke mounting nuts (18),

- the « brake pedal - accelerator pedal »assembly,

- the accelerator pedal mounting nuts,

- the accelerator pedal.

REFITTING

104823

19

104824

IMPORTANT

The pedal is fitted with an unlocking system in the
event an impact. Do not strike the pedal system
(20) (this could inadvertently fully depress the
pedal).

Note

- Do not remove the pin before refitting and tigh-

tening the pedal assembly.

20

37A

-

18

MECHANICAL COMPONENT CONTROLS

Brake pedal

LEFT-HAND DRIVE

37A

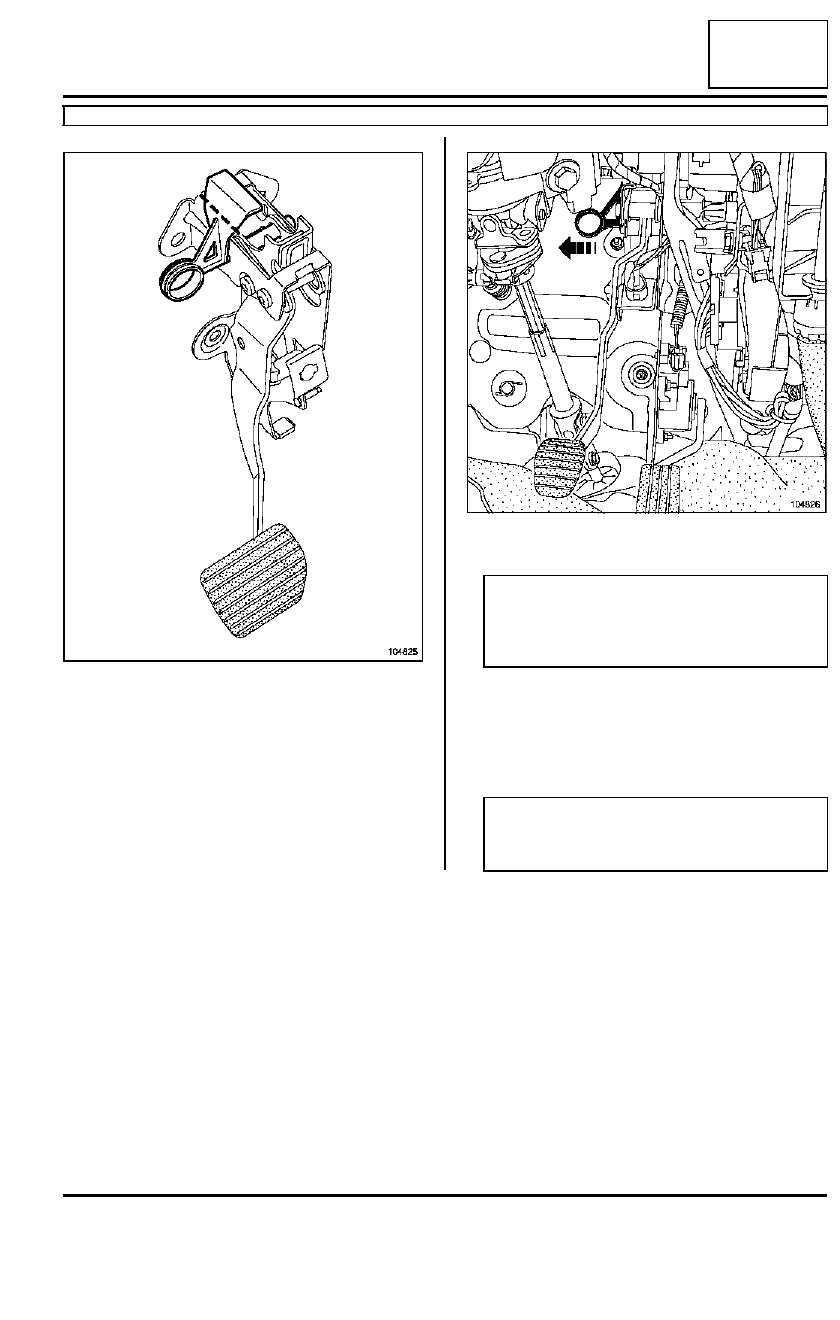

Cut the pin along the dotted line.

Proceed in the reverse order to removal.

Torque tighten the mounting nuts on the brake pe-
dal fork (21 N.m).

Remove the pin from the pedal.

Adjust the brake pedal position switch (see 37A, Me-
chanical Component Controls, Brake Light
Switch).

Connect the battery, starting with the positive termi-
nal.

104825

104826

IMPORTANT

Check  that the connecting piece between the
brake servo pushrod and the brake pedal is loc-
ked in place.

WARNING

Carry out the necessary programming (see 80A,
Battery: Remove and Refit).
