Renault Scenic 3 Chassis. Manual - part 30





37A

-

11

MECHANICAL COMPONENT CONTROLS

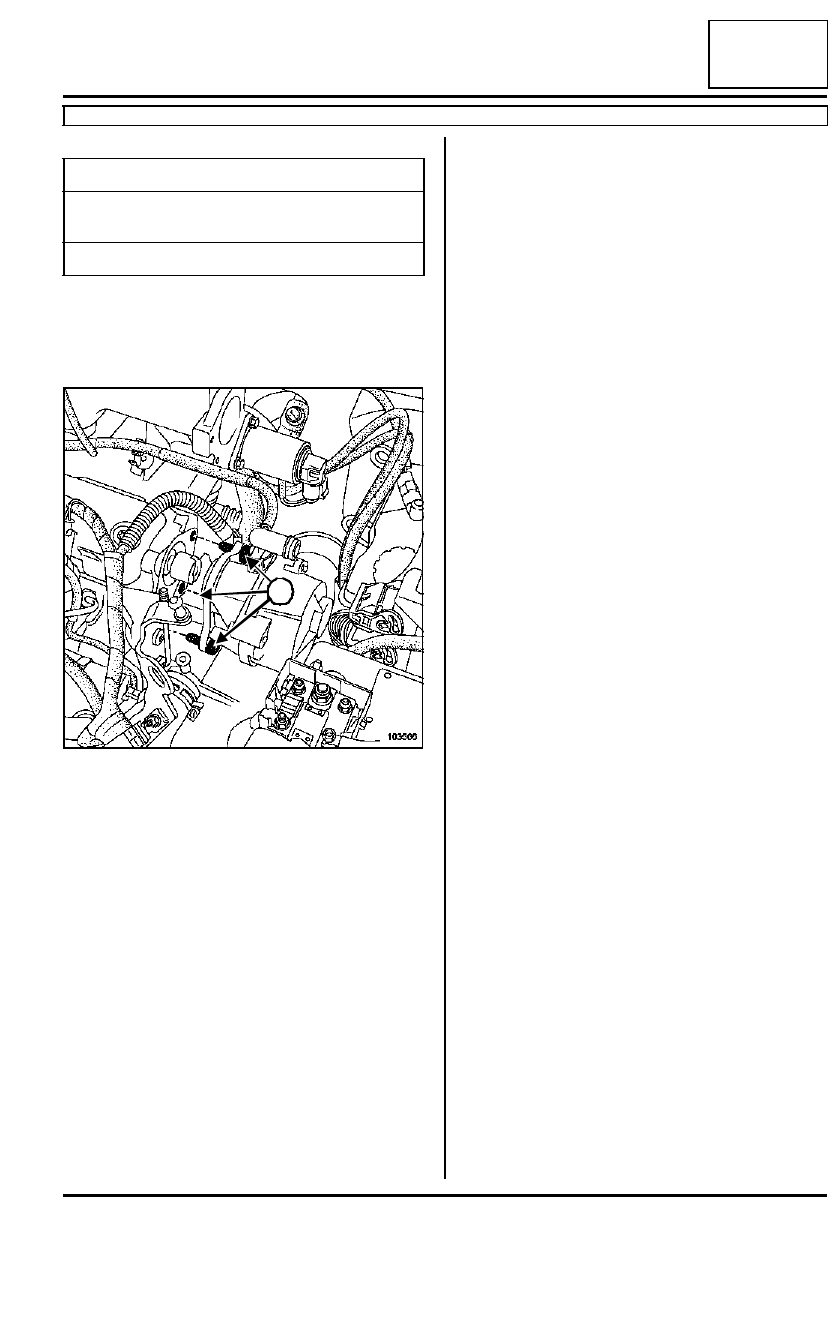

Vacuum pump

F9Q

37A

REMOVAL

Remove the engine covers.

Remove:

- the inlet tract mounting bolts,

- the inlet tract,

- the hose connected to the brake servo,

- the vacuum pump mounting bolts (1),

- the vacuum pump.

REFITTING

Proceed in the reverse order to removal.

Torque tighten:

- the vacuum pump mounting bolts  (2.1 daNm),

- the inlet tract mounting bolts (0.8 daNm).

Tightening torques

m

vacuum pump mounting
bolts

2.1 daNm

inlet tract mounting bolts

0.8 daNm

103566

1

1

37A

-

12

MECHANICAL COMPONENT CONTROLS

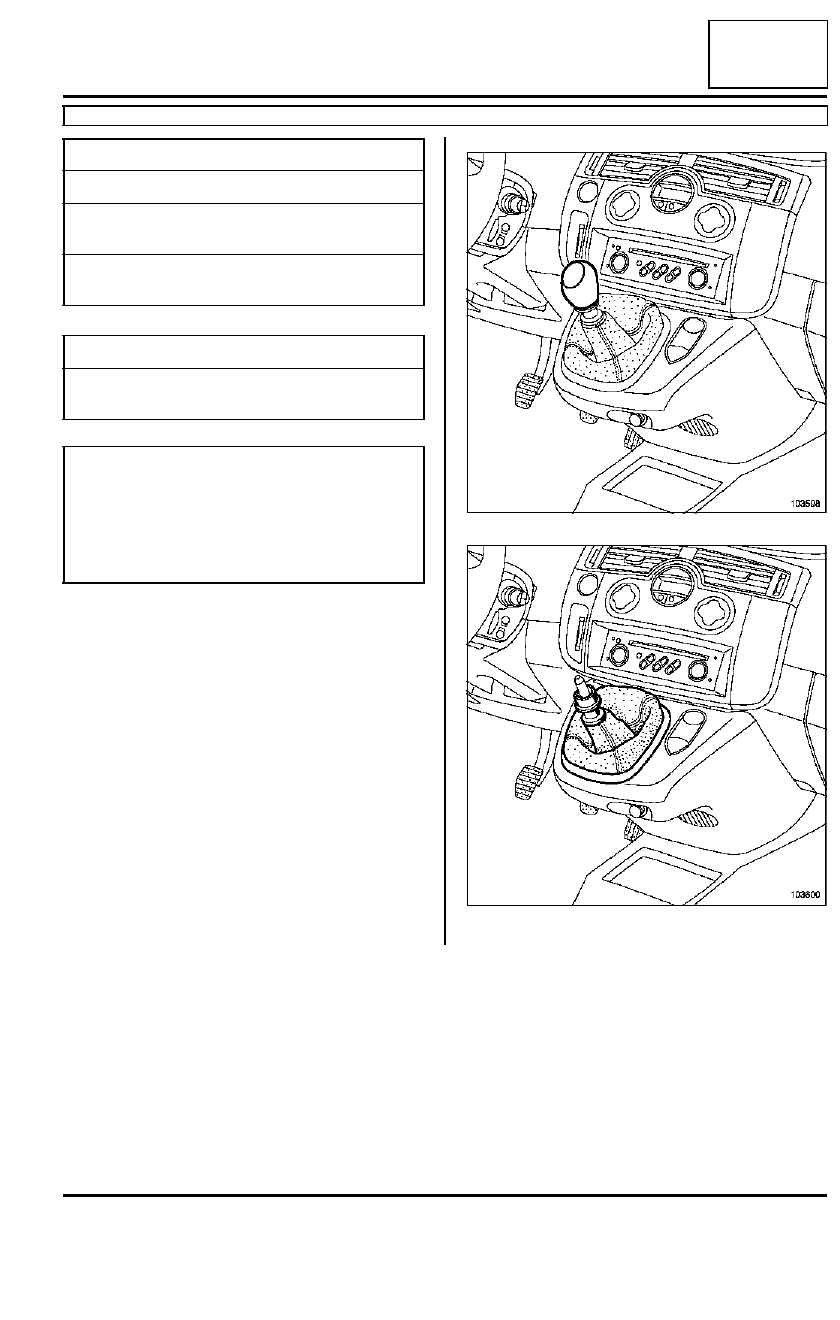

Brake pedal

LEFT-HAND DRIVE

37A

REMOVAL

Disconnect the battery, starting with the negative ter-
minal.

Unclip the « knob - gear lever gaiter » assembly.

Special tooling required

Fre. 1752

Safety pin

Ms. 1373

Philips radio removal
tool

Ms. 1639

Tool for removing radio
- CD player

Tightening torques

m

mounting nuts on the
brake pedal fork

21 N.m

WARNING

When the brake pedal is replaced, the pedal is sup-
plied fitted with a pin.(Fre. 1752).

To remove/refit (without replacing the brake pedal),
always  fit the pin (Fre.  1752)  during the remove/
refit.

103598

103600

37A

-

13

MECHANICAL COMPONENT CONTROLS

Brake pedal

LEFT-HAND DRIVE

37A

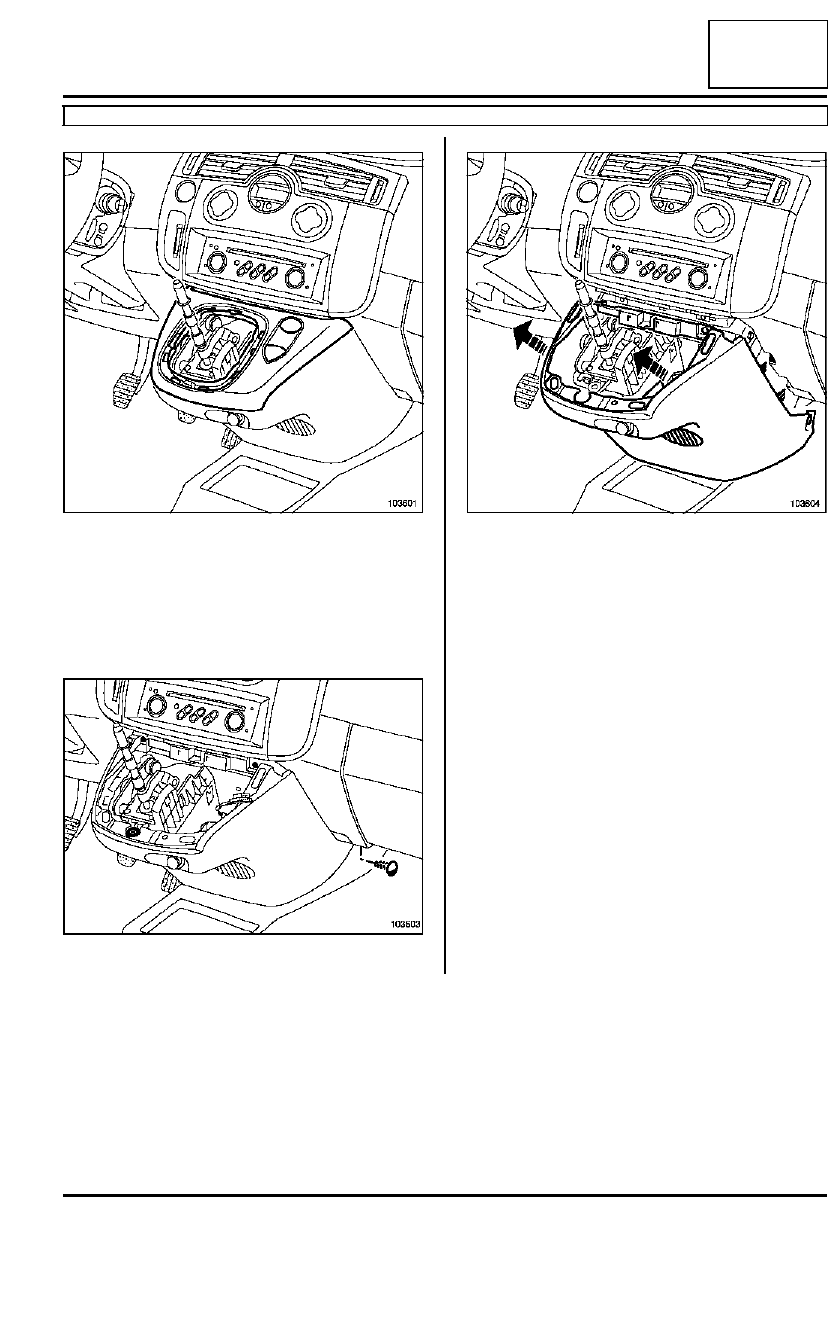

Unclip the gear lever upper trim.

Disconnect:

- the hazard warning lights switch connector,

- the cigarette lighter connector,

- the voice synthesiser speaker connector.

Remove the gear lever lower trim strips.

Remove:

- the gear lever lower trim,

- the radio using tool (Ms. 1373) and tool (Ms. 1639),

- the air conditioning control panel face.

103601

103603

103604

37A

-

14

MECHANICAL COMPONENT CONTROLS

Brake pedal

LEFT-HAND DRIVE

37A

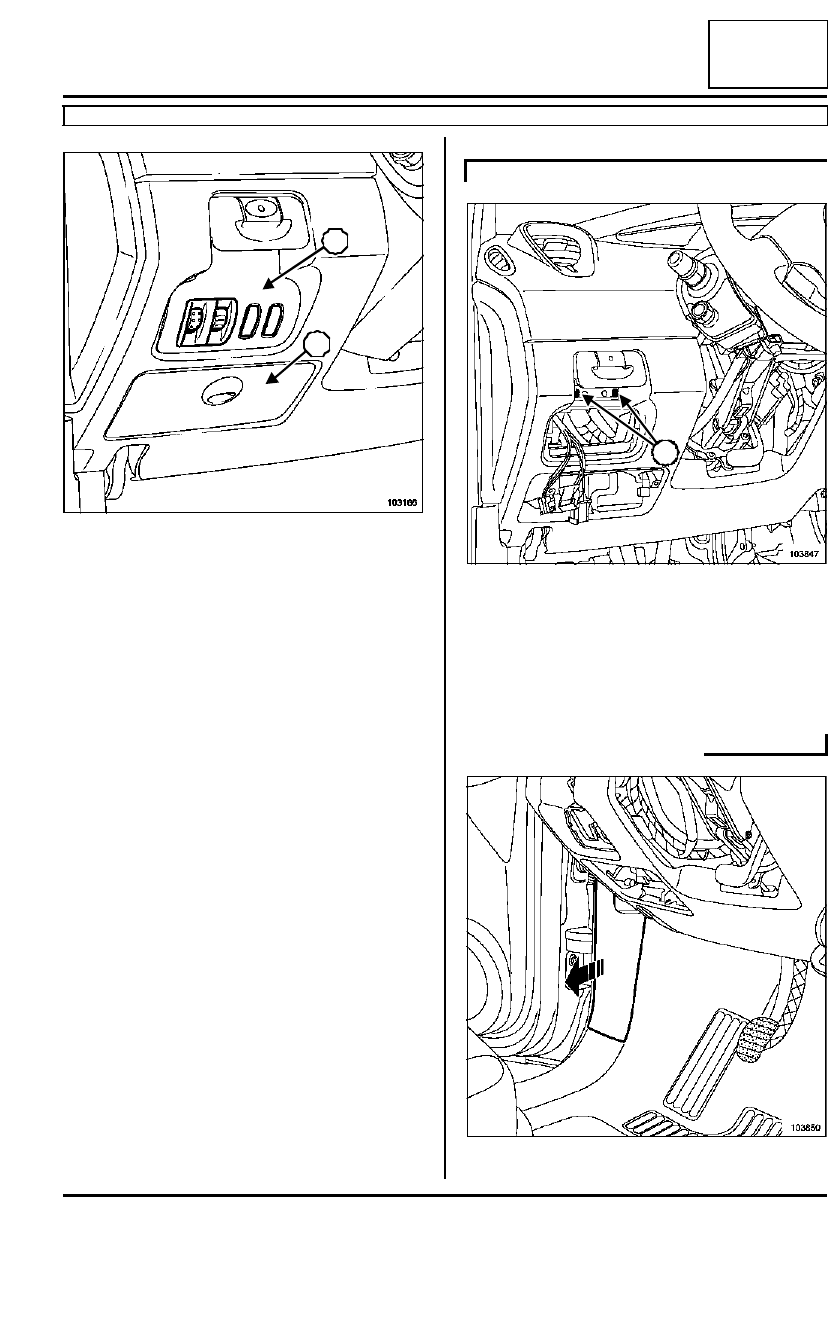

Unclip:

- the glovebox (15),

- the remote adjustment control (16) via the rear (see

80B, Headlight, Beam Adjustment Control and
Lighting Dimmer Control).

Disconnect the remote adjustment control connec-
tors.

Remove the automatic parking brake catch moun-
ting bolts (17).

Disconnect the automatic parking brake control con-
nector.

Remove the catch.

Unclip the left A-pillar trim.

103166

15

16

AUTOMATIC PARKING BRAKE

103847

103850

17
