Renault Scenic 3 Chassis. Manual - part 4

30A

-

9

GENERAL VEHICLE INFORMATION

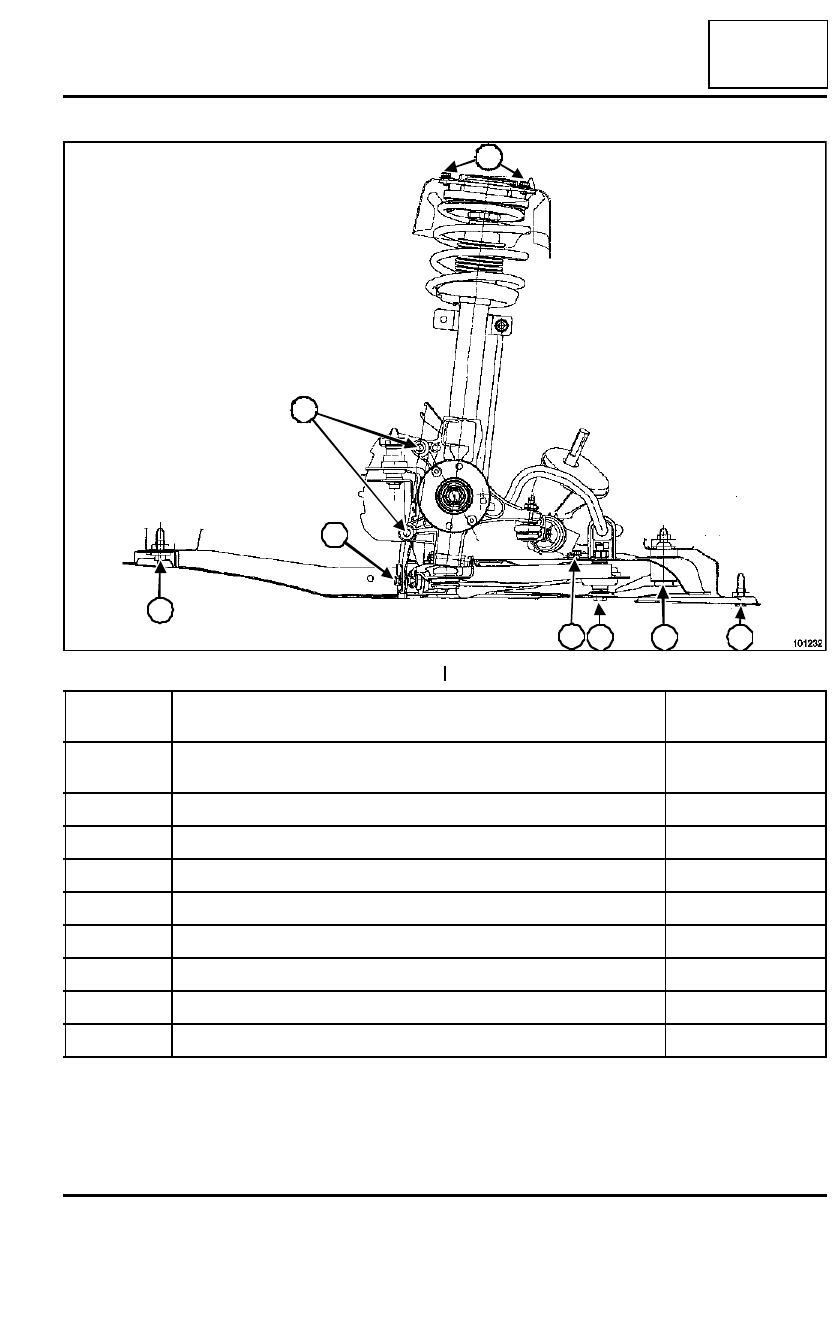

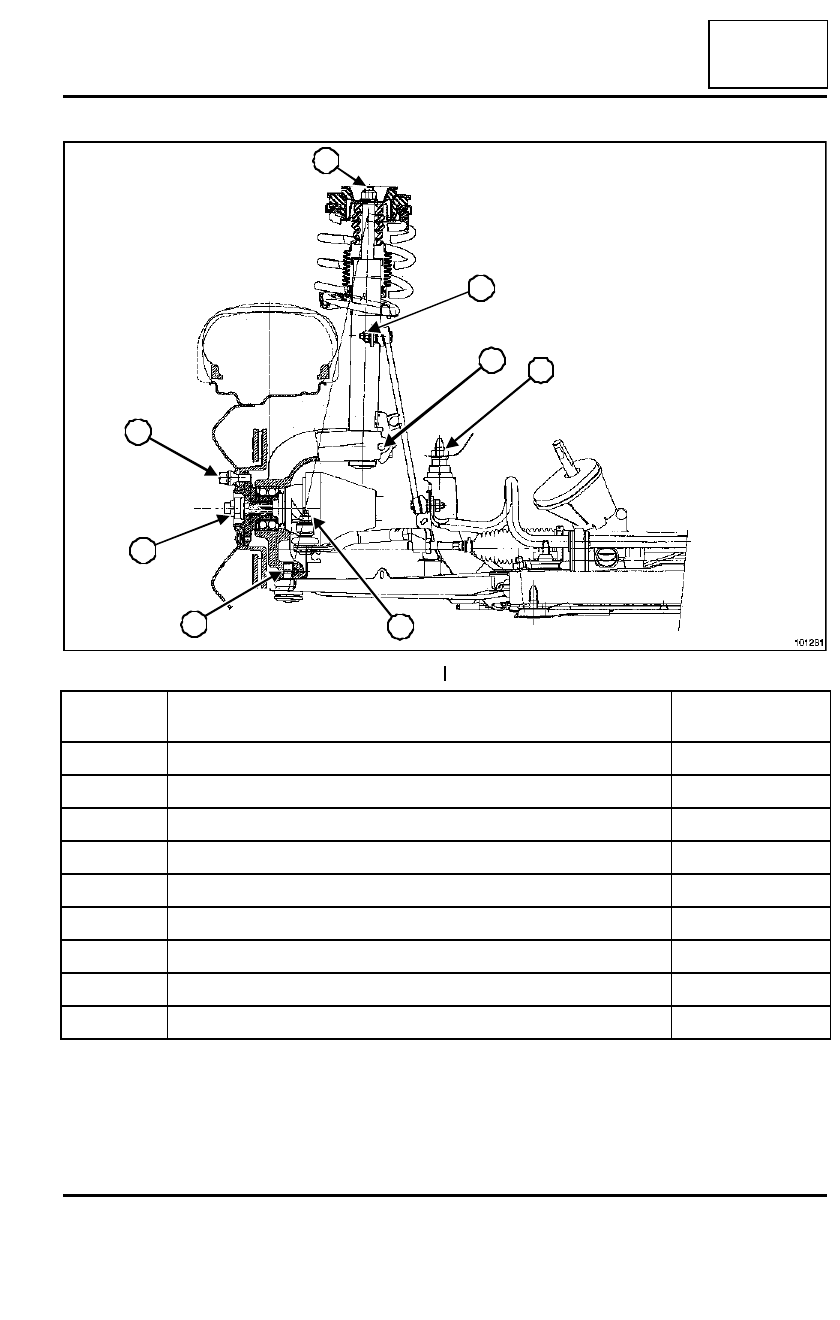

Tightening torques (in daNm) for the front axle

30A

101232

3

2

1

7

6

8

5

4

Key

Description

Tightening torques
(daNm)

(1)

Bolt for mounting the « spr ing / shock absorber » assembly onto the
body

2.1

(2)

Lower arm bolt

7

(3)

Sub-frame block bolt

10.5

(4)

Rear cross member bolt

6.2

(5)

Anti-roll bar mounting bolt on the sub-frame

2.1

(6)

Radiator cross member front mounting bolt

10.5

(7)

Calliper mounting bolt

10.5

(8)

Radiator cross member rear mounting nut

2.1

Steering rack mounting bolt on the sub-frame

10.5

30A

-

10

GENERAL VEHICLE INFORMATION

Tightening torques (in daNm) for the front axle

30A

101231

9

16

15

14

13

12

11

10

Key

Description

Tightening torques
(daNm)

(9)

Shock absorber nut

6.2

(10)

Anti-roll bar tie-rod ball joint nut

4.4

(11)

Shock absorber base bolt

10.5

(12)

Sub-frame tie-rod bolt

10.5

(13)

Lower arm ball joint bolt

6

(14)

Driveshaft nut

28

(15)

Wheel bolt

13

(16)

Track rod end nut

3.7

Side reinforcement mounting bolt on the radiator cross member

2.1

30A

-

11

GENERAL VEHICLE INFORMATION

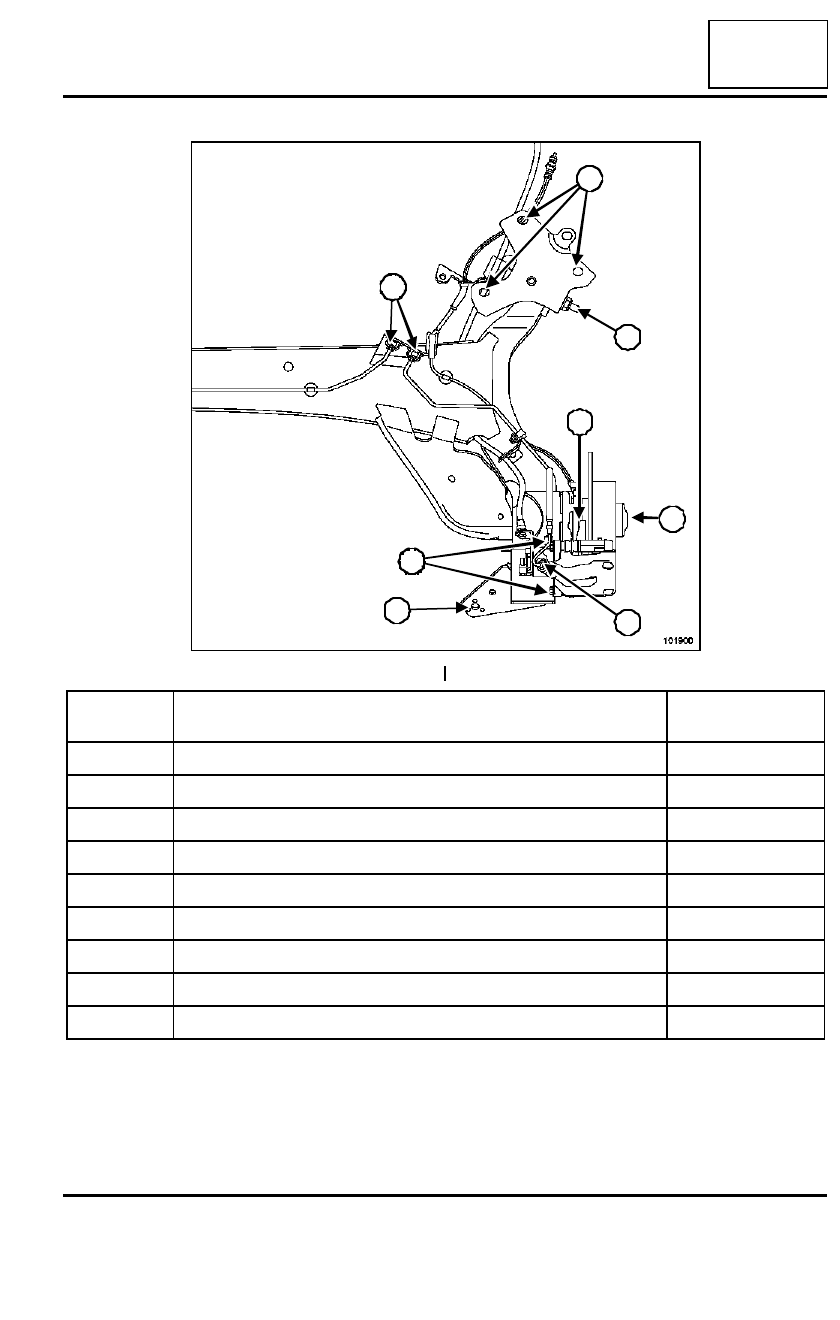

Tightening torques (in daNm) for the rear axle

30A

101900

7

5

2

1

3

4

4

6

6

Key

Description

Tightening torques
(daNm)

(1)

Stub-axle nut

22

(2)

Calliper mounting bolt

10.5

(3)

Pillar bolt

3.6

(4)

Bearing mounting bolt

6.2

(5)

Shock absorber lower mounting bolt

10.5

Shock absorber upper mounting bolt

6.2

(6)

Brake pipe nut

1.4

(7)

Bearing and rear axle mounting bolt nut

12.5

Mounting bolt on guard beneath rear axle

0.8

30A

-

12

GENERAL VEHICLE INFORMATION

Tightening torques (in daNm) of the braking system

30A

I - FRONT AND REAR BRAKES

II - BRAKE CONTROL

Description

Tightening

torque

(daNm)

Front calliper bleed screw

0.65

Rear calliper bleed screw

1

Front calliper inlet brake hose

1.7

Rear calliper inlet brake hose

1.4

Brake hose on brake pipe

1.4

Front brake guide pin bolt

3.2

Calliper support bolt

10.5

Rear brake guide pin bolt

3.6

Brake disc mounting bolt

1.5

Description

Tightening

torque

(daNm)

Brake servo mounting bolts

2.1

Master cylinder mounting nuts

5

Master cylinder outlet pipe

1.4

Hydraulic unit mounting bolt

0.8

Hydraulic unit pipe unions

1.4

Parking brake control mounting
nuts

0.8

Hydraulic unit support - vehicle
body mounting bolts

6.5
