Renault Scenic 3 Chassis. Manual - part 3





30A

-

5

GENERAL VEHICLE INFORMATION

Braking circuit bleed

30A

Precautions to be taken during the braking circuit blee-
ding operation:

- Check the brake fluid levels of the brake circuit and

the bleeding device.

- The braking regulation circuit must not have any hy-

draulic or electrical faults.

I - BLEEDING THE BRAKE CIRCUIT OUTSIDE THE
CONTROL CIRCUIT

This procedure should be used after one of the fol-
lowing components has been removed or replaced:

- the master cylinder,

- the brake fluid,

- the hydraulic unit (new and pre-filled),

- a rigid pipe,

- a hose,

- the reservoir,

- a calliper.

Put the vehicle on a two-post lift.

Connect the bleeding device to the vehicle brake
fluid reservoir (refer to the driver's handbook).

Fit the bleed reservoirs to the bleed screws.

Bleed the circuit by opening the bleed screws in the
following order (remember to close them after the
operation):

- the rear right-hand circuit,

- the front left-hand circuit,

- the rear left-hand circuit,

- the front right-hand circuit.

With the engine switched off, check the pedal travel;
if it is not correct, start the bleeding procedure again.

Top up the brake fluid level in the reservoir once the
bleeding device has been disconnected. Check the
tightness of the bleed screws and ensure that the
sealing caps are all present.

During a road test, trigger braking regulation to con-
firm that the brake pedal travel is correct. If the pedal
travel becomes incorrect during the road test, follow
the procedure for bleeding the braking regulation cir-
cuit.

II - BLEEDING THE BRAKE CONTROL CIRCUIT

This procedure can be applied after a road test with
brake regulation during which the pedal travel beco-
mes incorrect.

Put the vehicle on a two-post lift.

Referring to the equipment instructions, connect:

- tool brake circuit bleeding device (approved by

Renault) to the vehicle brake circuit,

- the Diagnostic tool.

Fit the bleed reservoirs to the bleed screws.

Bleed the regulation circuit using the Diagnostic to-
ol
.

Run command SC006 « hydraulic assembly and
brake circuits bleed »
.

Follow the instructions on the Diagnostic tool.

Disconnect the bleeding device.

Top up the brake fluid level in the reservoir.

Check the tightness of the bleed screws and ensure
that the sealing caps are all present.

During a road test, trigger braking regulation to con-
firm that the brake pedal travel is correct. If the pedal
travel becomes incorrect during the road test, follow
the procedure for bleeding the braking regulation cir-
cuit.

It is therefore possible to use a larger quantity of bra-
ke fluid than the capacity of the circuit.

Equipment required

brake circuit bleeding device (approved by Renault)

Diagnostic tool

WARNING

Special precautions to be taken during the brake
circuit bleeding operation: the vehicle ignition
must be switched off to ensure that the hydraulic
unit solenoid valves do not operate.

Note:

Depress and release the brake pedal alternately
(pumping action) throughout the bleed proce-
dure.

30A

-

6

GENERAL VEHICLE INFORMATION

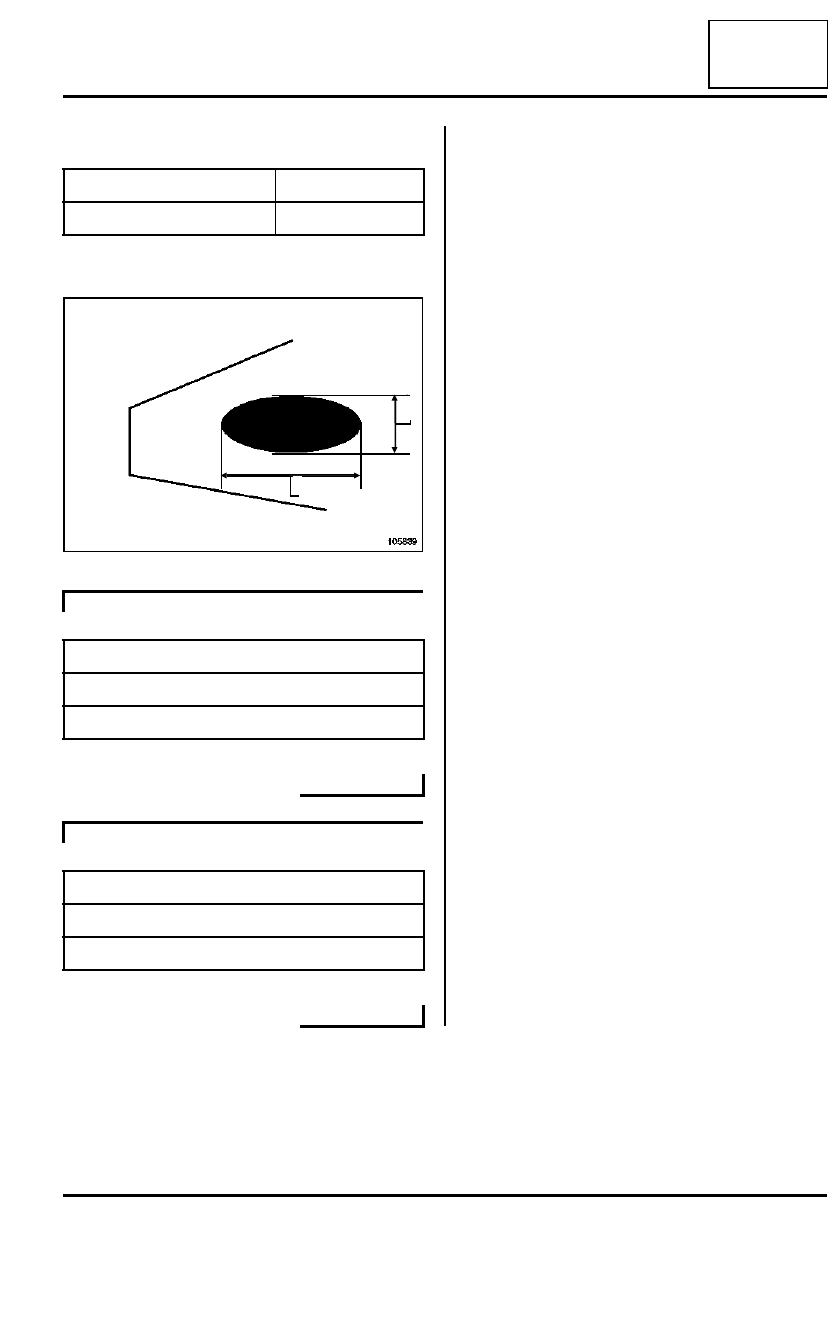

Anti-roll bars: Specifications

30A

I - FRONT AXLE

II - REAR AXLE

Bar diameter (mm)

Marking

22

Green

105839

F4R or F9Q – K9K, and DP0

Bar size (mm)

X 16.6

Y 43.9

K4J or K4M – K9K, and JR5

Bar size (mm)

X 15.7

Y 41.3

X

Y

30A

-

7

GENERAL VEHICLE INFORMATION

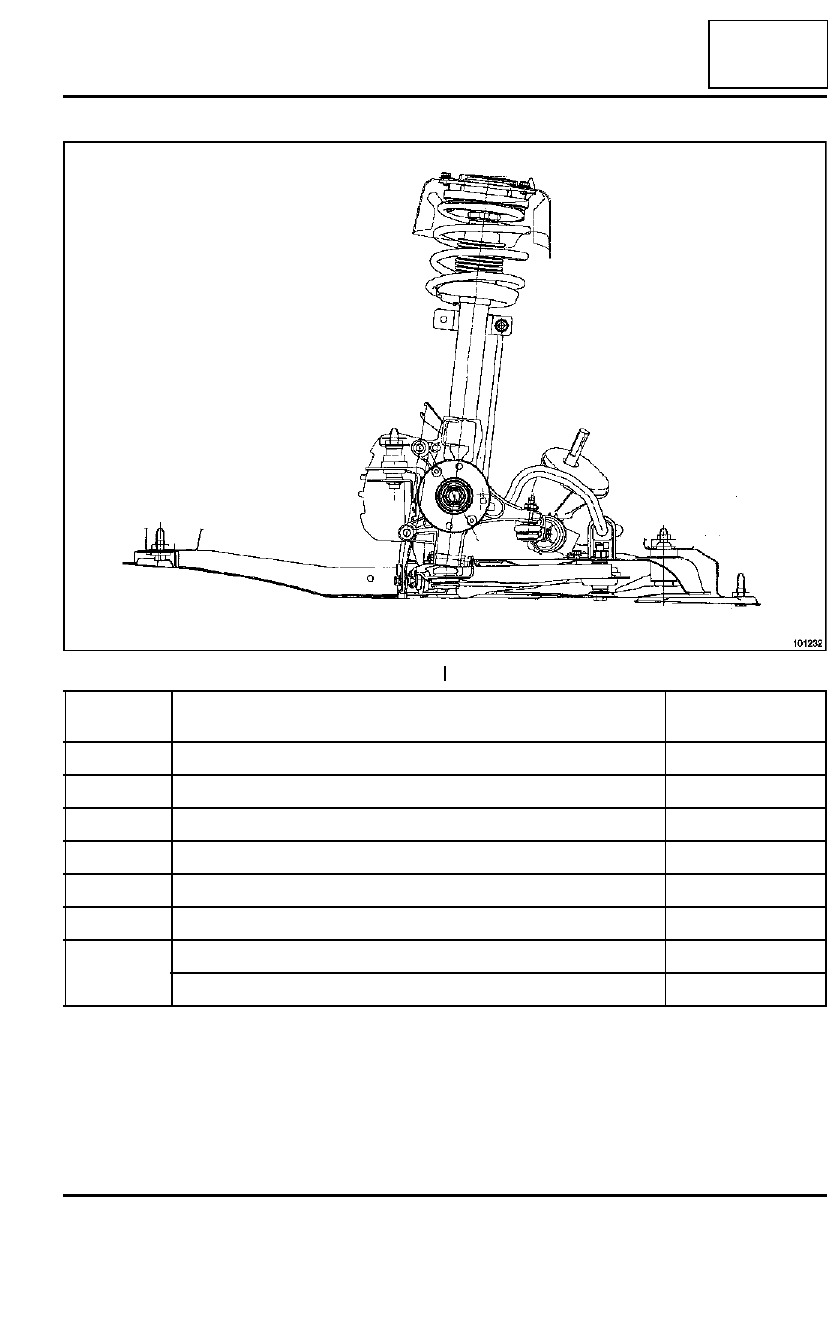

Tightening torques (in daNm) for the front axle

30A

101232

Reference

Description

Tightening torque
(daNm)

(1)

« Spring and shock absorber » assembly - body mounting bolt

2.1

(2)

Lower arm bolt

7

(3)

Sub-frame block bolt

10.5

(4)

Rear cross member bolt

6.2

(5)

Anti-roll bar - sub-frame mounting bolt

2.1

(6)

Radiator cross member front mounting bolt

10.5

(7)

Calliper support bolt

10.5

Steering rack - sub-frame mounting bolt

10.5

30A

-

8

GENERAL VEHICLE INFORMATION

Tightening torques (in daNm) for the front axle

30A

101231

Reference

Description

Tightening torque
(daNm)

(8)

Shock absorber nut

6.2

(9)

Anti-roll bar tie rod ball joint nut

4.4

(10)

Shock absorber base bolt

10.5

(11)

Sub-frame tie-rod bolt

10.5

(12)

Lower arm ball joint bolt

6

(13)

Driveshaft nut

28

(14)

Wheel bolts

11

(15)

Track rod end nut

3.7

Side stiffener - radiator cross member mounting bolt

2.1
